Energy storage - Capture Energy BESS PowerBox 500kW / 552kWh

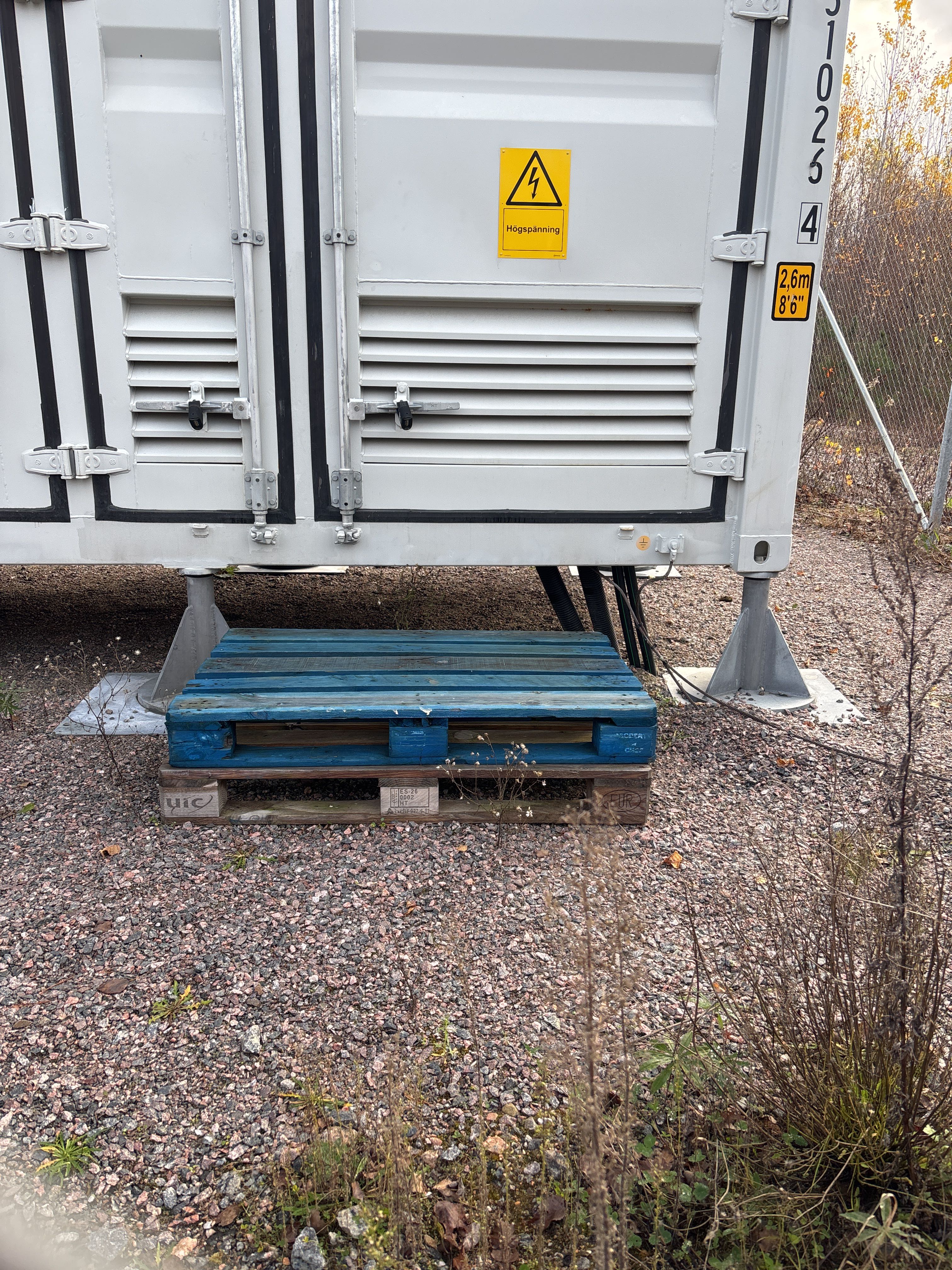

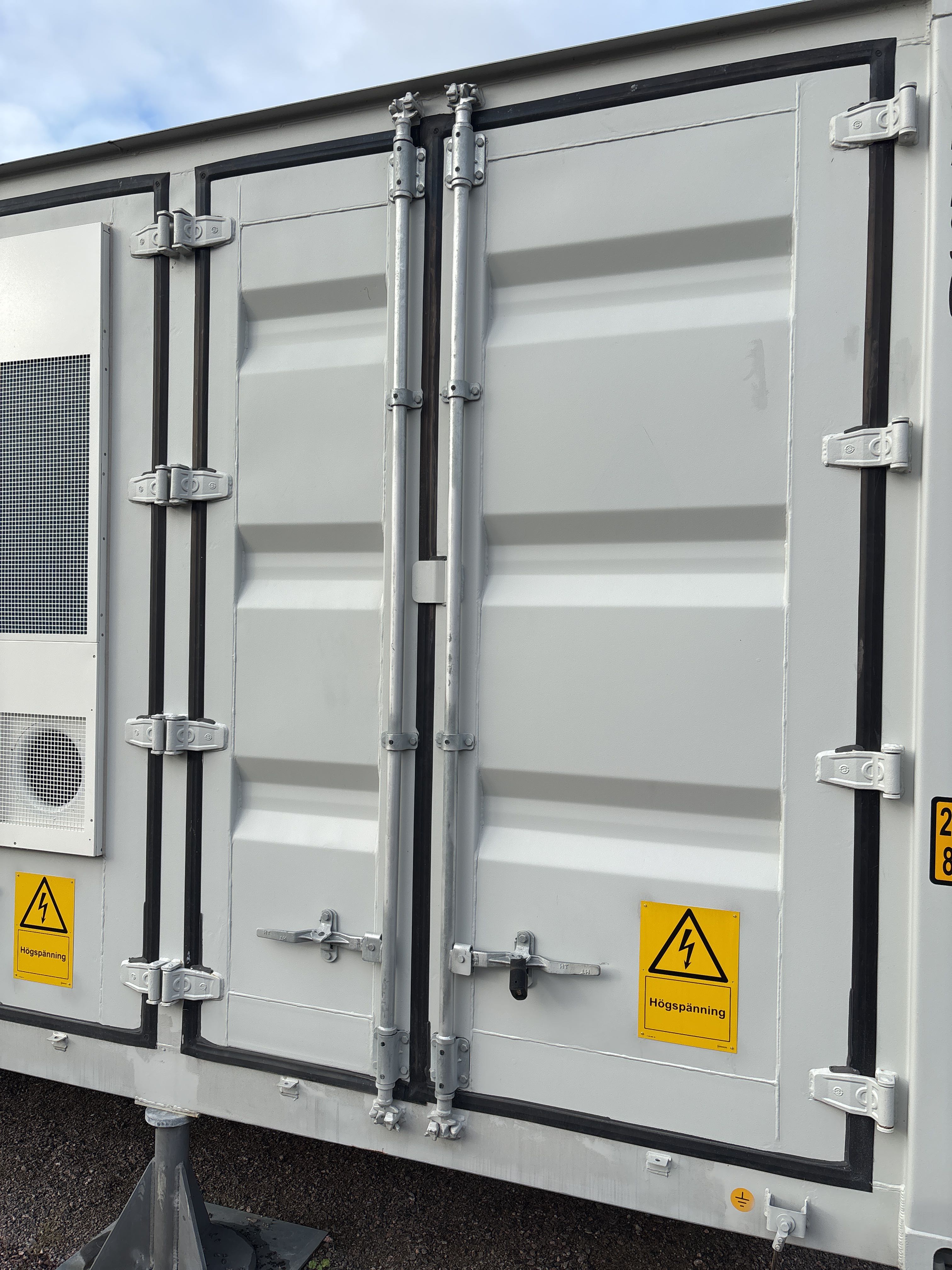

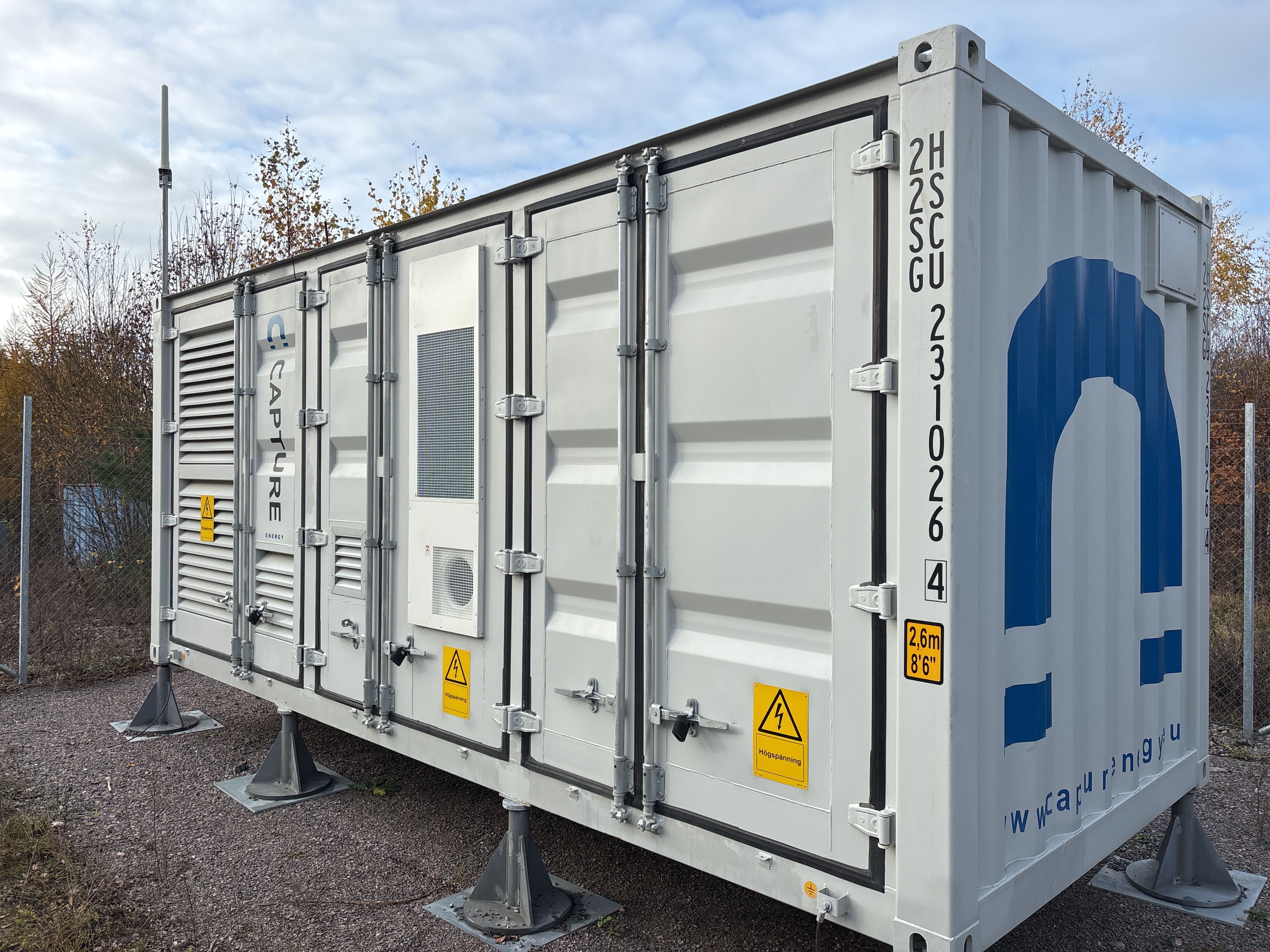

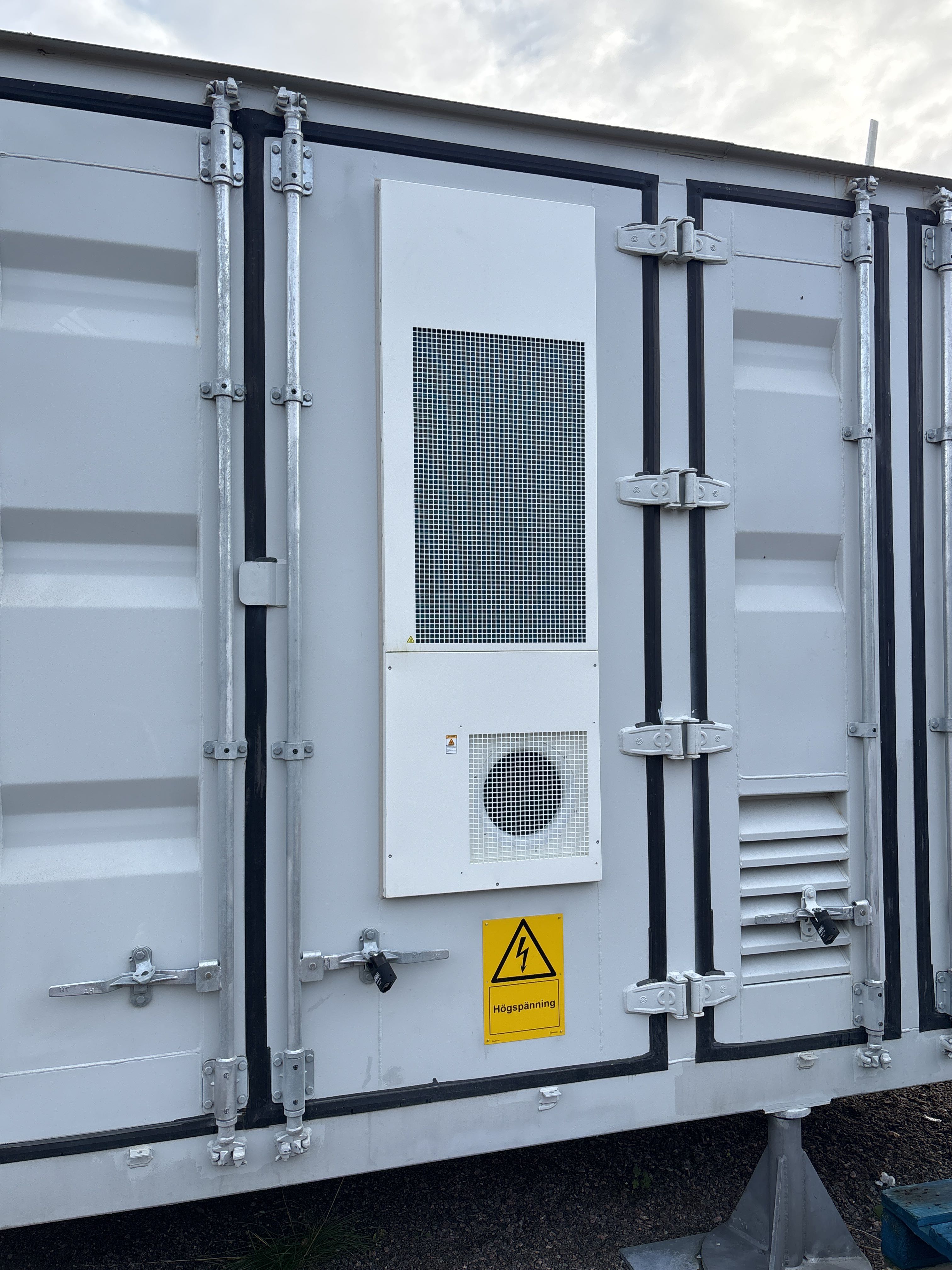

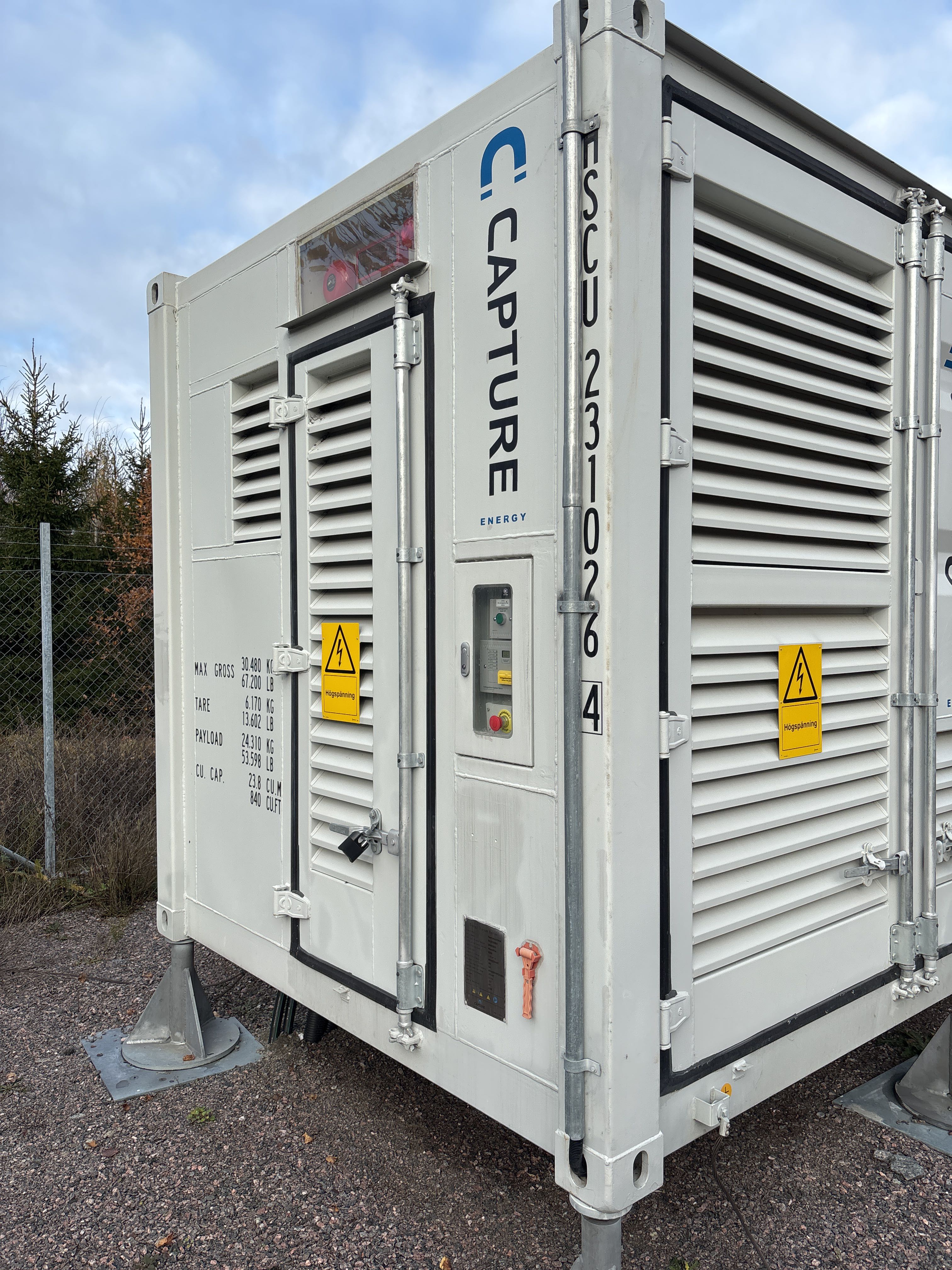

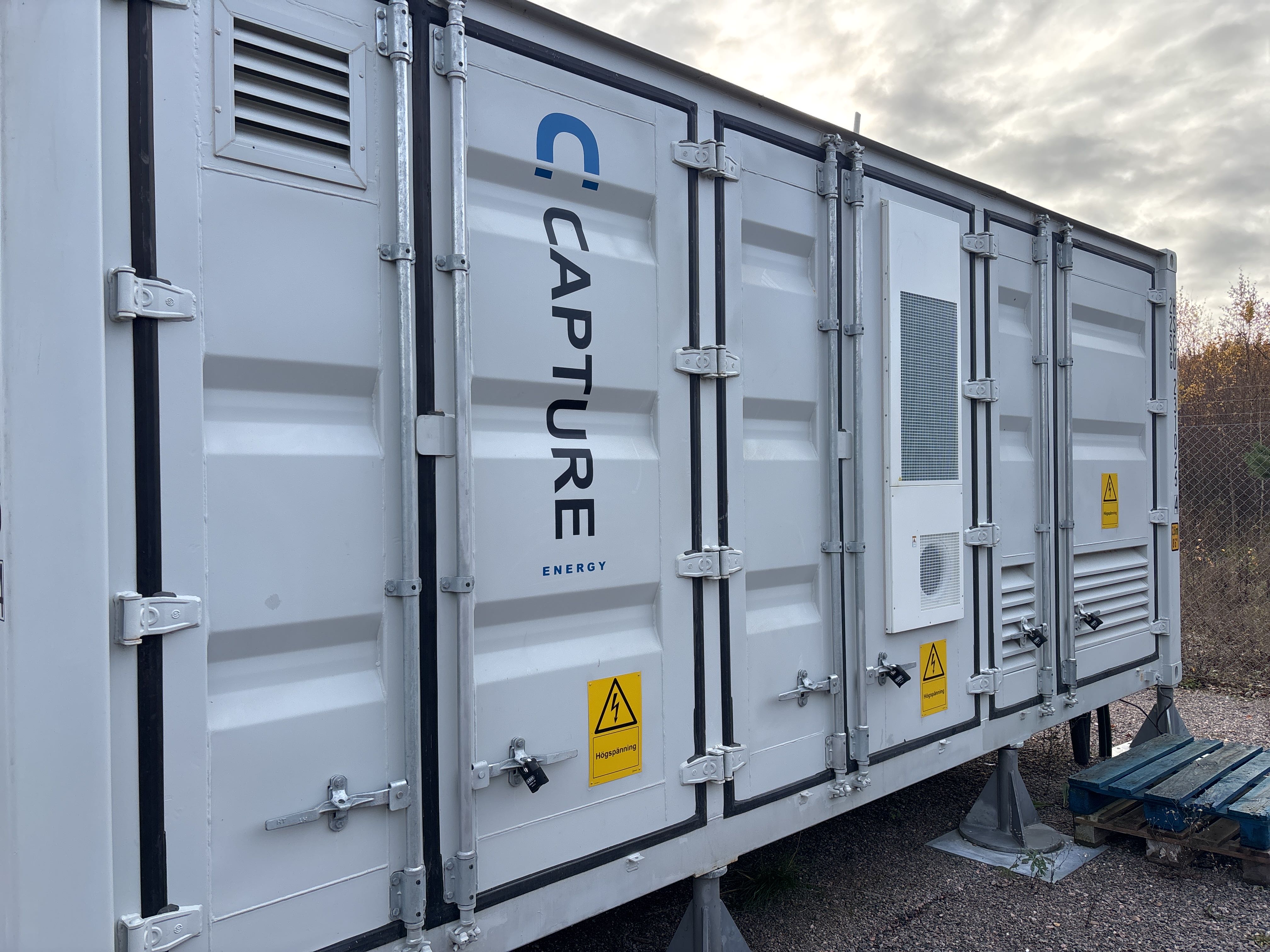

Energy storage system in container design

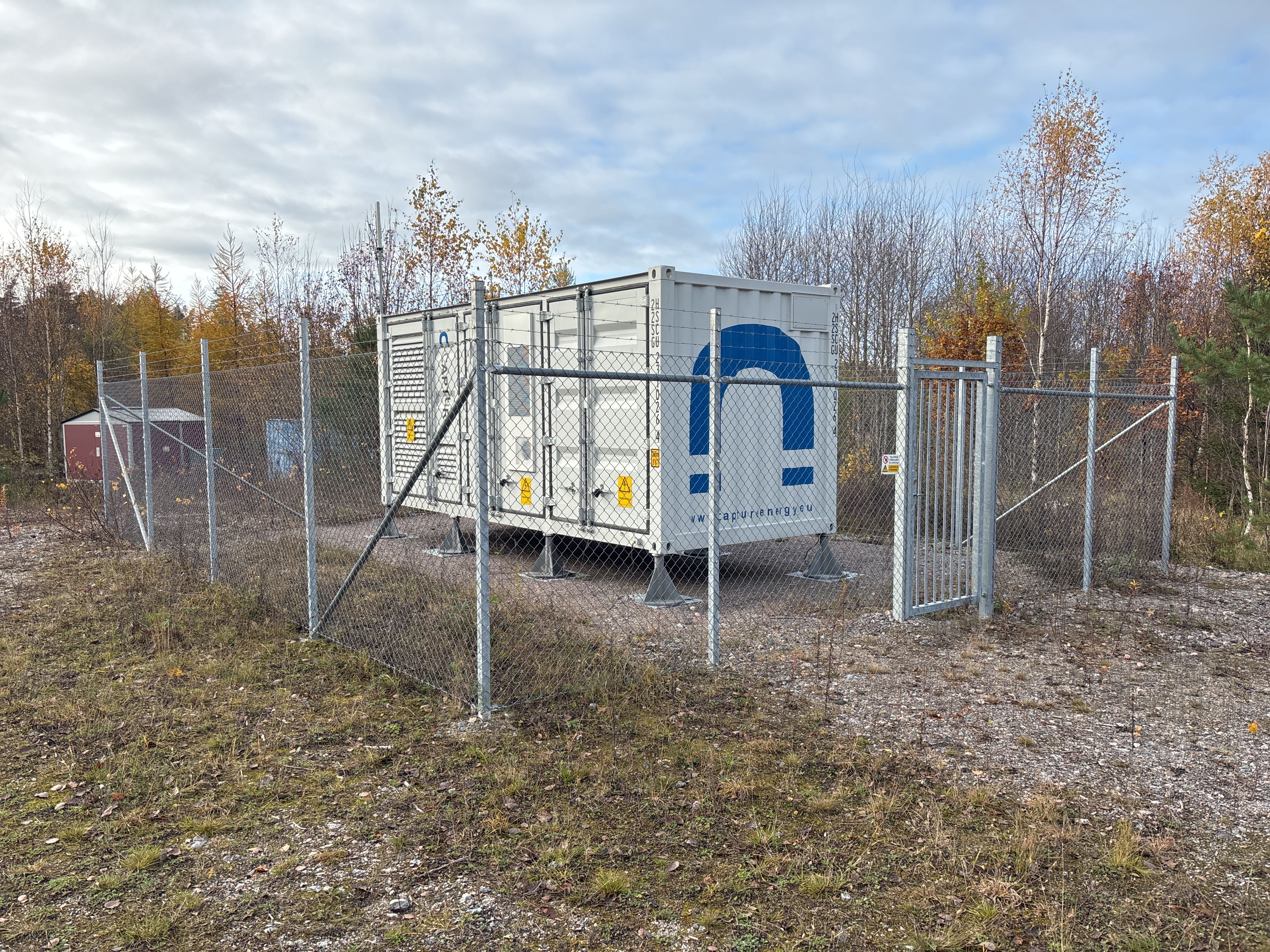

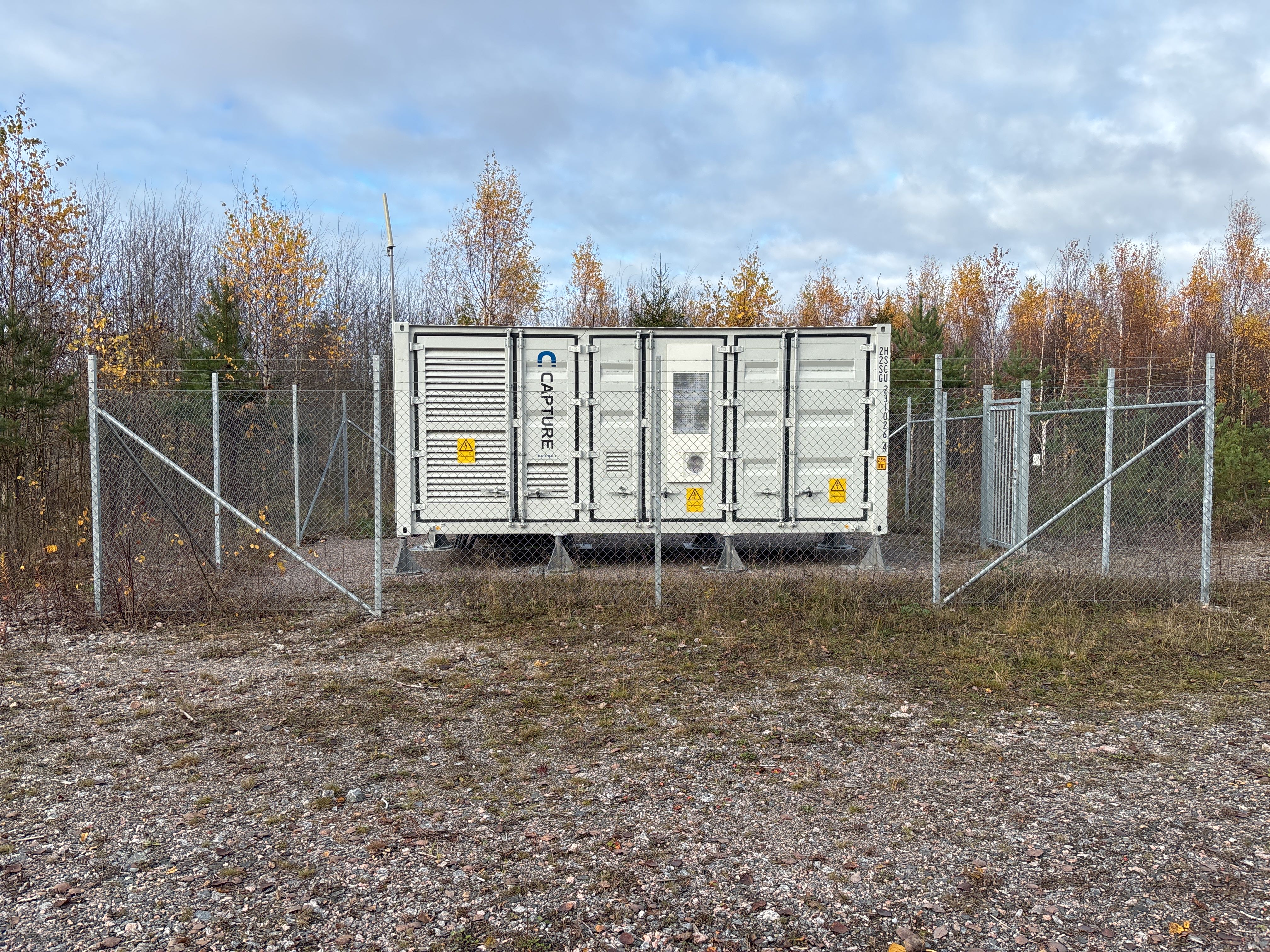

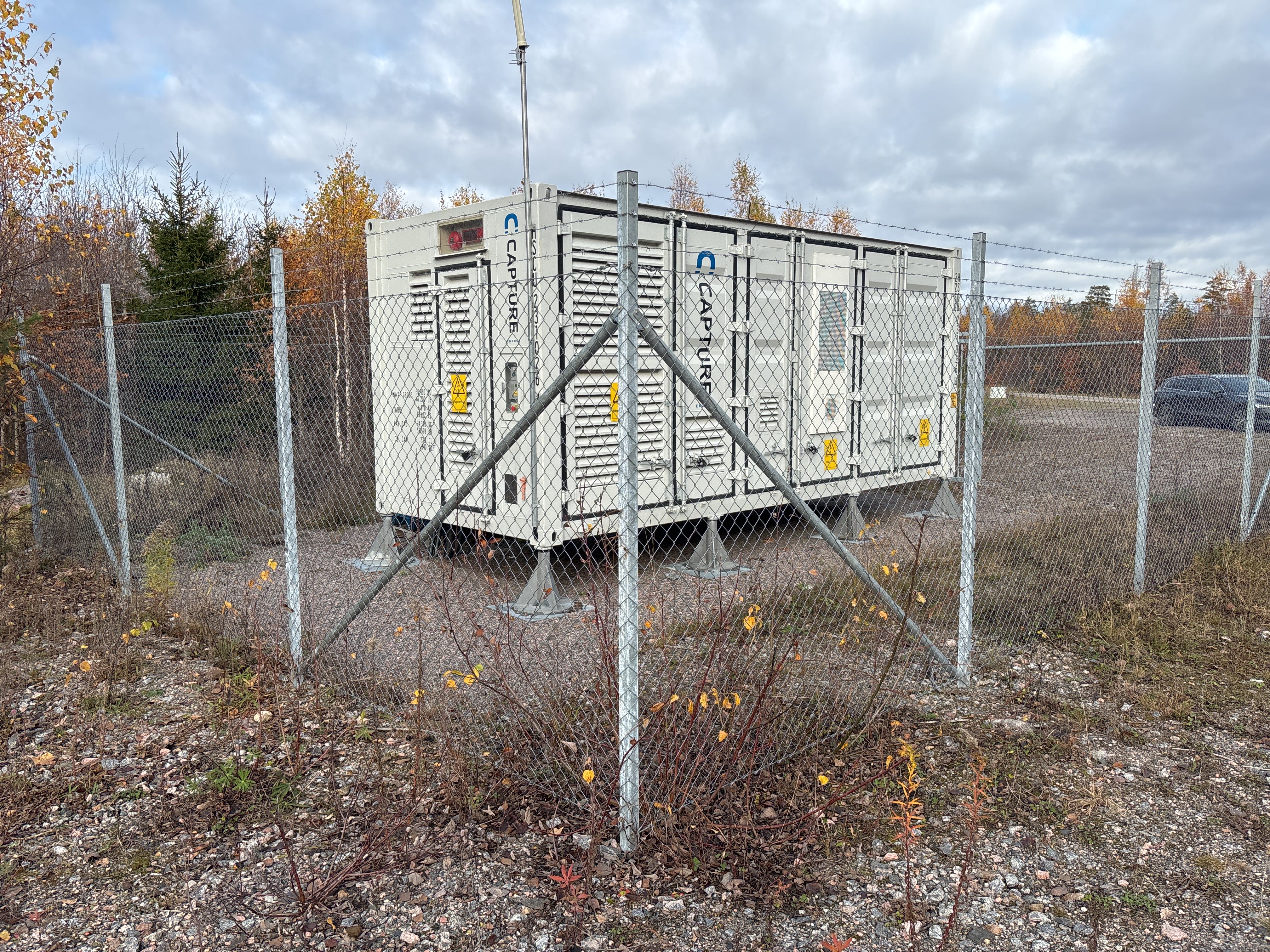

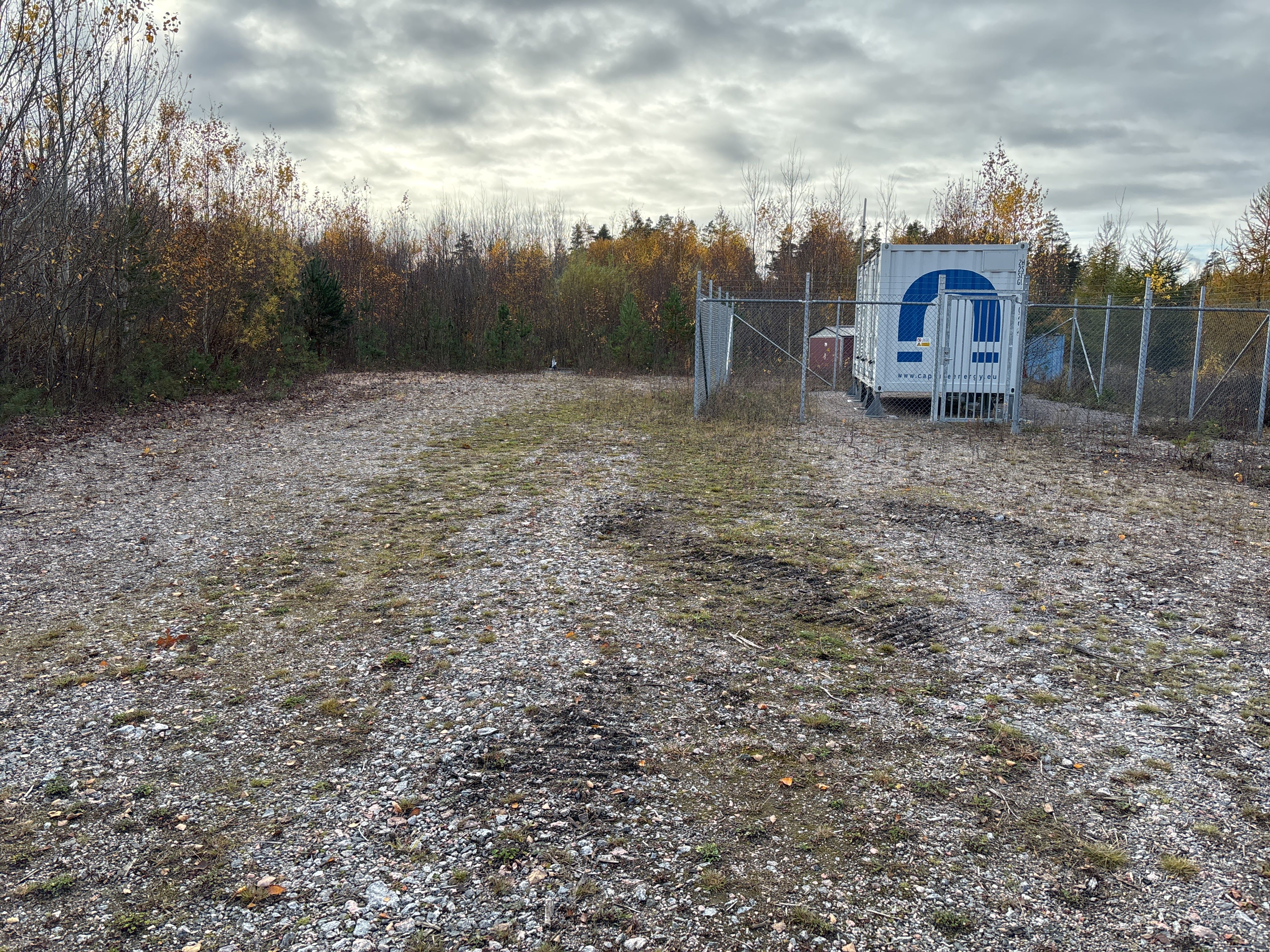

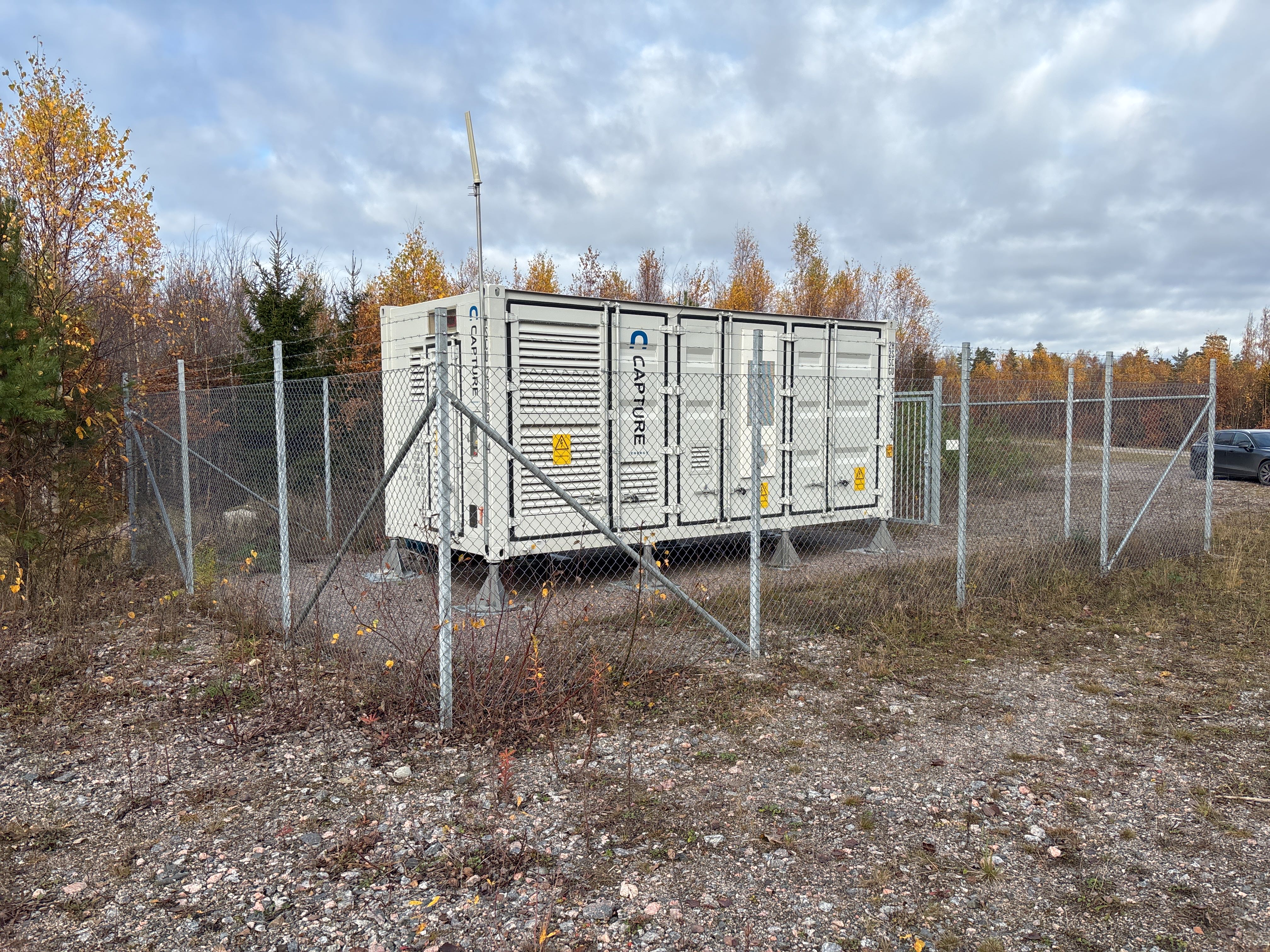

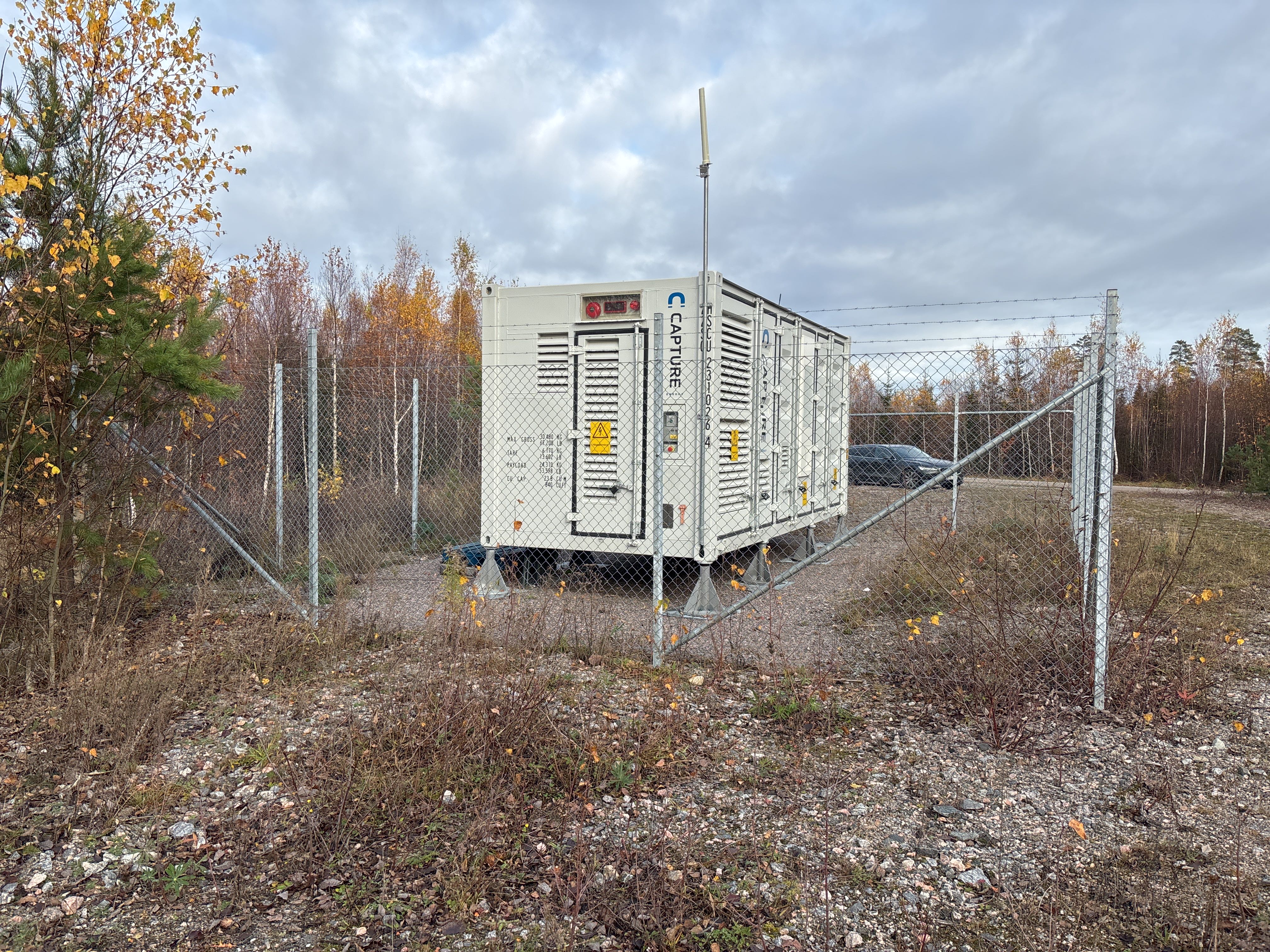

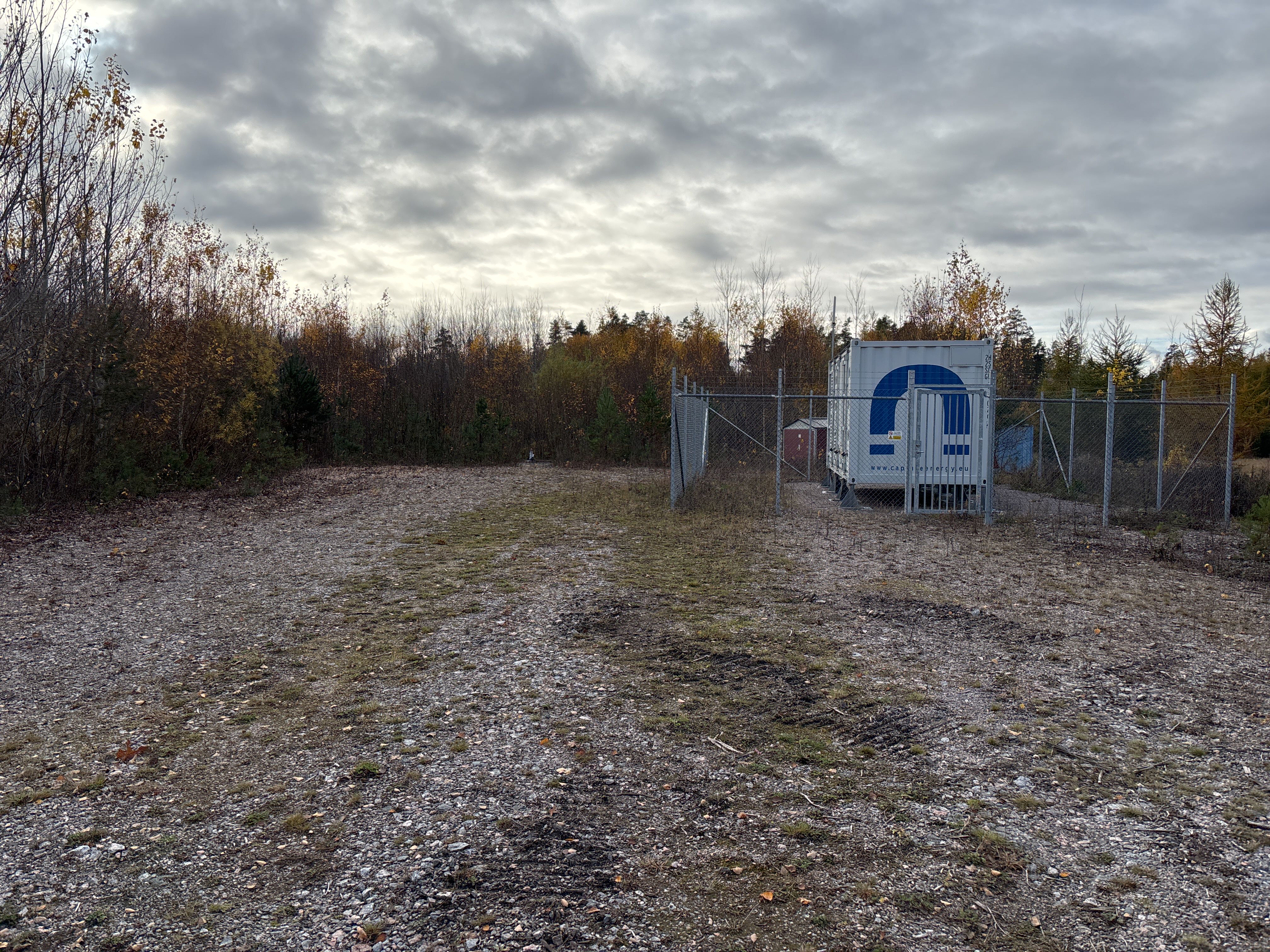

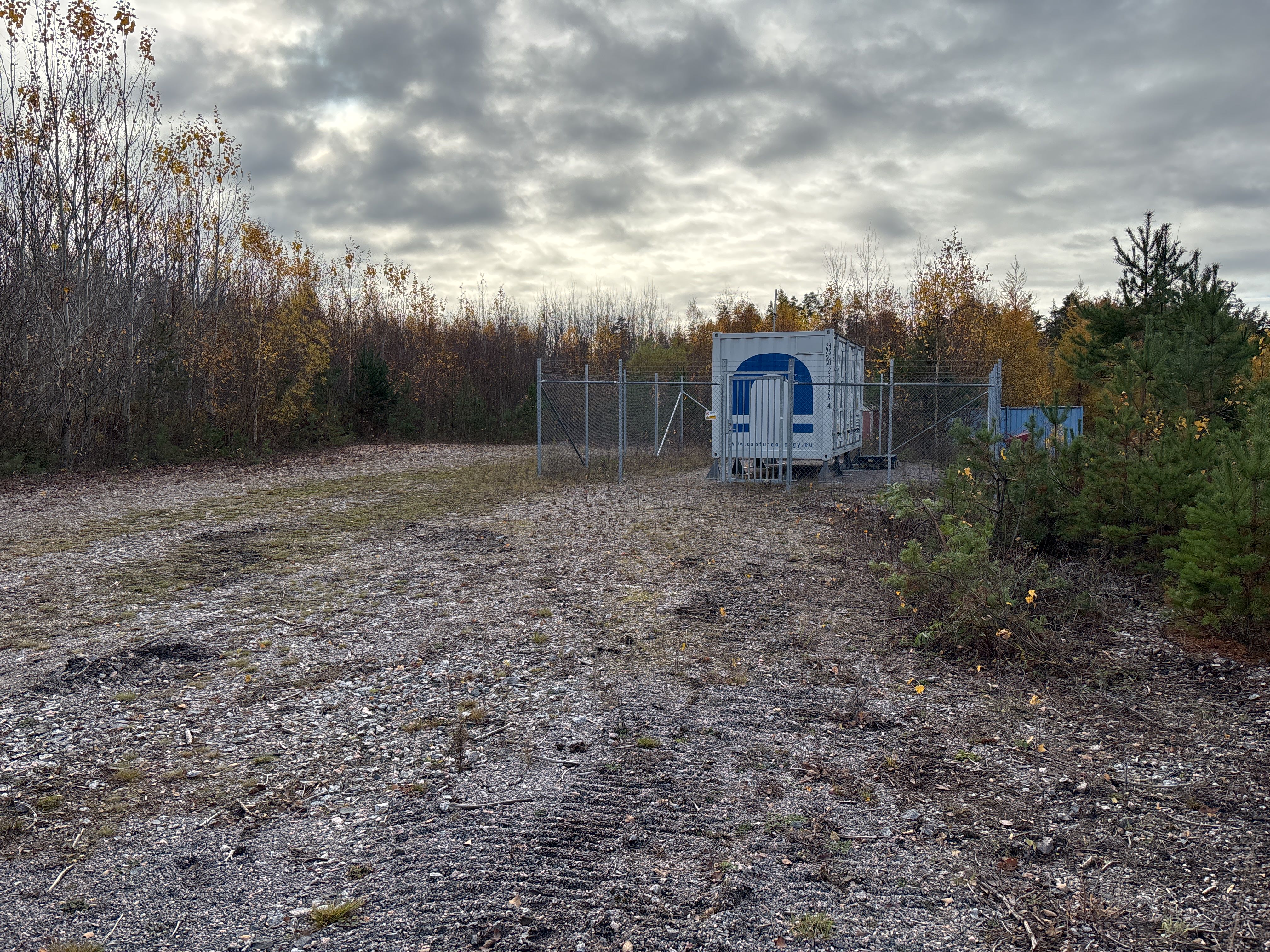

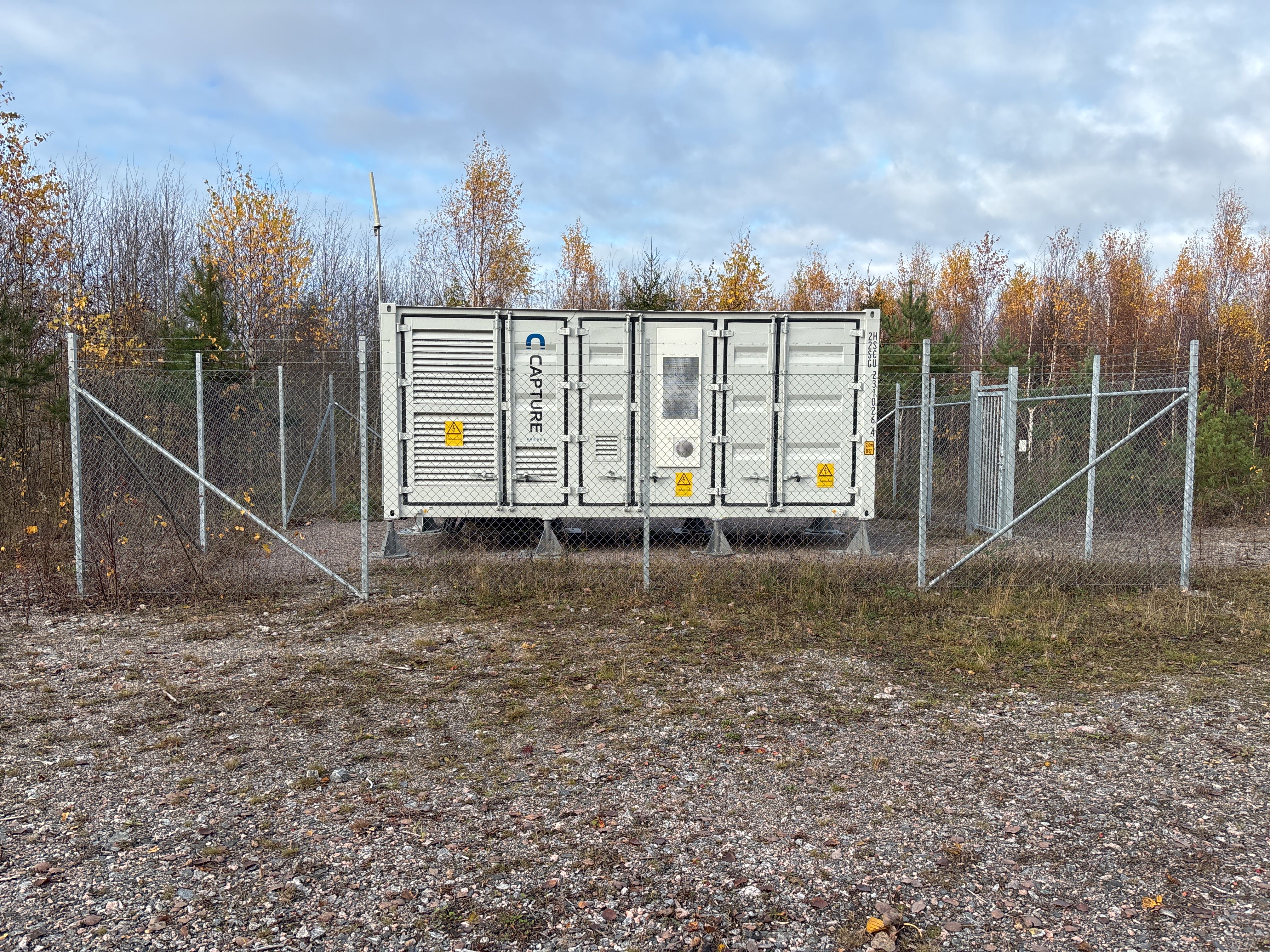

The unit is a complete BESS (Battery Energy Storage System) system with associated safety fence as shown in the pictures.

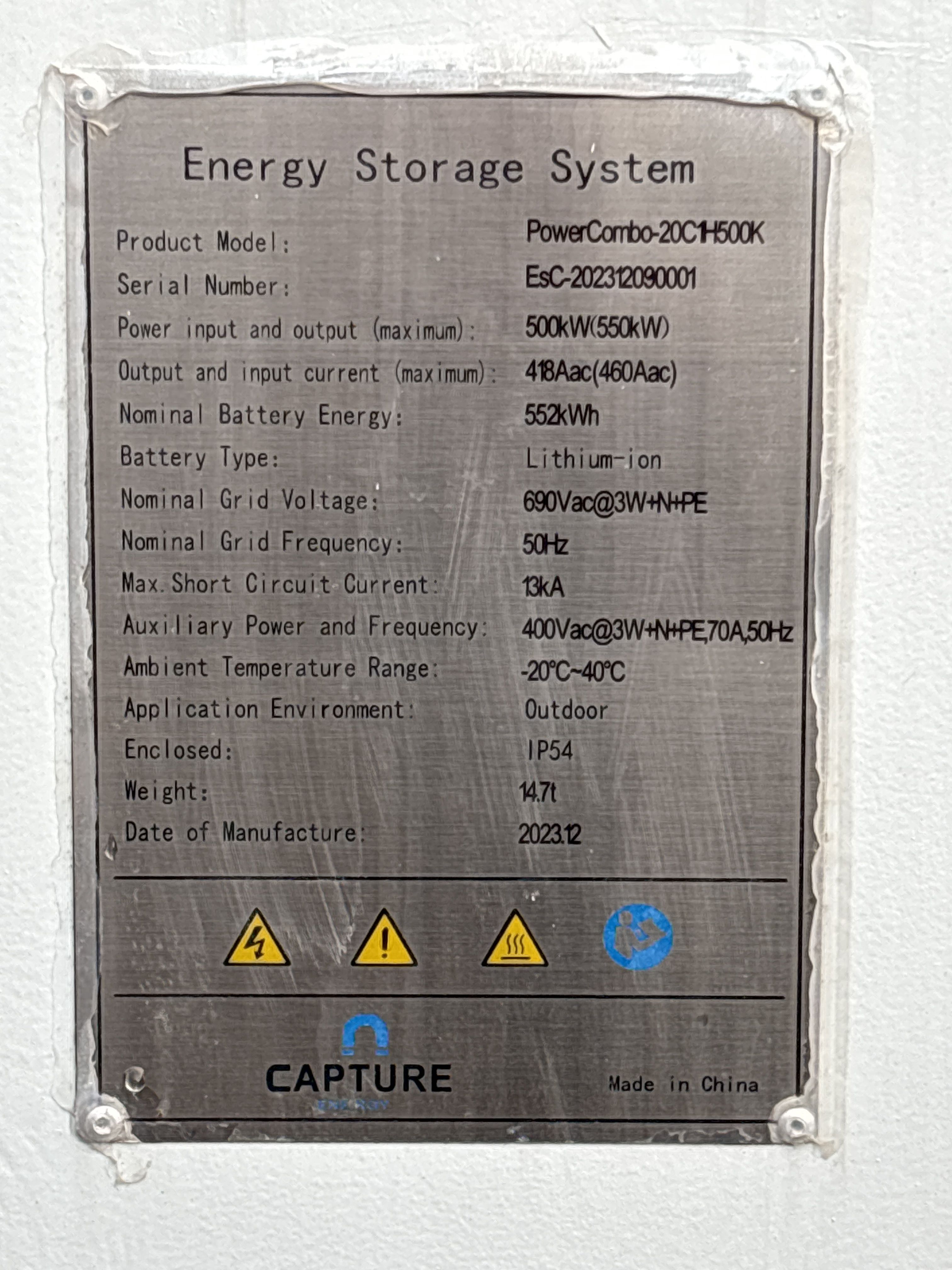

Info:

Manufacturer: Capture Energy
Model: BESS PowerCombo-20C1H500K
Year of manufacture: 2023
Serial number: EsC-202312090001
Rated power: 500 kW
Maximum power: 550 kW
Energy capacity: 552 kWh
Rated mains voltage: 690V (via transformer, transformer not included)
AC current: 721.7 A
THDi: <3%
Frequency: 50Hz
Protection class: IP54
Temperature range: -20°C to +40°C
External dimensions: approx. 6,058 × 2,438 × 2,591 mm
Weight: 14.7 tons (with transformer not included)
Battery type: Lithium iron phosphate (LiFePO4) 690V

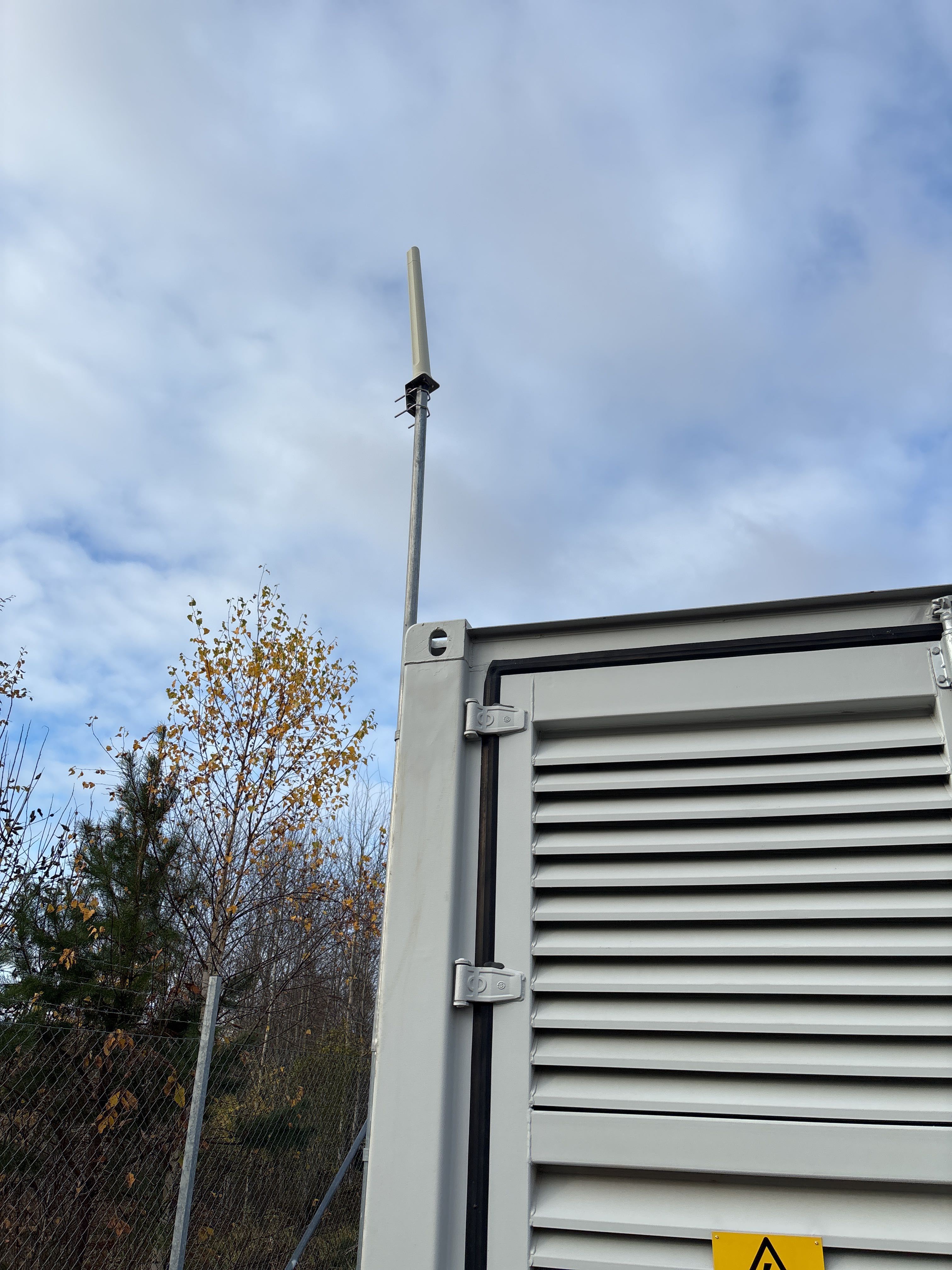

Communication: RS485, Ethernet, 4G/3G
Certificate: UL9540, UN3536

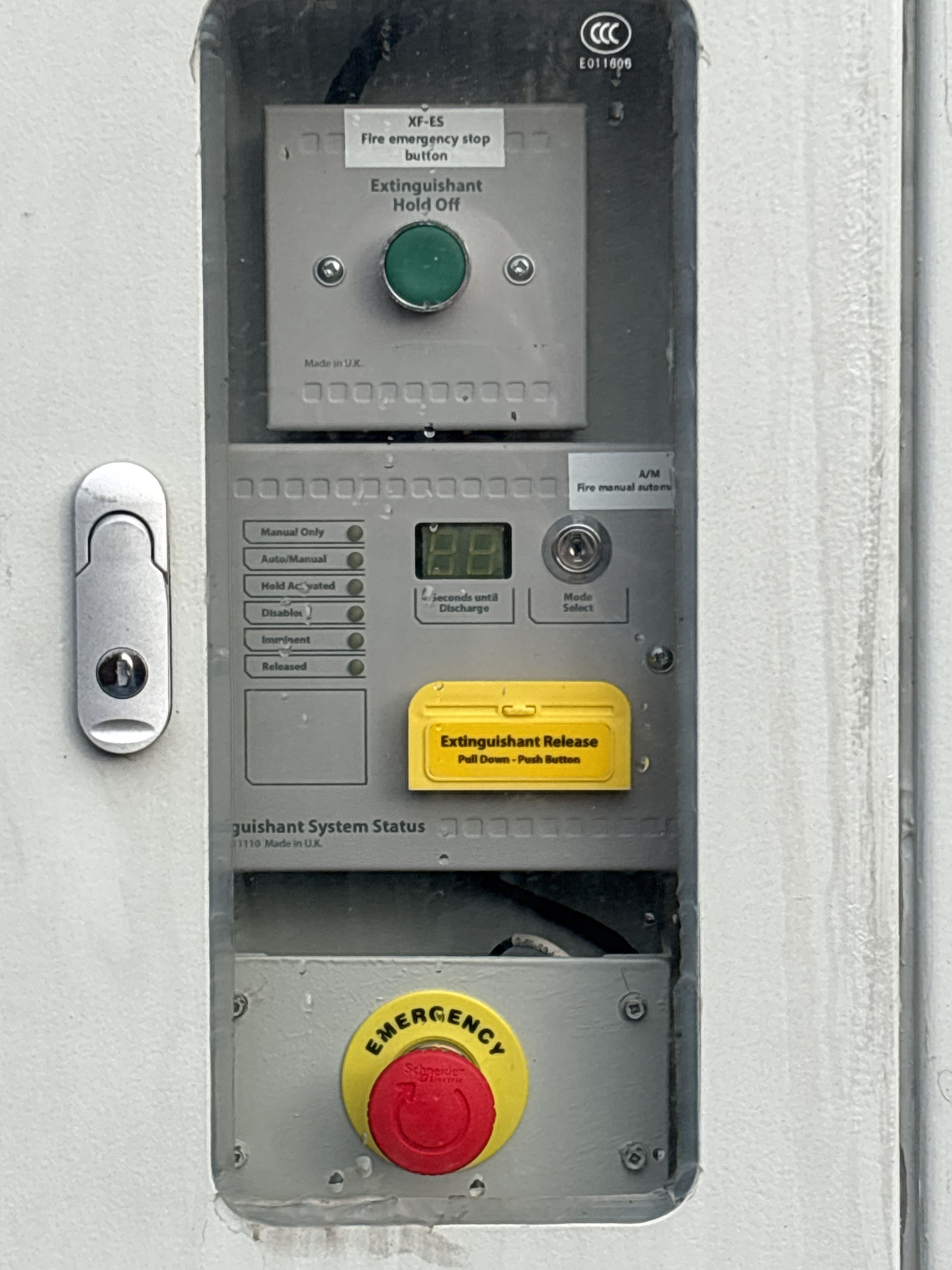

Fire extinguishing system: FK-5-1-12 / FM-200
Enclosure type: Container 20 ft

Accessories:

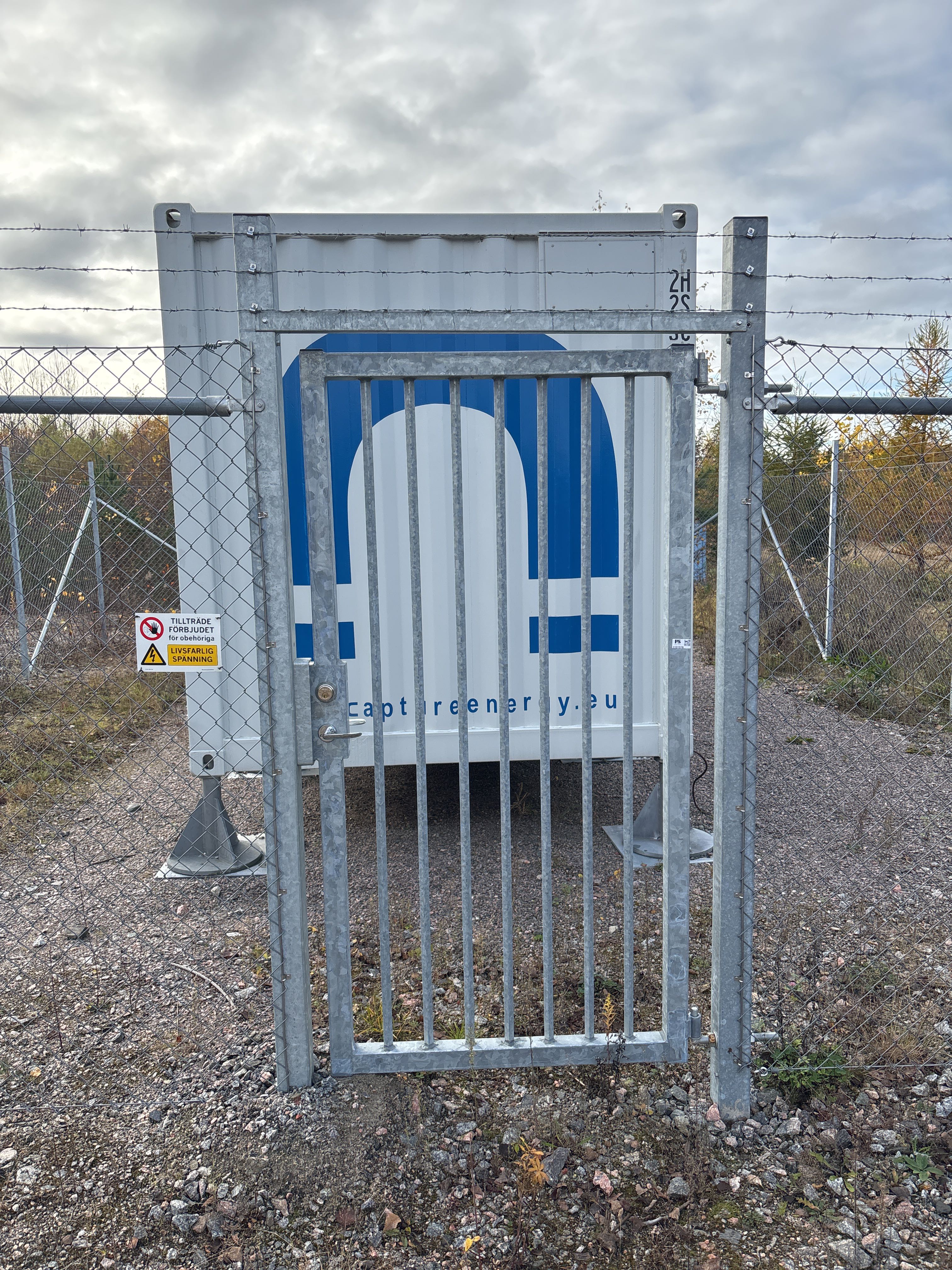

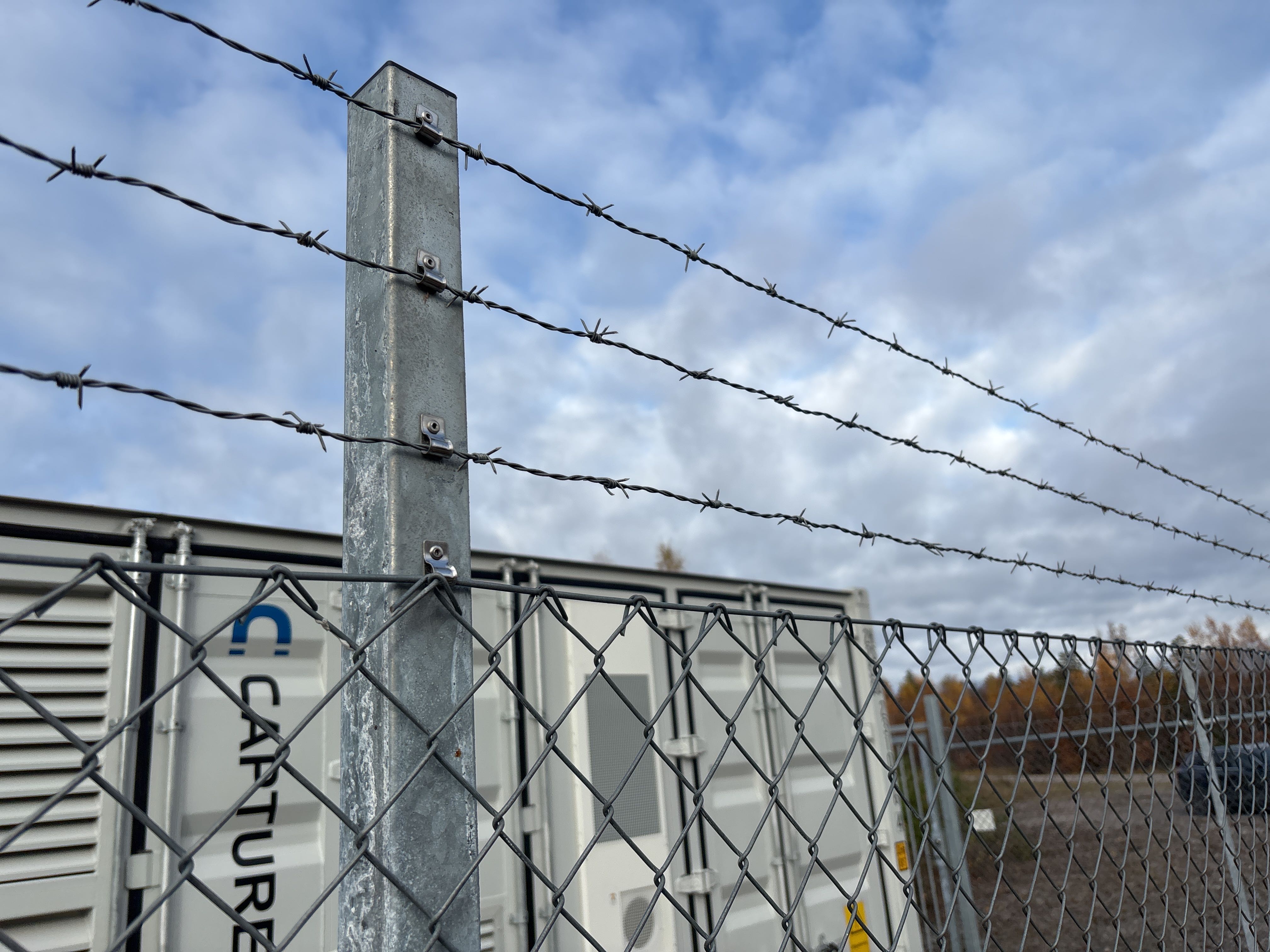

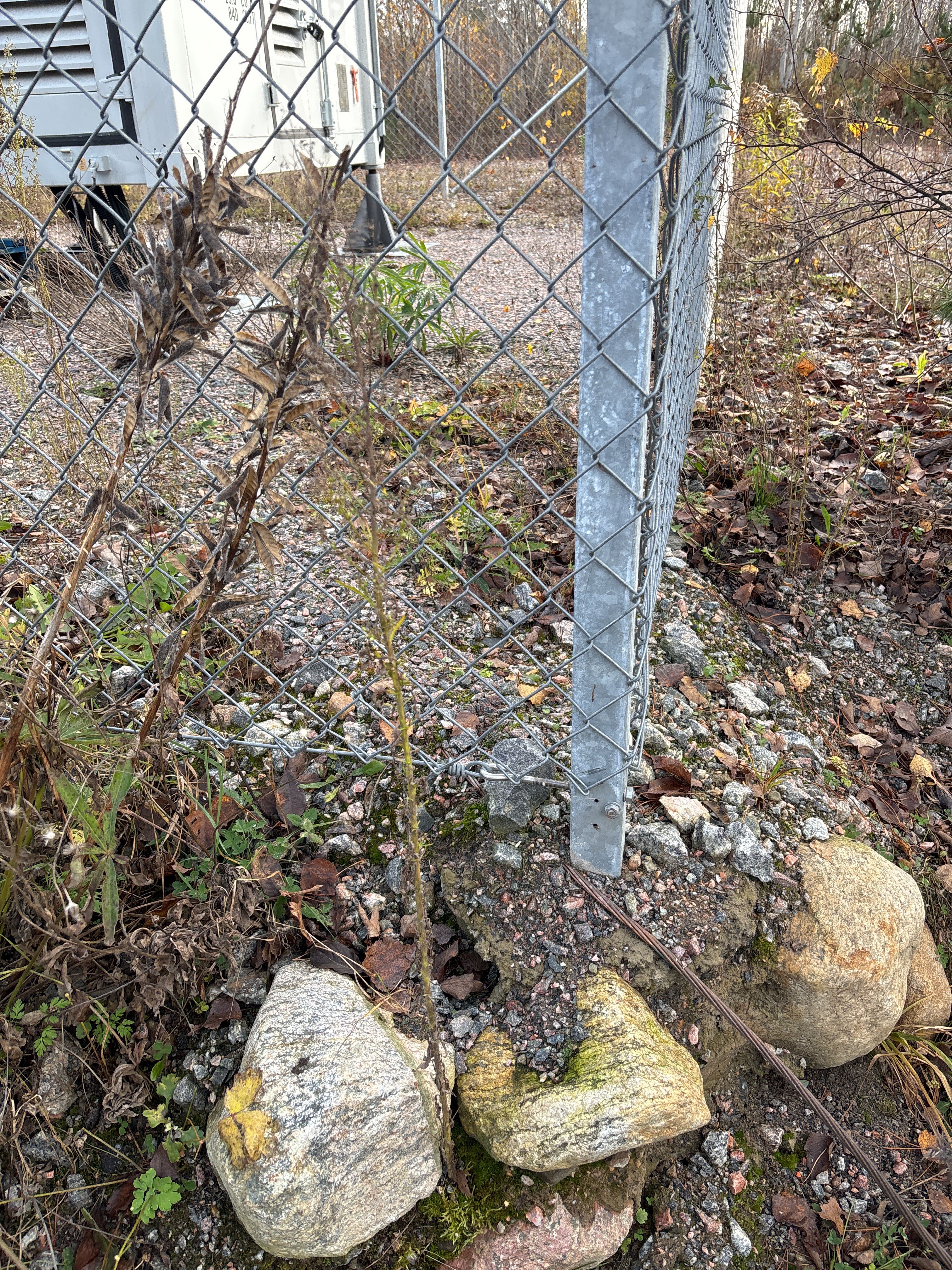

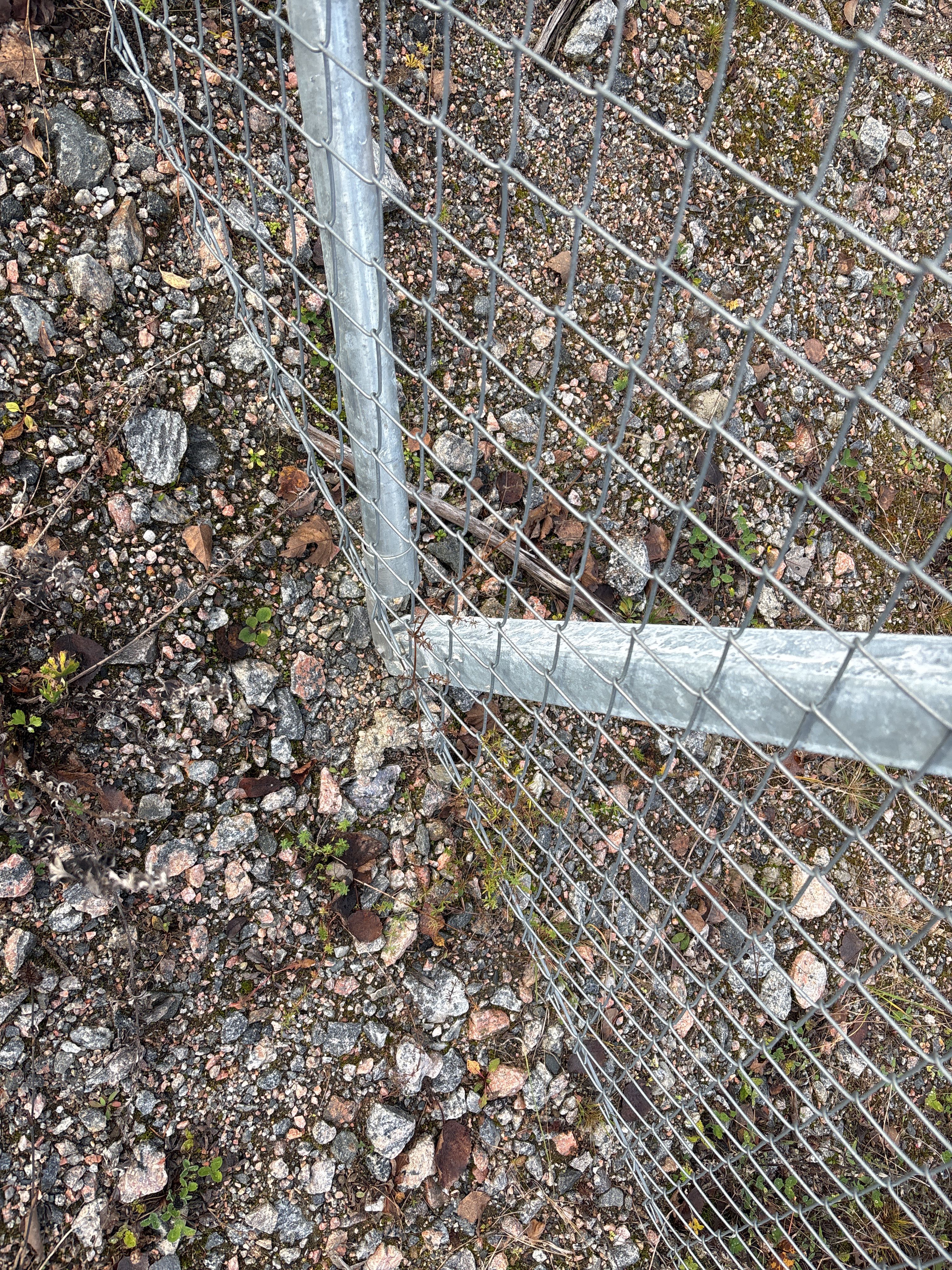

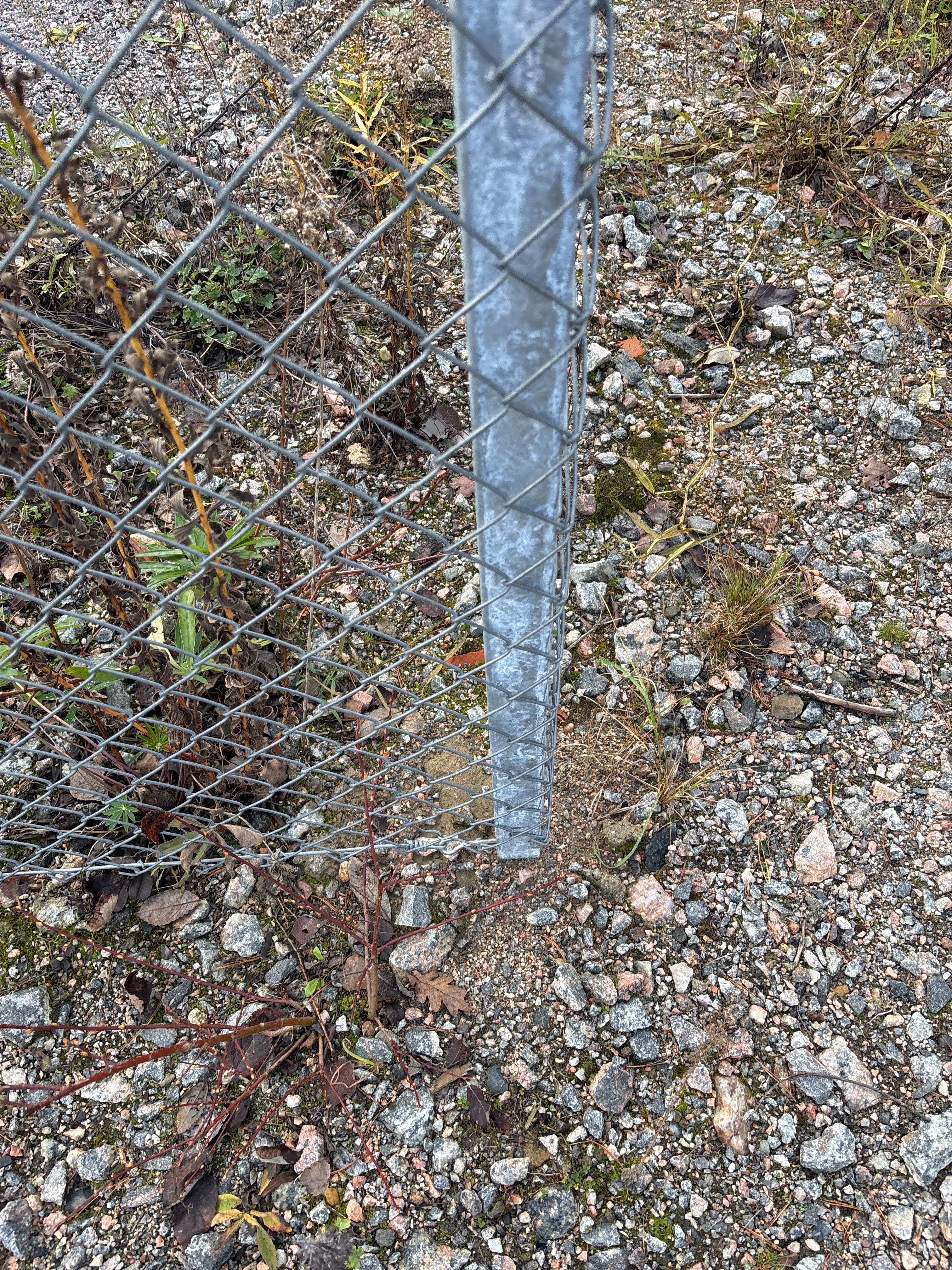

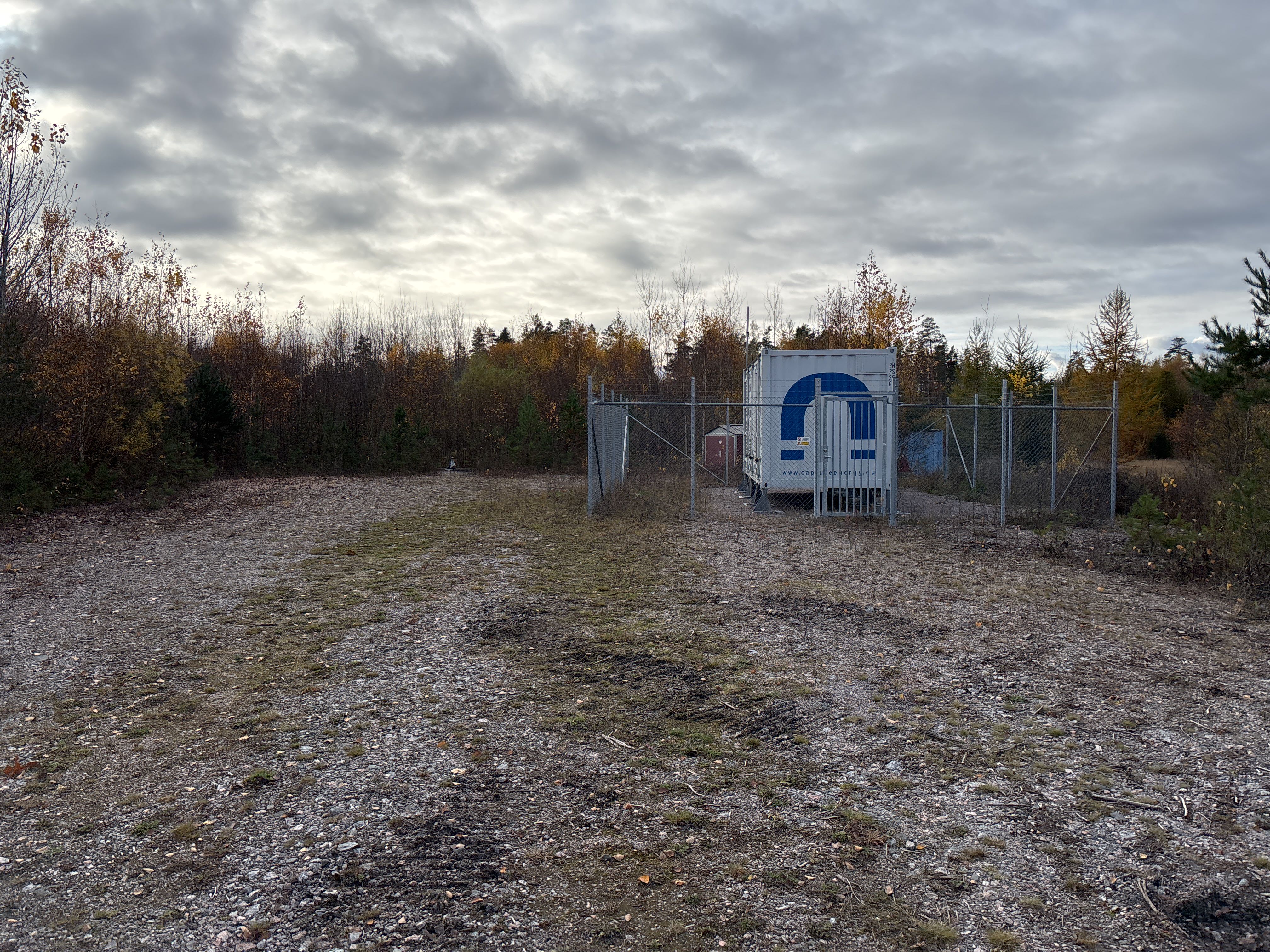

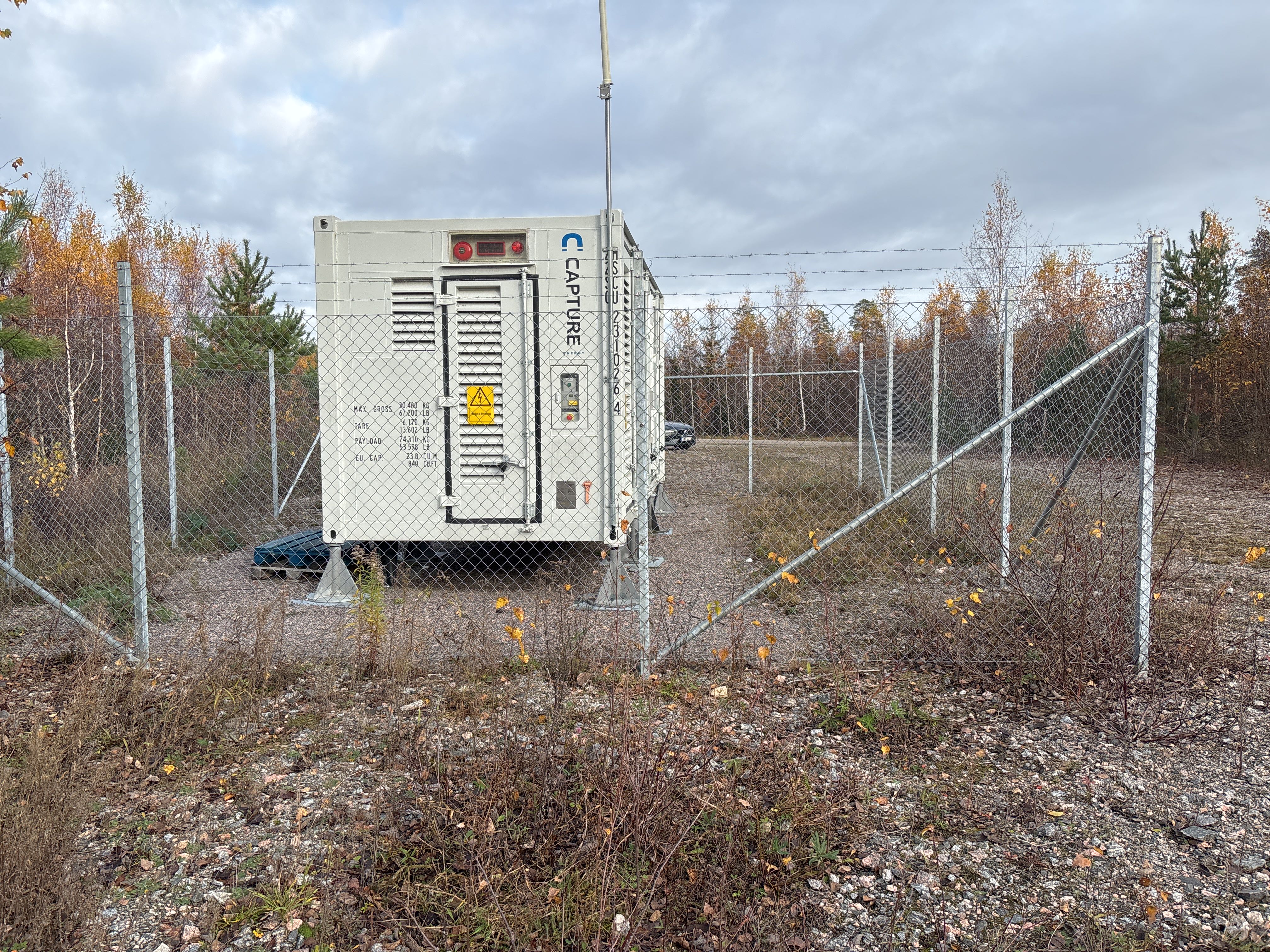

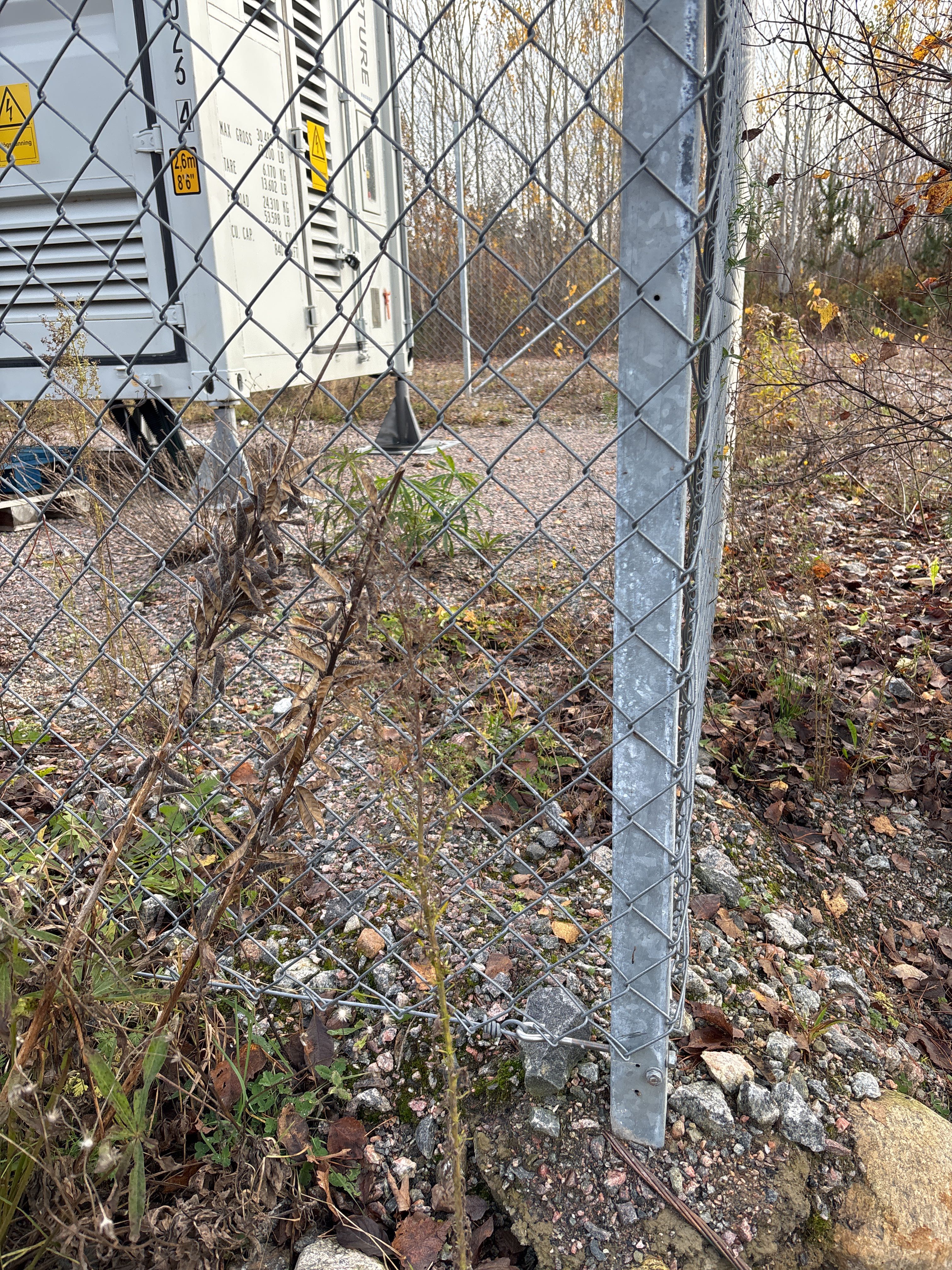

Security fence with barbed wire (approx. 10 m long side, 8 m short side)

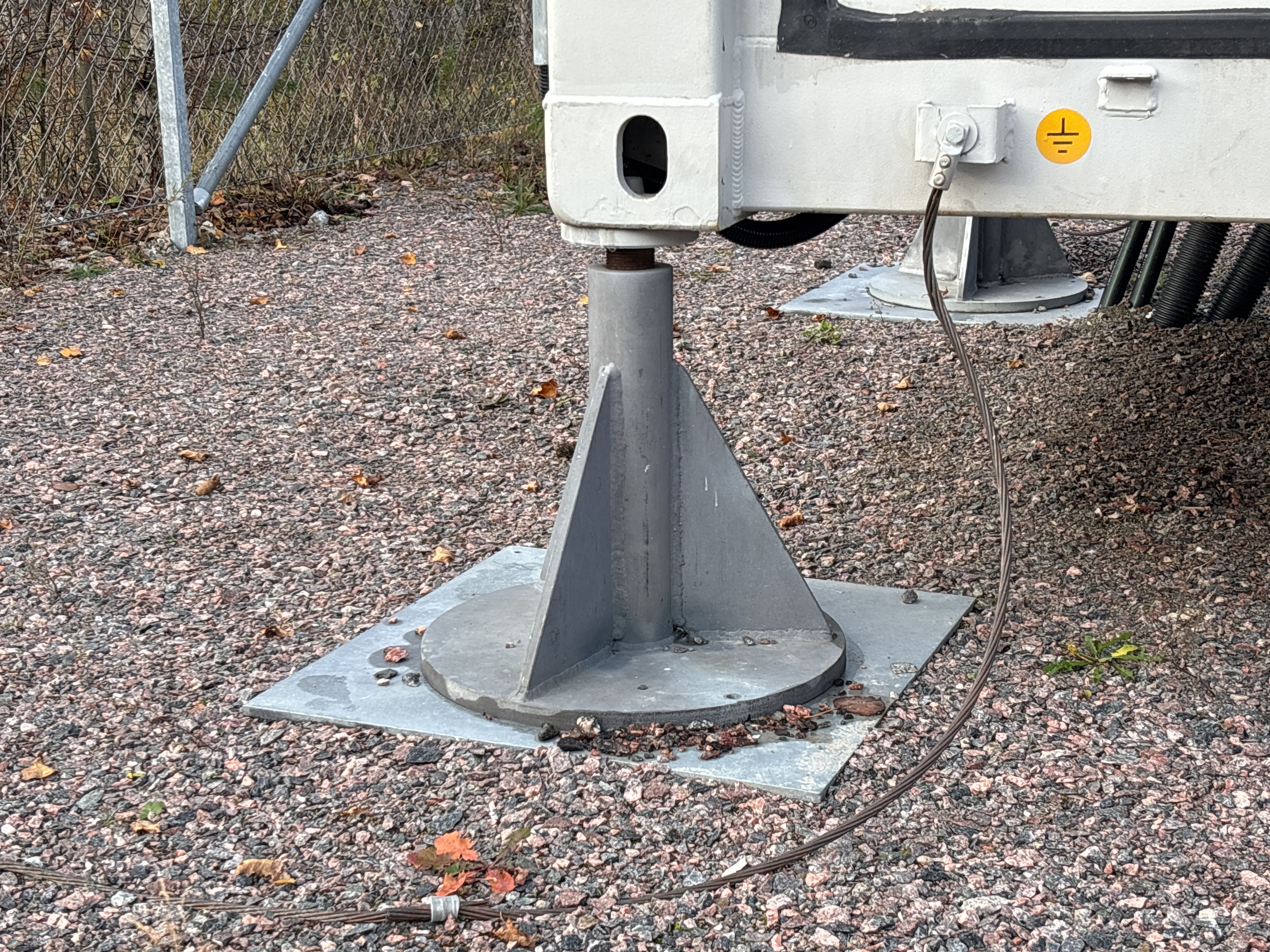

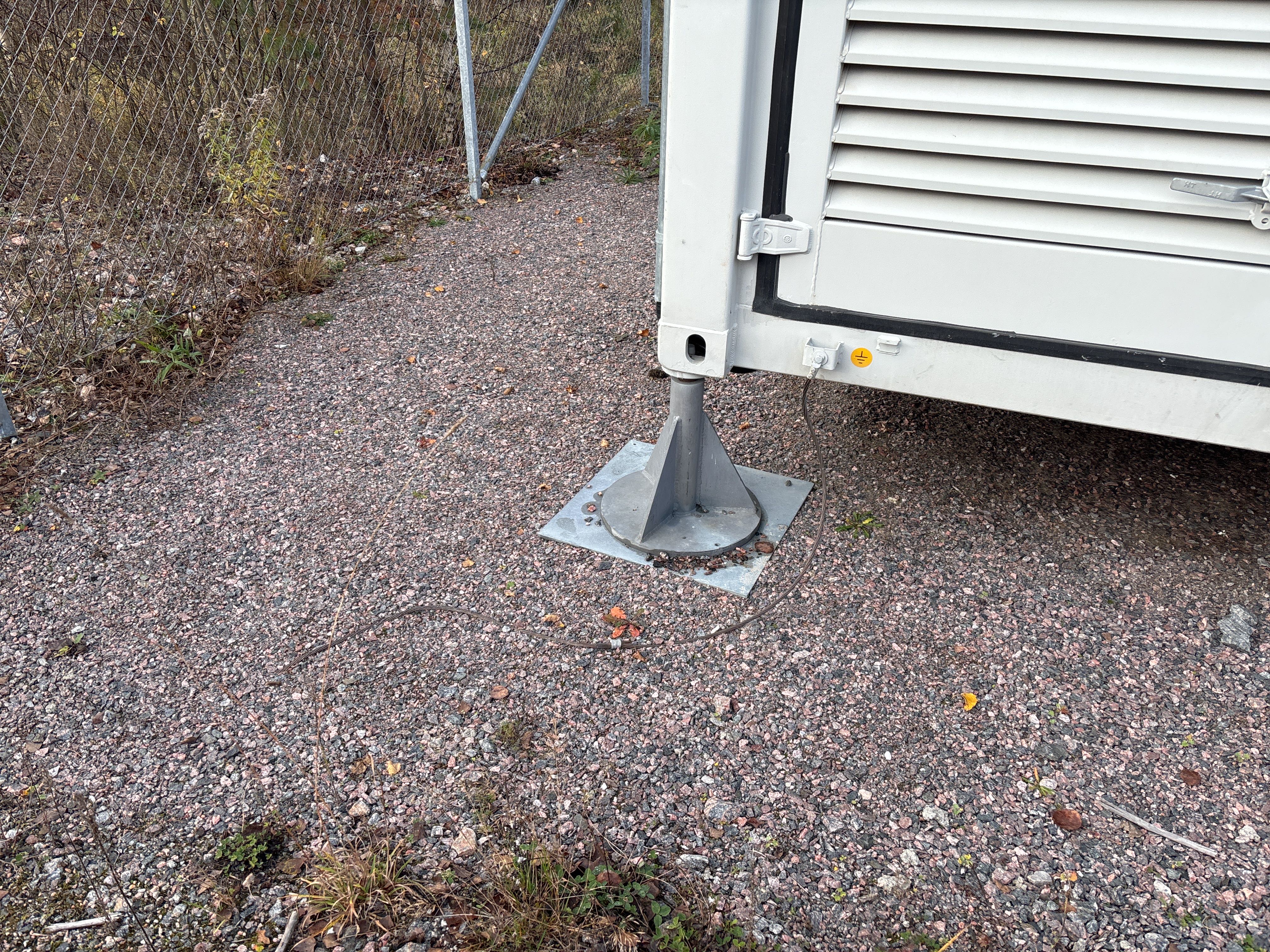

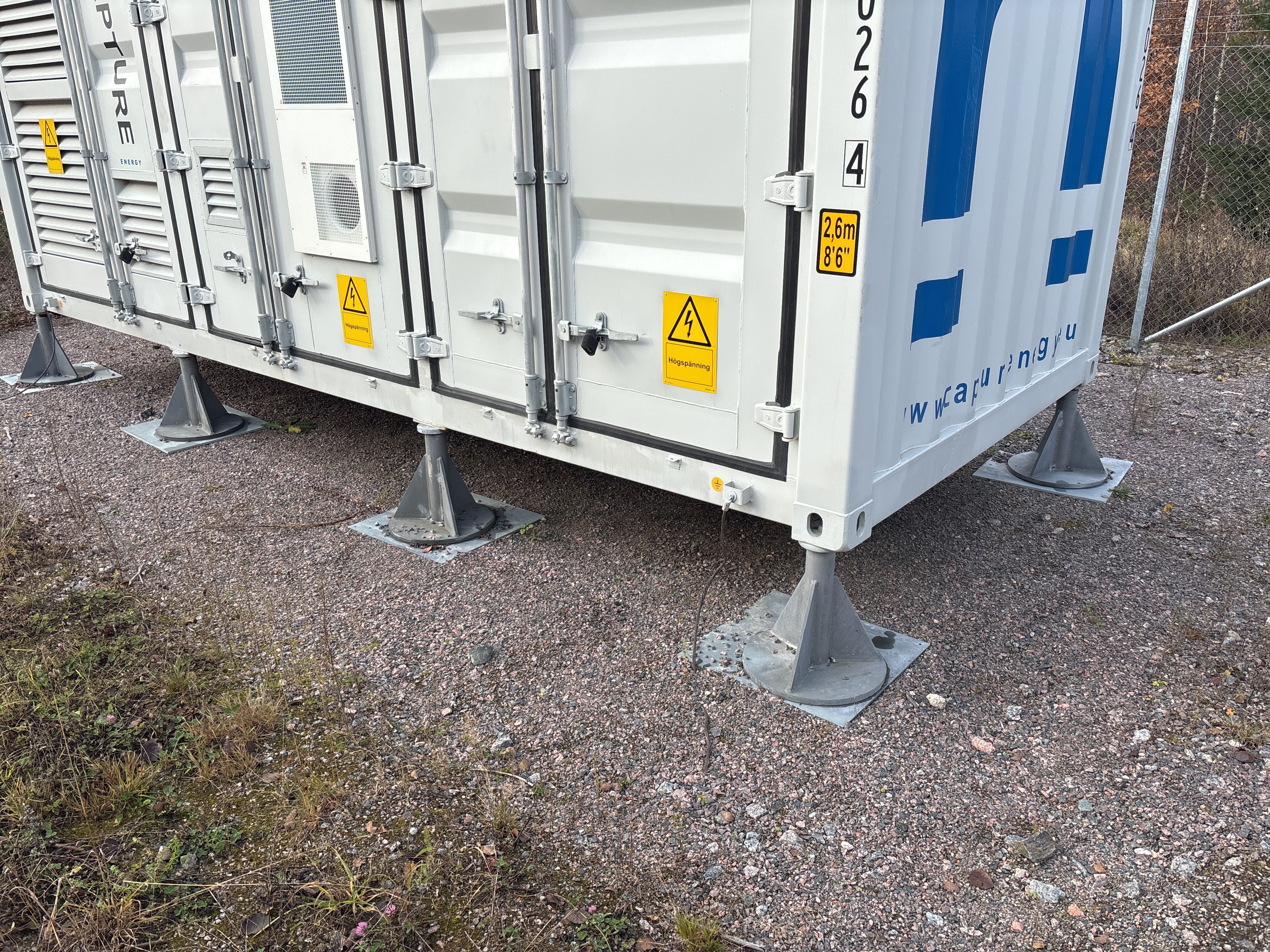

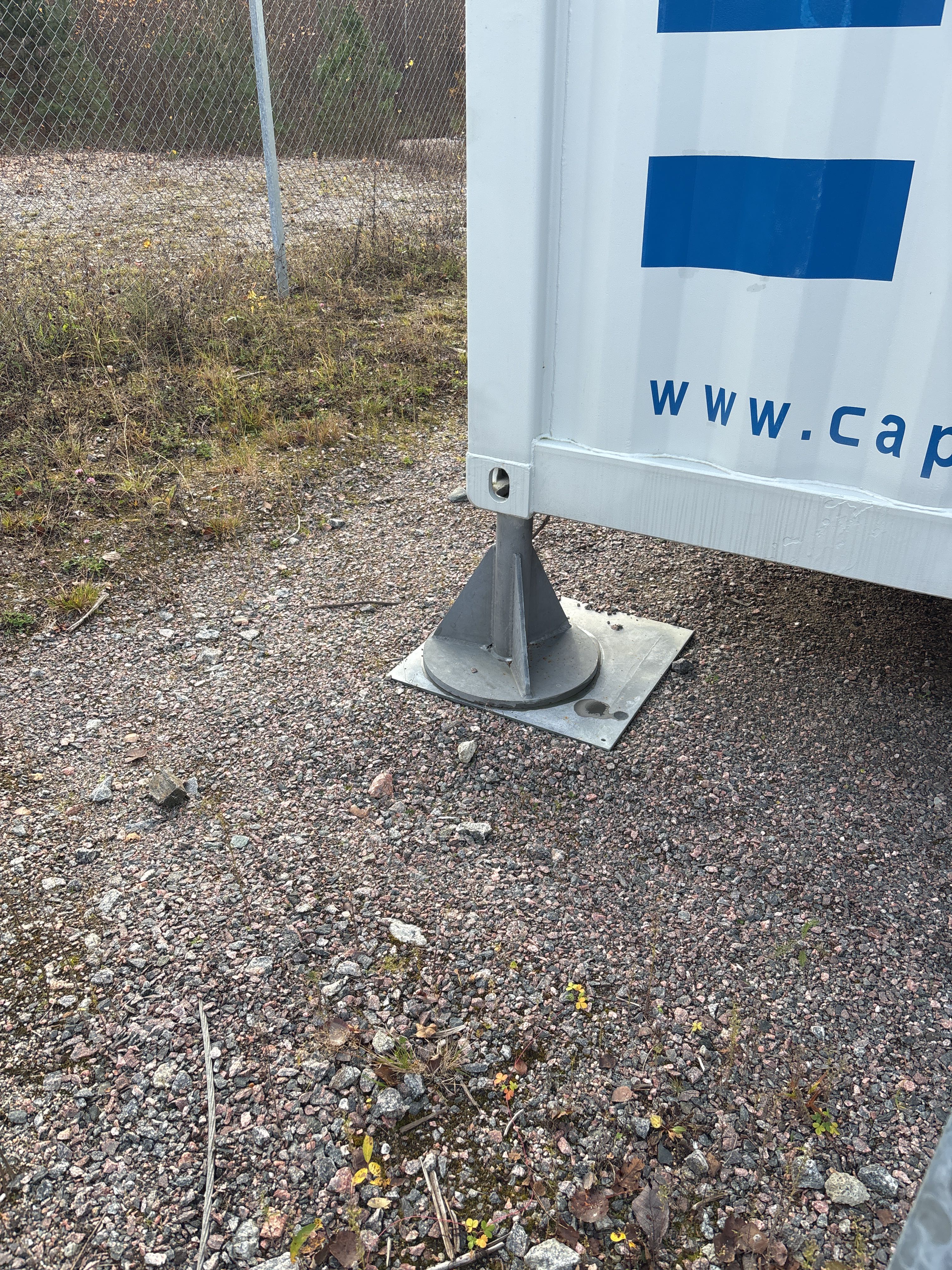

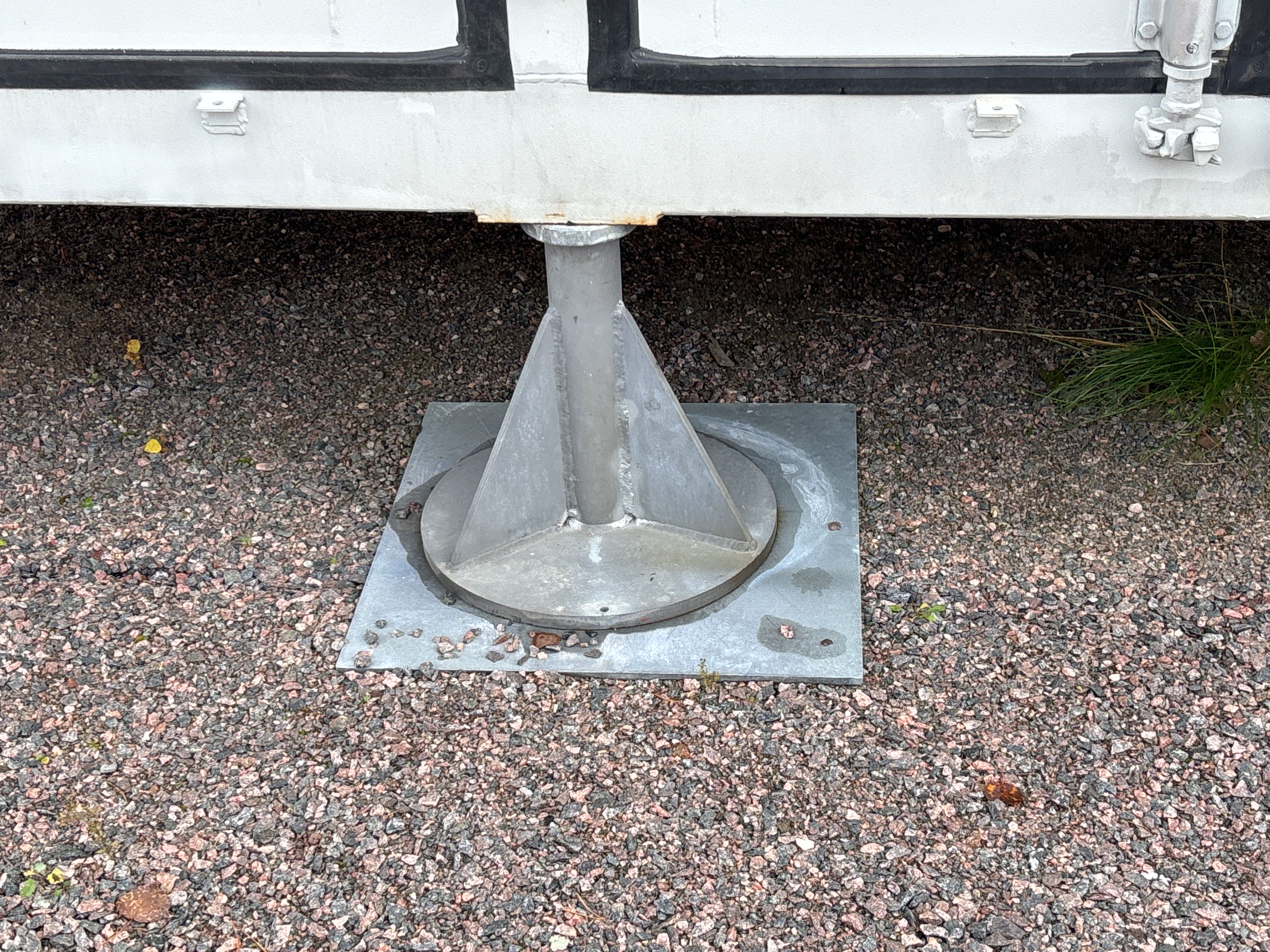

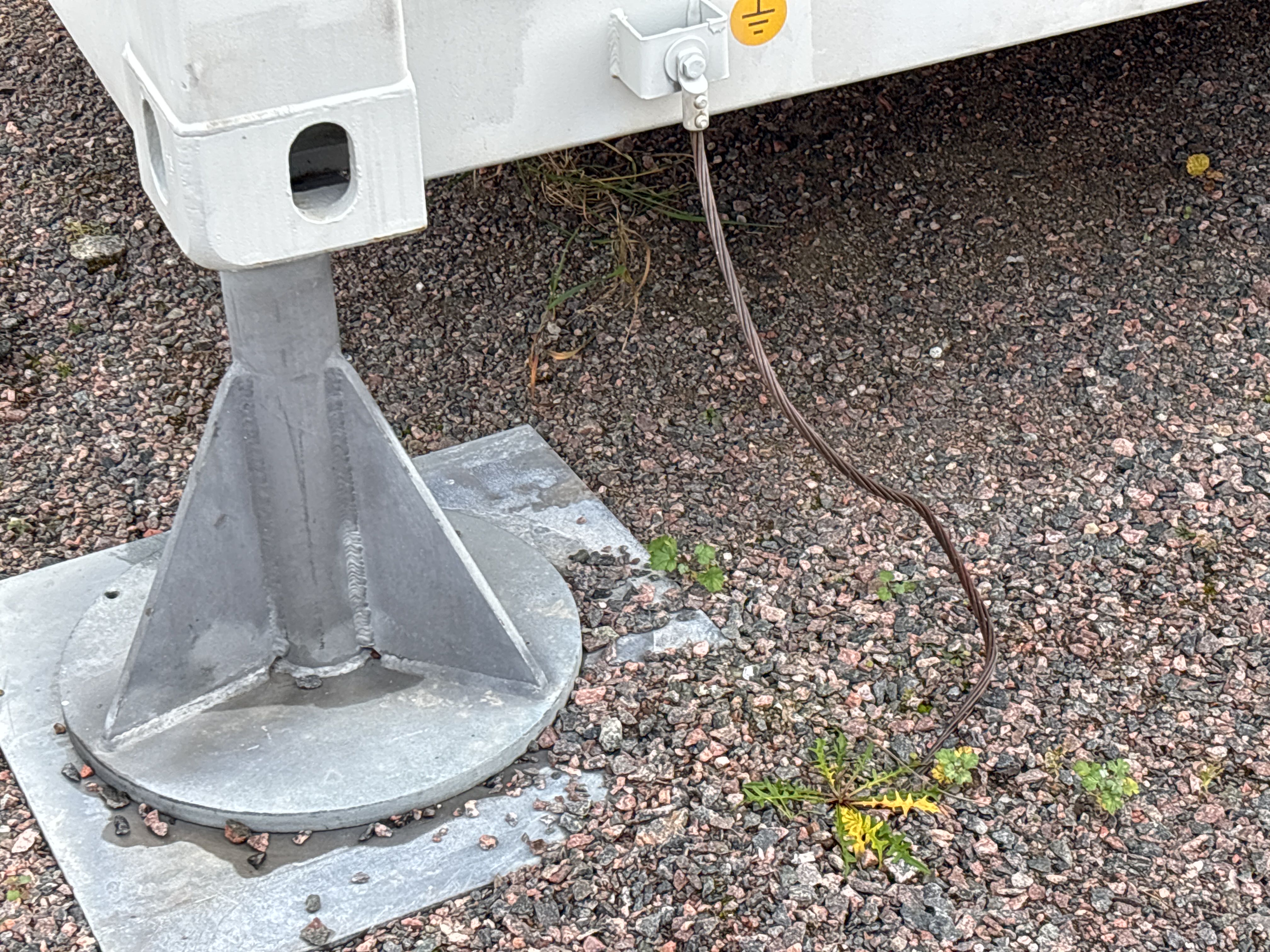

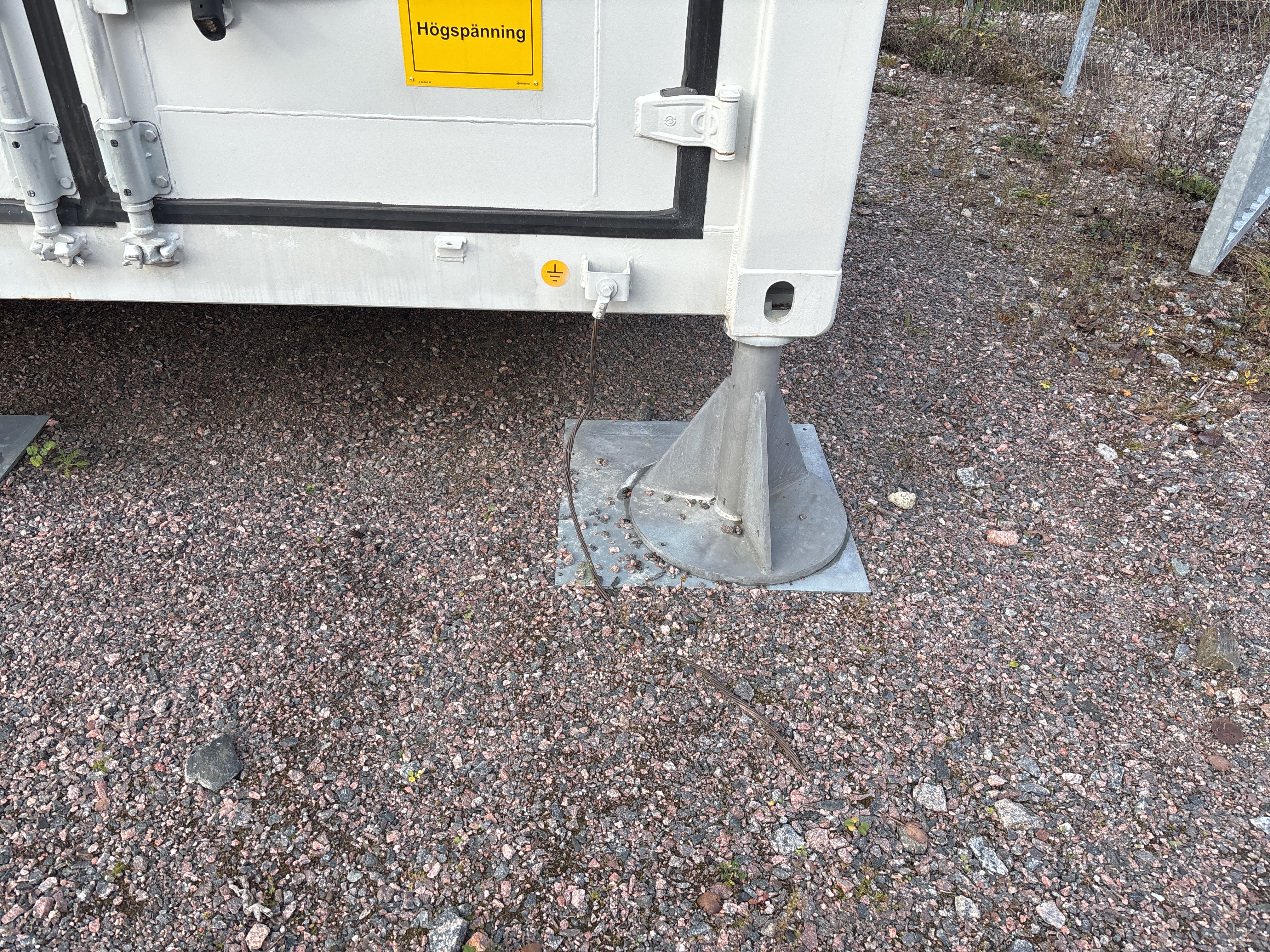

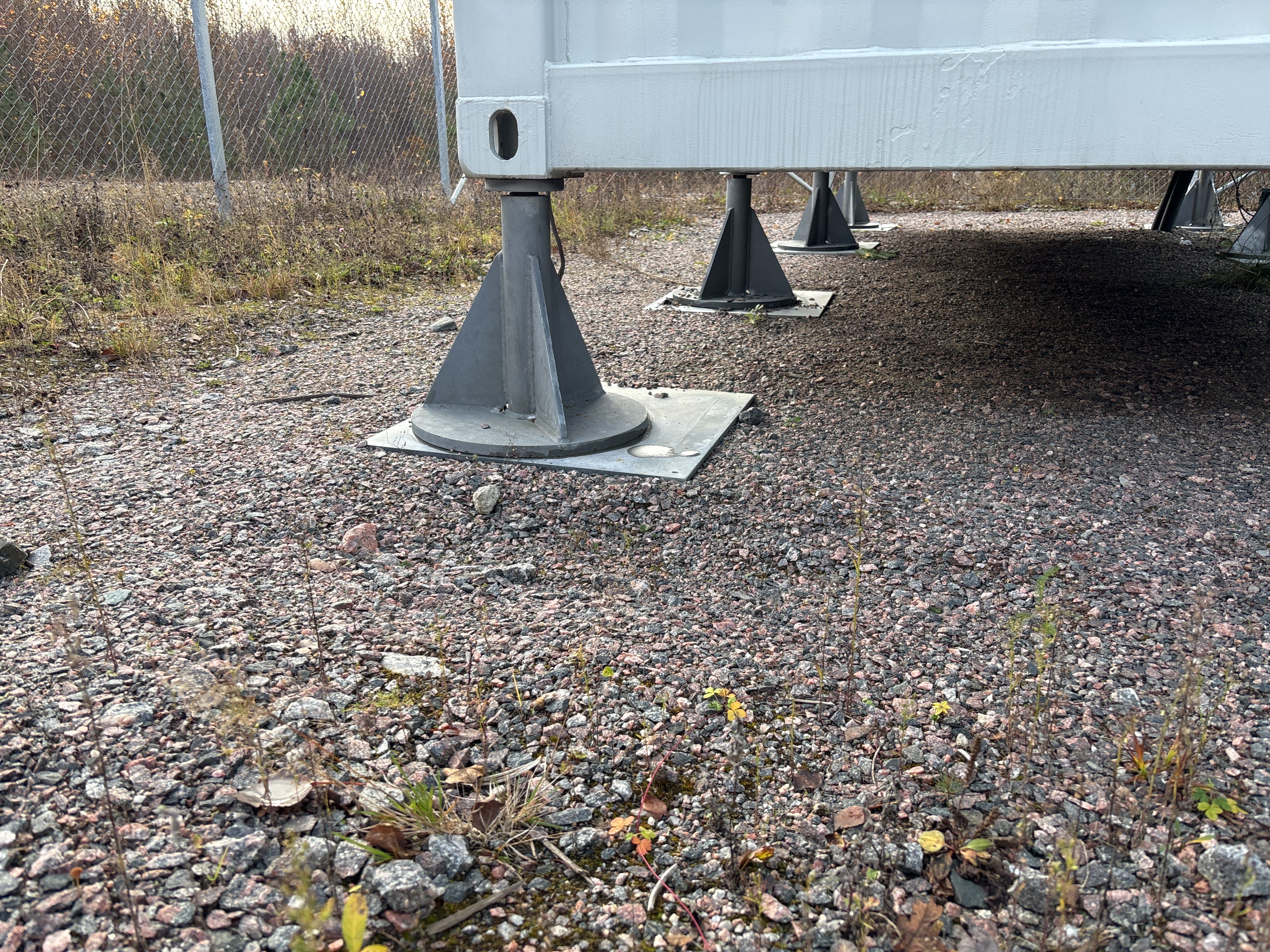

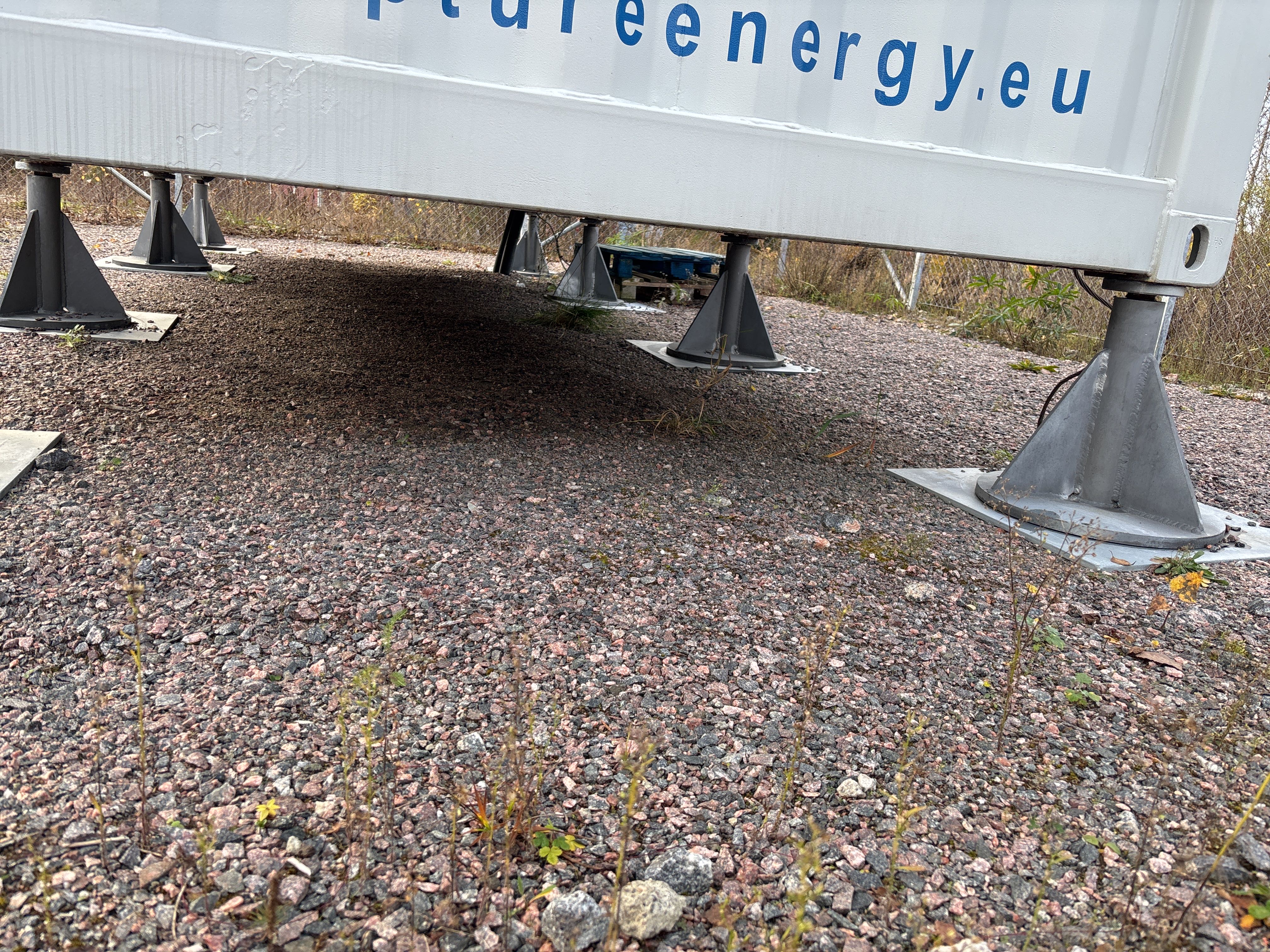

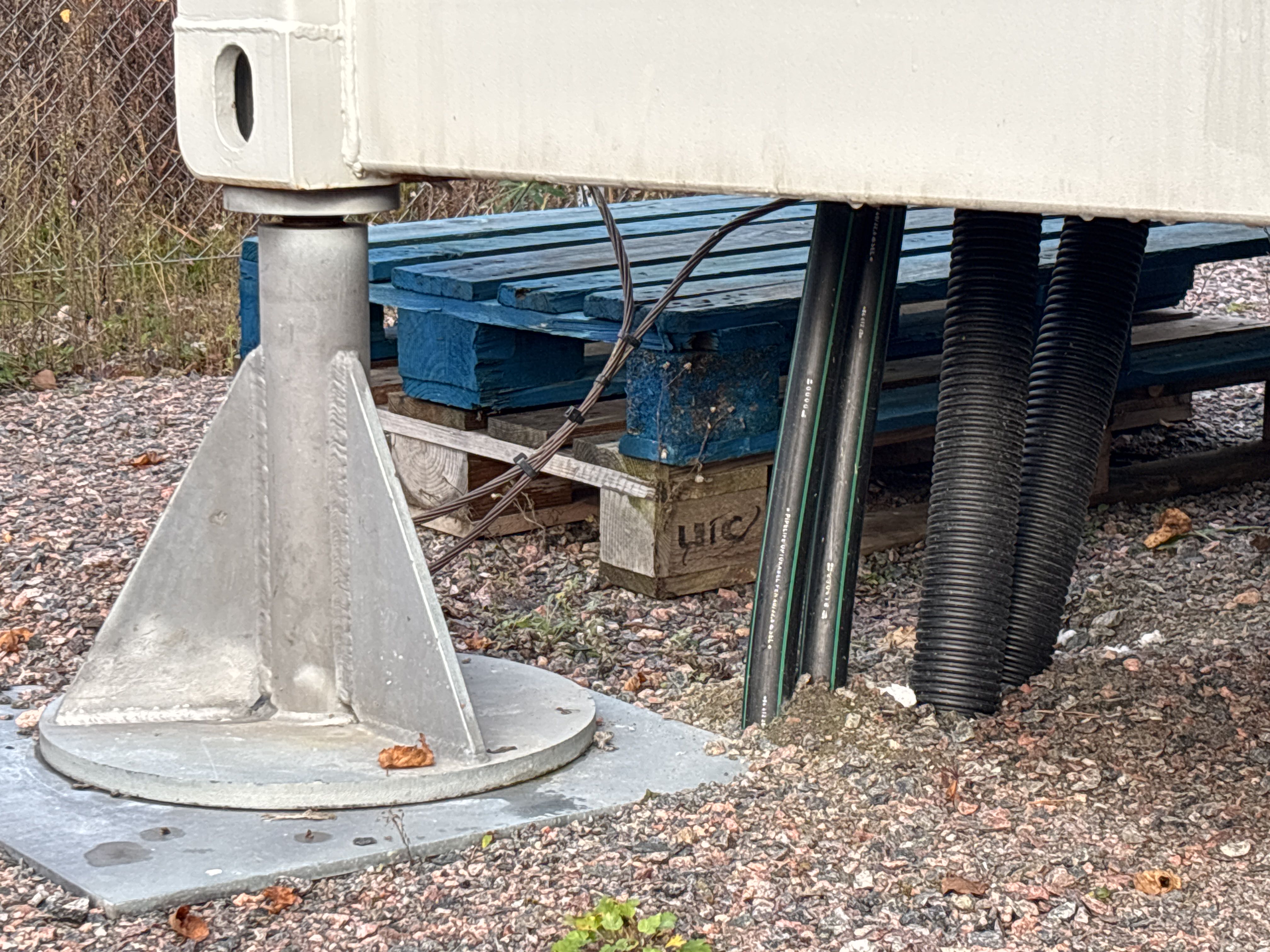

Mounted on 8 feet

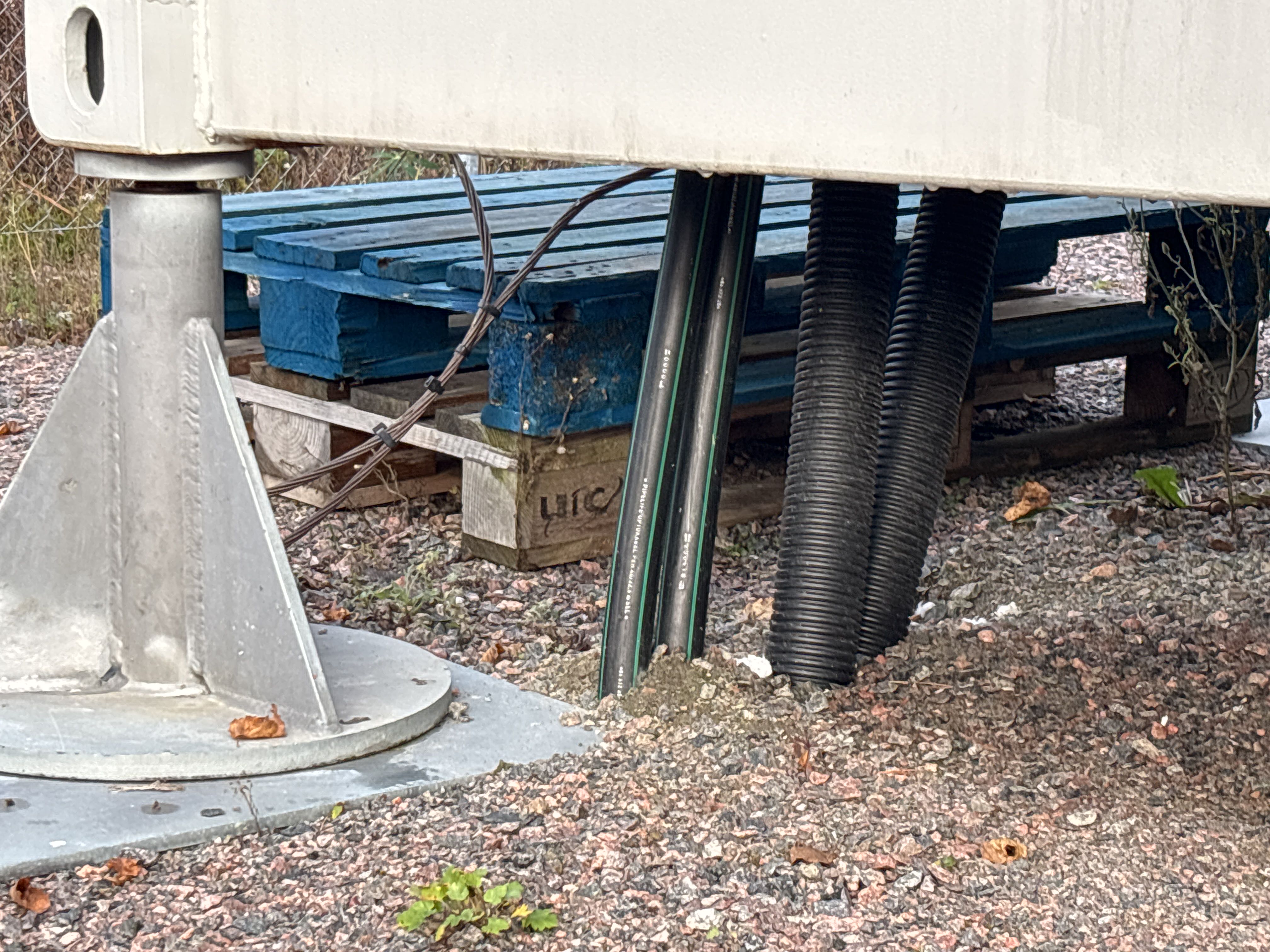

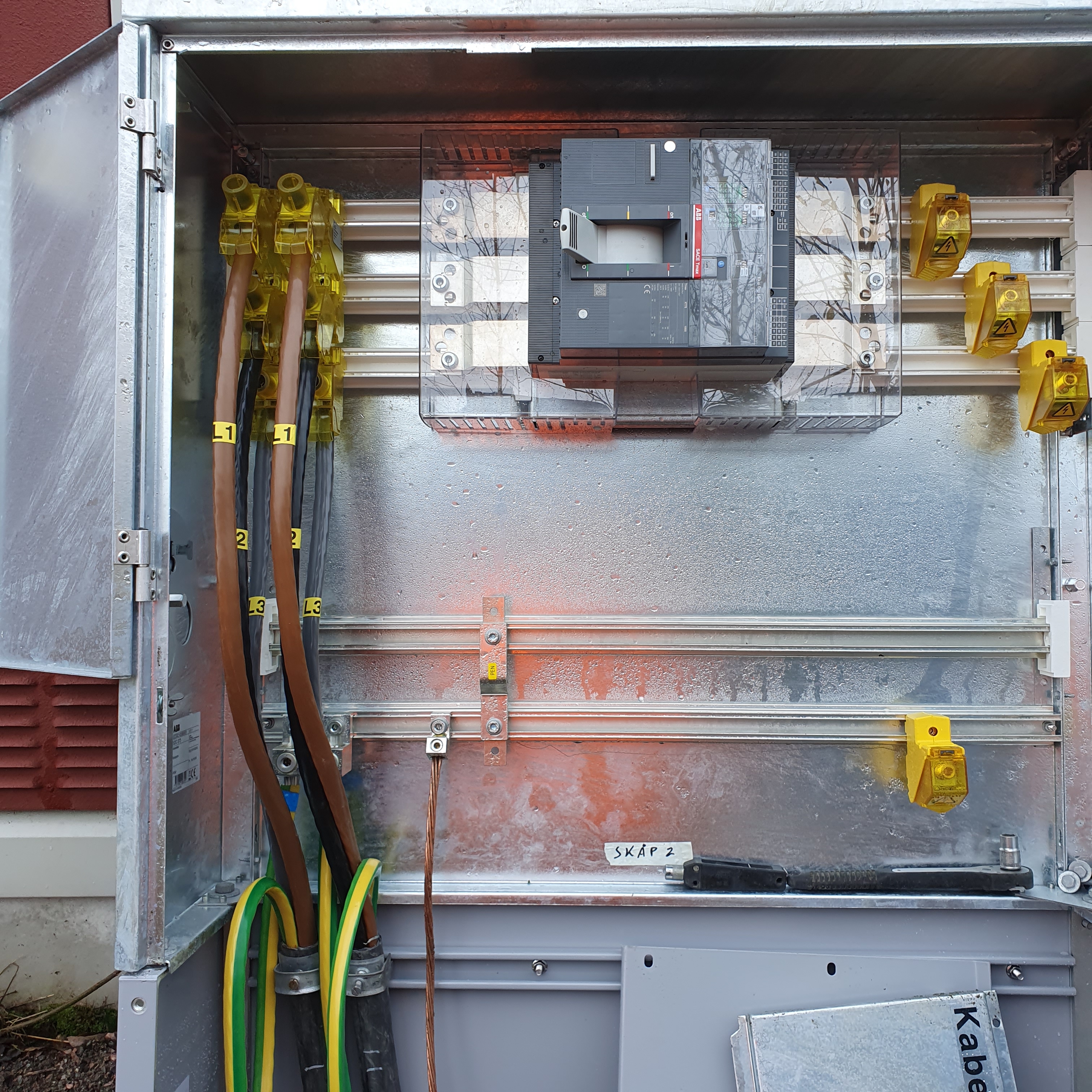

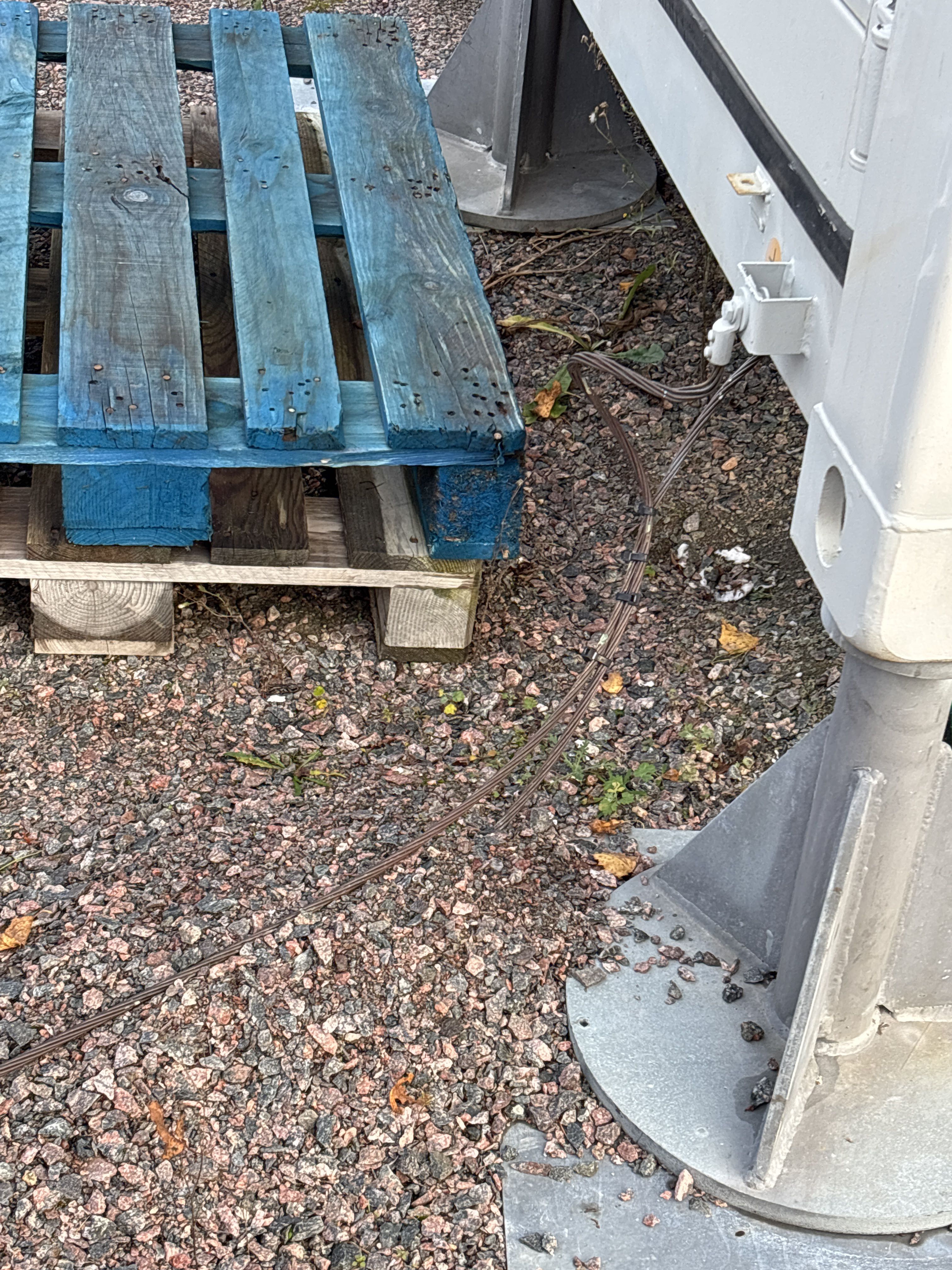

Cables between control cabinet and energy storage (approx. 30 meters) Control cabinet 690 V not included

Other information:

The device is reportedly still plugged in and requires disconnection by an authorized high-voltage electrician.
Demolition permit not available, must be applied for

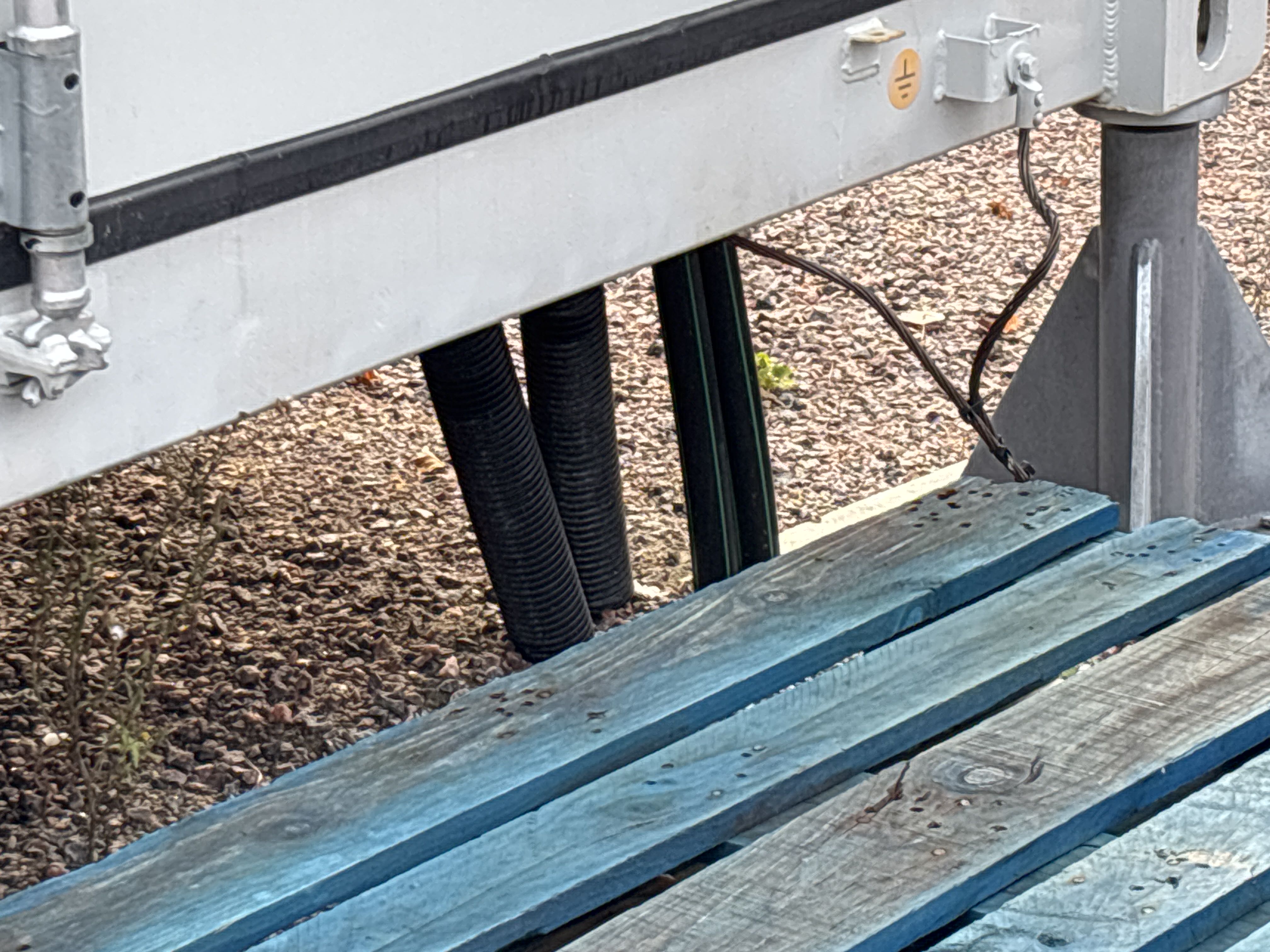

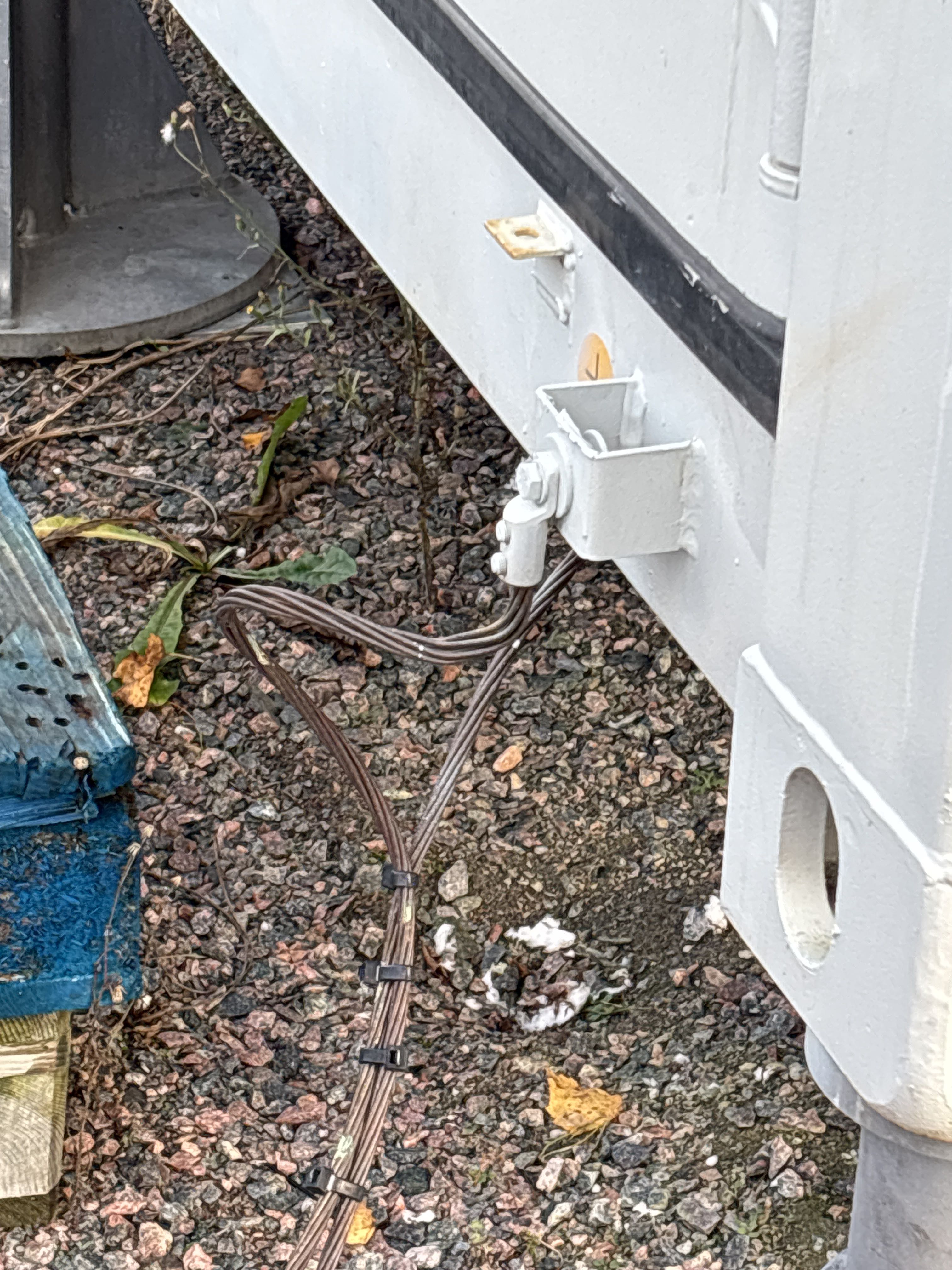

Cables between the switchboard and the container need to be removed and the ground restored by the buyer.
More specifications and information are available if needed, contact the responsible administrator if interested.
Transformer not included
Original purchase price (2023): 3,548,000 SEK excl. VAT.

Updated info: (When more info is received, we will update as below.) This info has been received from the bankruptcy estate's documentation.

Information about the network owner: Technical Works Katrineholm Elnät
Distance from connection point of BESS (m) 30 (M)
Electricity trading company: Bixia
Test Report uploaded below
Abeka has been the electrical contractor for the construction of the Energy Storage Facility.
BESS is not energized. There are additional costs to test and energize BESS.
Operating time that BESS has been running - It was running for about 6 months.
Capacity of the connection - reportedly 2 MW

Tekniskt datablad Capture kontroll tekniskt datablad Rengöringsinformation Säkerhetsdatablad Inverter specifikationer Installationsmanual Test Report

Remarks

Below are the points that the buyer must manage before moving the container, the unit. Contact information for the landowner will be provided after the auction has ended, the auction company has received your payment.

Application for demolition permit.
Notification to the electricity grid owner that BESS is being discontinued must be made by an installation company approved by the grid owner.
Electrical disconnection of the BESS system from the electrical cabinet, approved installer.
Excavation and demolition of the BESS installation ducts and cables should be done by the person who laid the cables to BESS so that other cables are not damaged. The transformer is in operation.
Excavation and demolition and removal of fences around the BESS facility
Removal of the BESS facility
Restoration of land after excavations and the foundation of the BESS facility
