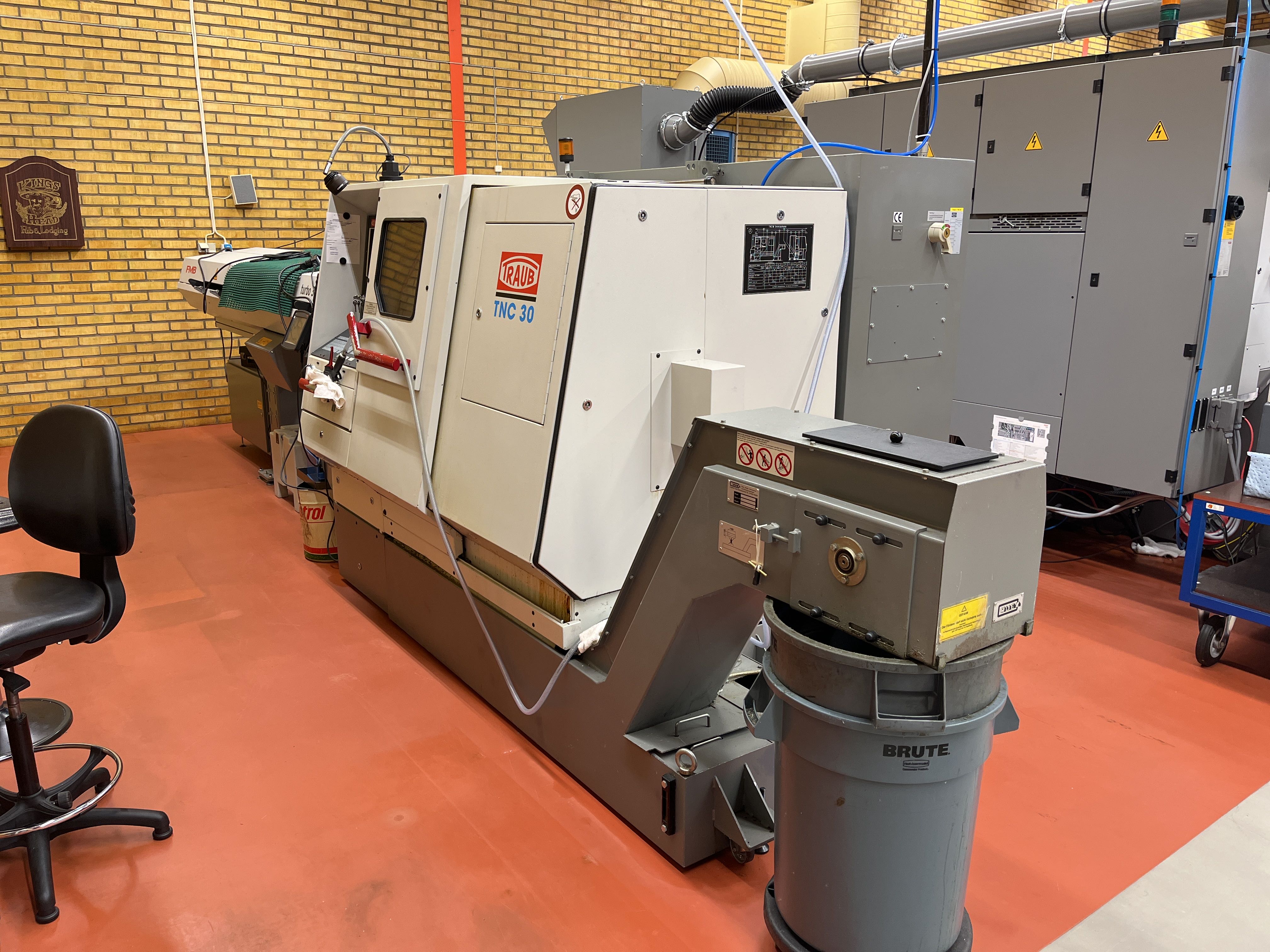

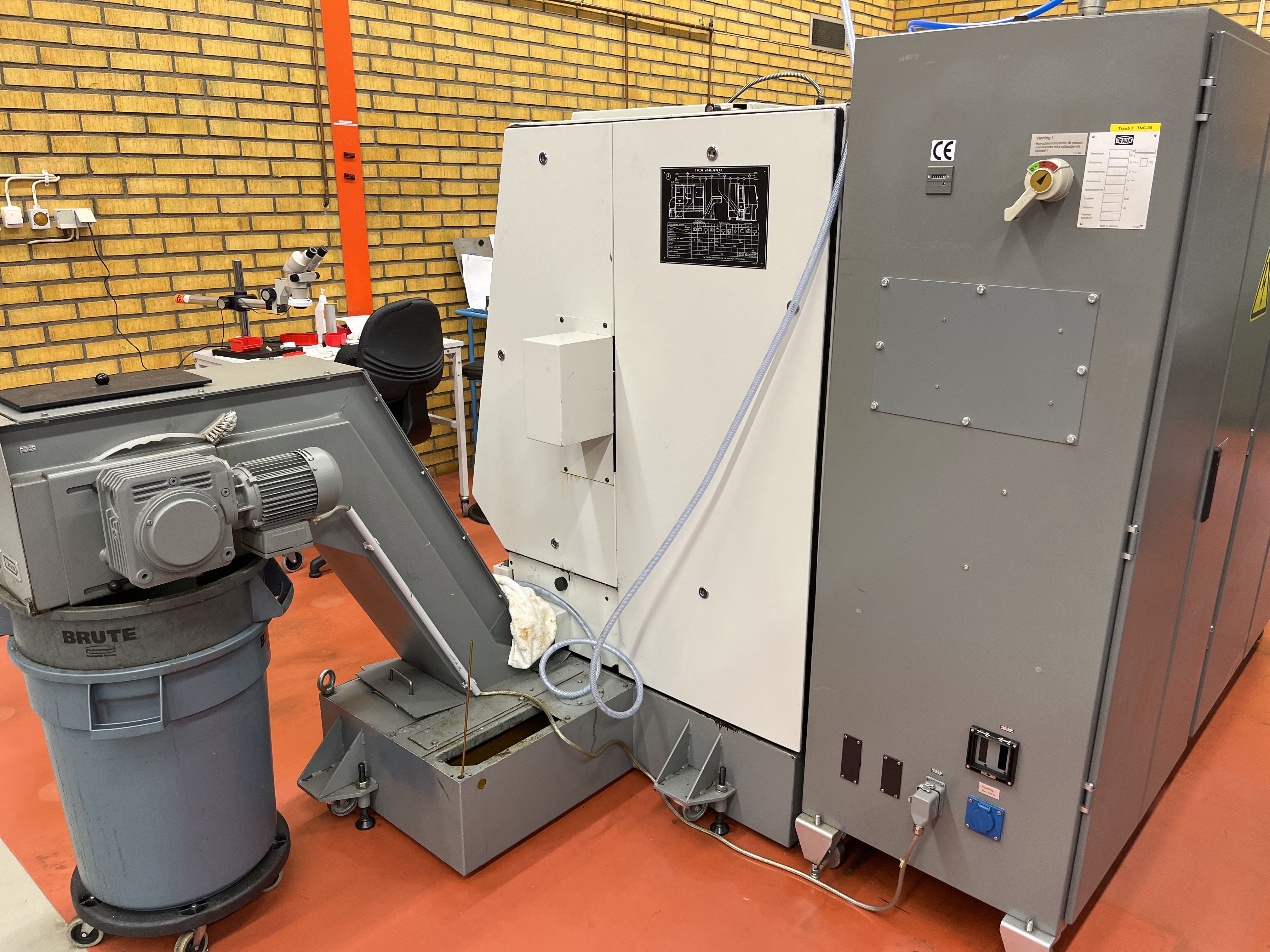

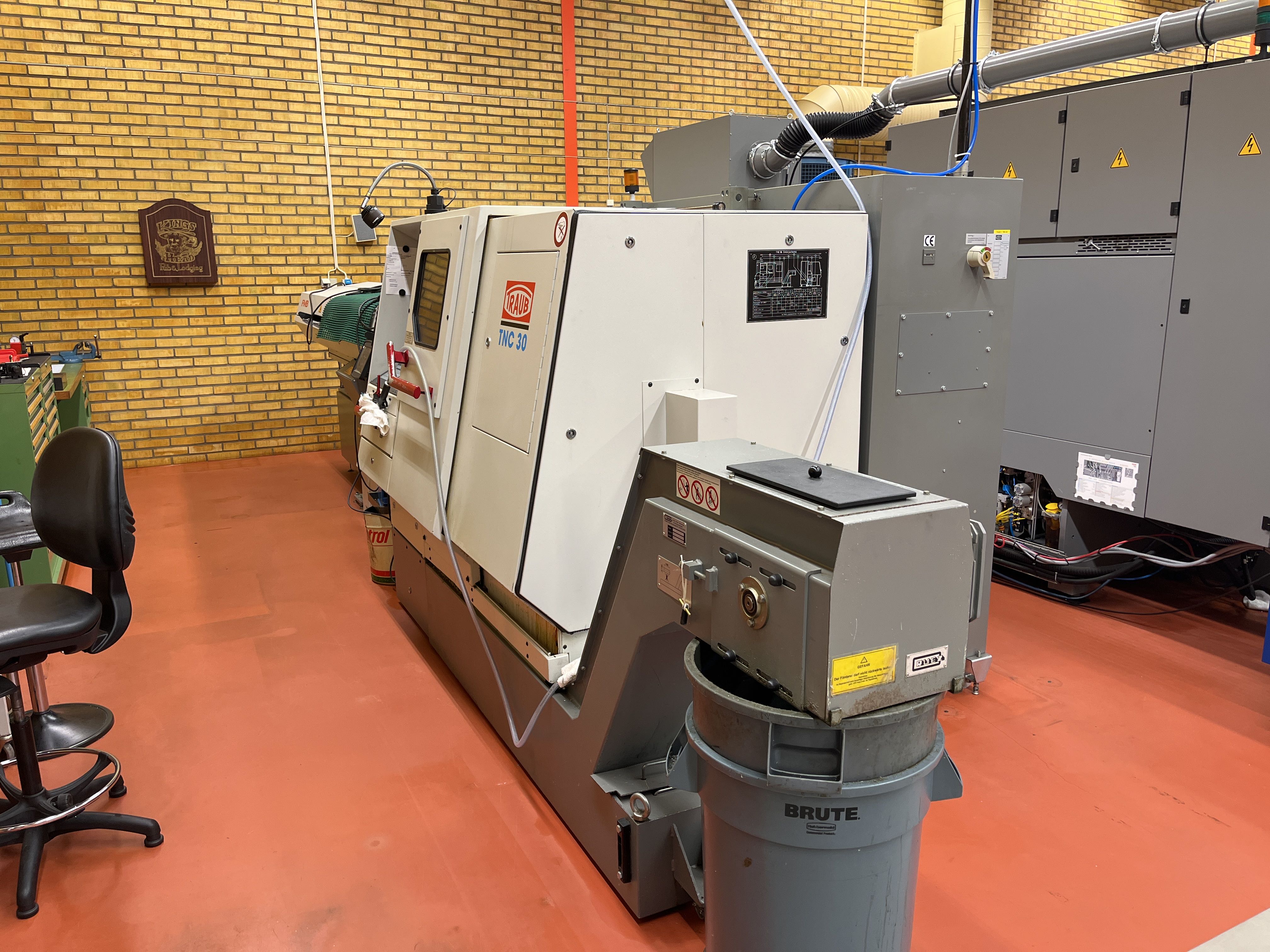

CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder

  • 1078381
  • 13526 Tyresö

Ended

  • 1078381-1 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-2 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-3 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-4 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-5 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-6 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-7 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-8 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-9 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-10 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-11 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-12 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-13 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-14 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-15 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-16 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-17 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-18 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-19 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-20 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-21 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-22 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-23 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-24 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-25 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-26 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-27 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-28 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-29 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-30 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-31 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-32 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-33 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-34 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-35 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-36 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-37 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-38 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-39 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-40 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder
  • 1078381-41 CNC lathe TRAUB TNC 30 TGY incl. FMB Turbo 3-36 Bar feeder

A sustainable action

The climate footprint of a corresponding newly produced item is approx 64009kg CO2 Click here to find out more

Info Shipping Exhibition Pick up Auction type
Brand TRAUBE
Model TNC 30 TGY
Year of manufacture 1998
Accessories Stångmatare
Item condition Normal

Year model 1998

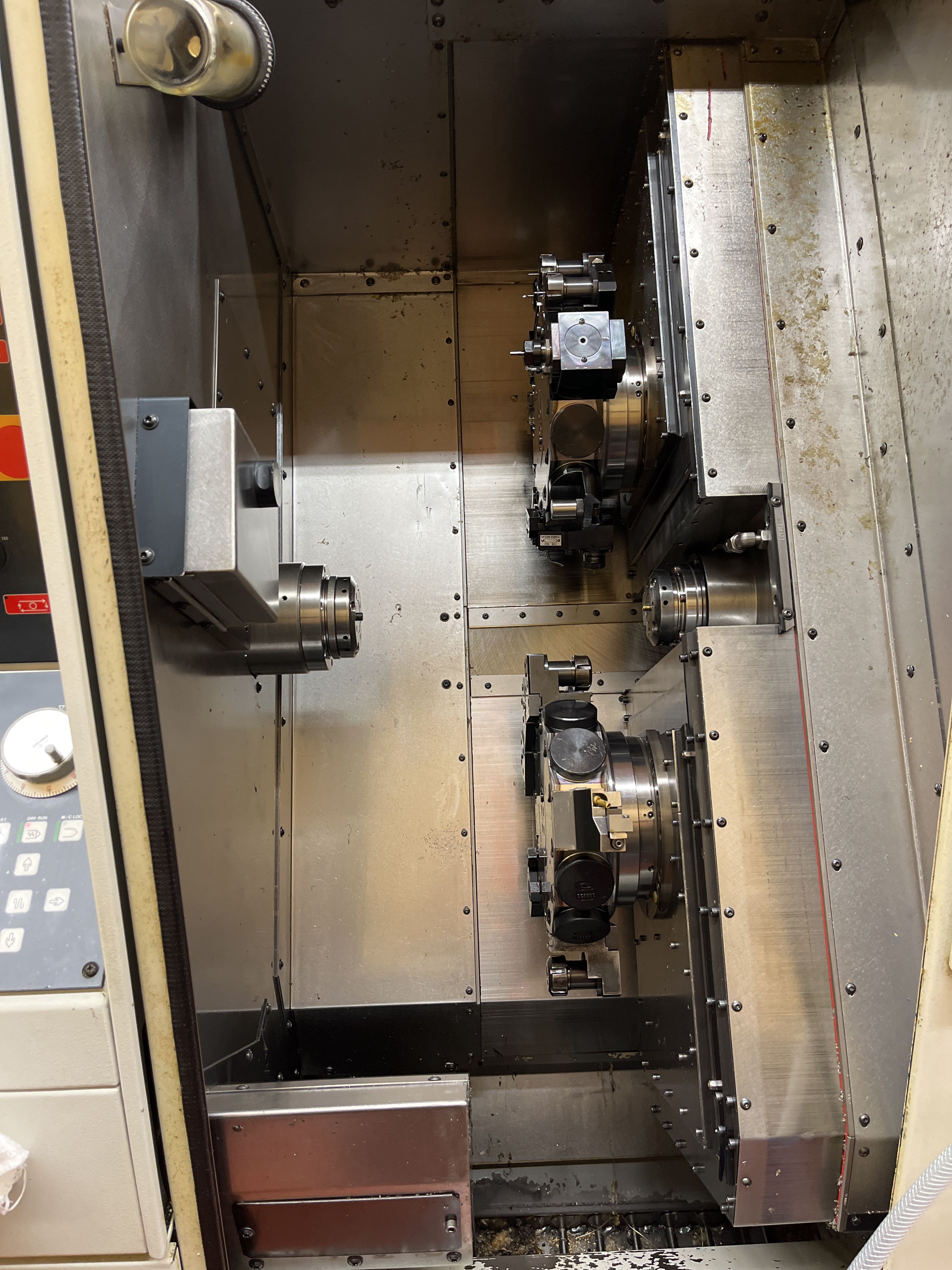

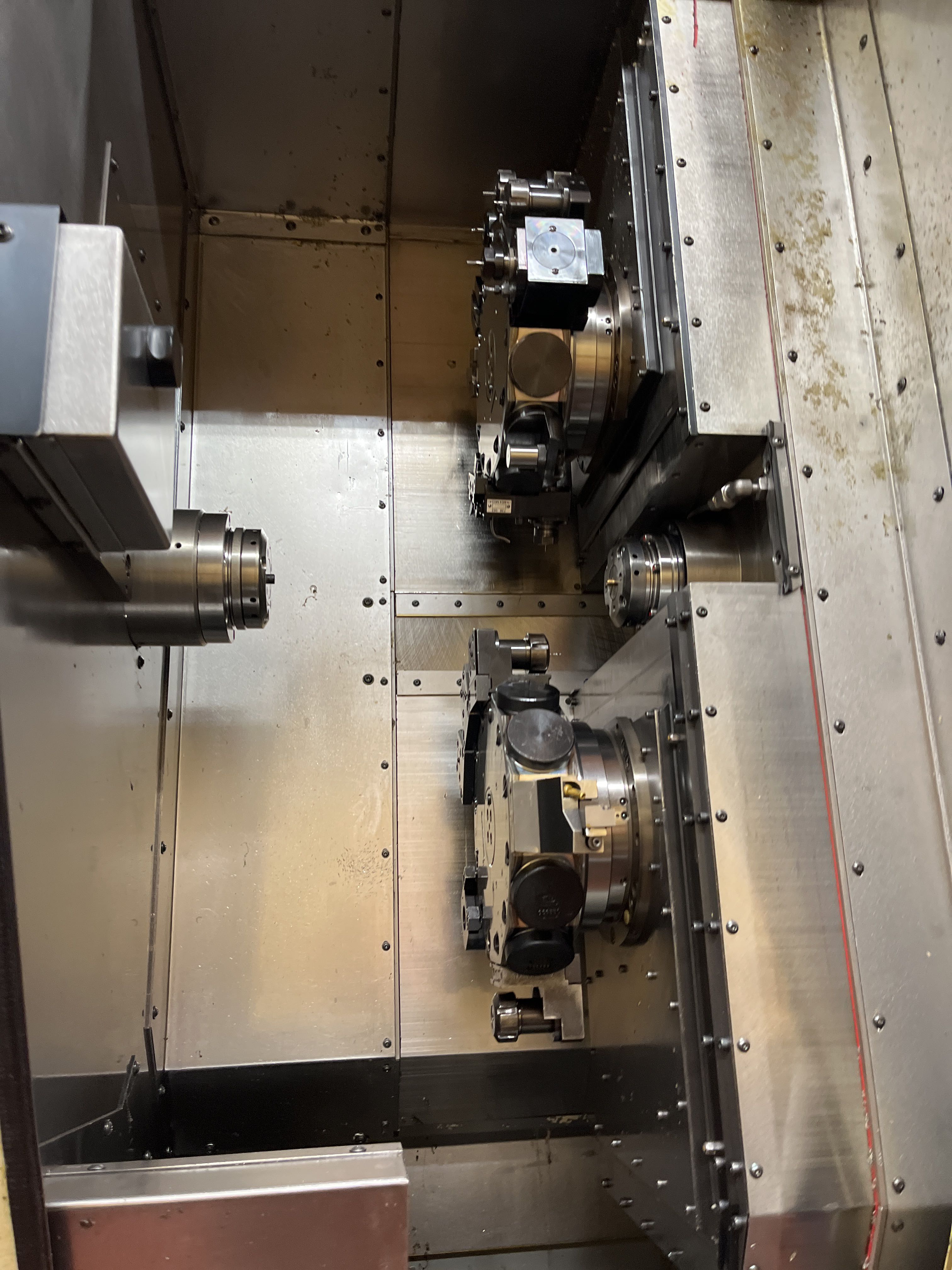

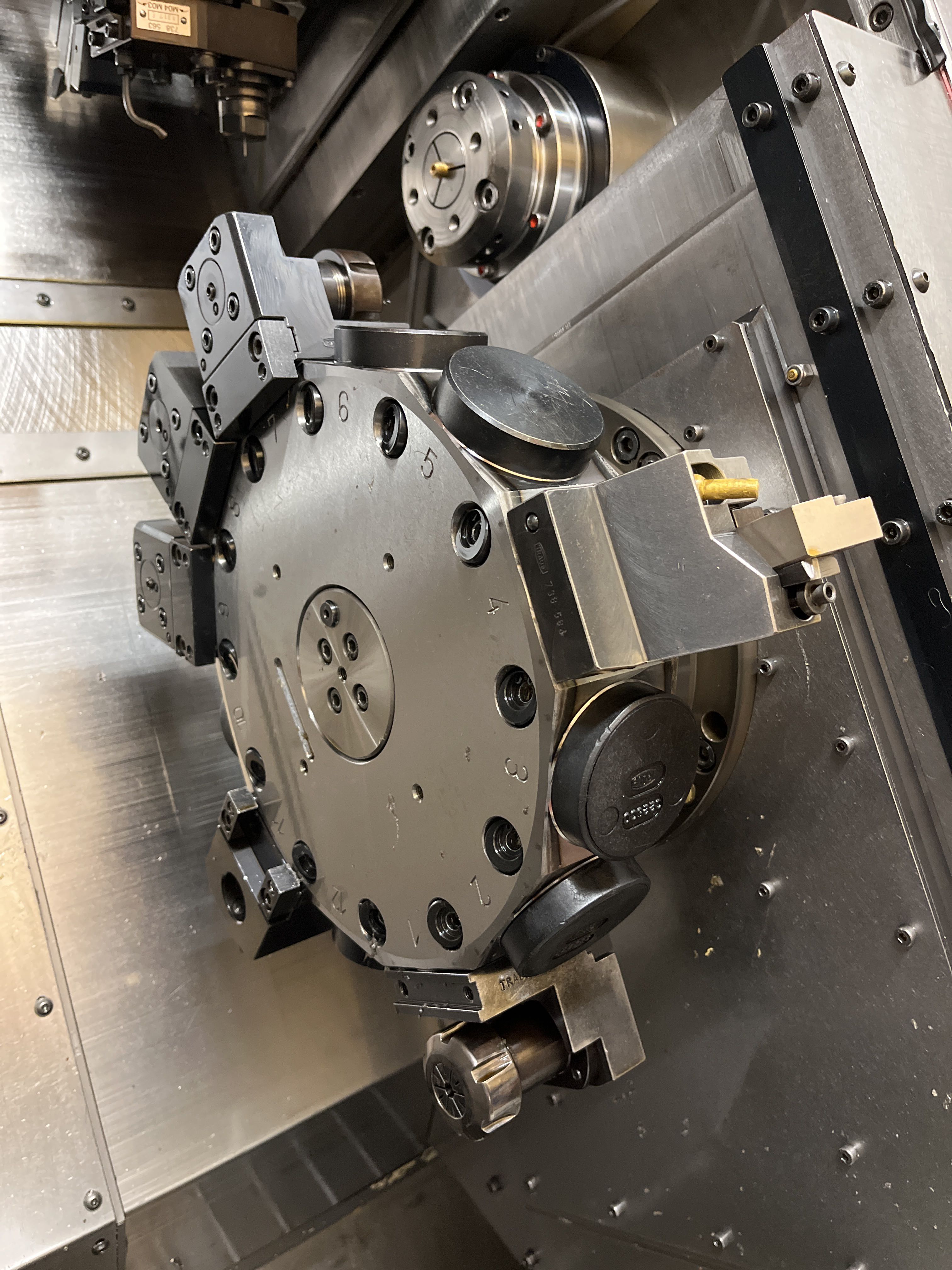

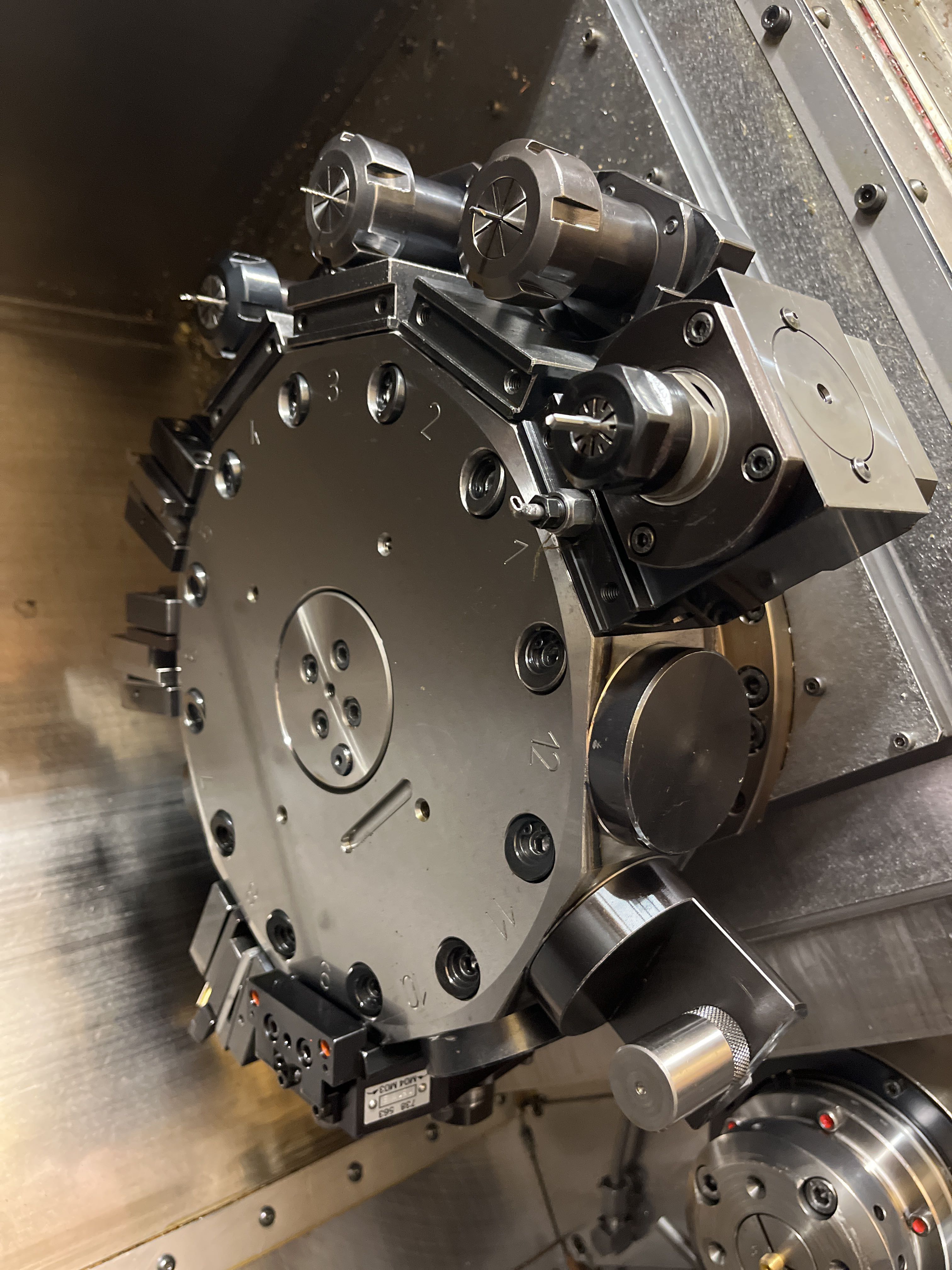

12 places in each revolver so a total of 24
Powered tools.

Specification: (Subject to typographical errors)

- max. rod Ø: 30 [mm]

- max. chuck Ø: 150 [mm]

- main spindle motor power: 7.5 [kW]

- underspindle power: 5.5 [kW]

- with fixed main head

- with mobile tail bearing

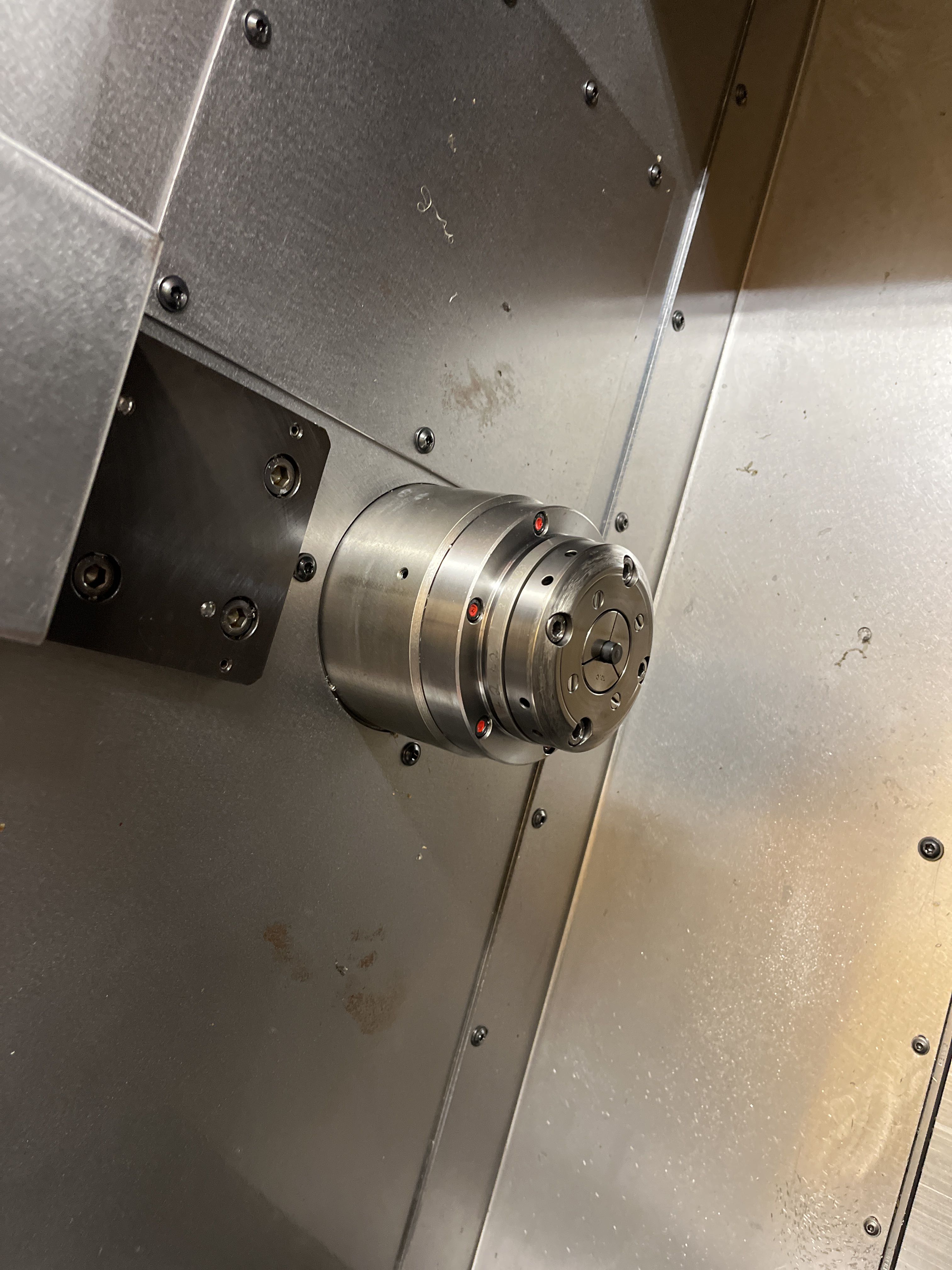

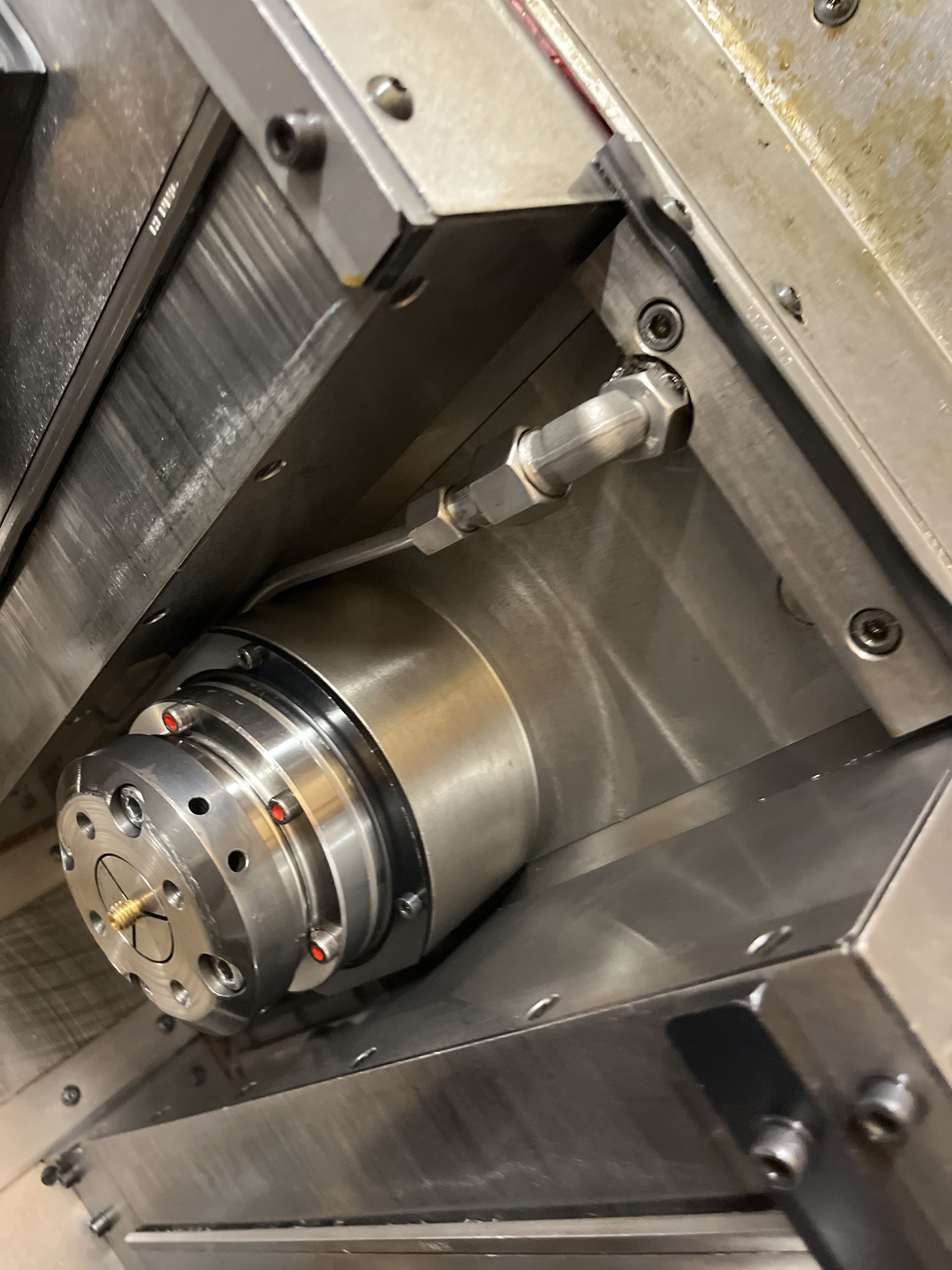

- synchronized counterspindle

- max. transverse stroke X1, X2 : 120, 110 [mm]

- max. longitudinal stroke Z1, Z2: 330 [mm]

- speed: 950 - 7000 [rpm]

- Max. turning length: [mm] 450

- Bar capacity: [mm] 42

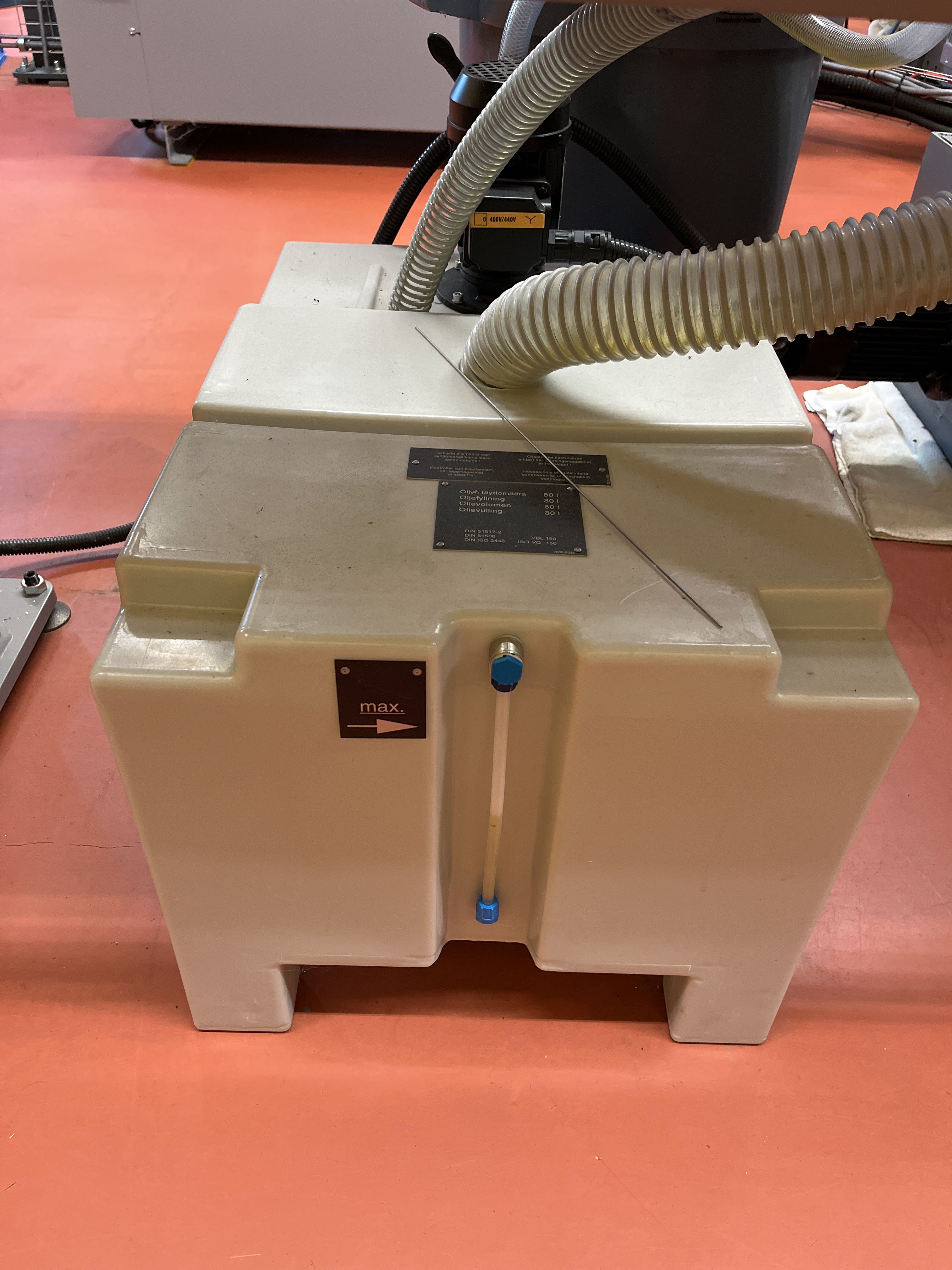

Oil cooler with separate container

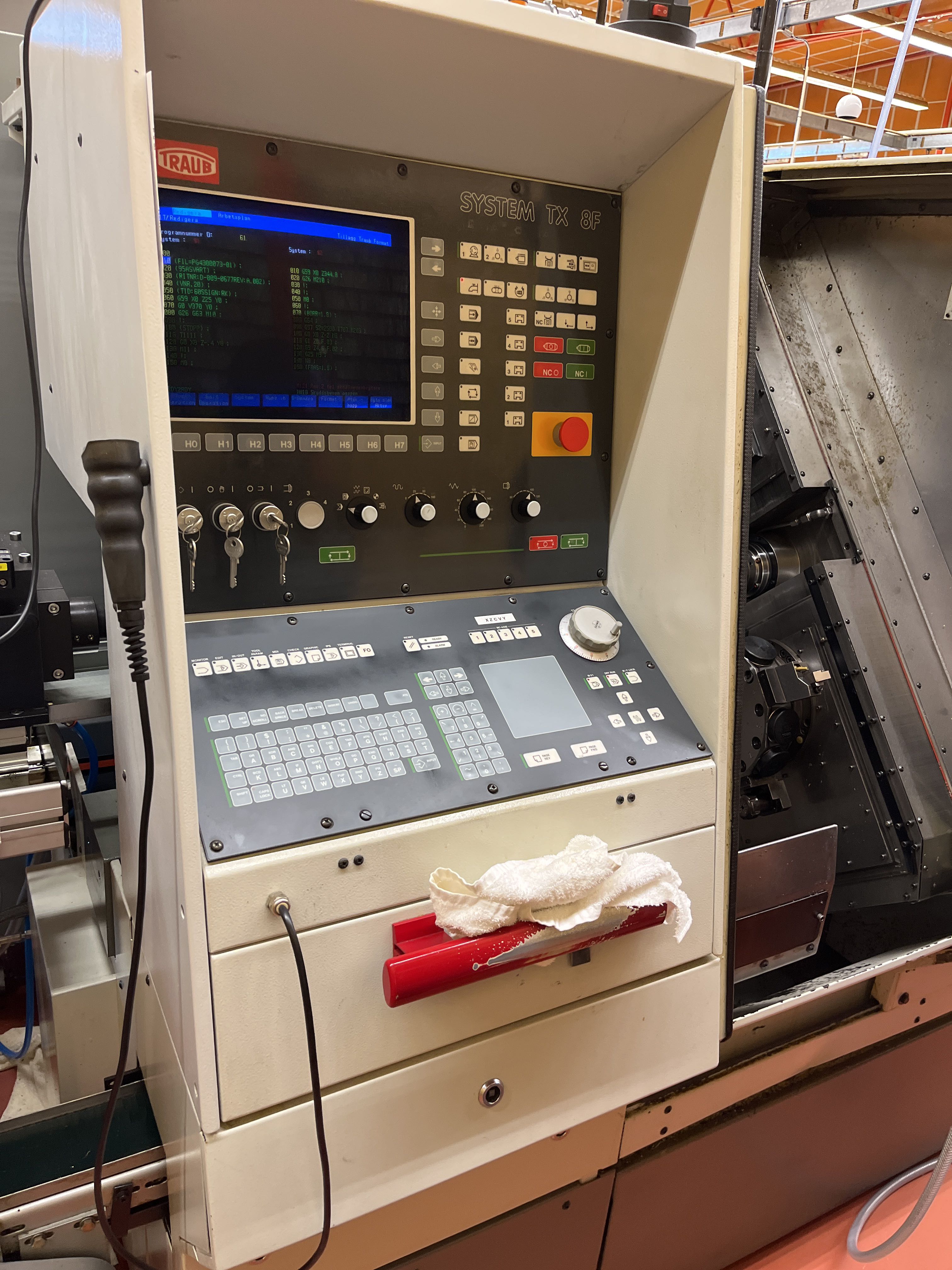

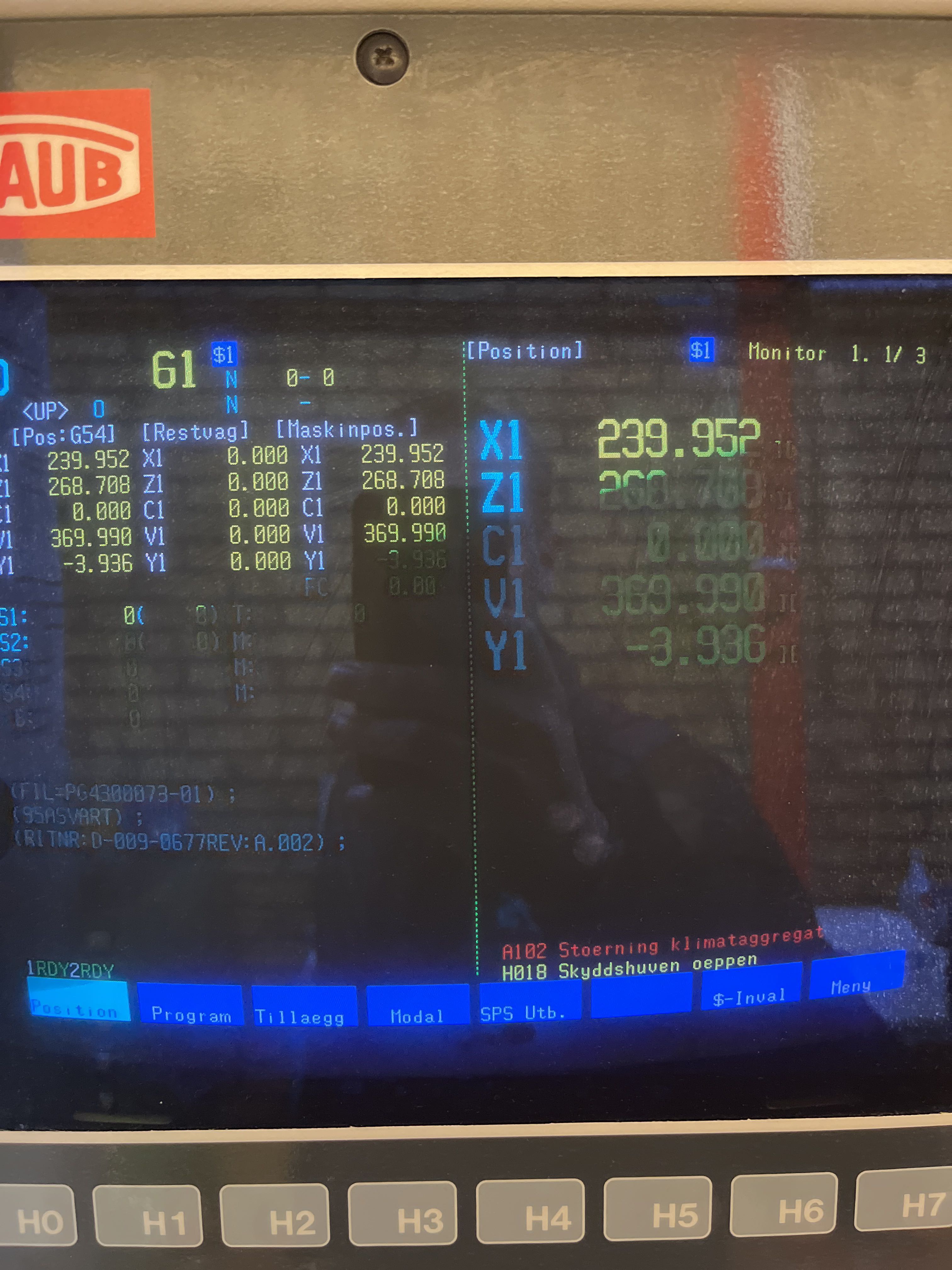

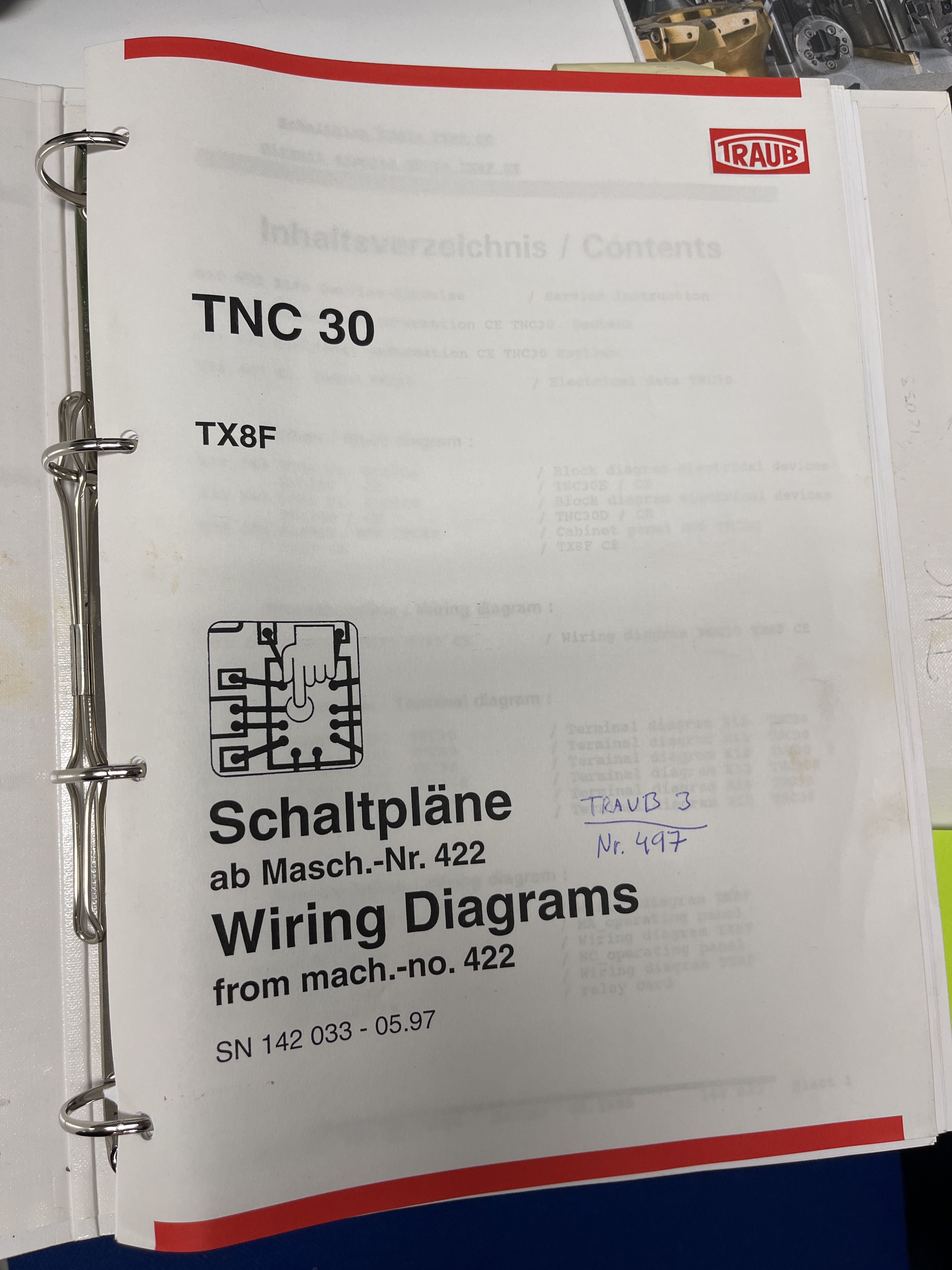

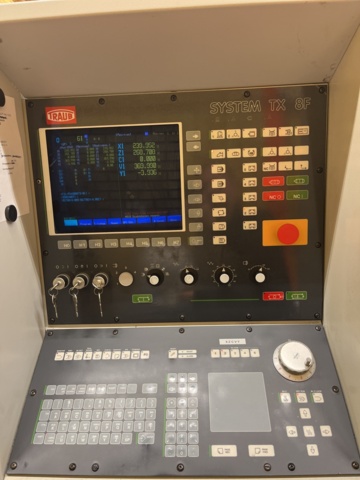

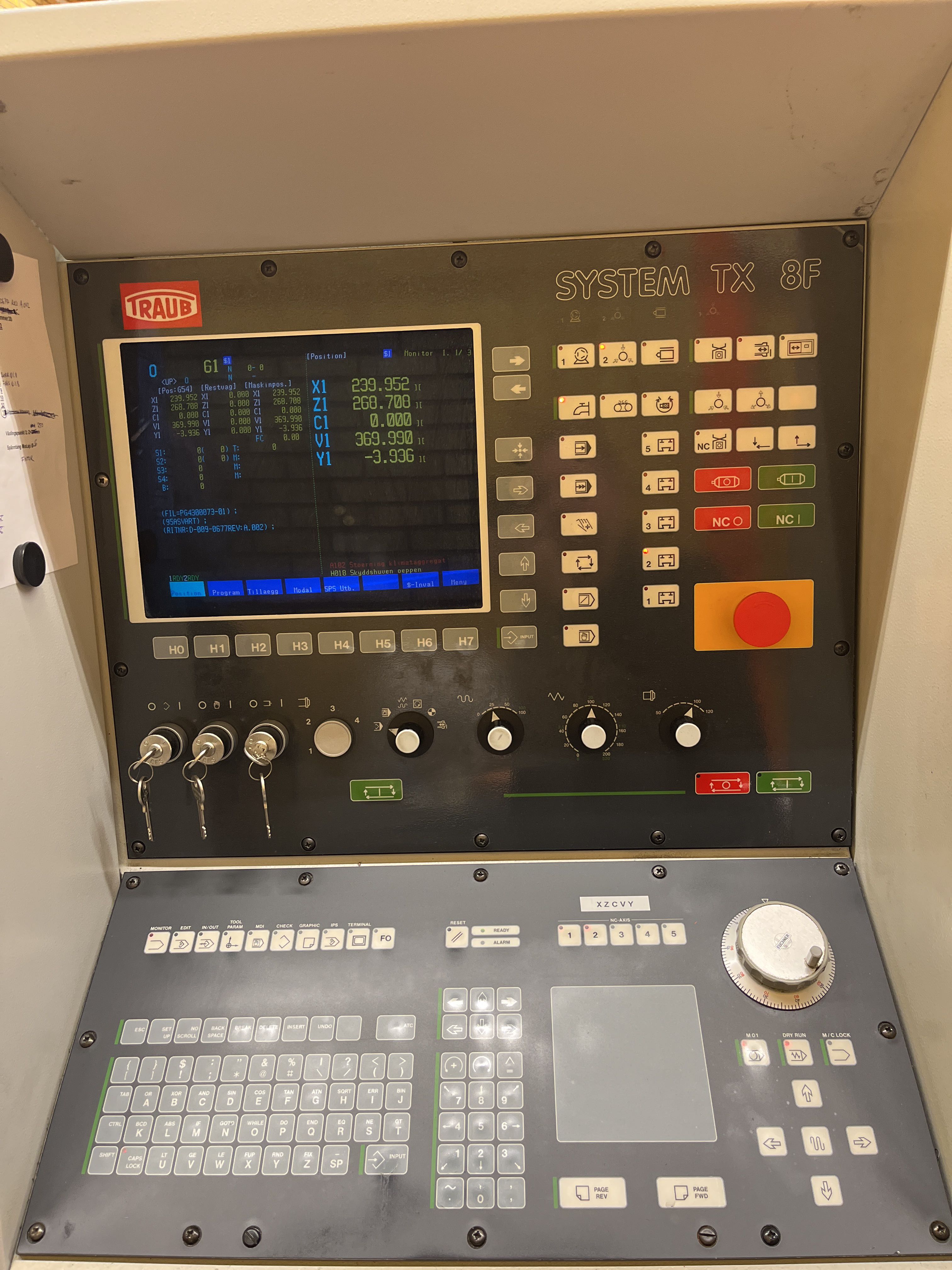

Control system TX 8F

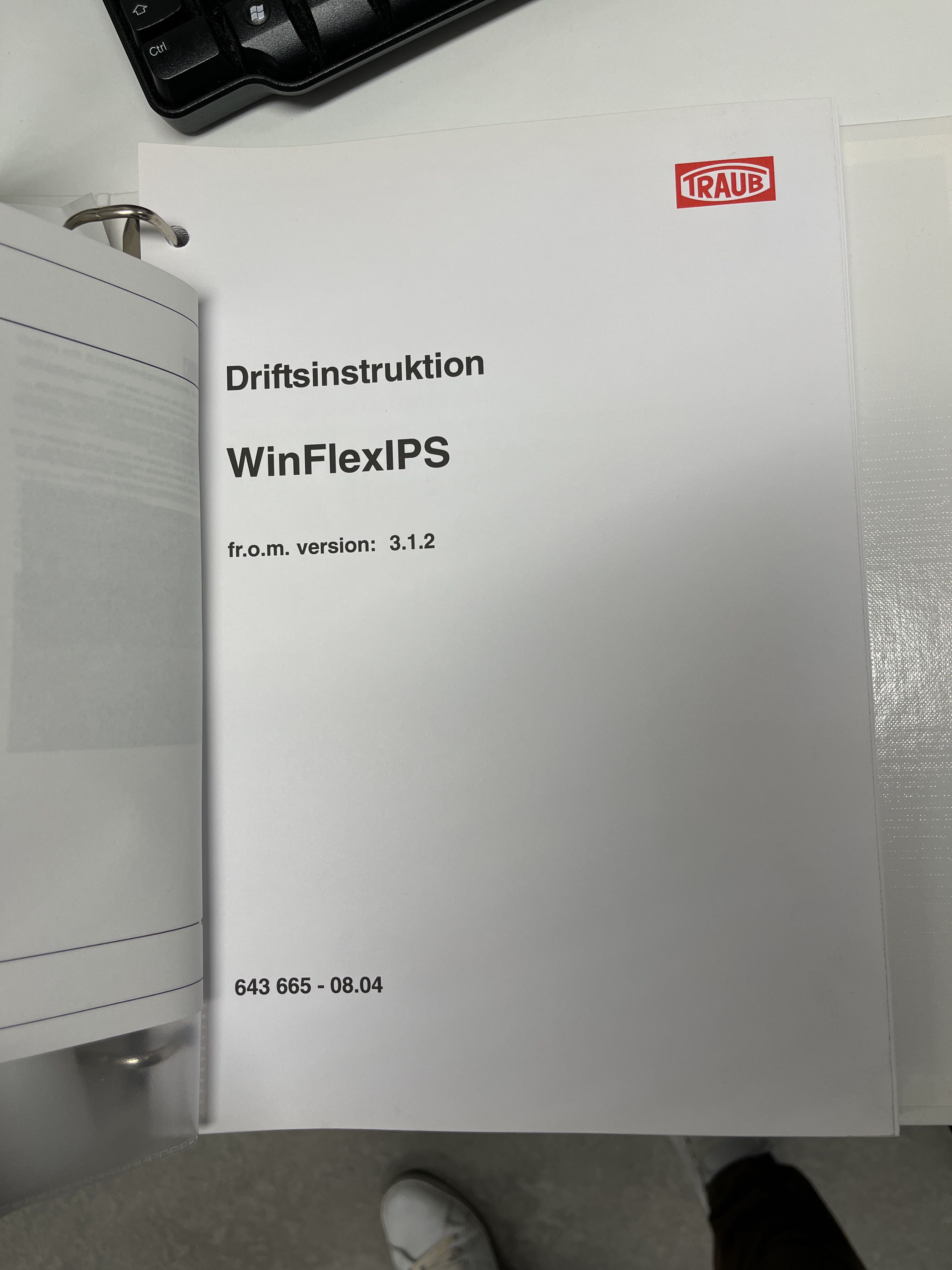

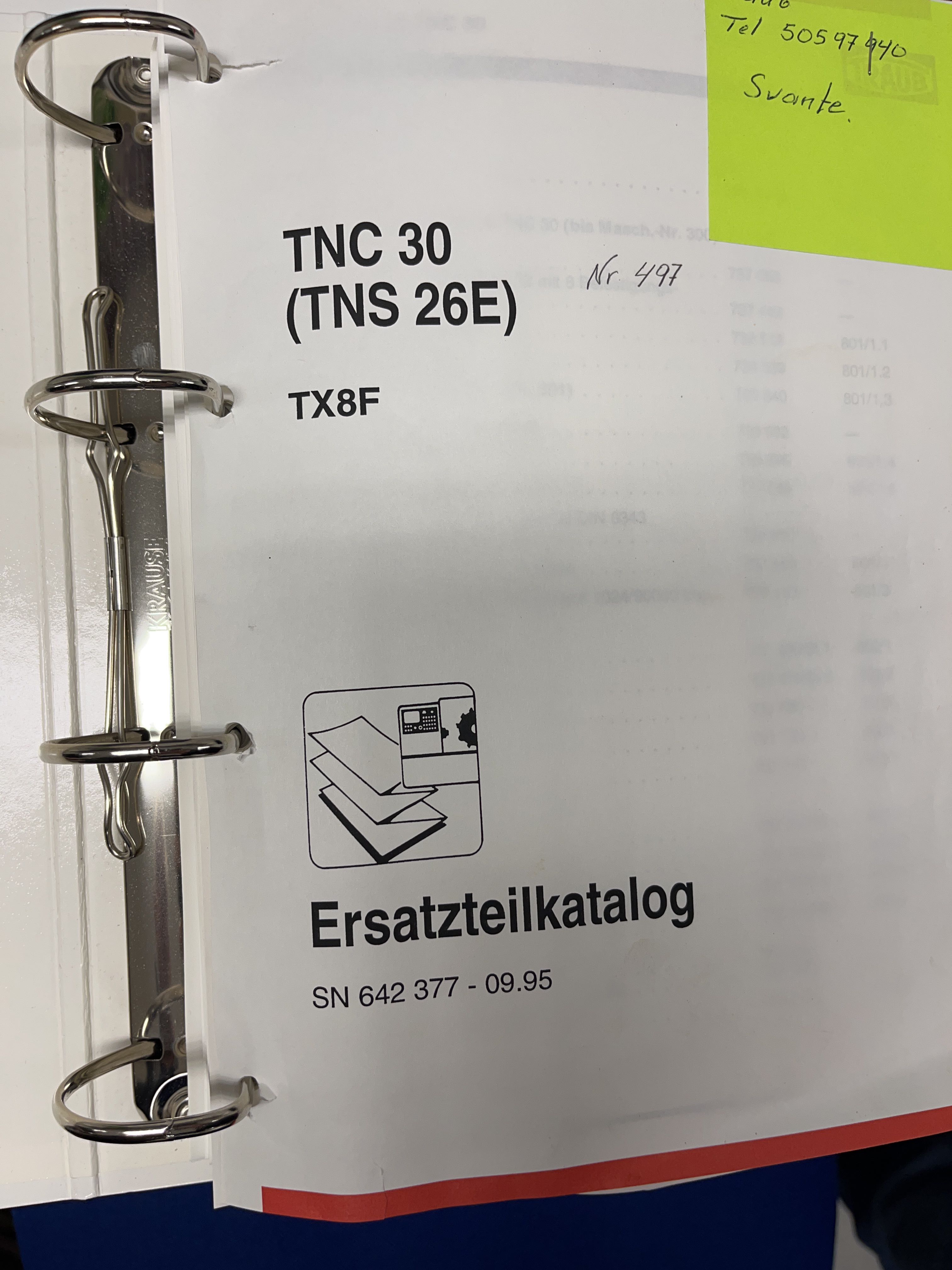

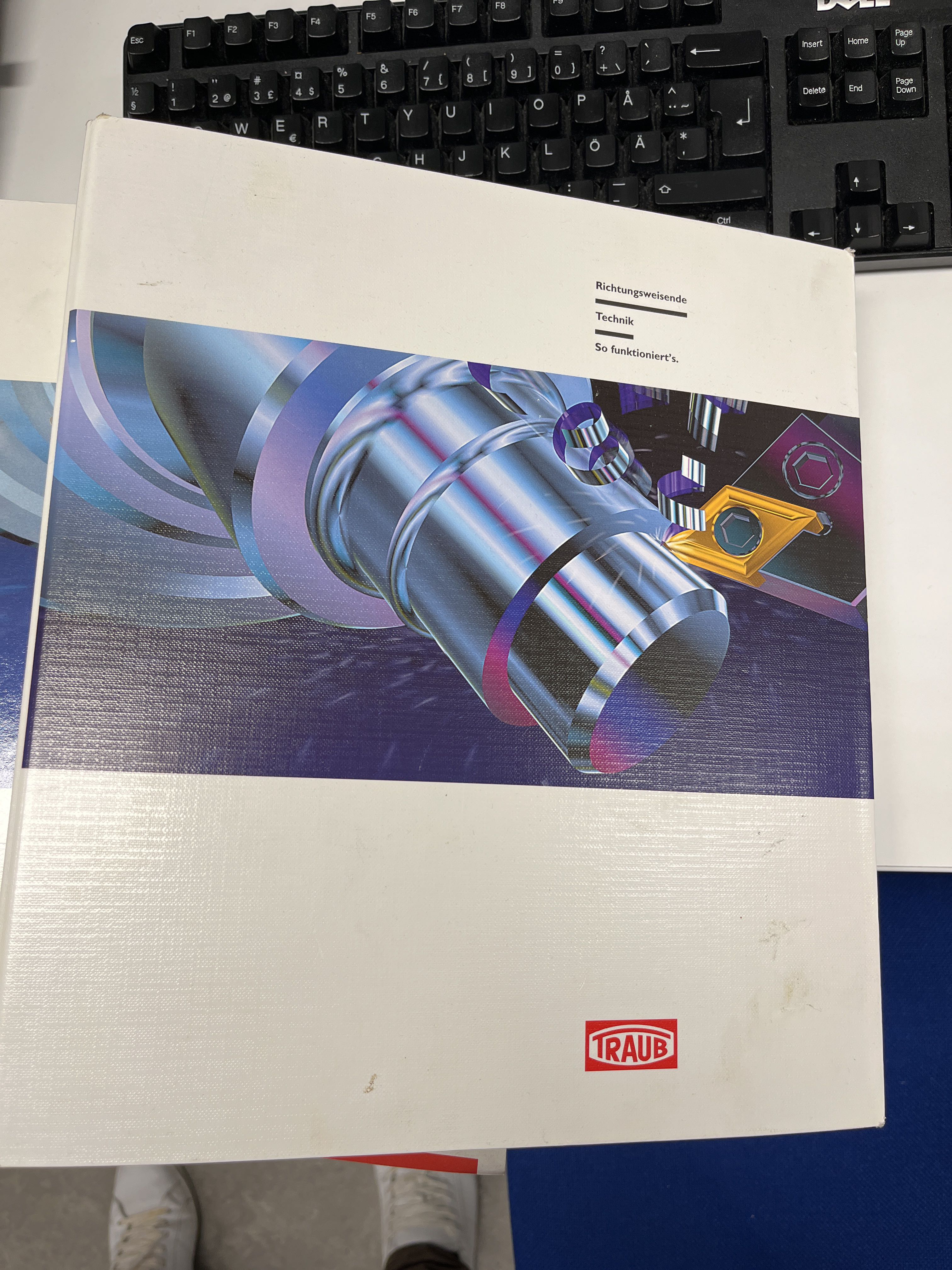

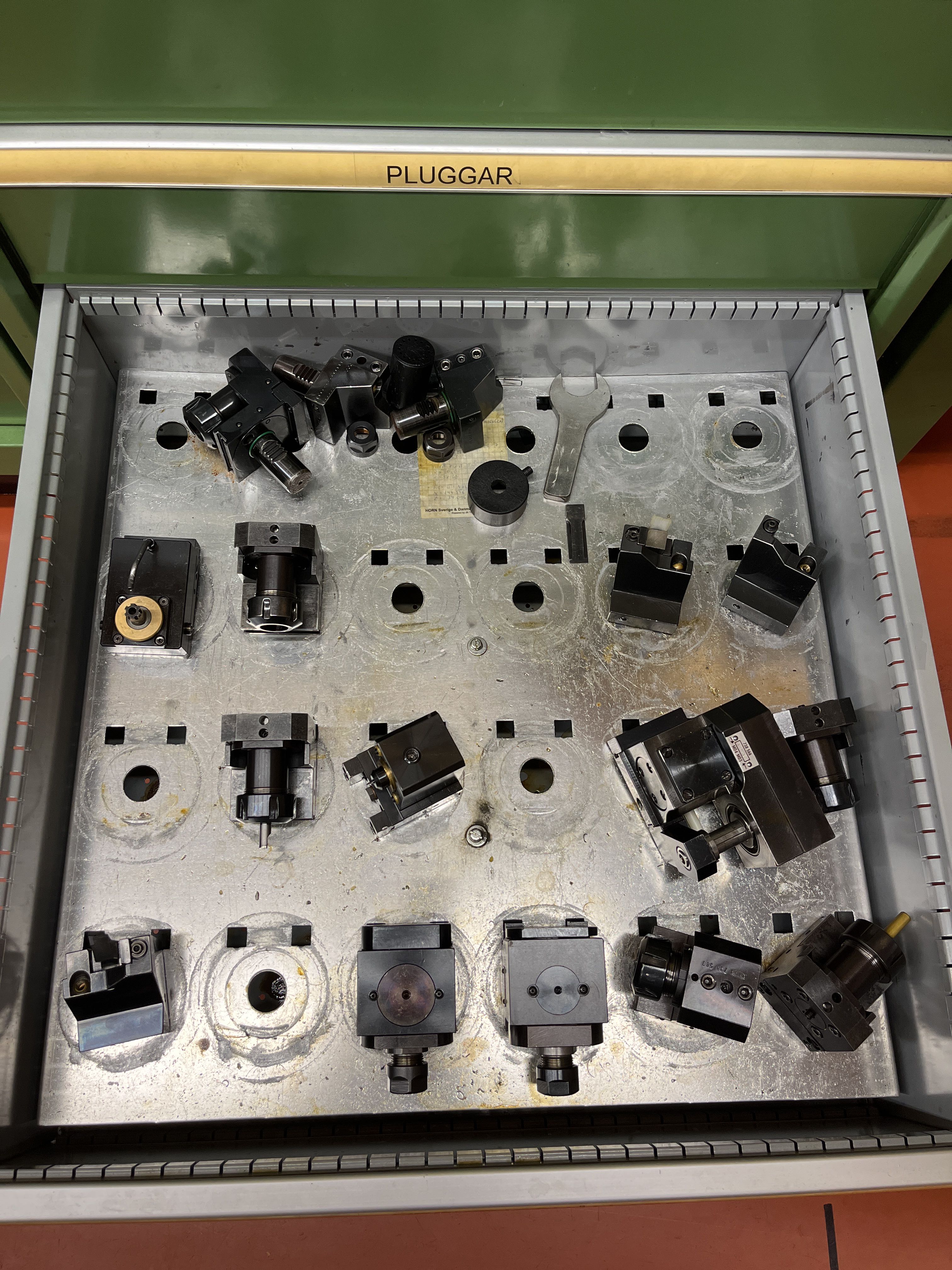

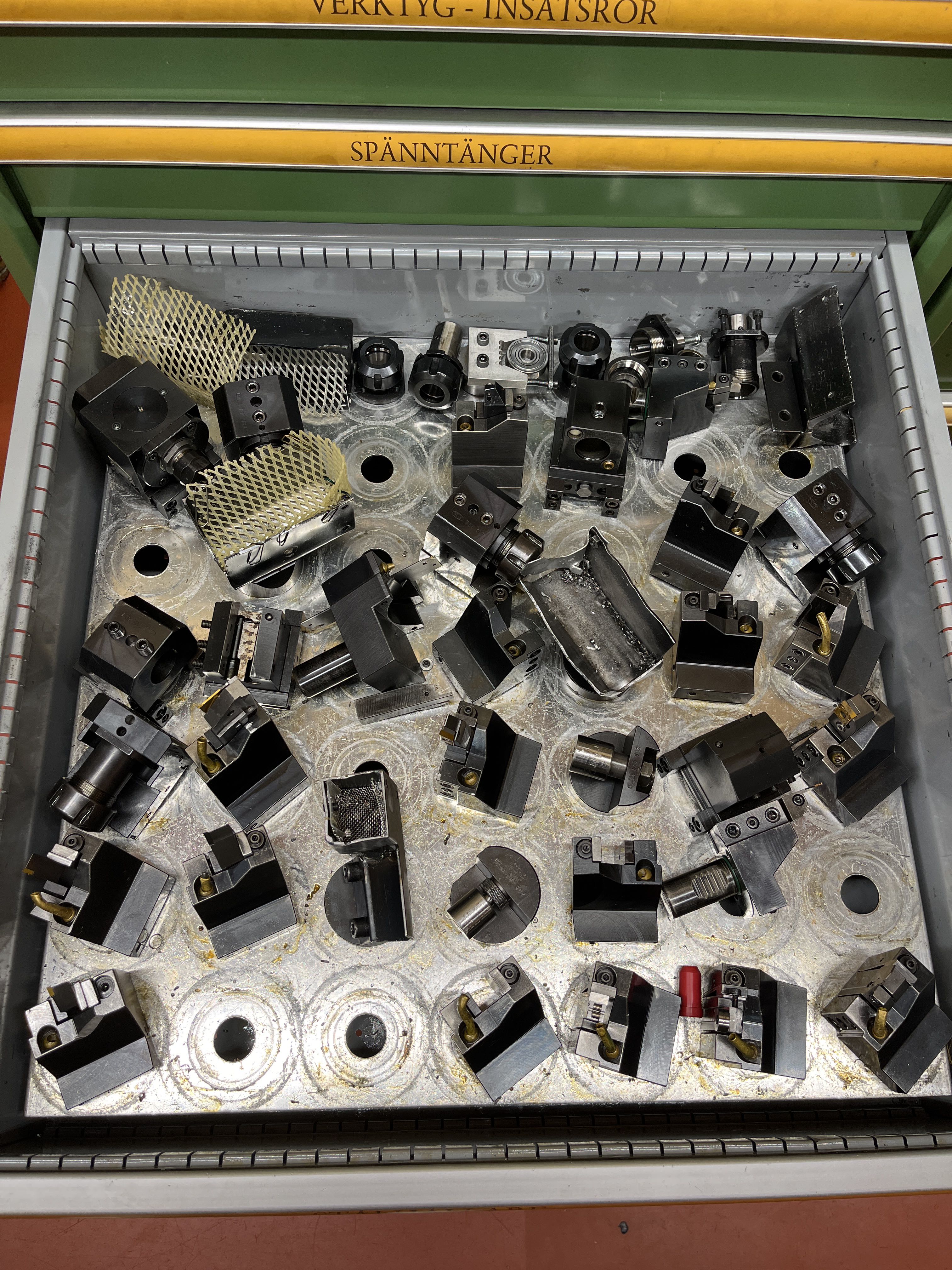

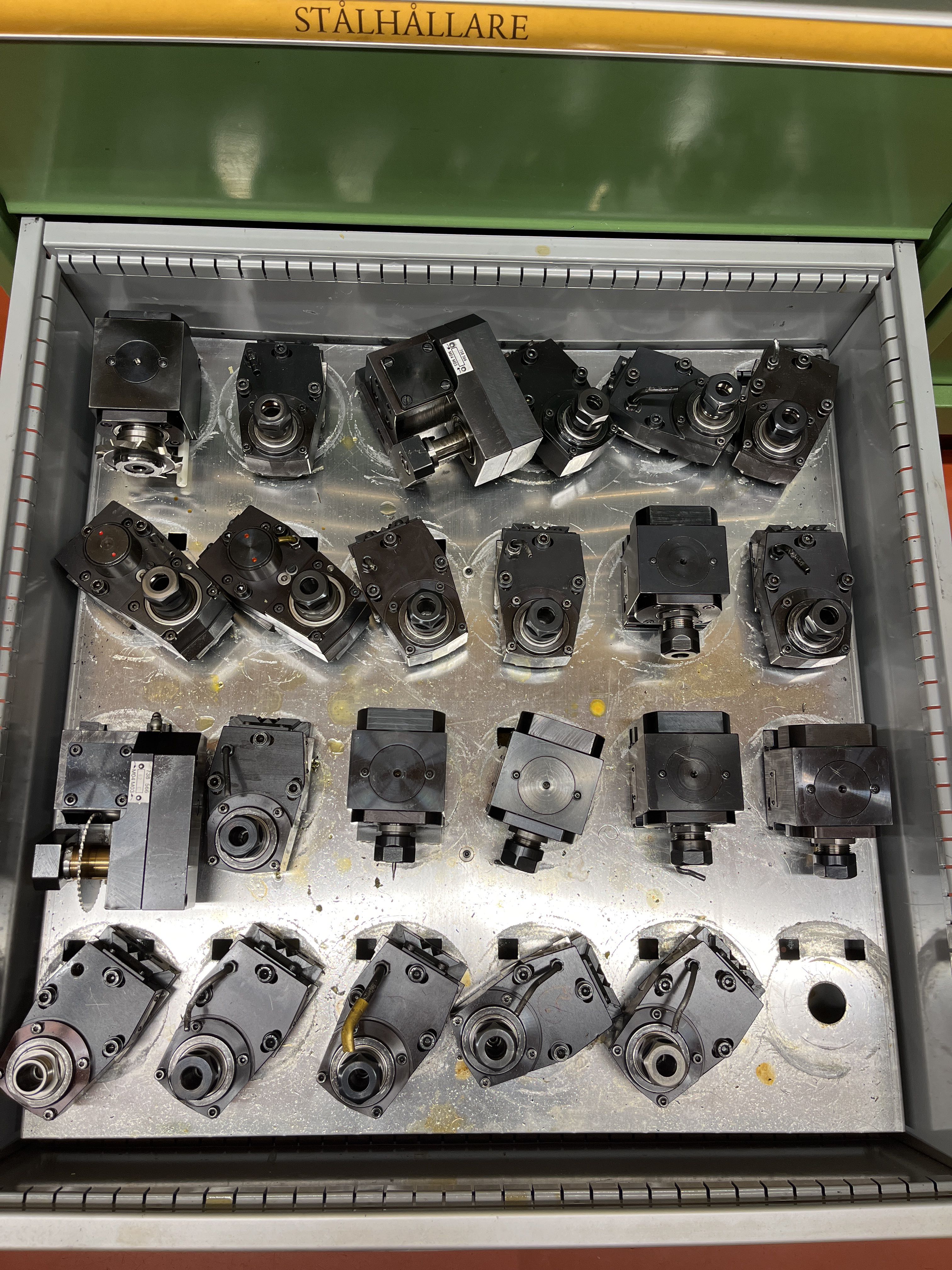

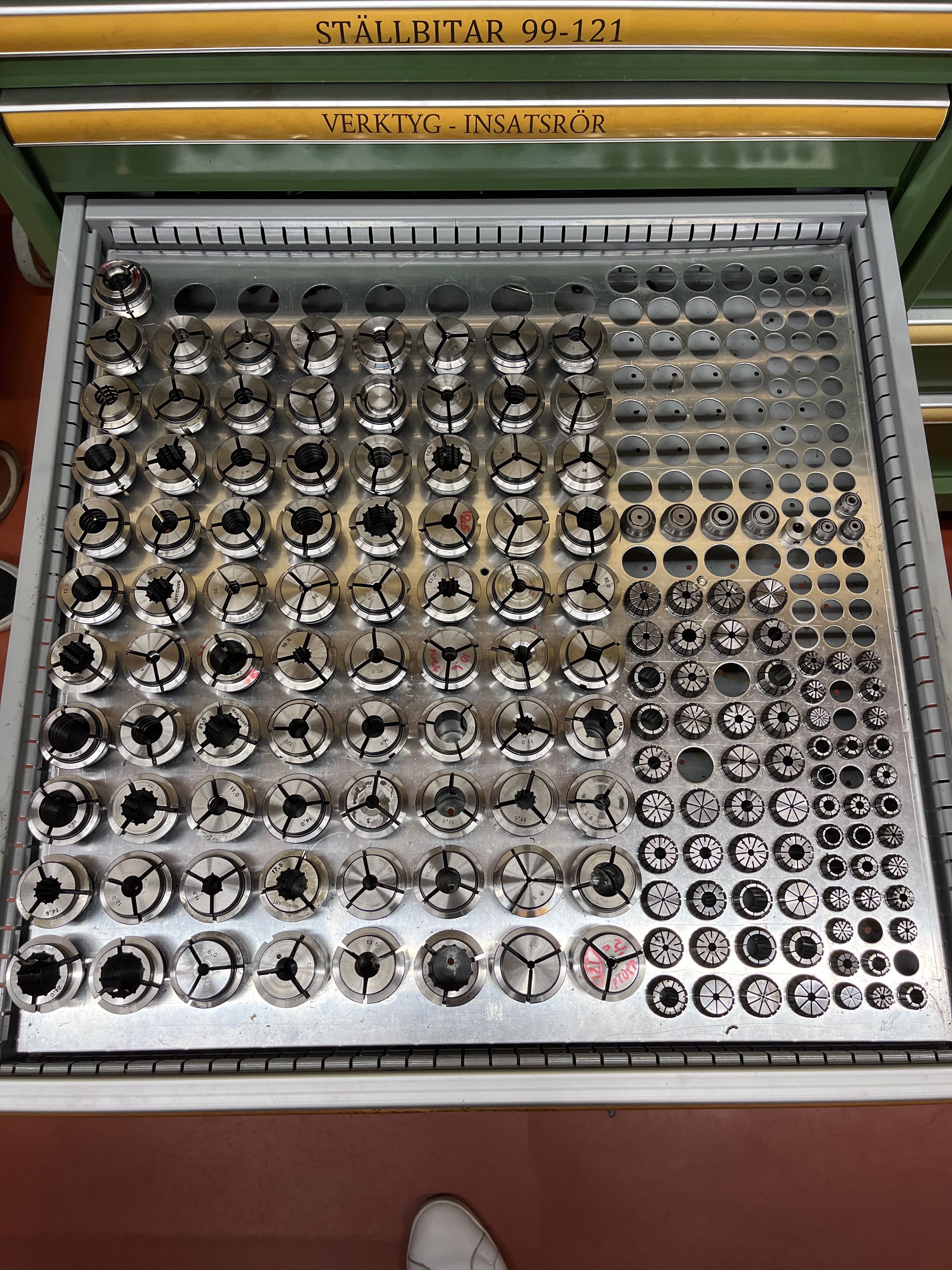

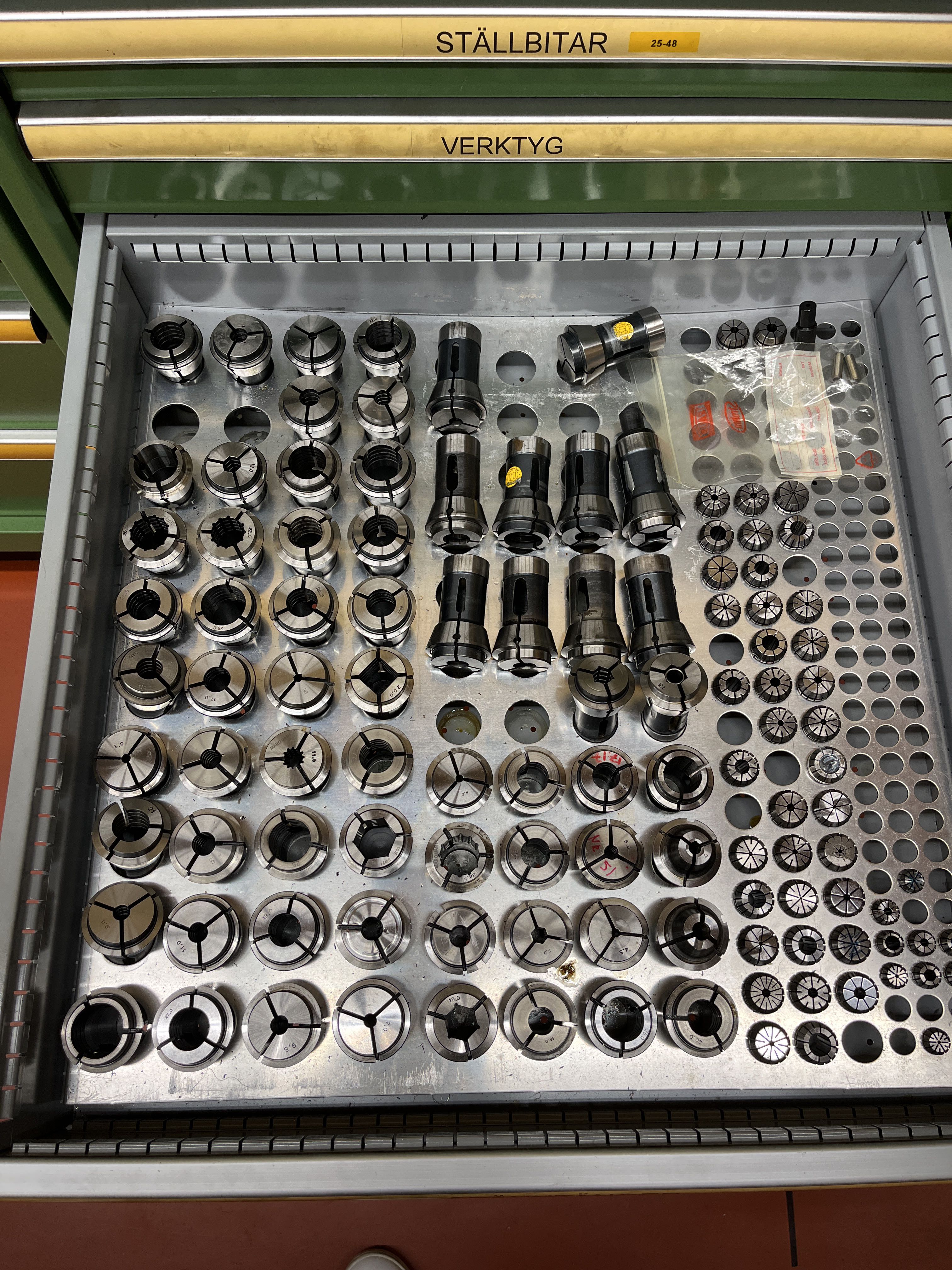

Various tools etc. included, see pictures

All covers are available

Weight 4.5t

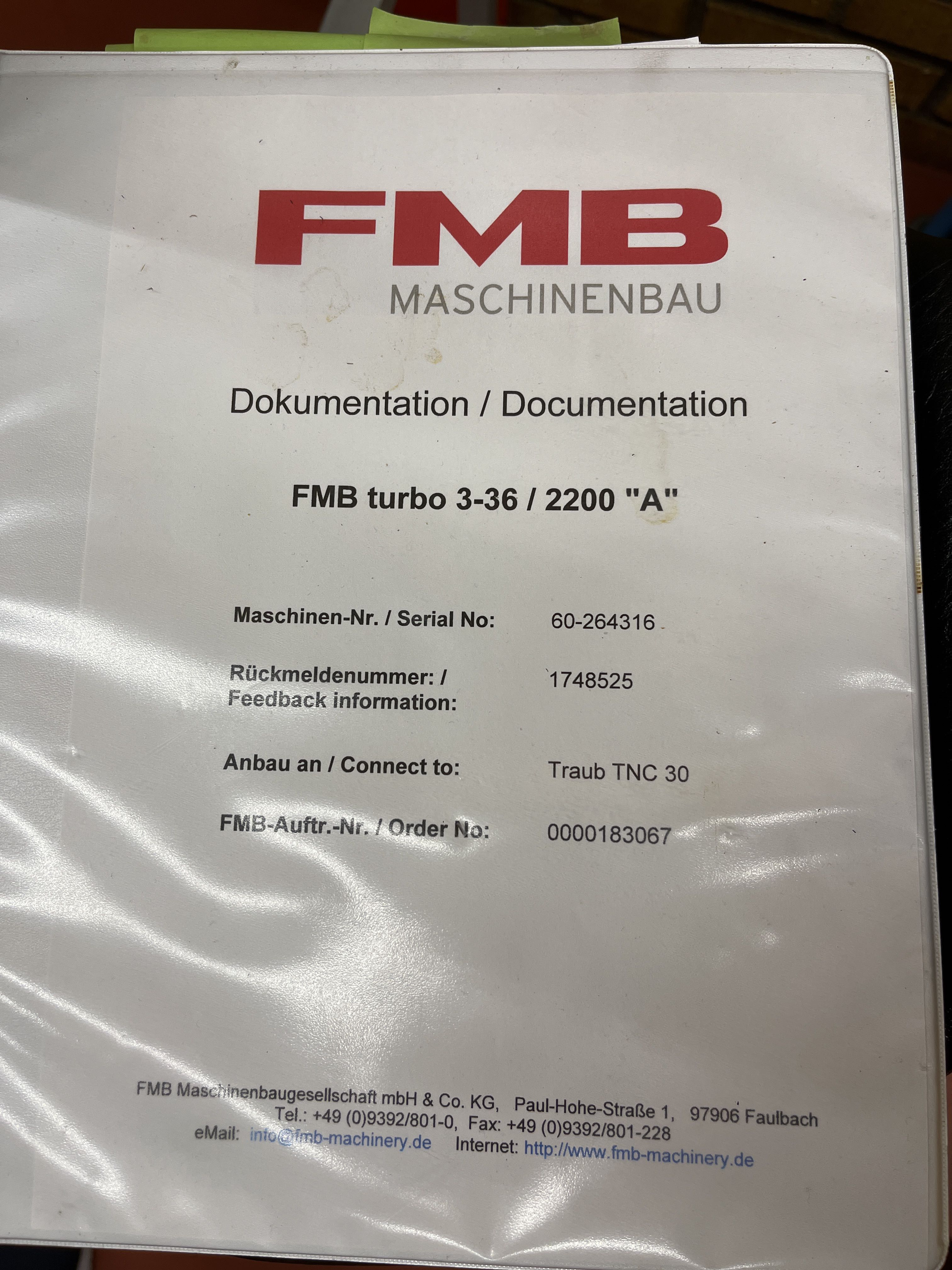

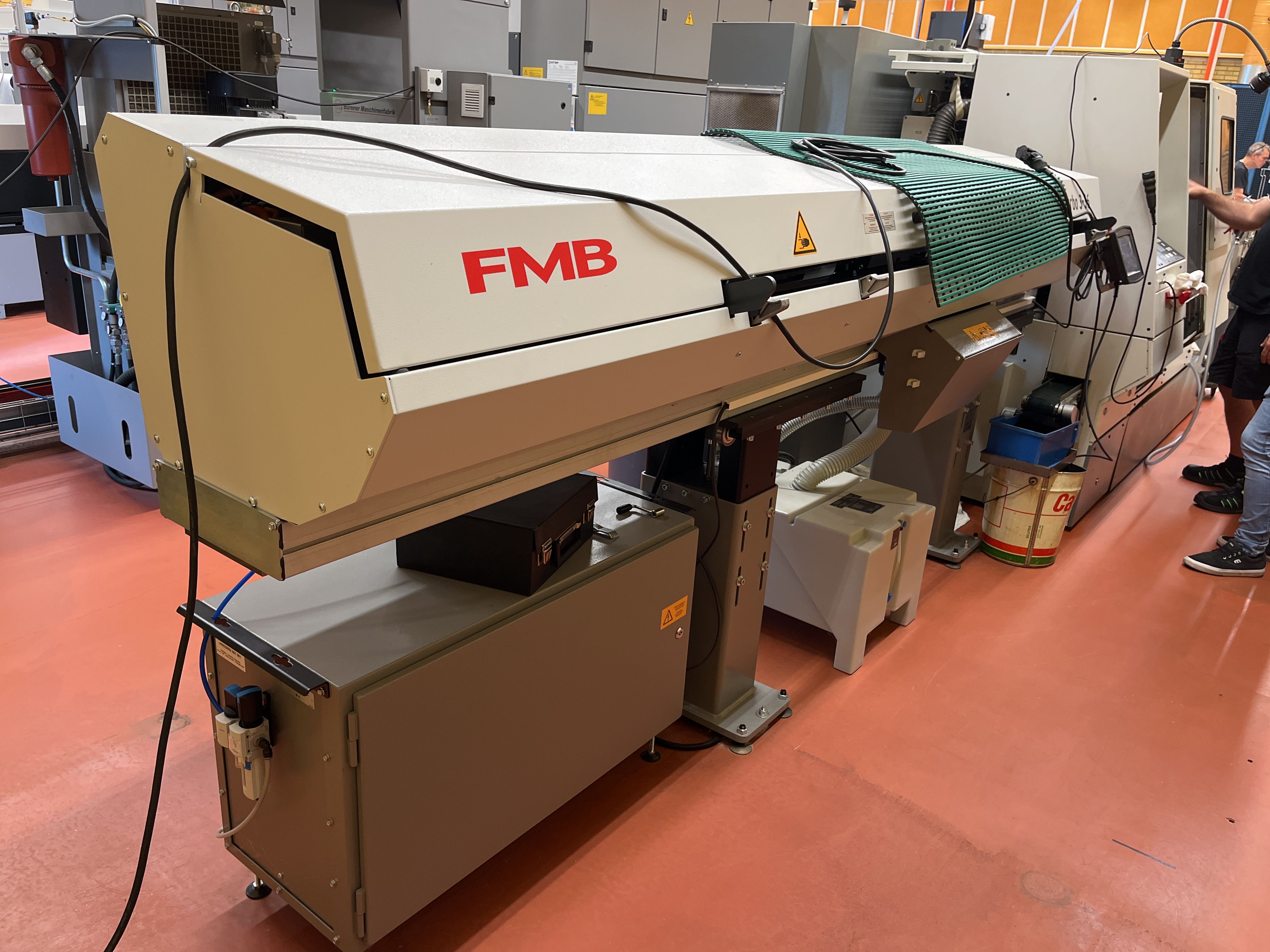

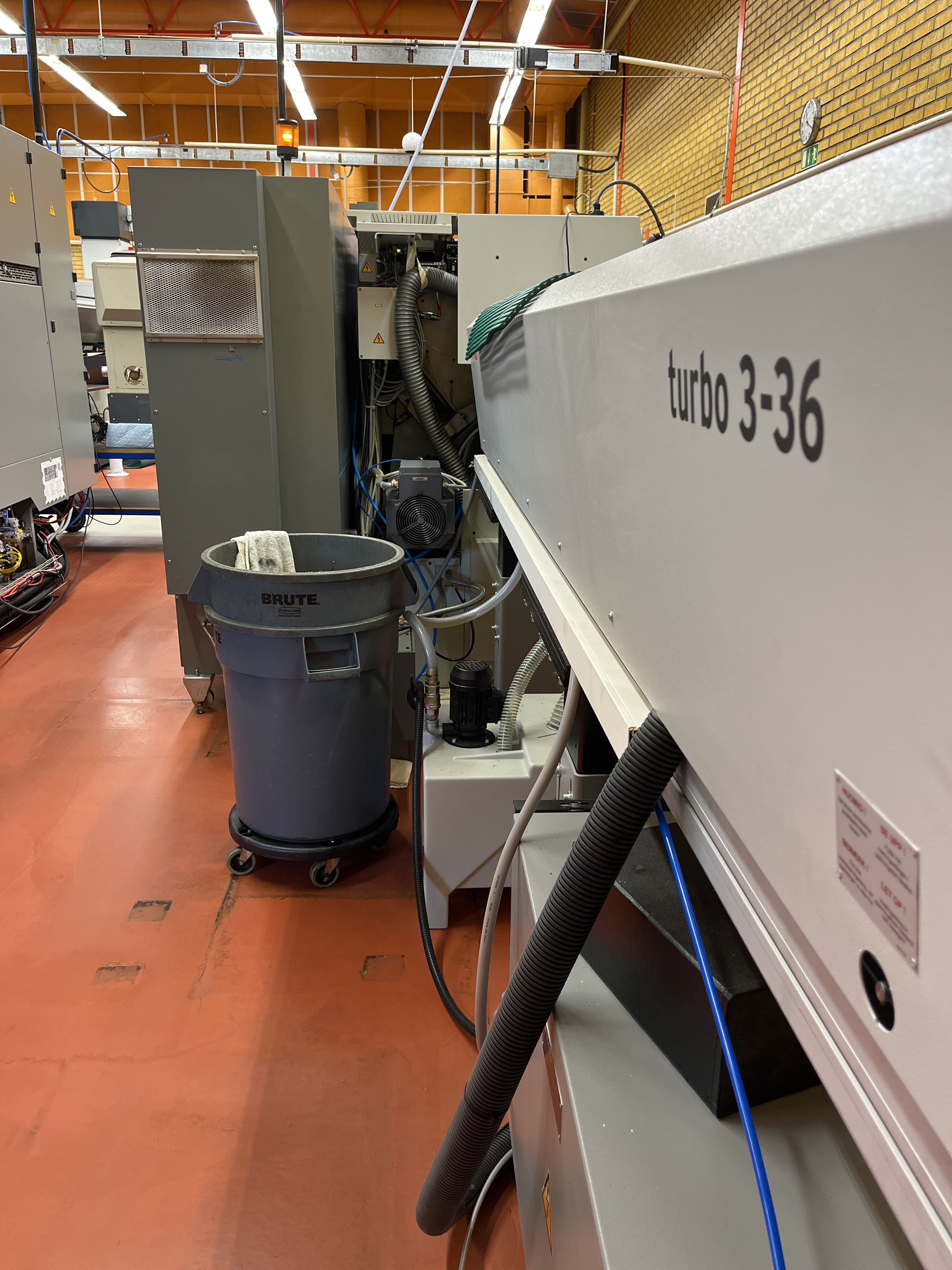

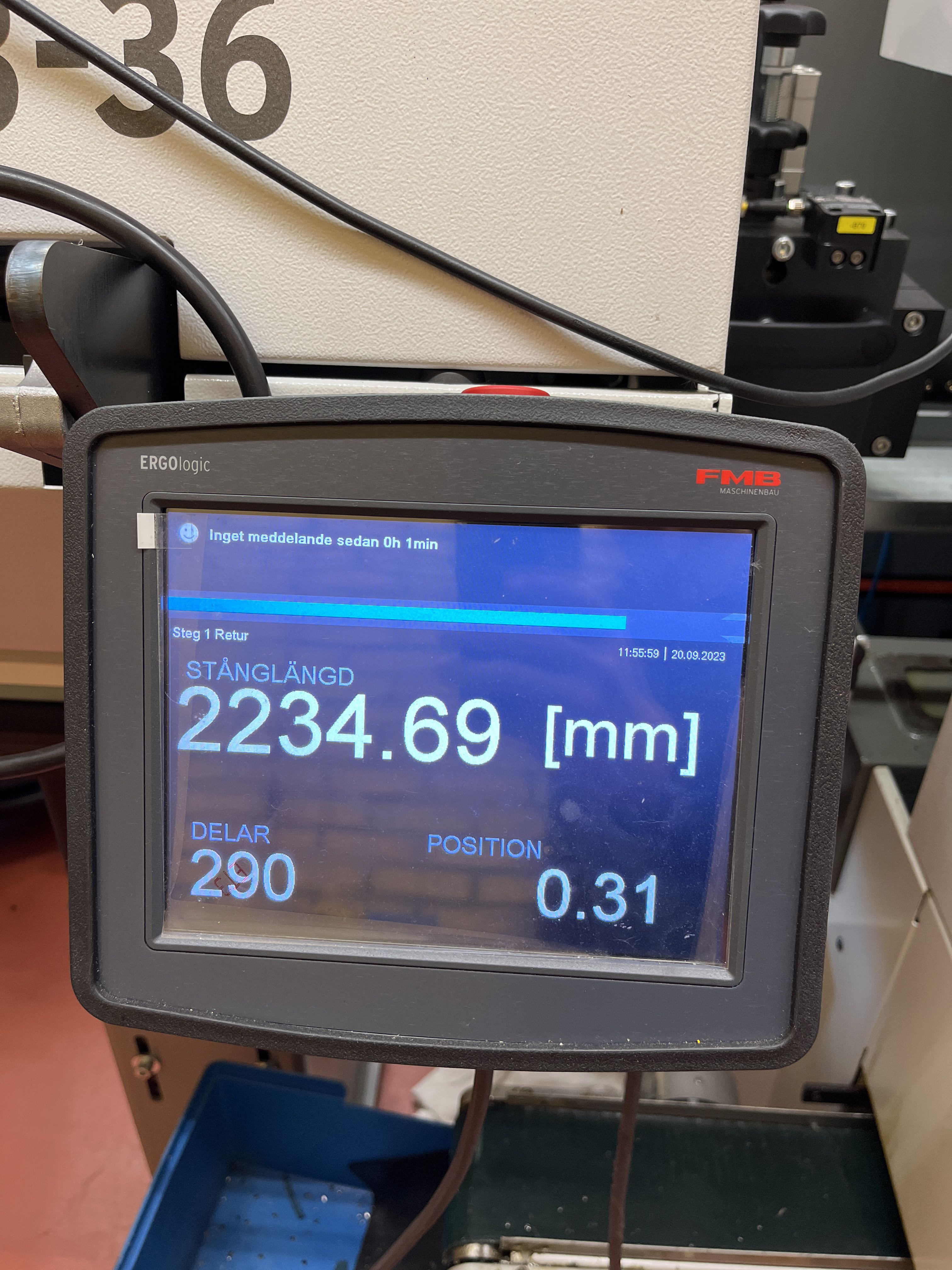

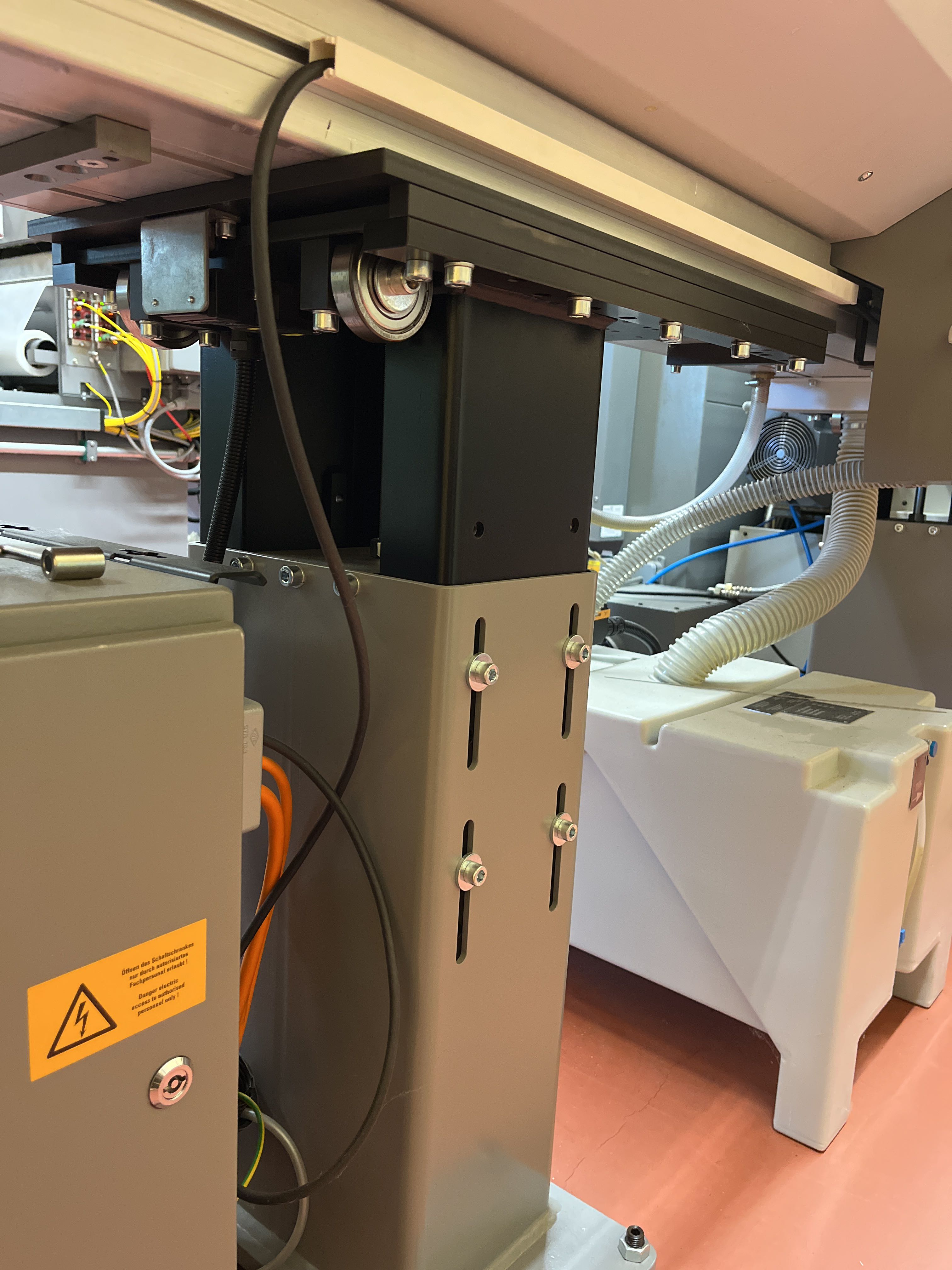

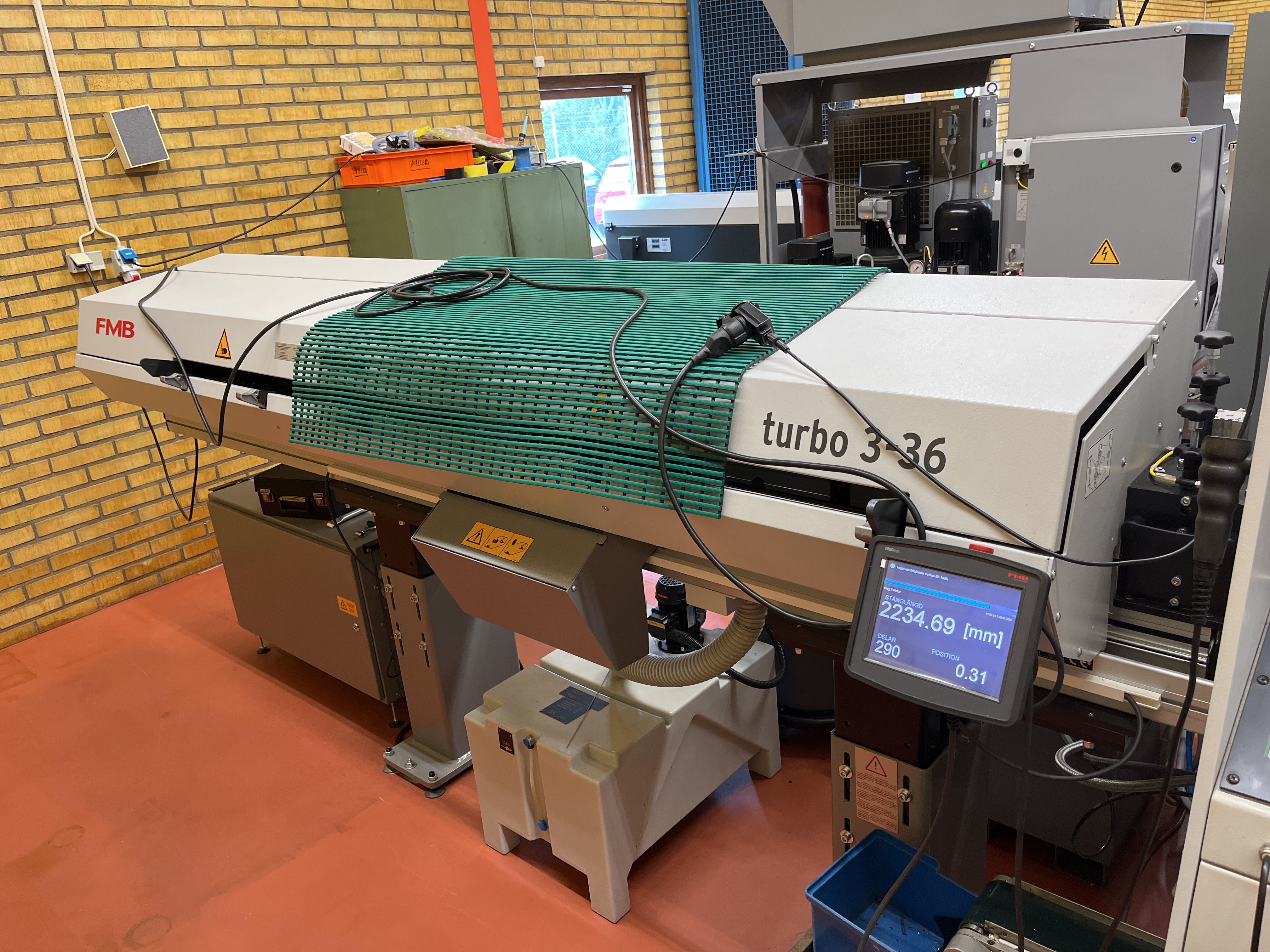

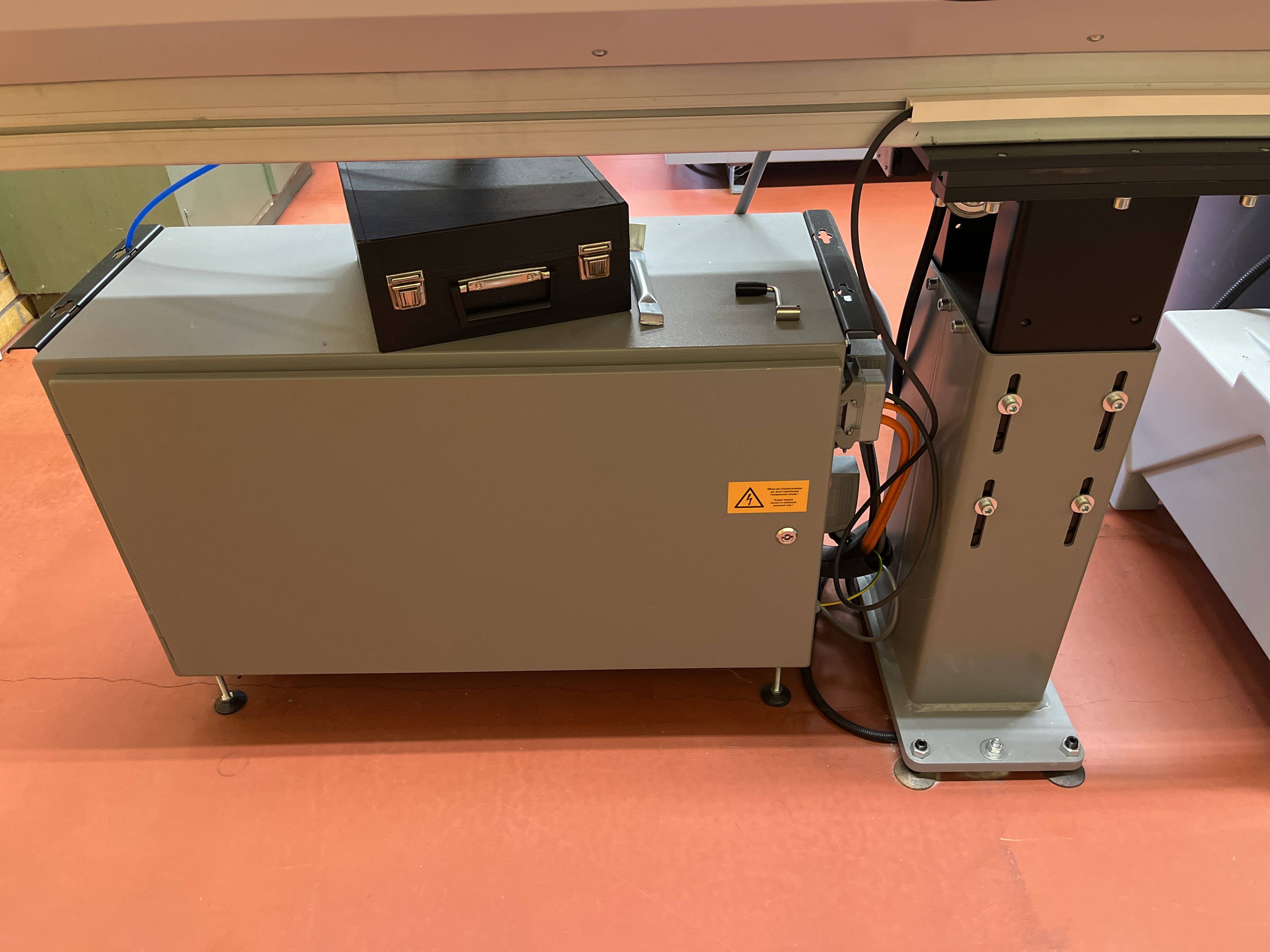

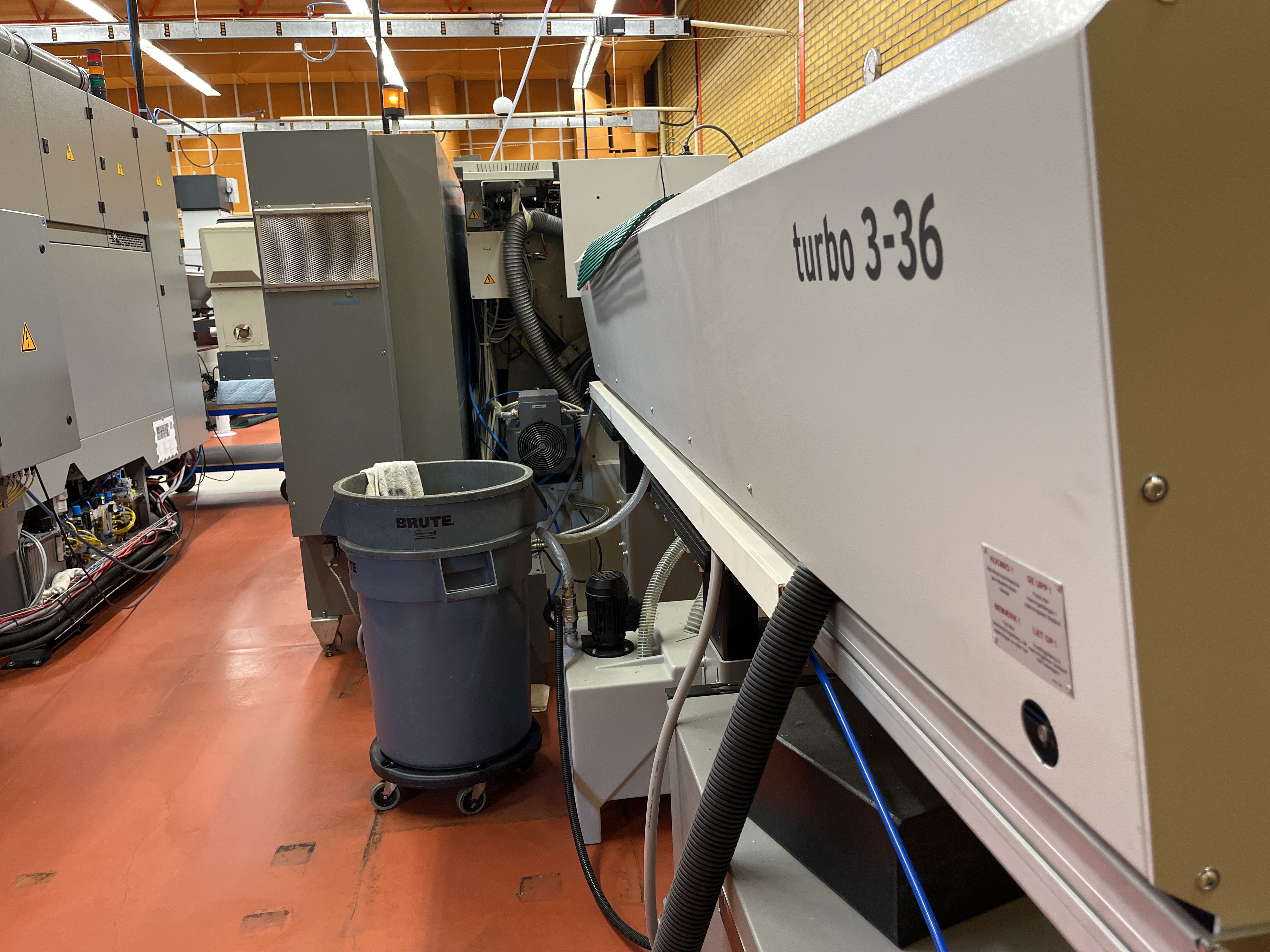

FMB turbo 3-36

Model year 2020

Special magazine intended for this TRAUB TNC 30 TGY

220cm maximum pole length

Rod length - 2200 mm

Bar diameter - 3 - 38 mm

Load capacity - 230 mm

Remaining piece length (max) - 450 mm

Charging time (approx) - 20 s

Feed speed - 0-1000 mm/s

Return speed - 0-2000 mm/s

Power requirement - 2.0 kW

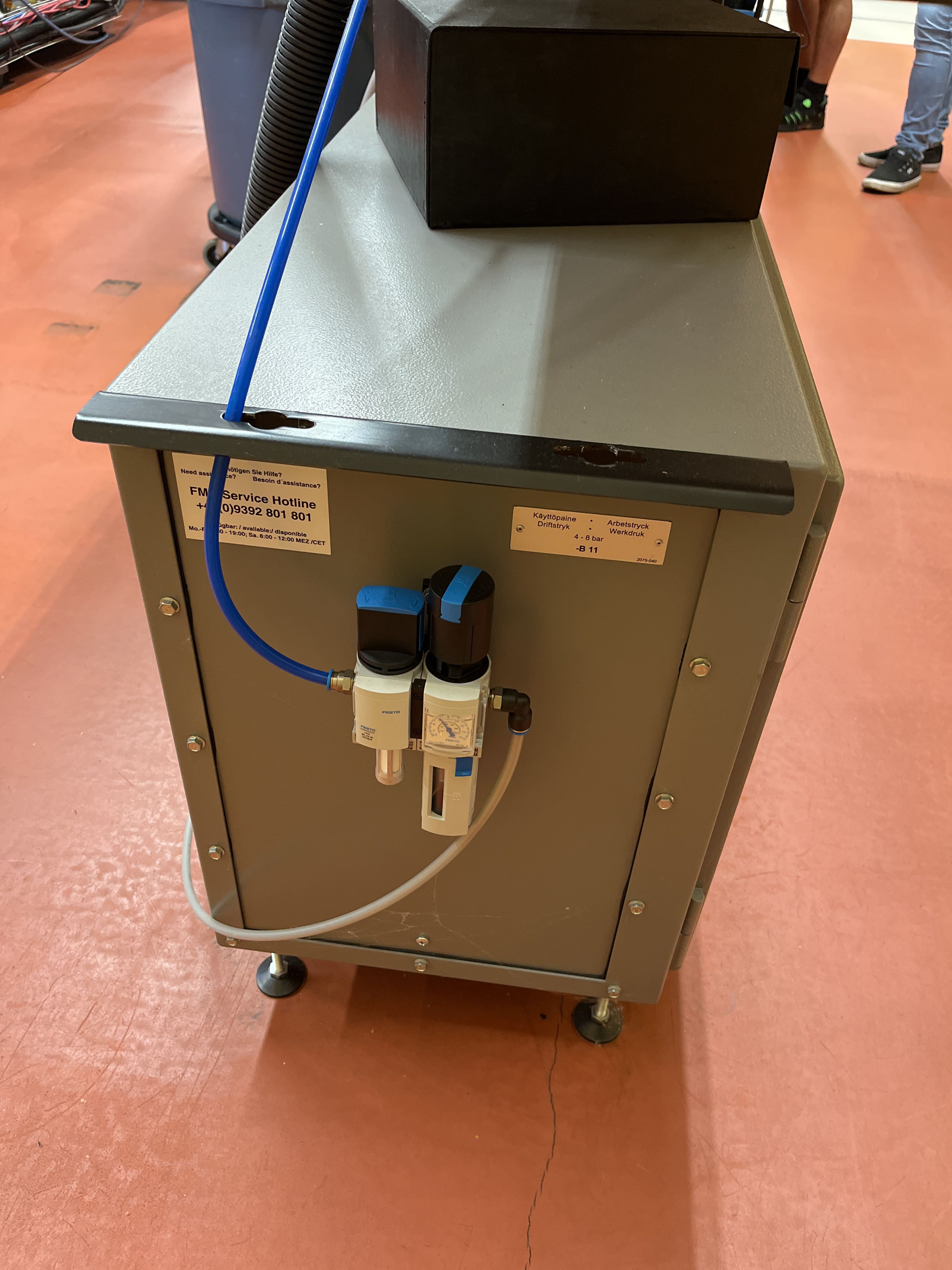

Compressed air connection - 0.6 / 6 bar MPa

Weight without oil - 550 kg



ATTENTION! The object needs to be loaded by crane by the buyer, the seller ensures that the object is outside ready for lifting
