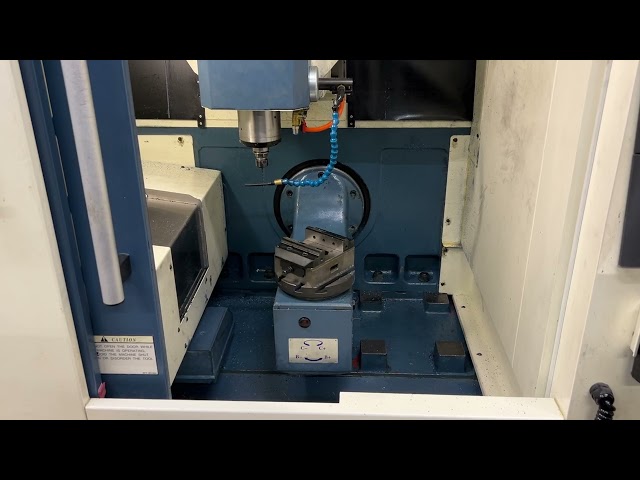

5-axis CNC Mill SFY HA-5AX3 -2012

  • 1204898
  • 46138 Trollhättan

Ended

  • 1204898-1 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898 5-axis CNC Mill SFY HA-5AX3 -2012 }}
  • 1204898-2 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-3 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-4 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-5 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-6 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-7 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-8 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-9 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-10 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-11 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-12 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-13 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-14 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-15 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-16 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-17 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-18 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-19 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-20 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-21 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-22 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-23 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-24 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-25 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-26 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-27 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-28 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-29 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-30 5-axis CNC Mill SFY HA-5AX3 -2012
  • 1204898-31 5-axis CNC Mill SFY HA-5AX3 -2012

A sustainable action

The climate footprint of a corresponding newly produced item is approx 5647kg CO2 Click here to find out more

Info Shipping Exhibition Pick up Auction type
Brand S.F.Y
Model HA-5AX3
Year of manufacture 2012
Measurments 1800 x 1860 x 2160mm

5-axis CNC Mill SFY HA-5AX3 -2012

Measuring

  • Measuring range in XYZ: 300 x 200 x 300 mm
  • Measurement in B: ± 110°
  • Measurement in C: 360°
  • Distance between spider's nose and table: 10 – 310 mm
  • Table:
    • Diameter: Ø 255 mm
    • Table dimensions: Ø 255 mm
    • Max weight: 30 kg

Spider

  • RPM: 30,000 rpm
  • RPM range: 100 – 25,000 rpm
  • Spider cone: HSK E40
  • Engine power: 5 KW, 4 HP

Feed

  • Quick feed in XYZ: 20,000 mm/min
  • Max speed in B, C: 50 rpm / 22 rpm

Tool

  • Number of tools in ATC: 16

5-axis operation

  • Type: AC Servo motor

Power consumption

  • Effect: 10 KW / 13 HP

Air supply

  • Pressure: 6 kg/cm²

Measure

  • Machine size: 1380 x 1860 x 2160 mm

Weight

  • Weight: 2000 kg

Standard equipment

  • Automatic tool measurement
  • Cooling system for the electrical cabinet
  • Work lamp
  • Coolant system
  • Tool box and tools for adjustment

Option

  • Automatic collet chuck and collets
  • 5-axis linear scale
  • Micro lubrication and cooling system for tools
  • Die uniform liquid separator
  • Automatic Voltage Regulator (AVR)

Miscellaneous

  • Manufacturing number 1208011
  • Year of manufacture 2012
  • Magazine for 16 tools and HSK-E40 taper
  • Control system Siemens 840D

For more information please see pictures and video.

Remarks

Information/remarks from seller

  • Angle error between the axes of the machine.
  • Possible rotation errors in the A and C axes.
  • Any damage to railcars (e.g. after collisions).
  • Possible stresses and deformations in the machine's stand and tower after collisions.
  • Incorrect plant plans in the tower may need to be reworked.
  • Adjustment of table twists is required after the axles are corrected.
