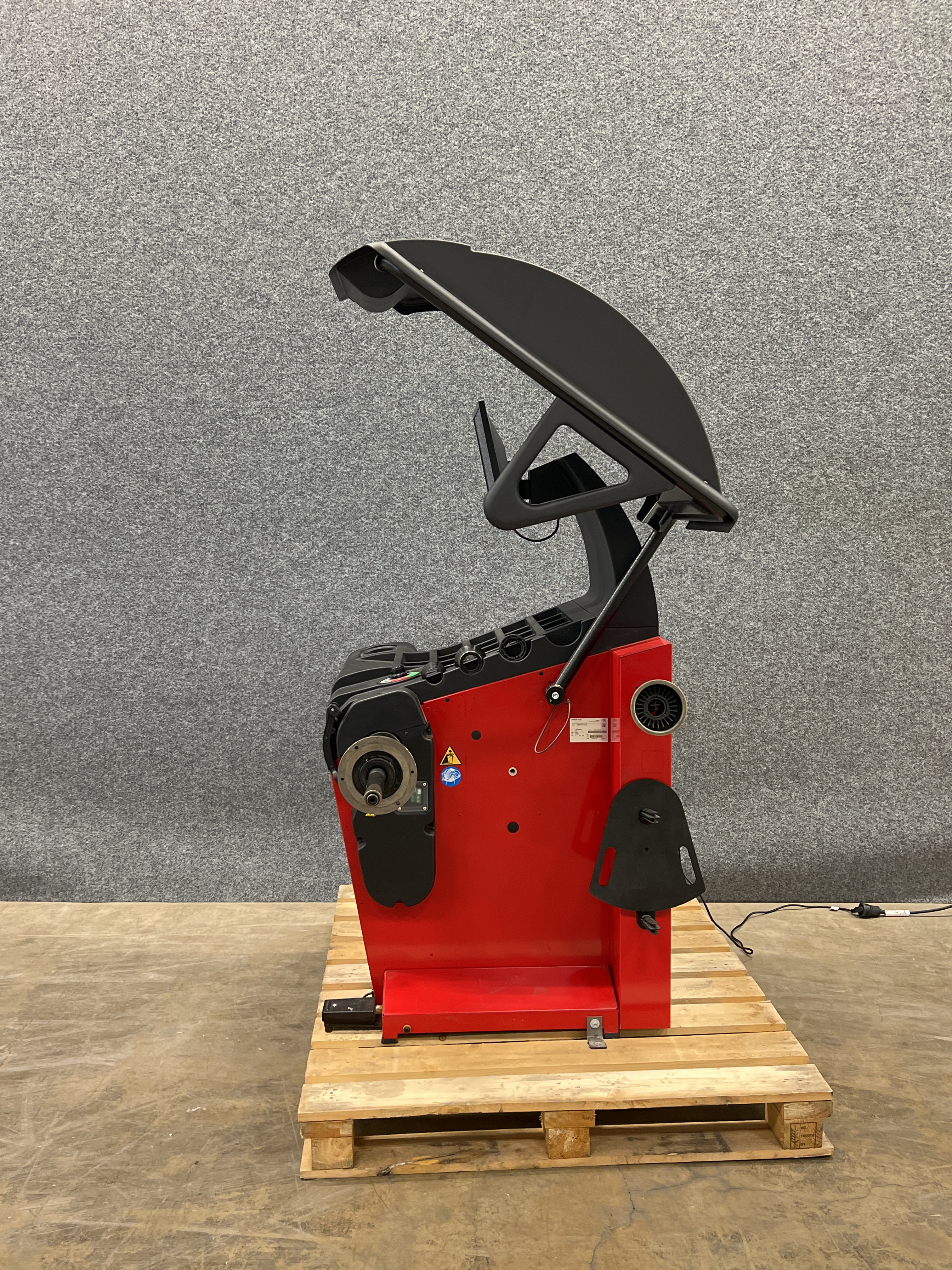

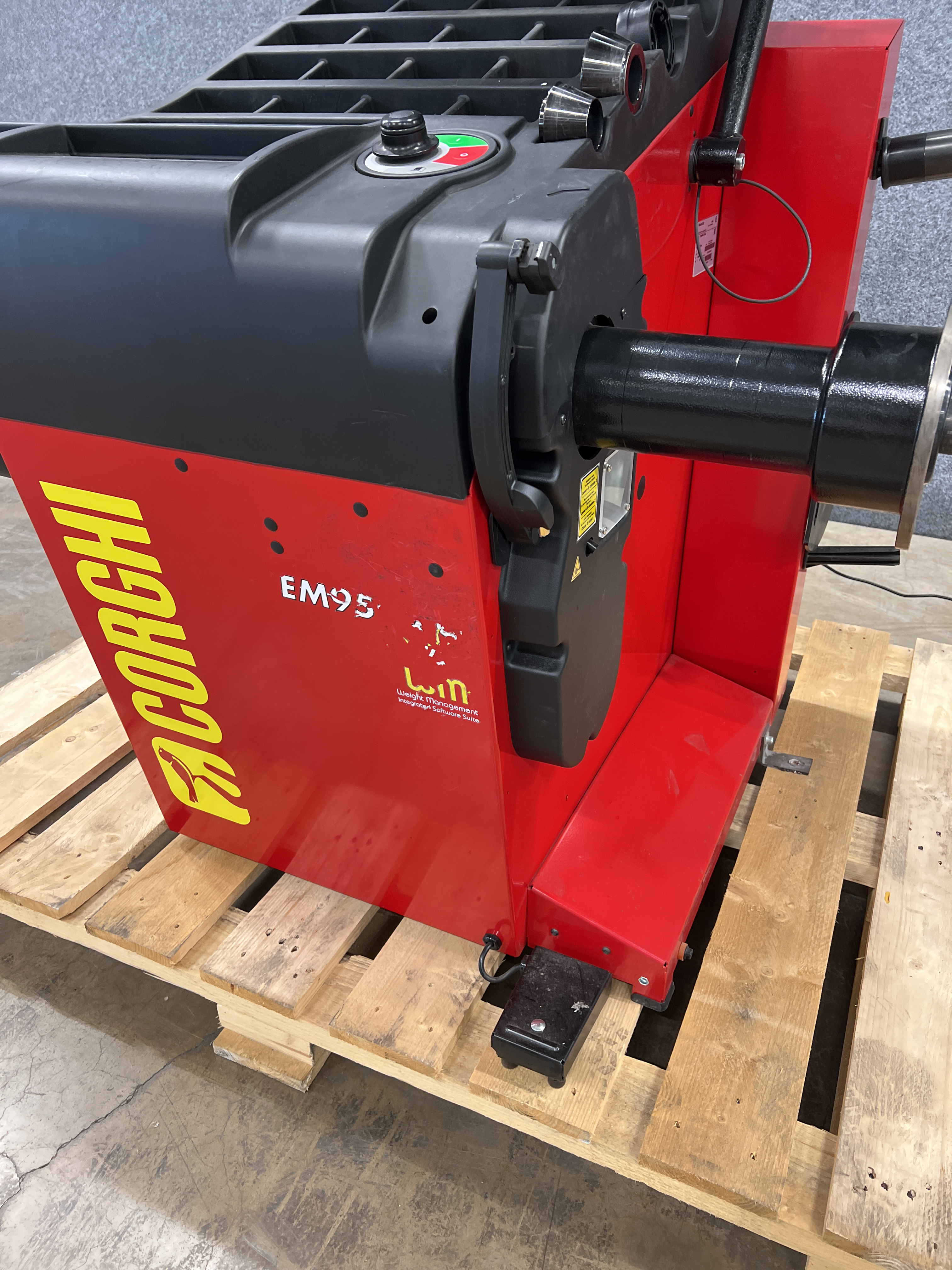

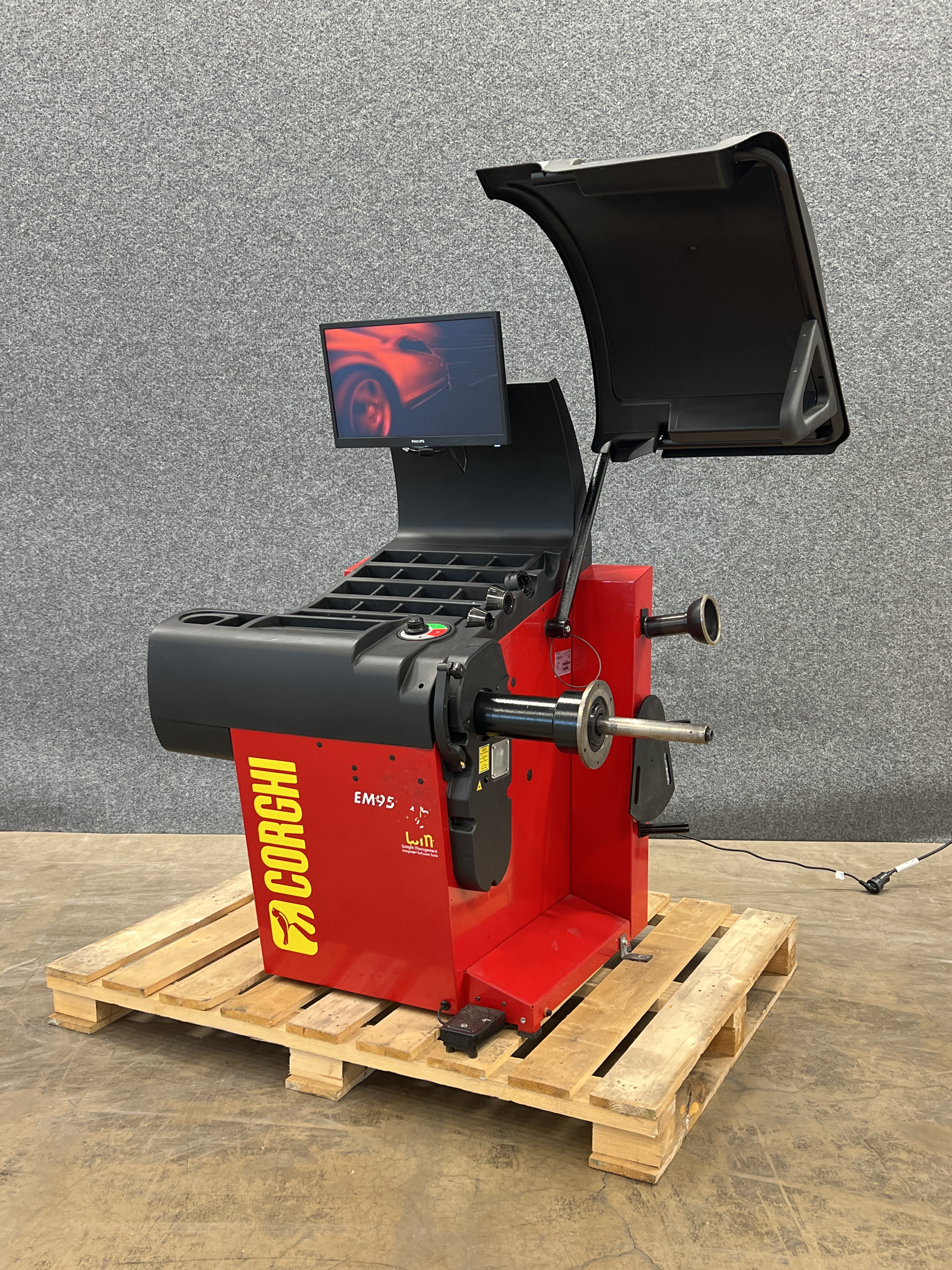

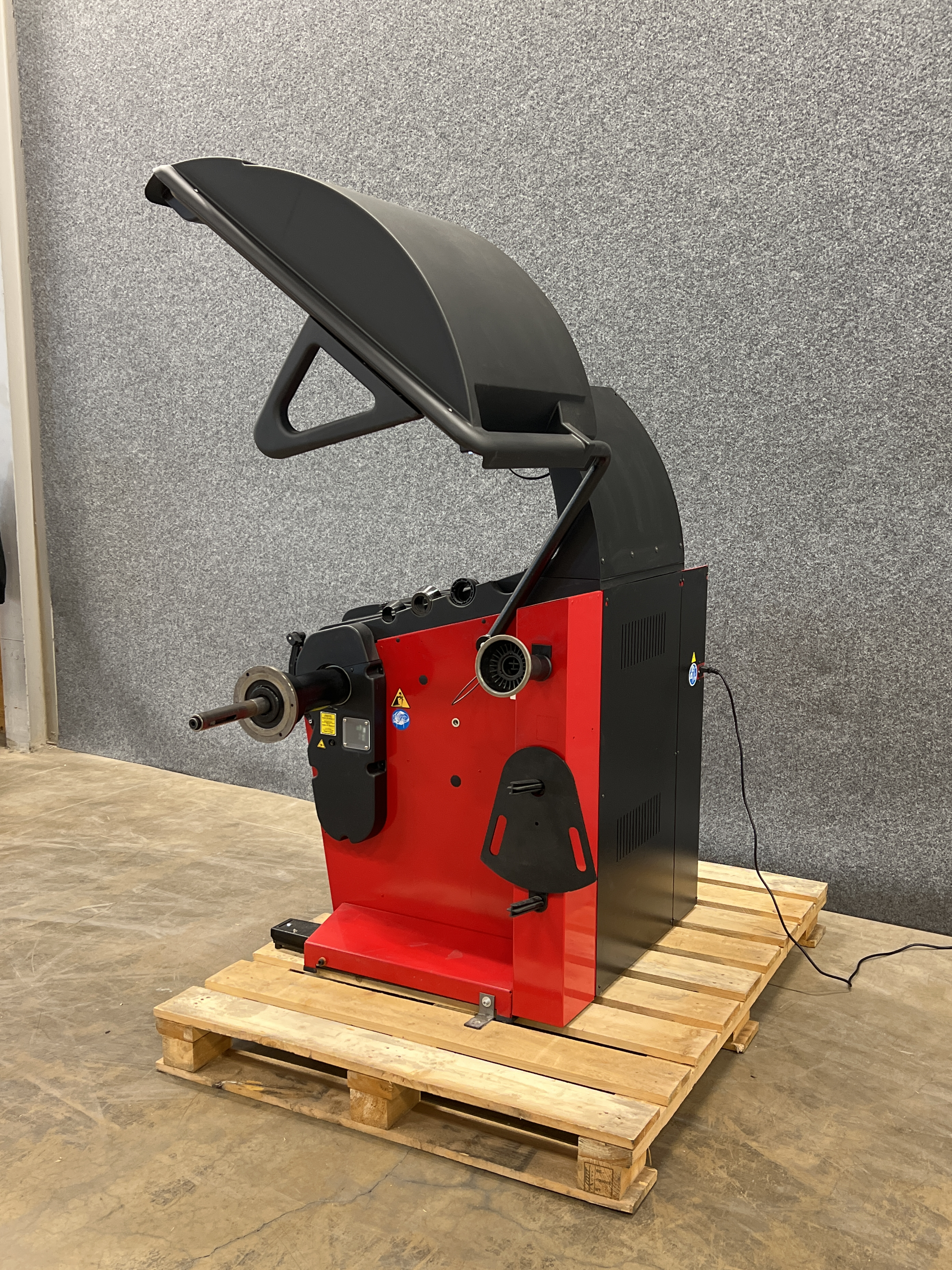

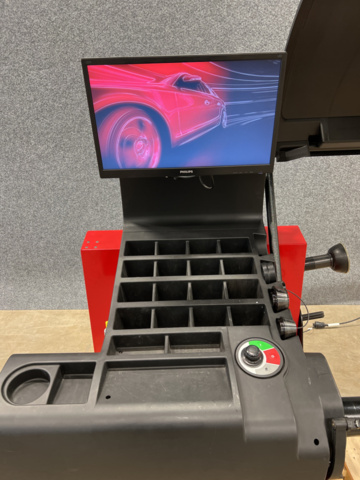

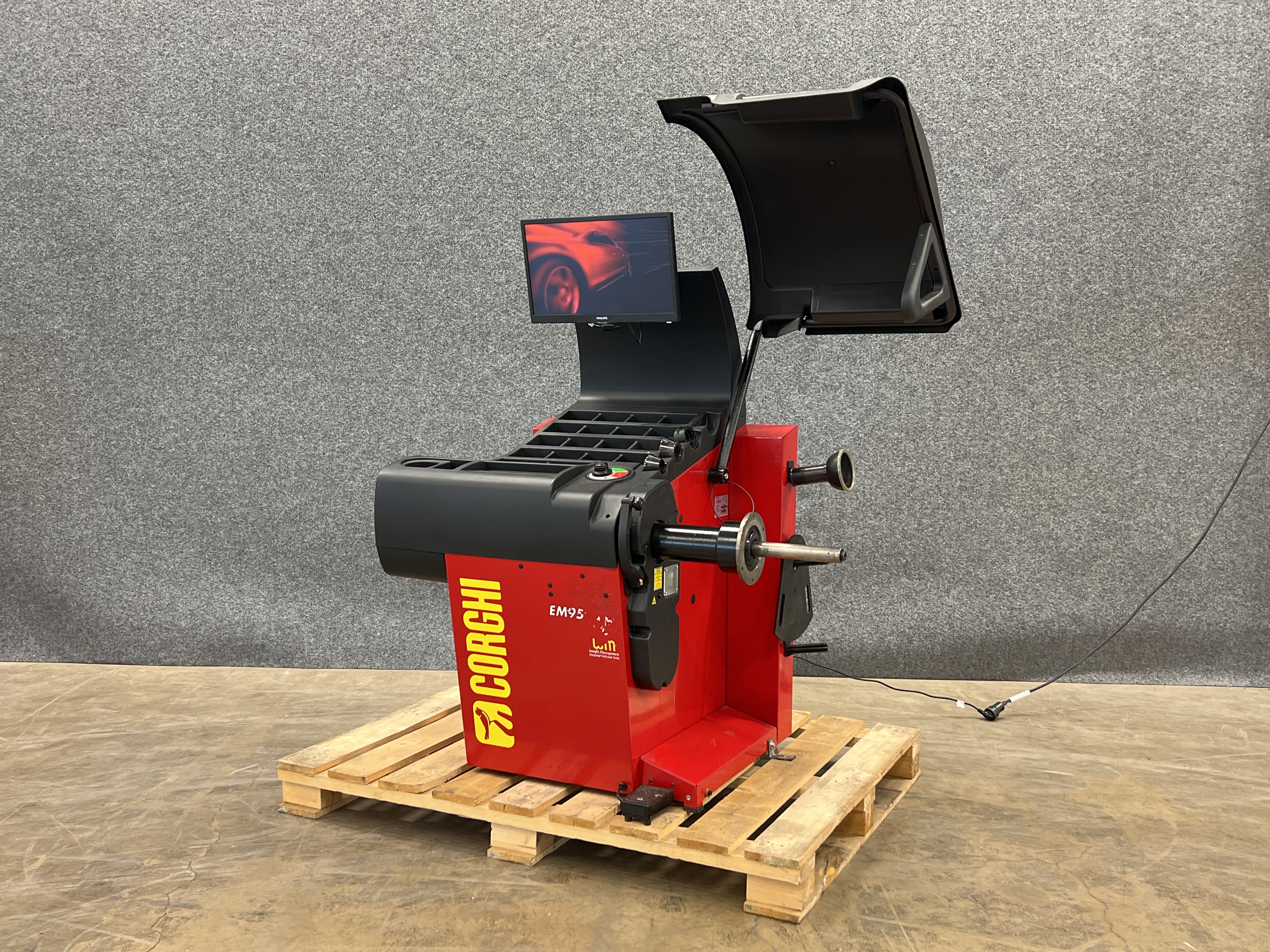

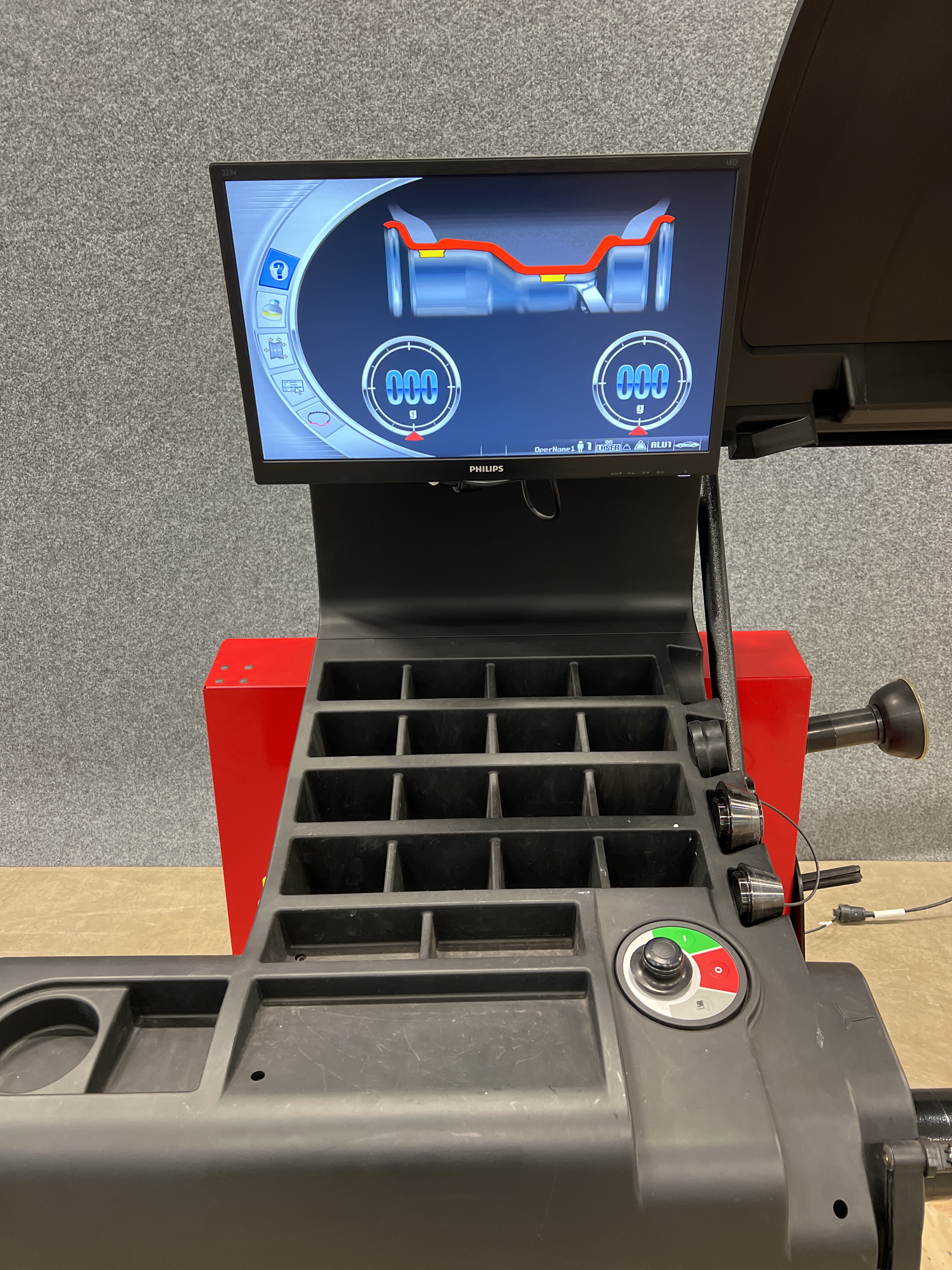

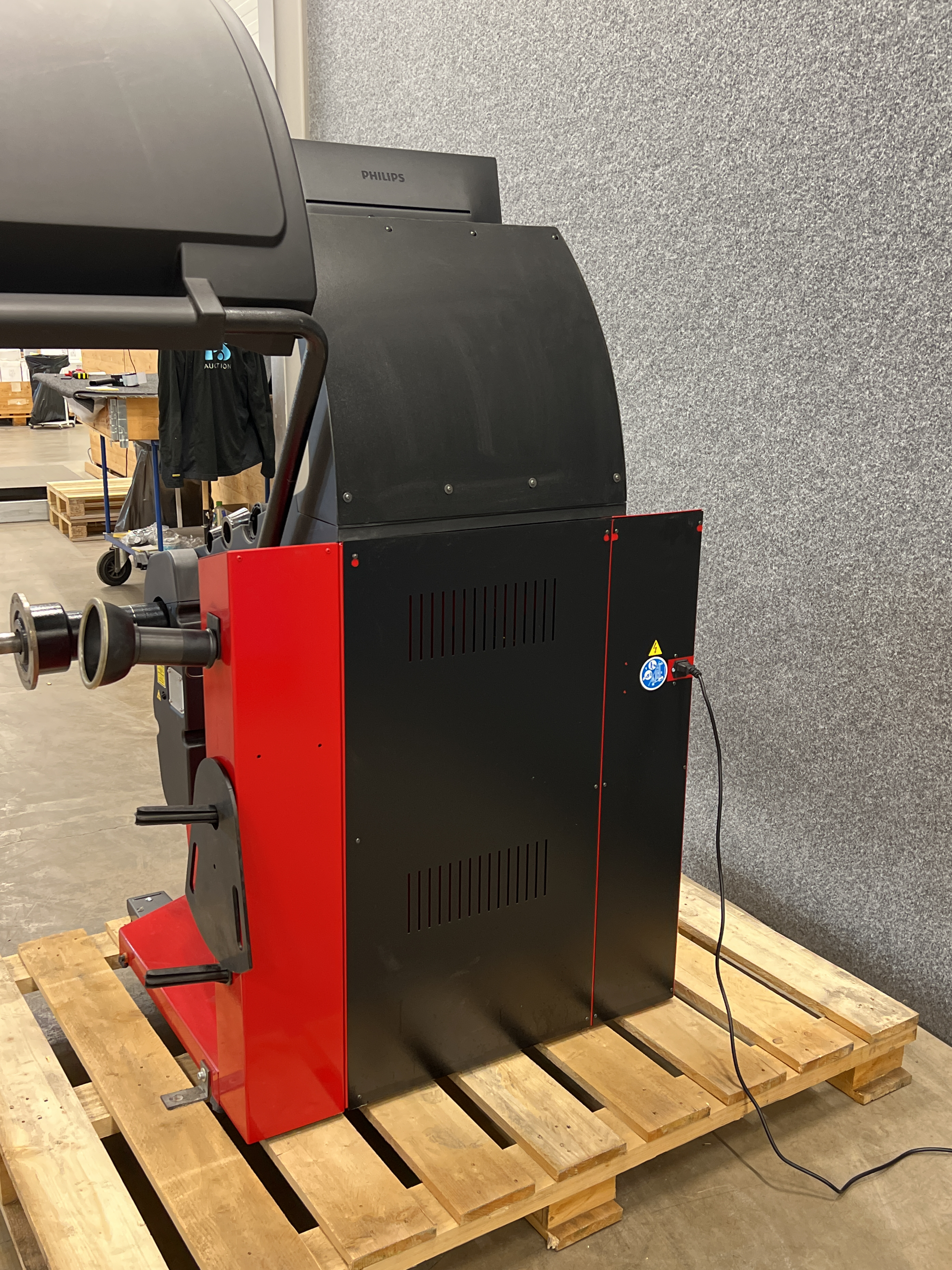

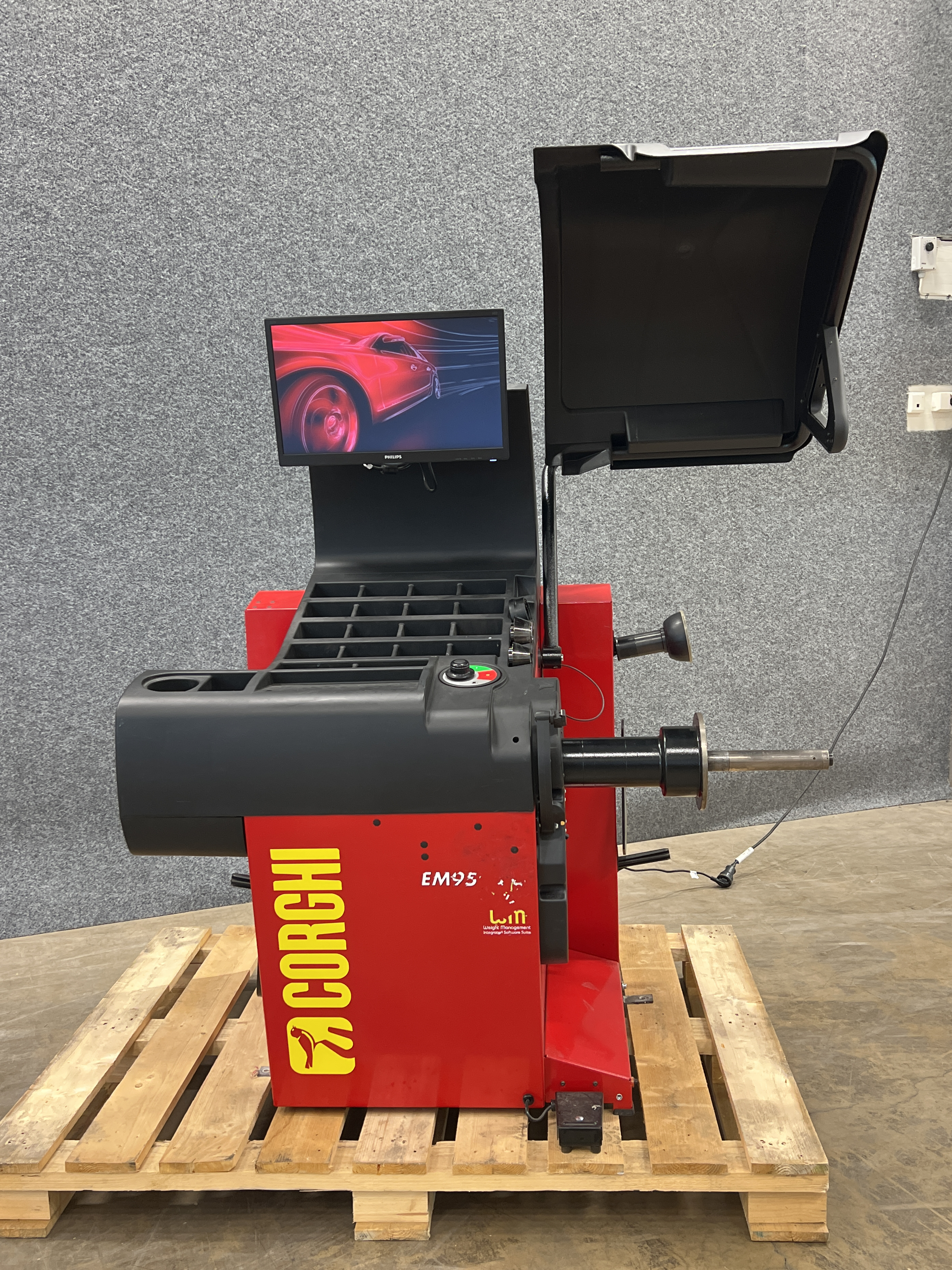

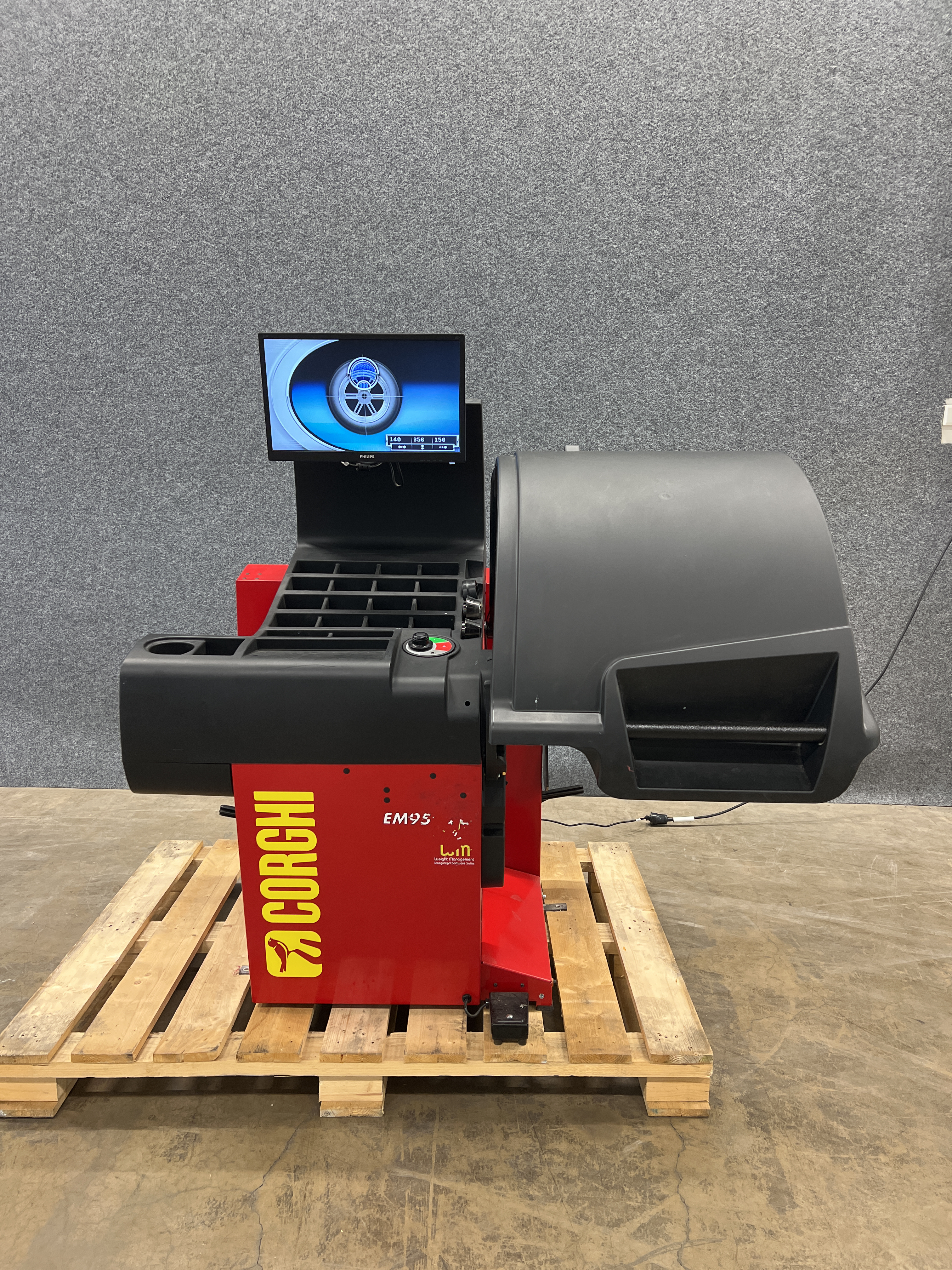

Tire balancing machine Corghi EM 9508-C PLUS

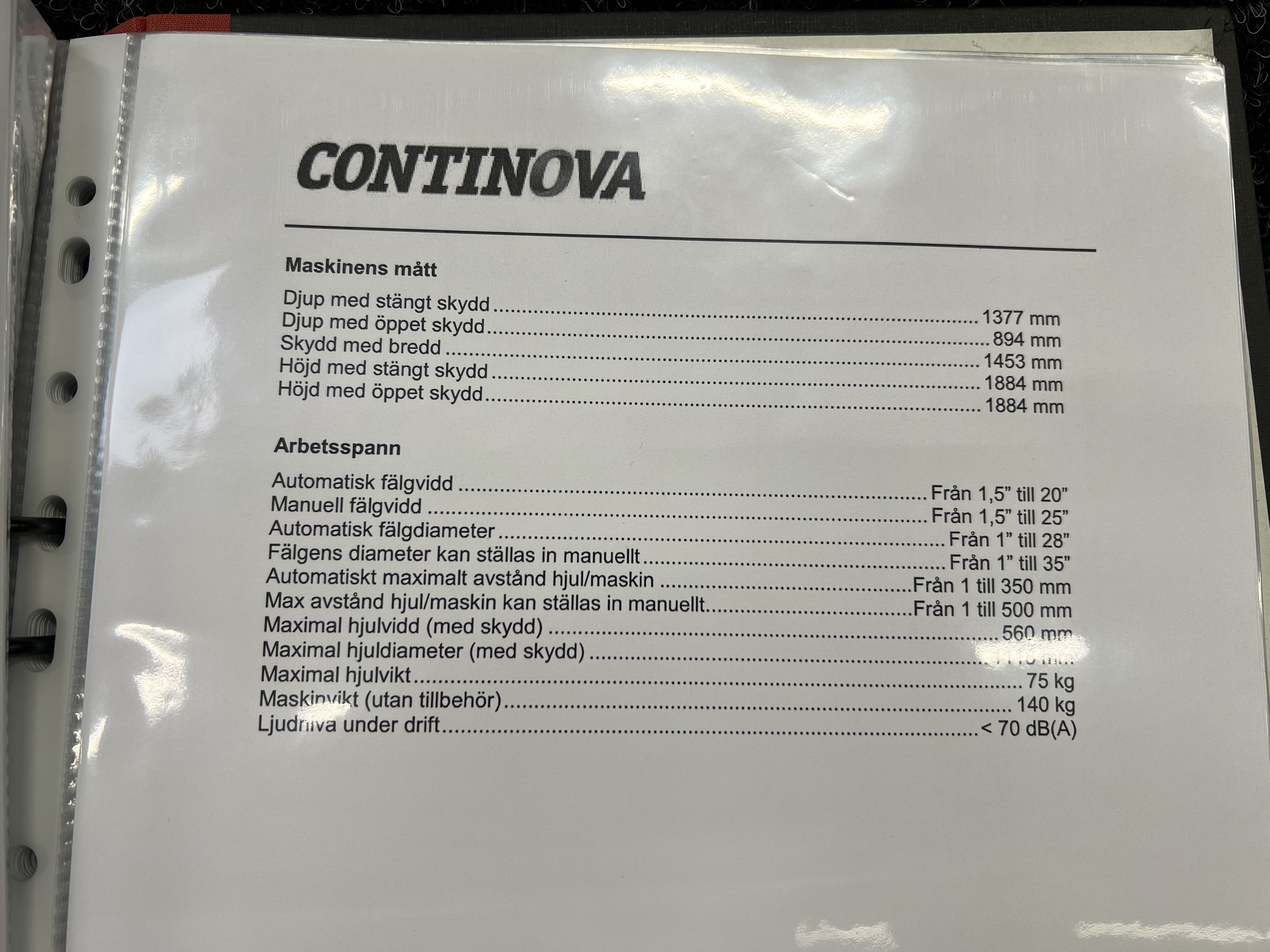

Machine dimensions
Depth with closed cover: 1377 mm
Depth with open cover: 894 mm
Protection with width: 1453 mm
Height with closed cover: 1884 mm
Height with open cover: 1884 mm

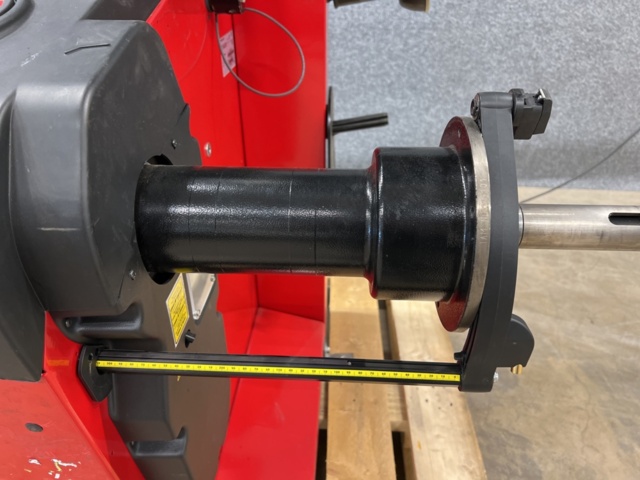

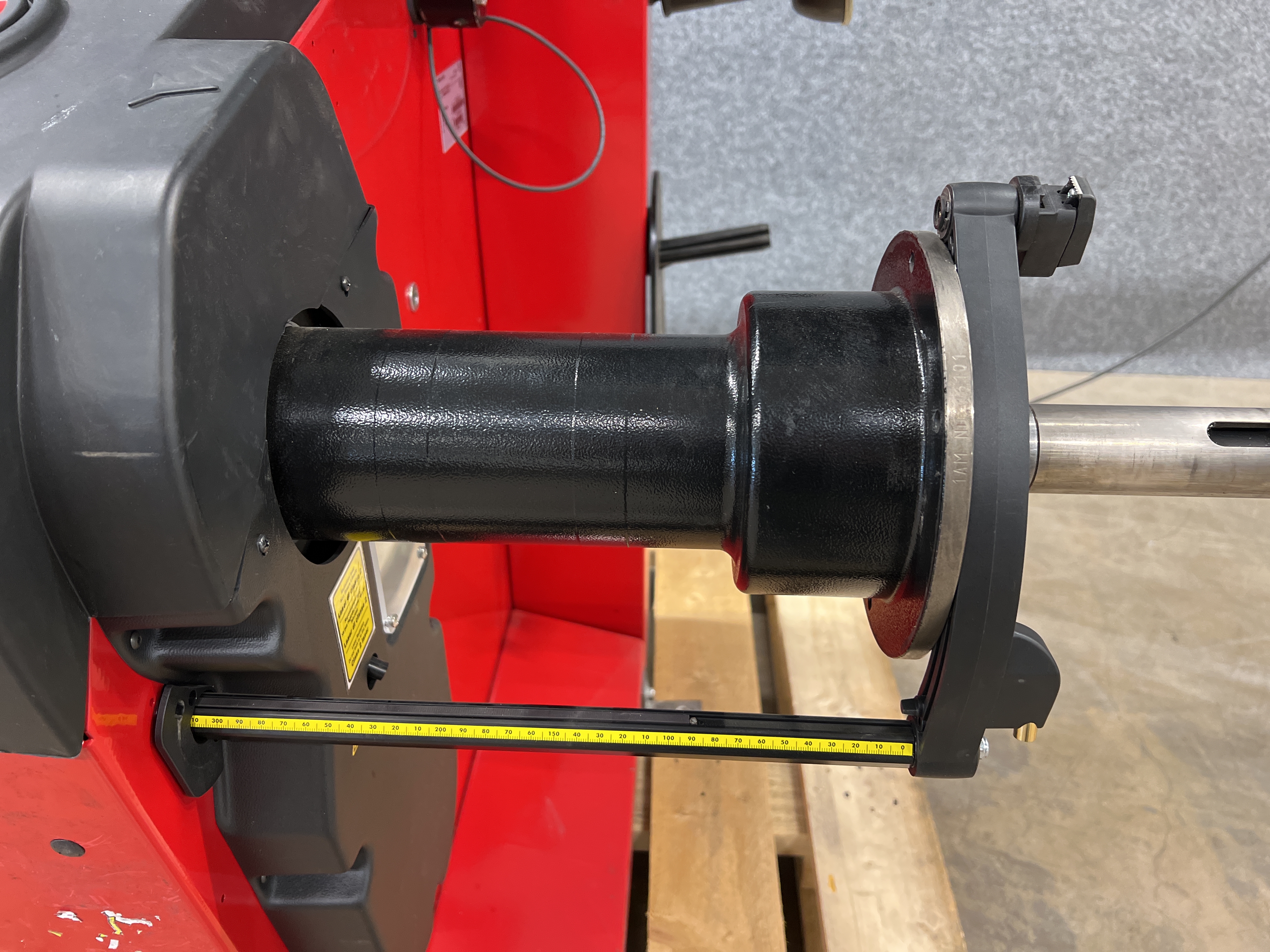

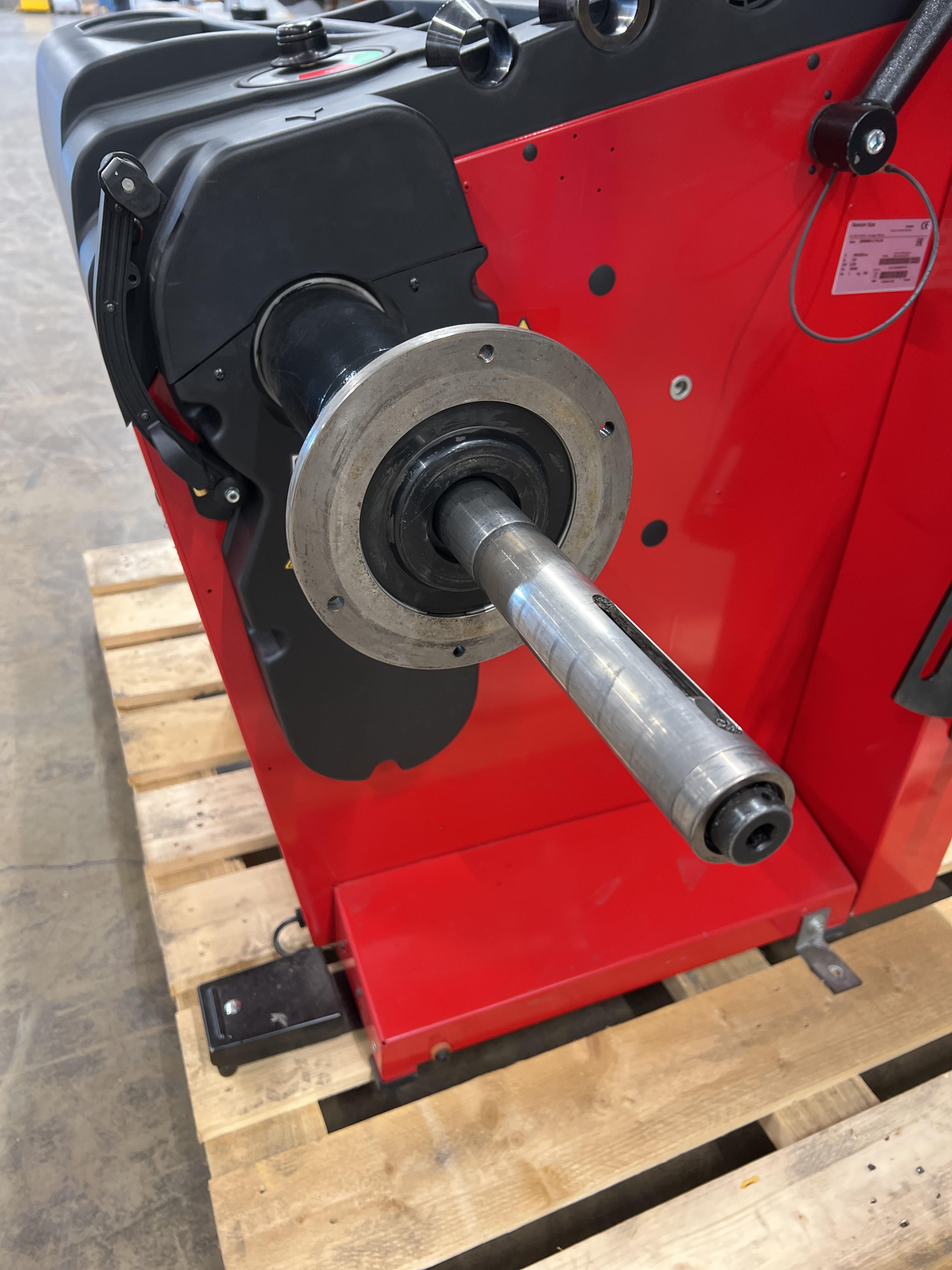

Shaft diameter: 40mm
Work span
Automatic rim width: From 1.5" to 20"
Manual rim width: From 1.5" to 25"
Automatic rim diameter: From 1" to 28"
The diameter of the rim can be set manually: From 1" to 35"
Automatic maximum wheel/machine distance: From 1 to 350 mm
Max wheel/machine distance can be set manually: From 1 to 500 mm
Maximum wheel width (with protection): 560 mm
Maximum wheel diameter (with protection): 1010 mm
Maximum wheel weight: 75 kg
Machine weight (without accessories) 140 kg
Noise level during operation < 70 dB(A)

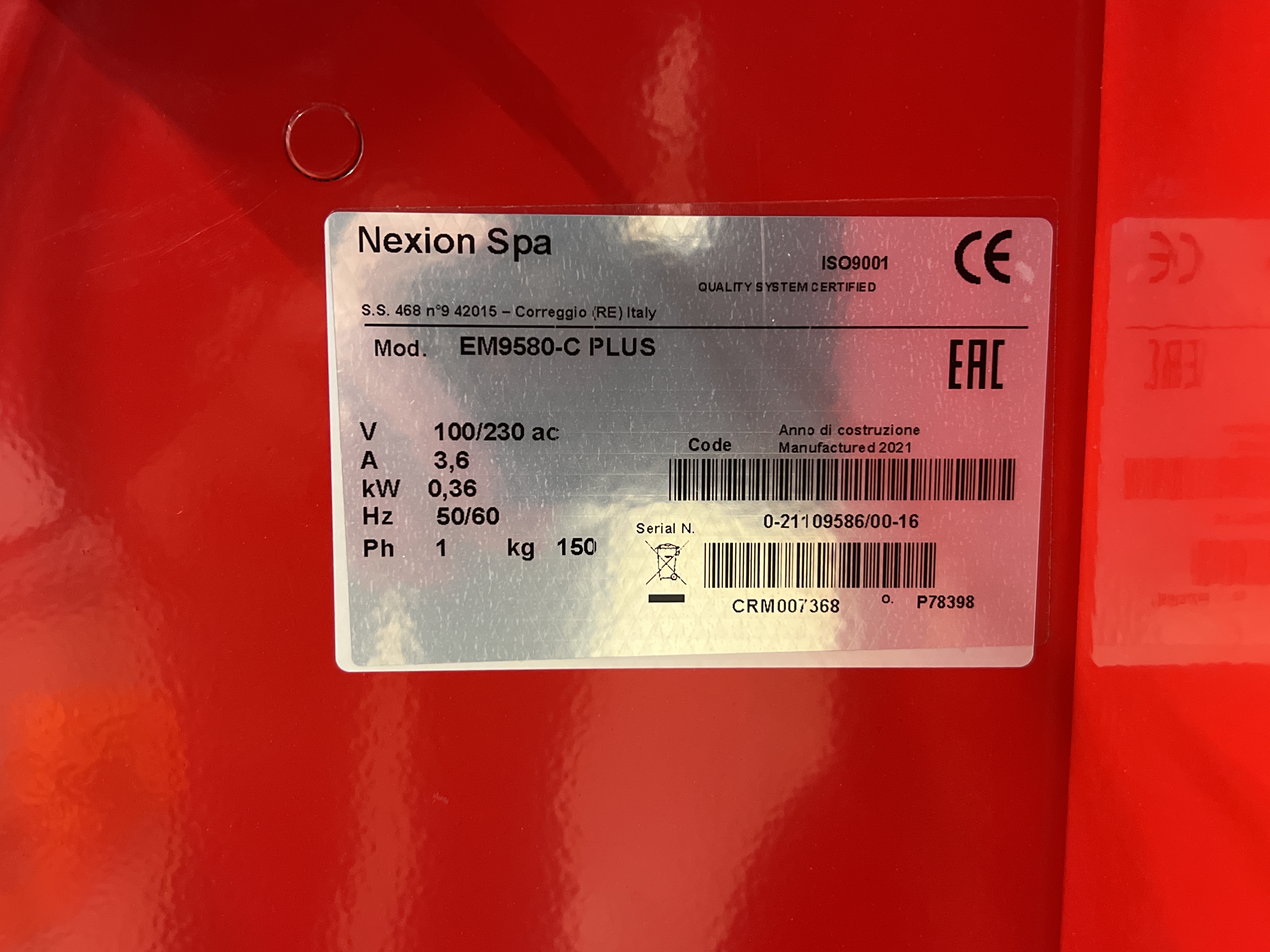

Year of manufacture 2021
