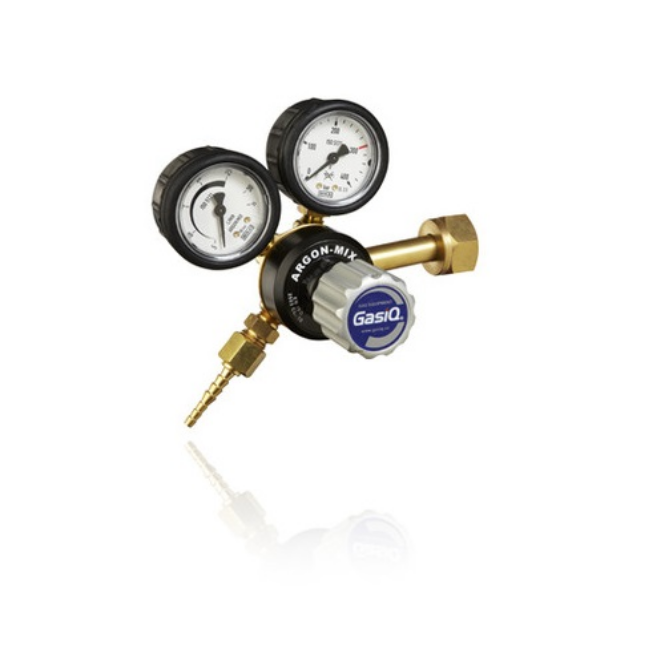

ELGA Maxex is a high-quality regulator with a large capacity, (class 3 according to ISO 2503). Maxex is durable, robust and has an ergonomically designed control knob for precise setting of the gas flow. Maxex is available for most types of gas.
Maxex is very suitable for normal to larger gas flows when, for example, cutting and heating with large burner systems such as N76, S80 and Cutto.
The regulator is equipped with pressure gauges with rubber protection and built-in preset safety valve to offer maximum safety.

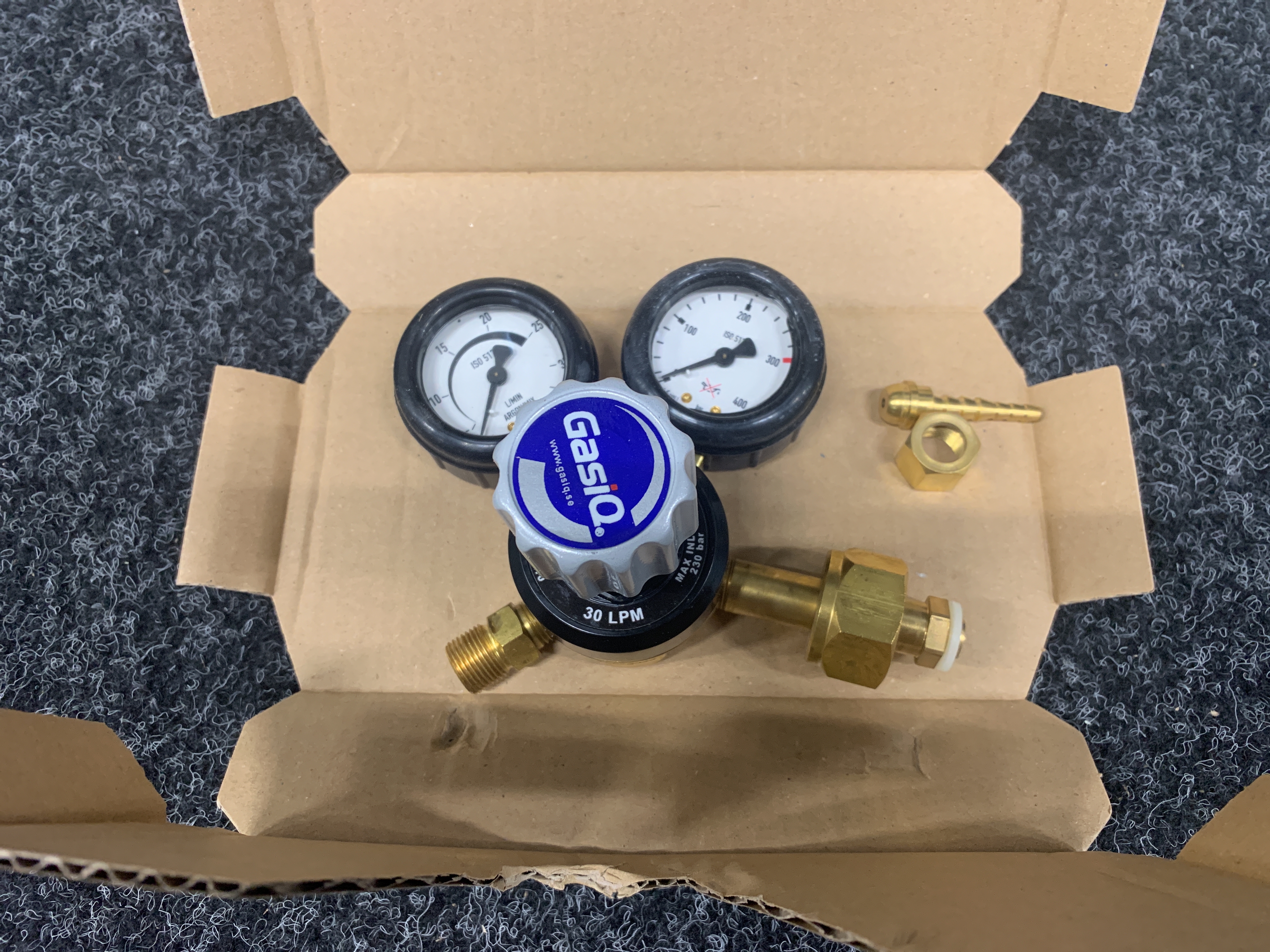

Supplied with hose socket for hose 5.0/6.3 mm internal diameter and extra gaskets.
Technical specifications

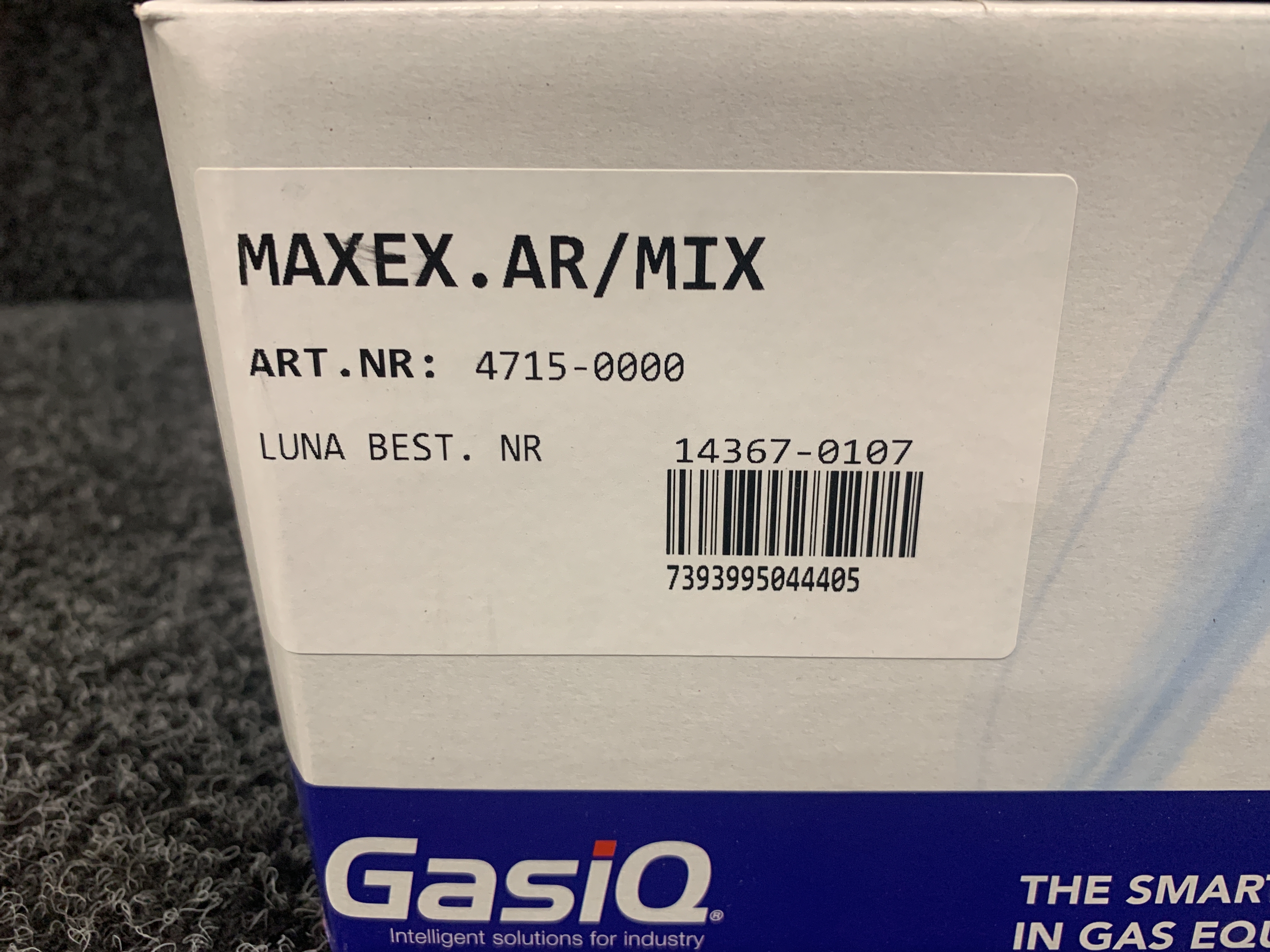

Item no. 4715-0000
Gas type Argon mix
Connection inlet W24.32×14/1″
Connection outlet G3/8″
Max inlet pressure 200 bar
Max working pressure (bar) 10 bar
Scale flow meter 0-35 L/min
Regulator class 3
Meets ISO 2503 Yes
Weight (kg) 1.5
