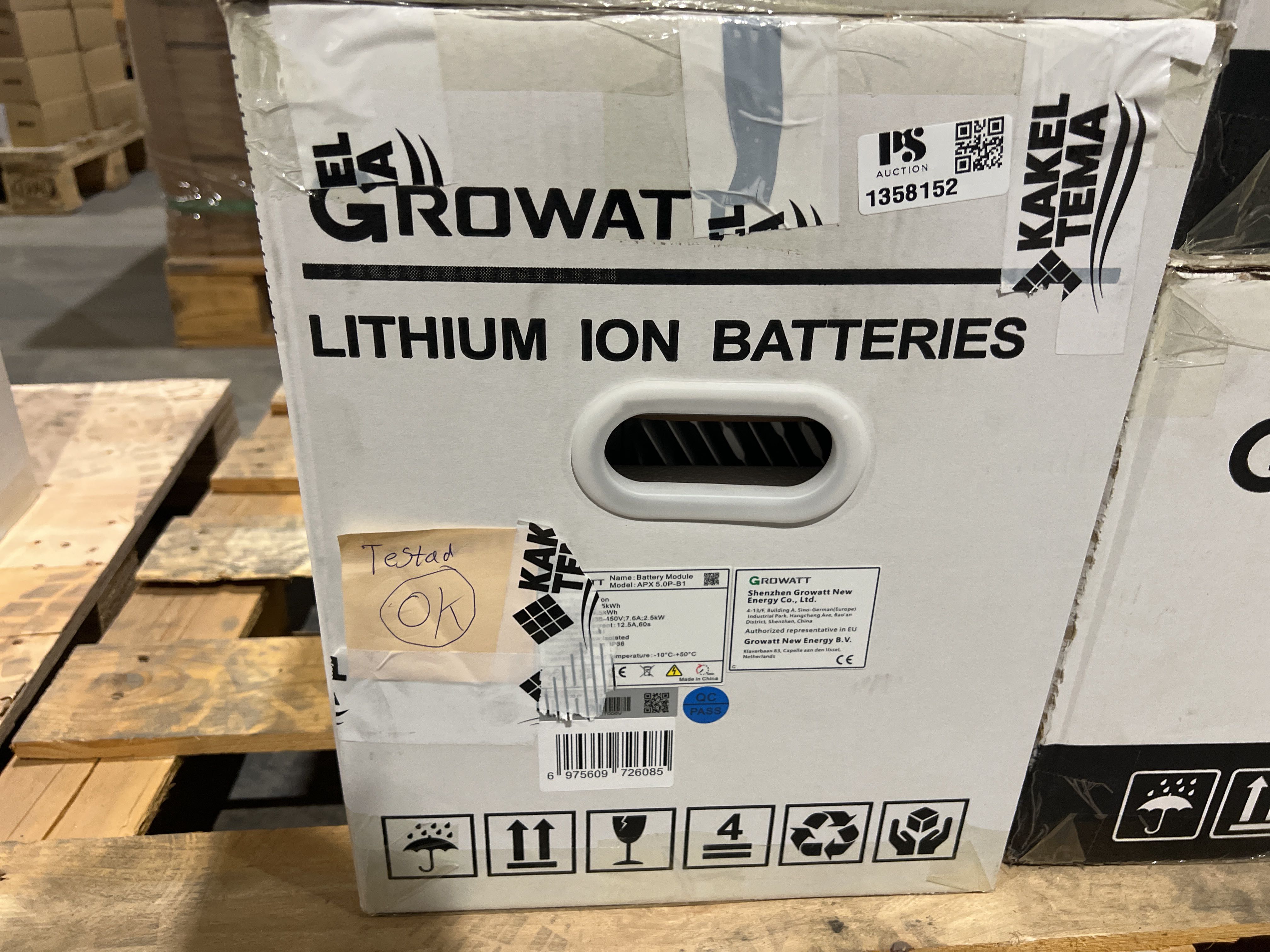

Battery module - Growatt APX 5.0P-B1
-
Brand: Growatt
-

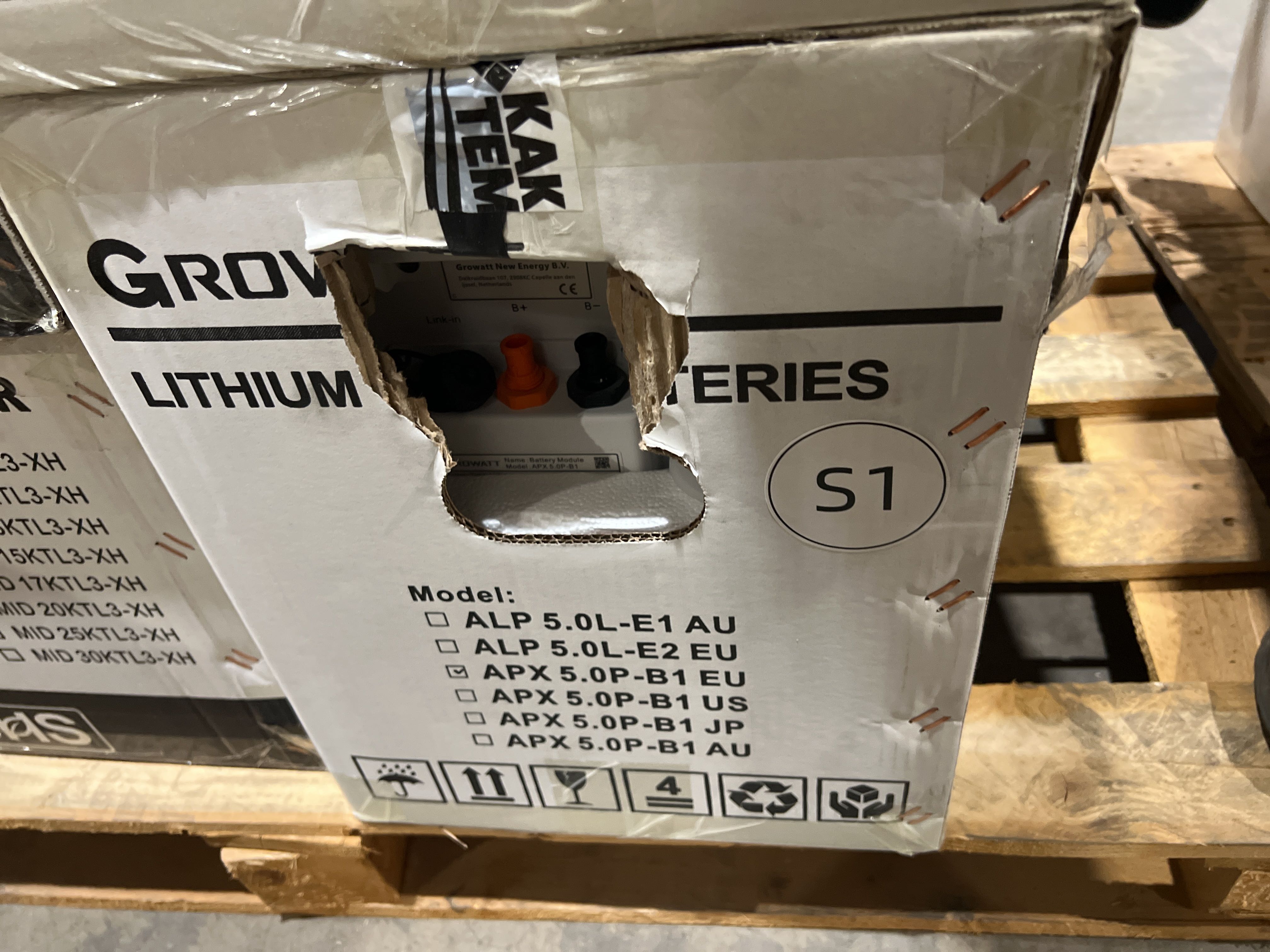

Model: APX 5.0P-B1
-
Battery type: Lithium-ion (Li-ion)
-
Nominal energy: 5 kWh
-
Usable energy: 4.5 kWh
-
Voltage range (in/out): 330–450 V
-
Max current in/out: 7.6 A
-
Maximum power: 2.5 kW
-
Max peak current (60 sec): 12.5 A
-
Weight: 50 kg
-
Protection class: IP66
-
Temperature range: -10°C to +50°C
-
Interface: Isolated (for increased security)
Condition:
- NOTE: Has been previously installed, scratches and scuffs may occur.
- Cables and installation details may be missing
- Has undergone functional testing with a passing result
