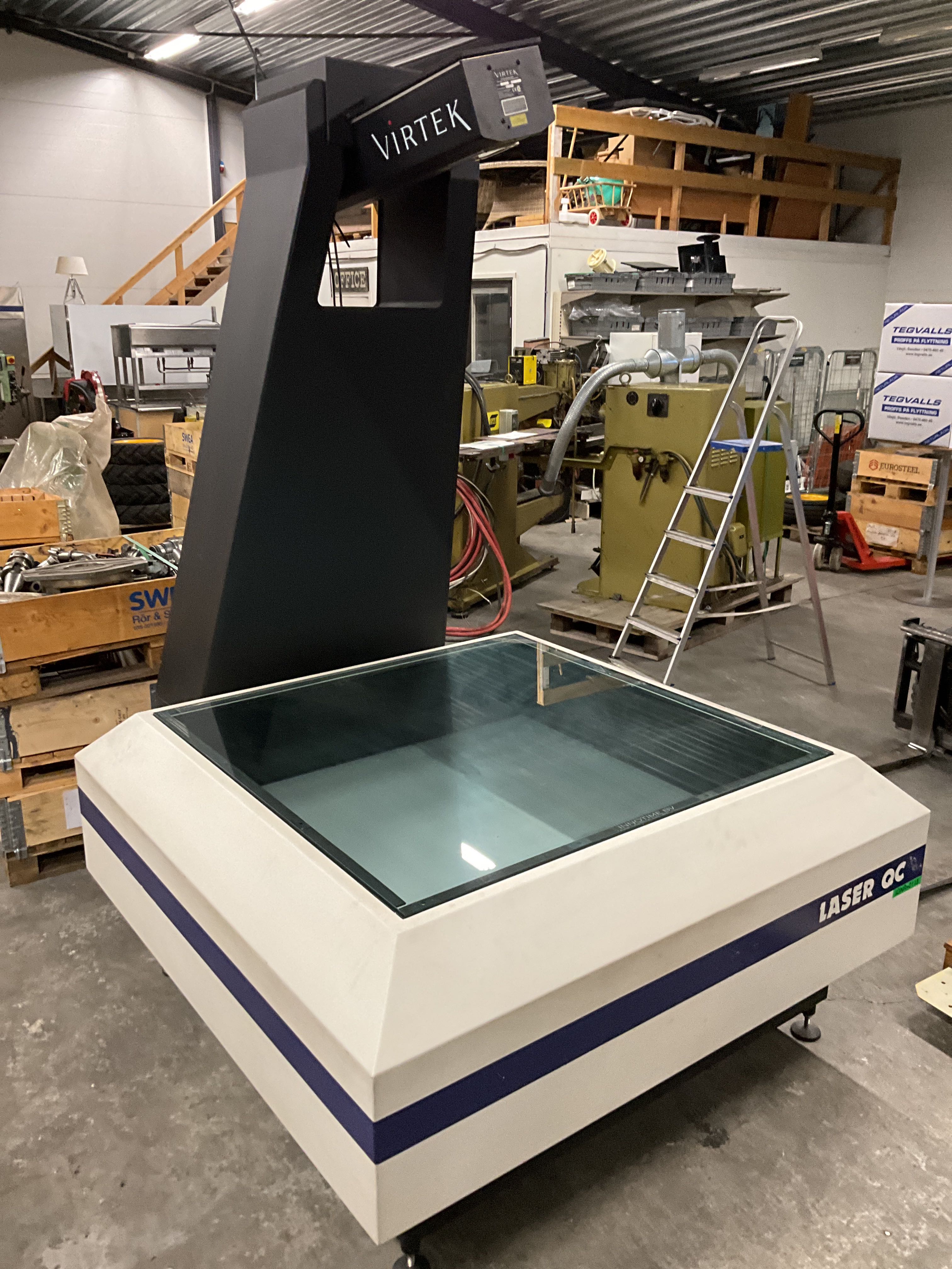

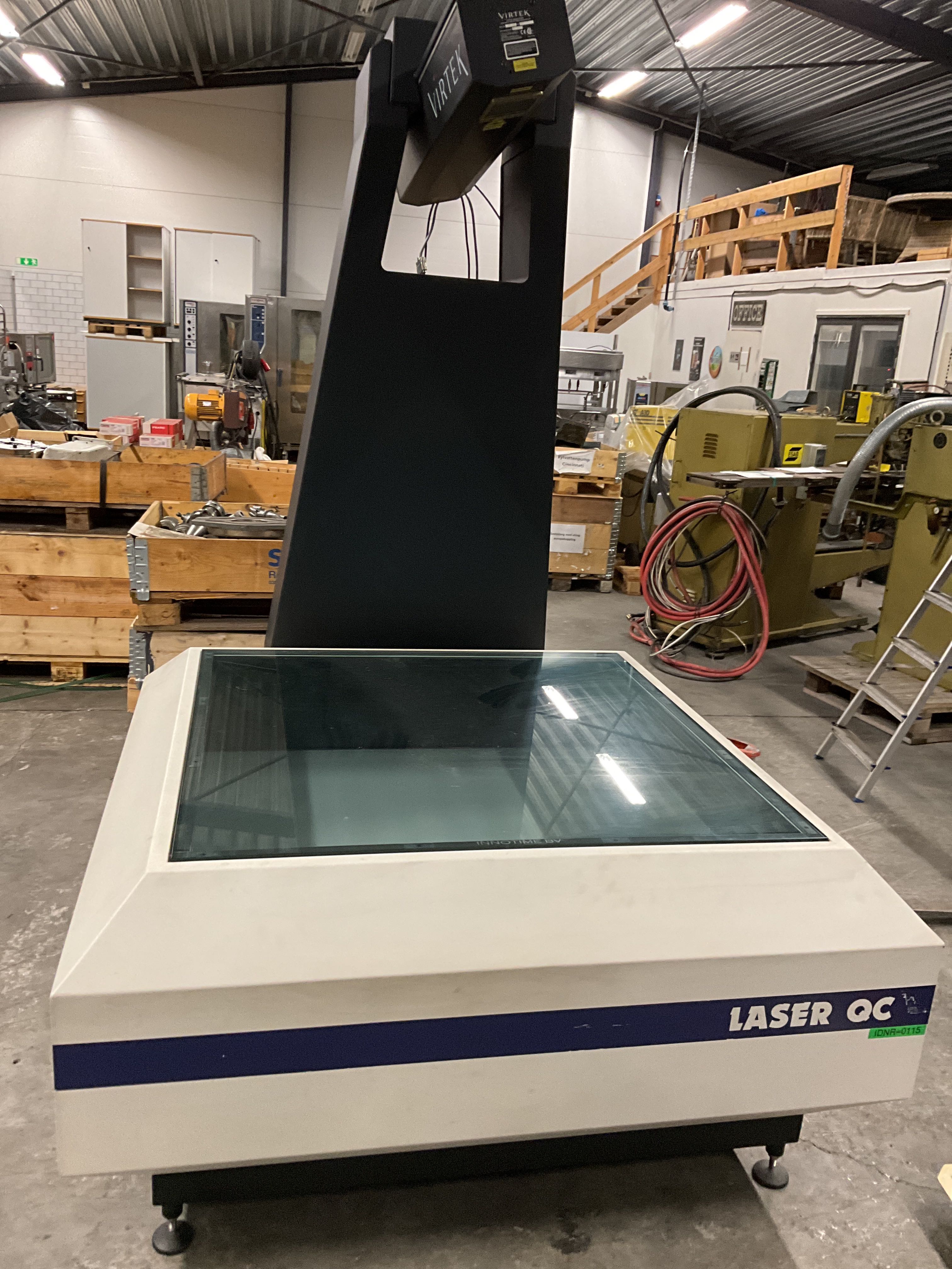

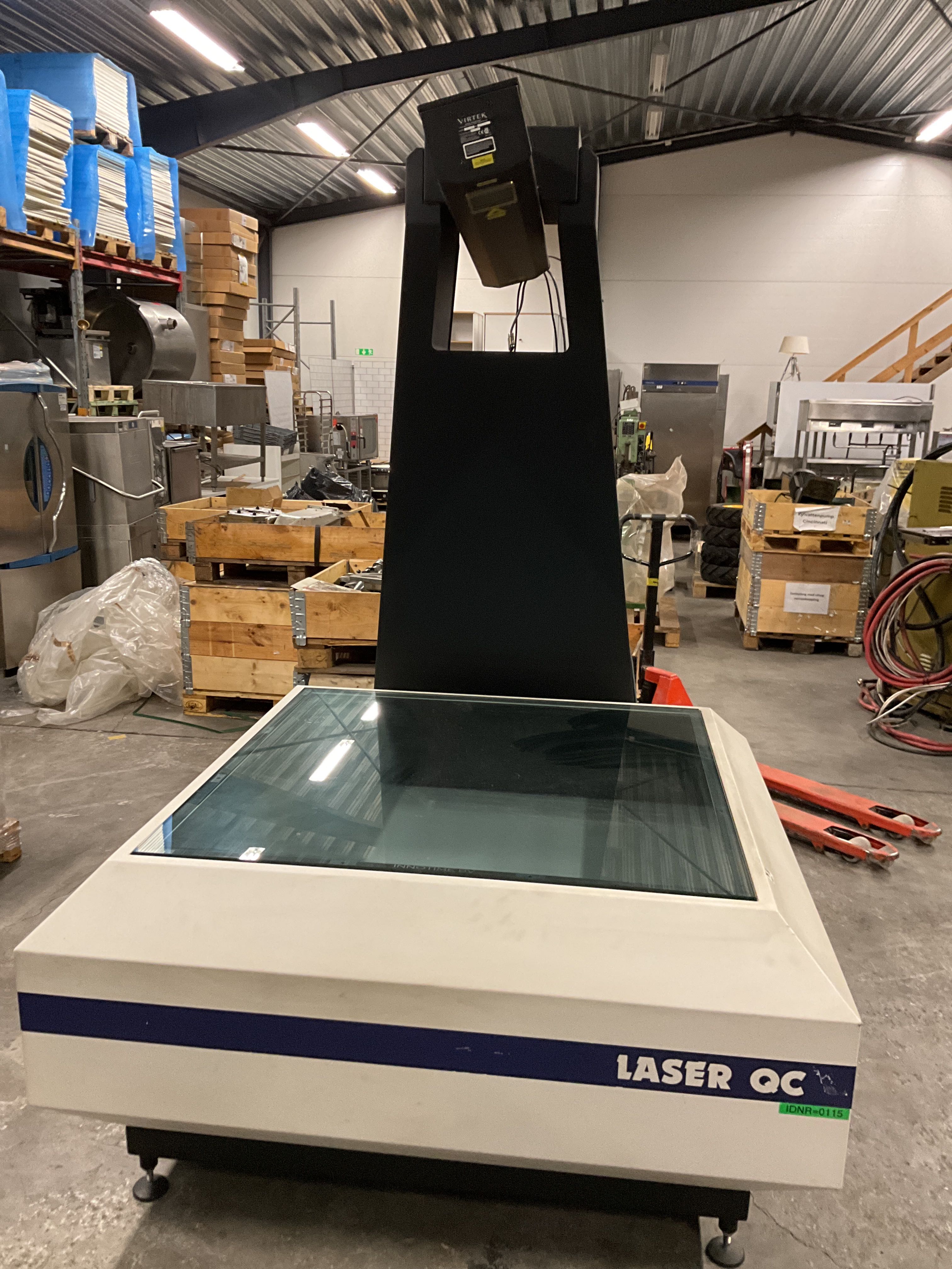

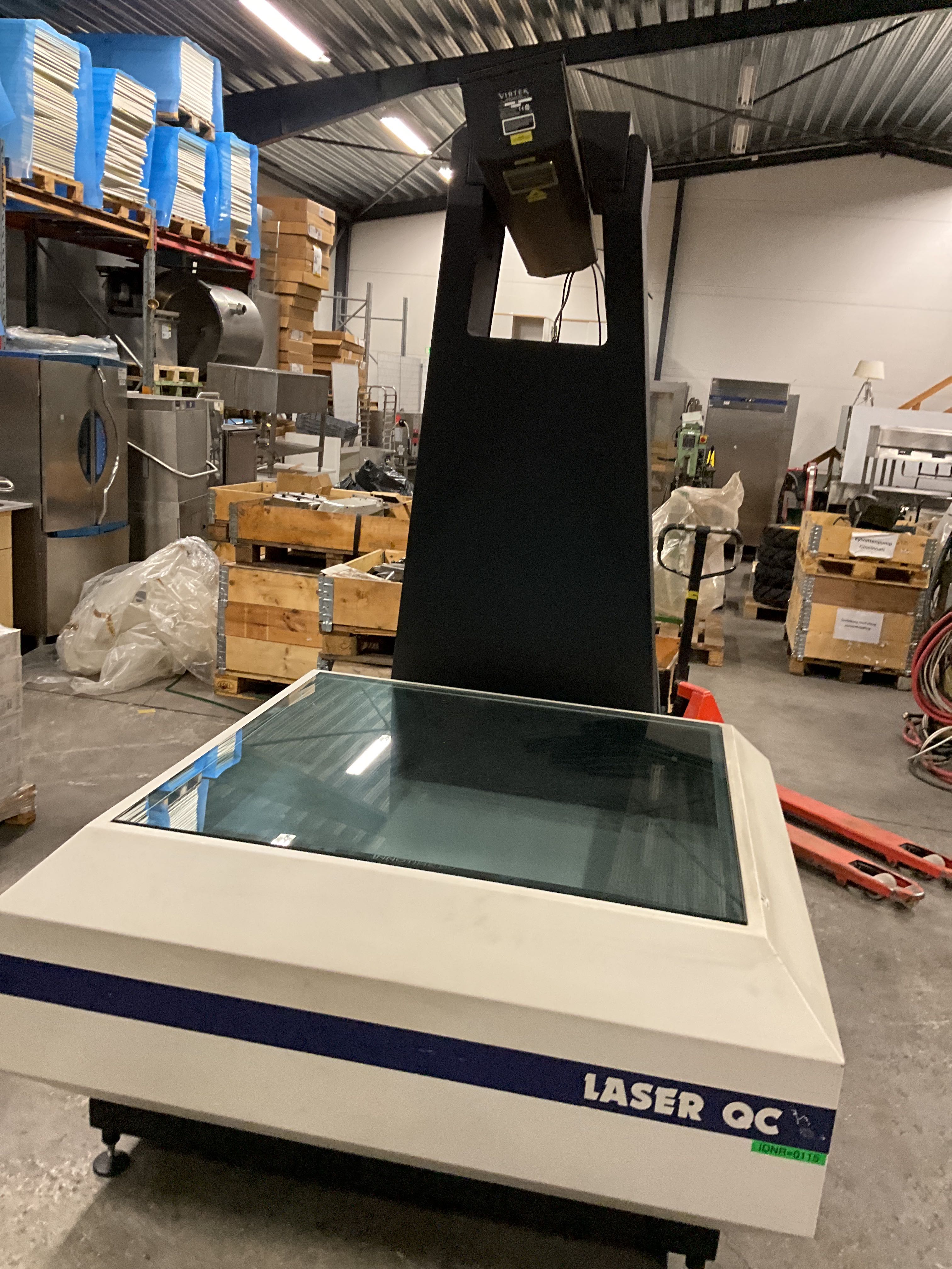

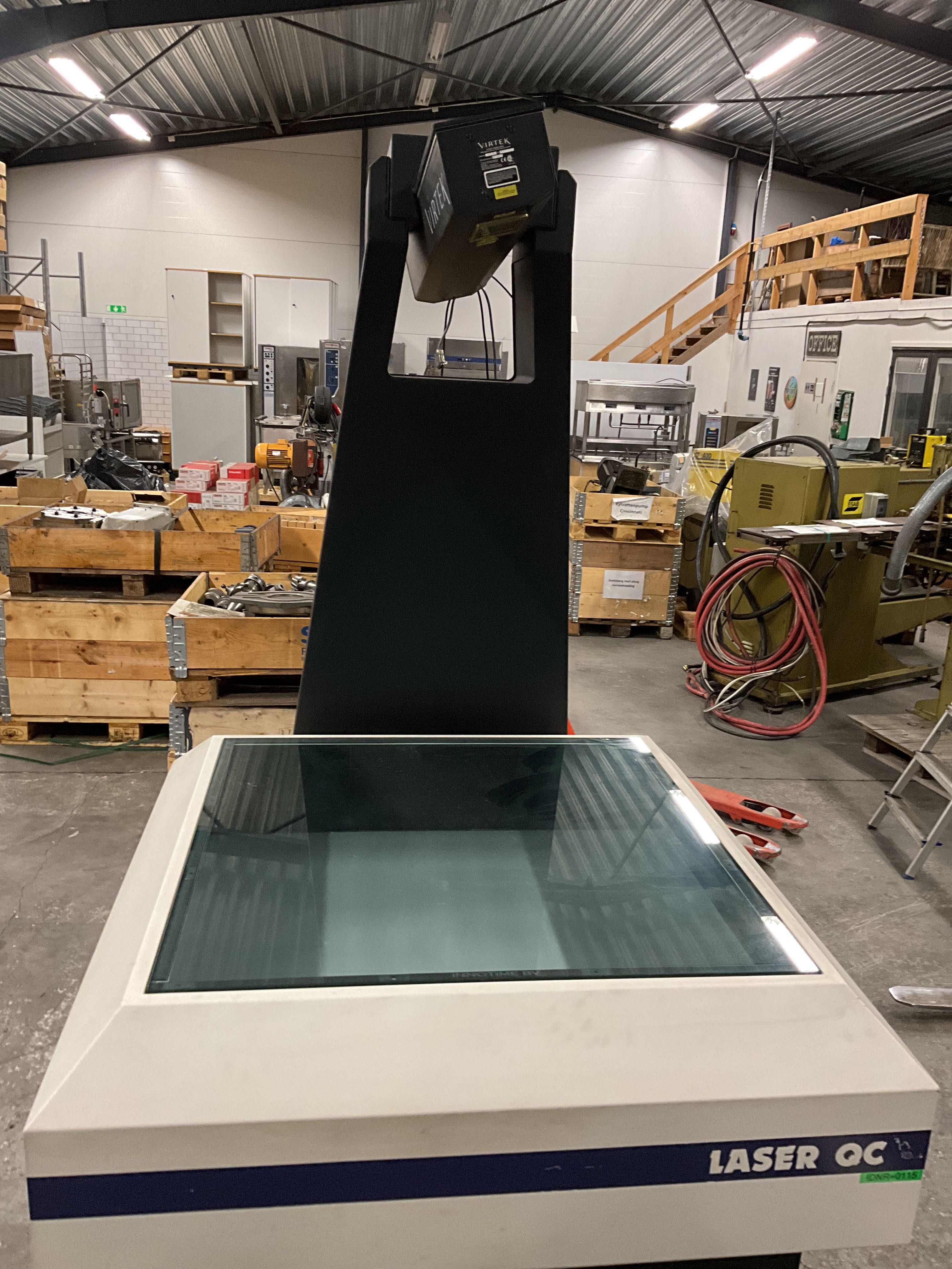

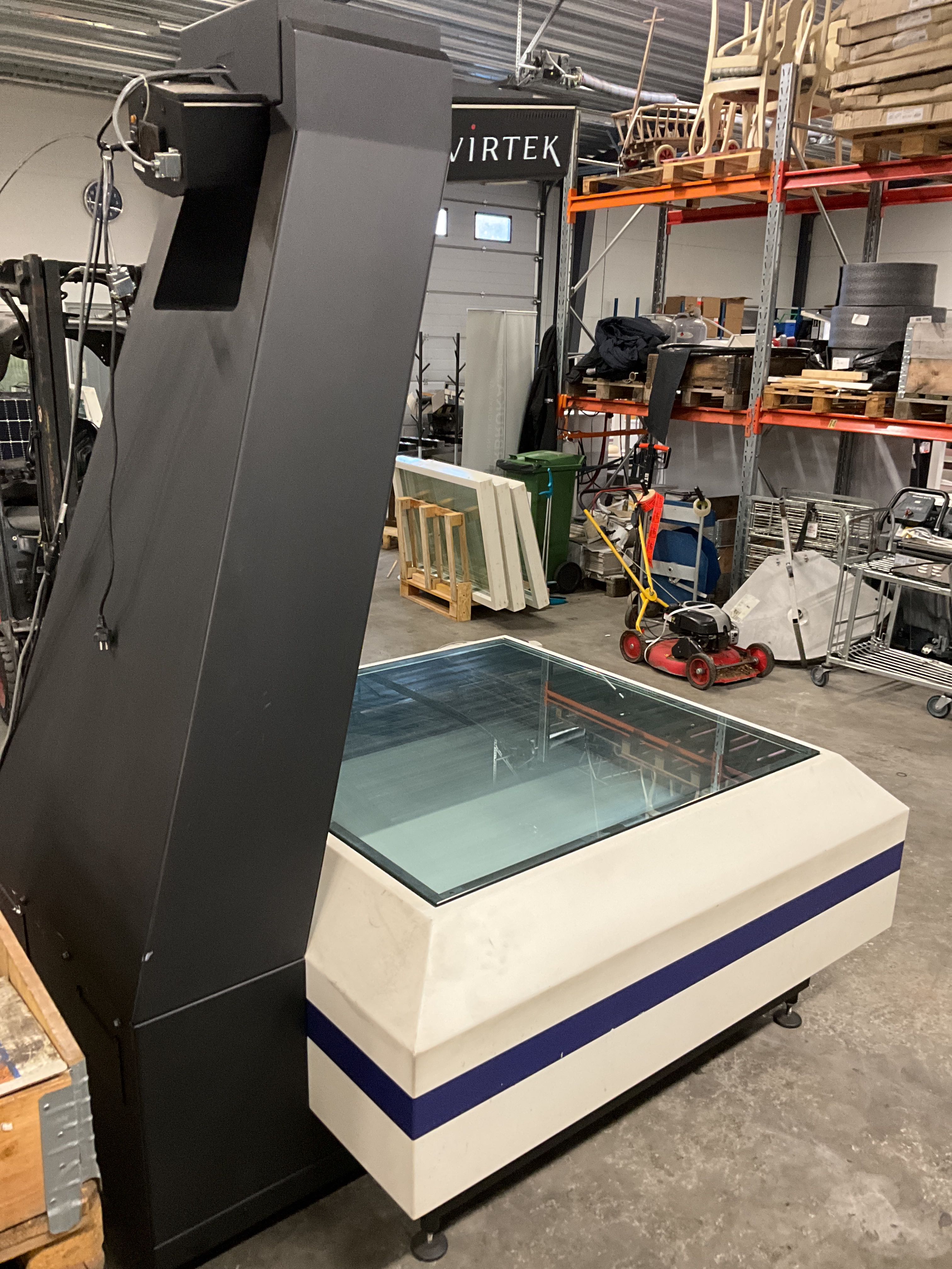

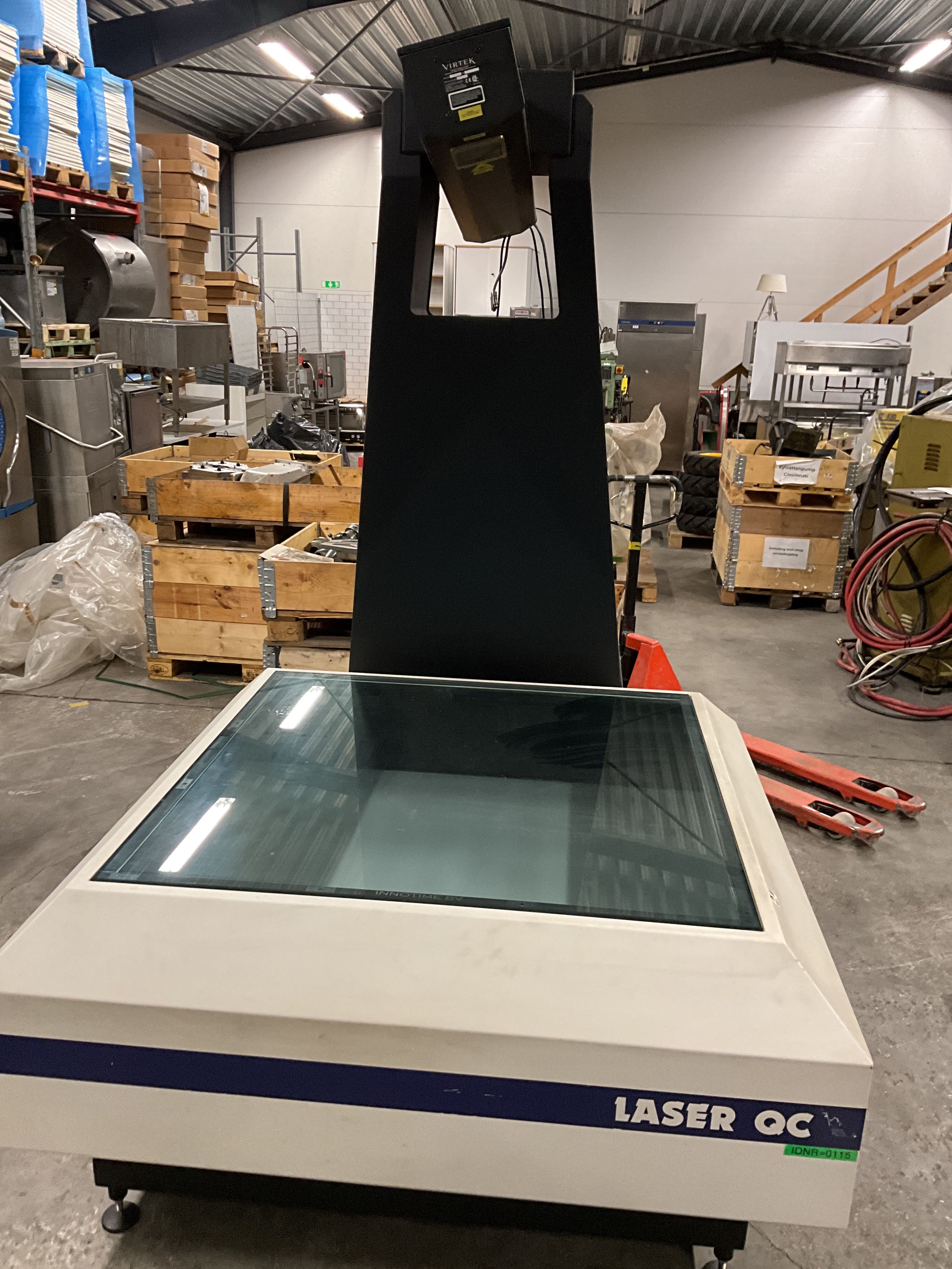

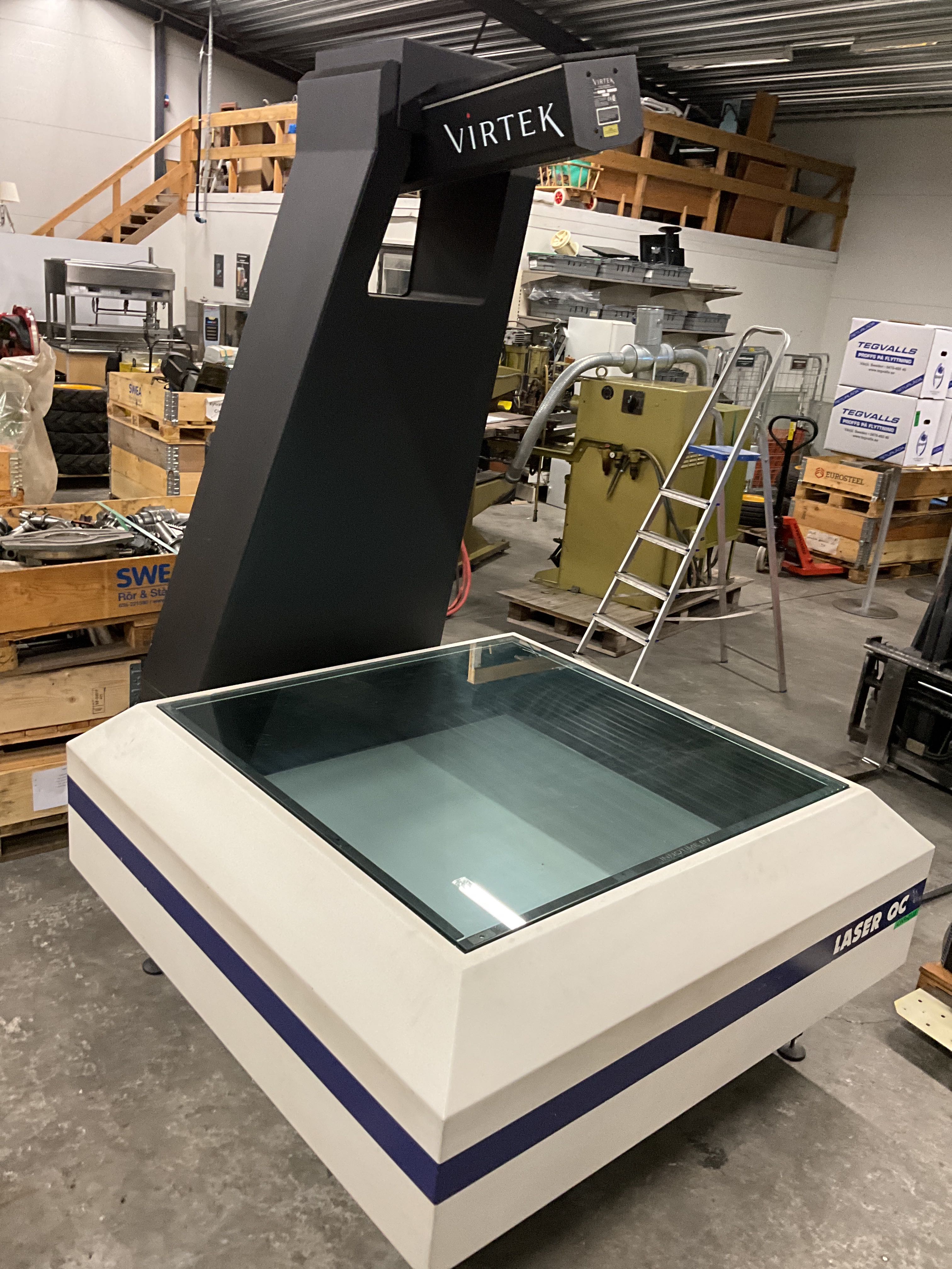

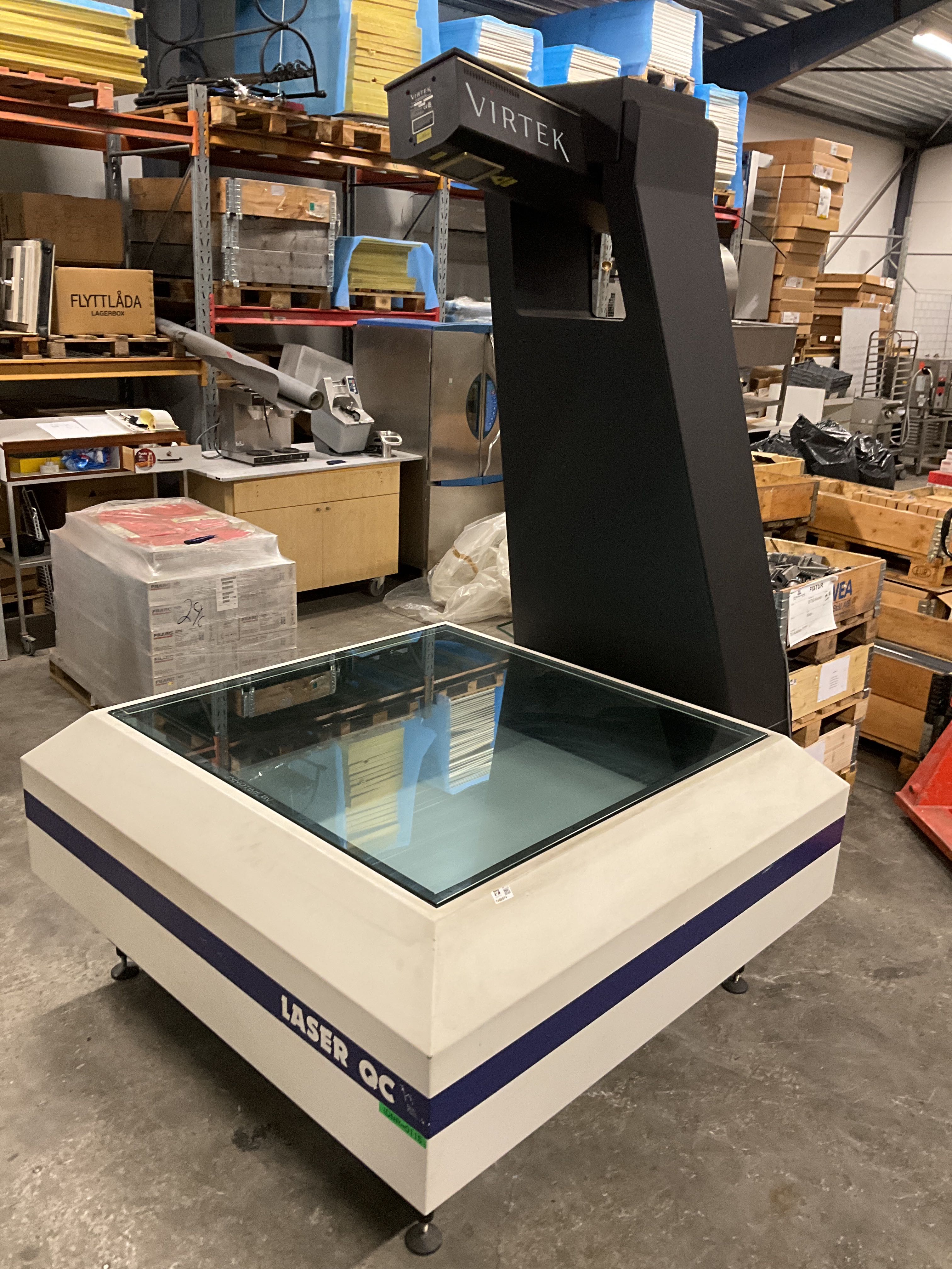

Industrial laser scanner used for measurement and quality control of sheet metal parts
Facts

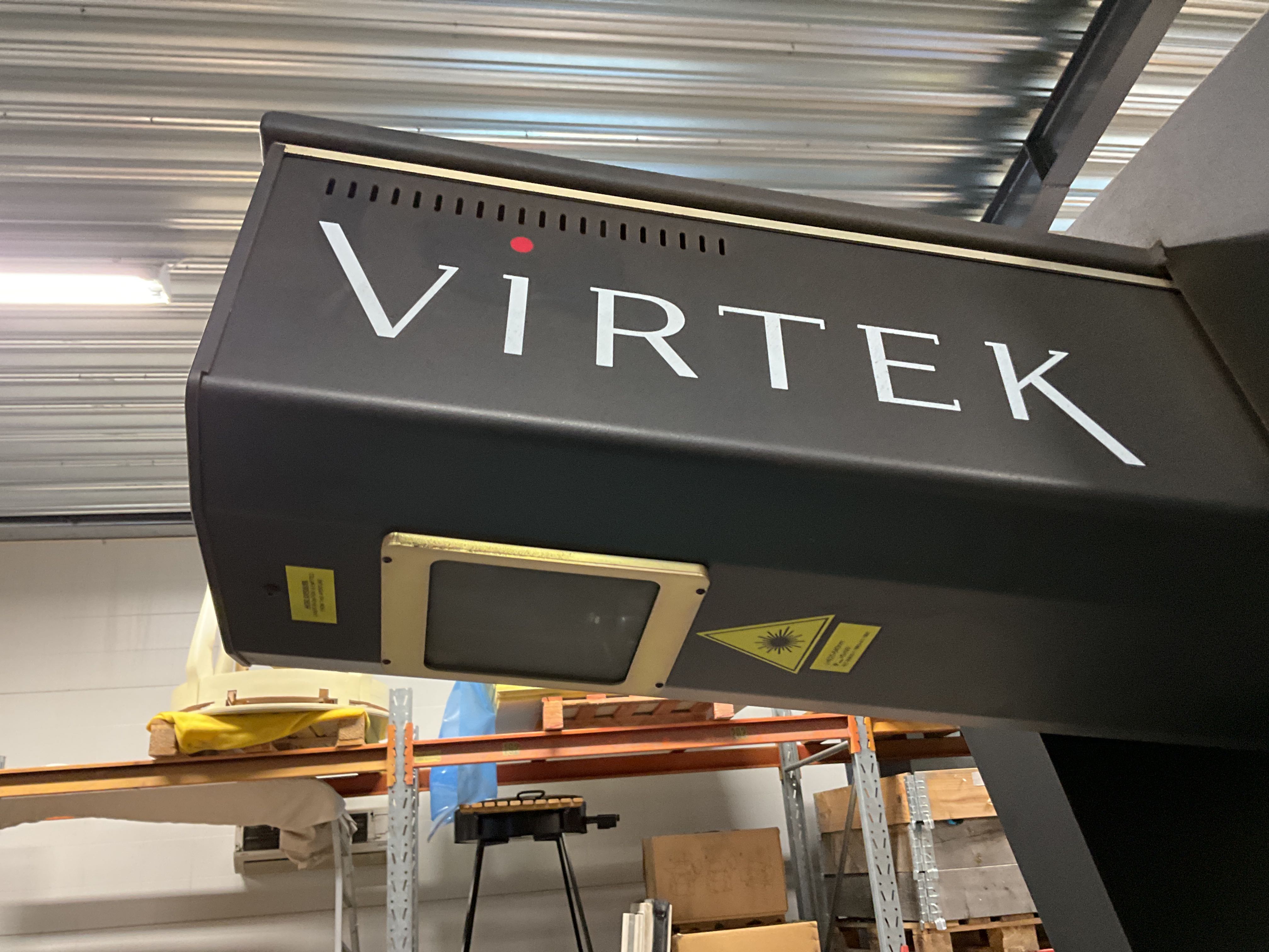

Manufacturer Virtek vision
Model LaserQC
Year 2000
Features:

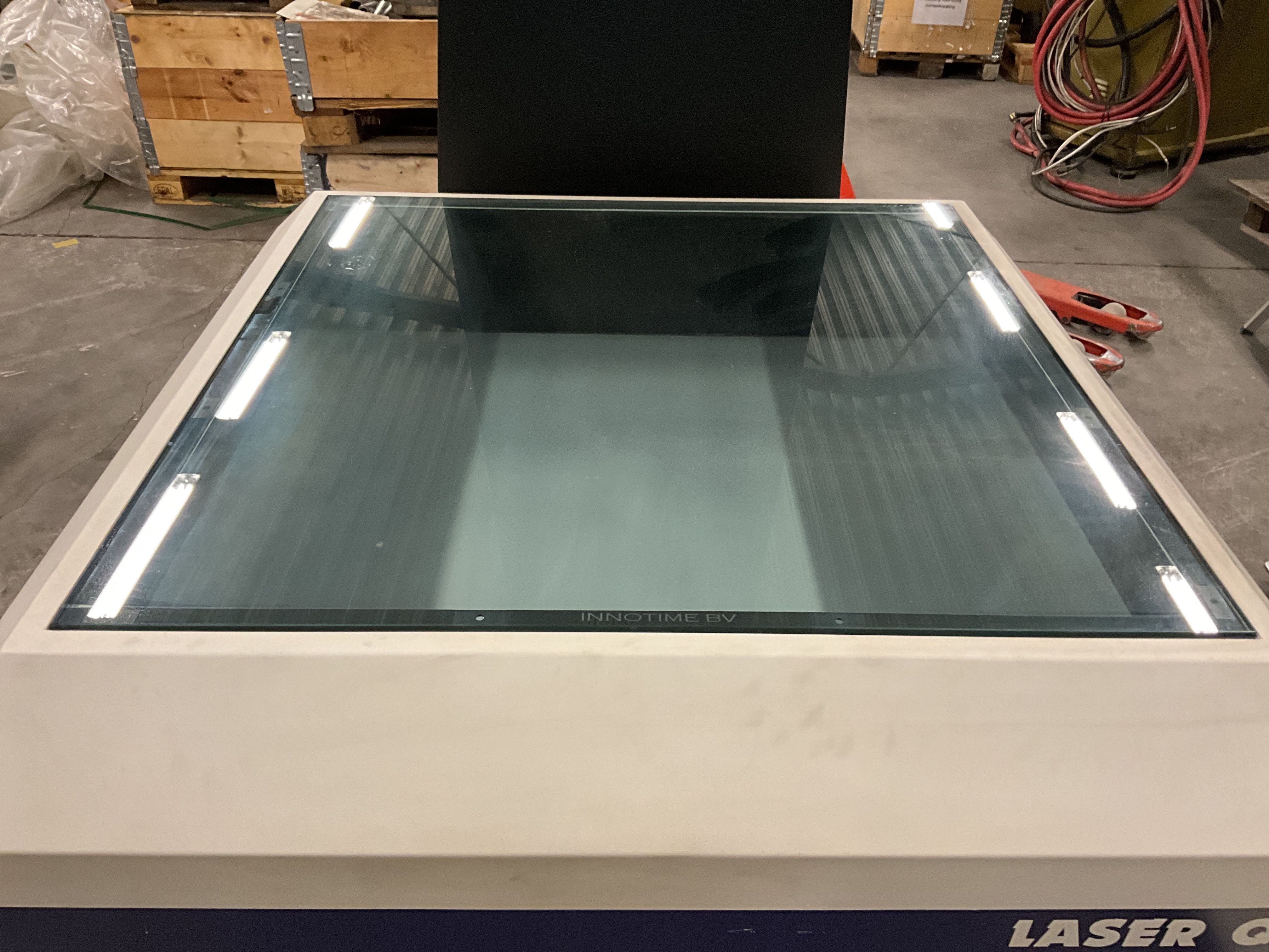

Machines project a laser line over an object placed on the glass surface
It measures the shape extremely accurately, down to a few thousandths of a millimeter.
Used to compare actually manufactured parts with CAD drawings (e.g. in sheet metal, metal, composites)
It checks cut sheet metal parts (laser, punching, waterjet cutting)
