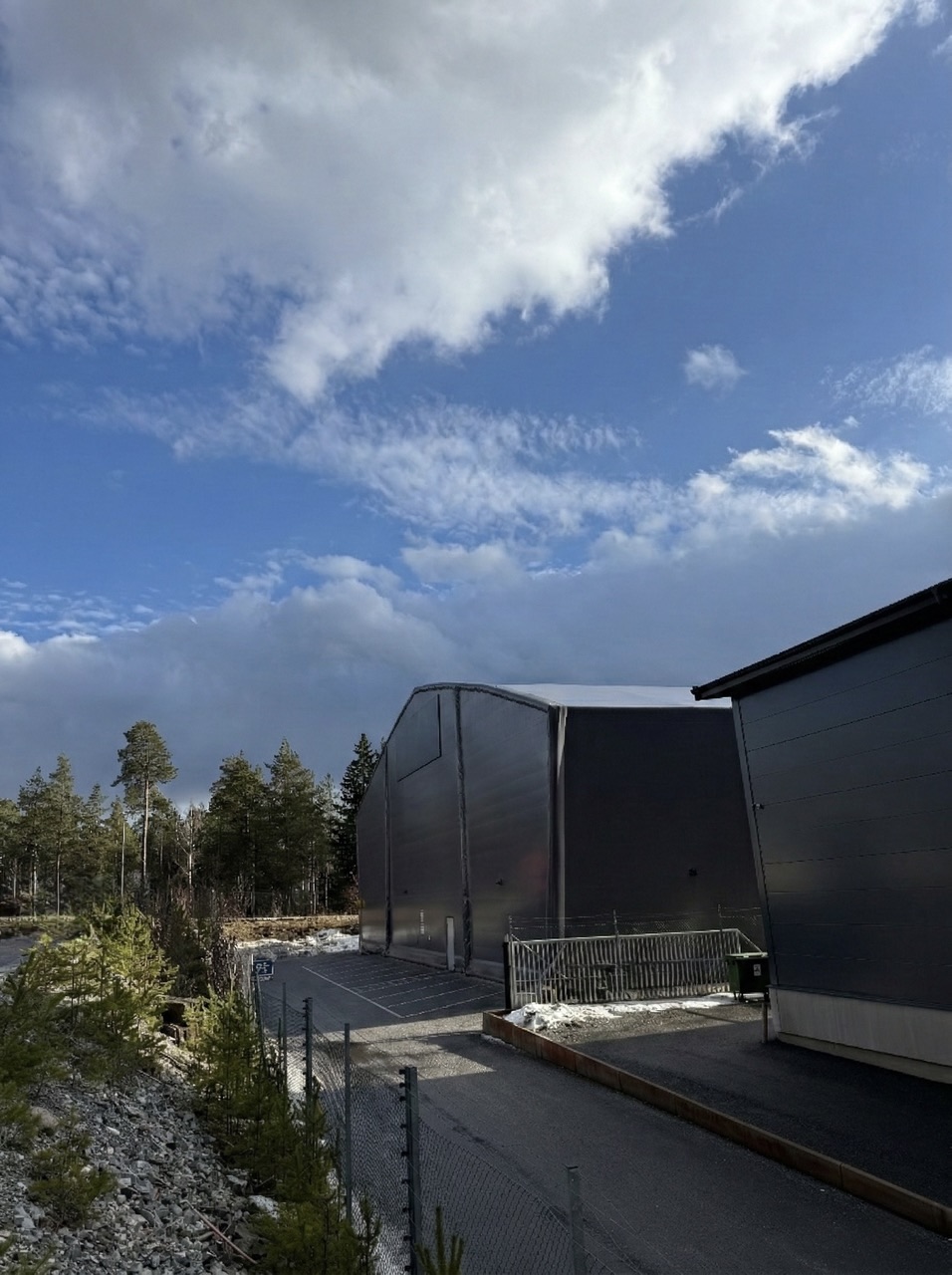

Insulated tent hall of 1750m2 with FTX unit – Hallgruppen VX 35/8.9x50 – 2021

Insulated tent hall with accessories - Hallgruppen VX 35/8.9x50 - 2021

Specifications:

• Manufacturer: Hall Group

• Model: VX 35/8.9x50

• Model year: 2021

• Built: Fall 2021

• Width: approximately 35 m

• Length: approximately 50 m

• Side height: approximately 8.9 m

• Internal width: approximately 34 m

• Internal free height at the side: approximately 7.6 m

• Roof ridge height: approximately 12.2 m

• Total external height: approximately 14.2 m

• Area: approximately 1,750 sq m

• Center distance (cc): 5 m

Other information:

• Hall type: VX – Insulated tent hall 100 mm

• Insulation fabric: 100 mm

• Frame: Cantilevered VFZ steel frame

• CE marked according to SS-EN 1090-1

• PVC fabric complies with EN 13501

• Flame retardant and approved according to SITAC 2382/80

• Dimensioned according to SS-EN 1991-1-3 (snow load) and SS-EN 1991-1-4 (wind load), Eurocode

• Snow zone: 2.5 kN/sq m

• Wind load: 24 m/s

• Terrain type: 3

• Roof pitch: 9.0°

• The hall has been in operation/heated until recently.

• FTX unit adapted to the building is included; needs to be dismantled by buyer. Buyer is responsible for professional dismantling.

• FTX unit (listed as accessory):

  • Manufacturer: Komfovent

  • Model: VERSO-R-60-ML-HV-PM/IE5/4.4/4.4-F7-M5-HE/24-X-L1-C5.1-O/C4

  • Unit size: 60

  • Type: NRVU, bidirectional ventilation unit

  • Heat recovery system: rotary heat exchanger

  • Nominal flow (supply air): 9,000 m³/h (2.50 m³/s)

  • Nominal flow (exhaust air): 9,000 m³/h (2.50 m³/s)

  • Nominal external pressure: 170 Pa

  • Front velocity at rated flow: 1.53 m/s

  • SFPv: 1.44 kW/(m³/s)

  • Temperature efficiency heat recovery: 82%

  • Energy efficiency class (RLT): A+

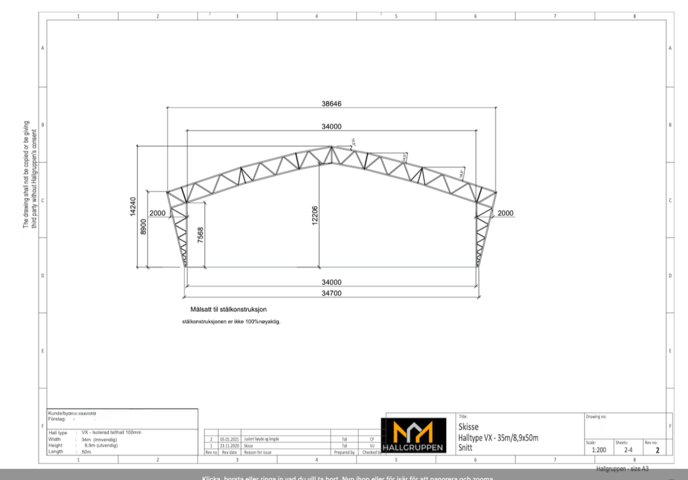

• Drawing type: Sketch – Section (Drawing: HGVX35-8,9-50-BL, Sections 2–4)

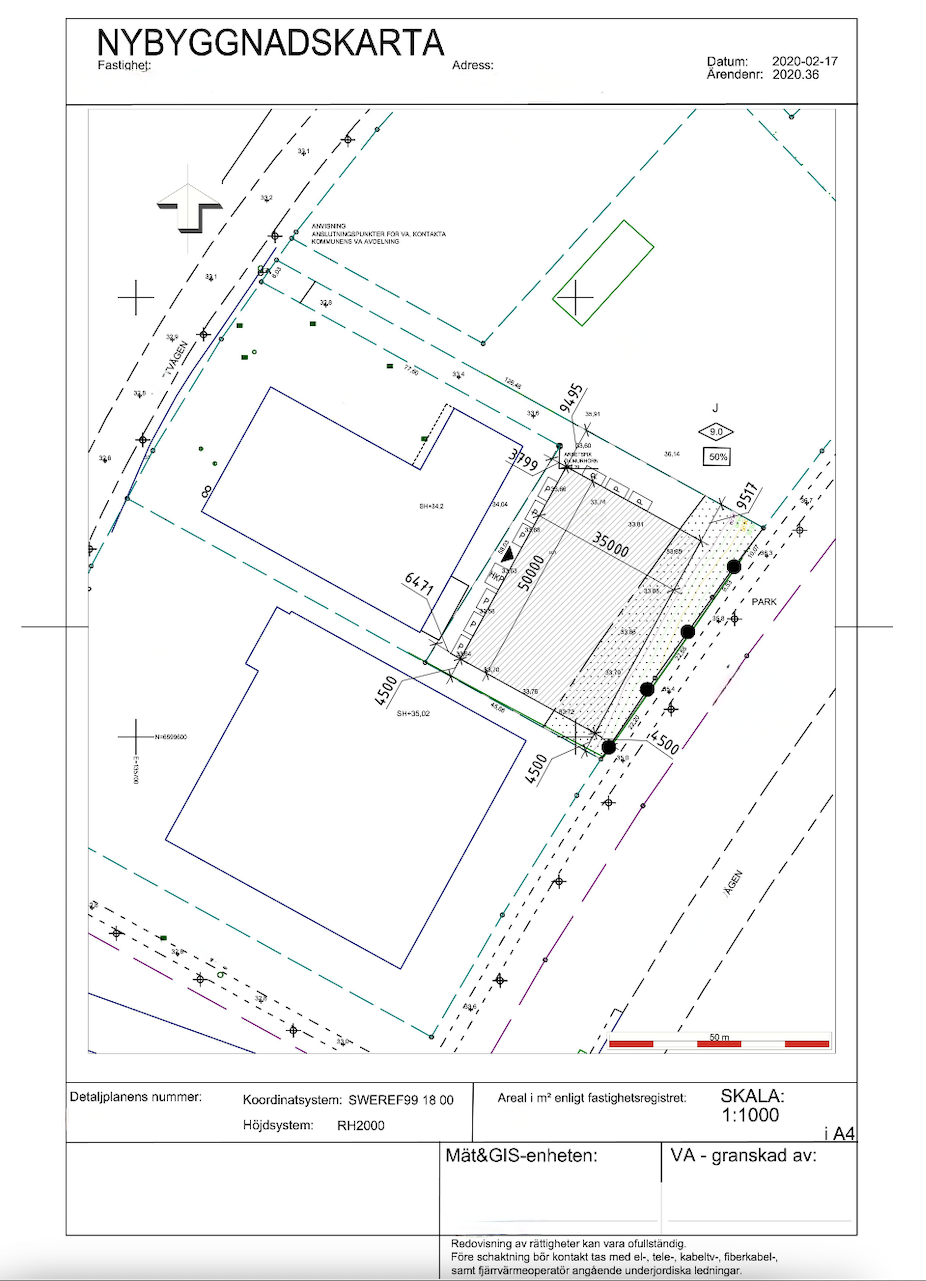

• Building dimensions according to drawing: 50,000 mm x 35,000 mm

• Coordinate system: SWEREF 99 18 00

• Height system: RH2000

• Dimensioning conditions (specified): winter −18 °C, summer 26 °C; specified relative humidity and indoor target temperatures according to drawing/documentation.

• Location: Stockholm

• Interior fittings such as lighting are dismantled.

• The surface under the tent hall is asphalted.

• Note on drawing: The steel structure is not 100% accurate.

• Note: Accounting for rights may be incomplete.
