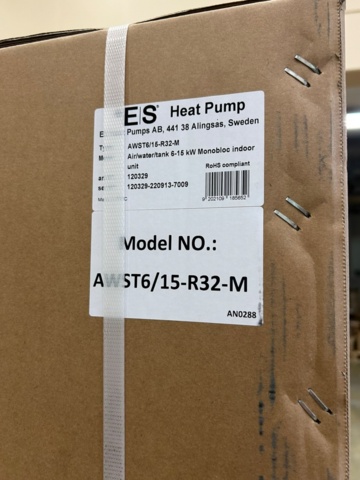

120329 AWST6/15-R32-M
Air/Water 6-15kW, V6 Touch display, 250l tank, 400/230V, 3-ph, 16/25A, Interior, White

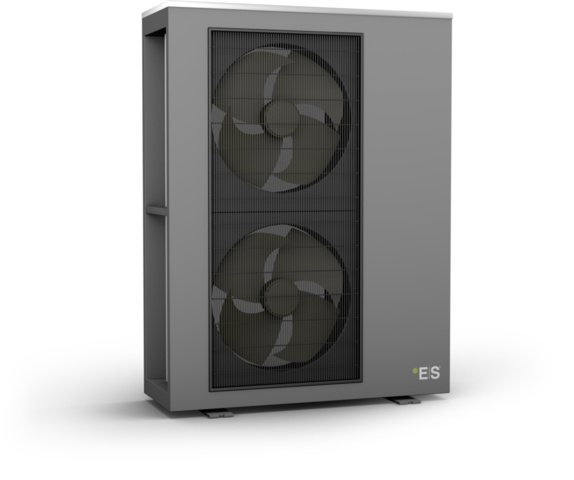

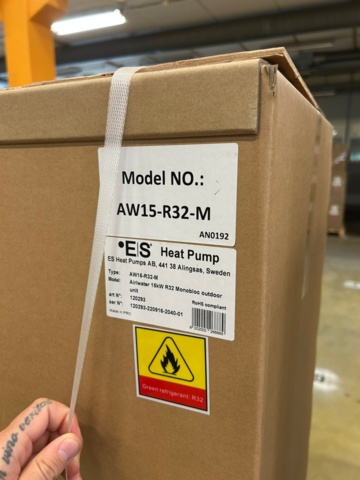

120293 AW15-R32-M
Air/Water 15kW R32 Monobloc Outedel 400V/10A

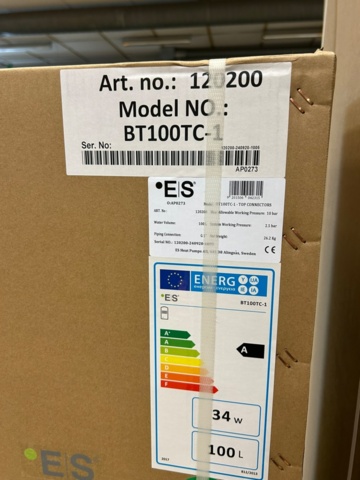

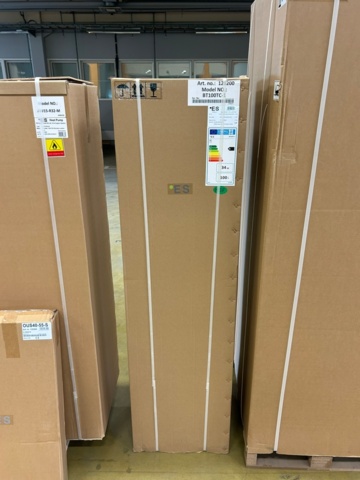

120200 BT100TC-1
Buffer tank 100 L, white, wall mount, top connection
The AWR32M heat pump series uses the latest technology for maximum efficiency and minimum environmental impact. The units are very quiet thanks to specially designed fans and a soundproof compressor compartment. The “M” in the name stands for Monobloc, which means that the refrigerant system is a factory-sealed circuit and the connection between the indoor system and the outdoor unit is a hydraulic connection, which makes installation easier.

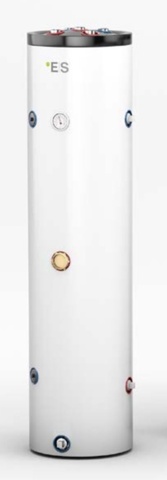

We call the tank versions “All-in-One” as they are a complete heating/cooling/domestic hot water source for a house. The AWST versions have a 250-liter domestic hot water tank, diverter valve, 3-9 kW immersion heater, expansion vessel, etc.
The outdoor units have a frost protection device to prevent frost damage in the event of a fault.
Features
- The heat pump can be connected to the internet via LAN cable.
- Heating, cooling and domestic hot water mode.
- Possibility to control two heating/cooling circuits
- Night mode
- Can control additional heat sources
- Dual temperature settings for hot water
- Holiday mode
- Floor hardening
- Anti-legionella function

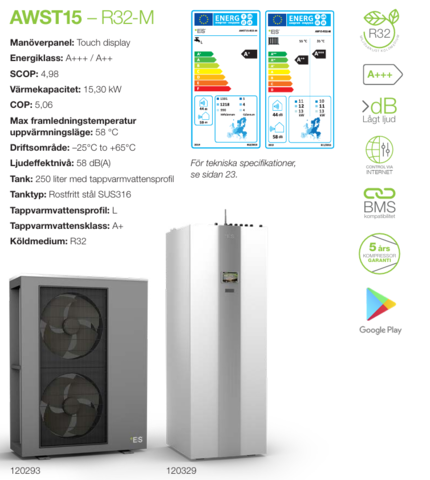

Technical data
- Control panel: Touch display
- Energy class: A+++ / A++
- SCOP: 4.98
- Heating capacity: 15.30 kW
- COP: 5.06
- Max flow temperature heating mode: 58 °C
- Operating range: –25°C to +65°C
- Sound power level: 58 dB(A)
- Tank: 250 liters with domestic hot water profile
- Tank type: Stainless steel SUS316
- Domestic hot water profile: L Domestic hot water class: A+
- Refrigerant: R32
