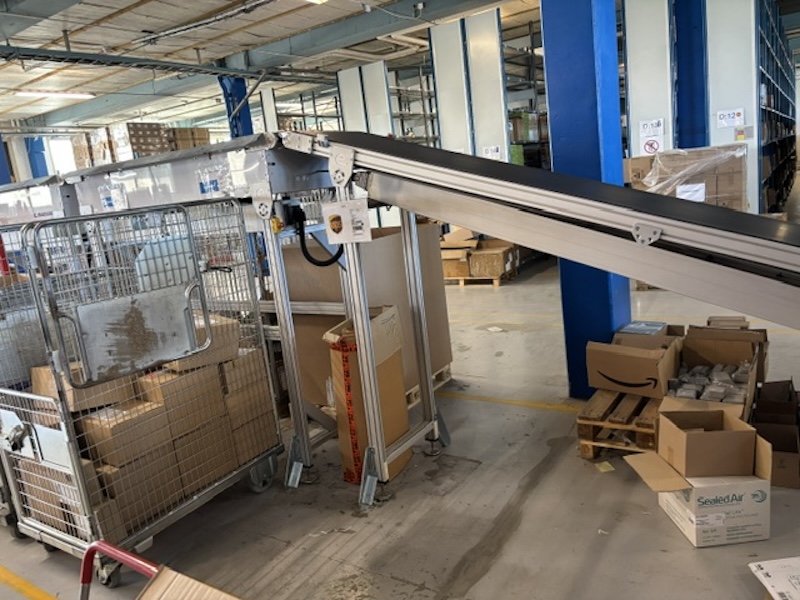

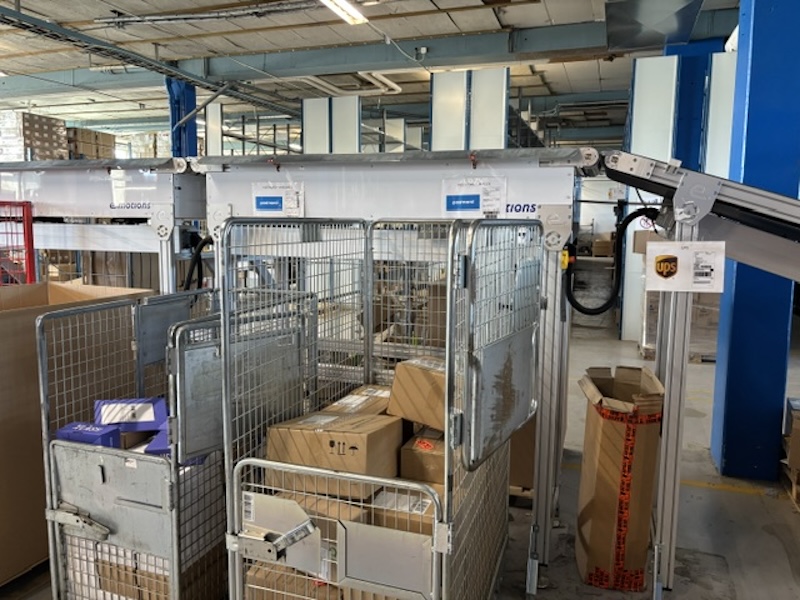

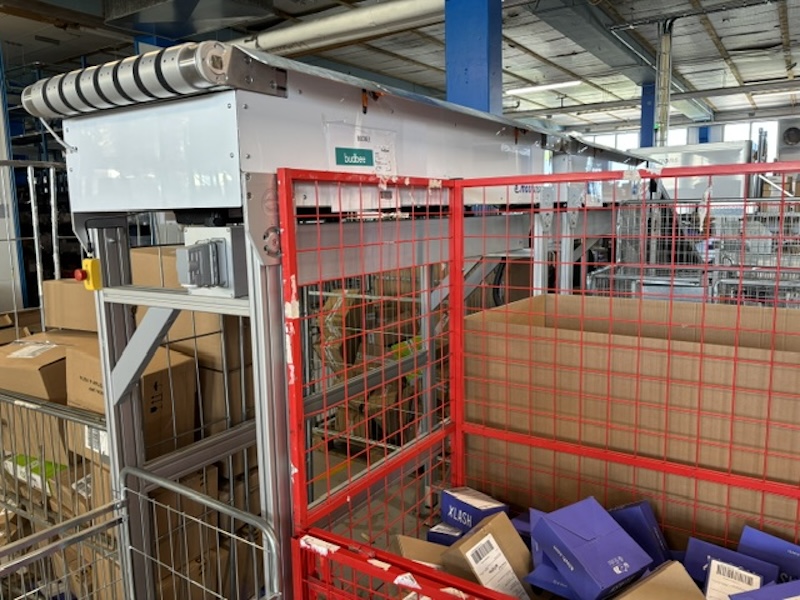

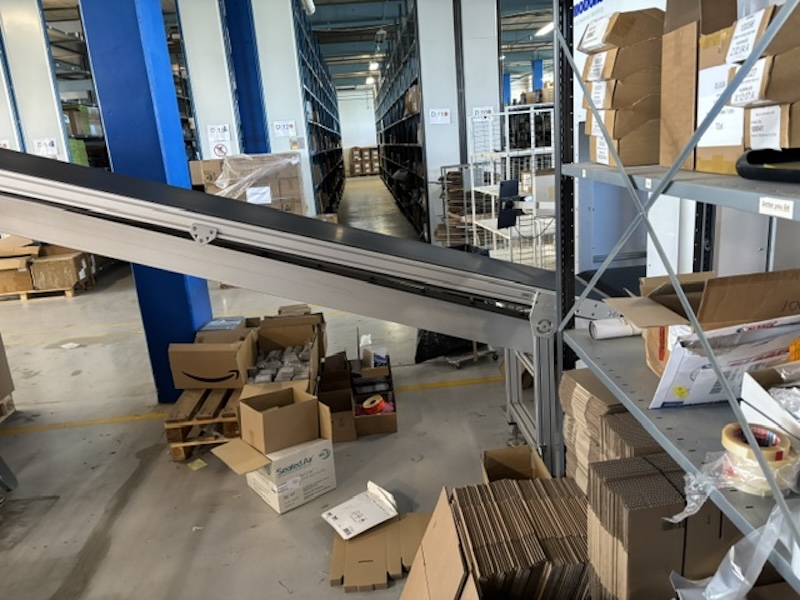

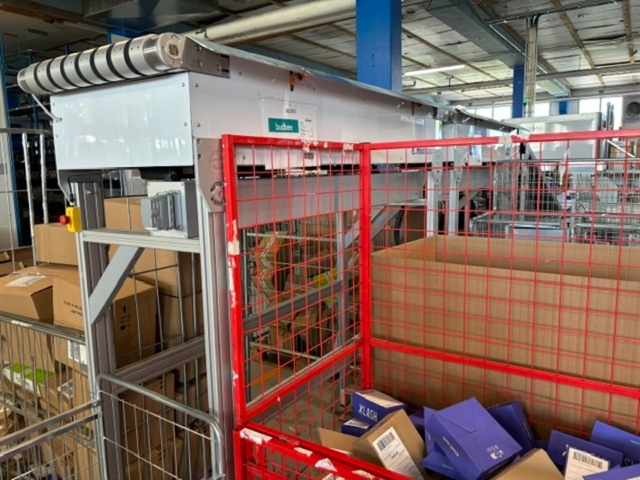

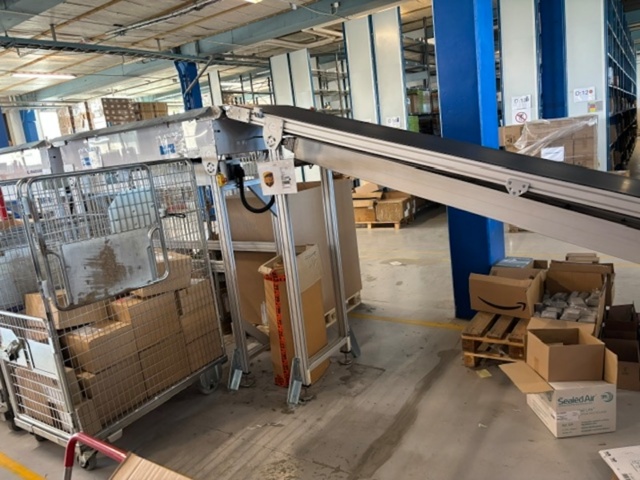

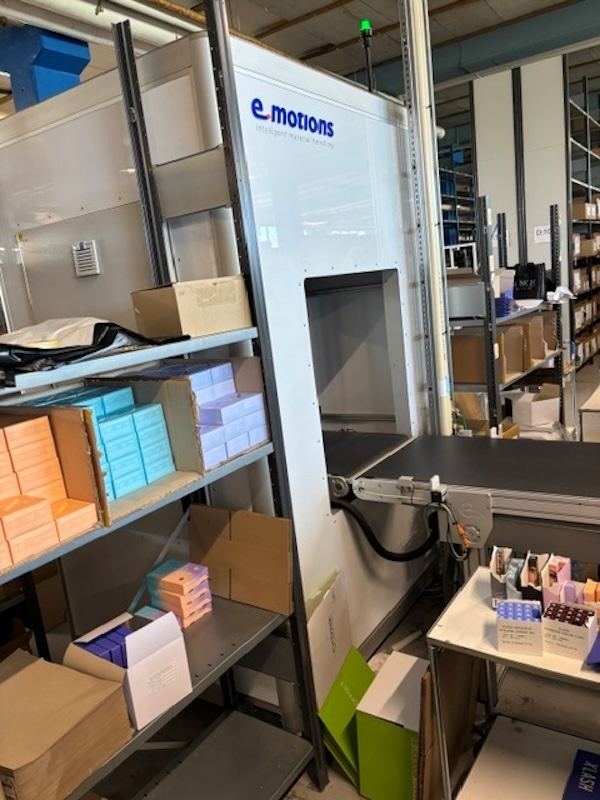

Packaging machine with sorting system and conveyor belts - Emotions PSF3500
- Specially adapted packing machine for handling and packing large quantities of smaller packages in logistics warehouses. The system includes a packing machine with associated sorting system and conveyor belts. The machine was purchased second-hand from 2019.
Specifications
- Brand: Emotions
- Model: PSF3500
- Active web width: approximately 620 mm
- Track height before DWS: approximately 900 mm
- Track height at sorting plant: approximately 1,900 mm
- Construction speed before DWS: approximately 0.5 m/s
- Speed in DWS: approximately 0.6 m/s
- Speed on the climb path: approximately 0.7 m/s
- Speed at sorting plant: approximately 0.8 m/s
- Max package length: approximately 800 mm
- Max package height: approximately 600 mm
- Max package width: approximately 550 mm
- Max package weight: 20–35 kg, depending on load cell choice
- Minimum package length: approximately 100 mm
- Minimum package height: approximately 10 mm, applies only to 3D measurement
- Minimum package width: approximately 100 mm
- Barcode location: Top of package
- Max flow: approximately 3,500 packages/h, depending on the size of the packages
- Air consumption: 0.3 m³/h at 6 bar
- Inrush current: 3x400 V
- Integration with WMS: Yes
- Transfer units: 2 pcs with 8 chutes
Accessories:
- Sorting system
- Transport lanes
- Ascent path
- Transfer units
Other information:
- Purchased used
- Purchase price: SEK 1,392,215 excl. VAT
