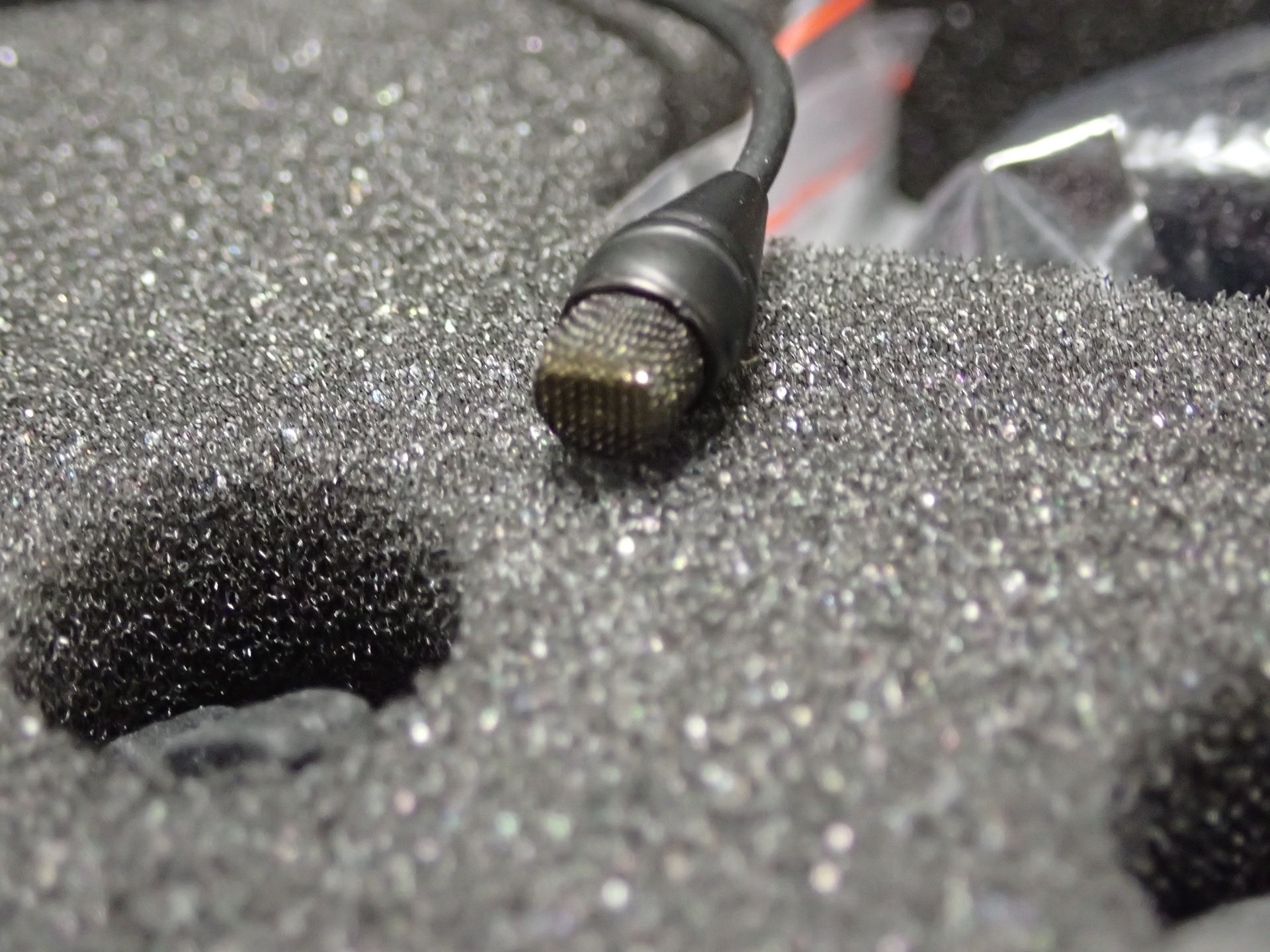

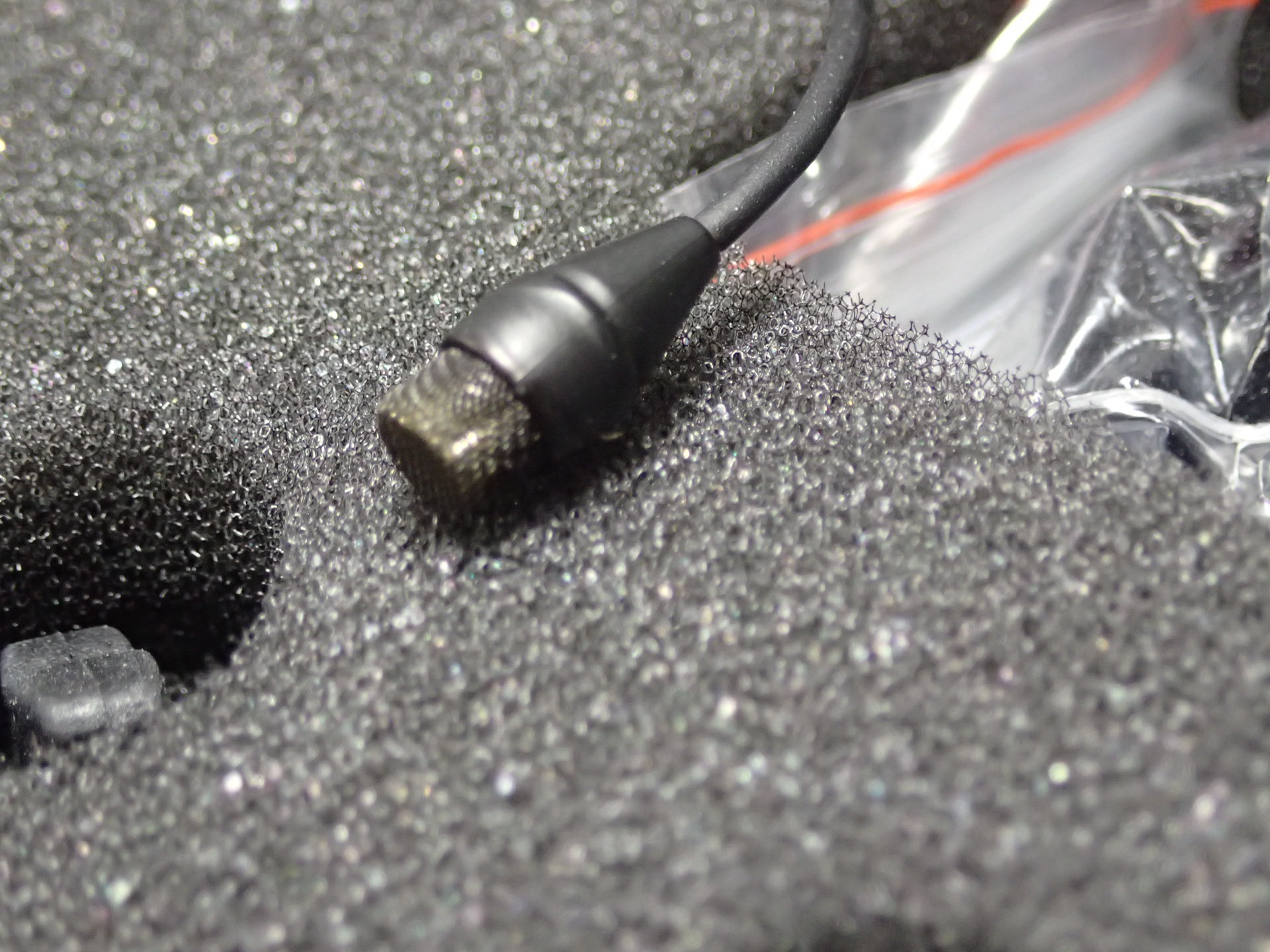

Instrument Microphone JTS CX-500.
The CX-500 is a discrete condenser microphone of ultimate quality designed for violin. With the microphone, several fasteners follow different applications. The connector is a 4-pin mini XLR and fits all JTS pocket transmitters and the PS-500 battery pack (not included).

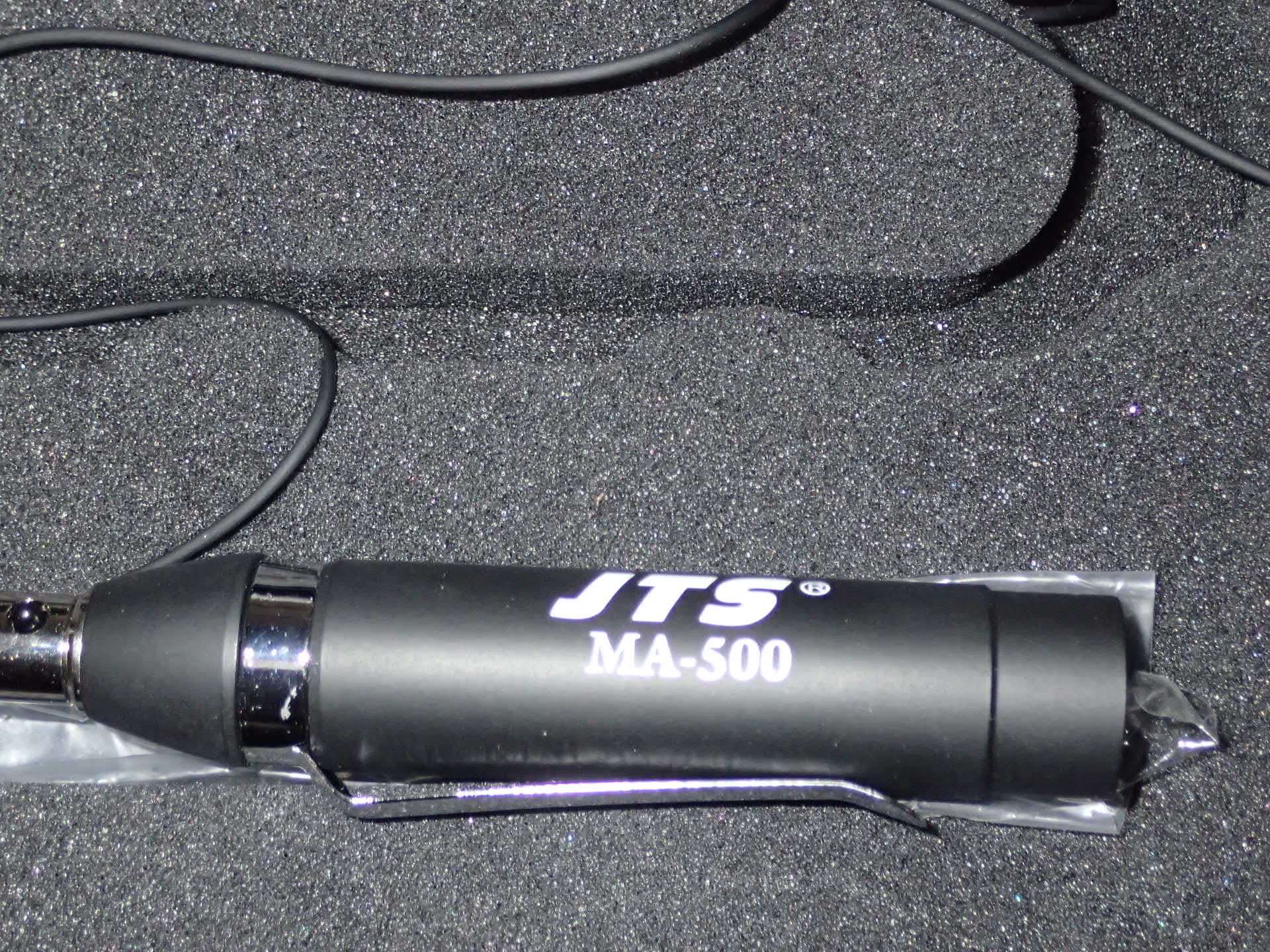

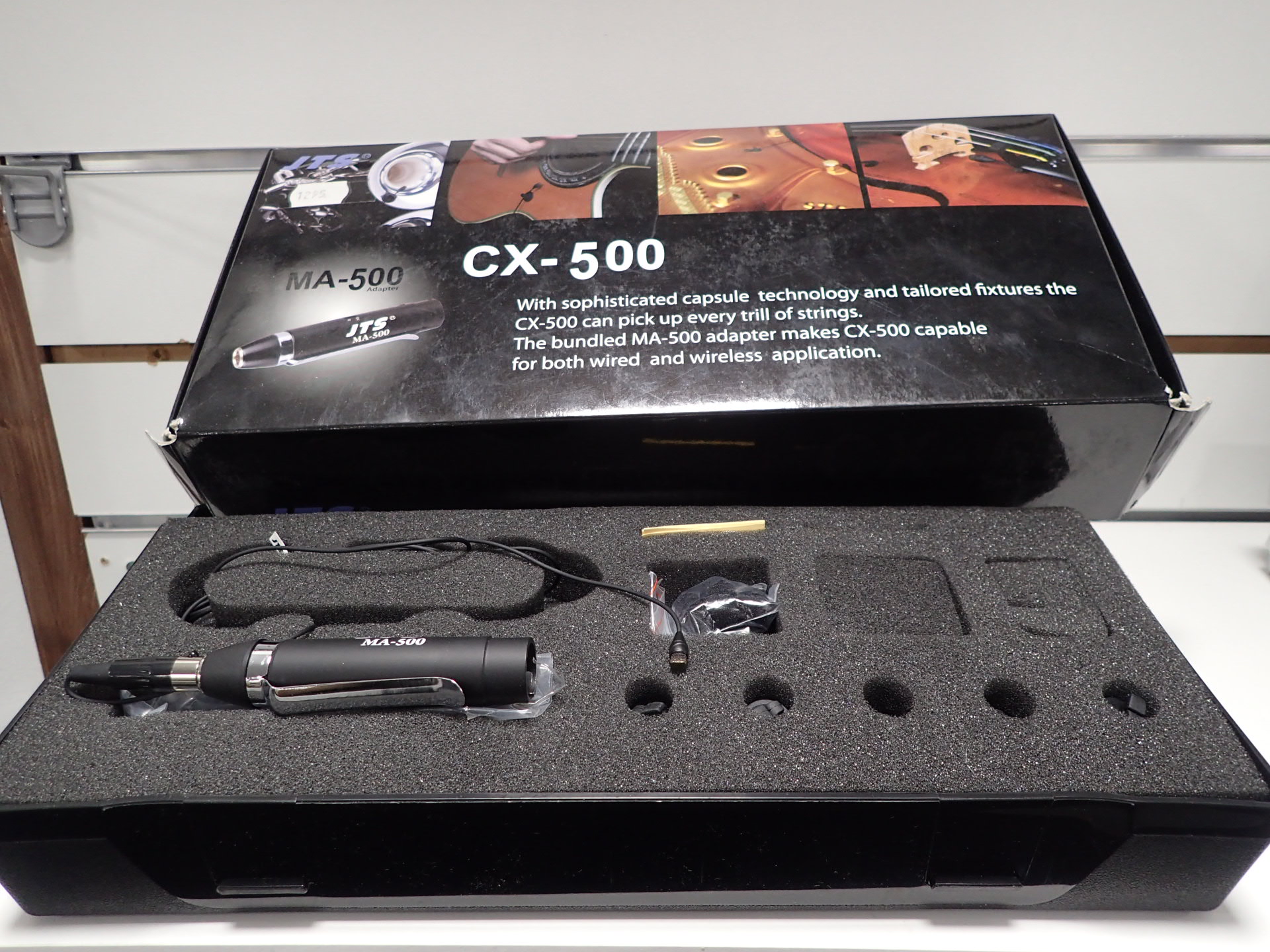

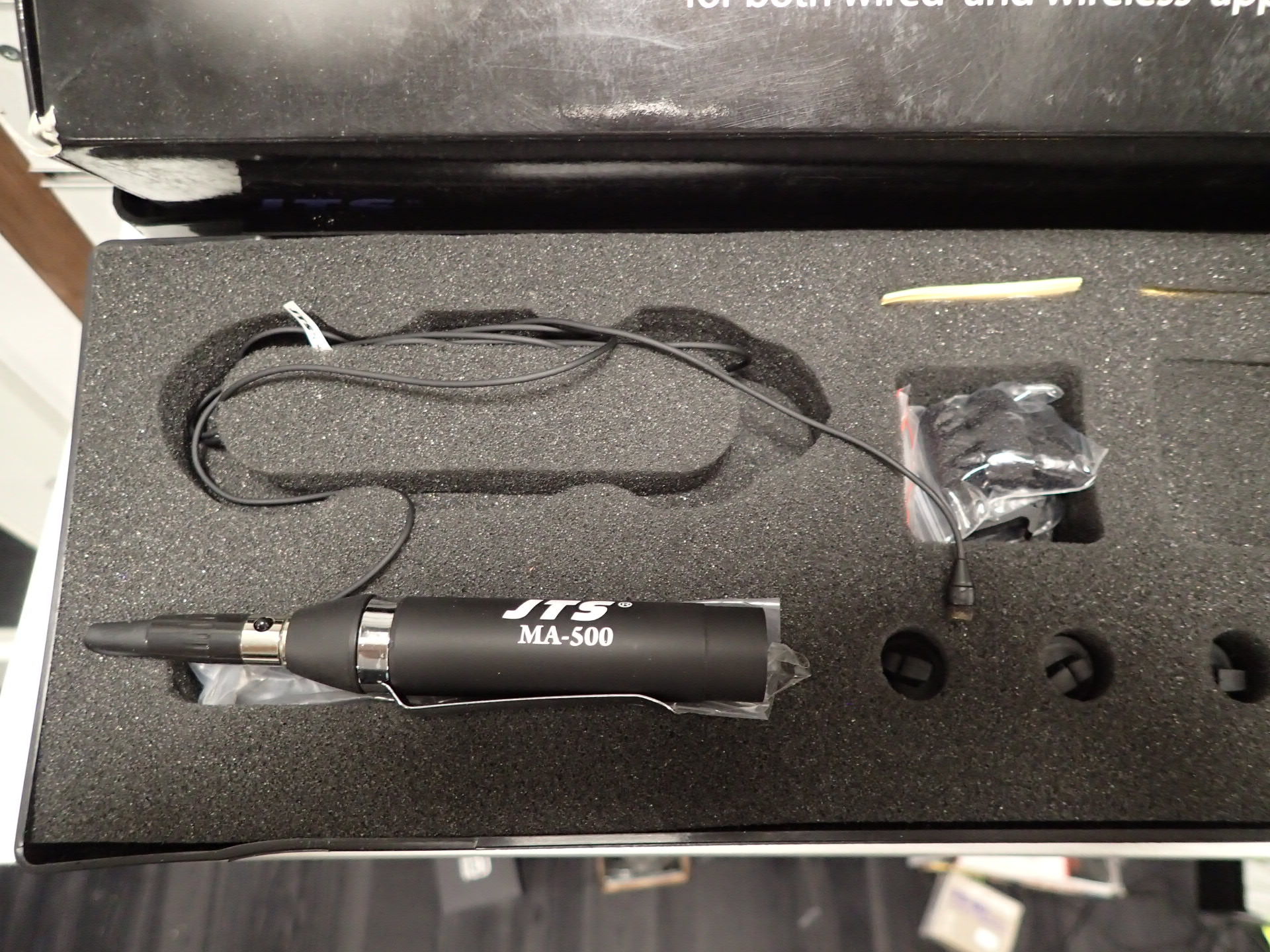

Comes with the MA-500 adapter to plug the microphone into a standard mixer table with phantom power. The adapter has Low cut switch 100Hz -6dB or 400Hz -4dB as well as PAD -10dB. The CX-500 is delivered in case.
Specifications:
• Type: Omni-directional Condenser.
• Frequency Response: 20 ~ 20,000 Hz.
• Sensitivity (at 1,000Hz): -58 ± 3dB * (1.25mV) * 0dB = 1V / μbar.
• Impedance: 1.5kO.
• Max.SPL for 1% THD: 130 dB.
• Signal to Noise Ratio: 68 dB.
• Output Connector: 4P Mini XLR.
• Power Supply: 1-5 VDC.
• Current Consumption: = 0.05mA.
• Weight: 6.5 grams (including cable).
• Dimensions (mm): Ø6mm (W) * 13mm (H).
