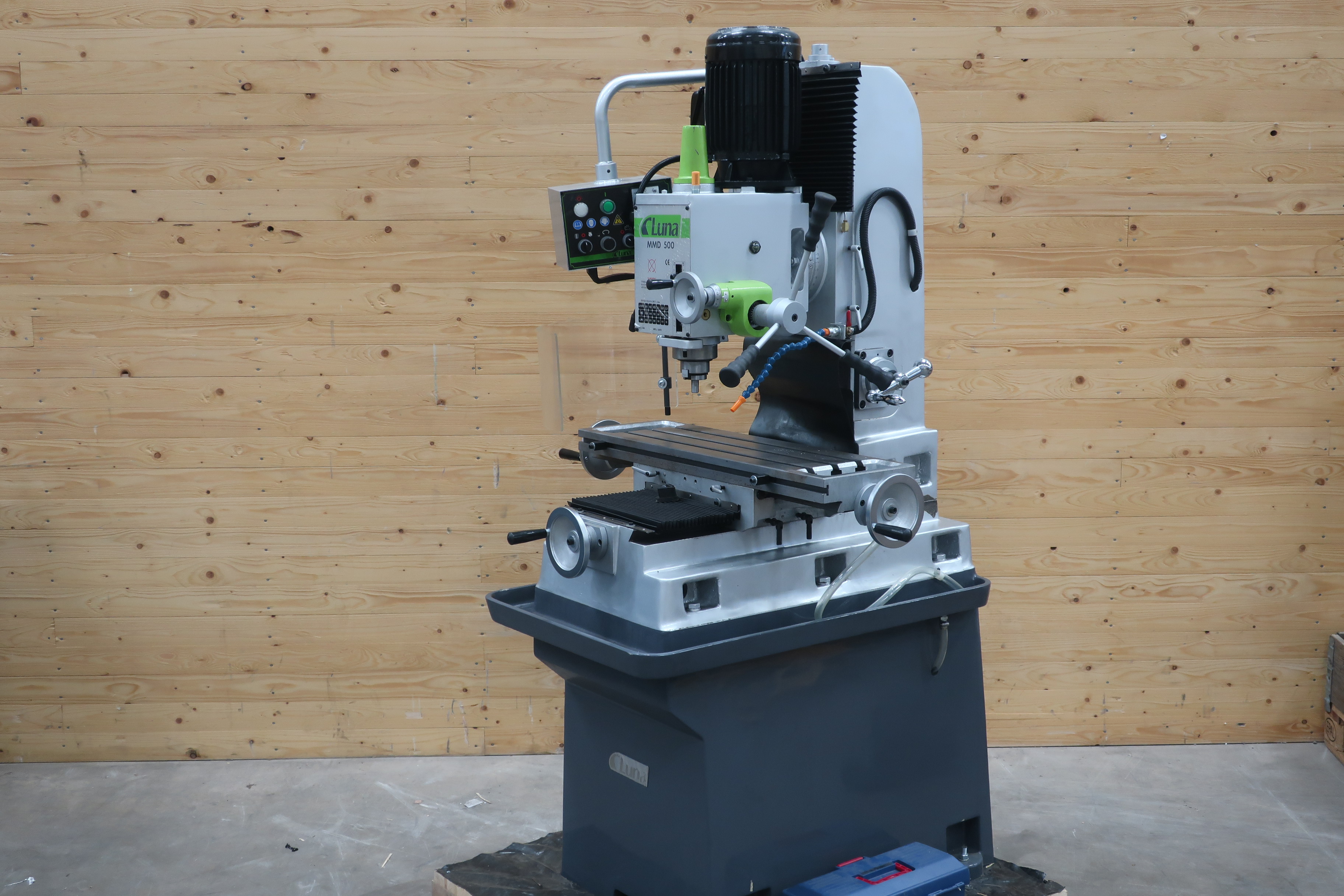

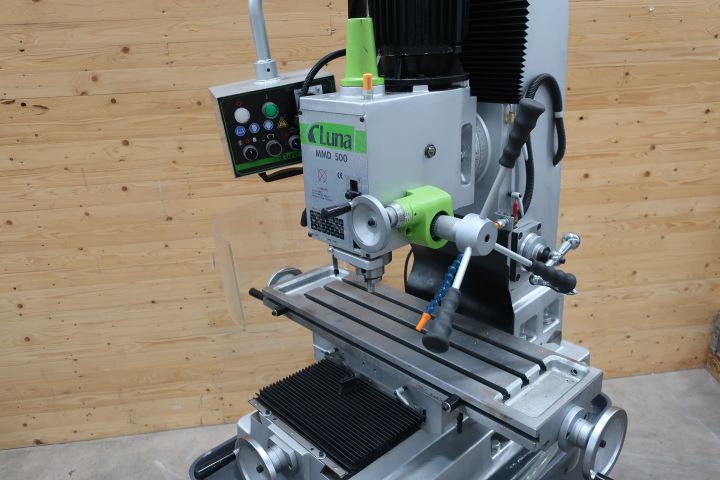

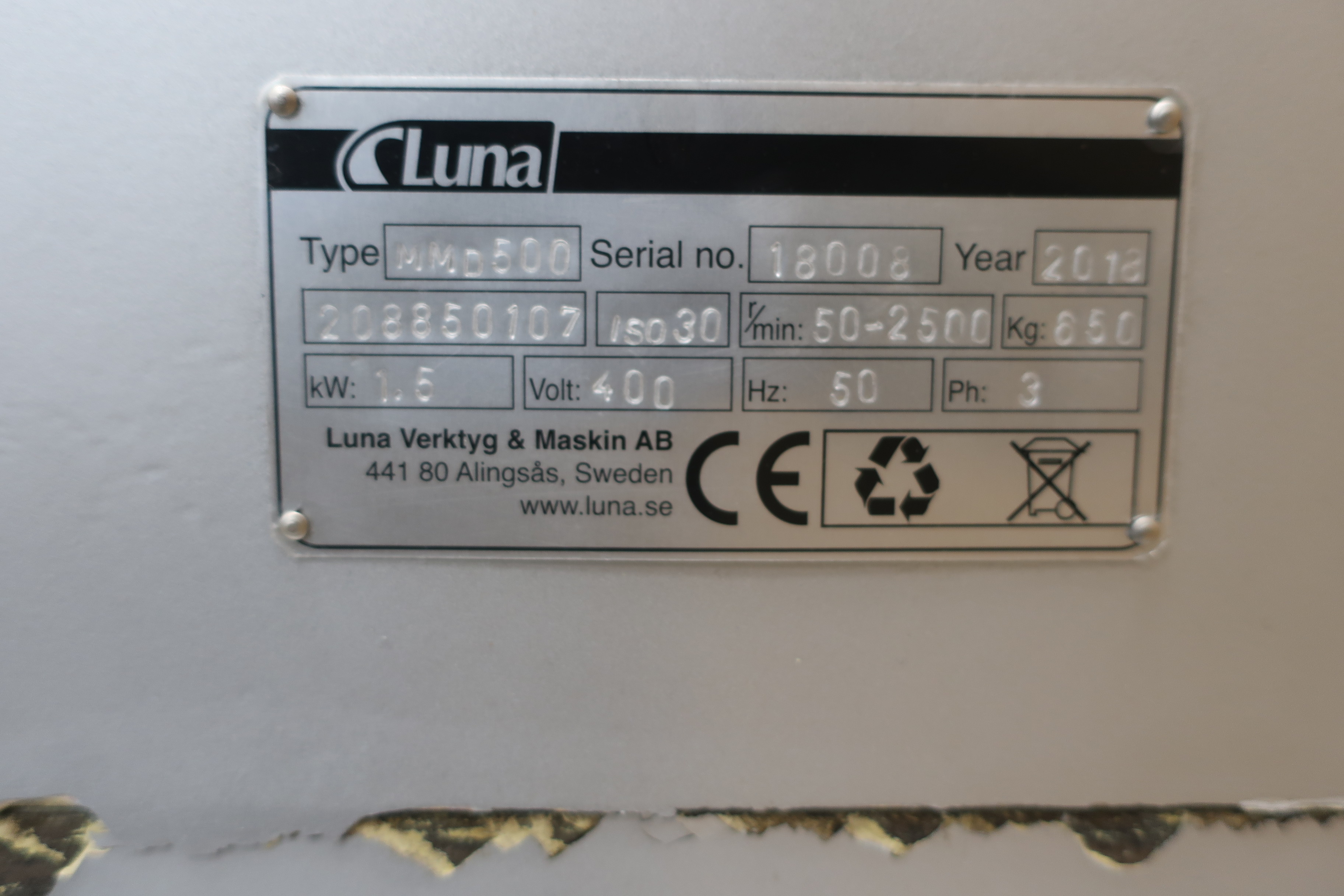

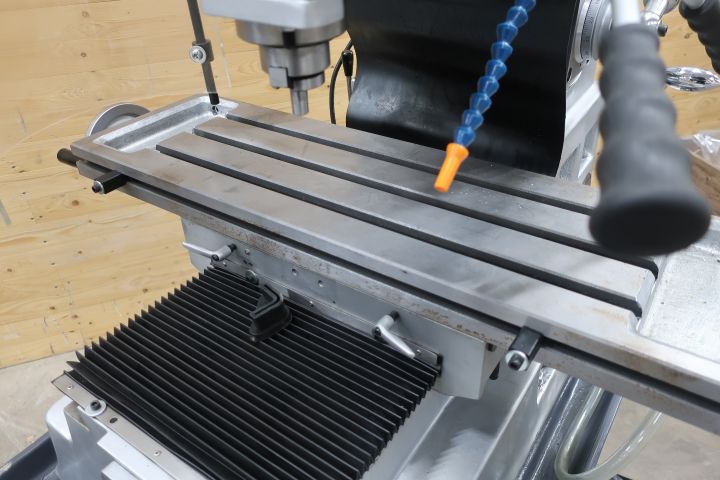

Luna Milling and drilling machine with motor driven longitudinal feed MMD 500
Weight 850 kg
Milling capacity, level milling etc. 102 102
Milling capacity, end milling etc. 32 32
Spindle cone ISO 30 30
Spindle movement mm 120 120
Spindle speed / min 50-2500 50-2500
Pillar diameter mm 250 250
Distance from spindle center pillar etc. 295 295
Distance spindle nose table, max mm 460 460
Distance spindle nose table, min mm 110 110
Coordinate table length mm 820 820
Coordinate table width mm 240 240
Longitudinal movement etc. 450 450
Cross movement etc. 350350
T-track width table mm 15 15
T-groove c / c mm 64 64
Motor voltage 400 V 50 Hz230 V 50 Hz
Number of phases 3-phase3-phase
Engine power kW1.51.5
Rated current A3.86.5
Not tested by PS but should work according to the submitter.
Sold as is.
