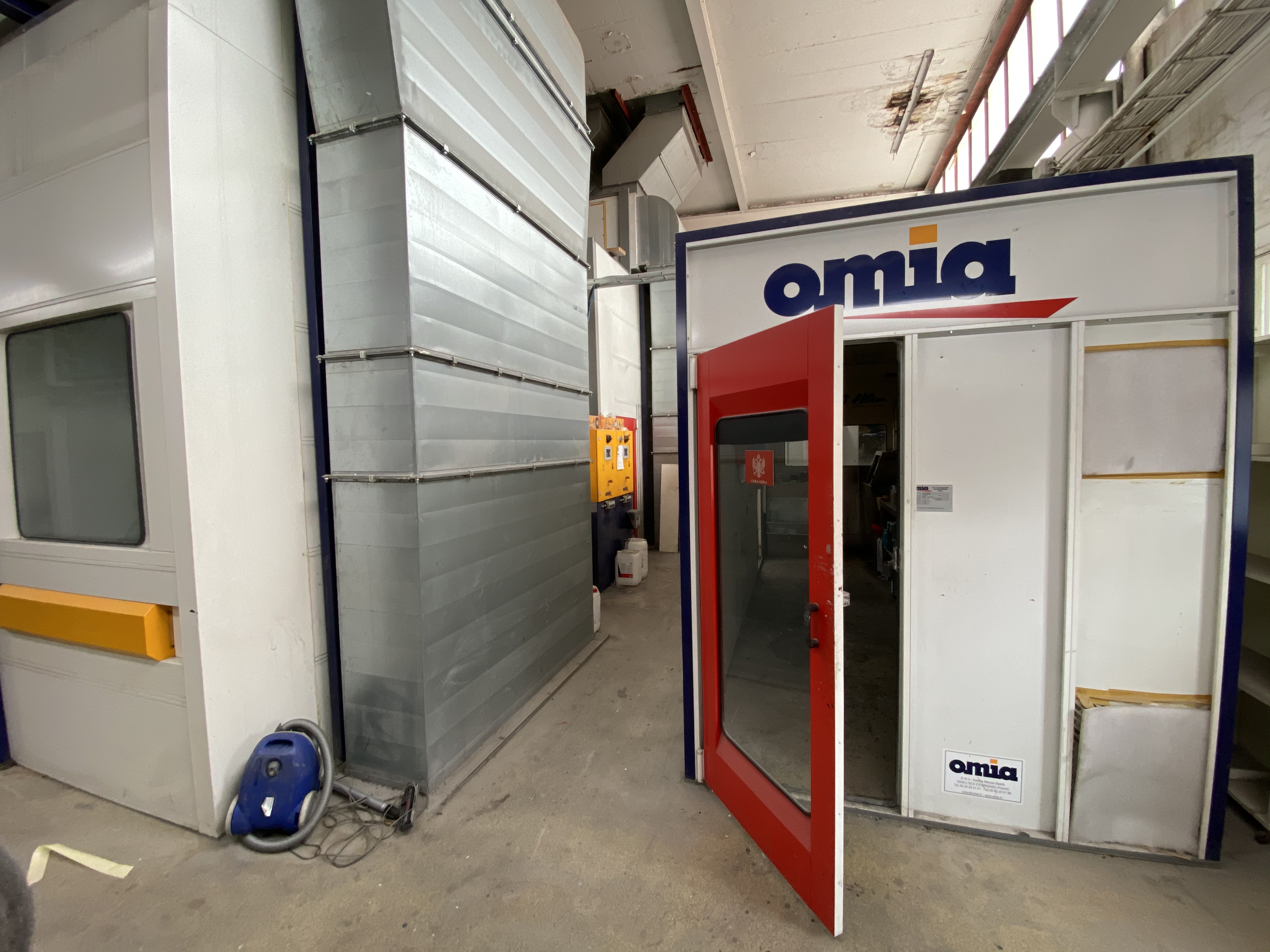

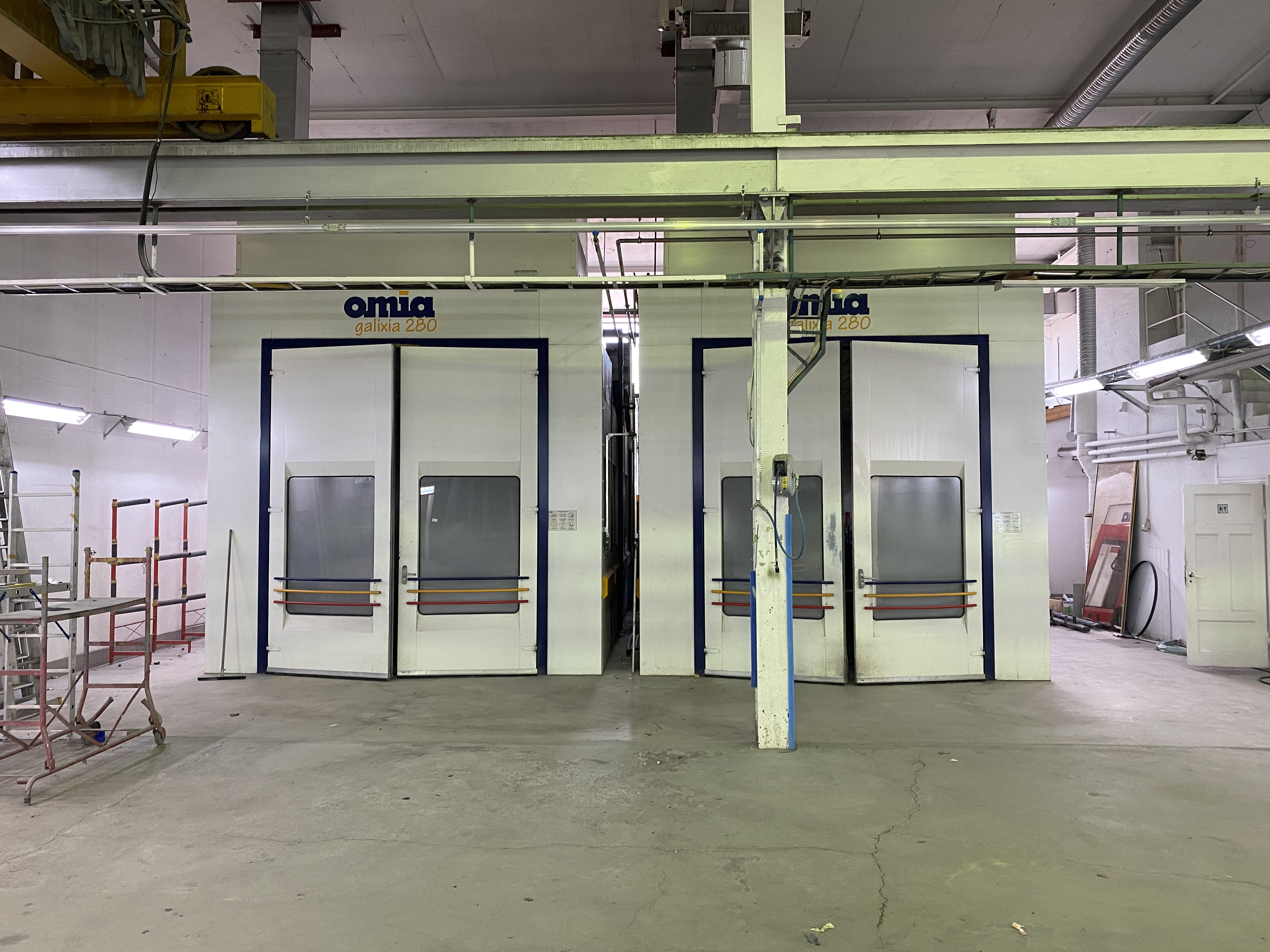

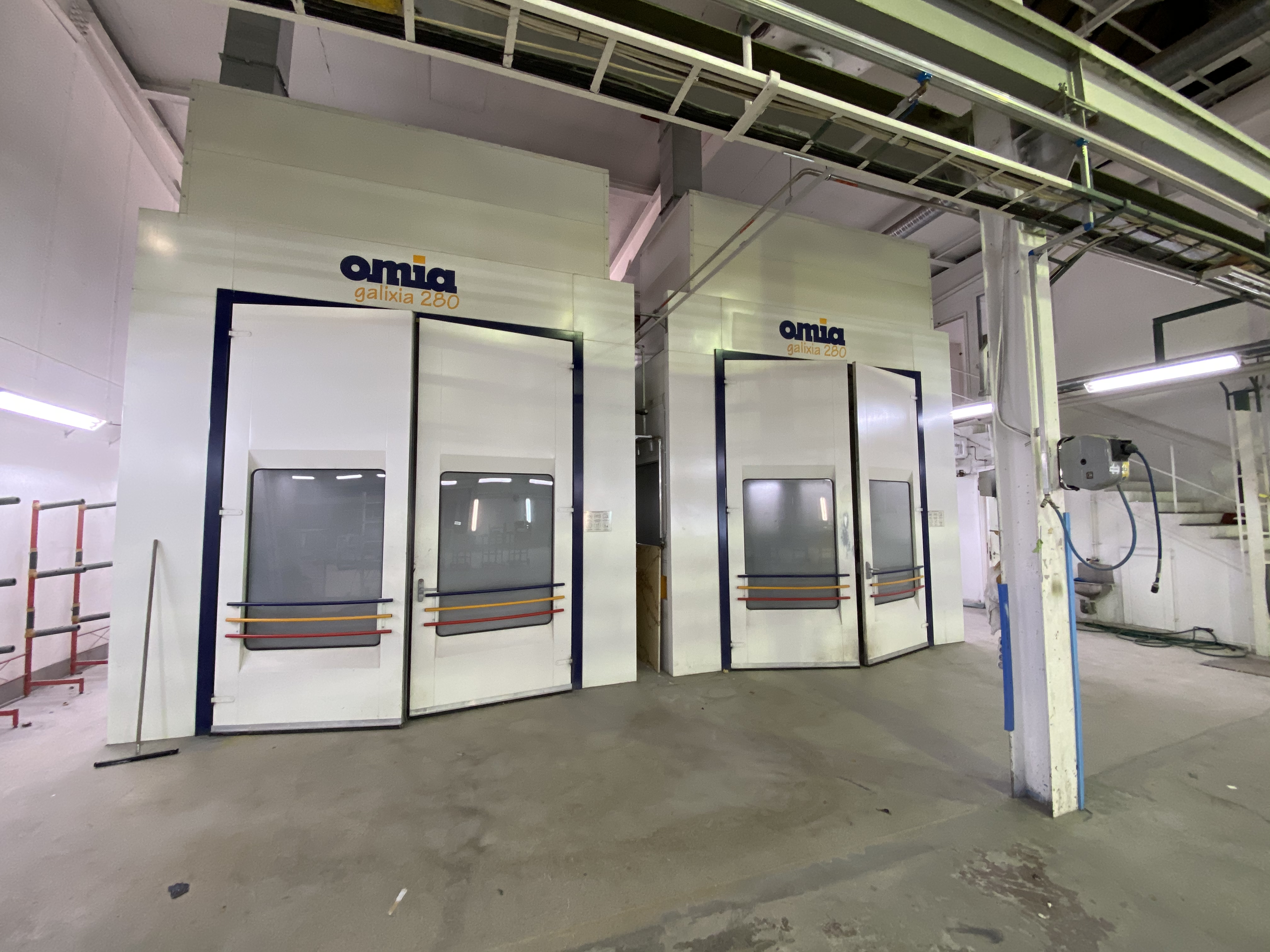

Double lacquer box from French OMIA.

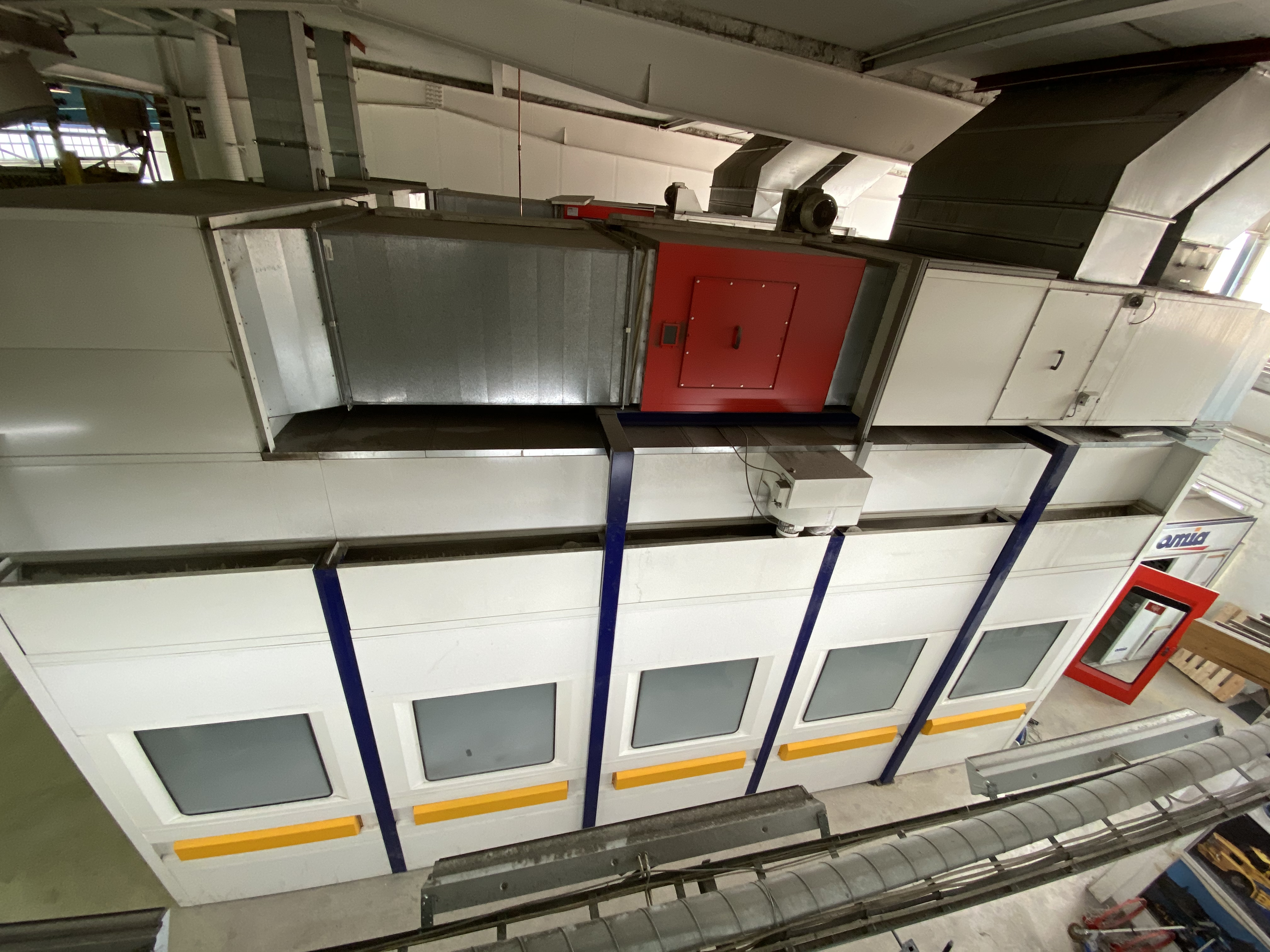

2 GALIXIA 280 840 G 3.38 m HIGH EXPORT SPRAY BOOTH with color mixing room.

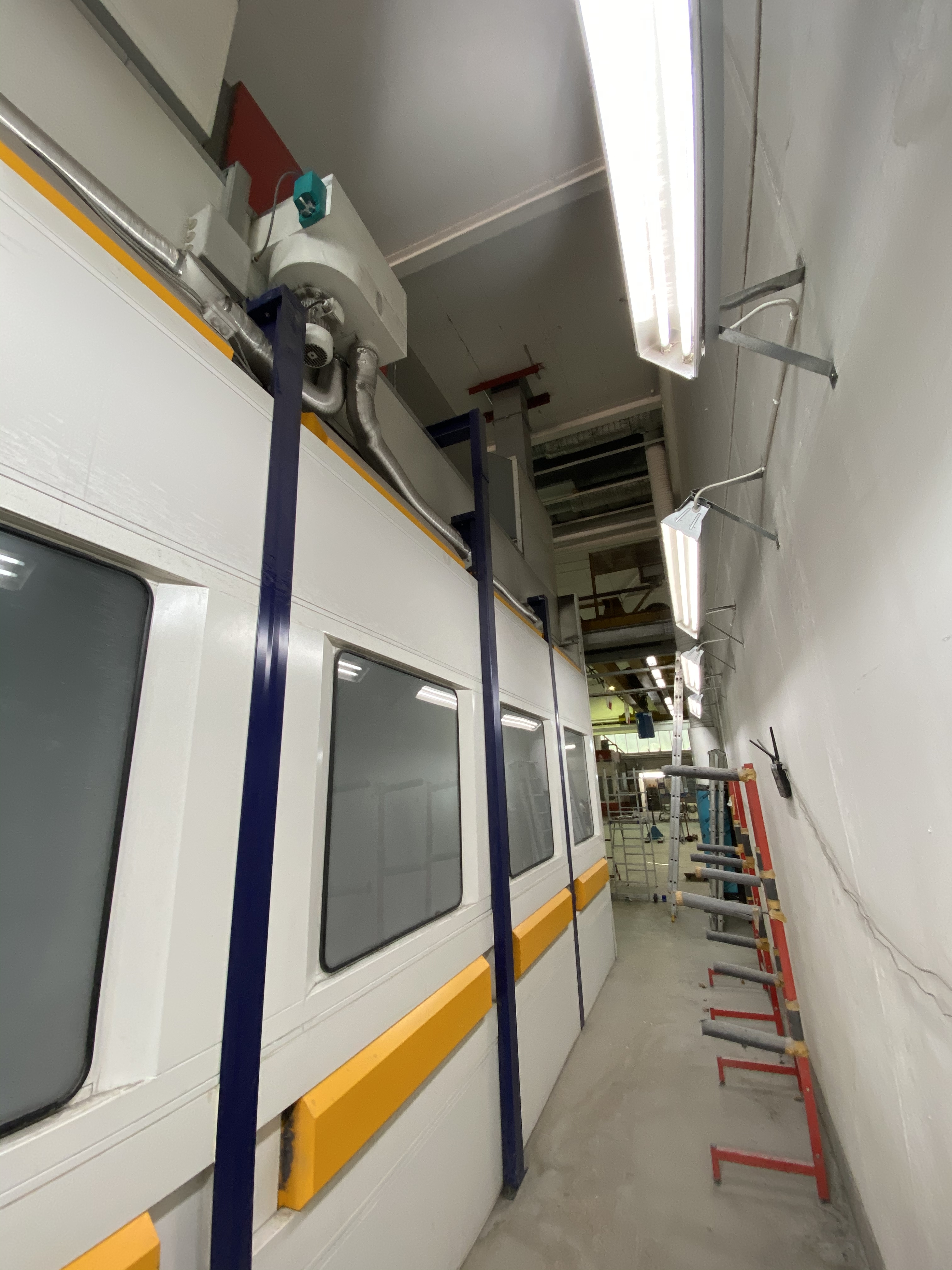

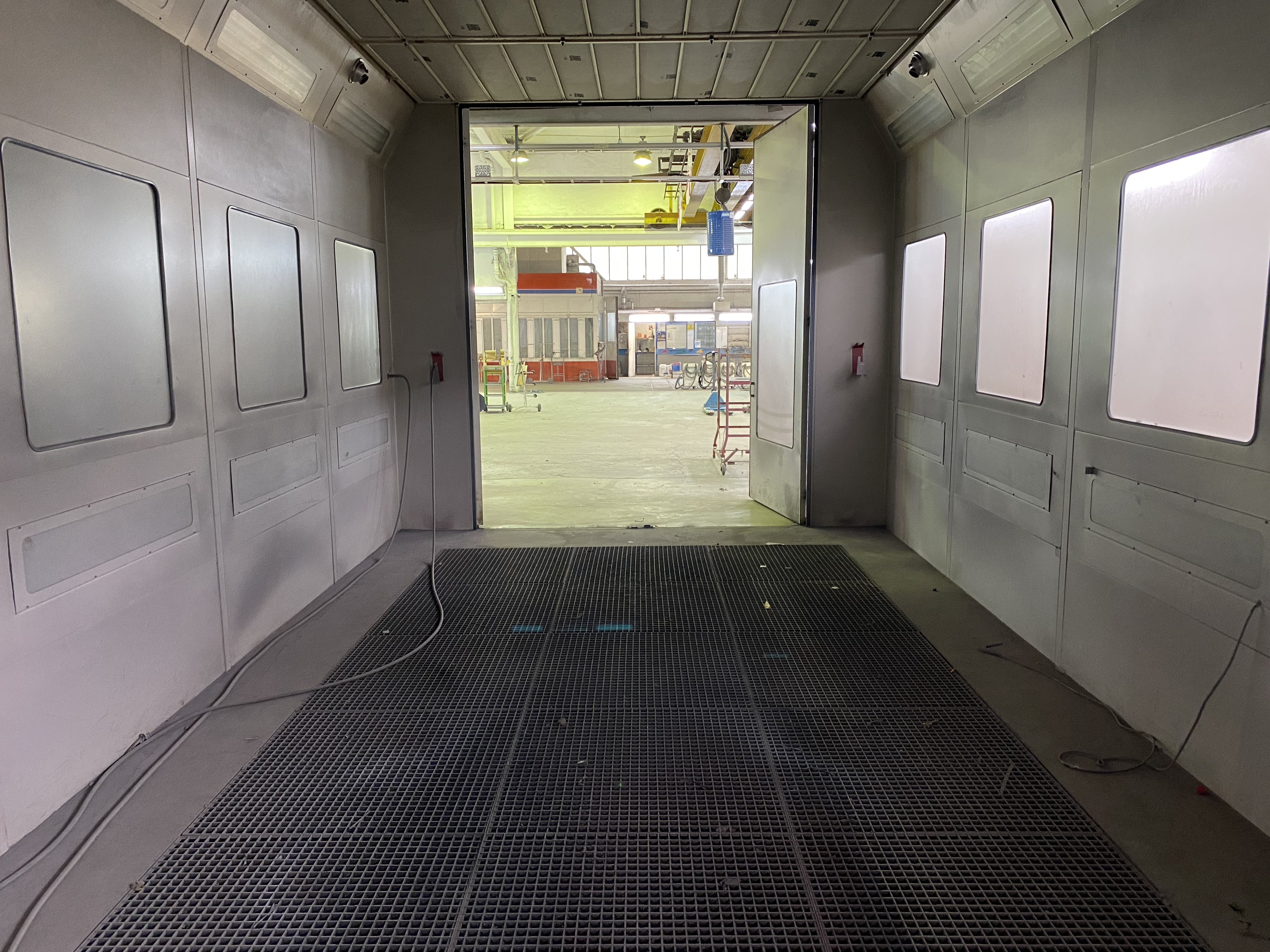

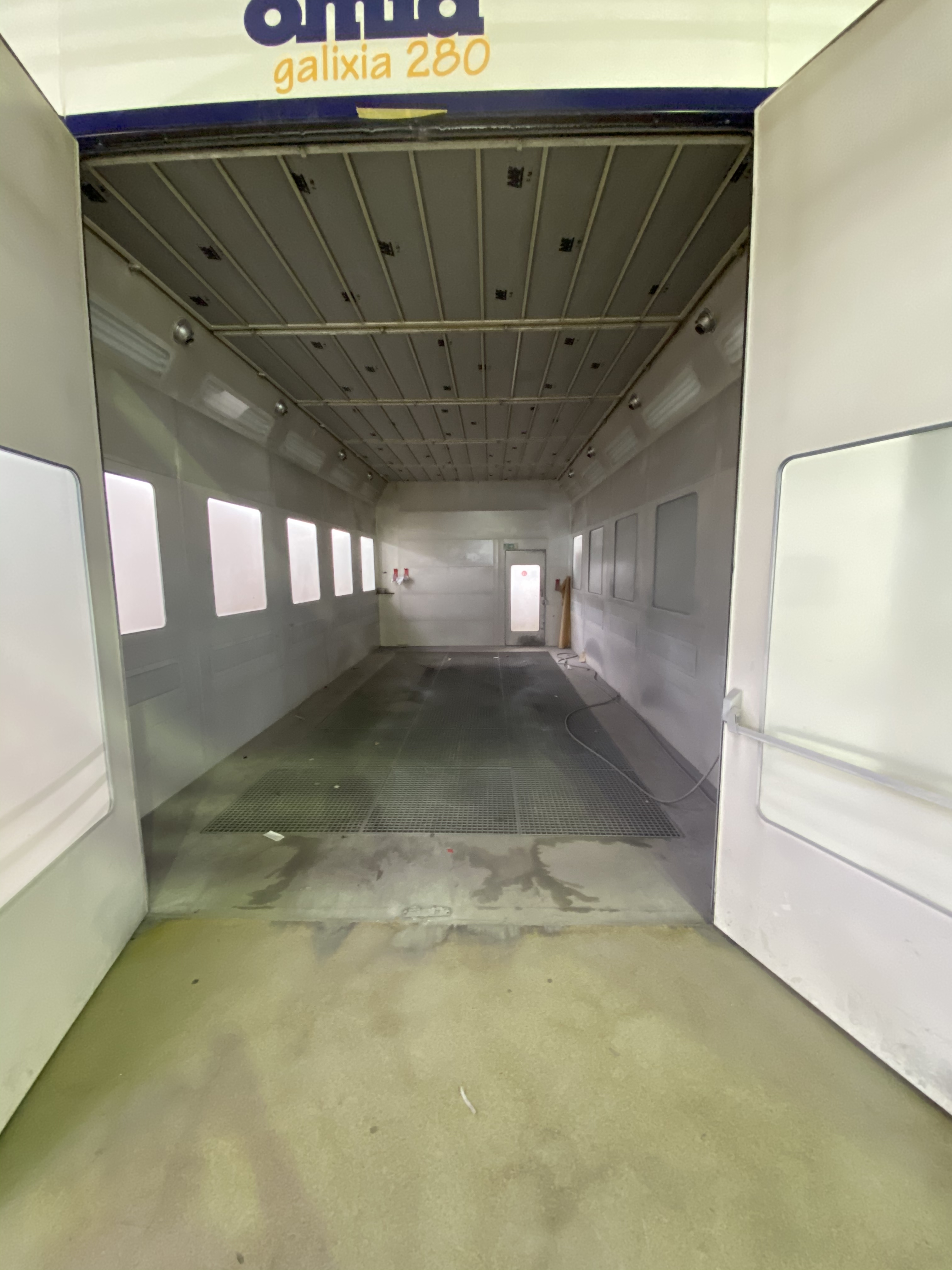

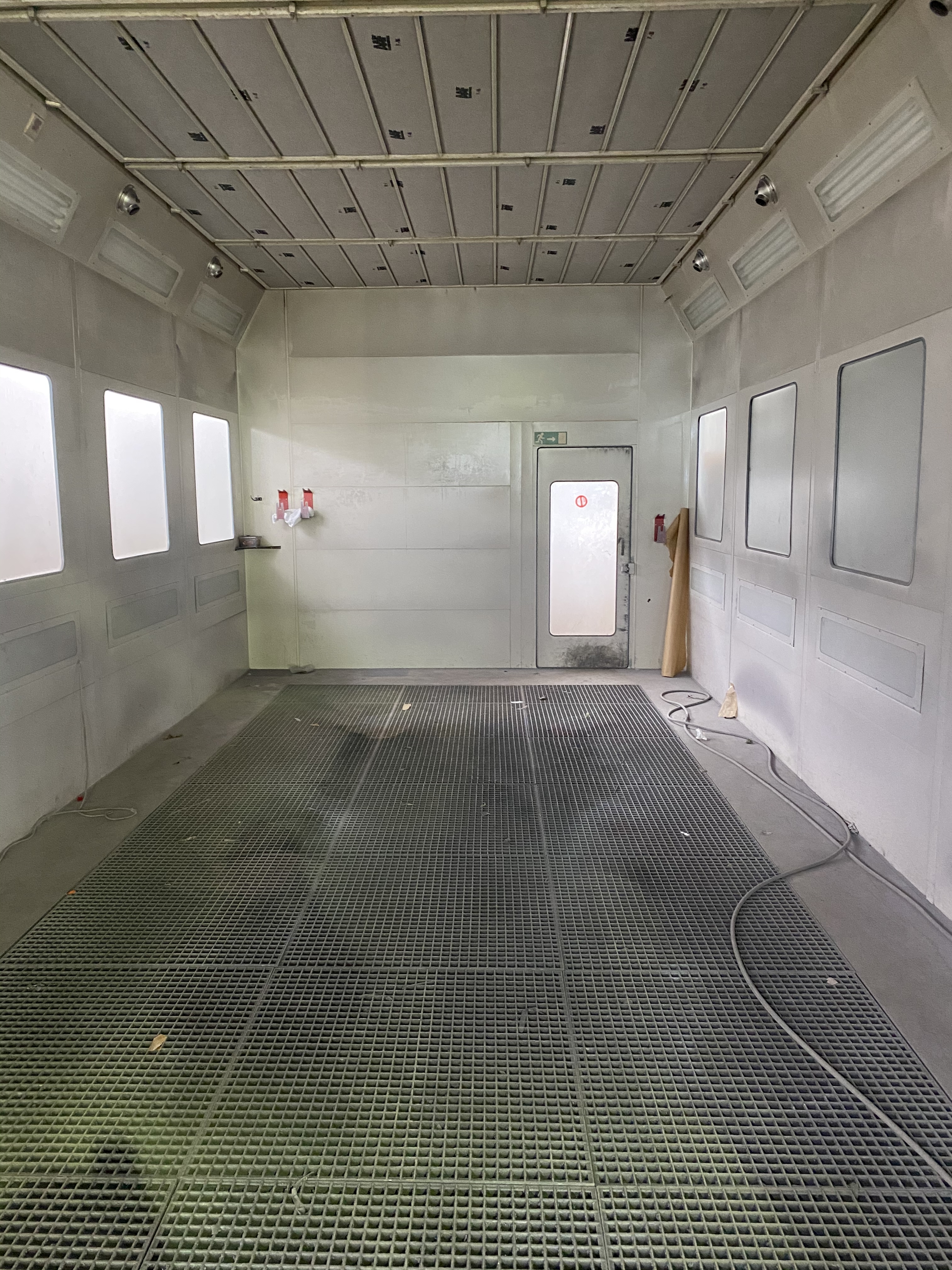

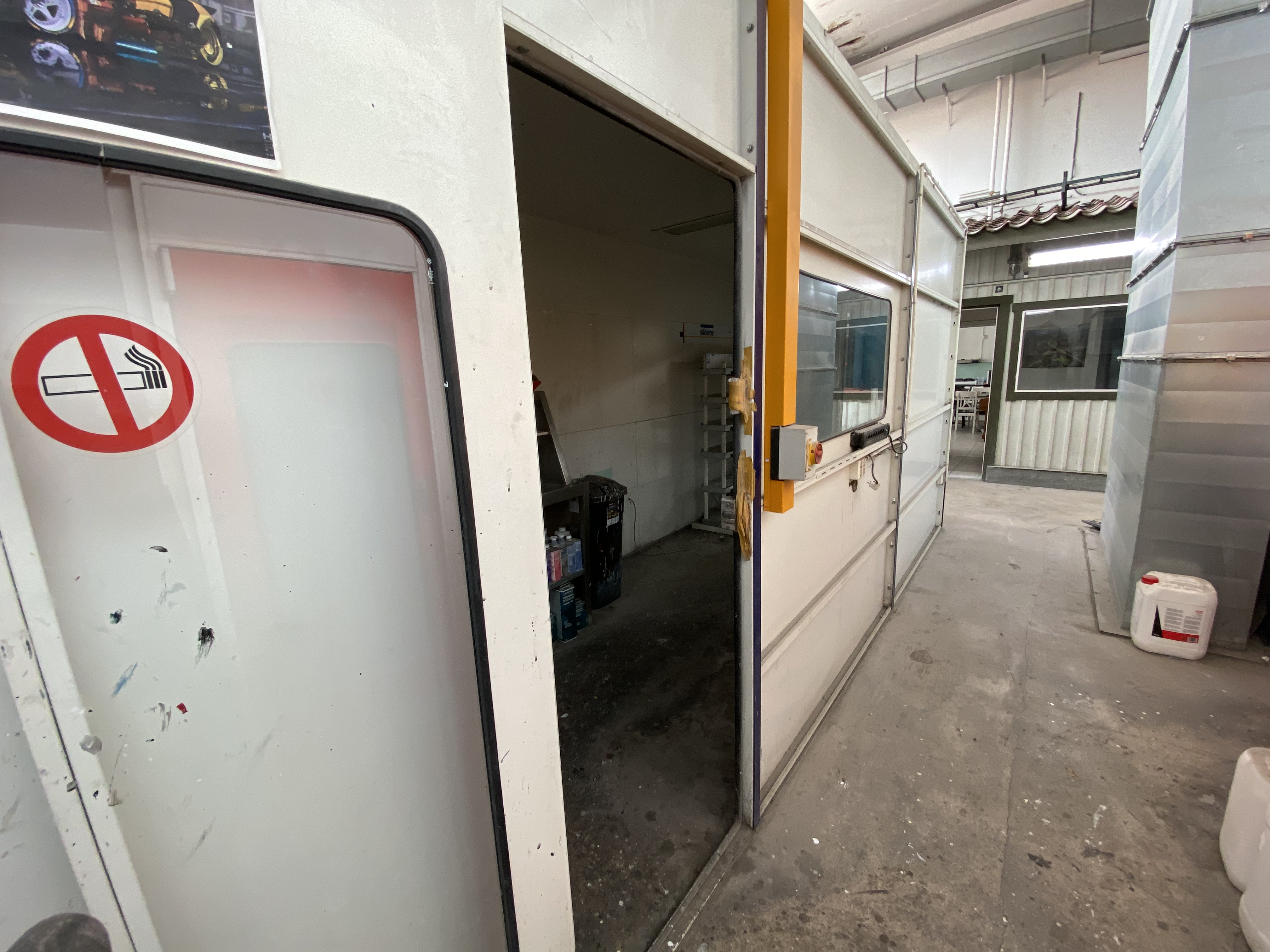

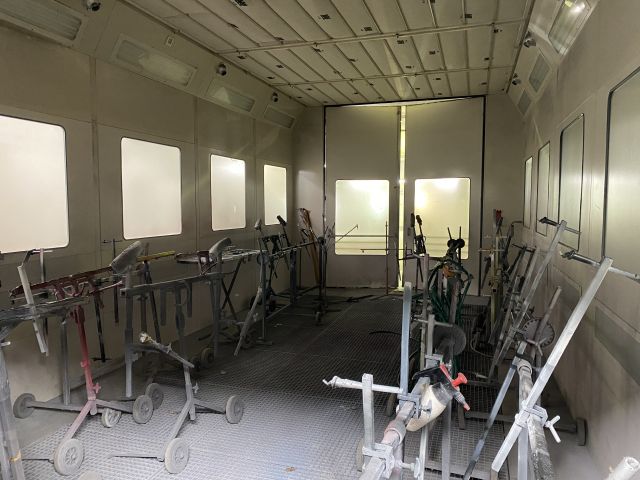

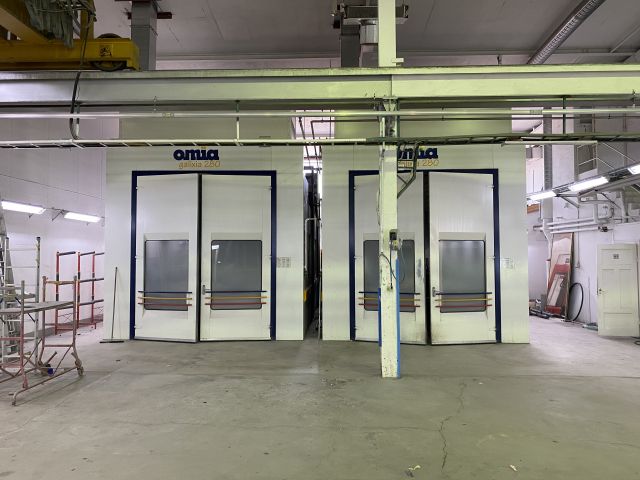

Double lacquer box from French Omia, the model is called Galixia 280 840 G and each box is 3.38 meters high, 8.4 meters long and 2.8 meters wide. Also included in the objects is a paint mixer room and compressor with oil separator used by both boxes.

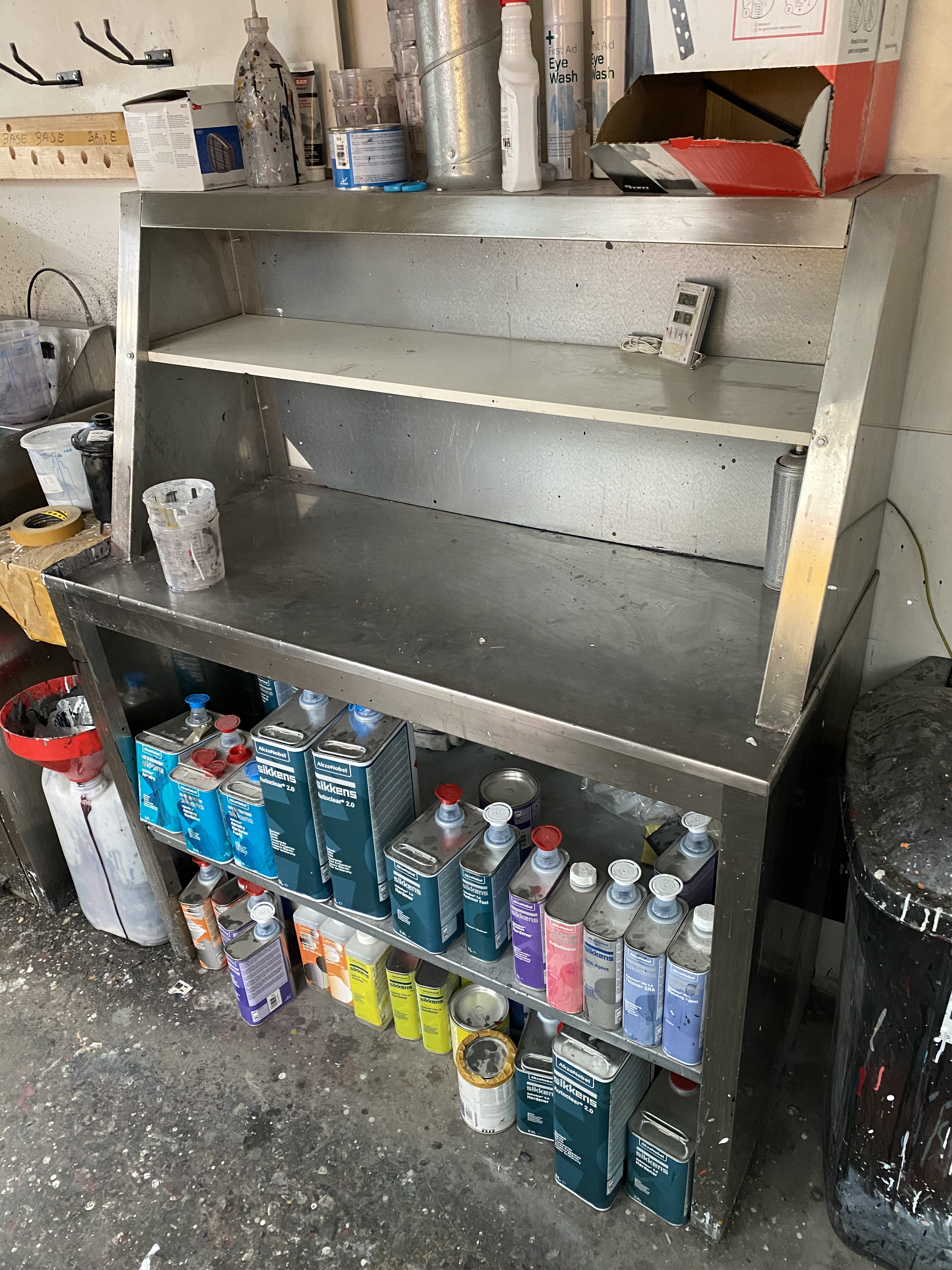

(Boxes etc that can be seen in the picture in one of the boxes are sold separately)



It is very important to know before you place a bid:

You have 5 days to pick down and transport the boxes. Dismantling may take place from Monday 13/7 to Friday 17/7. The bankruptcy estate then returns the premises to the property owner.



Contact the responsible officer at: viggo.engstrom@ps.se for viewing this item.



All disassembly must be carried out in a professional manner and the premises must be restored to their original condition. This means that the holes made in the ceiling and walls for ventilation must be closed by the buyer and the work approved by the property owner.

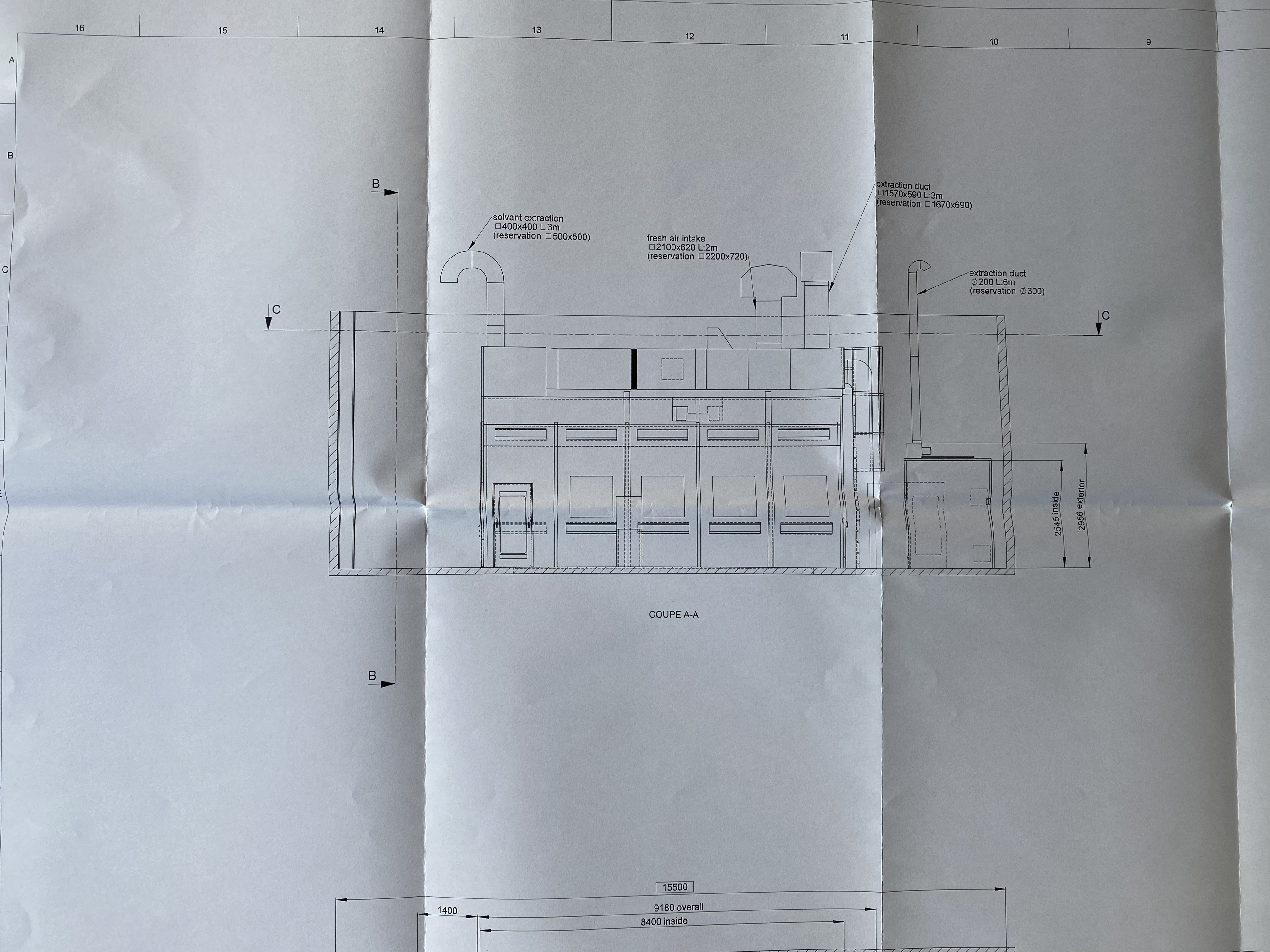

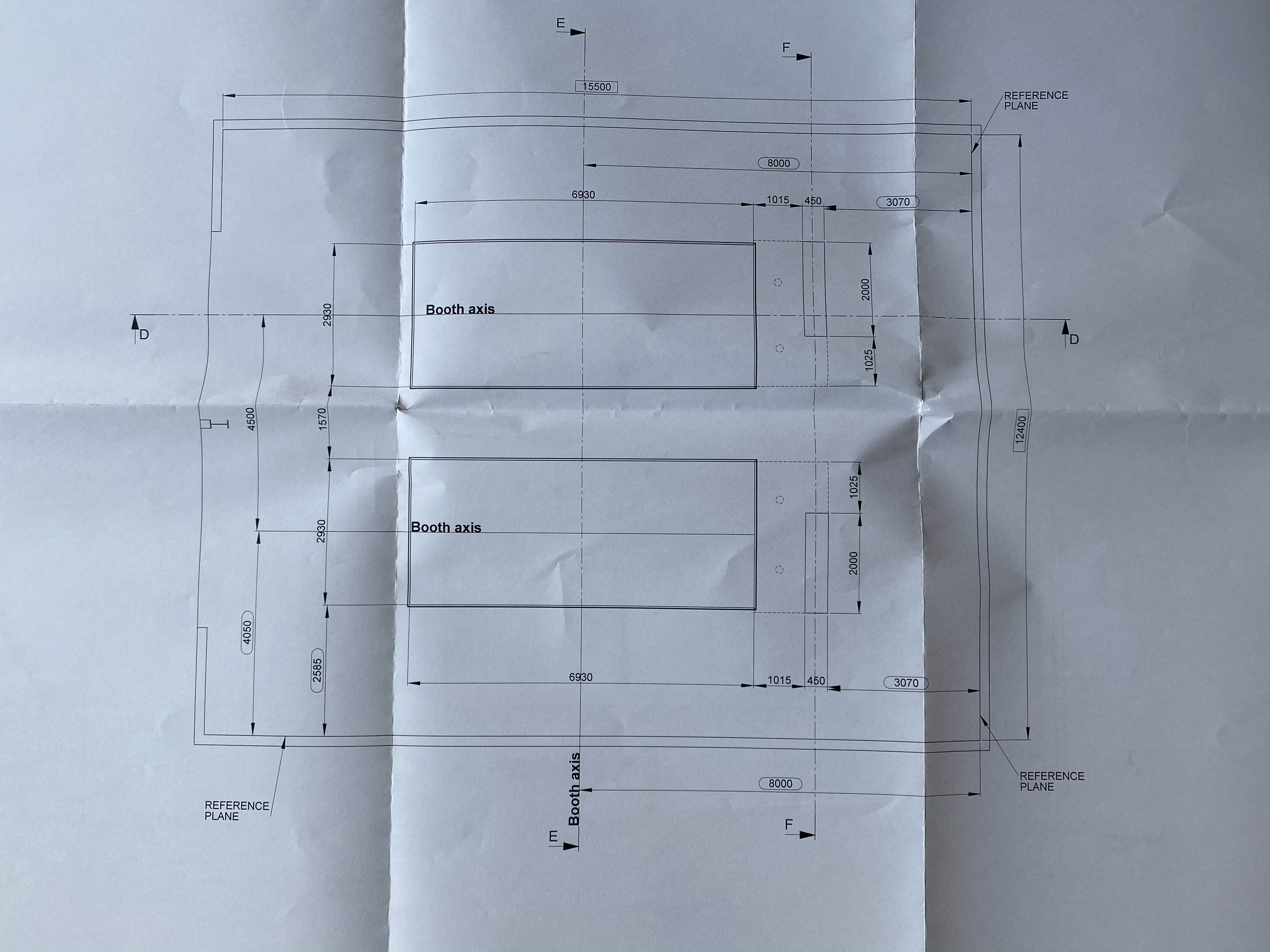

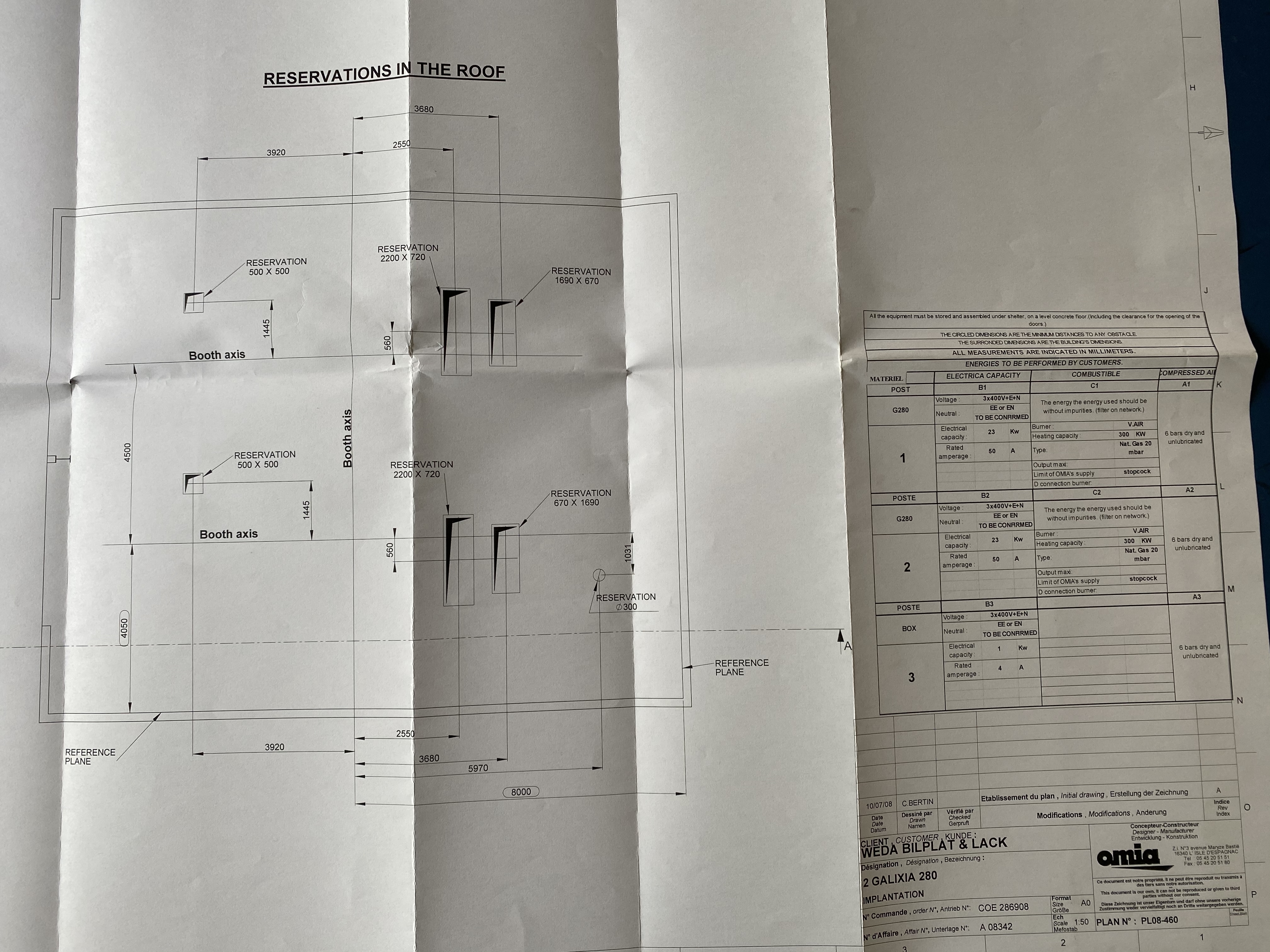

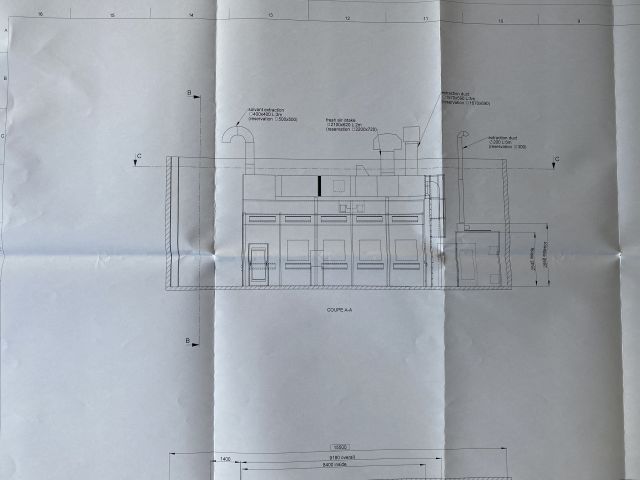

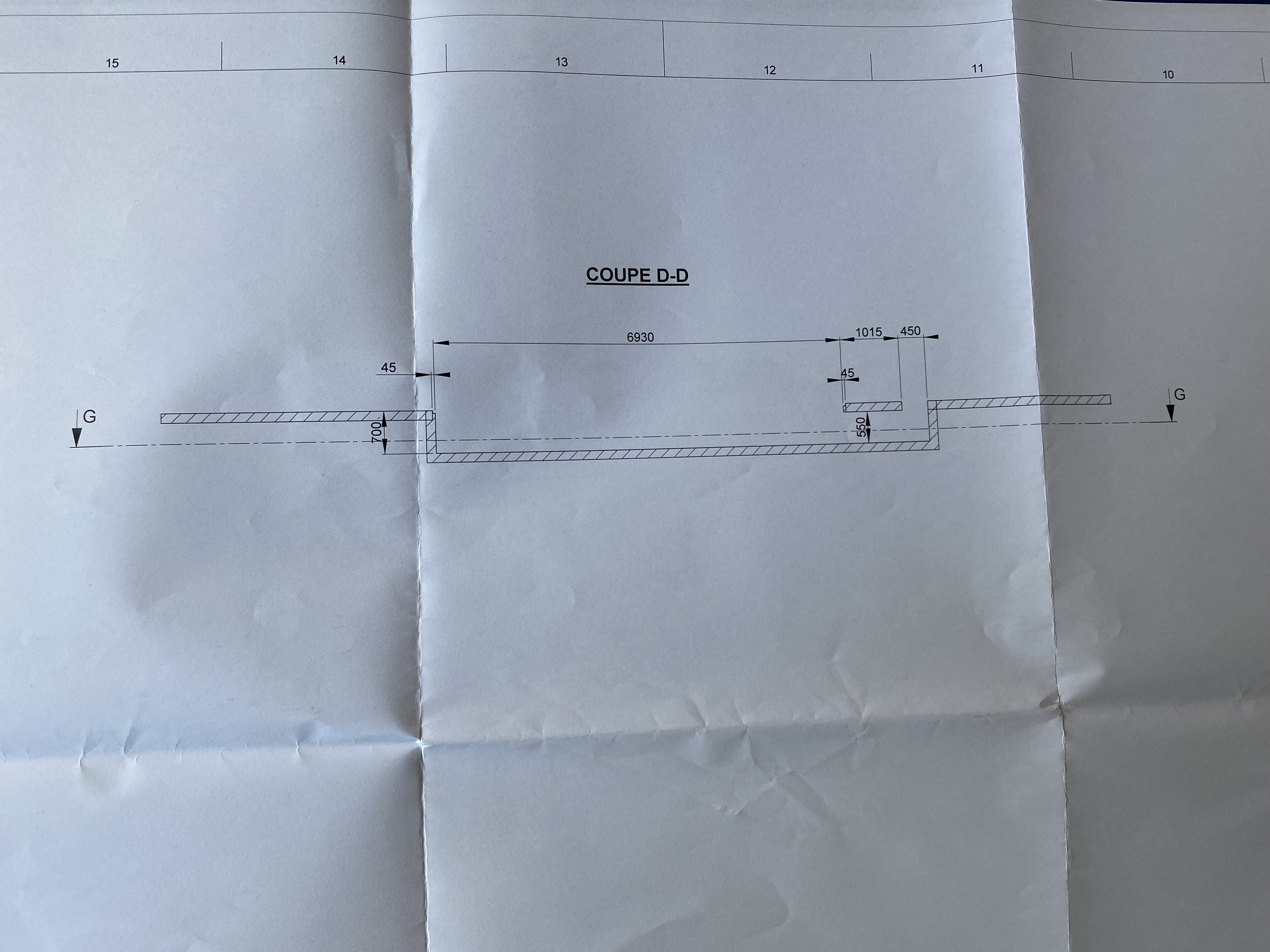

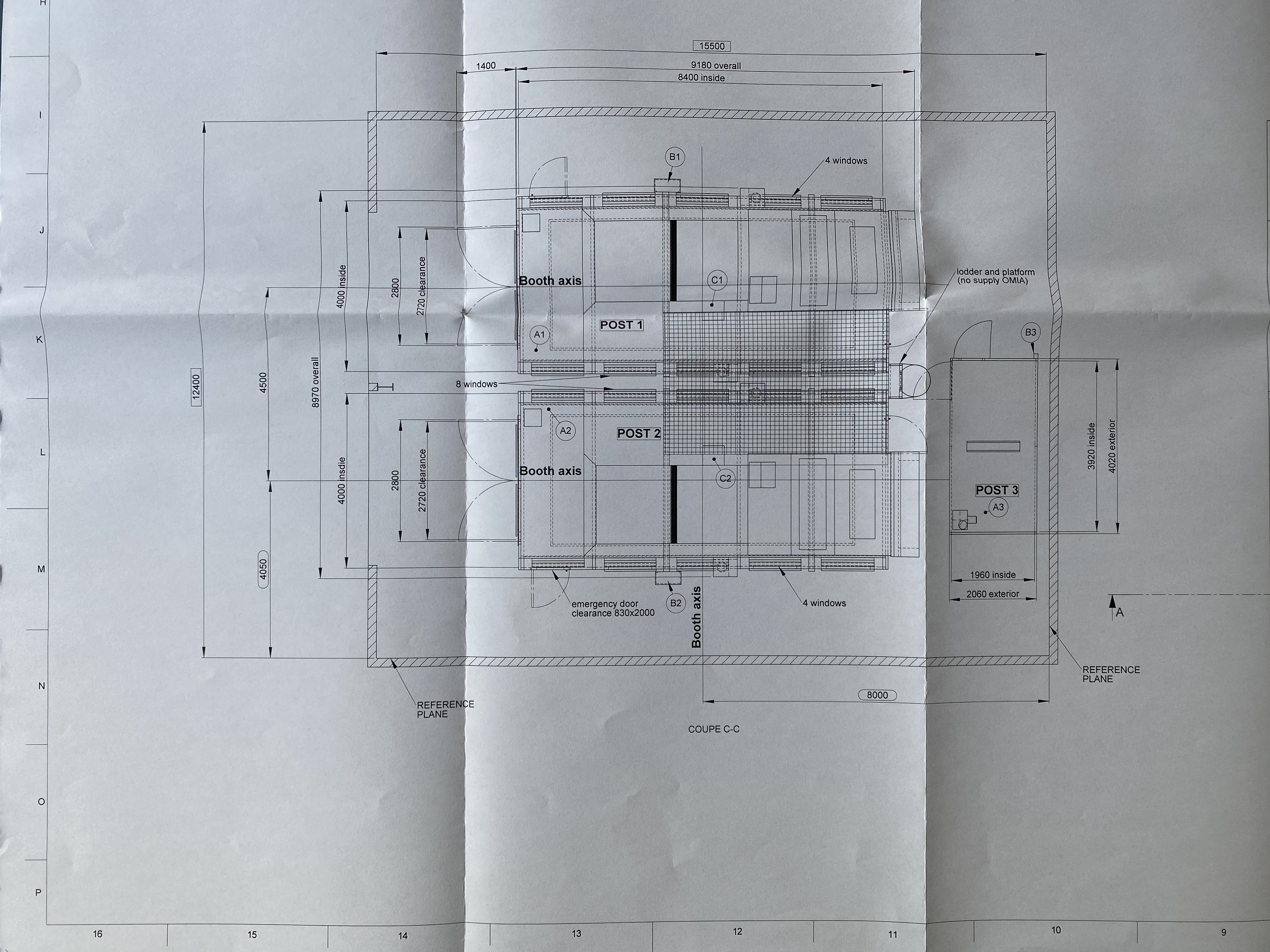

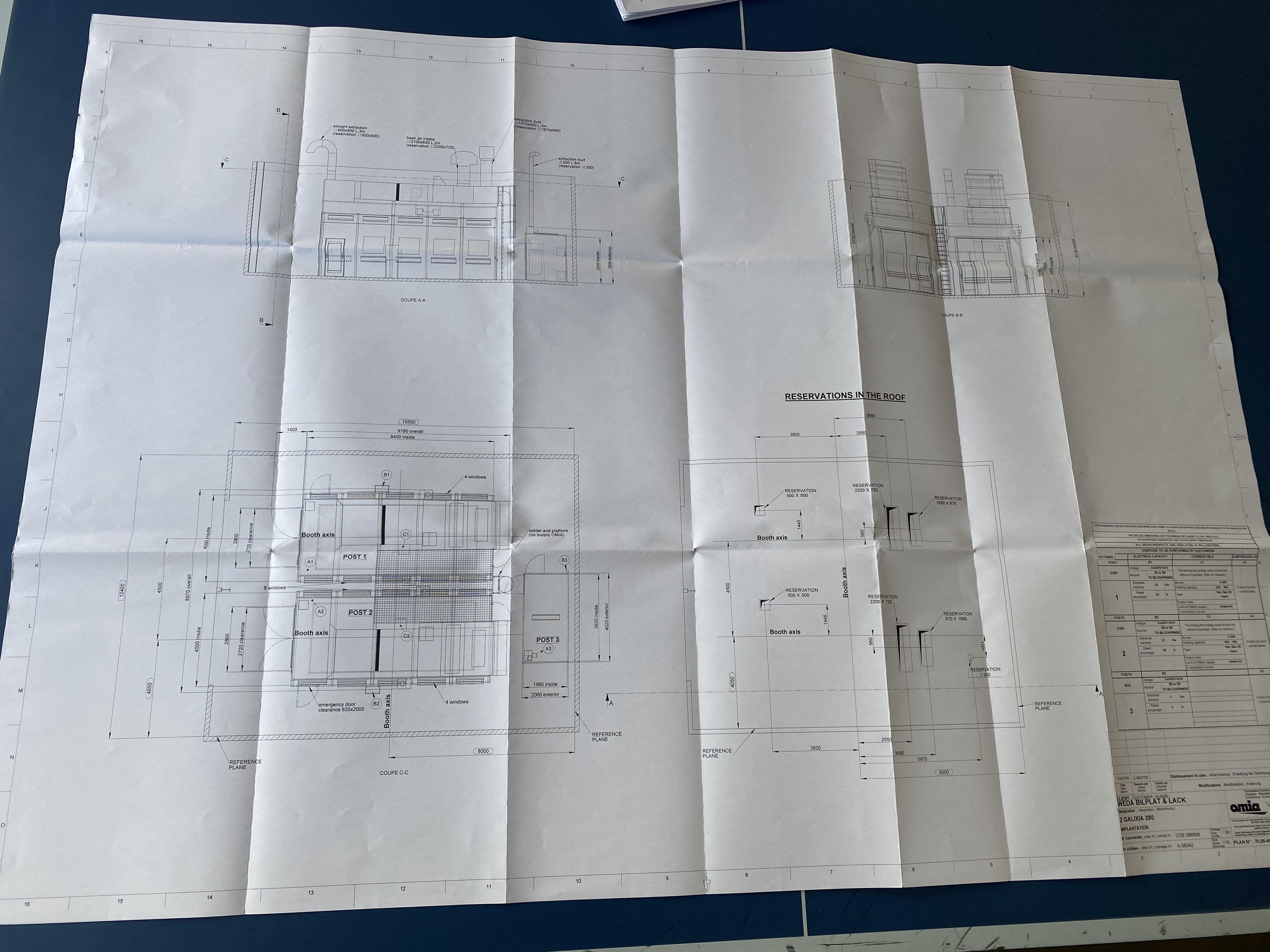

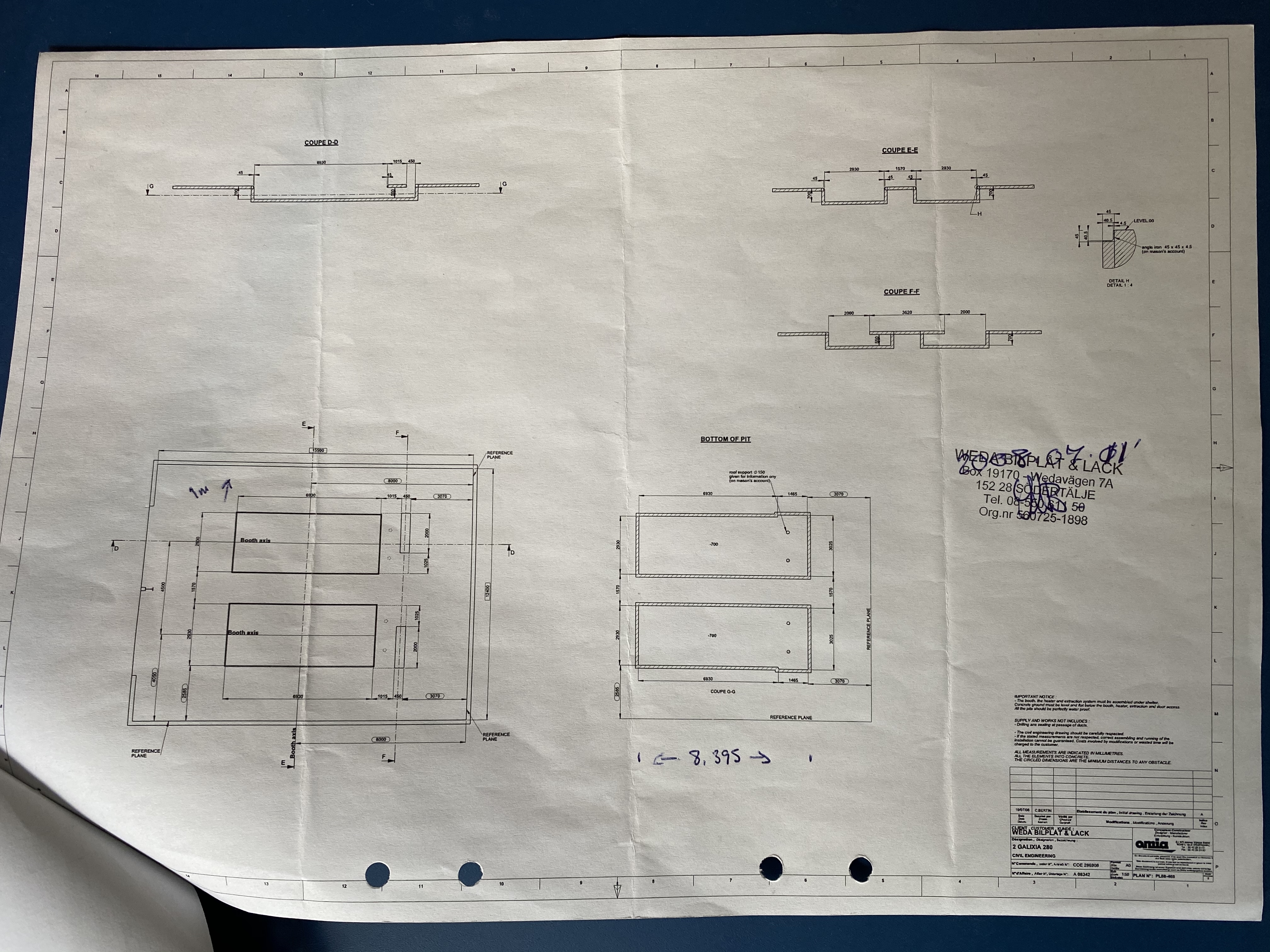

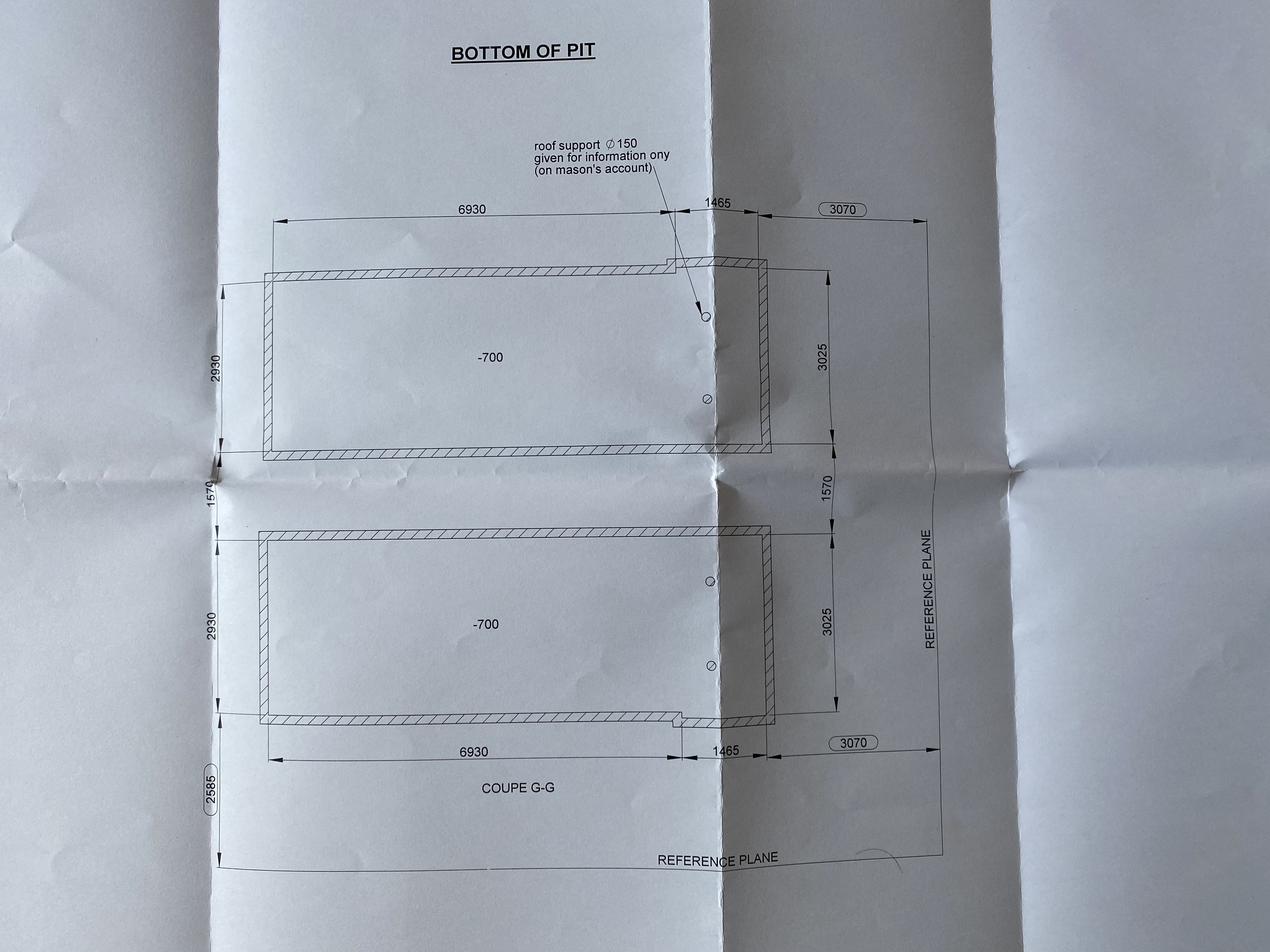

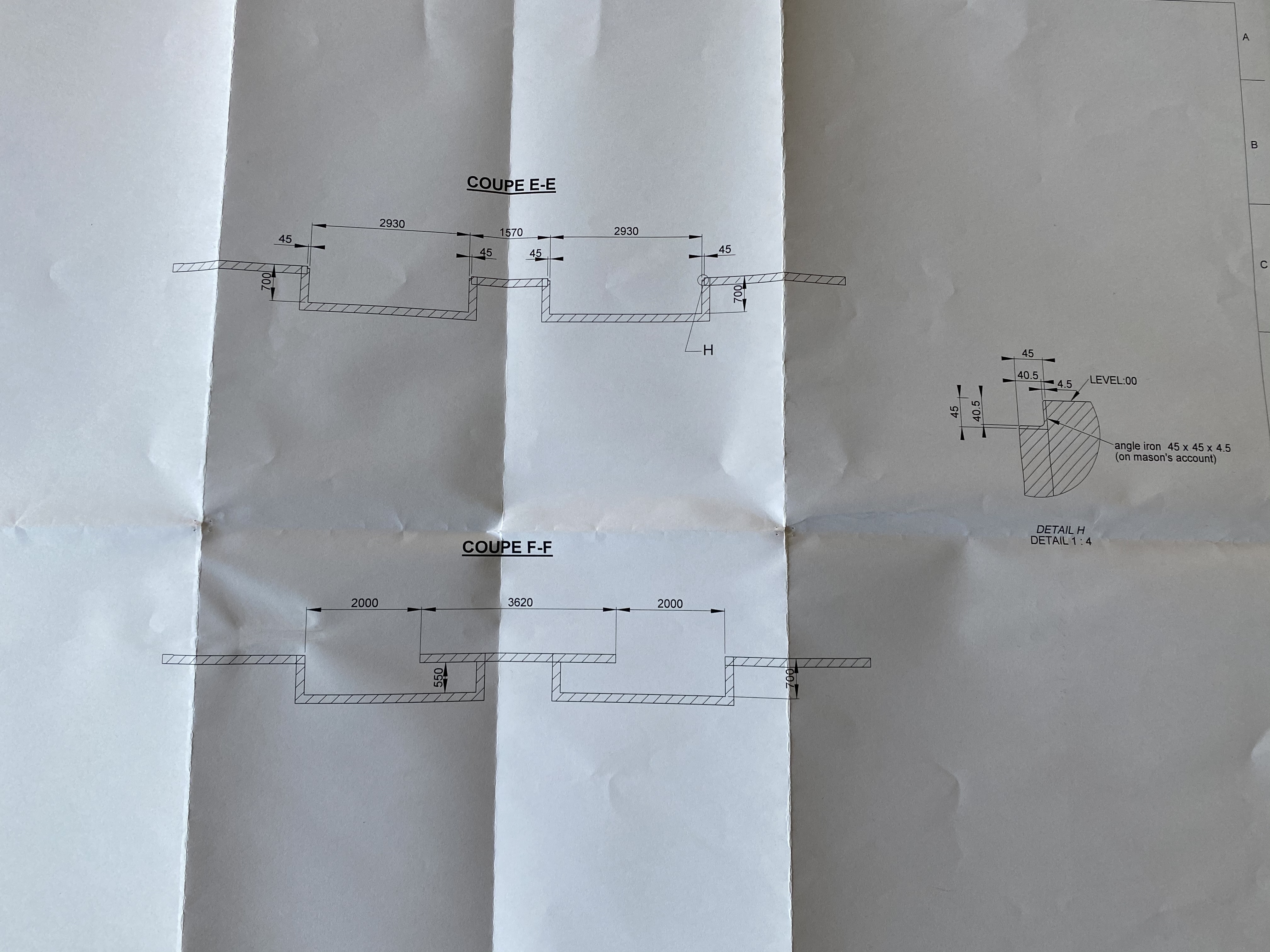

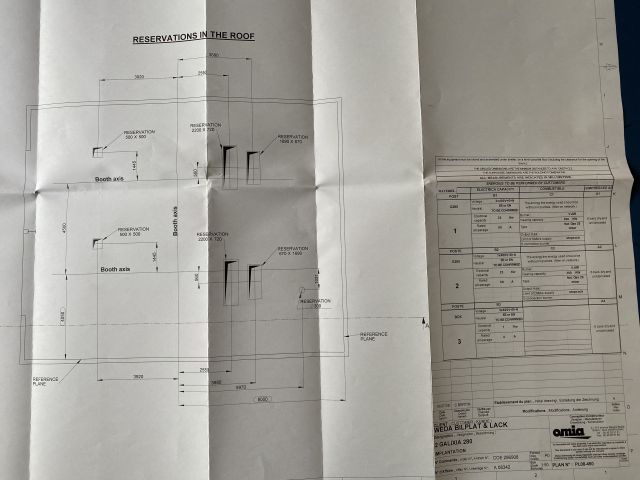

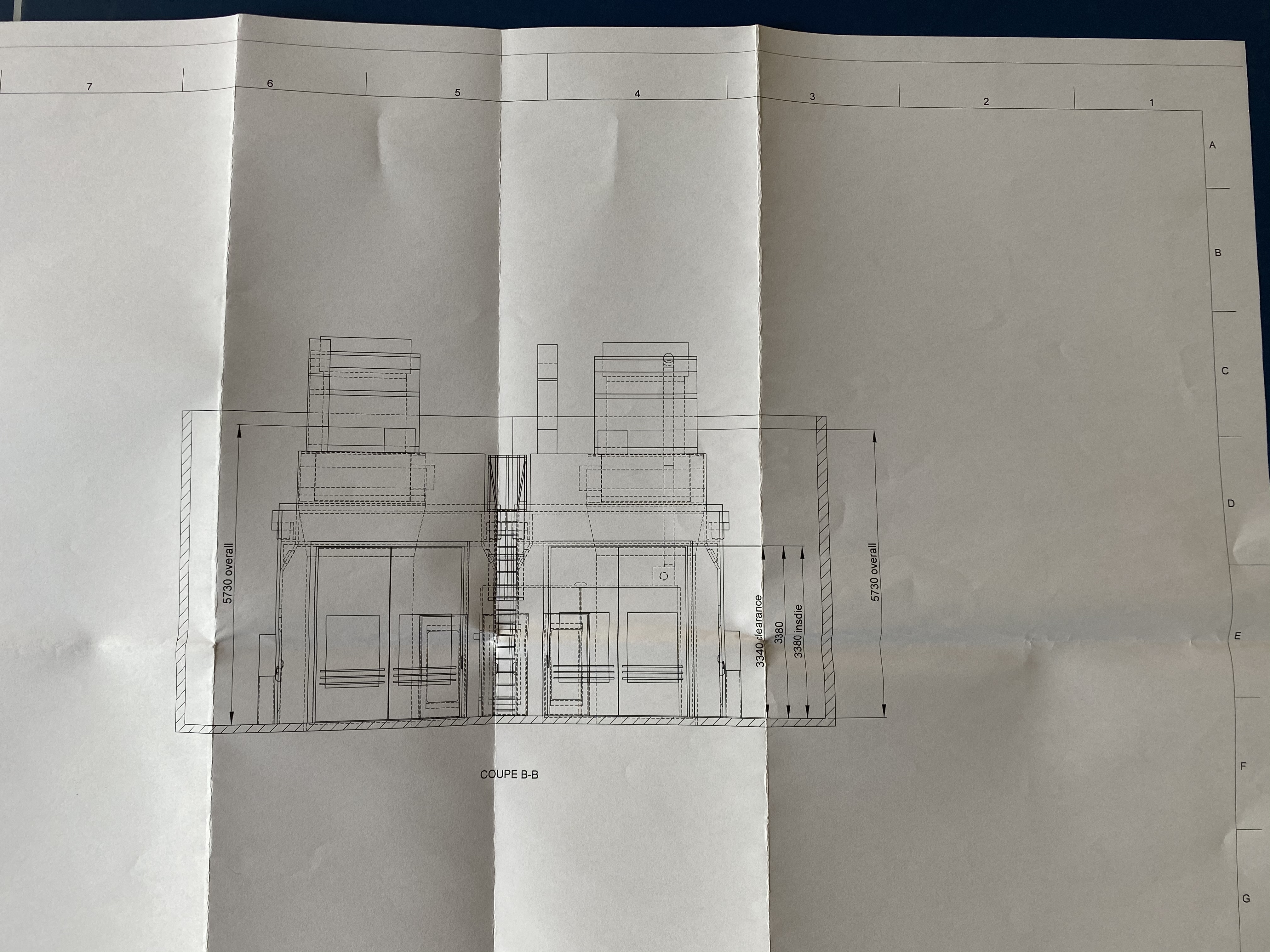

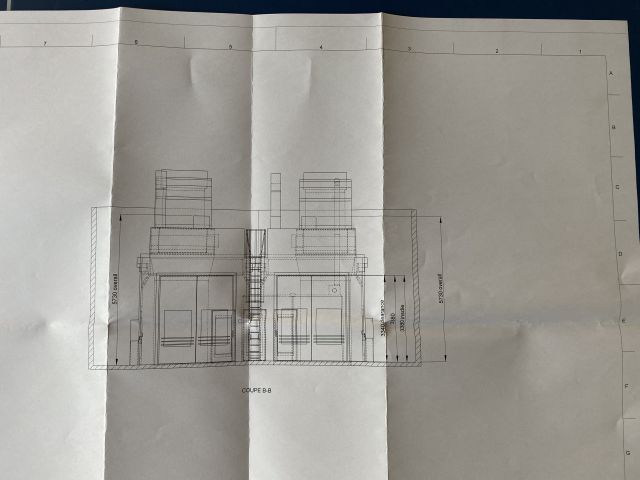

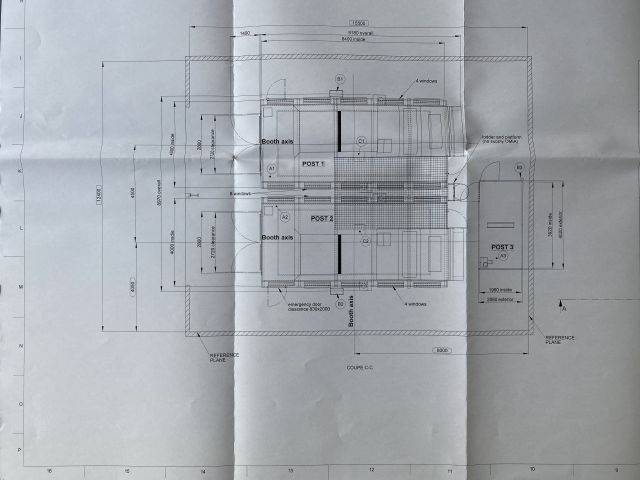

According to the design drawing, this is: (See the drawings among the pictures)

2 sockets of 500x500 mm

2 sockets of 2200x720 mm

2 sockets of 1690x670 mm

And a socket with a diameter of 300 mm.

However, these are only measures: NOTE! These are dimensions that come from the supplier. You have the opportunity to book a viewing if you want to examine the item yourself.

Internal dimensions per box: 8400x2800 mm (2720 mm door opening)

Height of the boxes: 3380 mm

Exterior total dimensions 2 boxes: 9180x8970 mm

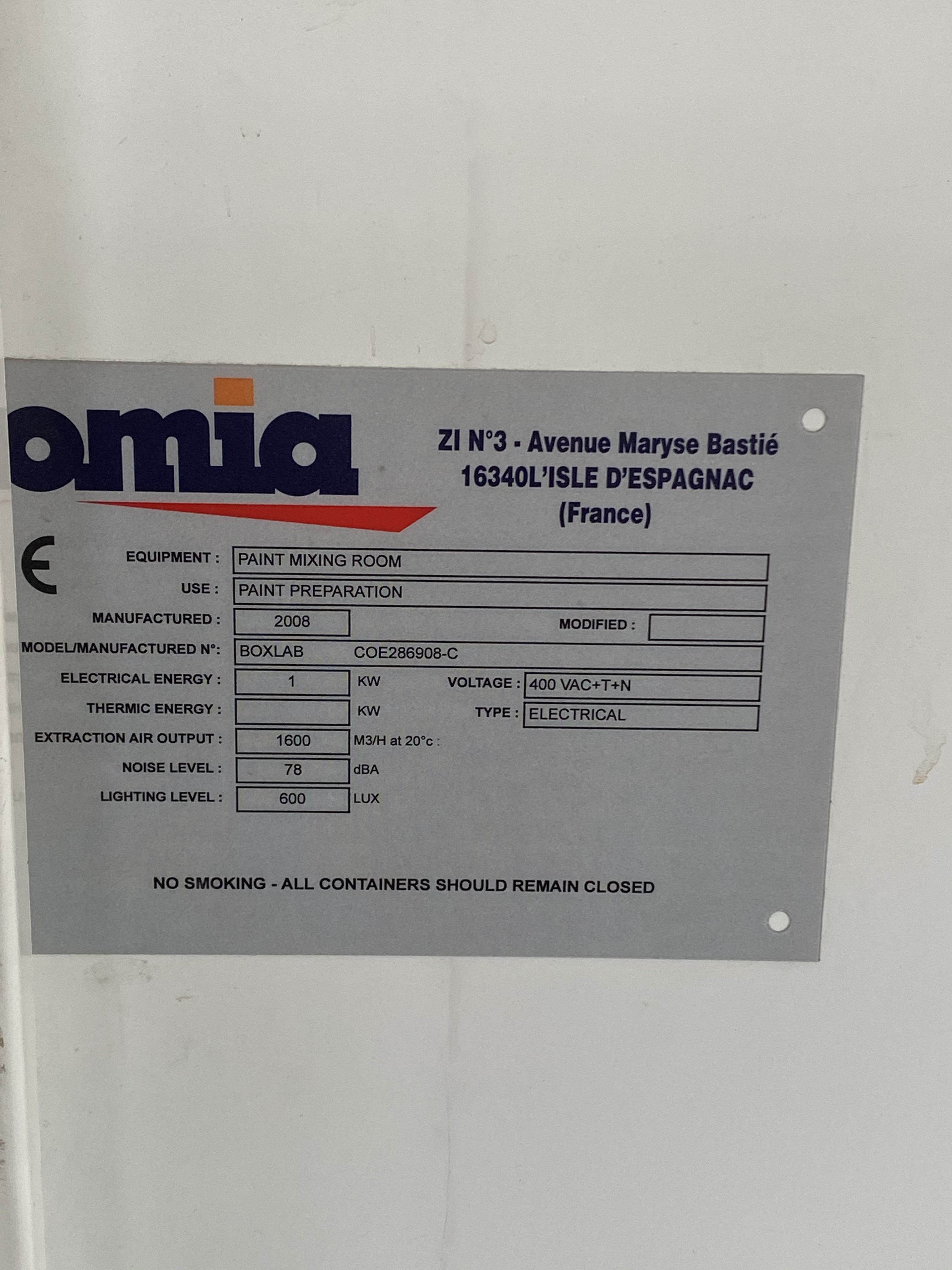

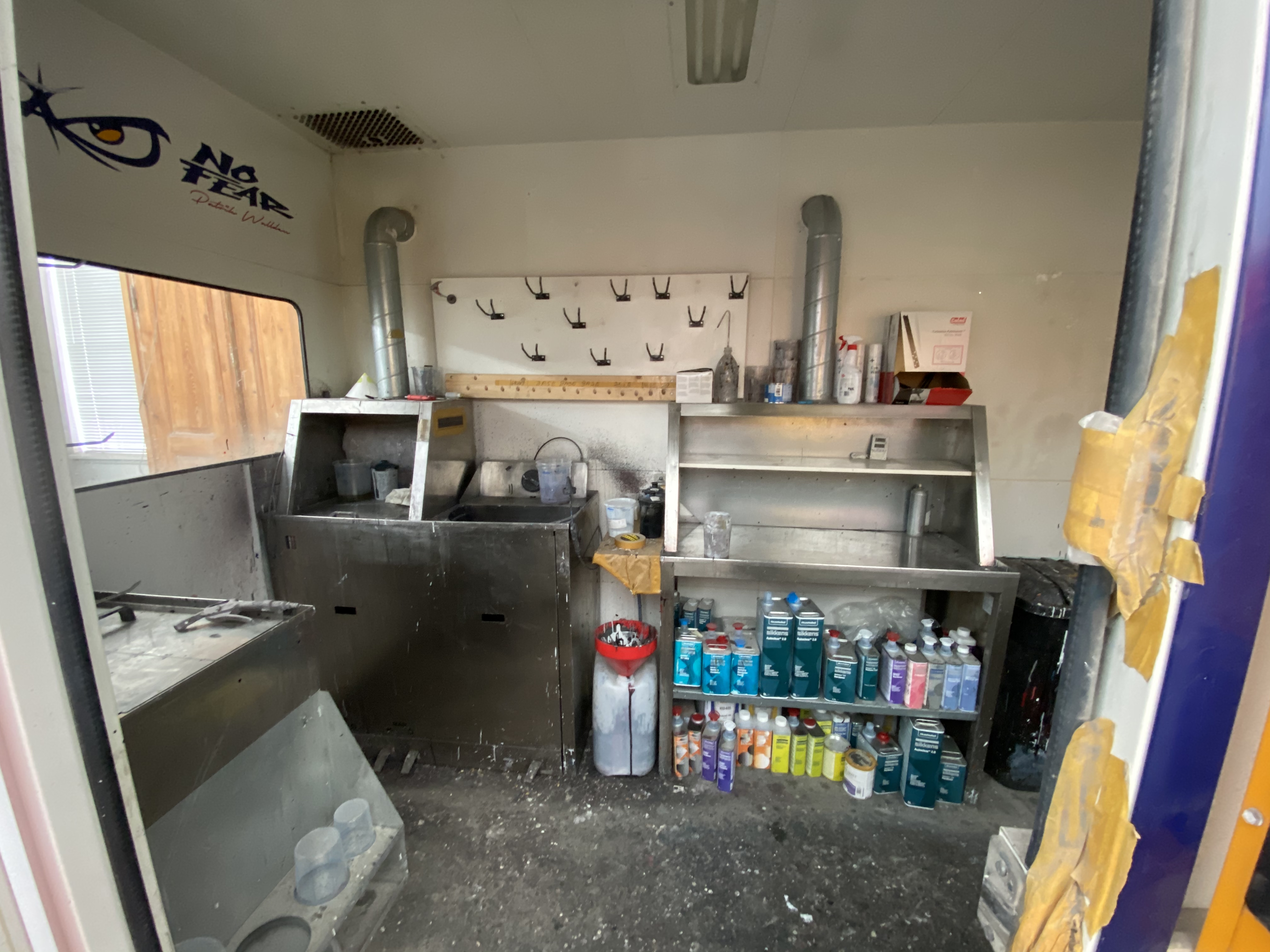

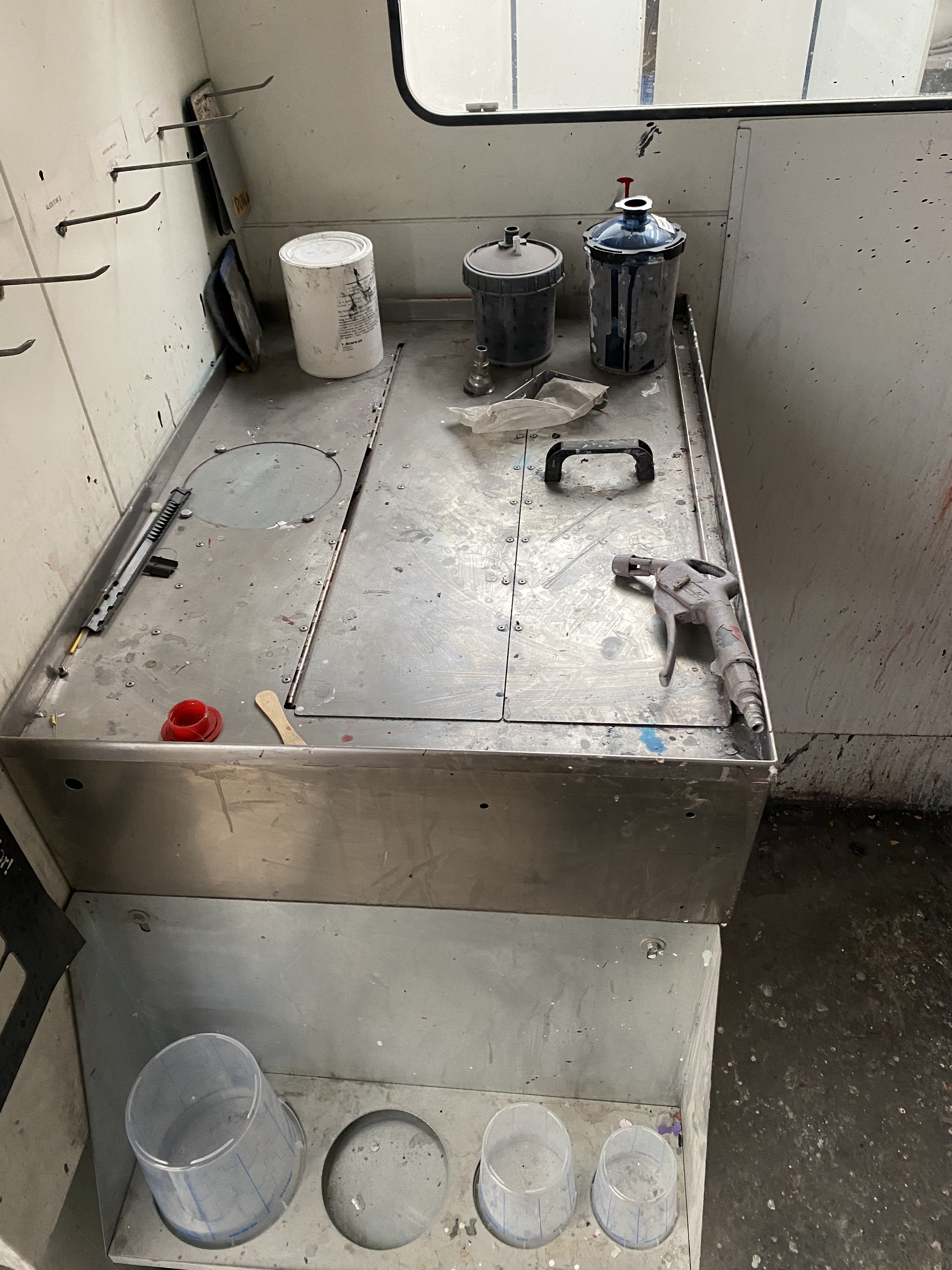

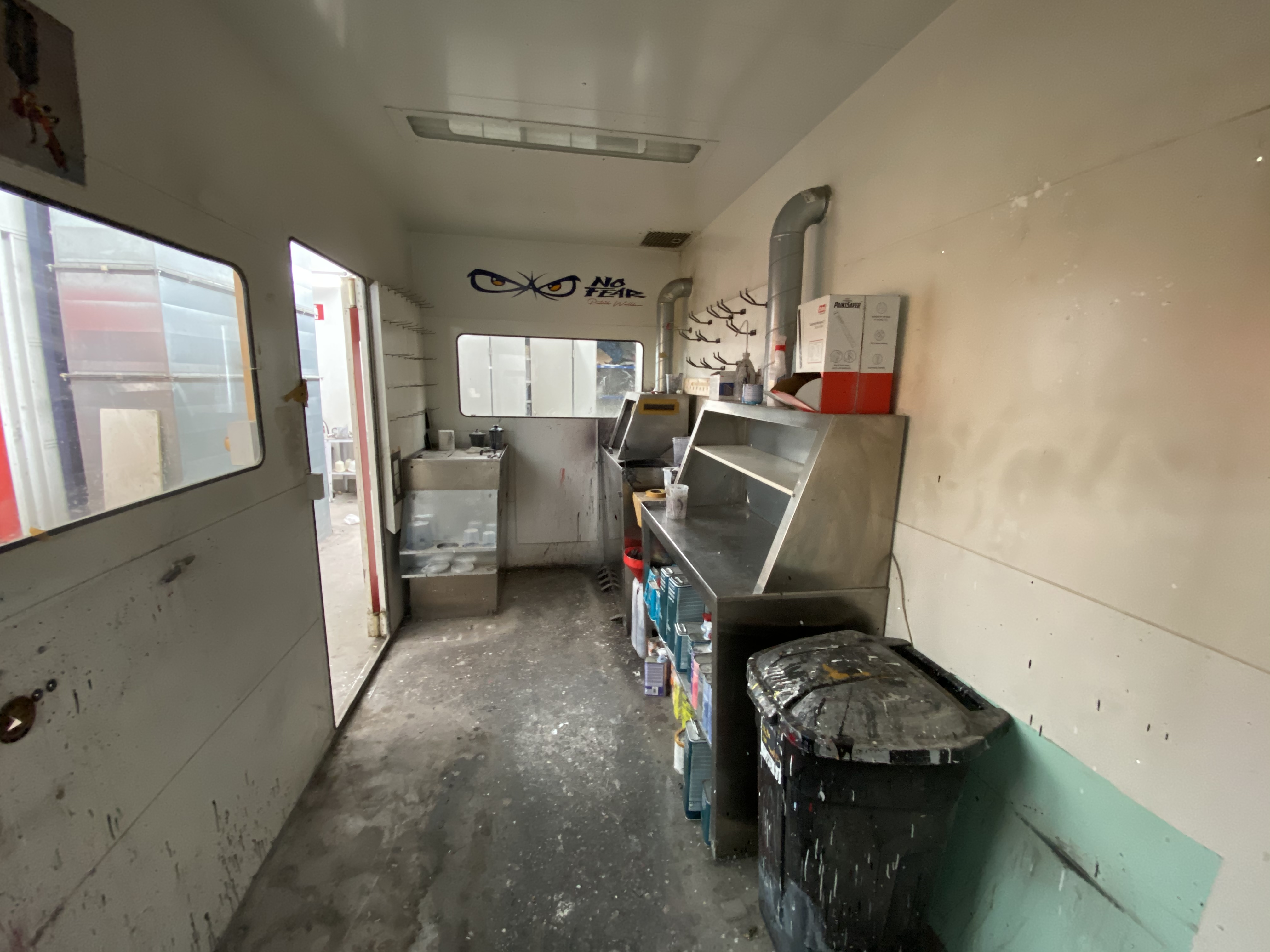

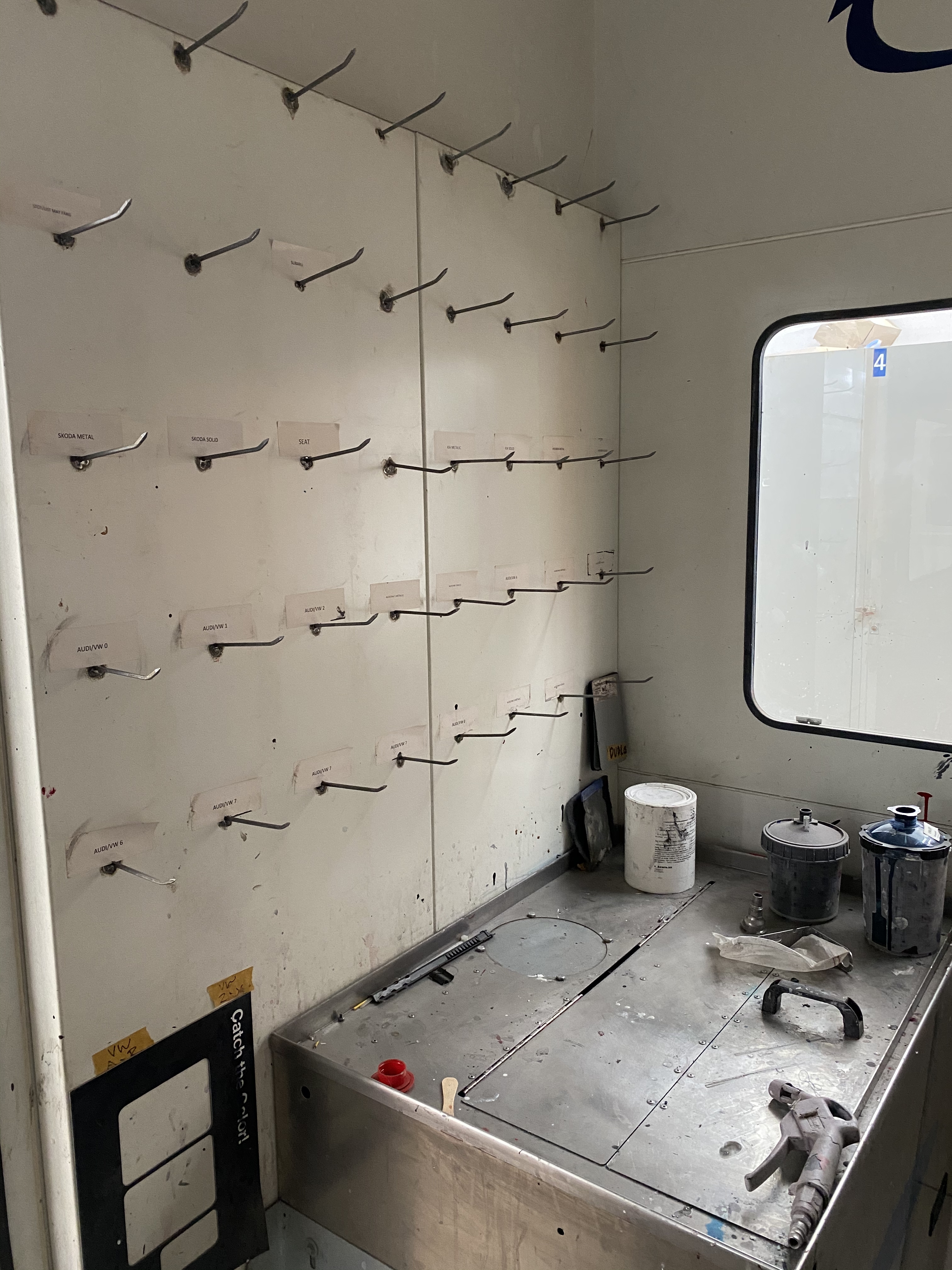

Dimensions of the mixing room: 3920x1960 mm inside.



Equipment in each box:

ENERGECO pack "enabling matting stage with recirculation, reduction of waiting time of 50% between two coats, mating time divided by 8, extra productivity of 1 vehicle per day One

HYDROFLO system including 8 nozzles

Ground gratings galvanized

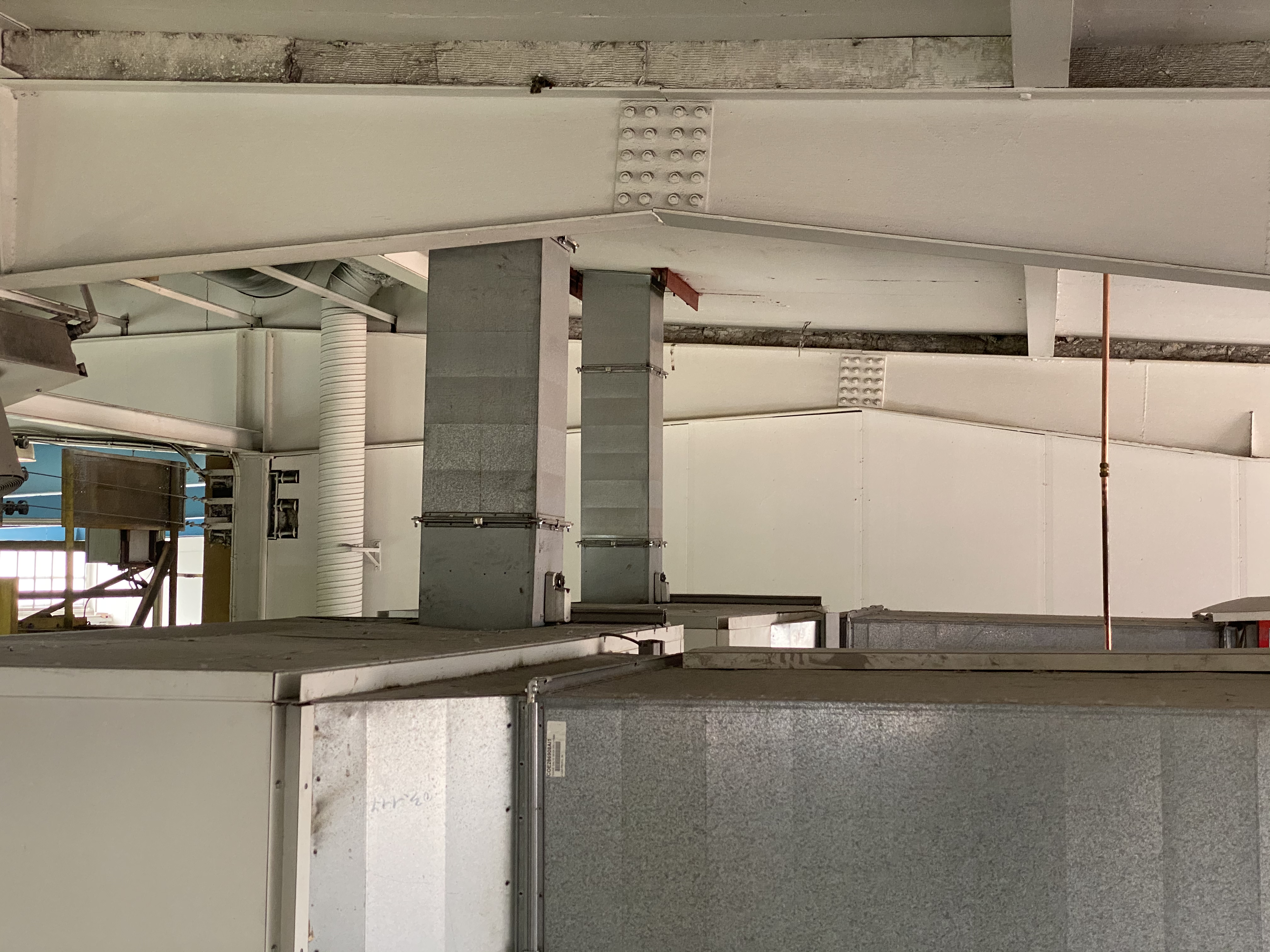

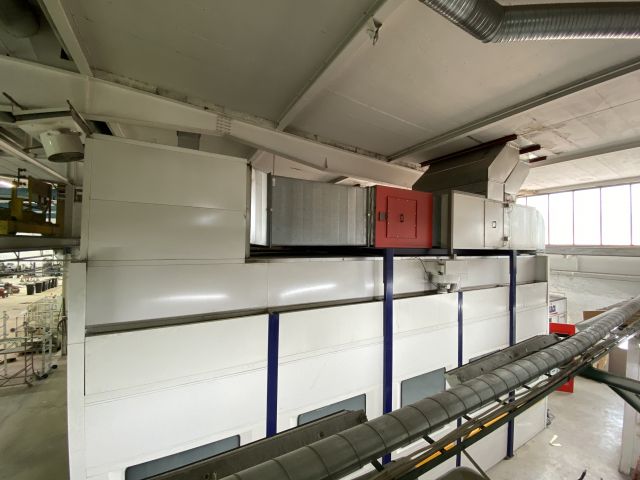

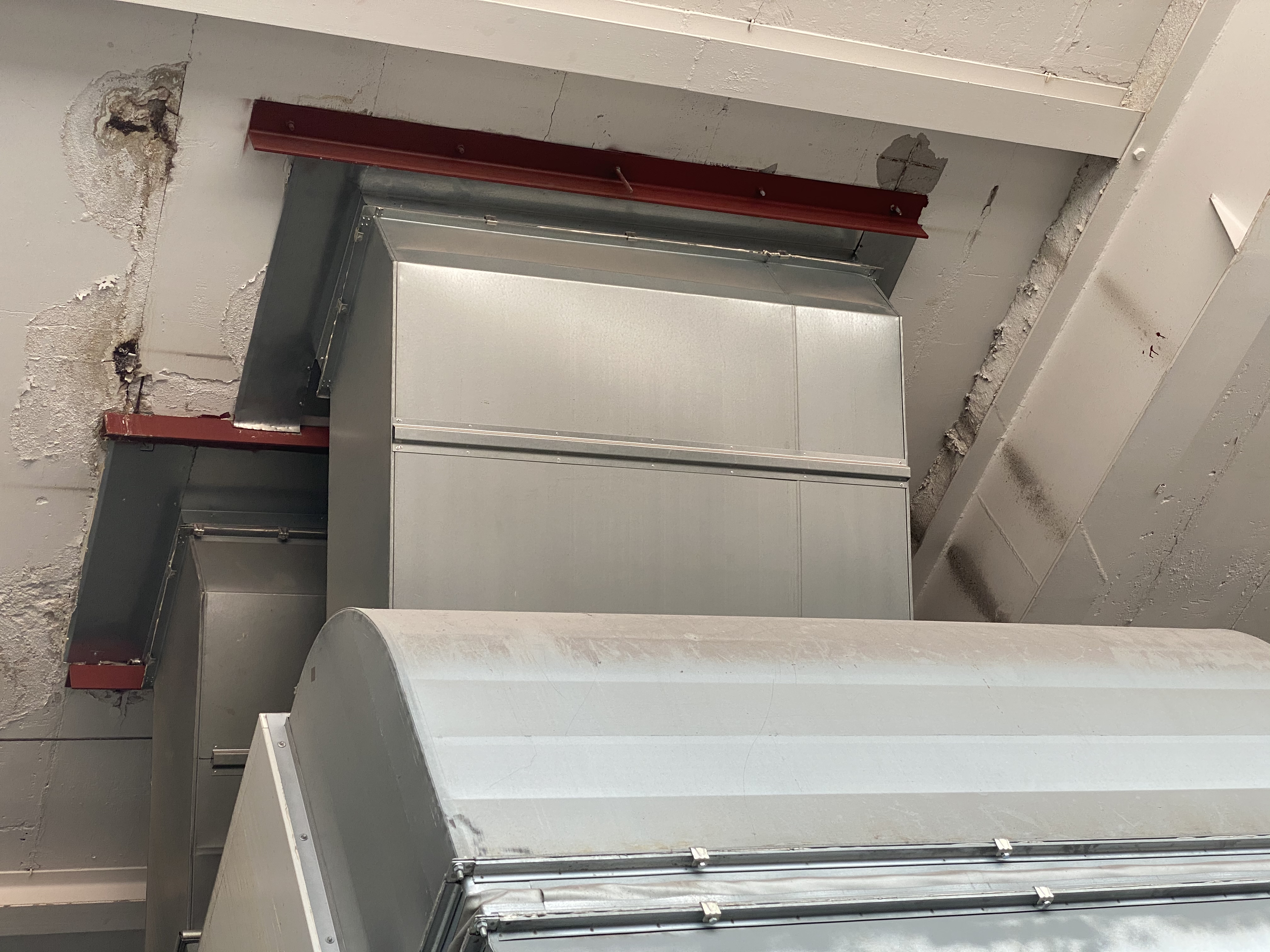

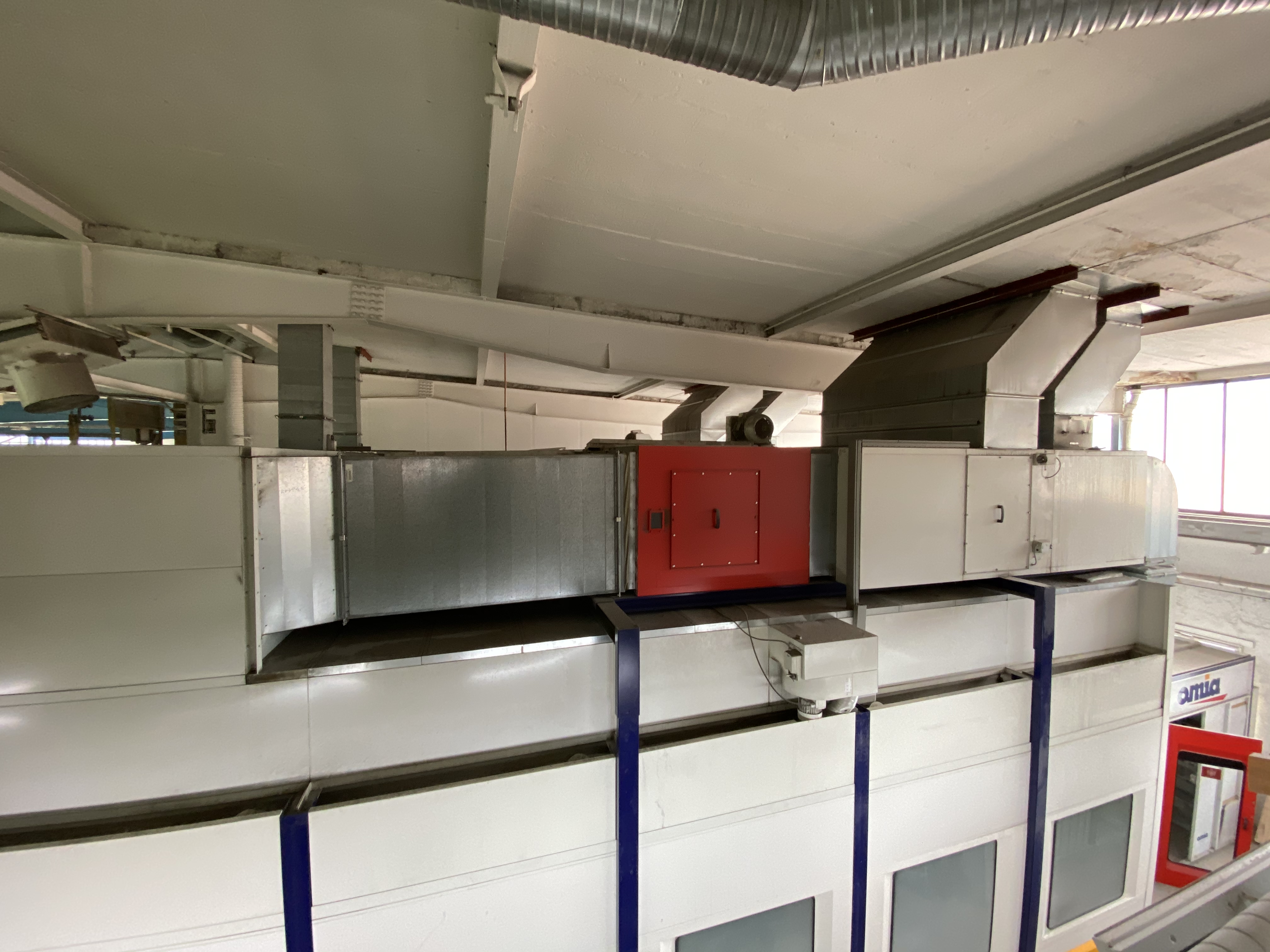

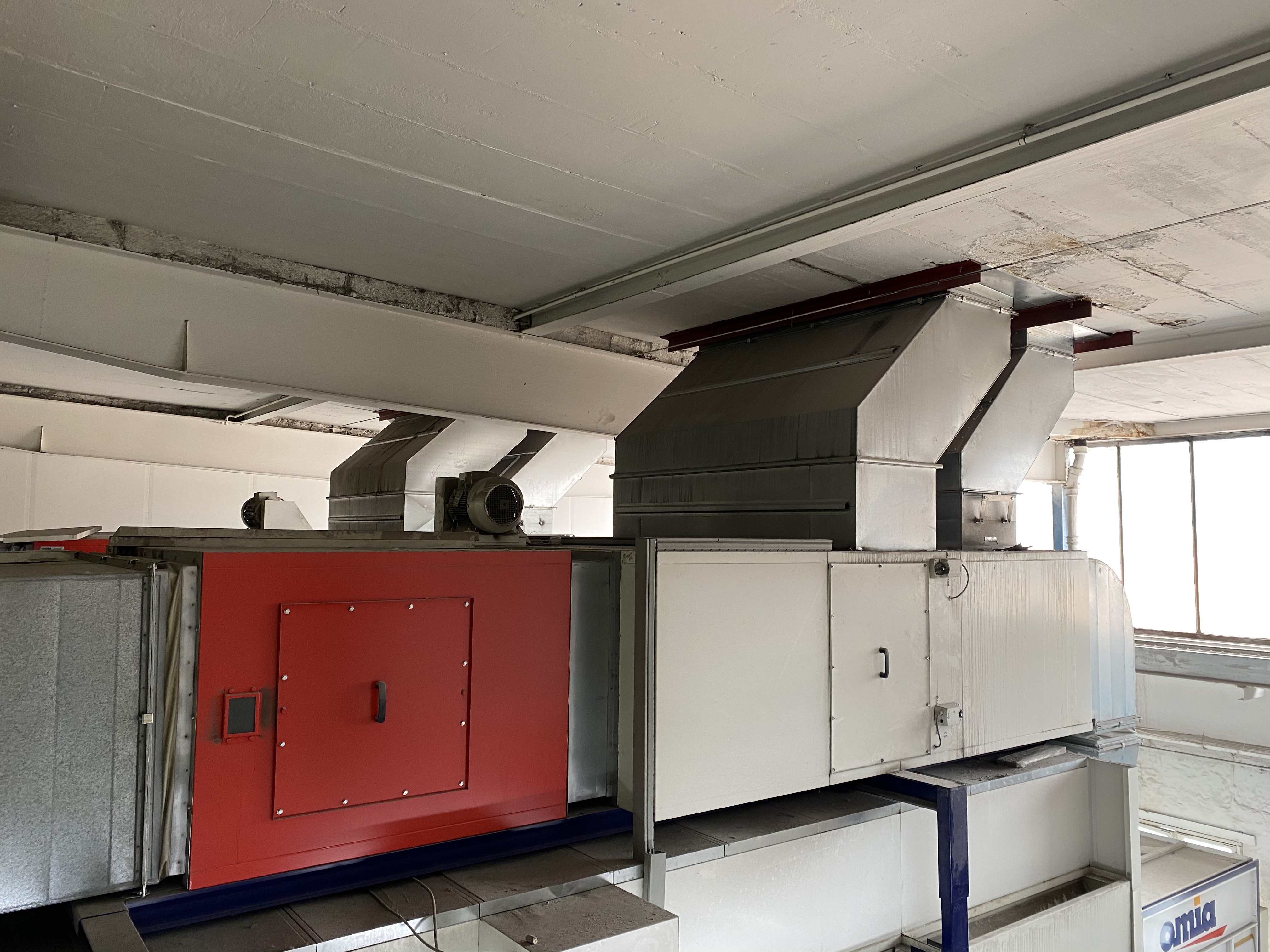

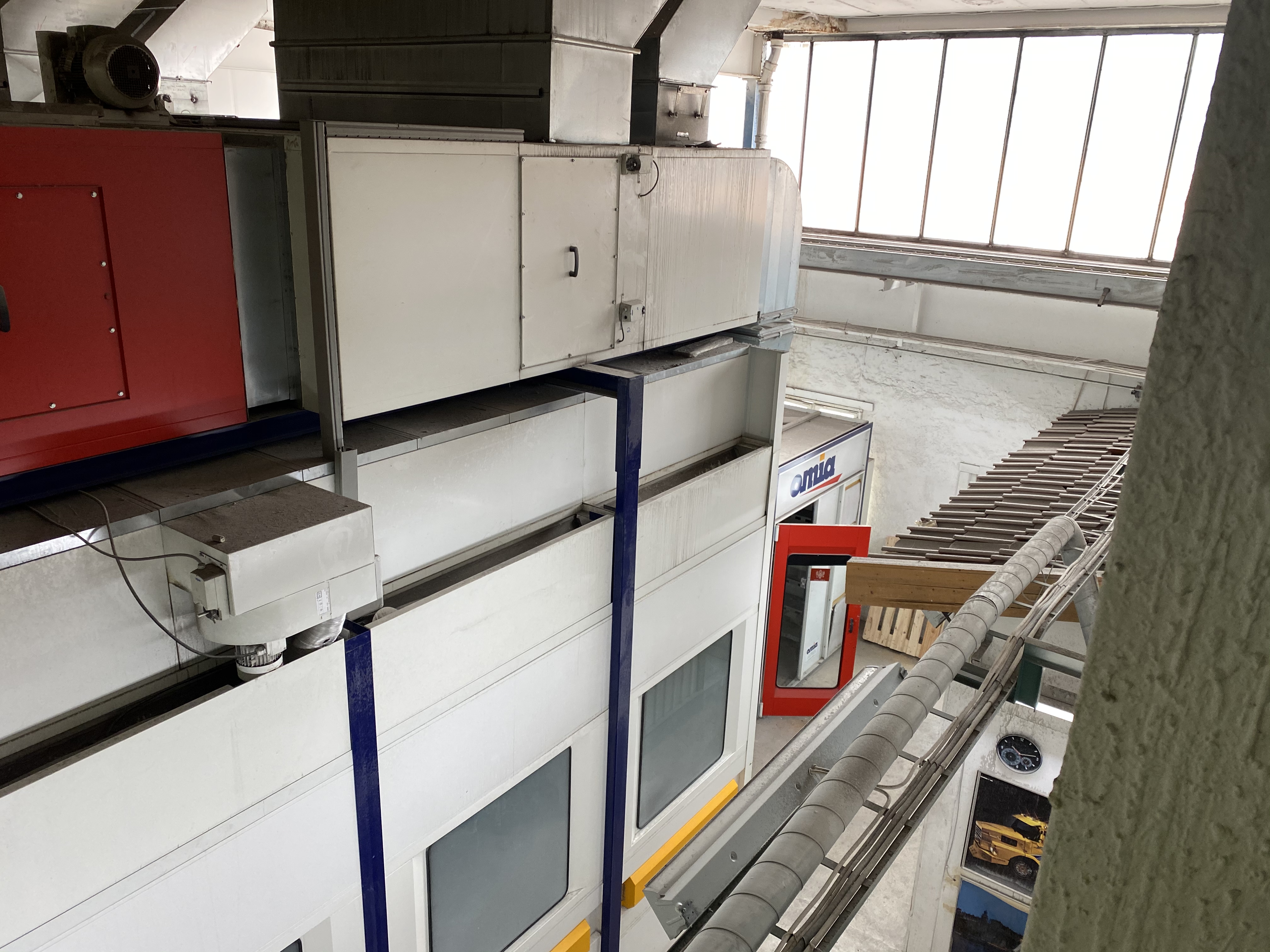

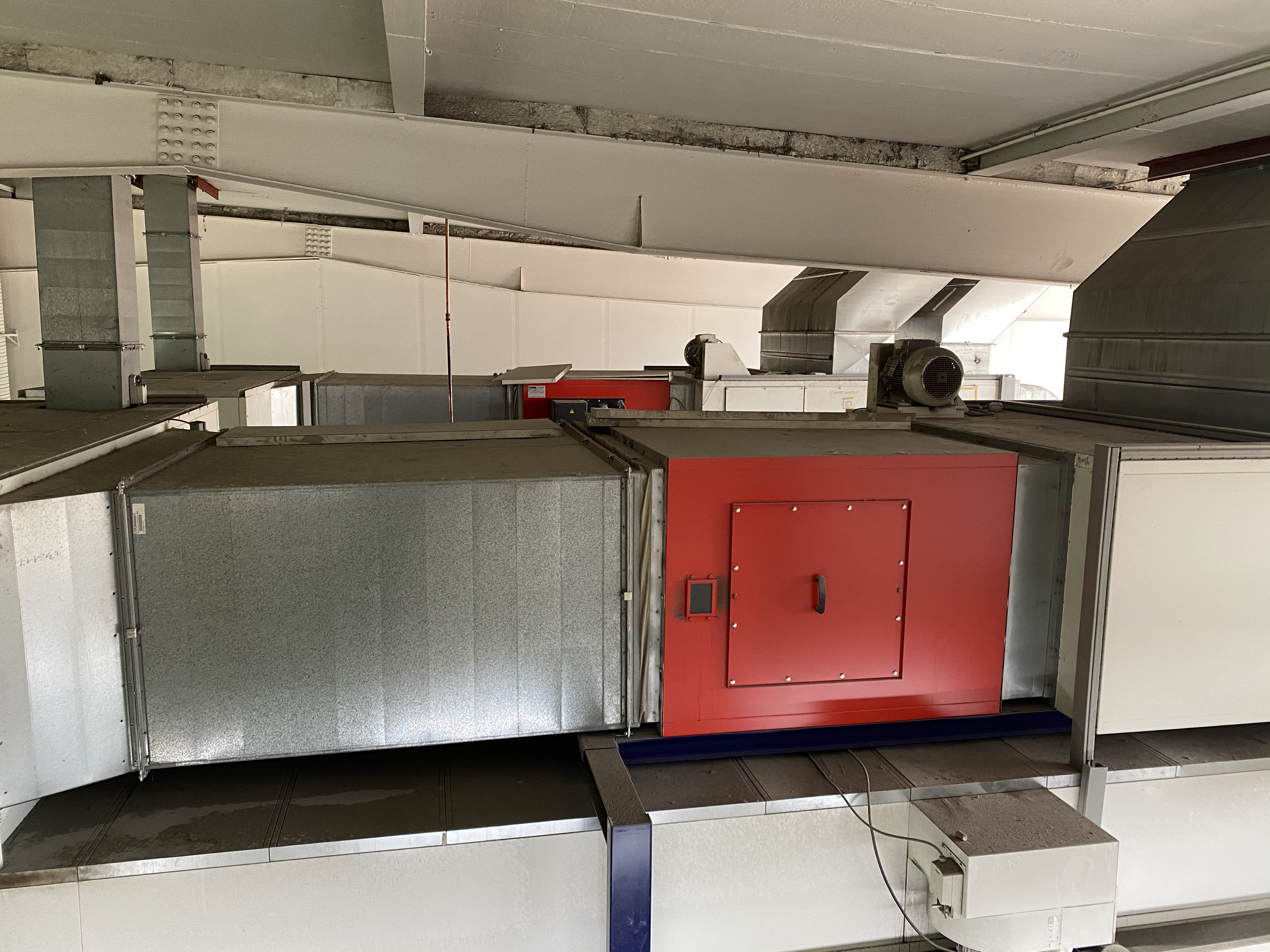

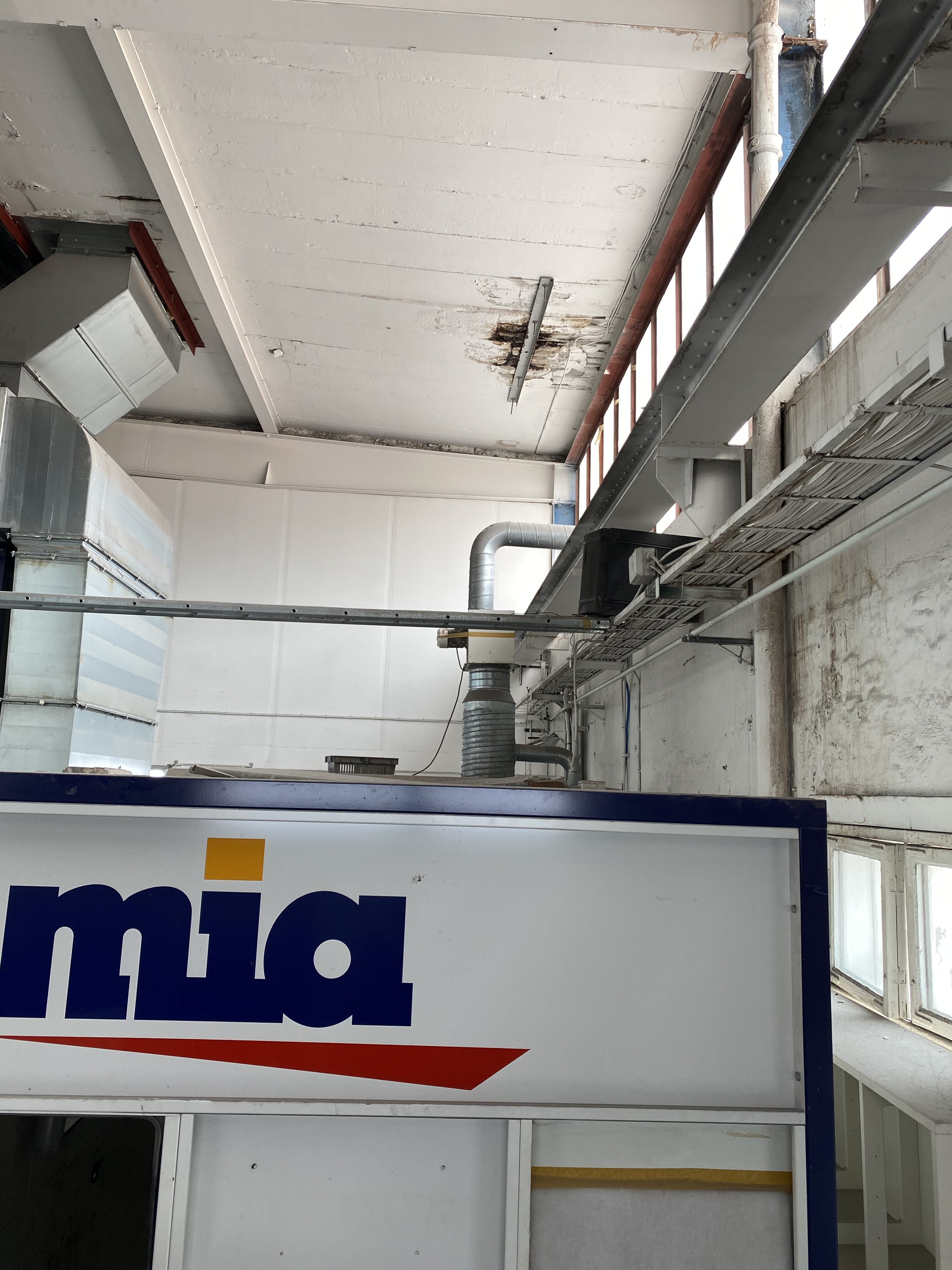

  • Machinery sited on the roof (heater and extraction with lateral connection ducting) Interior dimensions: L = 8.40 W = 4.00m H 3.38 m

Galvanized and bake enamelled single / wall enclosure

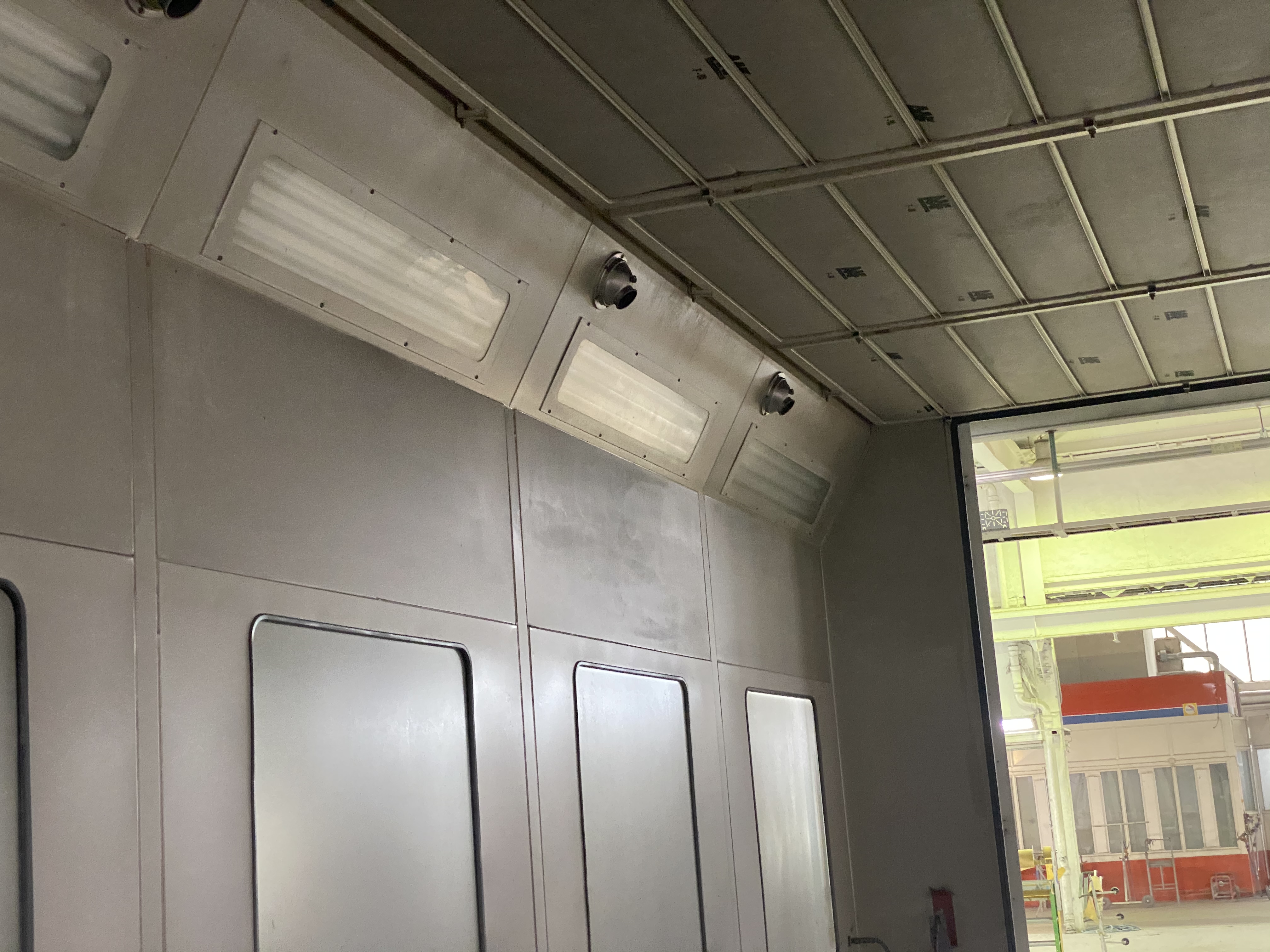

+ Upper level lights 30 tubes or 36 W Extra low level lighting 27 tubes or 36 w #

1 main 2 leaves insulated door with windows and anti panic bar

+ 2 personnel doors auto return

+ One Air inlet plenum with ceiling filters

Twin air supply fan with a 9 Kw motor

+ An extraction system with a 9 KW motor

# A stainless steel heat exchanger and combustion chamber

+ Supplied with a direct gas fired burner 20 mbars

5 windows on each side of the spray booth

A pocket type prefilter system with multi dampers controlled via a servo motor

+ A recirculation device with multi dampers



+ Two manometers for checking saturation of filters in ceiling and below gratings

+ A security thermostat and heat sensor

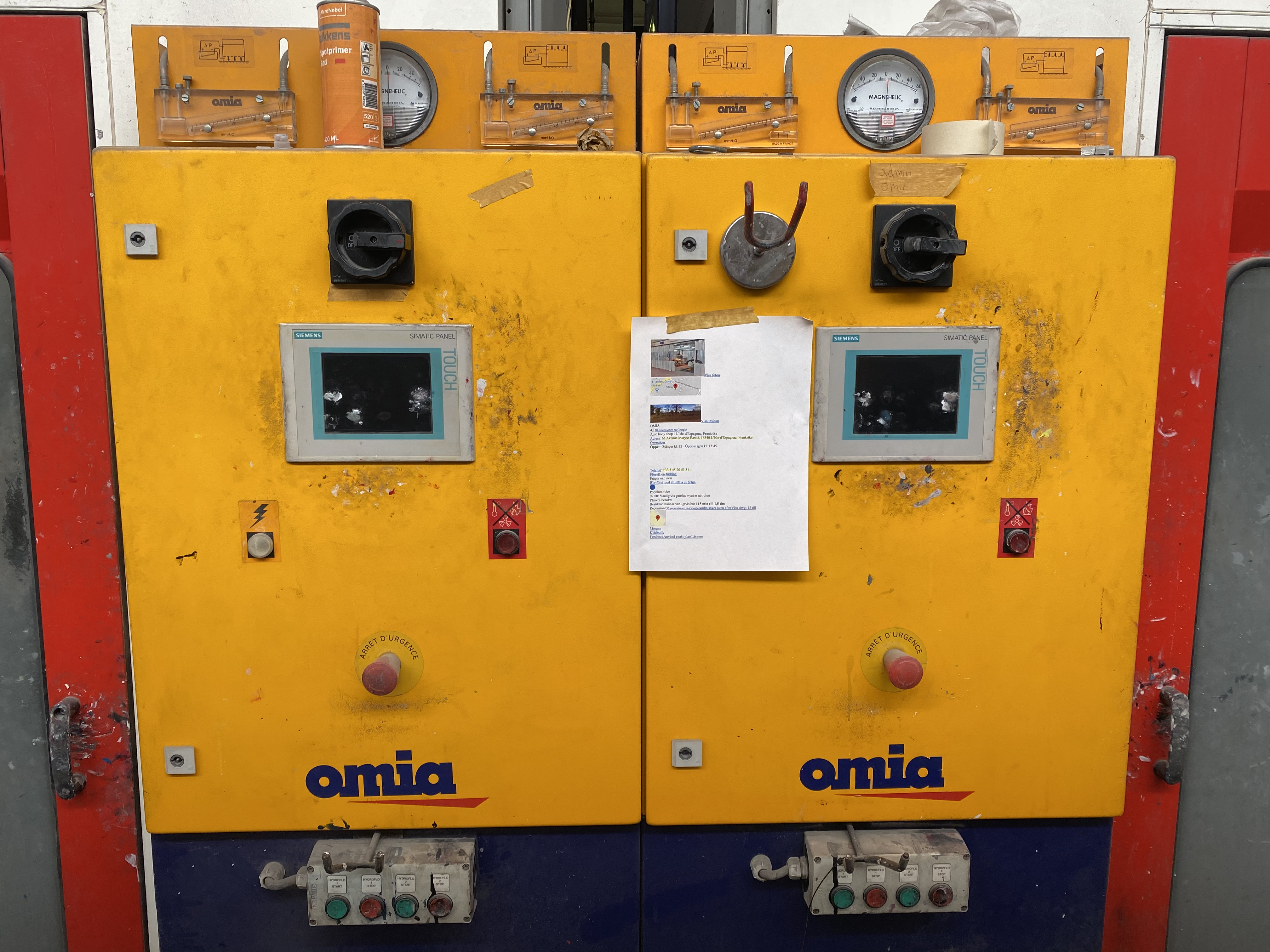

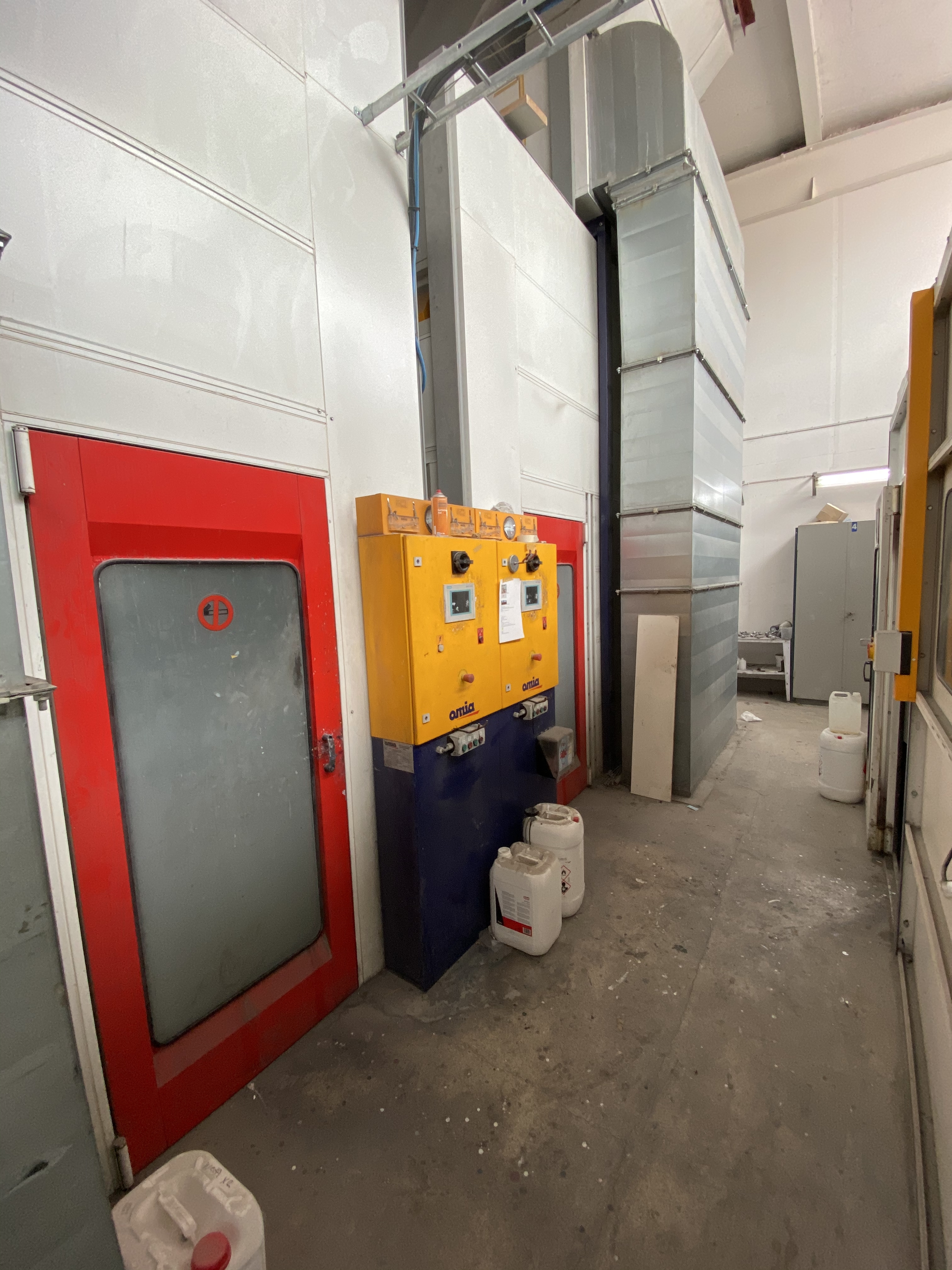

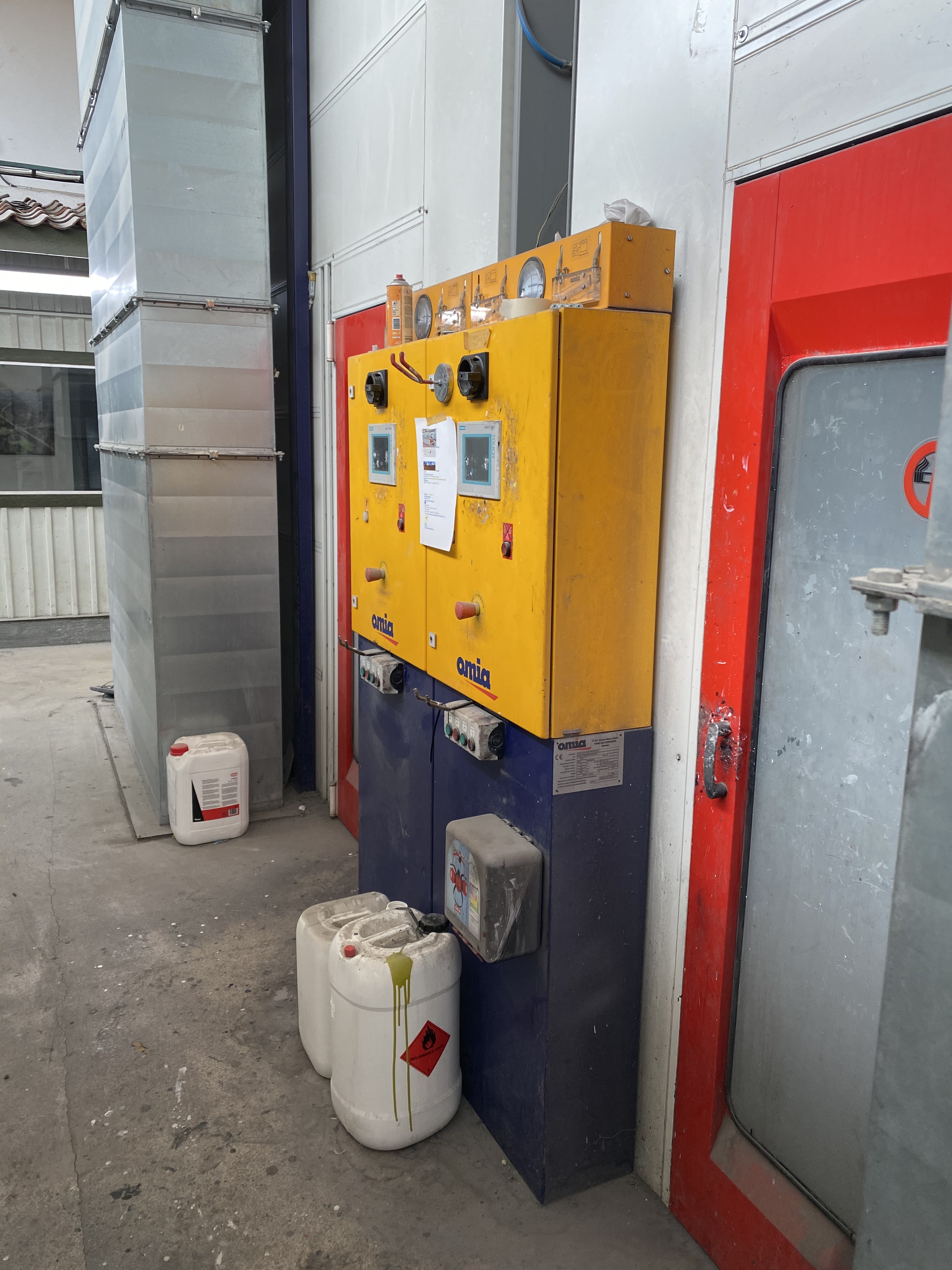

Electric control panel with touch screen

400V - 3 phase - 50Hz earth + neutral (special voltages may incurr extra charges)

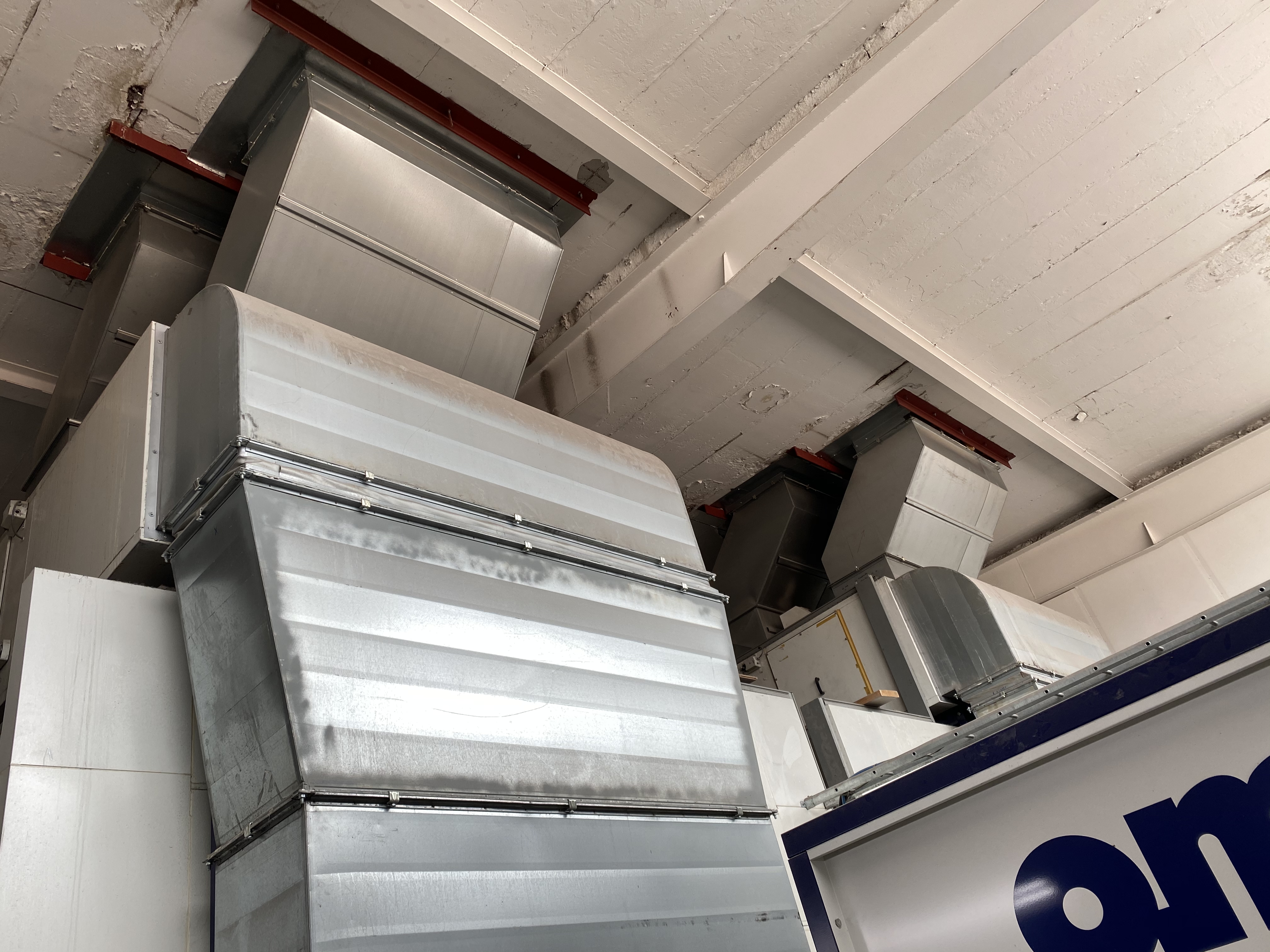

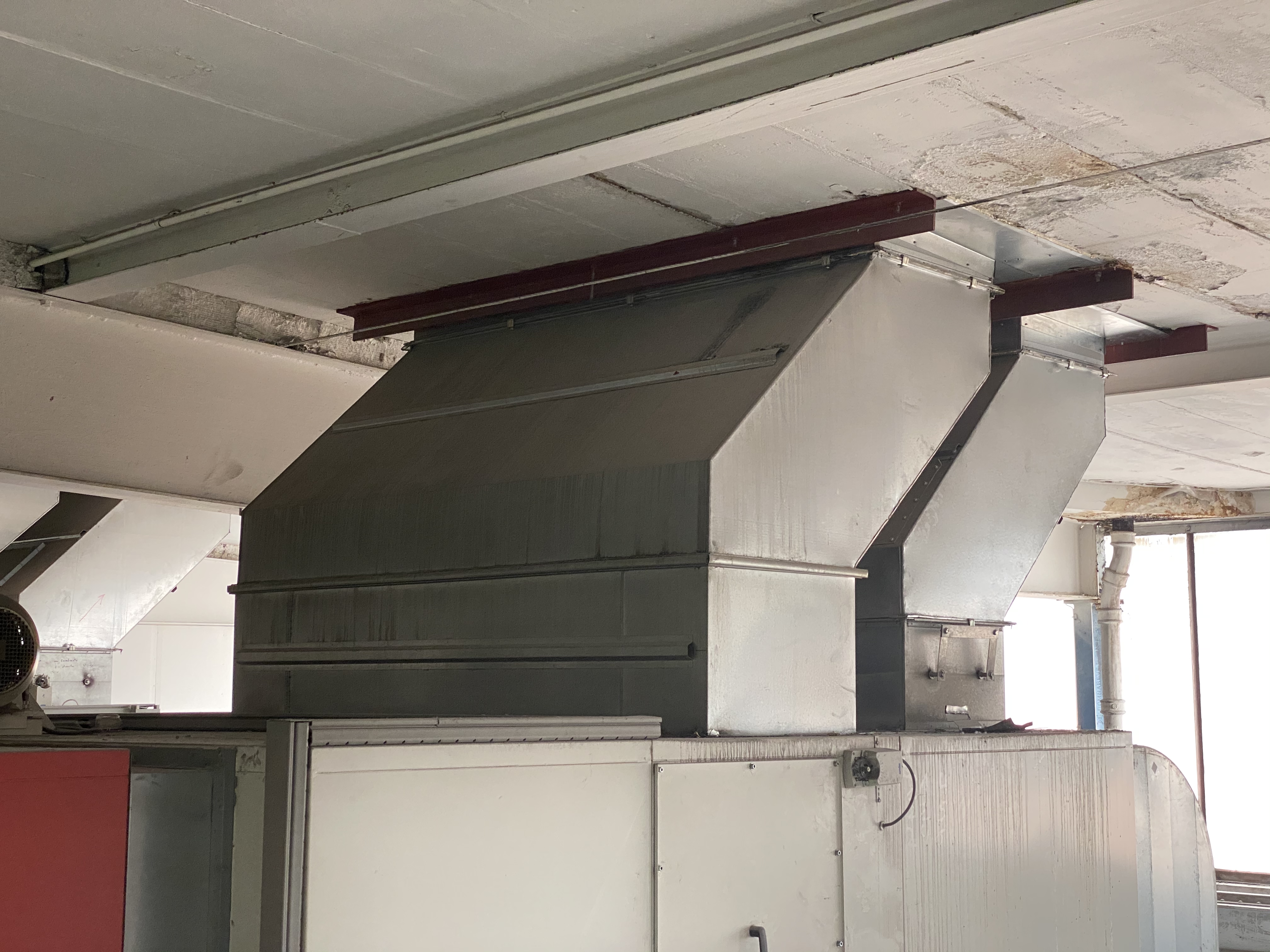

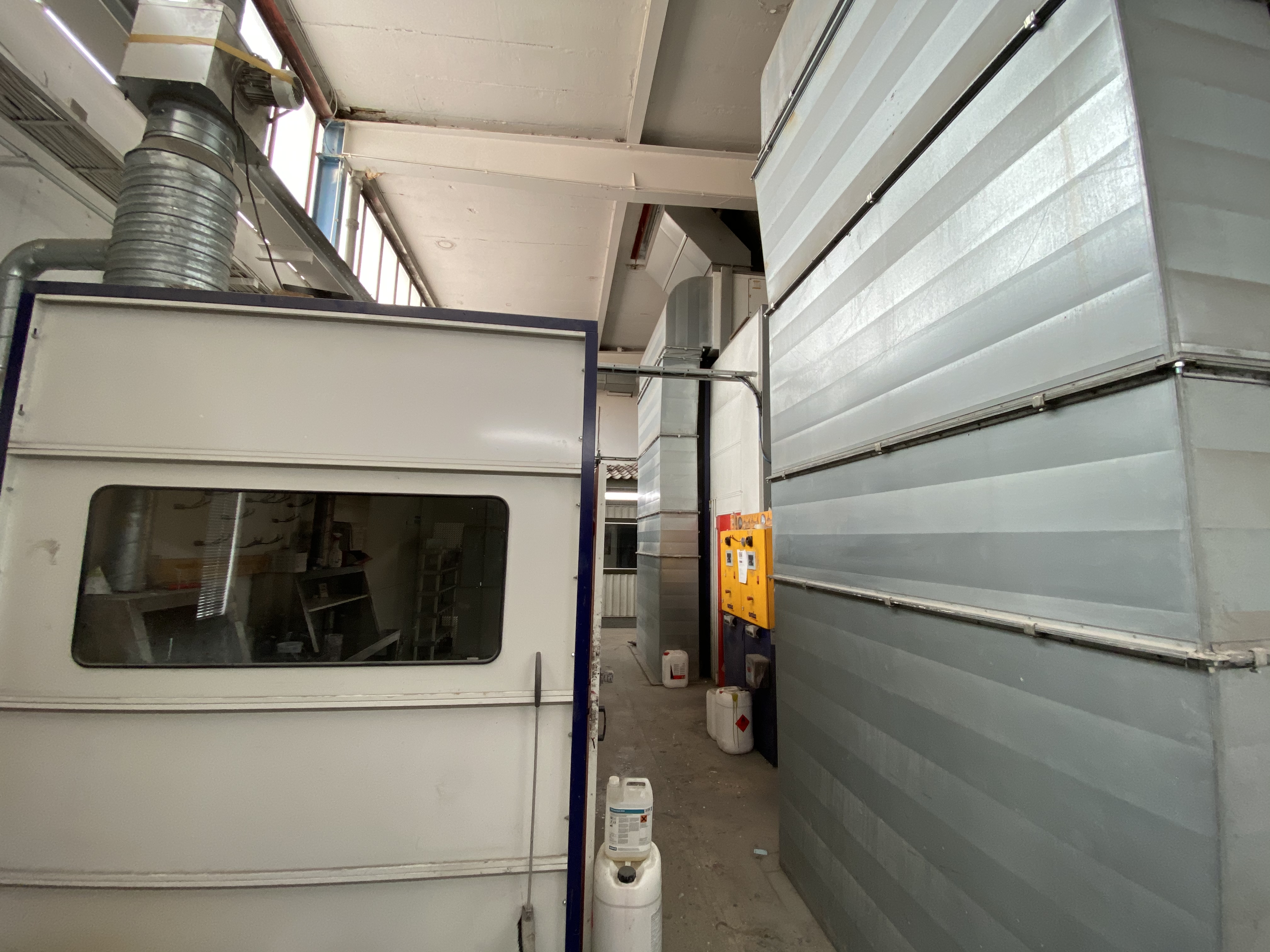

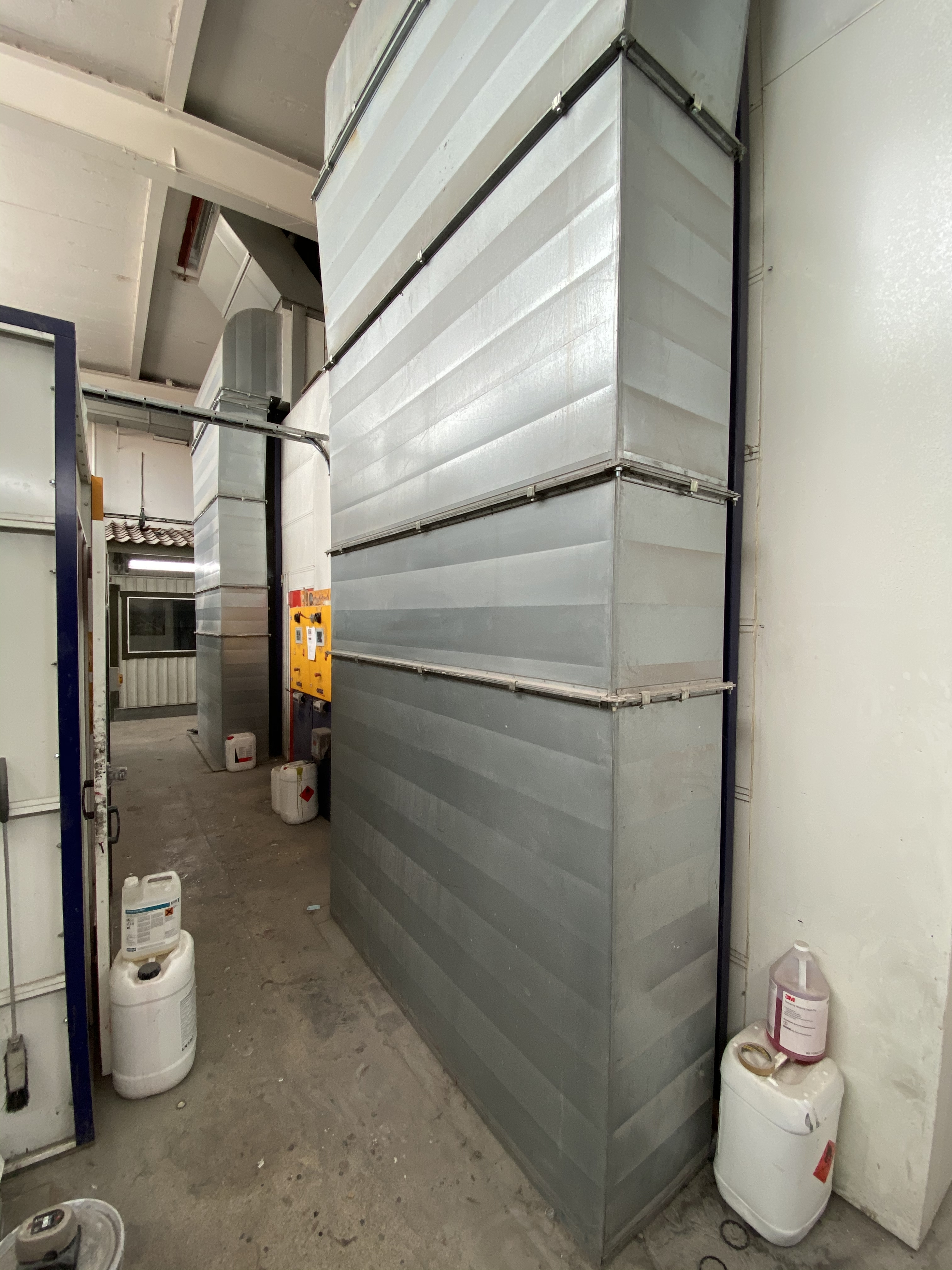

+ One galvanized fresh air intake duct 1000/1000 3 m long with raincowl

+ One galvanized extraction duct 900/900 4 m long with vertical outlet

One solvent's duct necessary for machinery on the roof 2 m long with raincowl











You are responsible for bringing with you the correct tools for any disassembly of objects. No tools, ladders, etc can be borrowed in the room.
