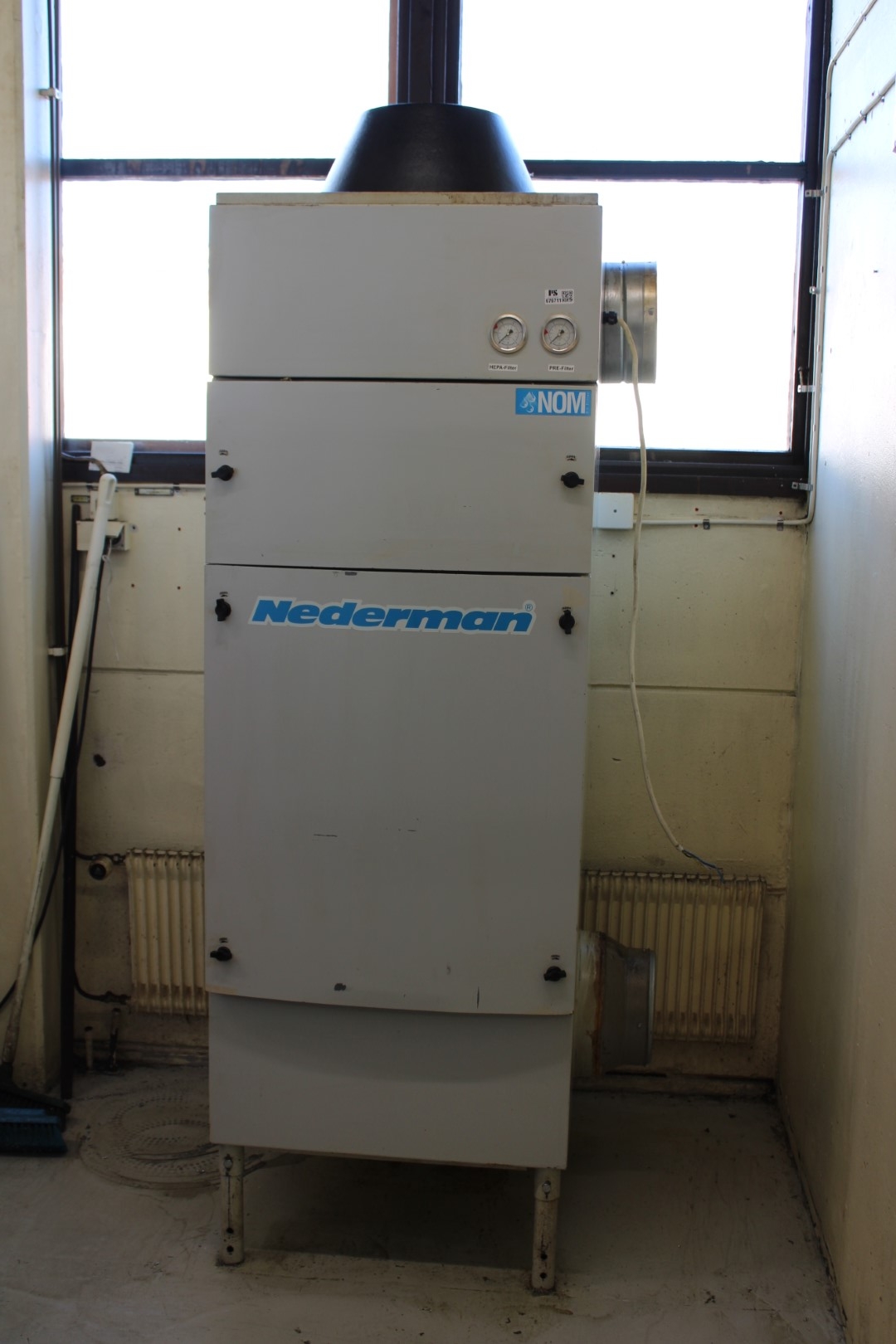

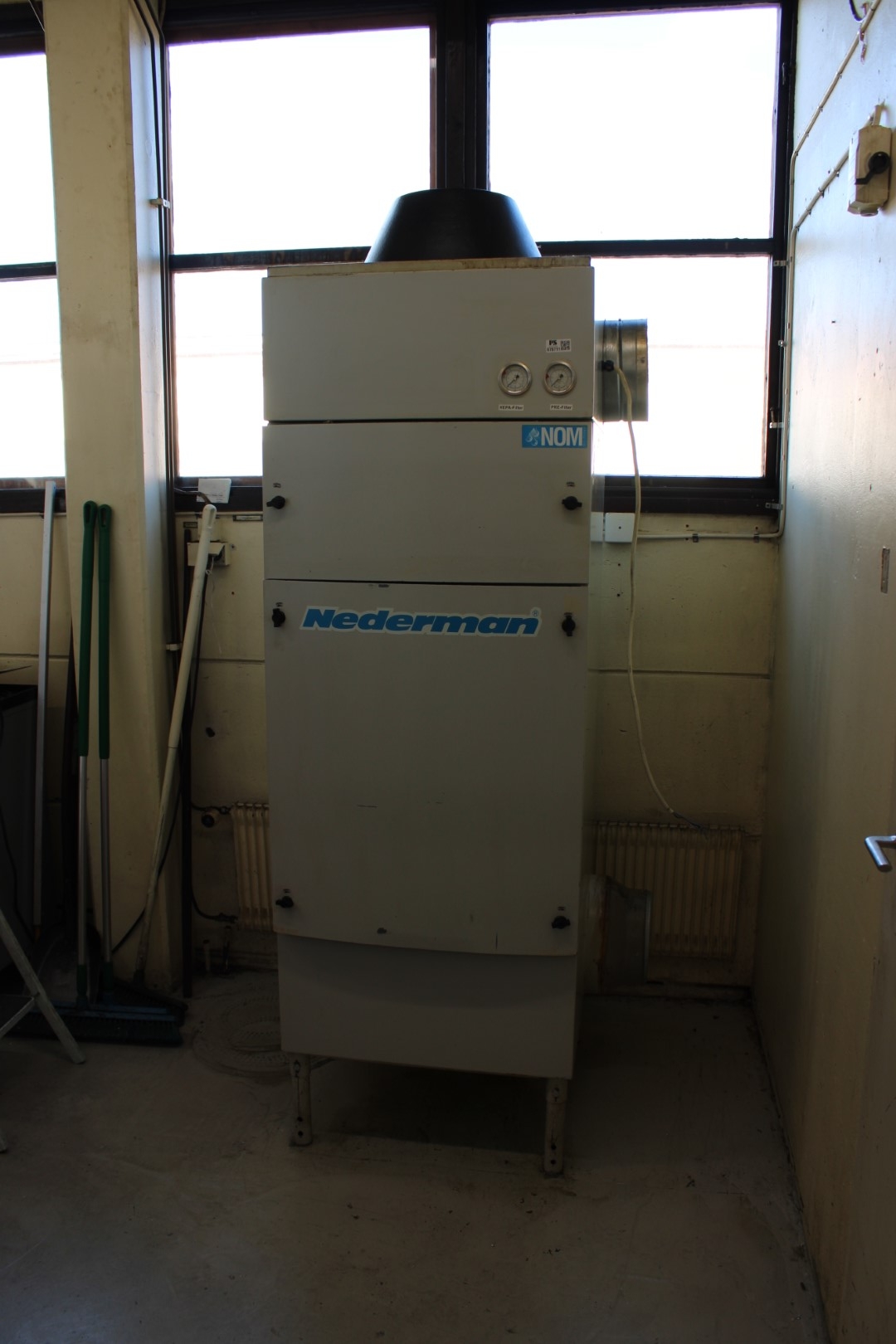

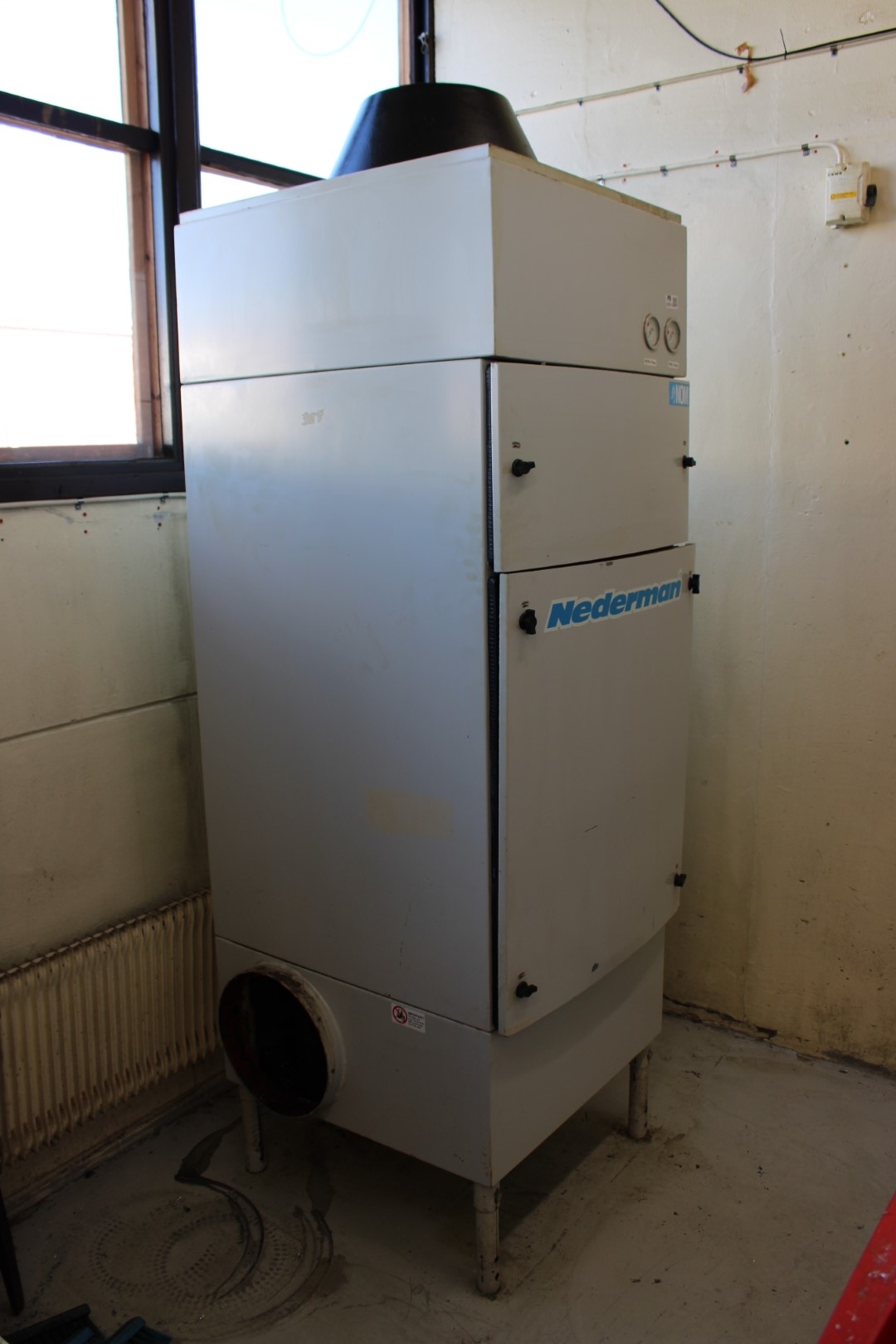

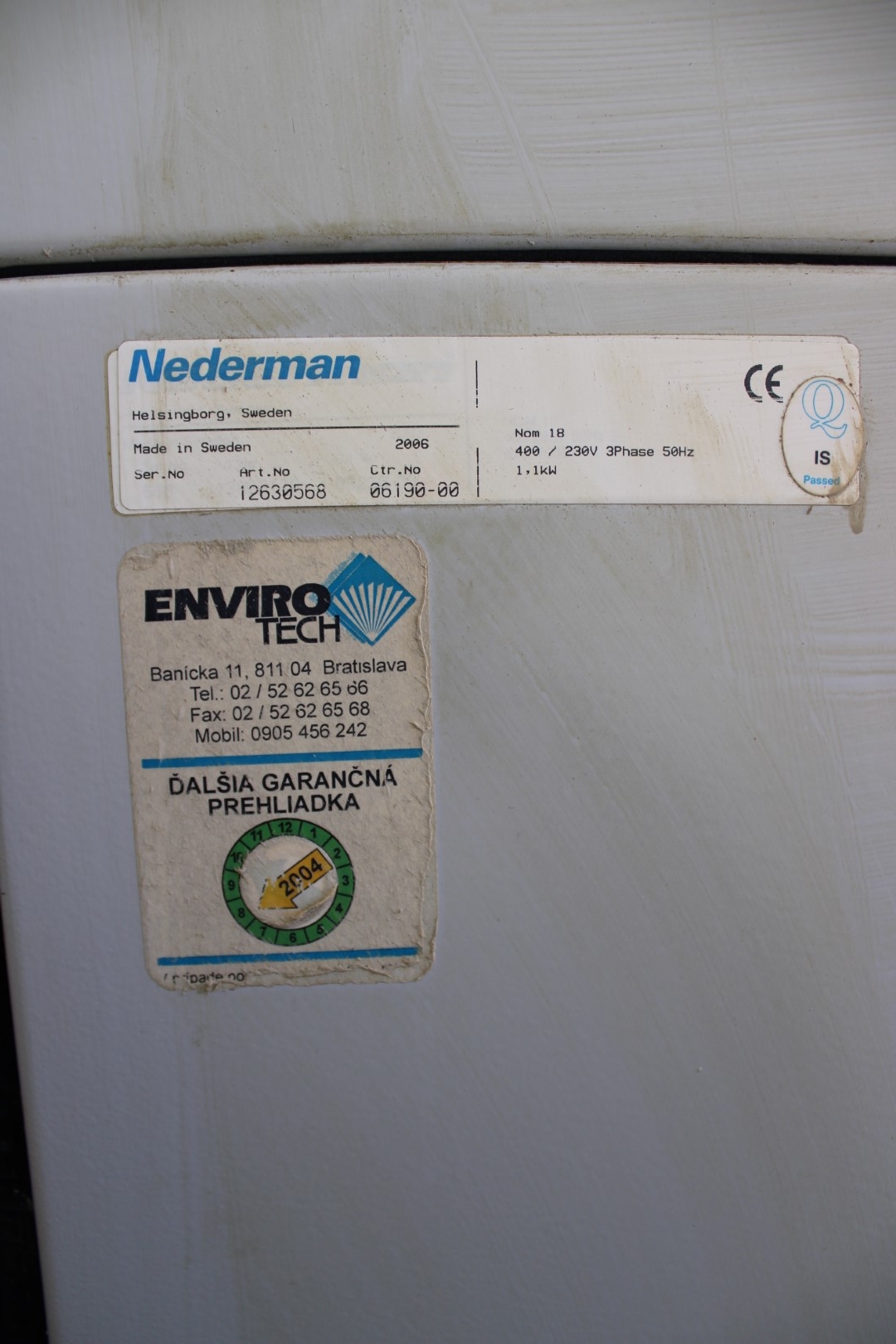

Oil mist filter Nederman NOM 18
External dimensions approx. 70x75x230cm (WXDXH).
Taken out of operation about 1 year ago. Worked then according to information from the seller. Not tested now.
Description from the manufacturer:

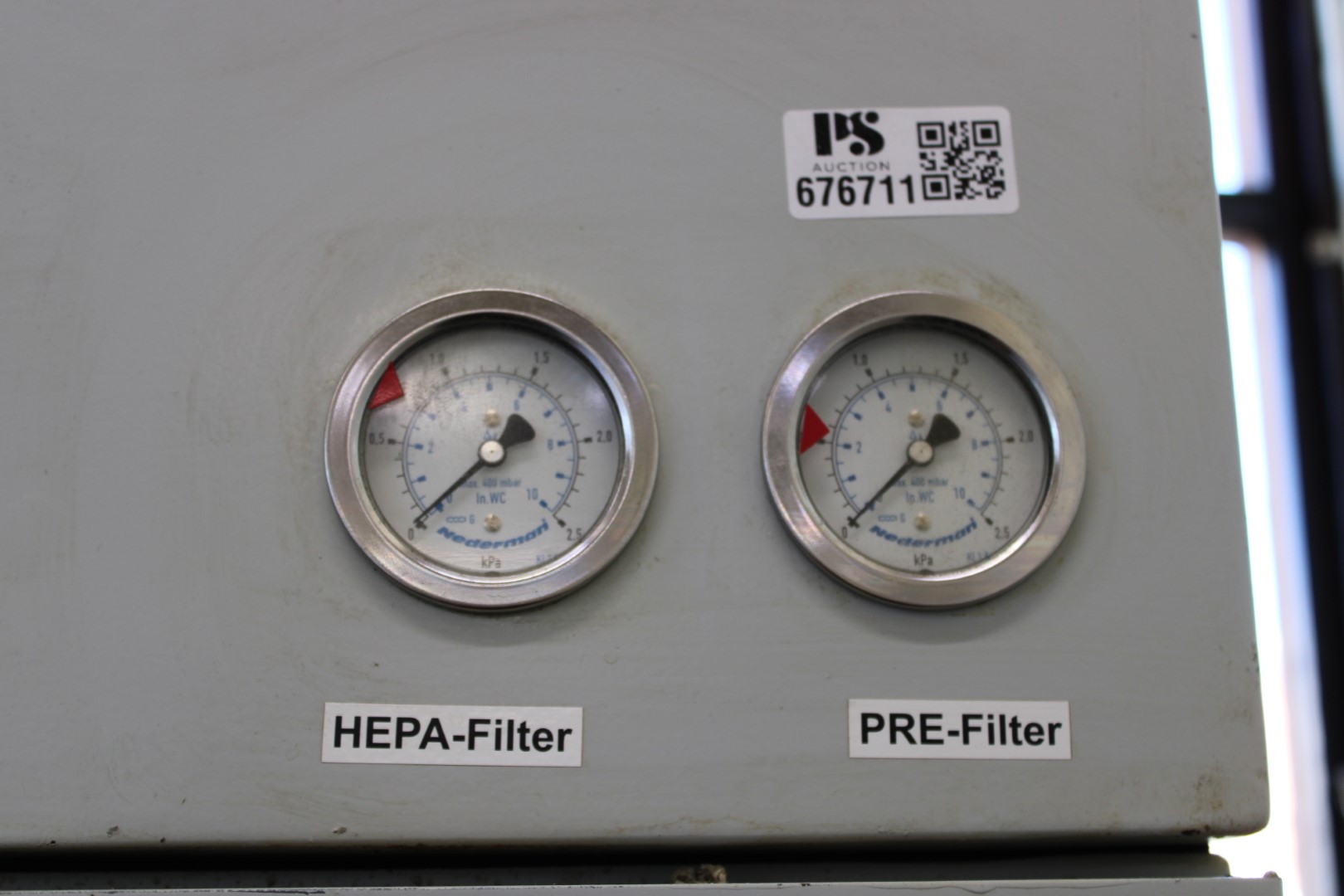

Intended for turning and milling applications, machines that punch and press sheet steel, for industrial washing machines, for abrasive water cutting, etc. In all metalworking with problems with oil mist, these filters can be mounted in a pipe system connected to the machines. All units are equipped with a pressure gauge for checking the filters, as well as an indication of when the filters need to be cleaned (self-draining). Suitable for emulsions and straight oils.
Noise level (dB (A)) 63.8
Protection rating IP 55
Filter degree of separation (%) 97.5
Compressed air requirements No
Compressed air consumption No.
Indoor installation
Material Housing in powder-coated sheet metal
Suitable for explosive dust False
Recycling (%) 90
Filter area (m²) 14
Capacity (max. Air flow m3 / h) 1800
Temperature range 5-60 °

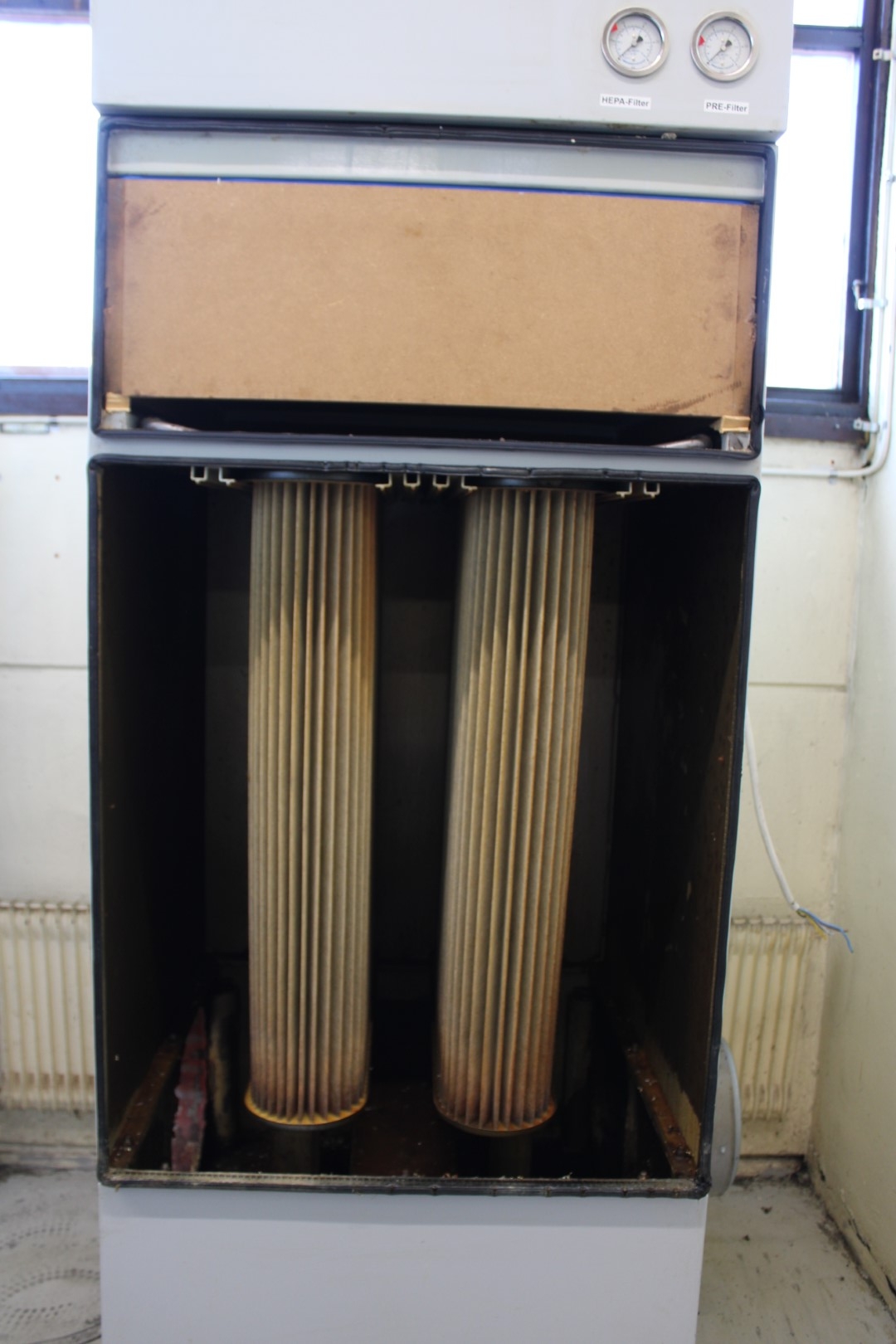

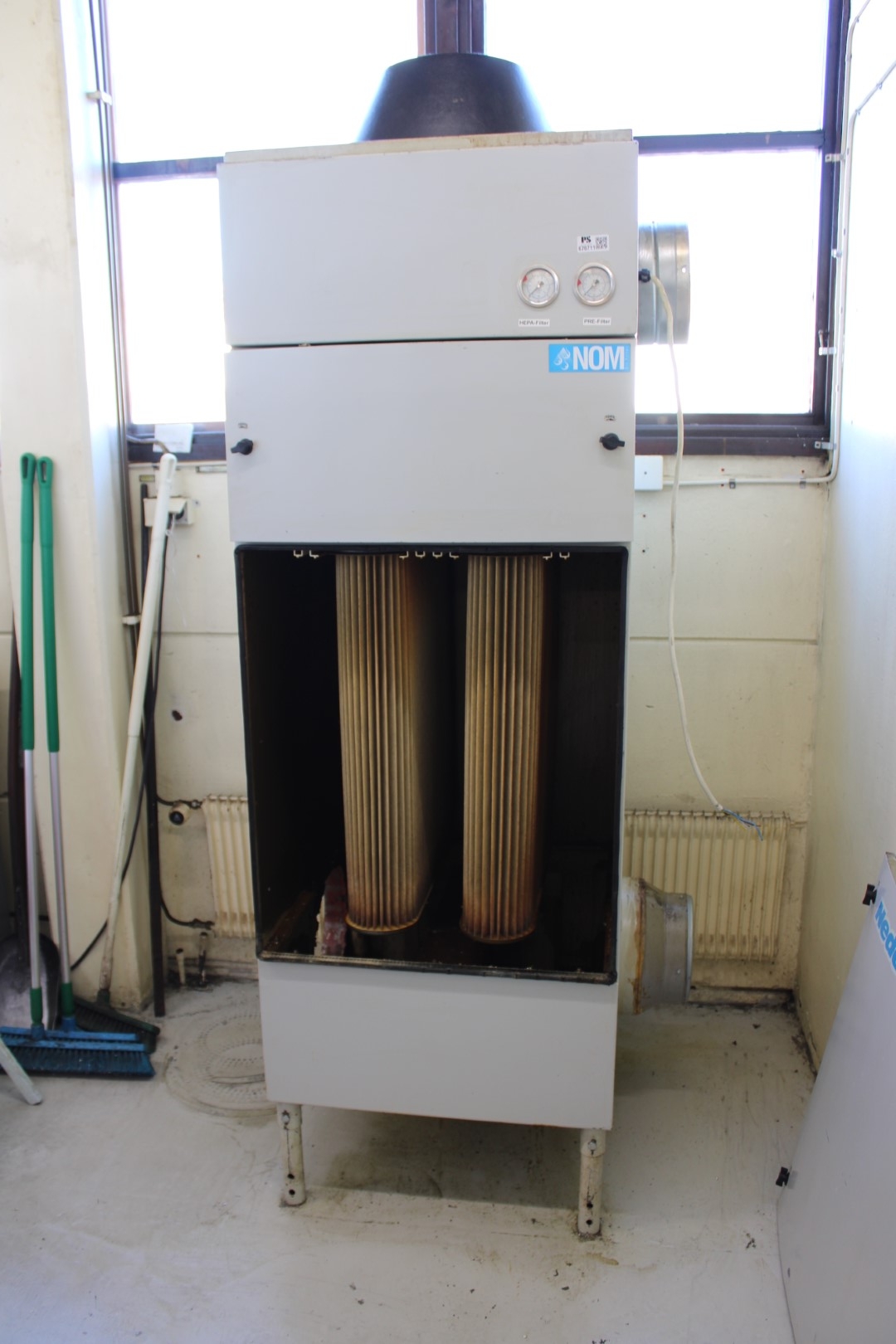

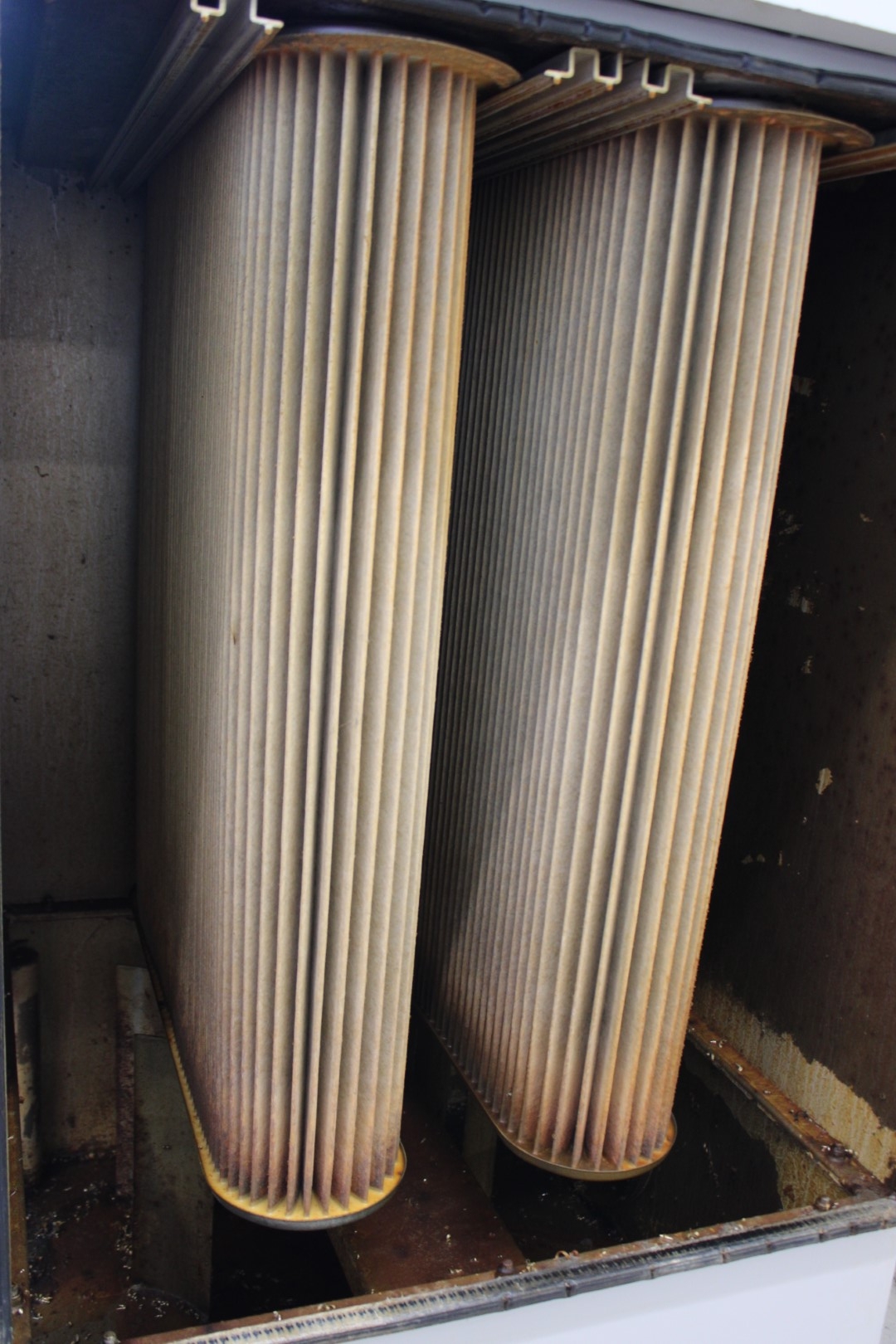

Type of filter Cartridge

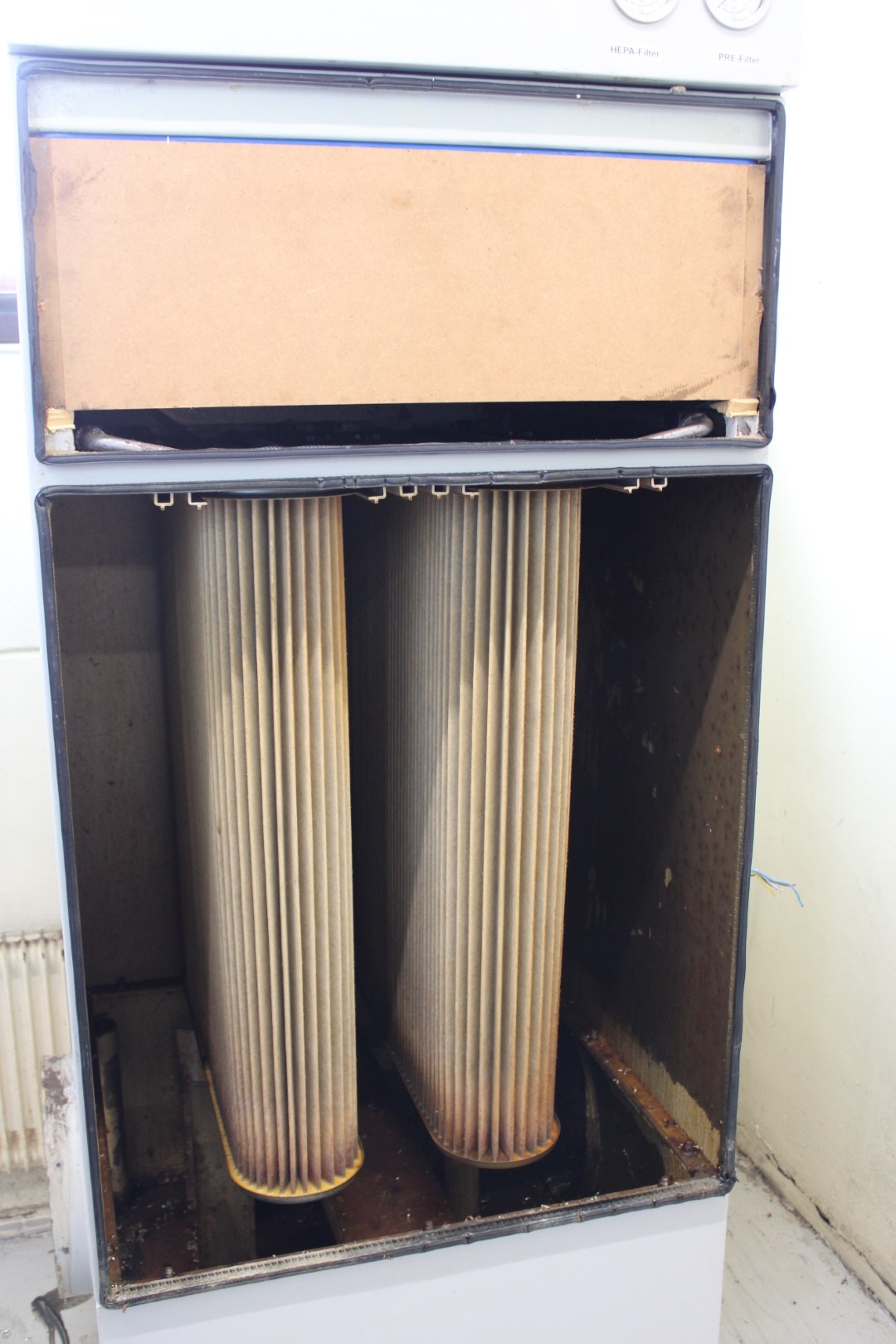

Number of filters 2
Power (kW) 1.1
