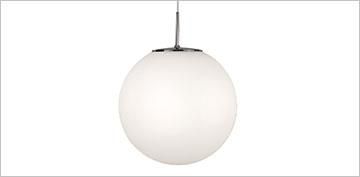

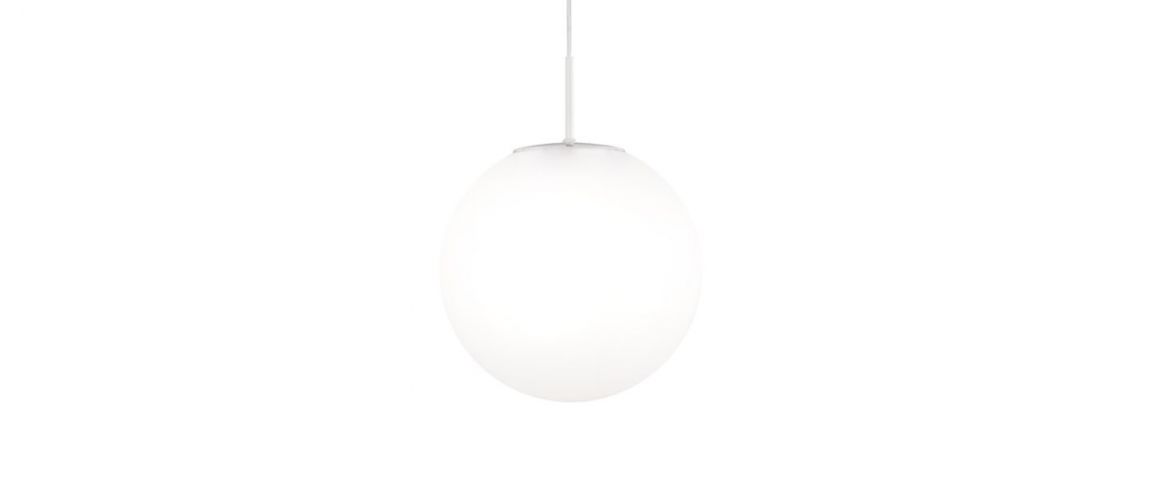

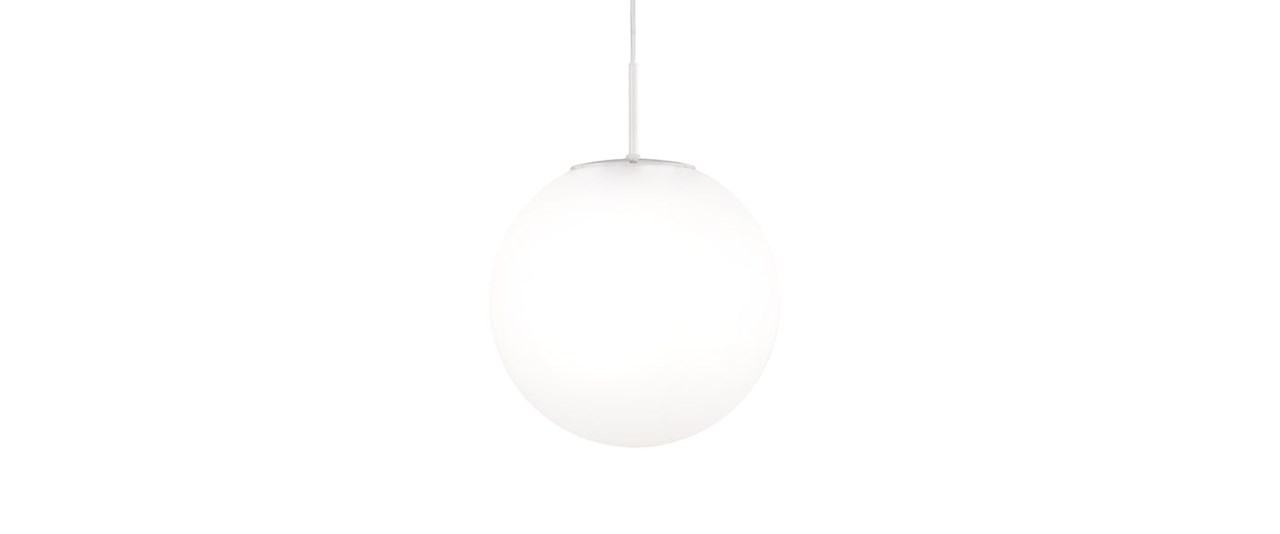

With its clean design, Globia provides an architectural element that suits most applications. This omnidirectional luminaire also provides the opportunity to create and build exciting interior elements. Globia is very energy efficient and has a built-in LED driver, which makes it easy to install. The well-thought-out LED solution creates a good evenness in the hive.
Technical data
Protection class
1
IP class
21
My. ambient temp, ° C
-25
Max. ambient temp, ° C
25
Light control
DALI / Faspuls
Driver make
Osram
Performance
Lens protection
Opal
Color
White
Cup
Acrylic
Weight, kg
4.8
Diameter, mm
450
Electrical data
MCB B10A
13
MCB B16A
20
MCB C10A
20
MCB C16A
34
Phase pulse, max number
20
AM
Yes
Memory function (in driver)
Yes
Corridor function
Yes
Stand by W
0.15
Rated voltage, V
220-240
Mains frequency, Hz
0, 50, 60
W
46
Power factor at 100% luminous flux
0.98
Surge protection, CM, kV / kA
2
Surge protection, DM, kV / kA
1
SVM
20
Light data
Light distribution
Radiant
Light flux, ch
6037
lm / W
130
Retaining luminous flux L80 B50, h
100,000
Retaining luminous flux L90 B50, h
90 000
Maintaining luminous flux 50,000 h
L94
Maintaining luminous flux 75,000 h
L91
Maintaining luminous flux 100,000 h
L89
LLMF at 50,000 hours
0.94
Driver life, h / max output%
100000/10
SDCM
3
Ra (CRI)
80
CCT, K
3000
Light source
LED
