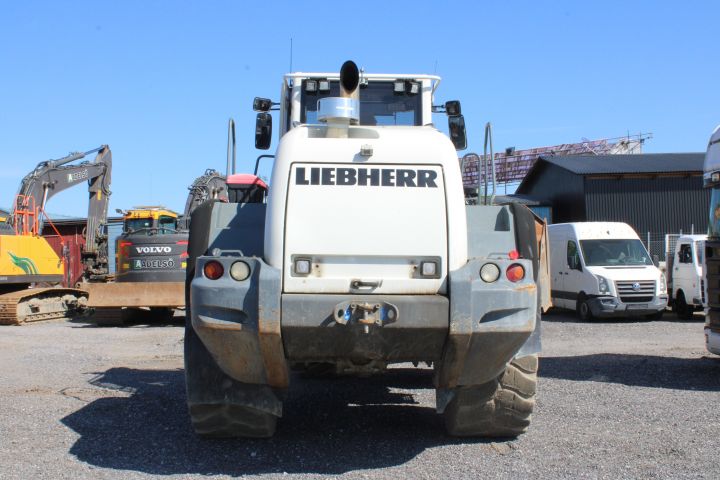

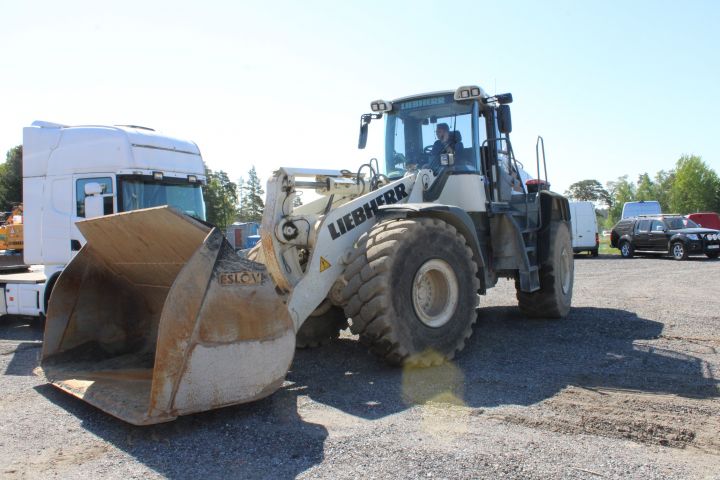

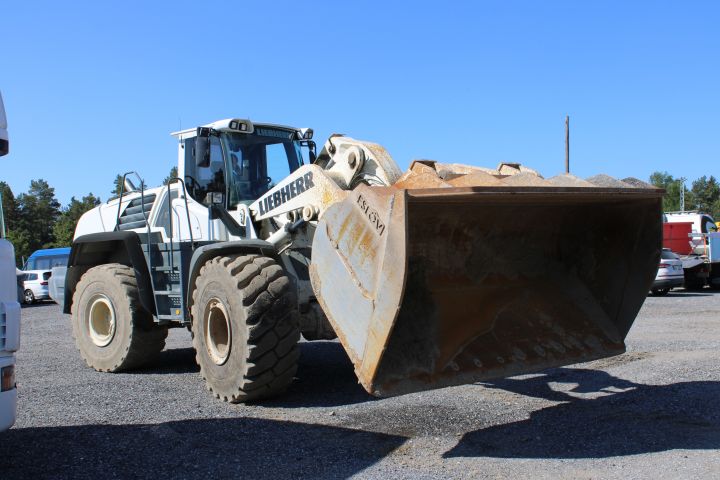

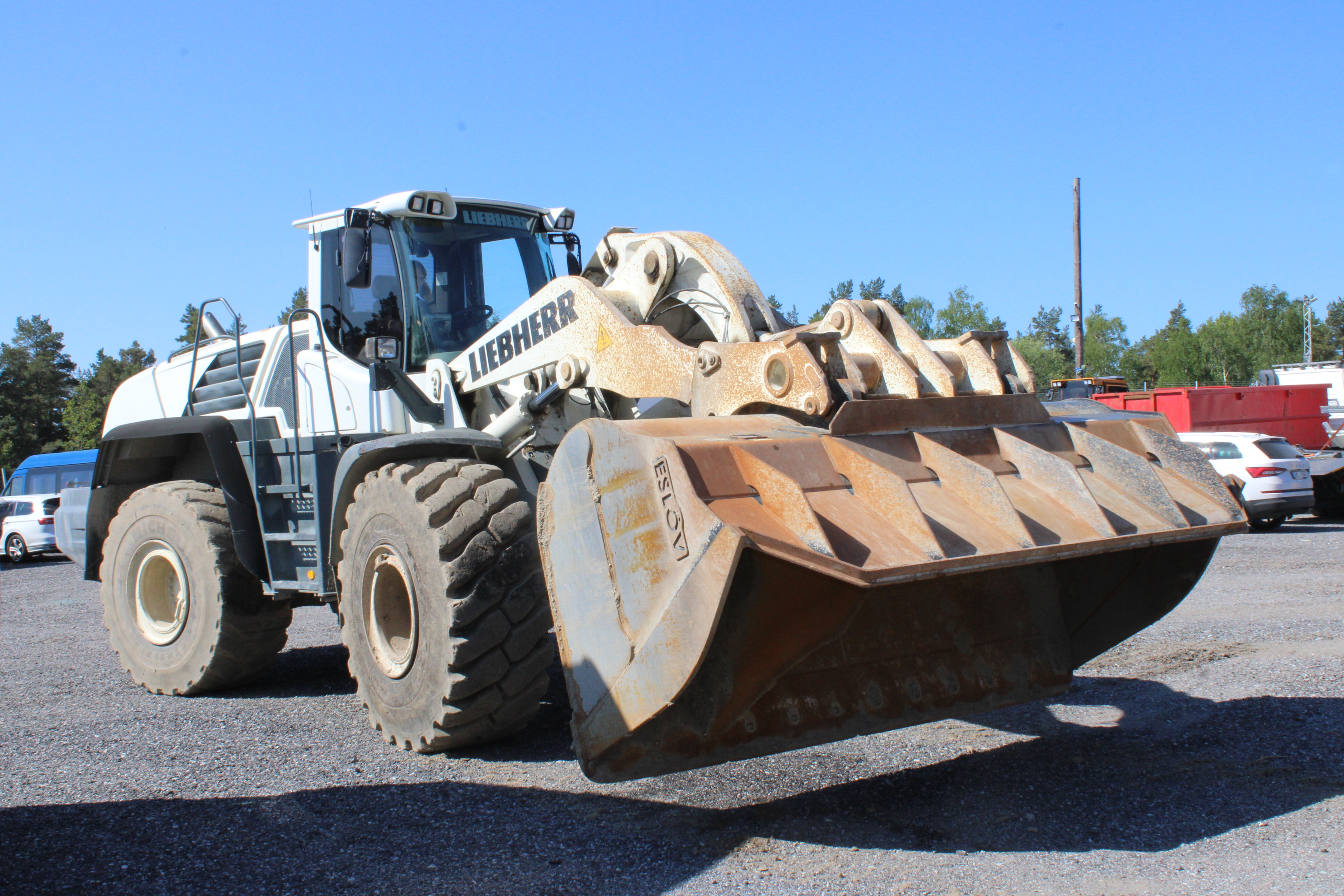

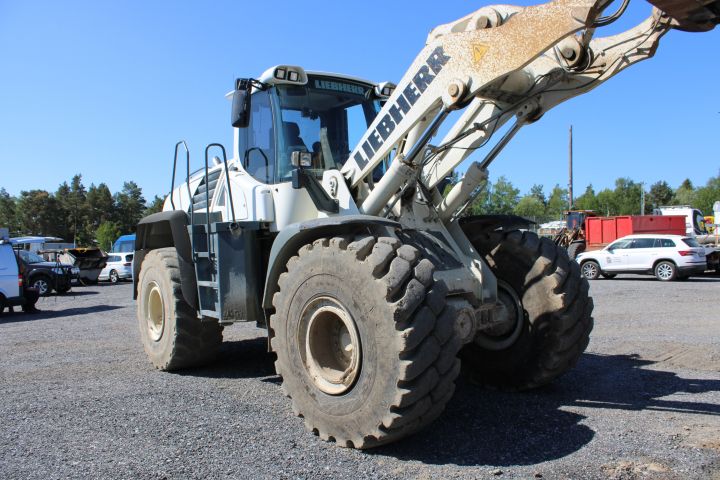

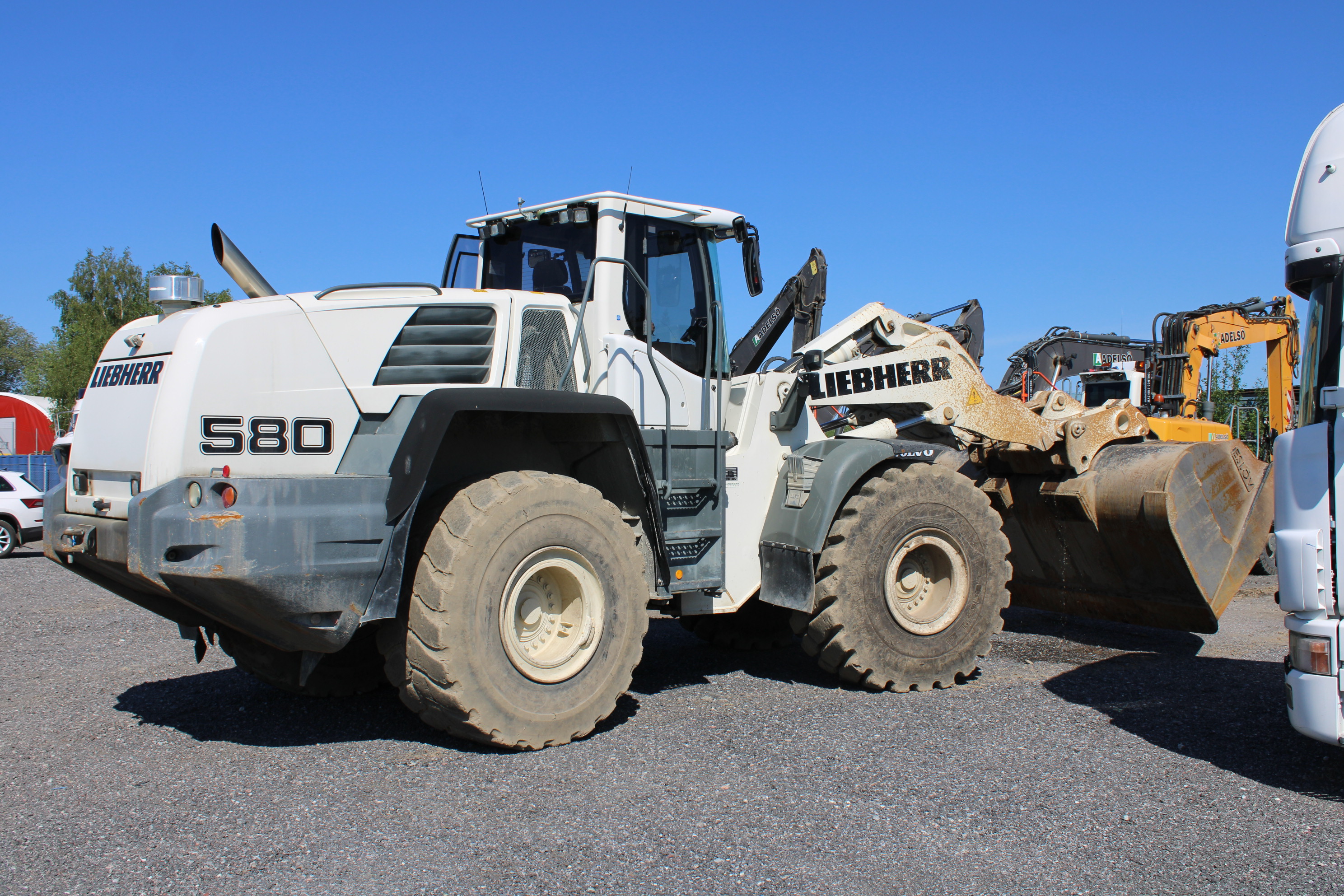

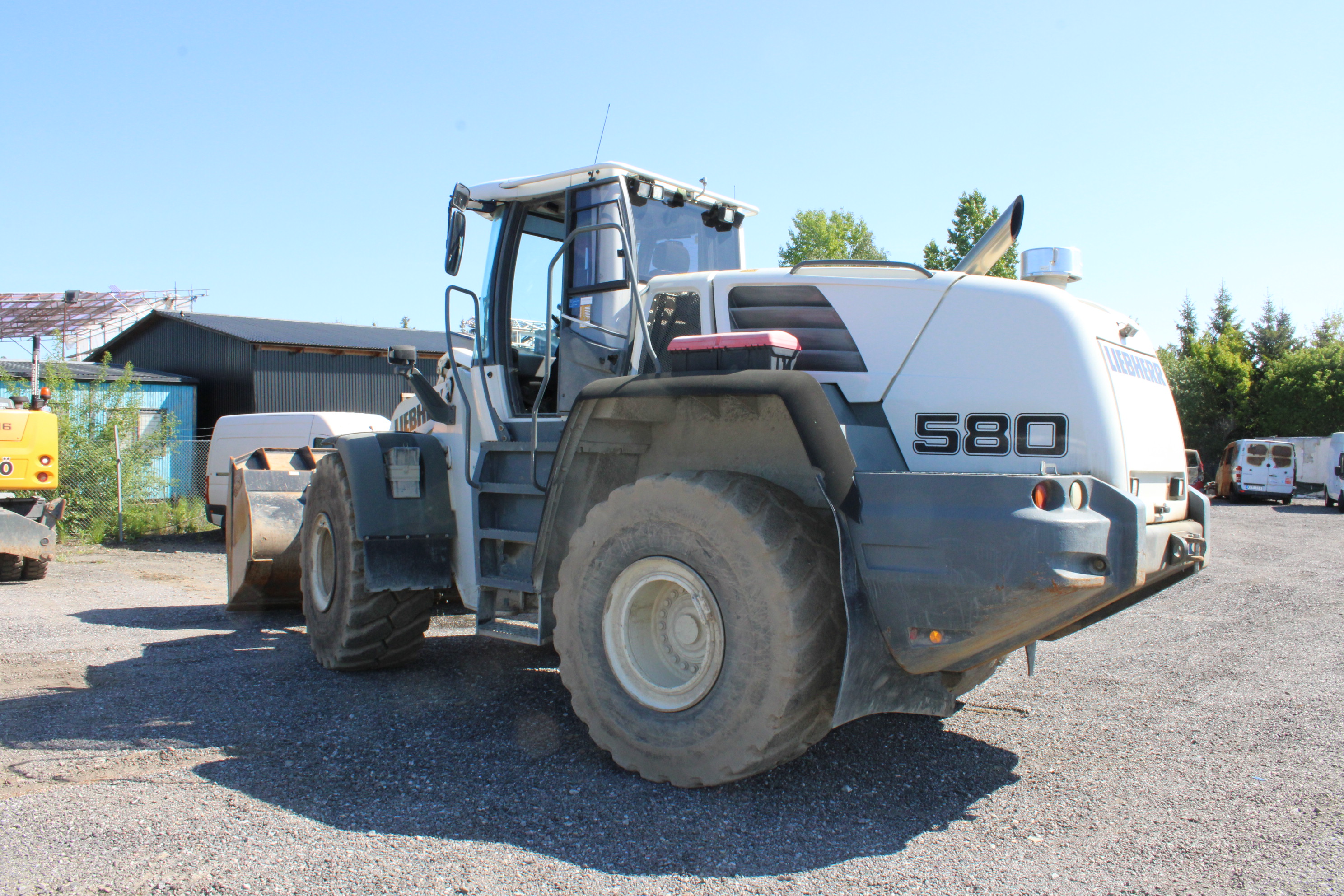

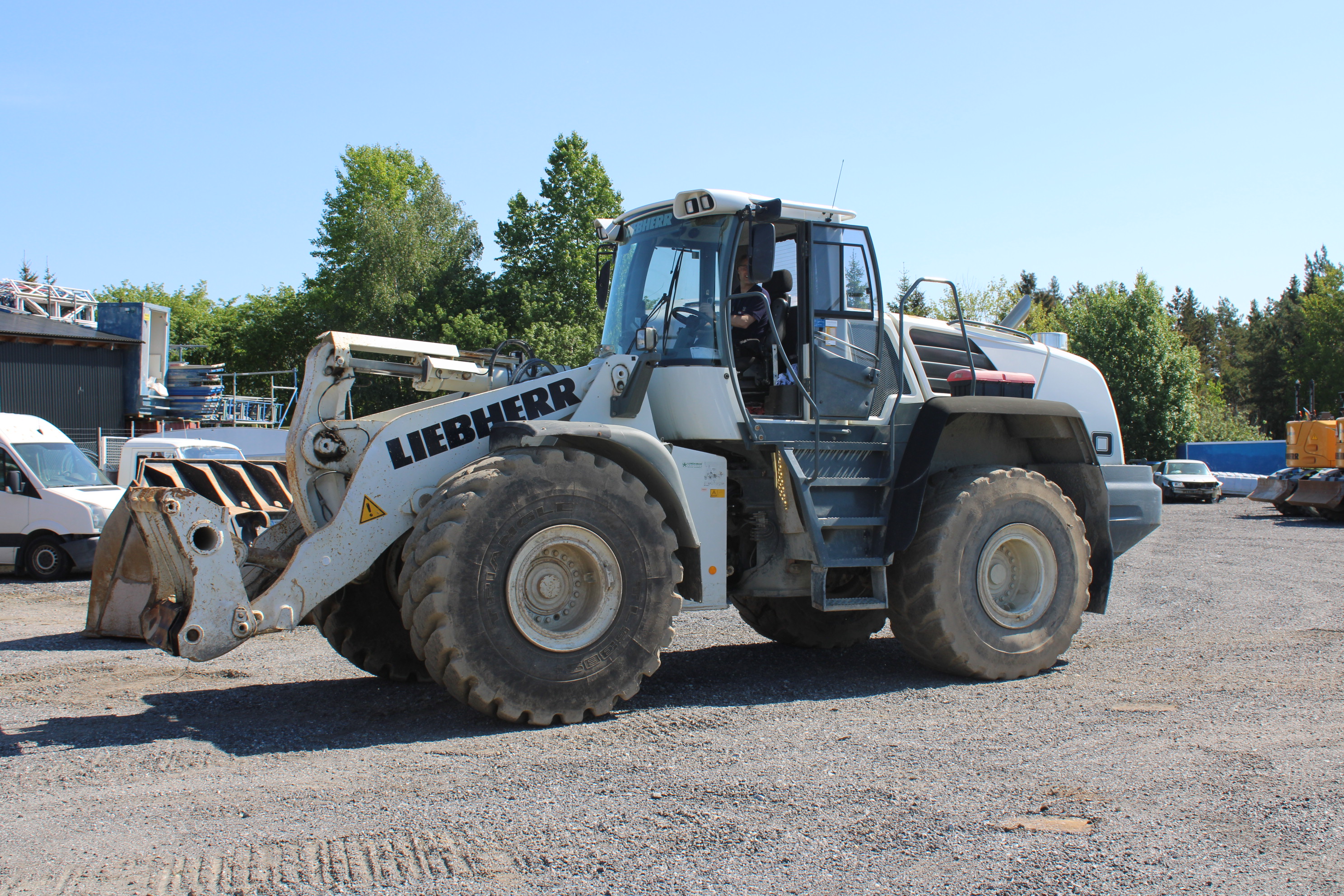

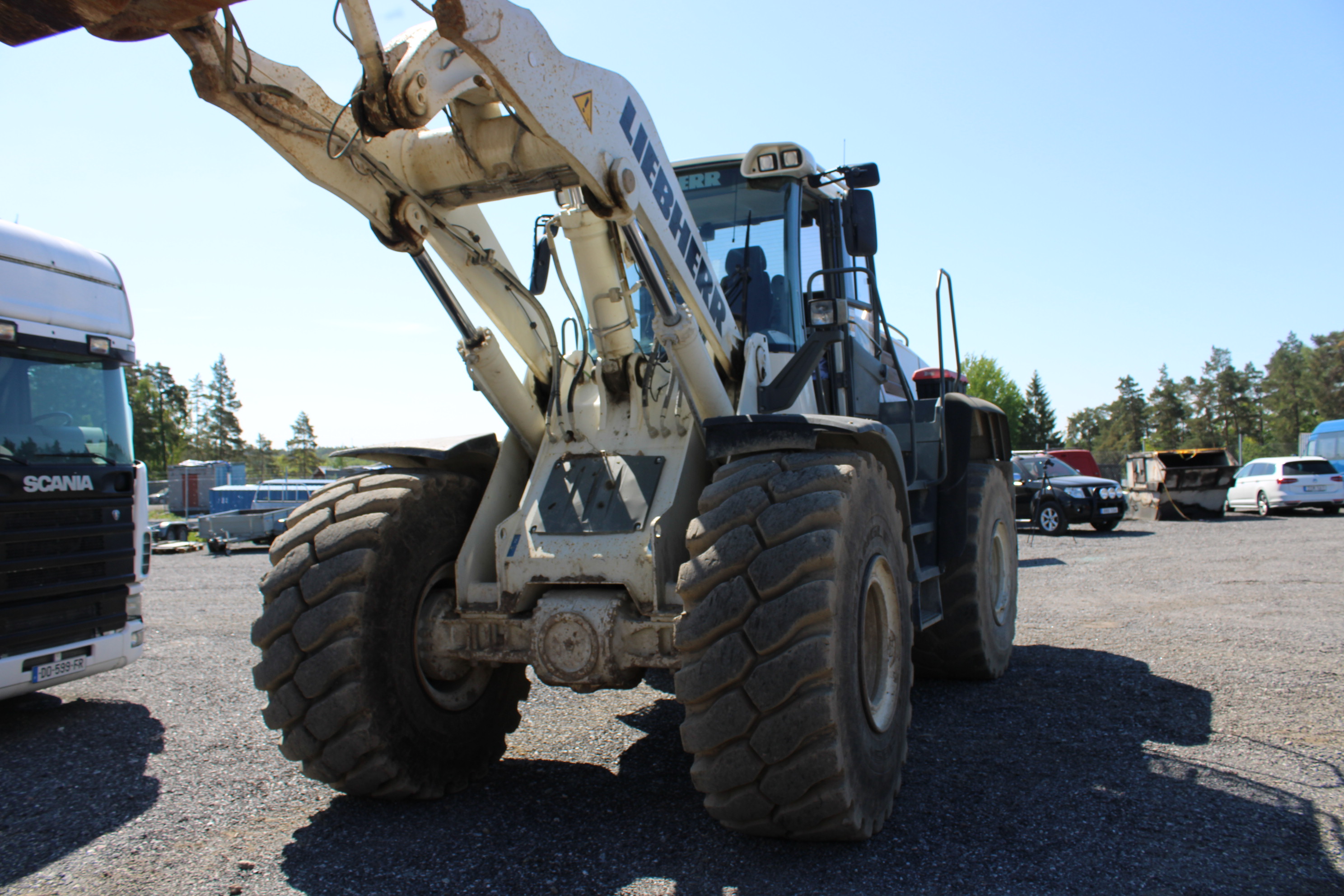

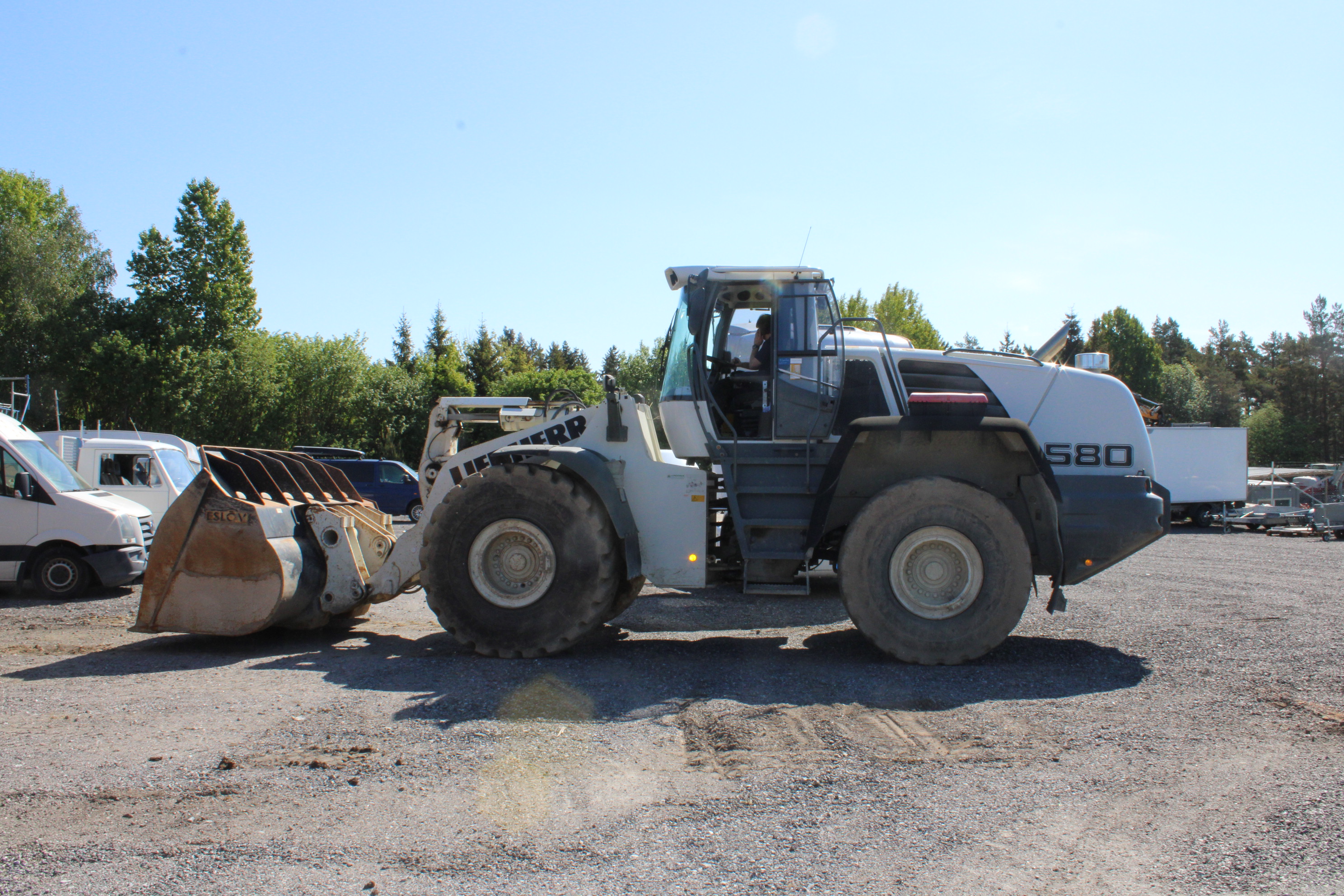

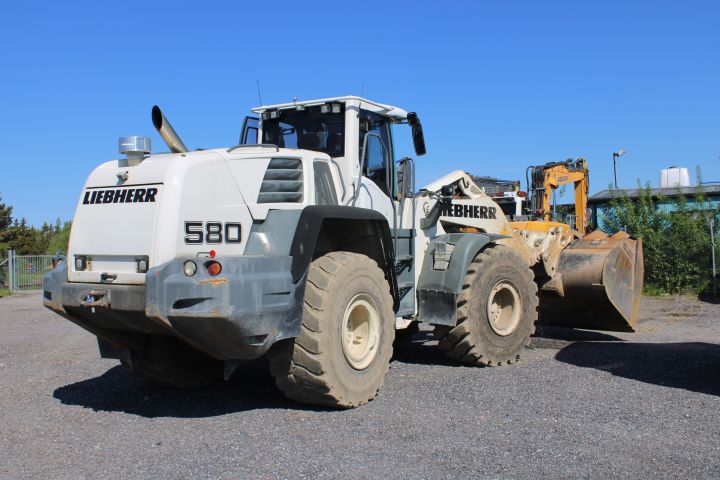

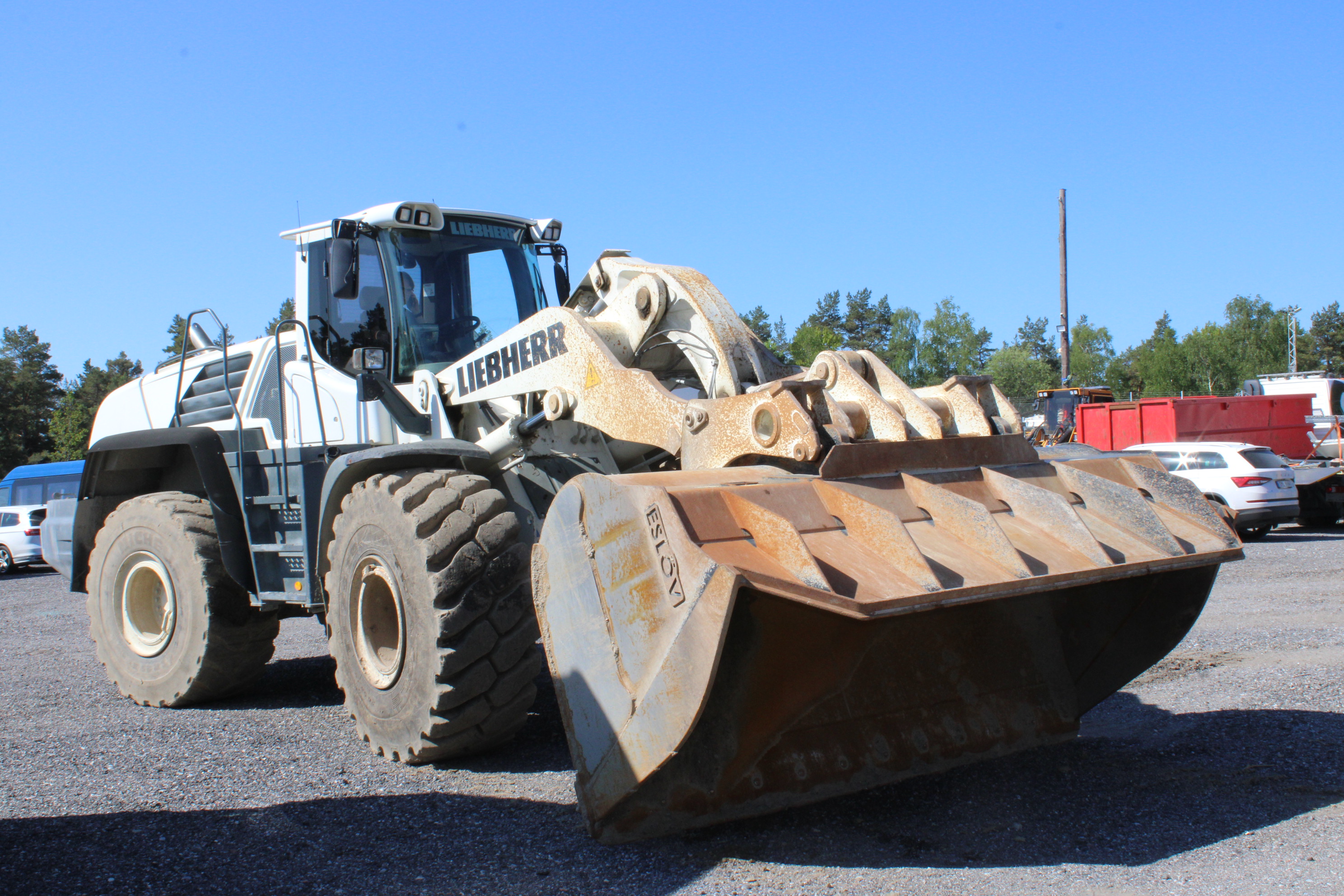

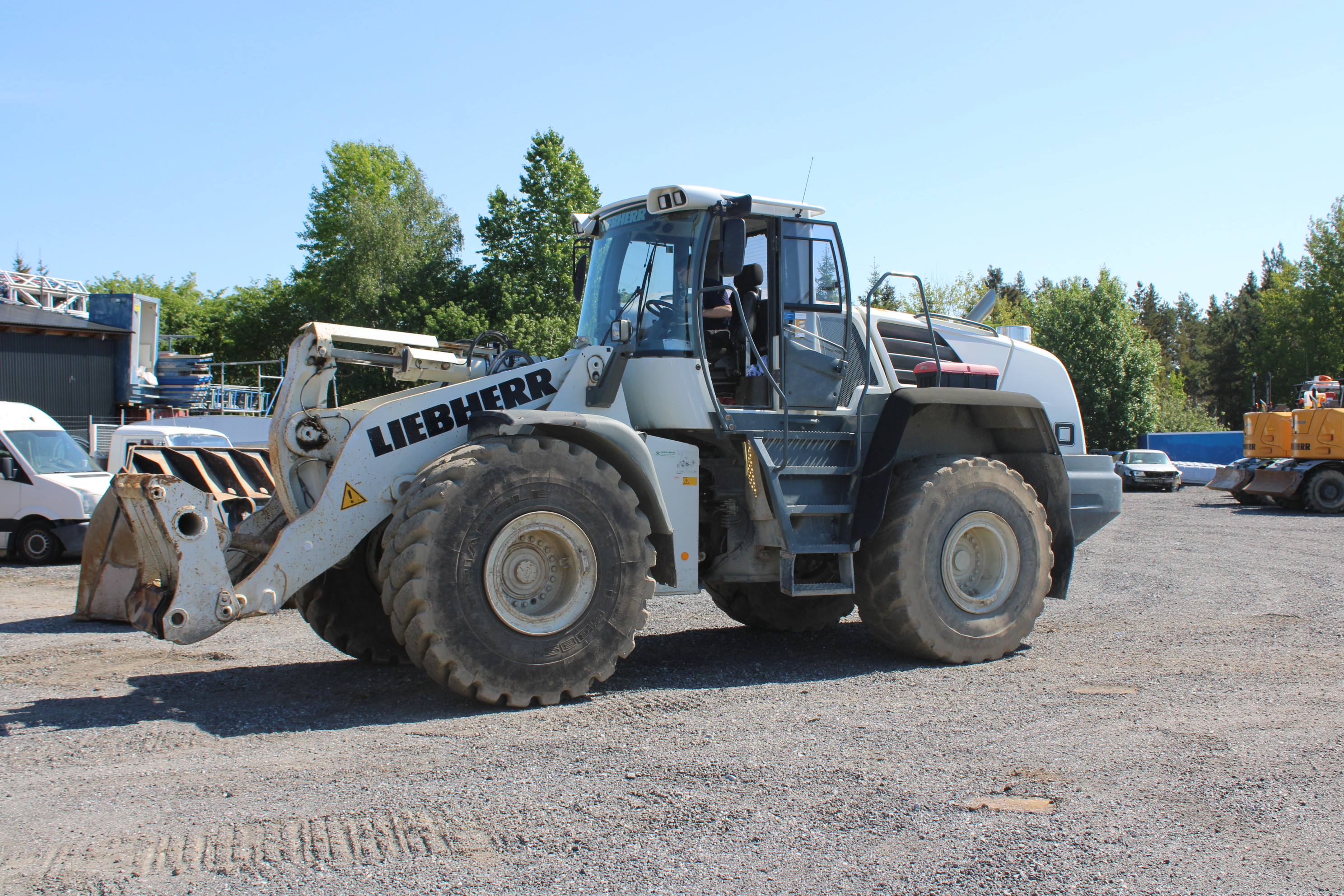

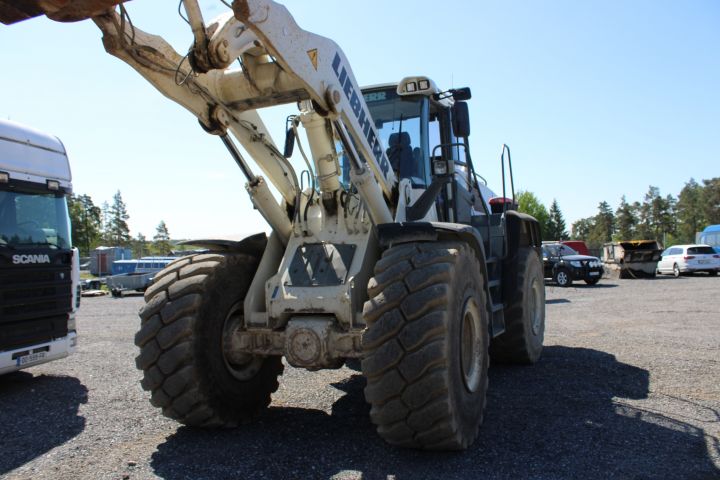

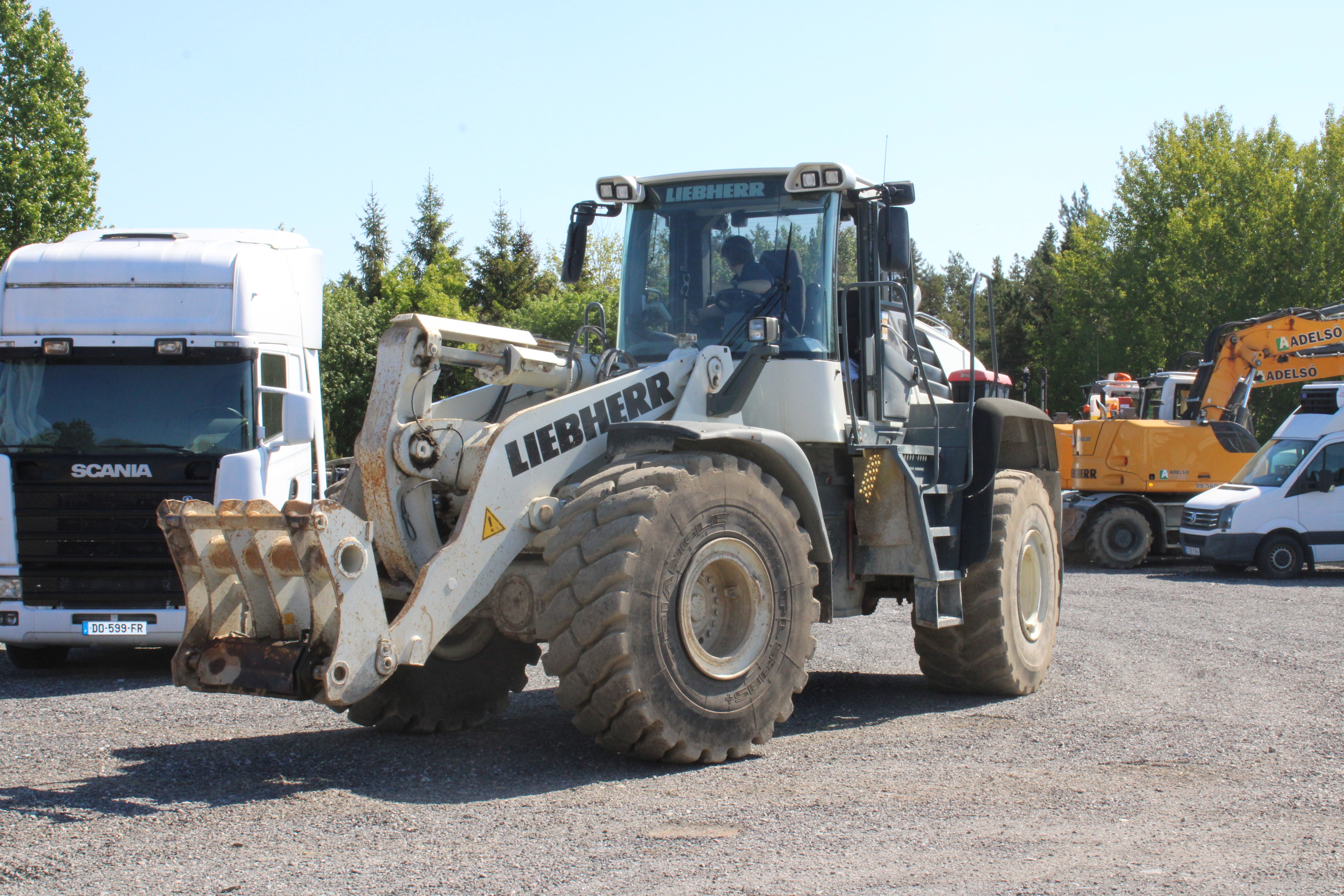

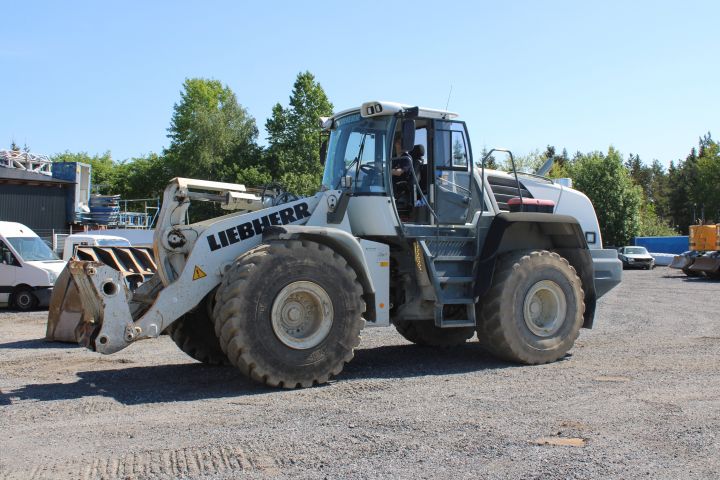

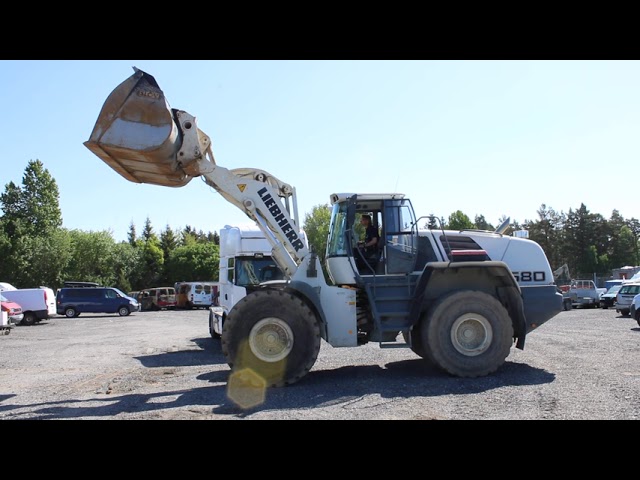

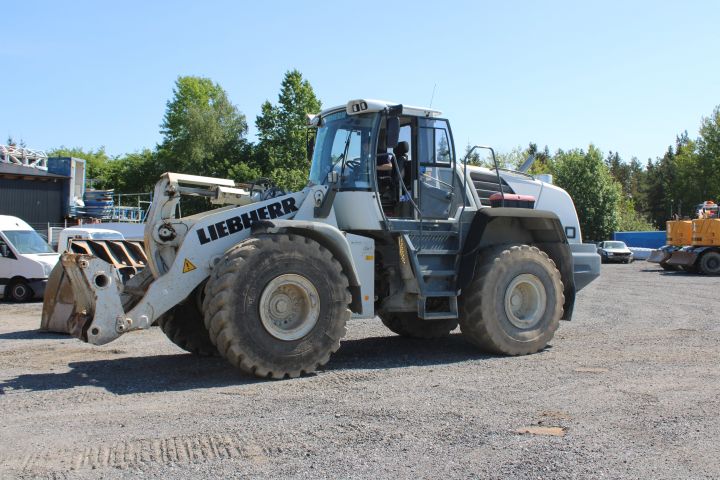

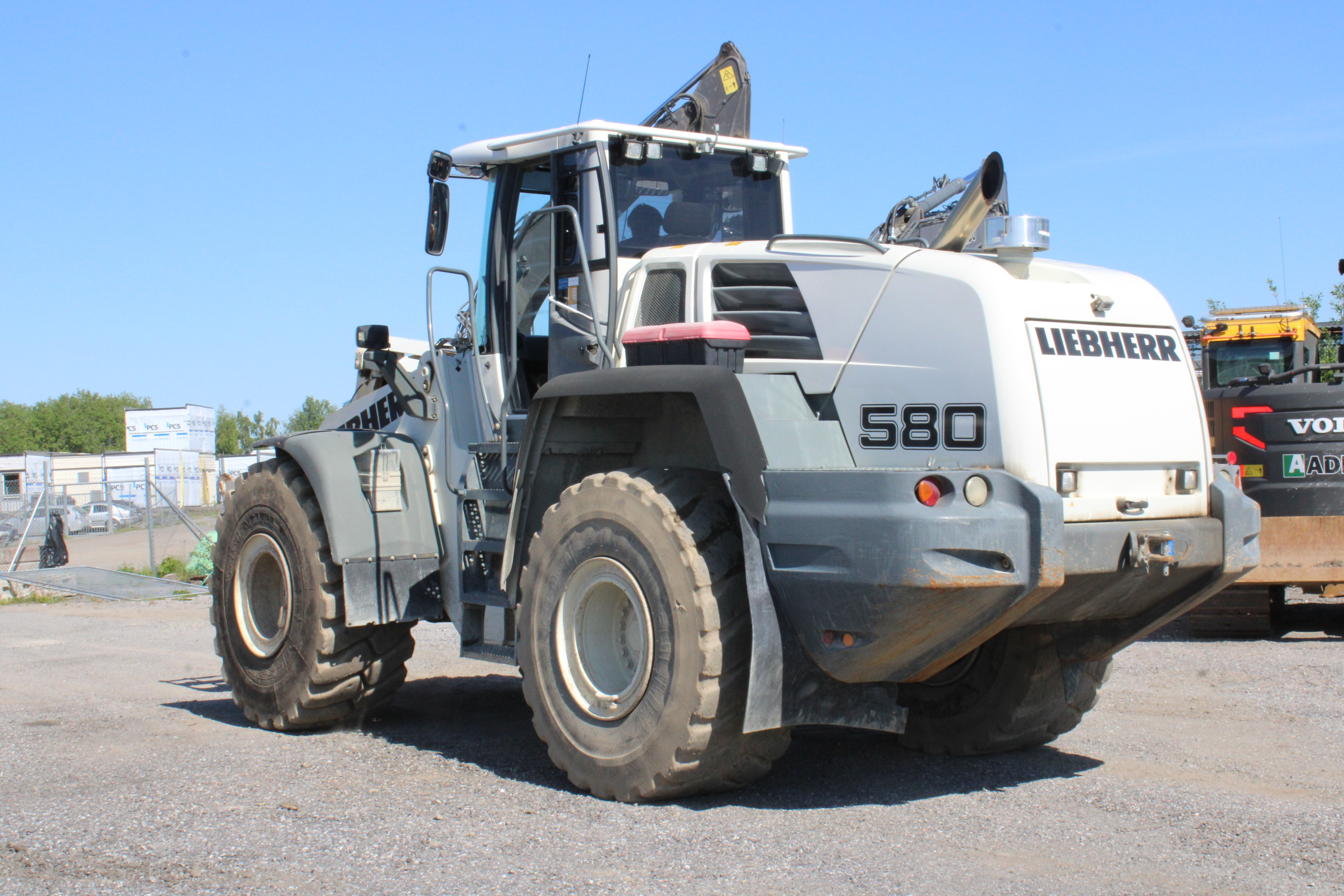

Liebherr Wheel Loader from 2011

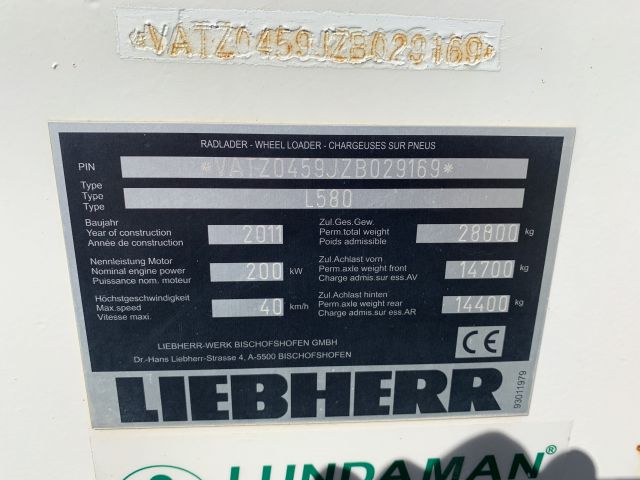

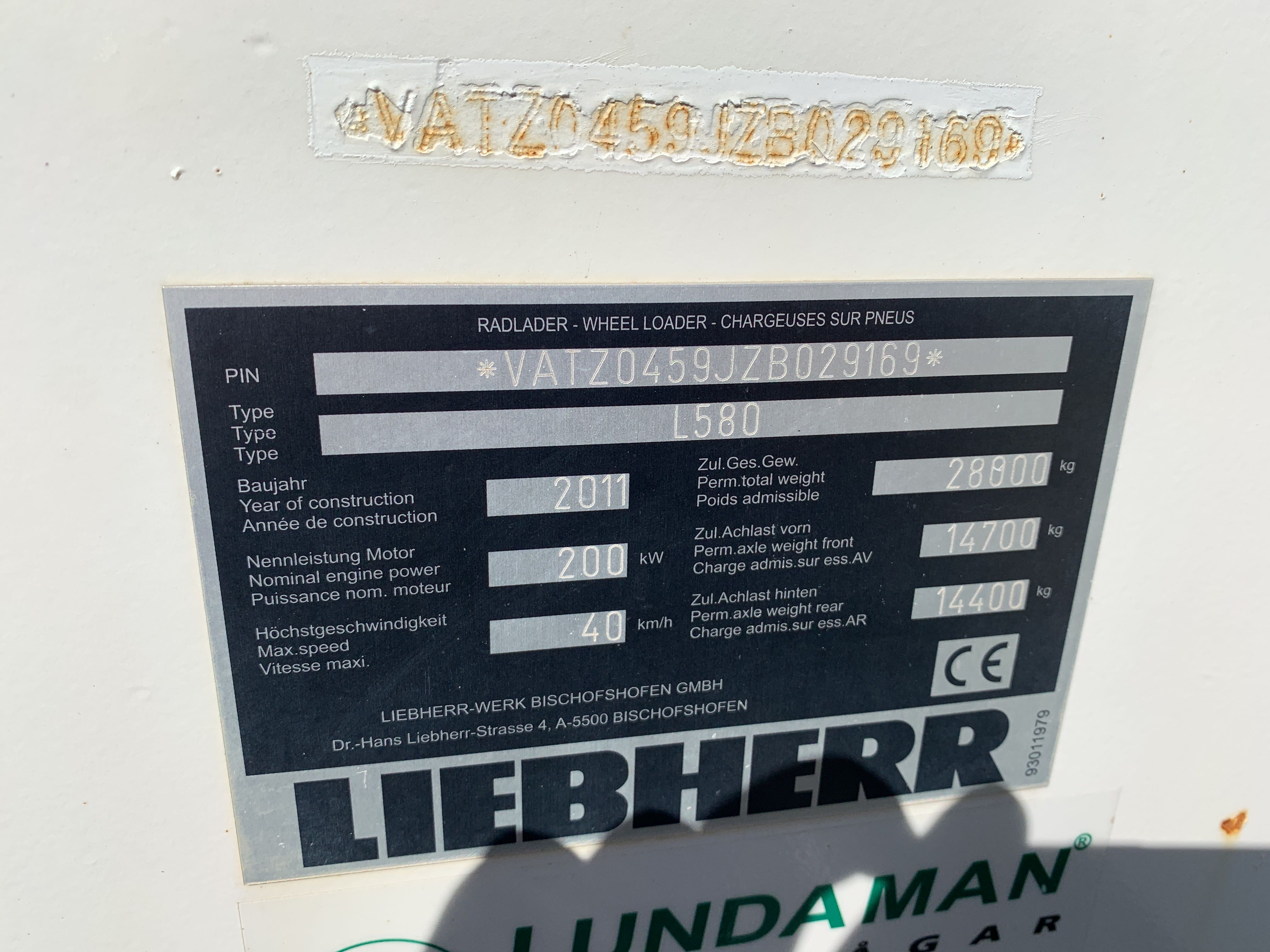

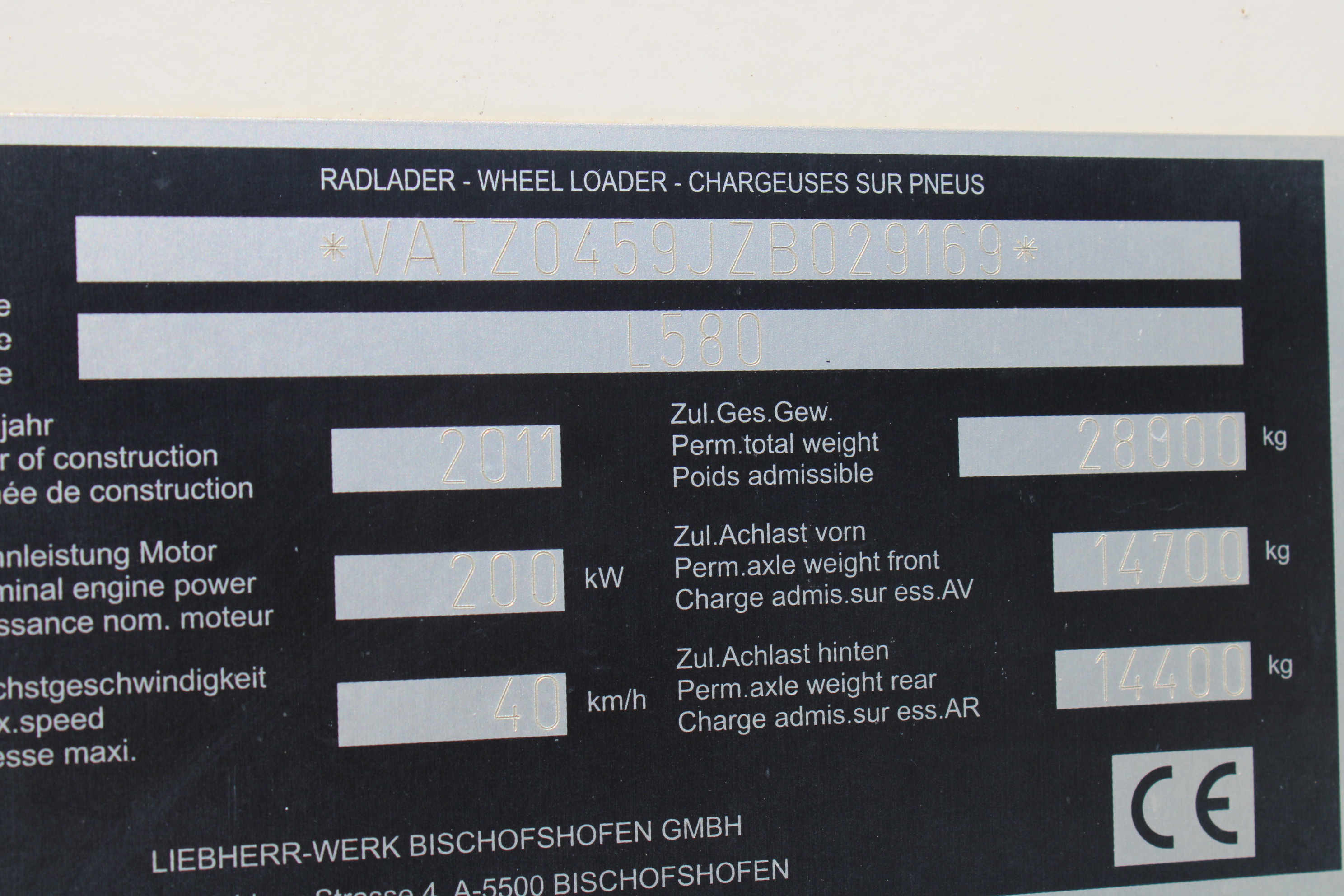

Pin number on machine: VATZ0459JZB029169
Type: L580
Year of manufacture: 2011
Engine power: 200 kW
Maximum speed: 40 km / h
Total weight: 28000 kg
Axle front pressure: 14700 kg
Axle rear pressure: 14400 kg
Opinion
The machine has undergone testing and inspection by a certified inspector for Construction Machinery. Information and statement about the machine in consultation with the inspector. The machine was running and tested 2021-06-02

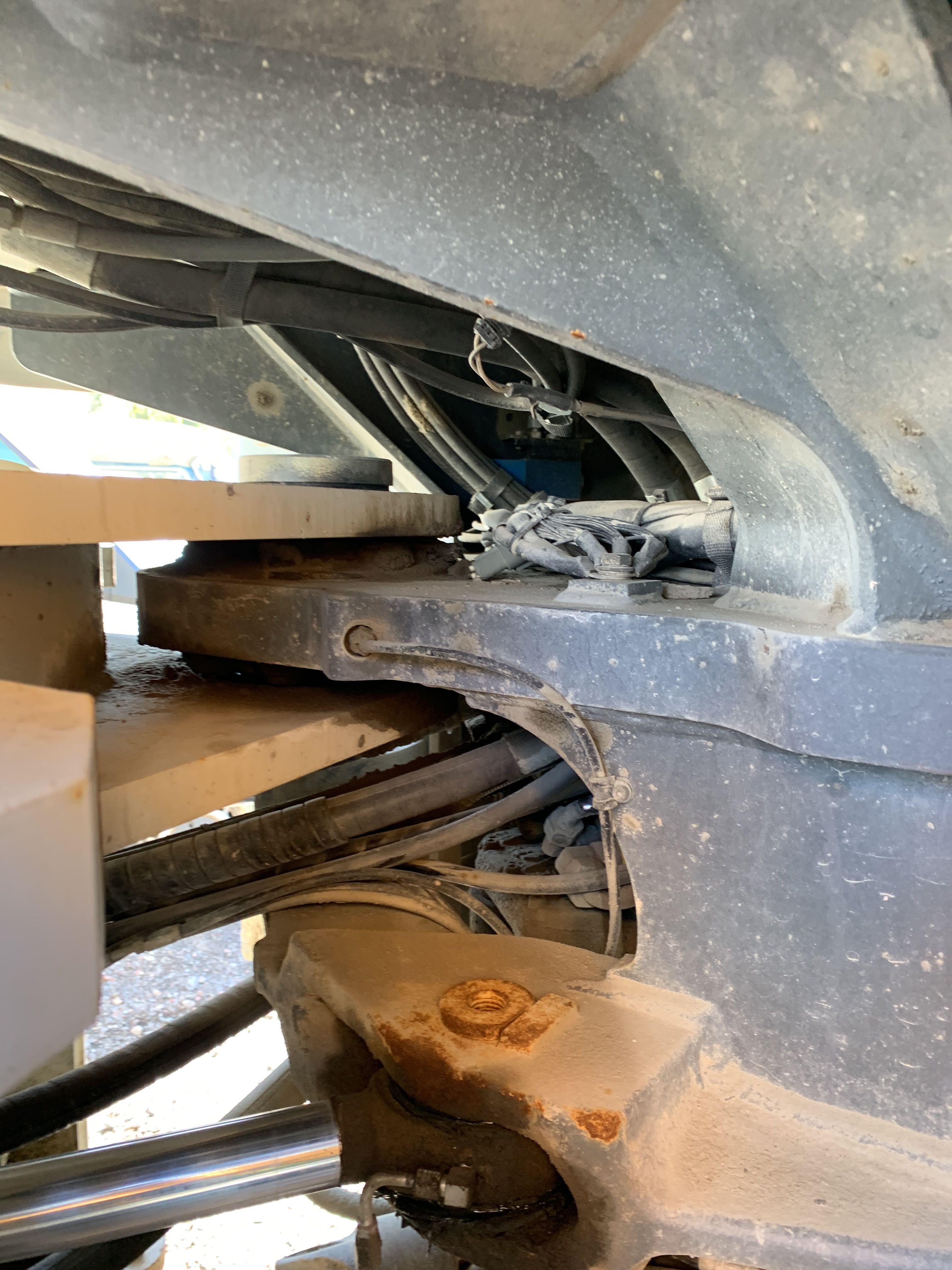

The machine was a bit difficult to start but jumped on the second start attempt without aids. The batteries may need to be inspected. Instruction manual for the machine is missing, The main switch is located in the engine compartment and should be moved according to the test performer. Unprotected poles and wiring should be inspected prior to a fire inspection. Windshield cracked.

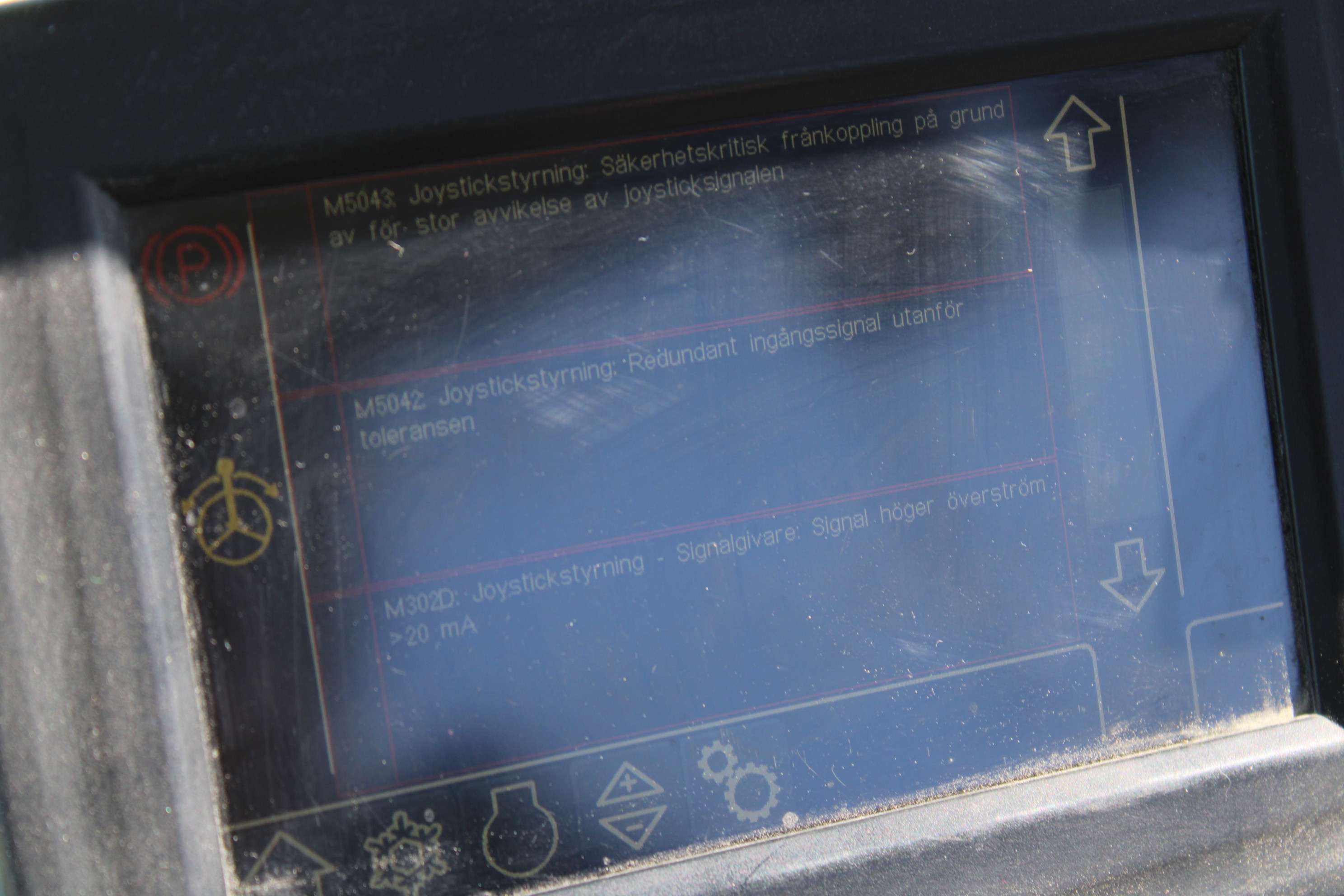

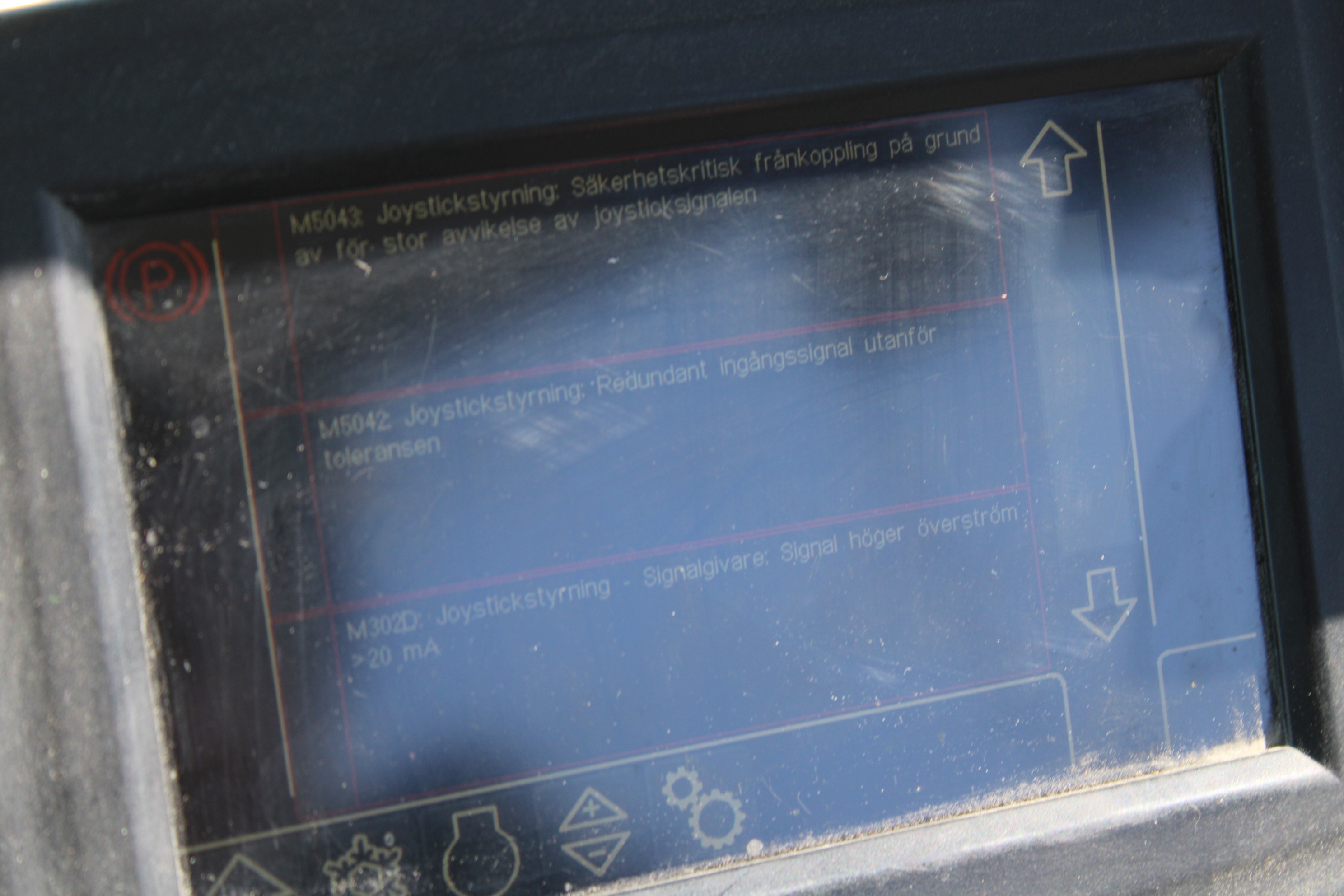

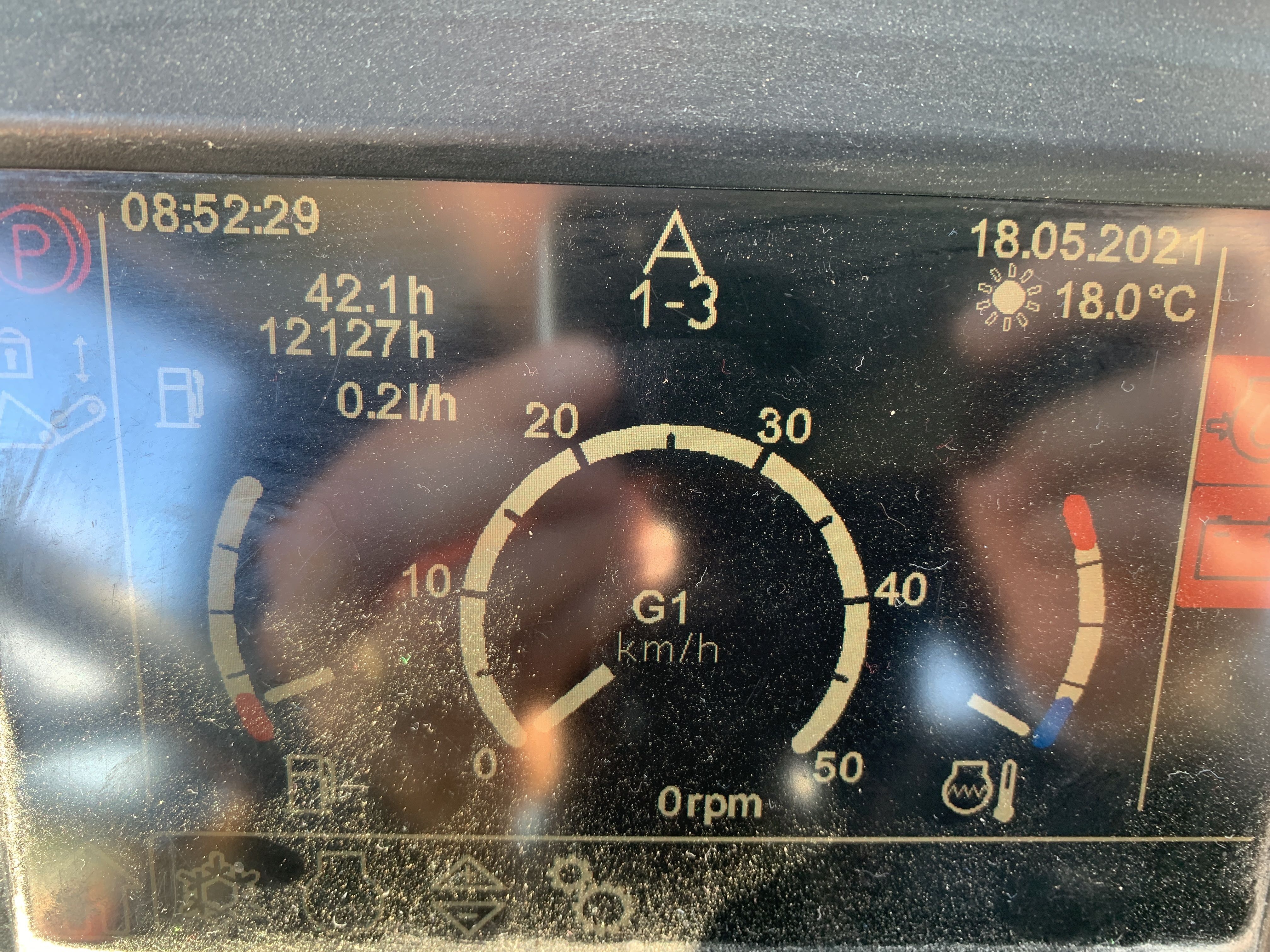

Error messages that appeared on the display

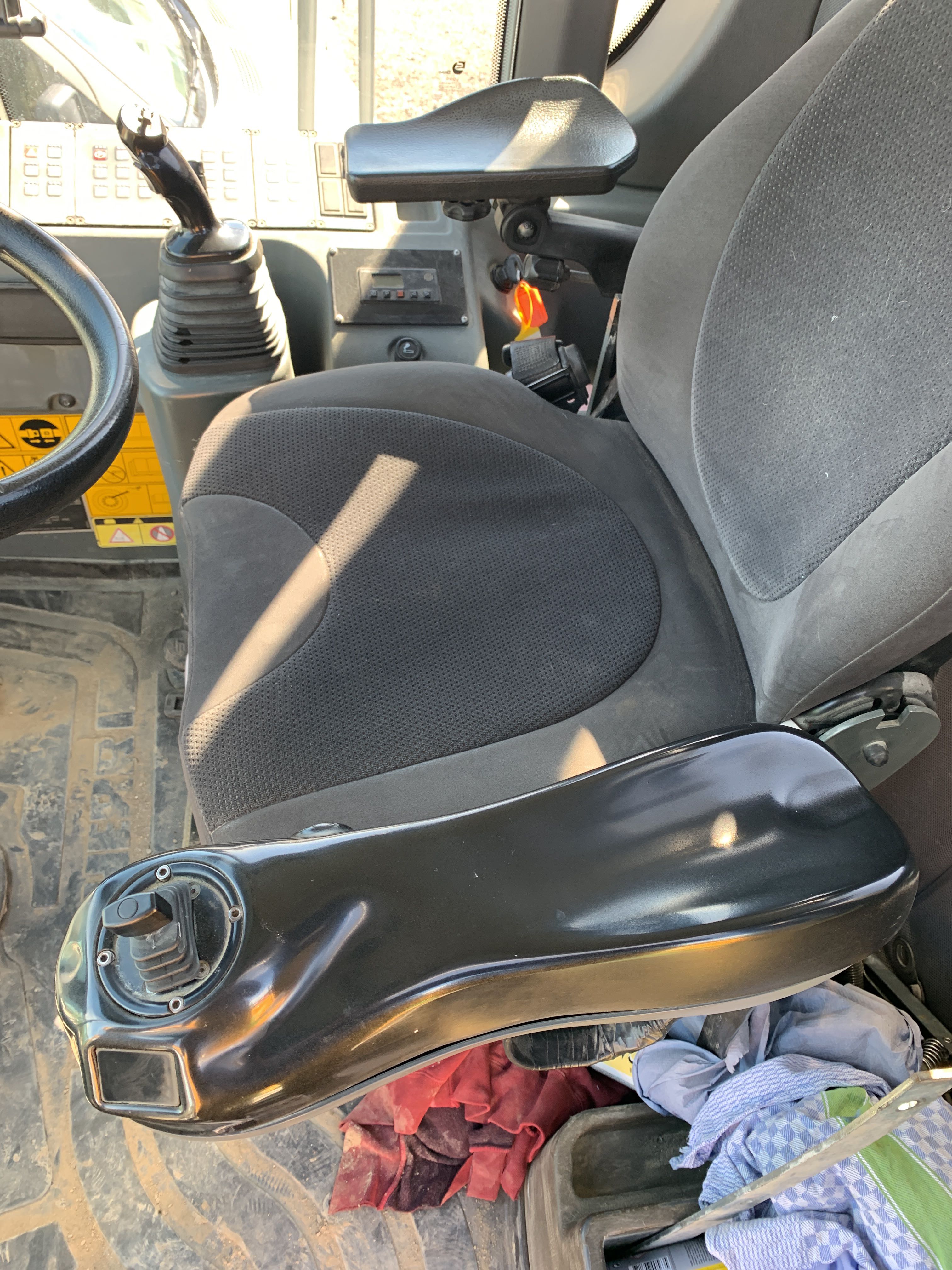

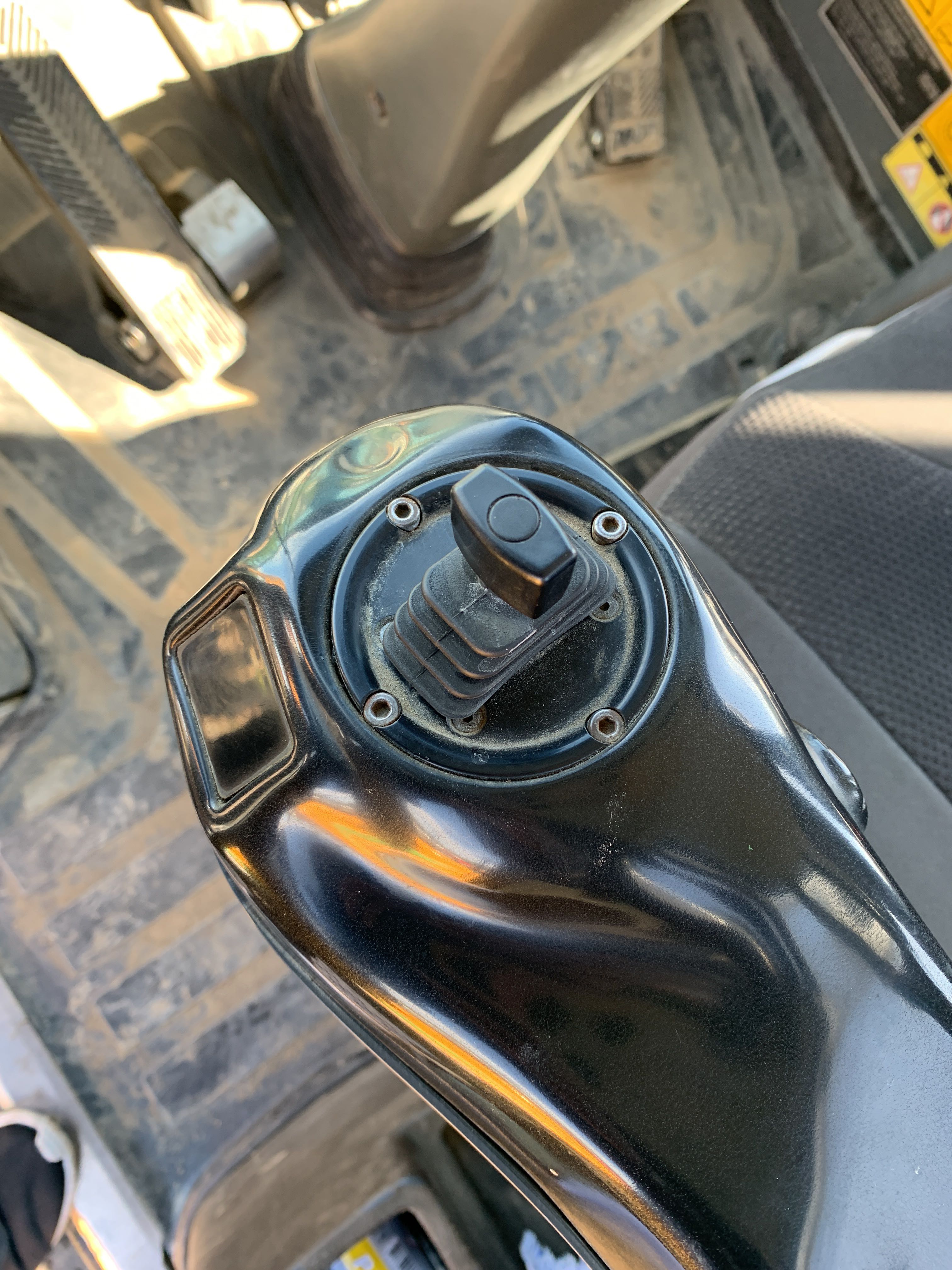

- M5043: Joystick control: Safety-critical disconnection due to large deviation of the joystick signal
- M5042: Joystick control: Redudant input signal outside the tolerance

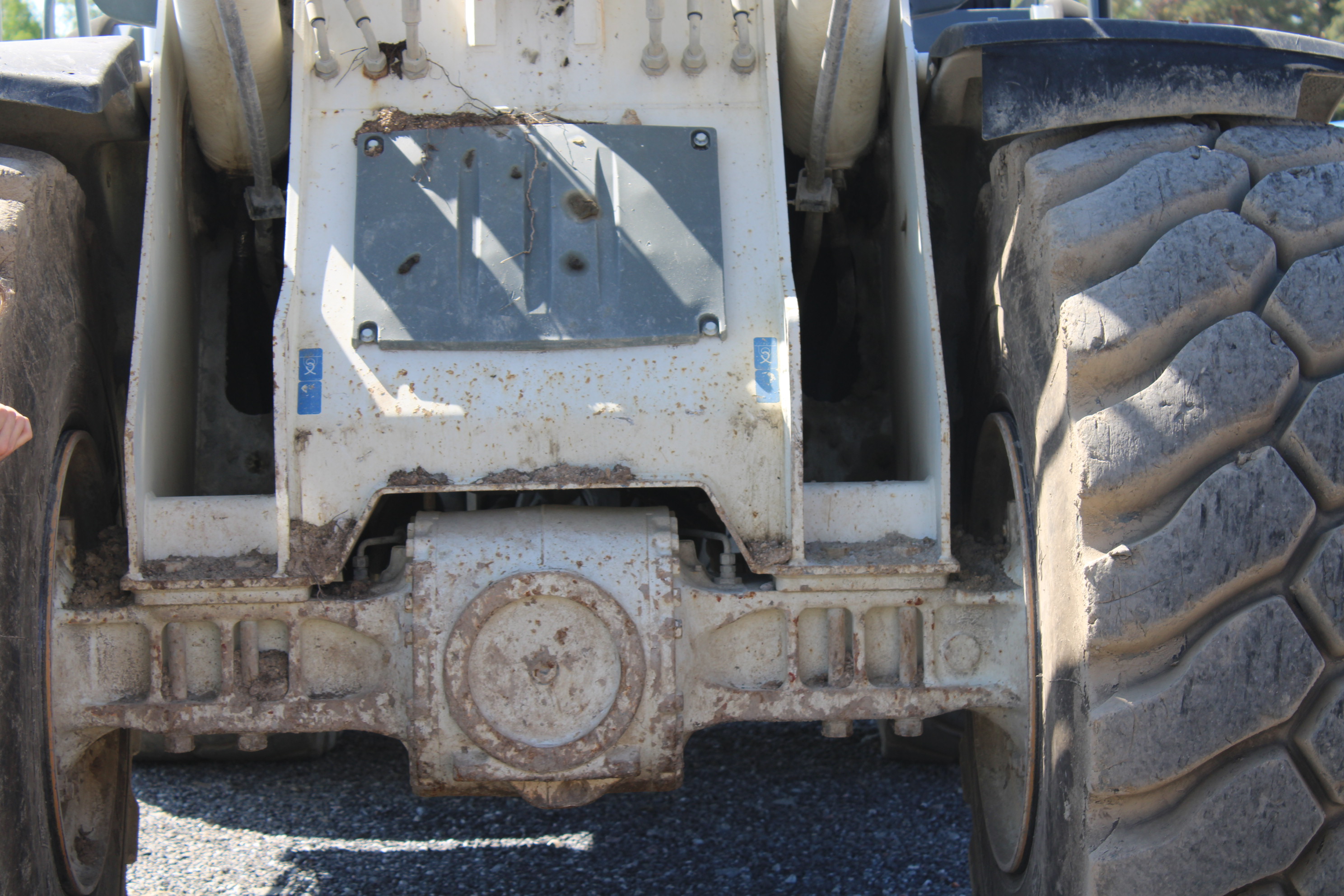

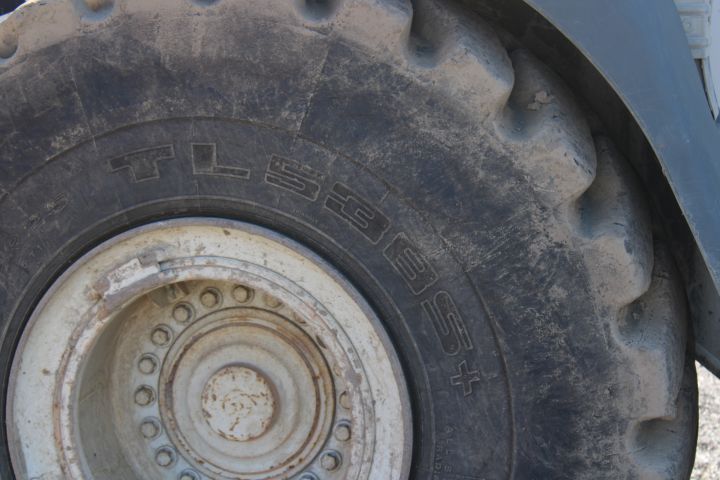

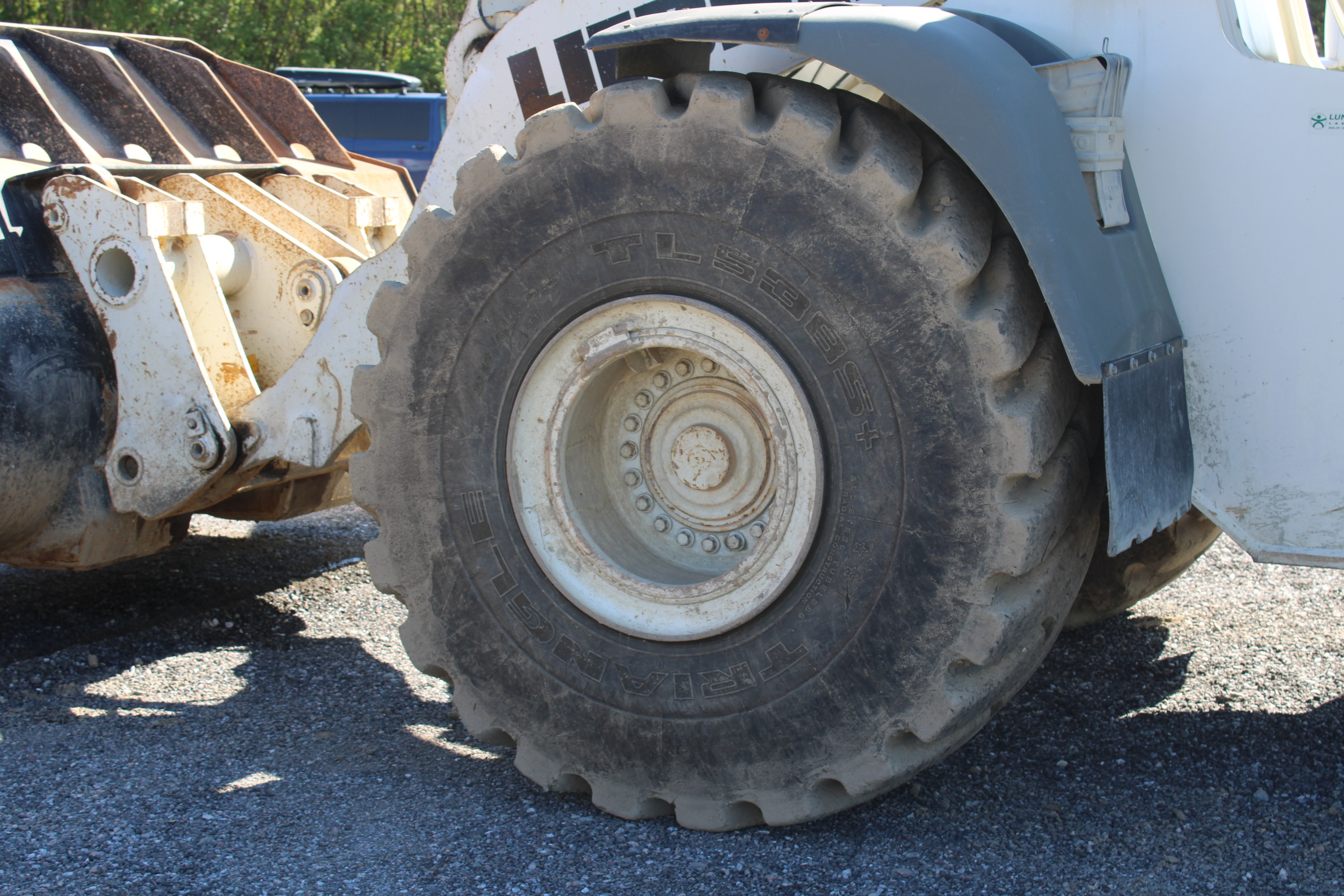

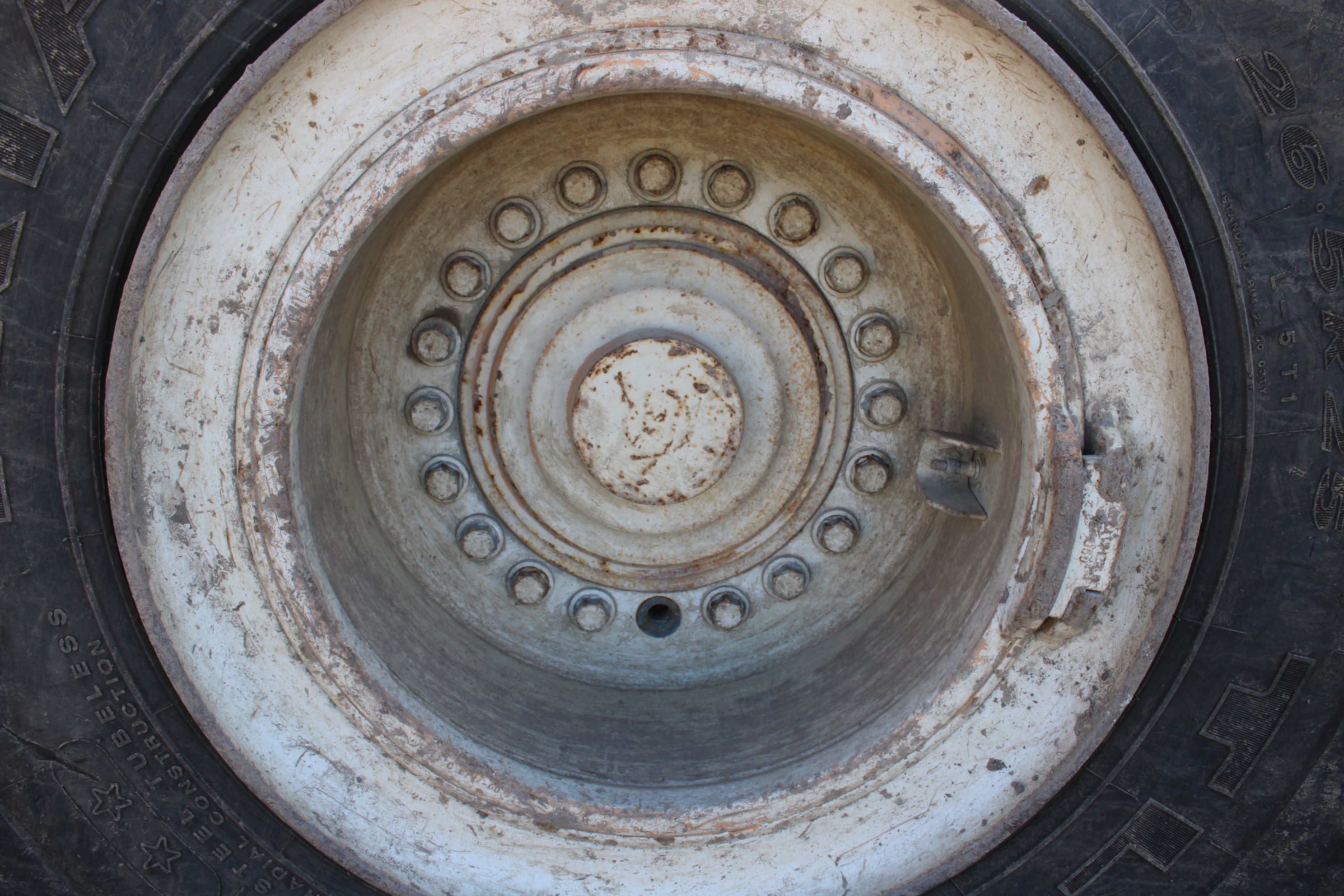

These two faults meant that coupling in reverse was tricky with reversing and driving the machine functioned normally during test driving. The machine was driven up to 3rd gear. Brakes normally with regard to age and hours, Wheels on the rear axle should be overhauled and replaced shortly.

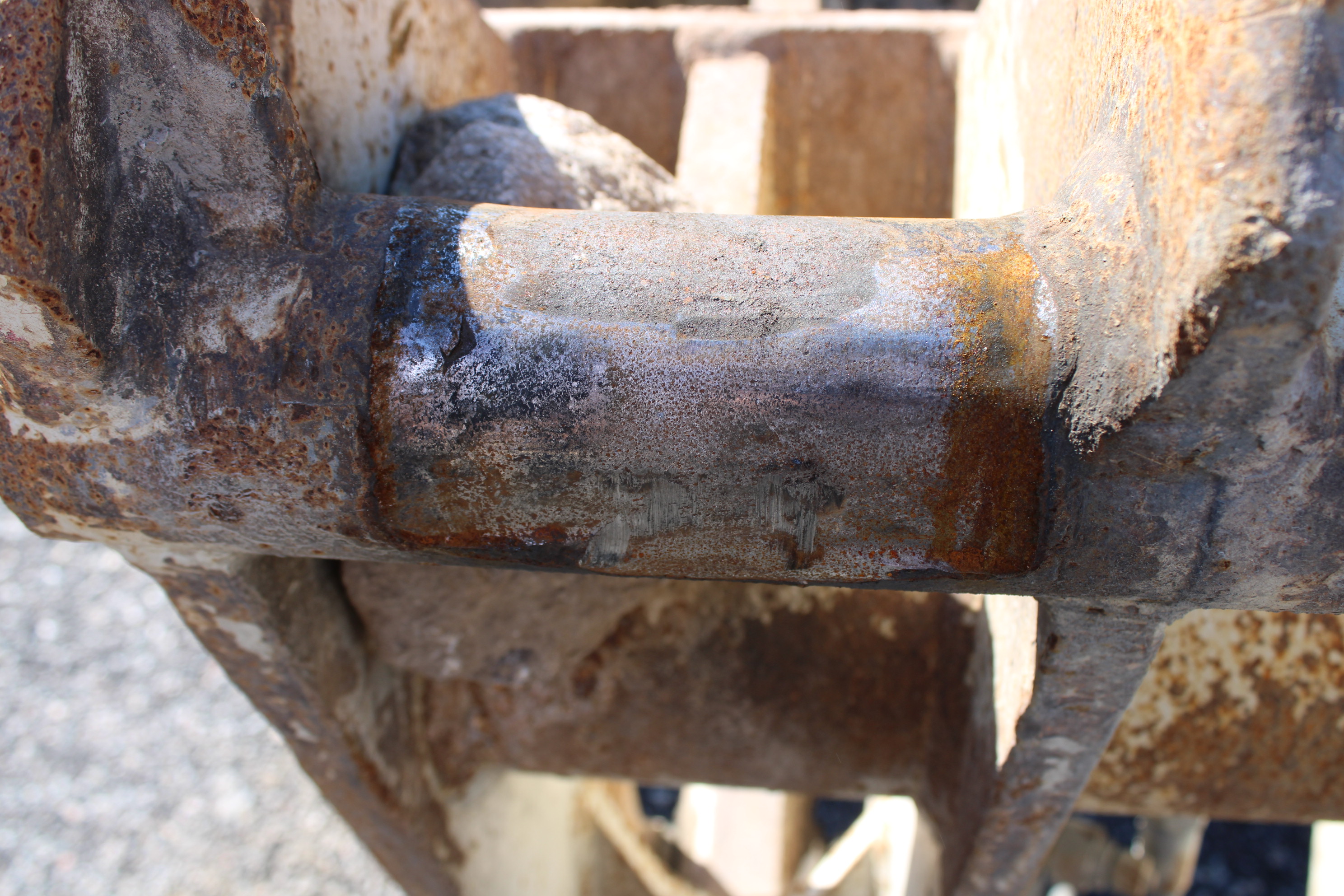

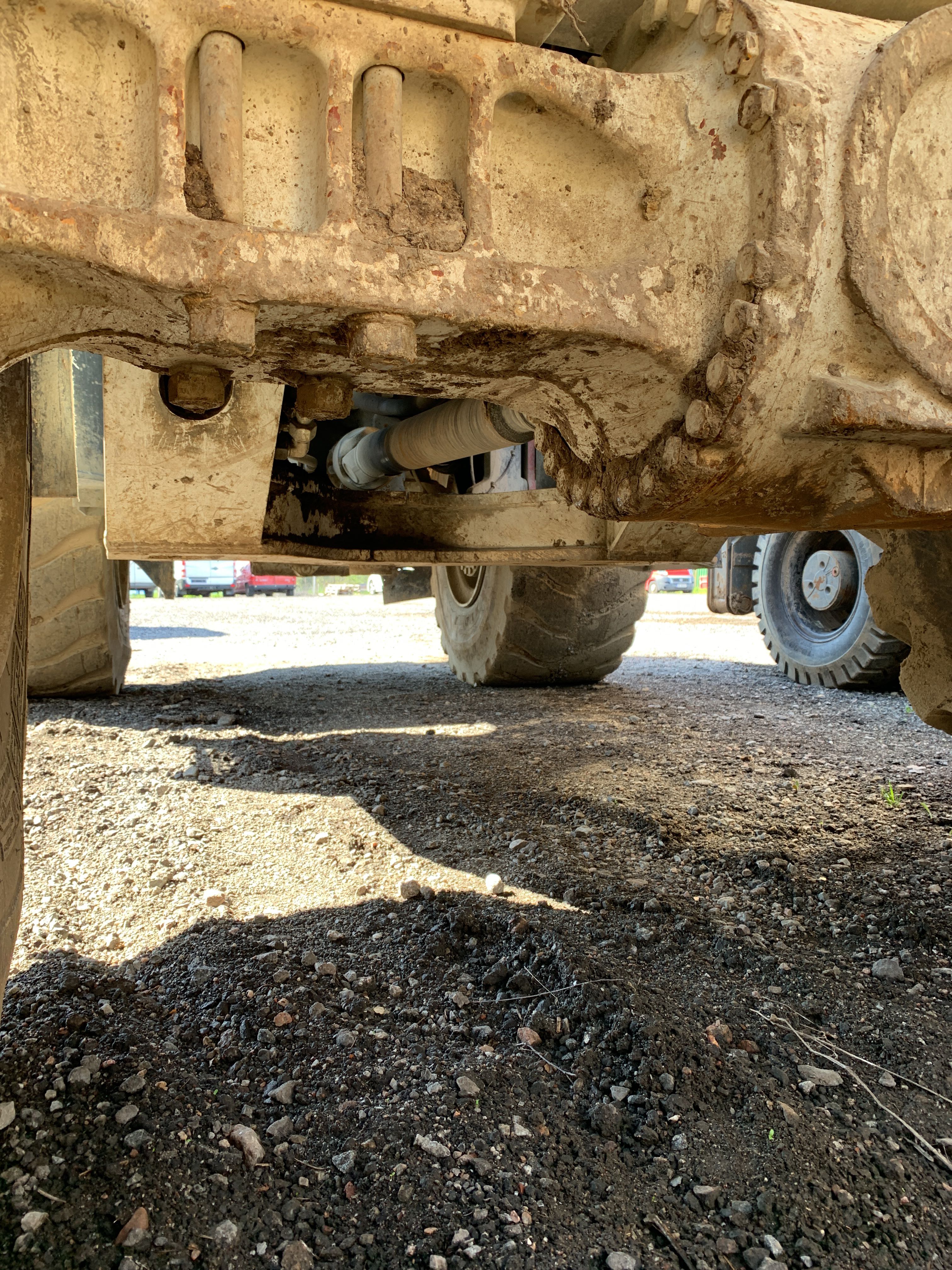

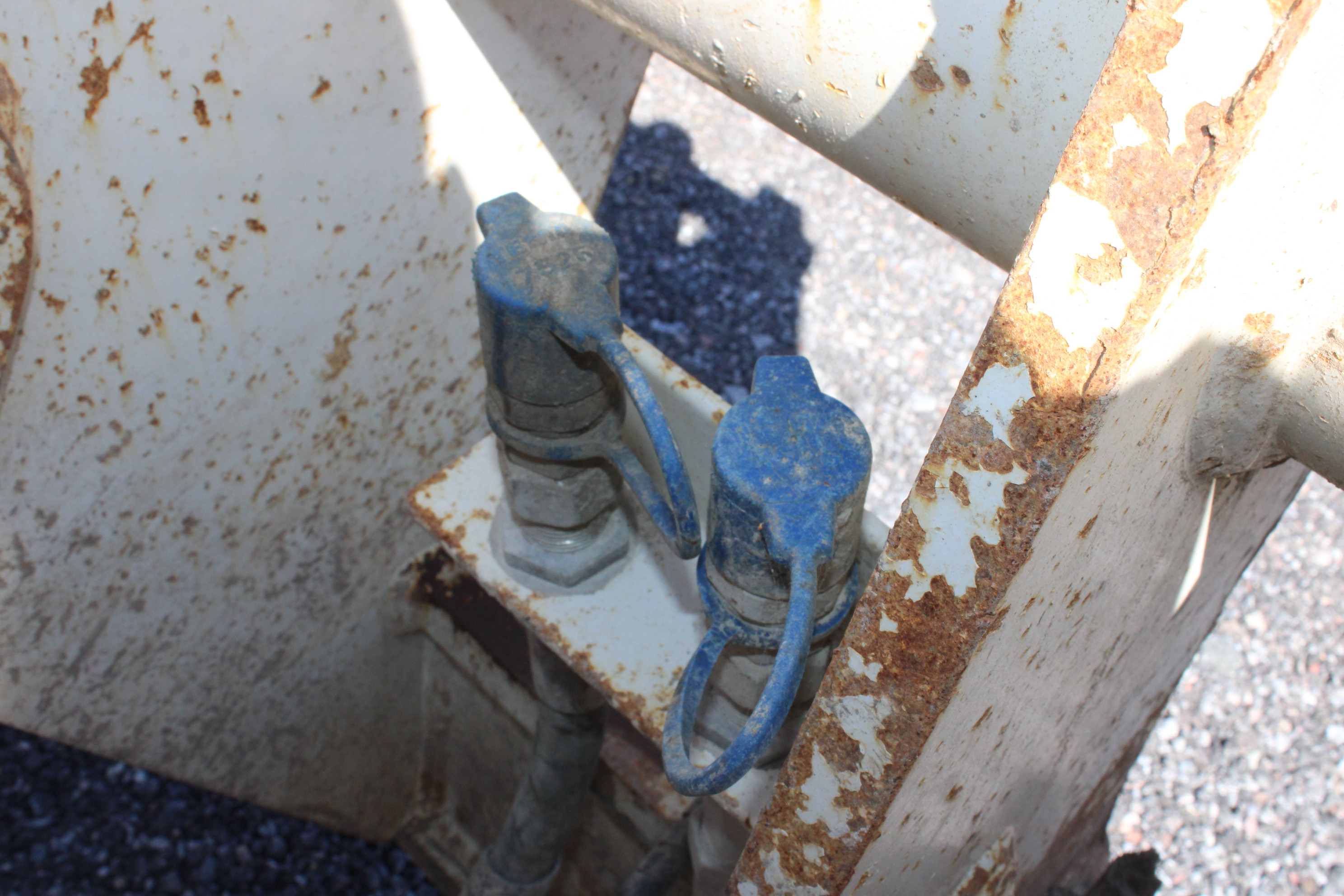

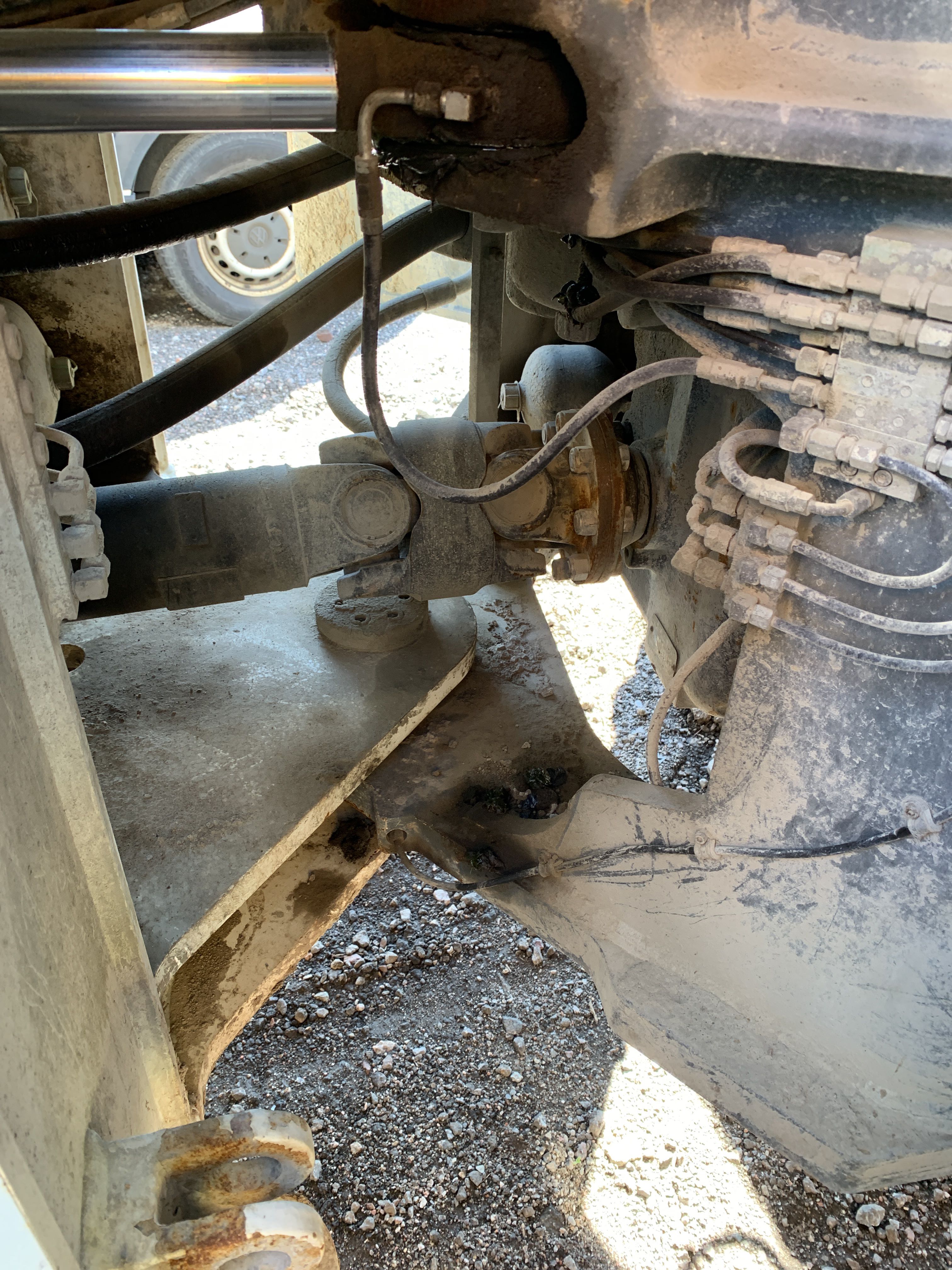

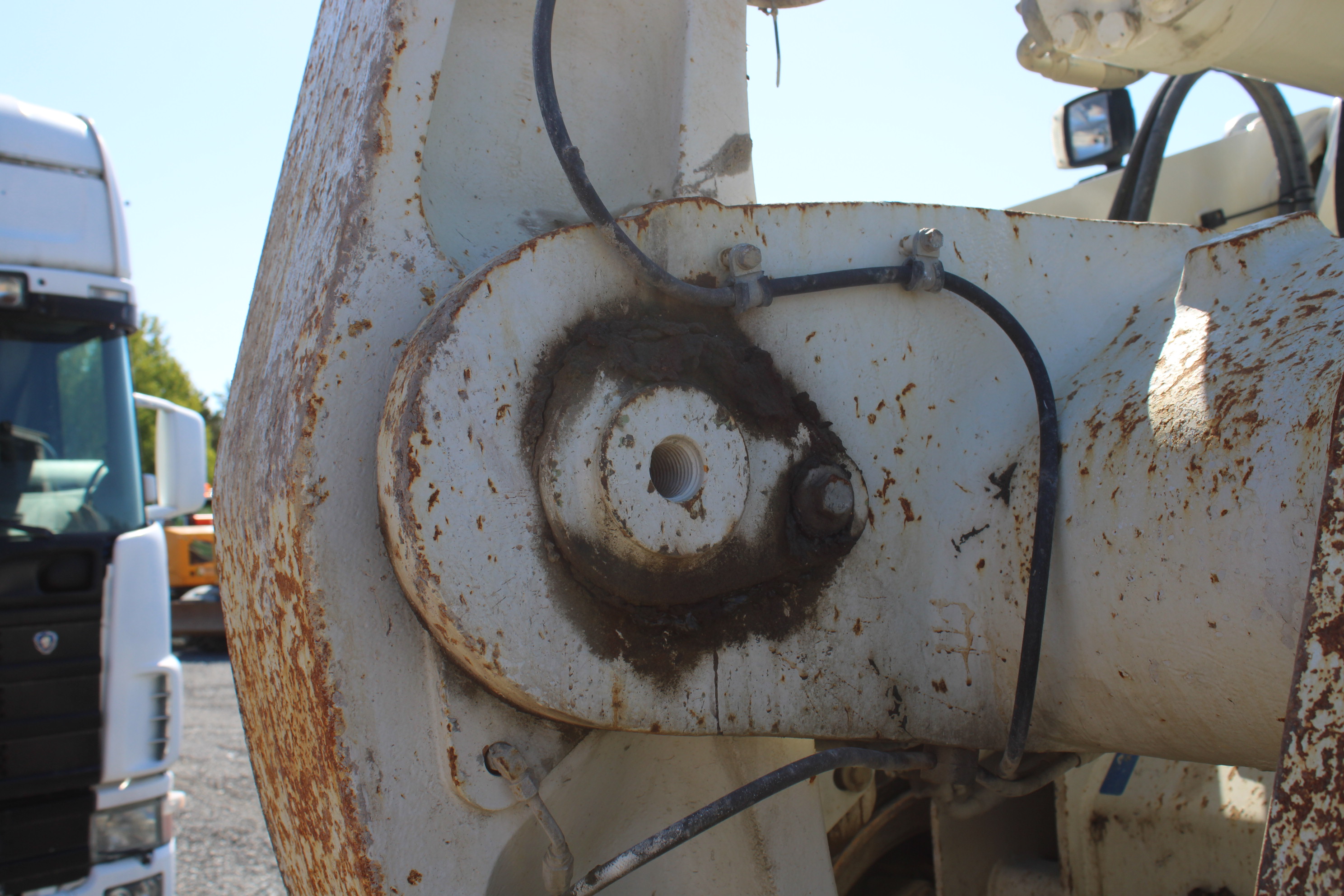

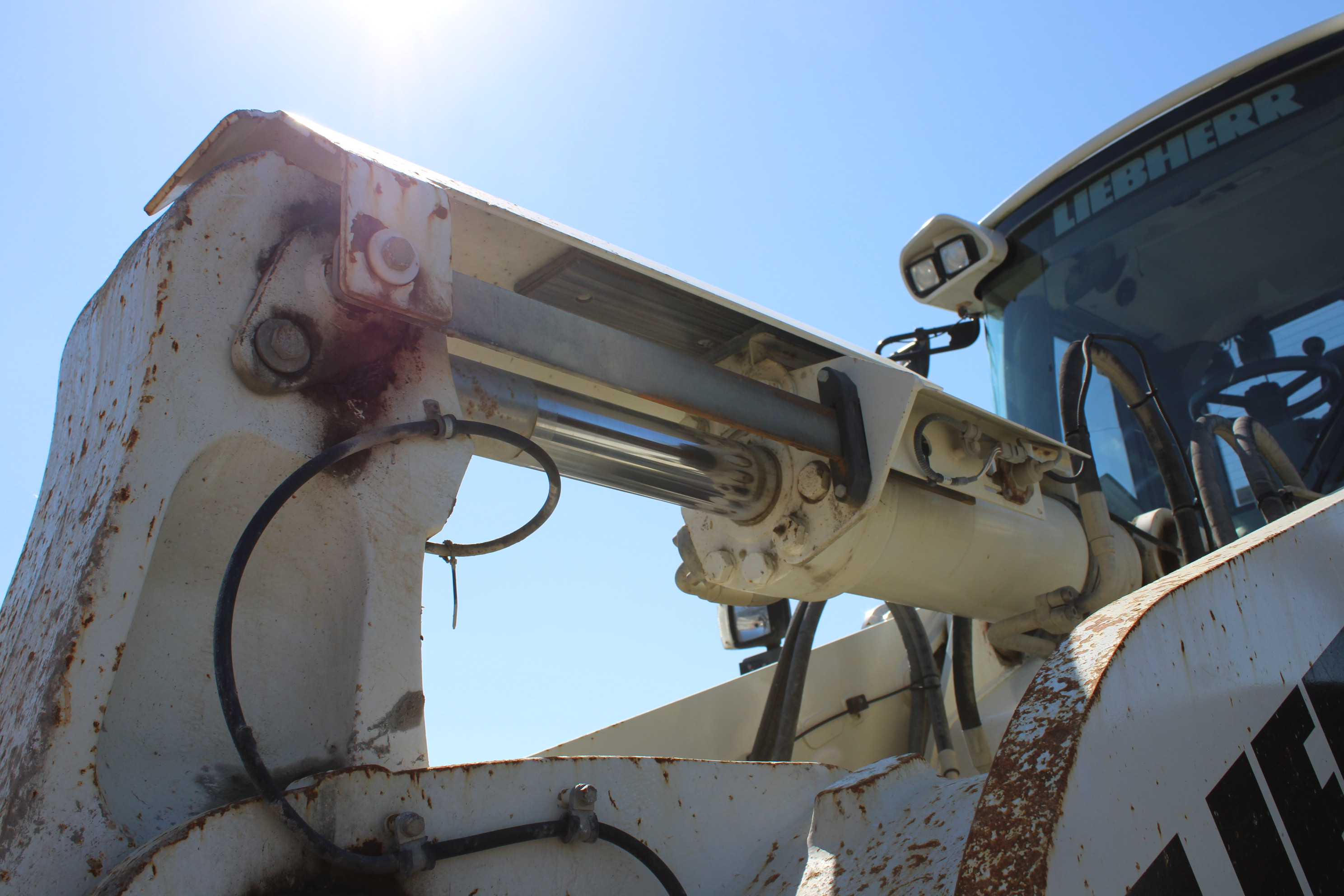

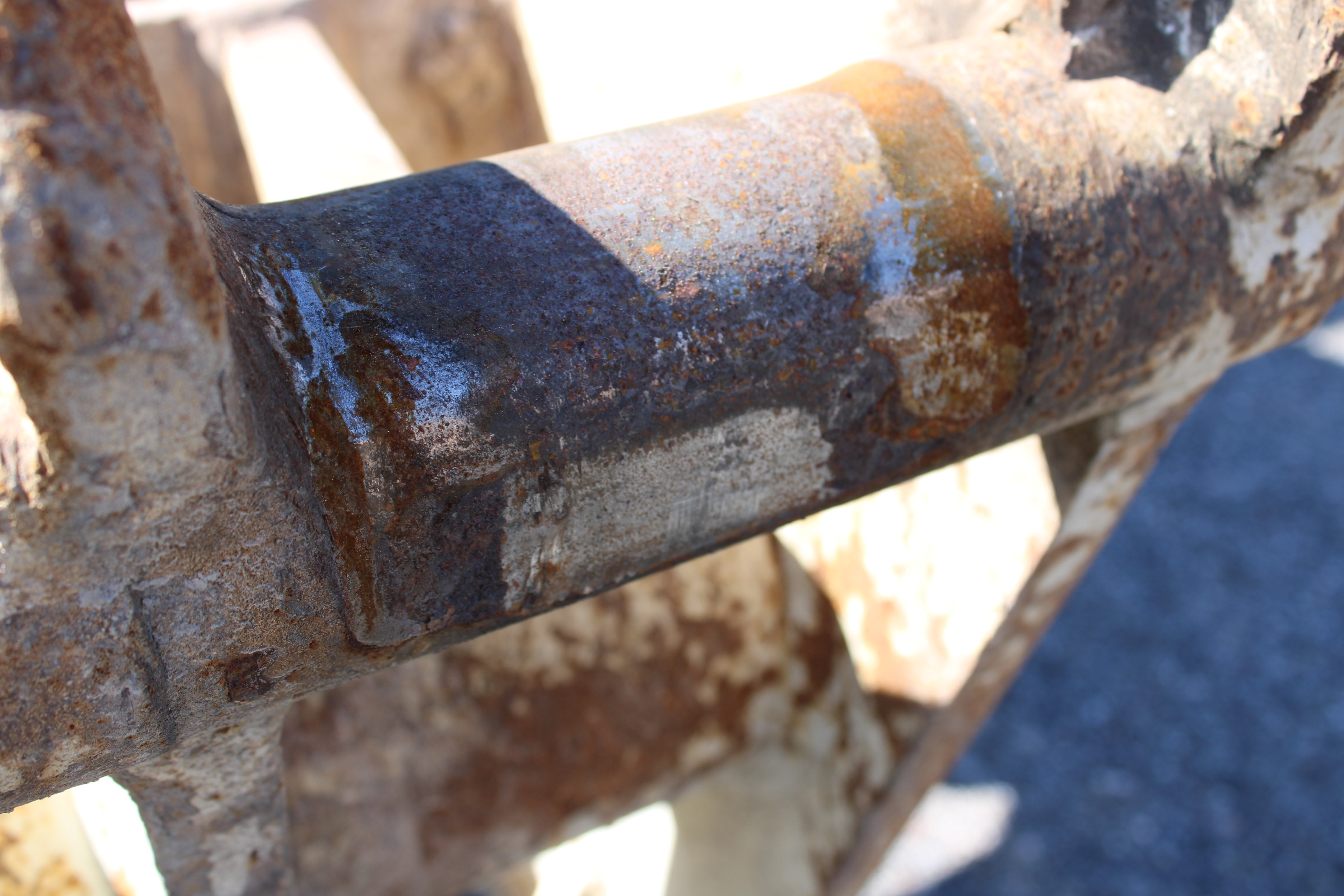

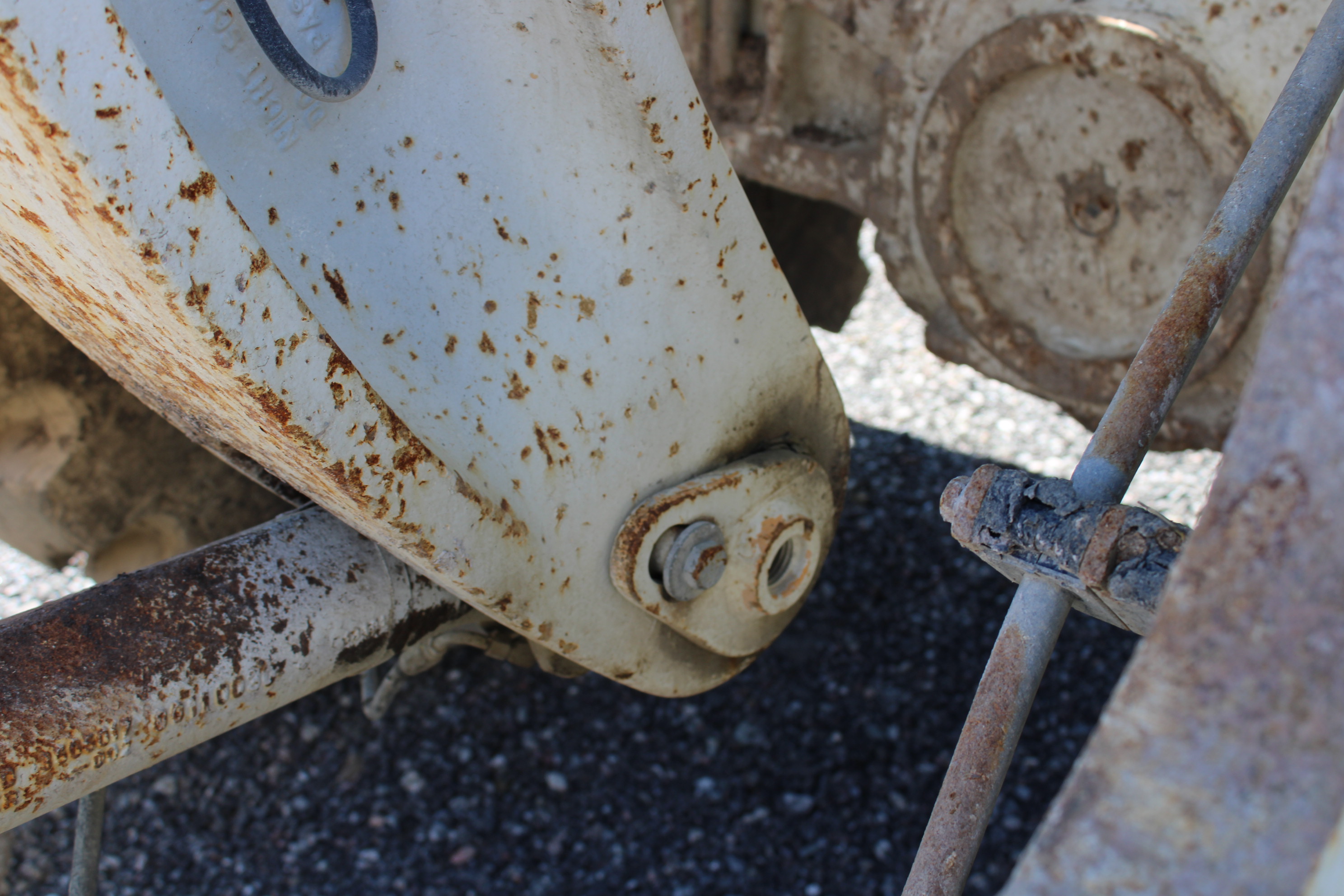

Minor play in the tool holder and in the unit was noticed during the test. But play was not judged to be beyond the normal way of hours and age on the machine. The PTO shaft was in normal condition. When unloading the bucket, the engine switched off and needed to be rotated so that the implement could be switched on / off without the engine being switched off. According to the test person, the hydraulic system may be incorrectly connected and hence the engine switched off.

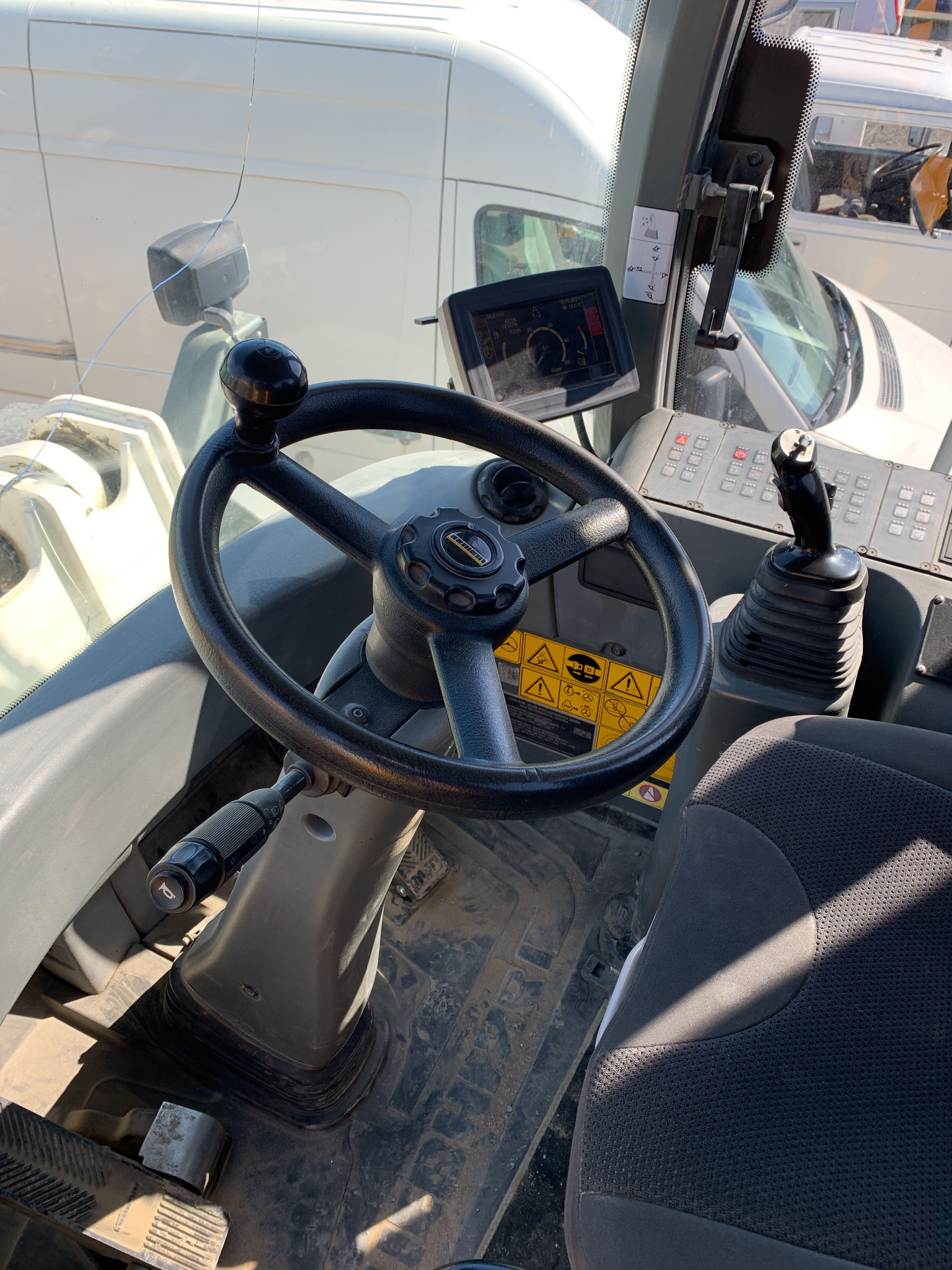

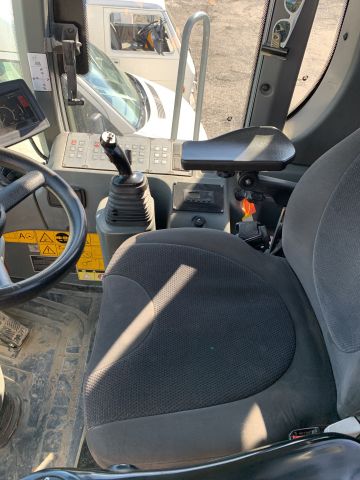

The steering wheel adjustment does not lock in height but can be slid up and down without securing it in one position.
Overall, the machine is judged to be in normal condition with regard to age and hours, the machine has a certain need for review according to noted shortcomings in the text above.
Accessories

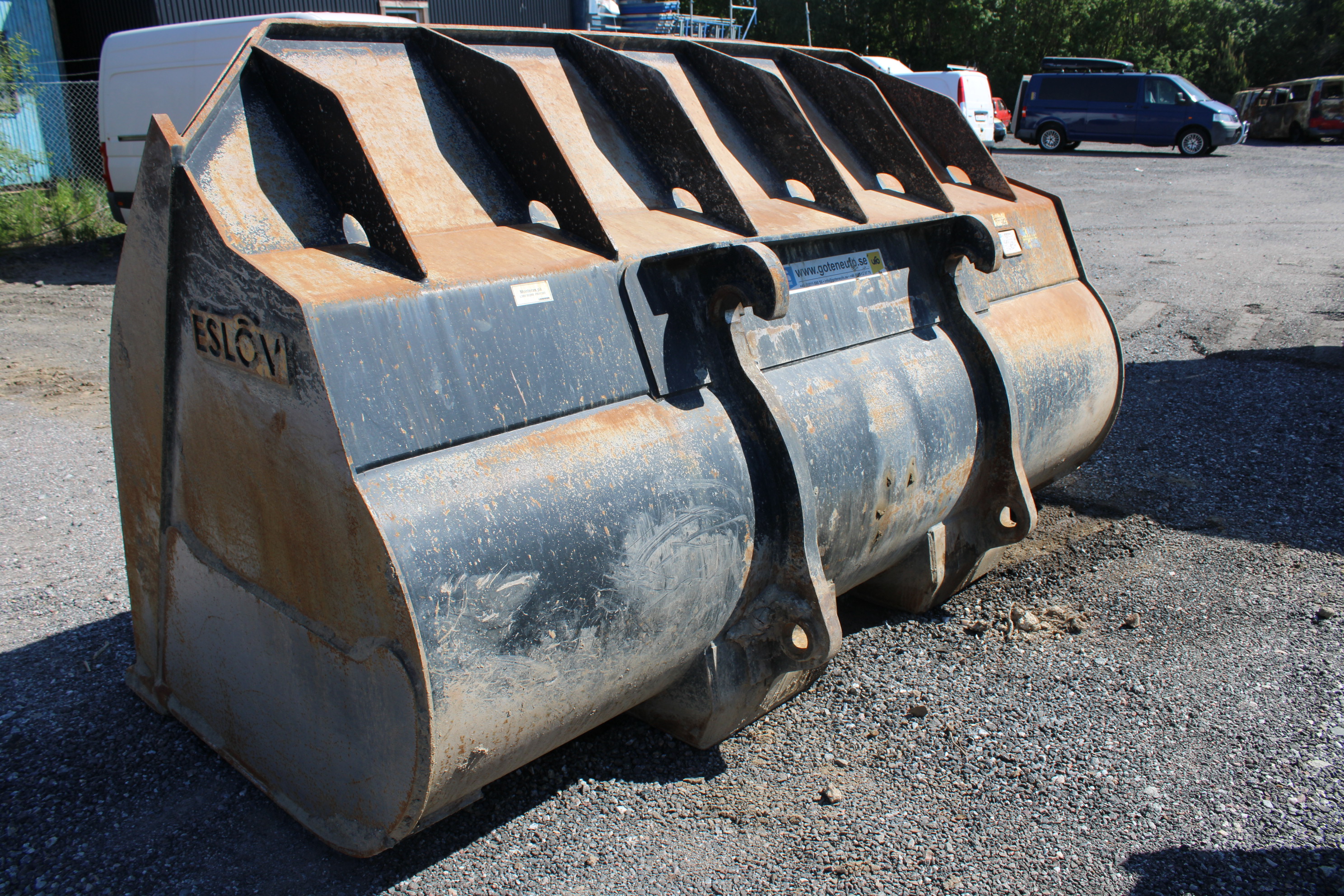

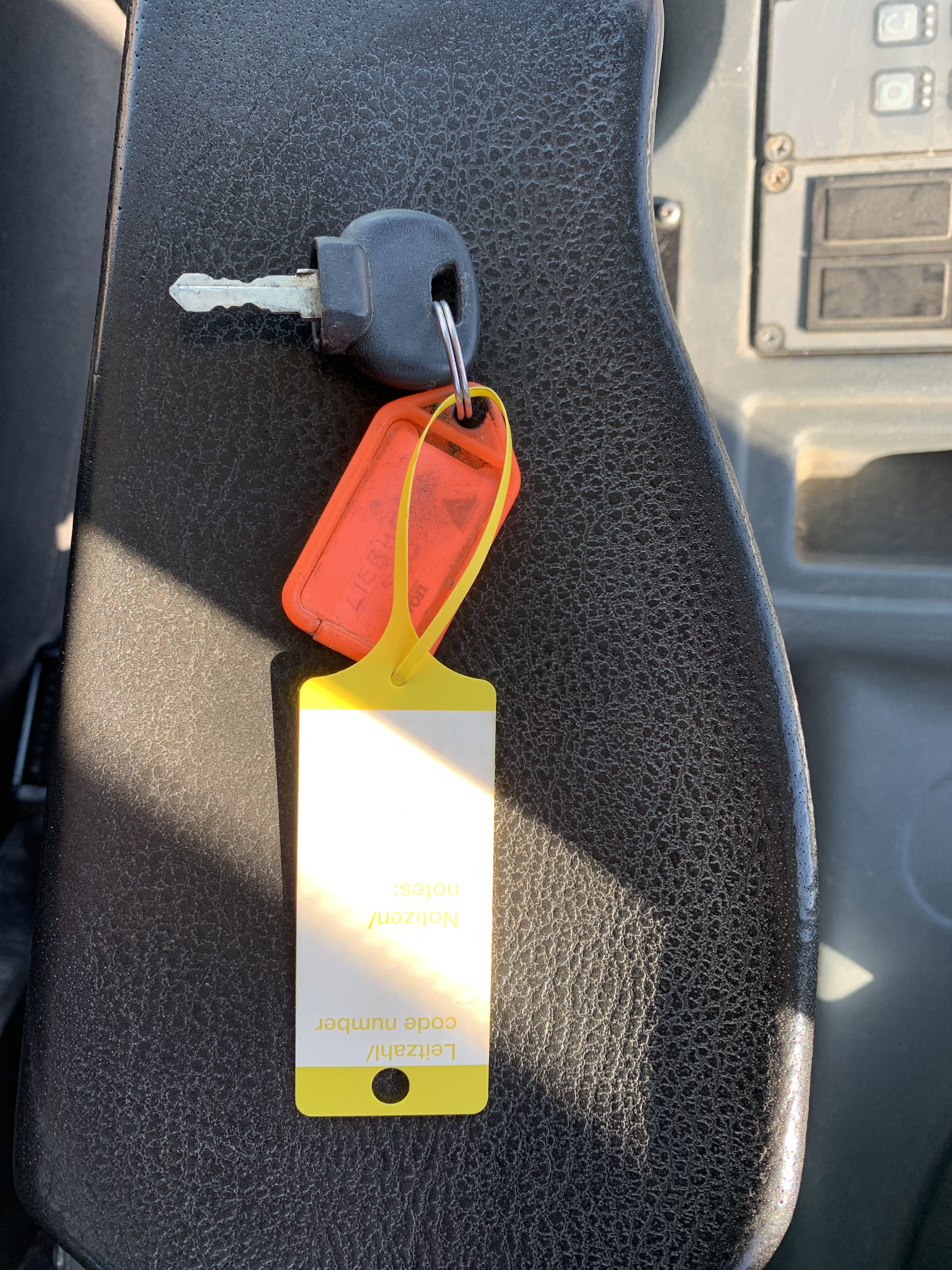

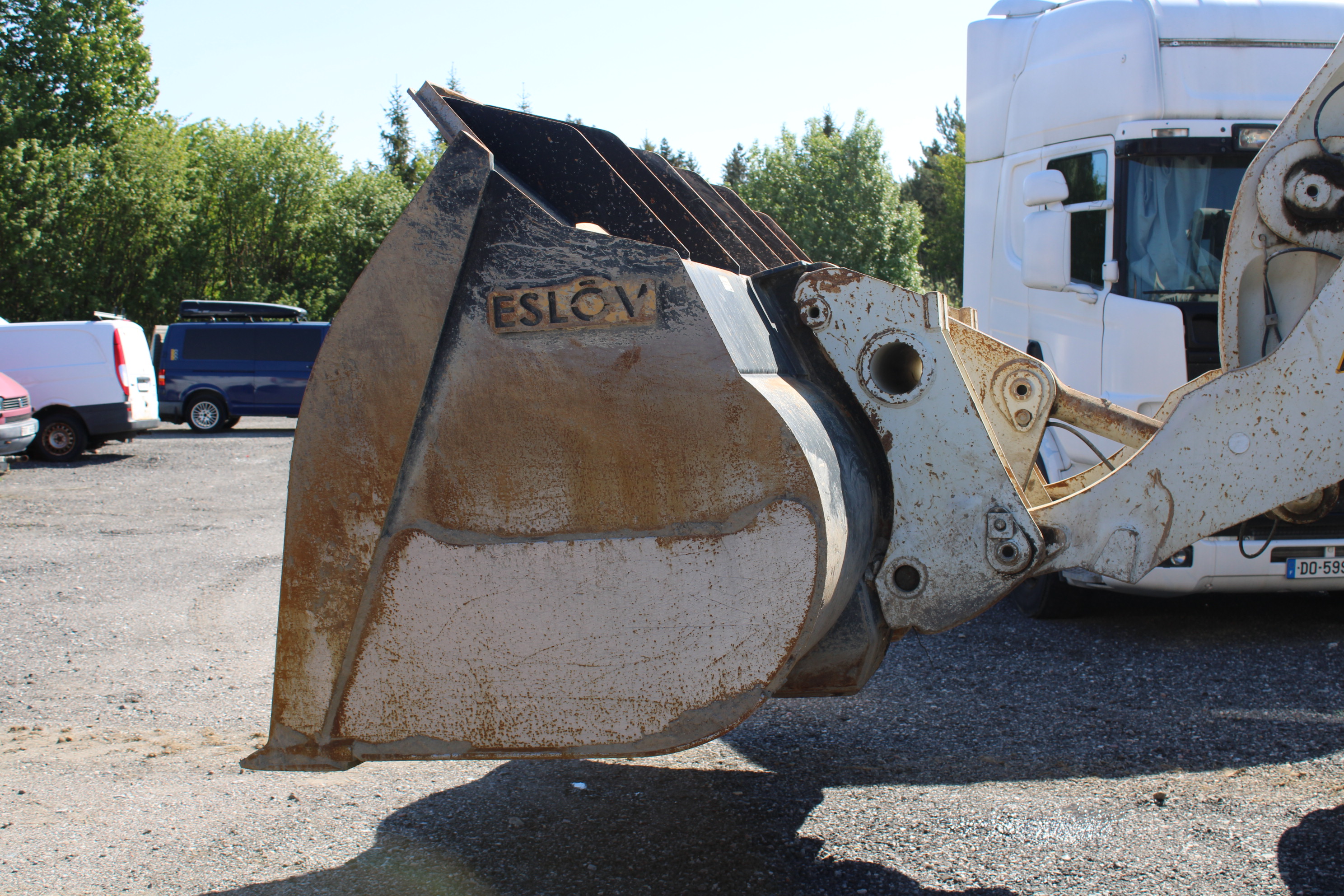

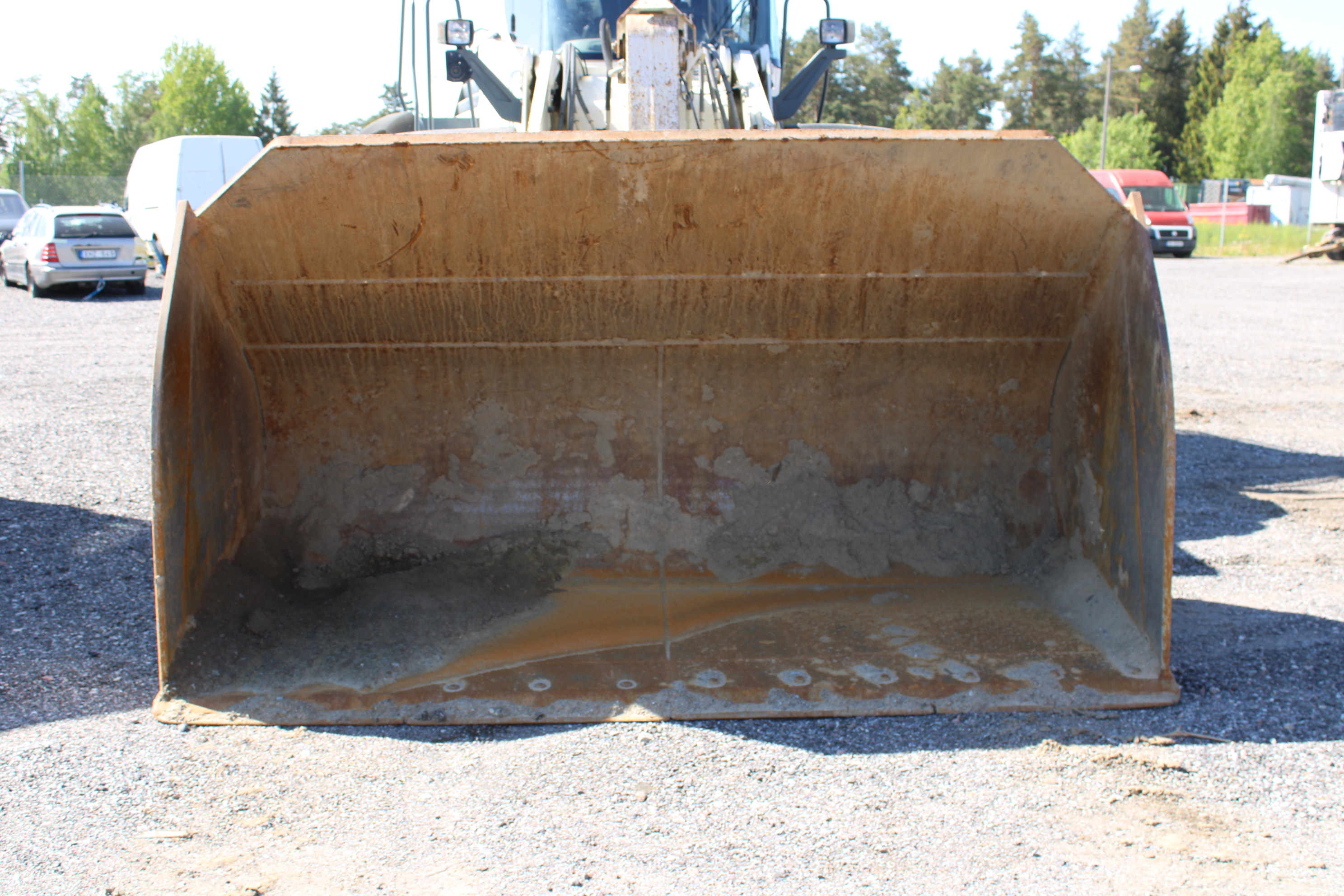

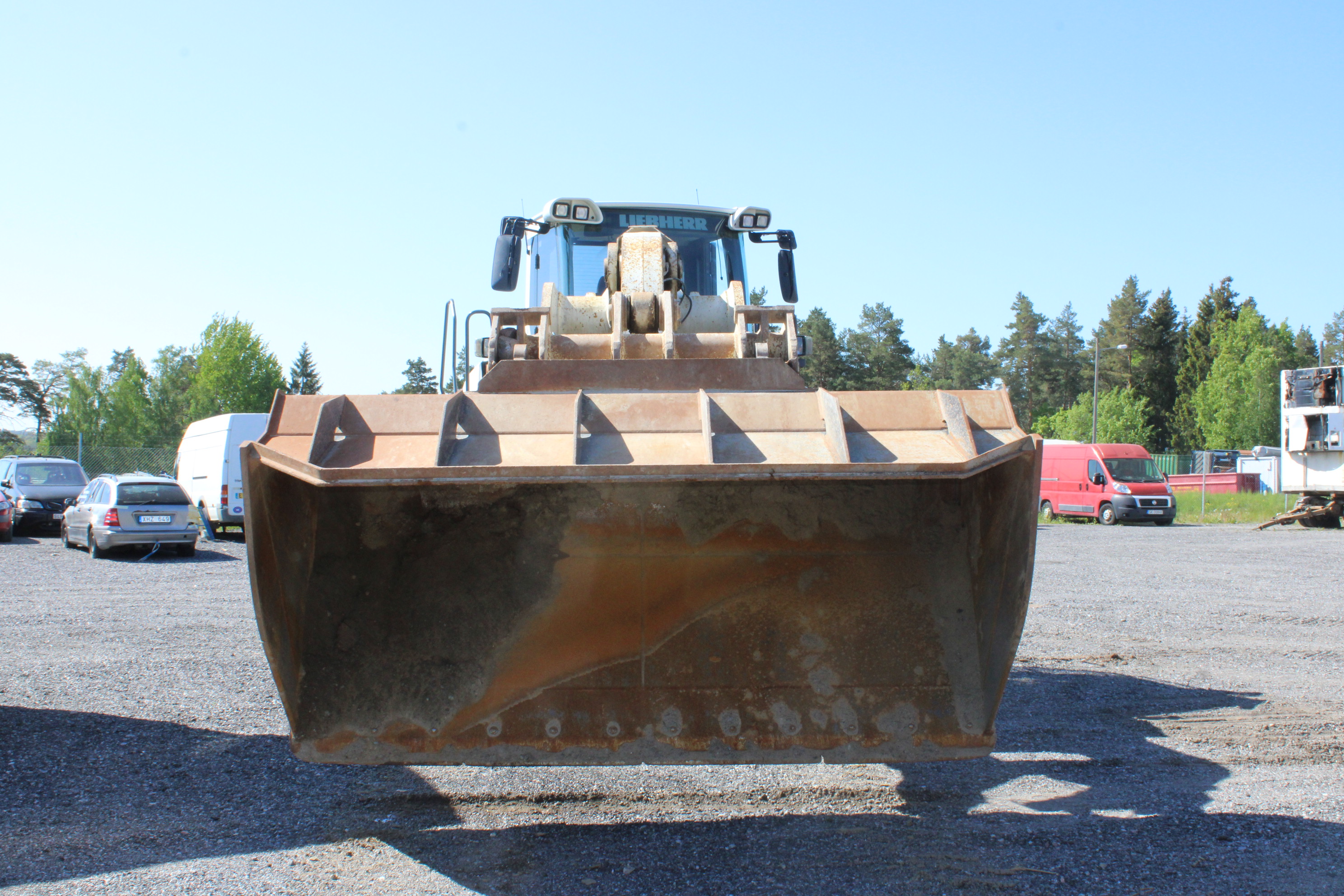

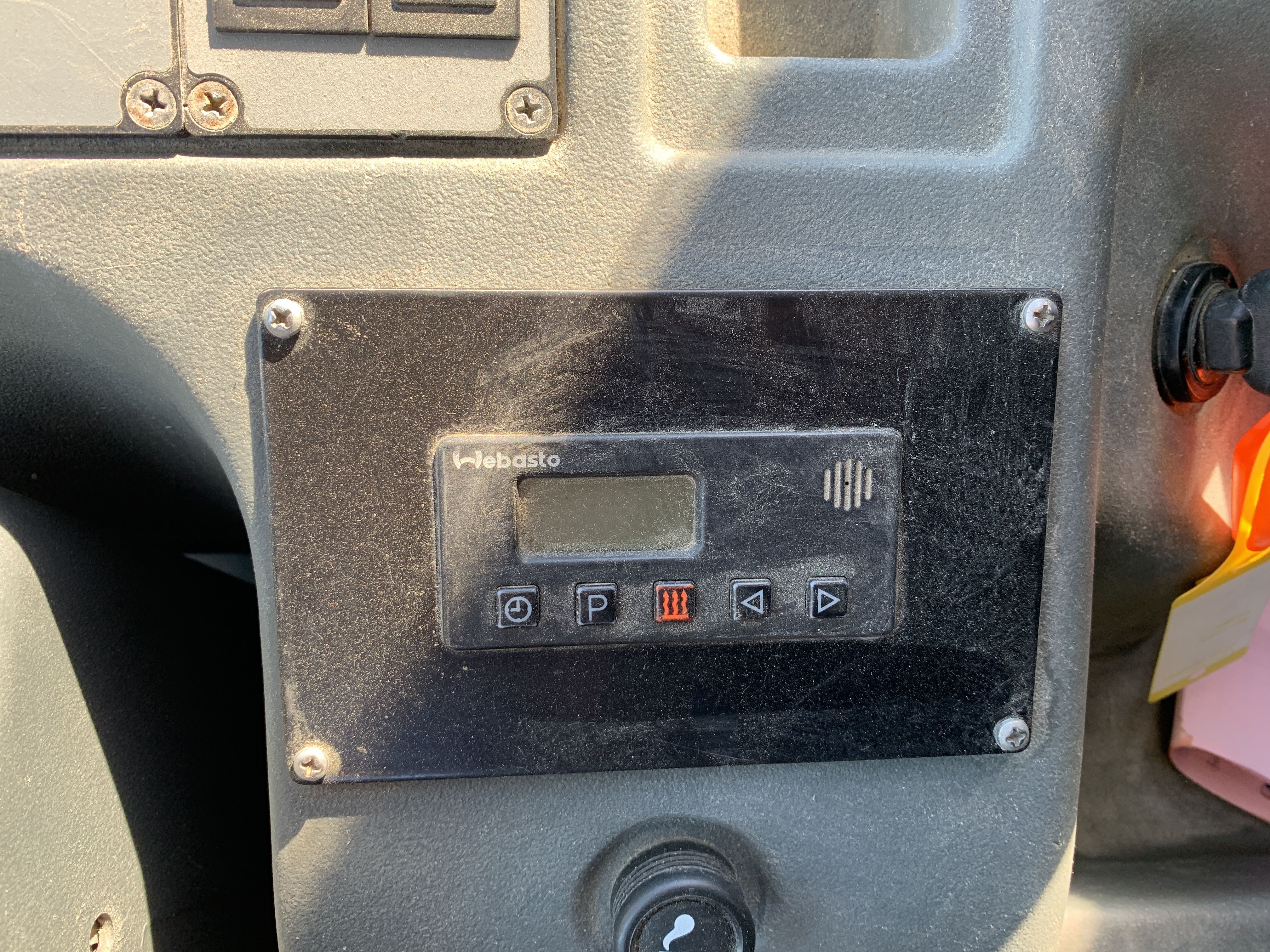

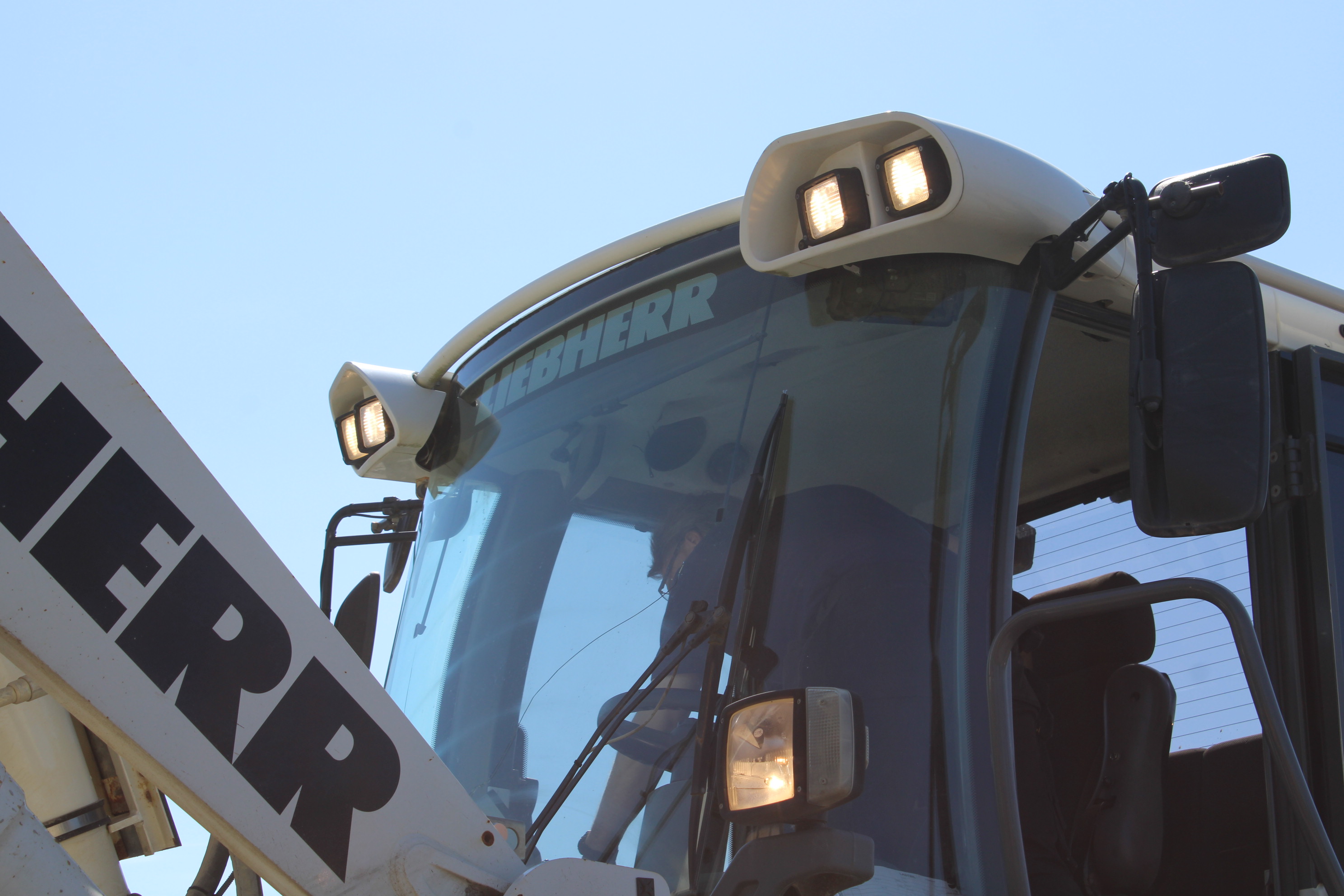

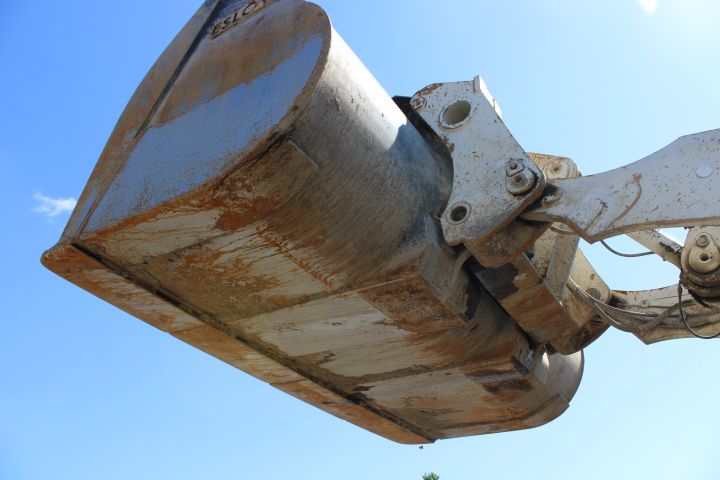

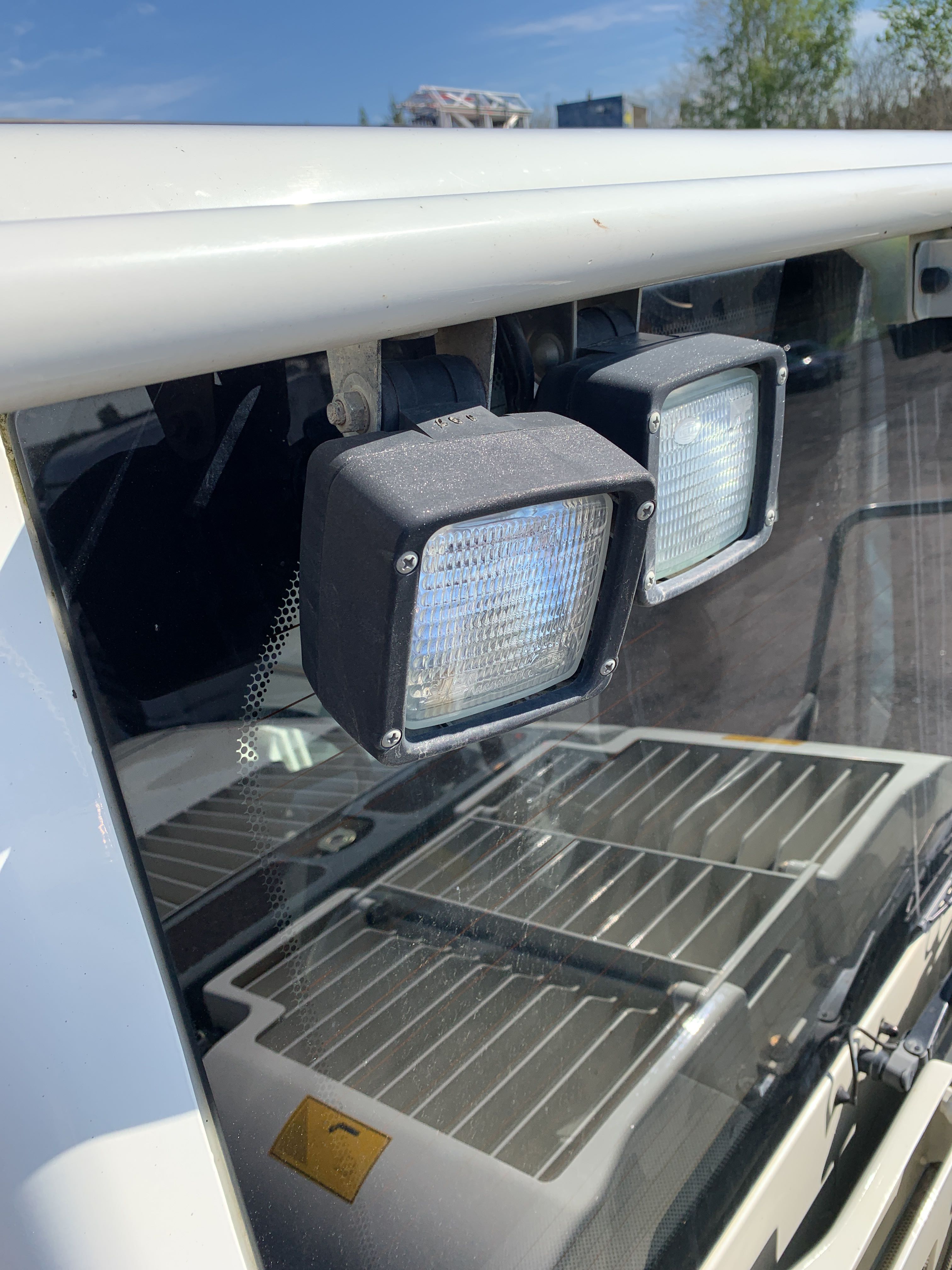

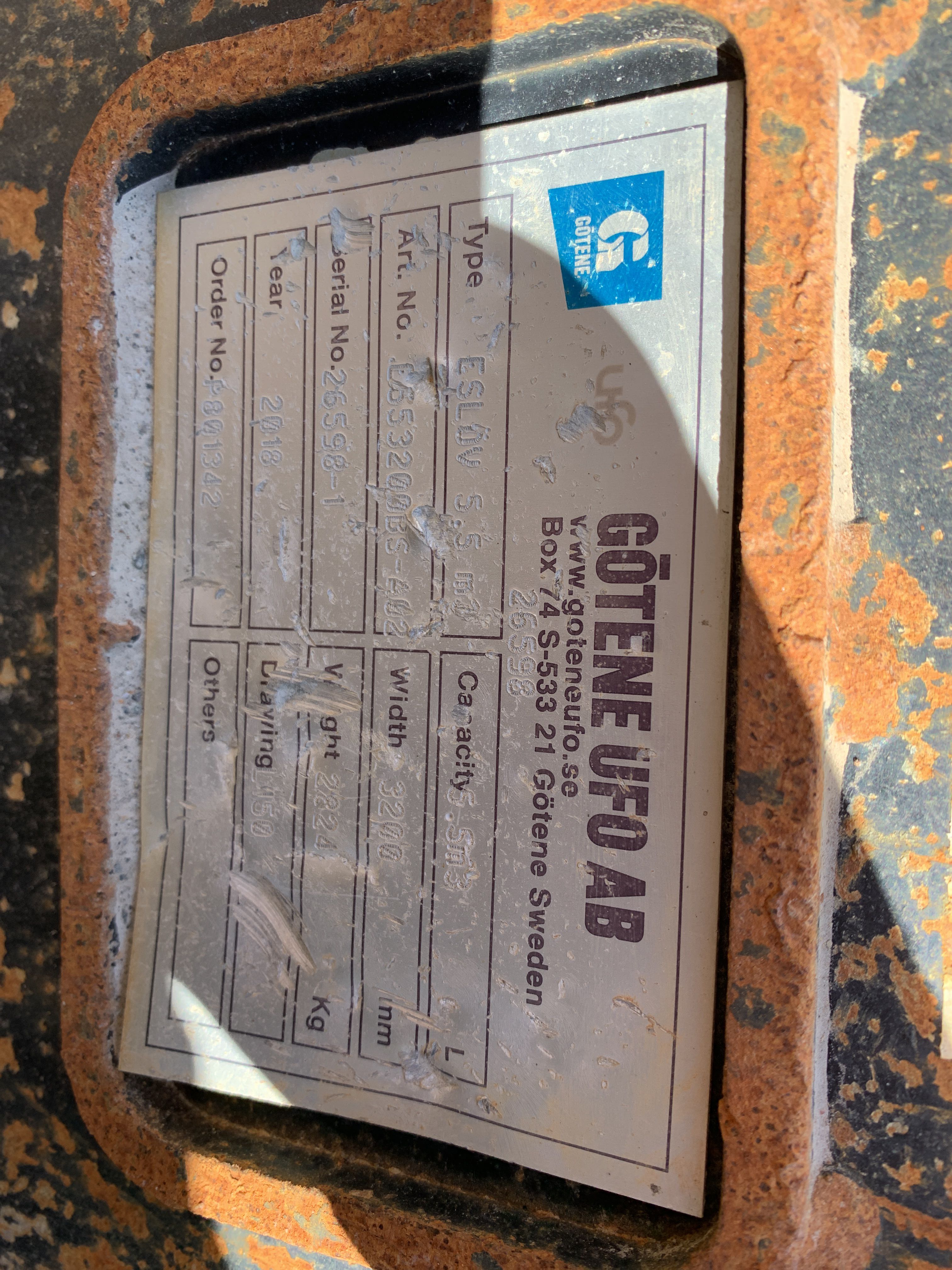

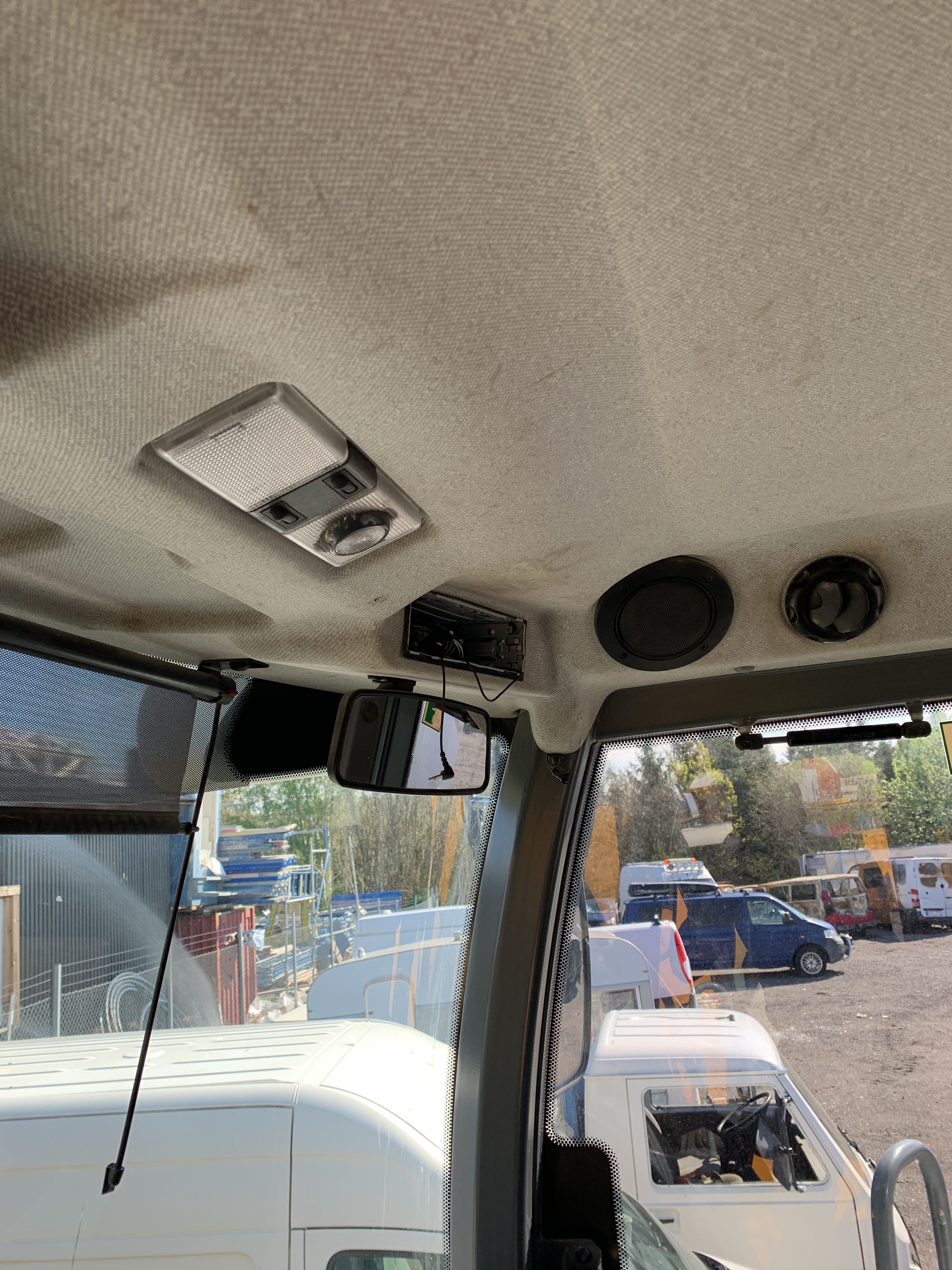

The machine is equipped with work lighting, reversing camera, central lubrication, Eslöv bucket, speakers, radio is missing in the cab. Heating / cooling works. 1 Key for the machine.
Other
Transport of the machine is possible. Email to the responsible administrator for a quote on transport.
The machines are sold on behalf of finance companies. Movies will be published on all objects.
