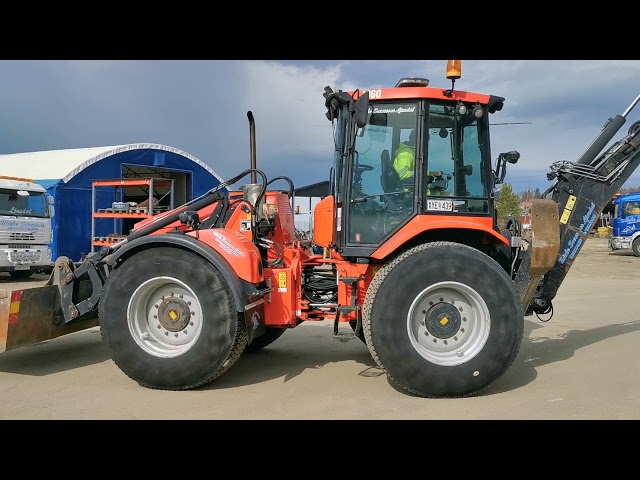

HUDDIG 1060 - an efficient and flexible backhoe loader specially adapted for work in cramped environments. The speed and power of the robust machine made it a loyal partner in, for example, urban environments. The biggest news on this model was the powerful Cummins engine of 103 kw (140 hp). Year of manufacture: 2006–2012
Gearbox AUTOMATIVE Fuel Diesel Tank volume 100 liters Engine power 93 kW
Length 7100 mm Width 2420 mm
Service weight (actual weight) 10610 kg Maximum load weight 1890 kg Total weight 12500 kg
Information about the machine downloaded from the internet - why possibly. subject to error
Engine Model Cummins turbocharged diesel engine QSB4,5 Power 104 kW (140 hp) at 2500 rpm Type 4-cylinder Cylinder volume 4.5 l Torque 620 Nm at 1500 rpm Transmission - ZF Hydrodynamic torque converter, 6 gears forward and 3 gears reverse Gear Km / h (standard tires) 1 6 2 10 3 15 4 23 5 35 6 50 Axles ZF Automatic differential brake with hub reduction of planetary gear type Wheels Standard 520 / 70x30 Brake system Travel brake Servo-assisted disc brakes Excavator brake Automatic application of service brake in neutral position (automatic is disengageable) Control system Hydraulic steering system at the waist Lever control switchable with reduced speed Steering angle ± 37º Ramp oscillation ± 13º Working pressure 15.9 MPa (159 bar) Electrical system Voltage 24 V Batteries 2 pcs 12 V, 110 Ah Generator power 90 A AC Starter motor power 4 kW Hydraulic system Load sensing working hydraulics with two variable axial piston cement : 45 and 85 cm3. The hydraulic system is prepared for environmentally friendly hydraulic oils. Working pressure 21 MPa (210 bar) Nom. max. flow at 1000 rpm 130 l / min Nom. max. flow at 1500 rpm 195 l / min Nom. max. flow at 2000 rpm 260 l / min Dimensions & weight Width 2290 mm Height to cab roof 3064 mm Length 7740 mm Weight 10400 kg www.huddig.se facebook.com/huddig youtube.com/ Information about the machine downloaded from the internet - why possibly . subject to error
