Solar collector for hot water production 1000 liters
Here we proudly present our largest solar collector system with a tank of 1000 liters, which gives you hot water all year round. The solar water heating system is fully automatic, which gives you a worry-free existence and hot water for everything you need that requires a lot of hot water. Several of our customers have installed the system to heat their pools and it works just fine all year round in combination with a pool roof. Others use it in their factories to give their staff the opportunity to shower after work shifts without spending fortunes on hot water

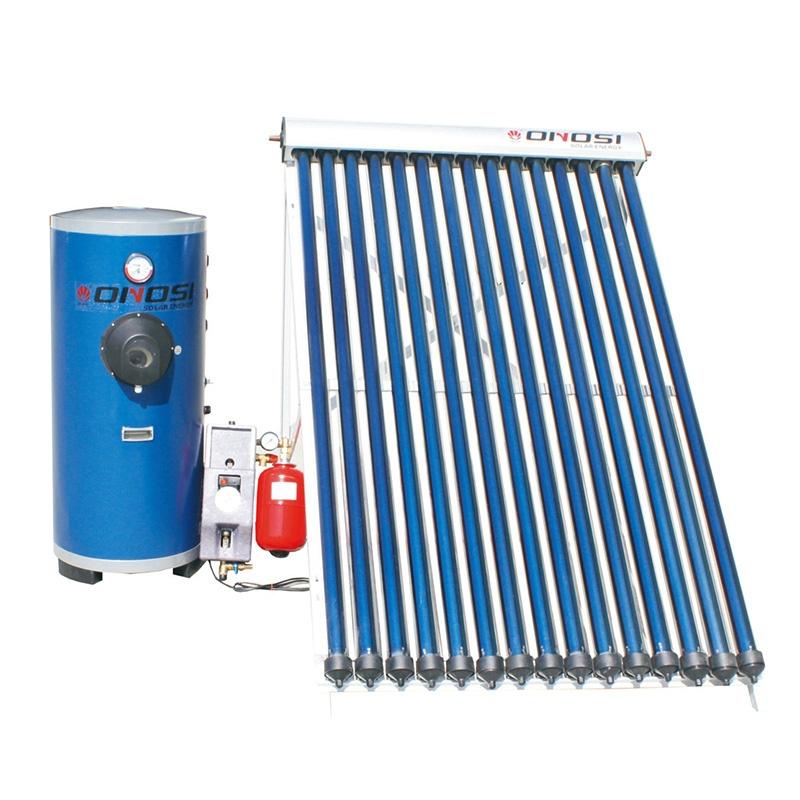

This solar-heated water system consists of four collectors, hot water tank, solar workstation, circulation pump. The plant is connected with pipes. You can basically install the tank / hot water tank anywhere, and you can integrate the collectors nicely with the roof. It provides a perfect combination between the solar collector and your house, it does not disturb but is perceived as nice. The vacuum tube does not get dirty, does not overheat and delivers hot water all day. The plant has automatic operation with many functions that respond well to the modern use of solar energy and give you a worry-free everyday life.
The solar water heating system mainly consists of
- solar panels,
- expansion vessel
- storage water tank,
- solar work station with circulation pump that controls the four parts.

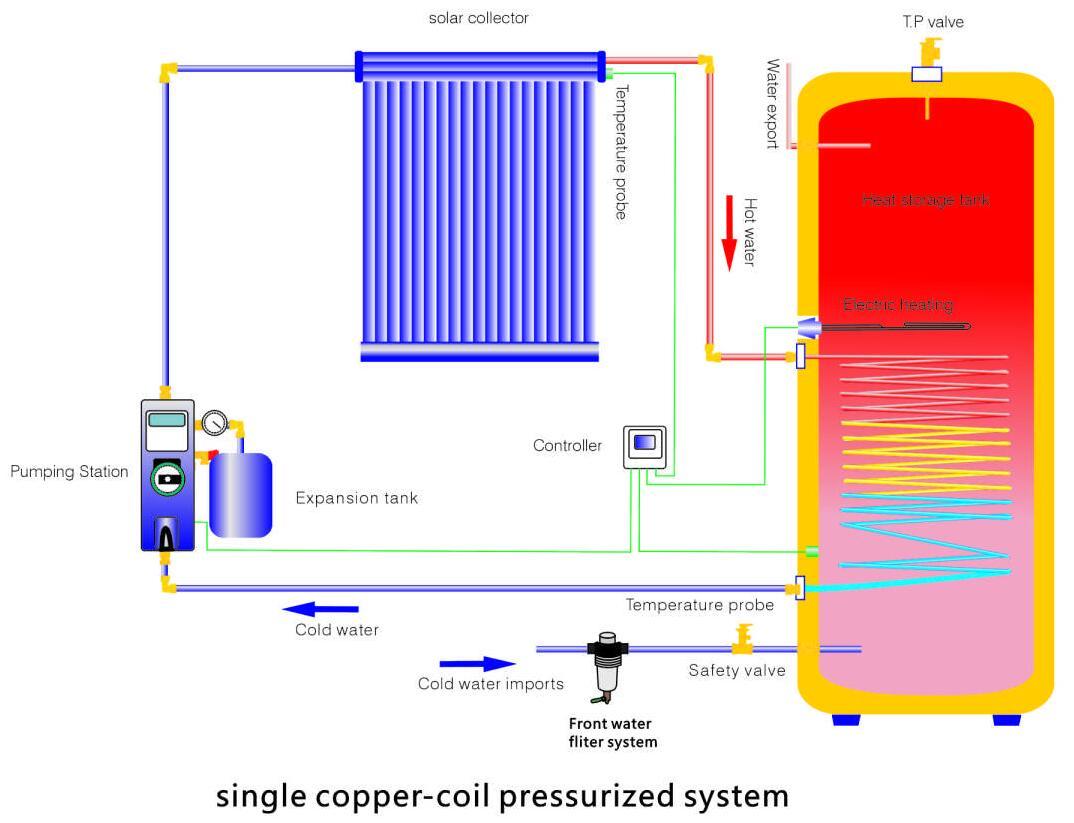

The solar water heating system has indirect heat exchange and forced separation of two-cycle pressure-hot water systems and is equipped with superconducting heating pipes. Our solar heating pipes are patented high-tech products. They have the highest heating efficiency on the market. The total absorption rate of the vacuum tube solar collector is more than 0.94. When the solar radiation reaches 800 W / ㎡ （ect. in spring or autumn when the weather is fine), the plant can heat the water in the collectors and make them reach 90 ° in 2.5 hours, provided that the water temperature is normal. The hot water tank is made of stainless steel. The insulation layer comes from polyurethane foam with high heat treatment, which significantly improves heat-retaining effect and service life. Thus, the solar heating water system can work as usual in minus 50 ℃, those you, not bad!
Features:
1) Collectors and storage tank are separated and work together by the pressure formed. The expansion tank can be placed wherever you want.
2) The circulation pump helps to keep the circulation at an even level. The heat exchanger transfers the heated water collected by the solar collector to the heat tank.
3) Antifreeze, can be used during the cold season. Even under a minus 50 degree environment, the system can work excellently
4) With intelligent control unit, automatic reliable operation. Constant temperature or high temperature heating can be set so that the system works completely automatically with data memory protection and provides a 24-hour worry-free hot water supply.
5) Collectors can be installed almost anywhere where the sun is shining, for example on your balcony, on a wall facing south, on your sloping roof, on the ground, etc. The collectors have an elegant look and blend well into the architecture.
1000L system. Contains
4 cartons with 30 tubes of solar panels
8 cartons with 15 tubes of vacuum tubes
1 carton 1000 Liter water tank
1 carton workstation
1 carton 24 liter expansion tank
