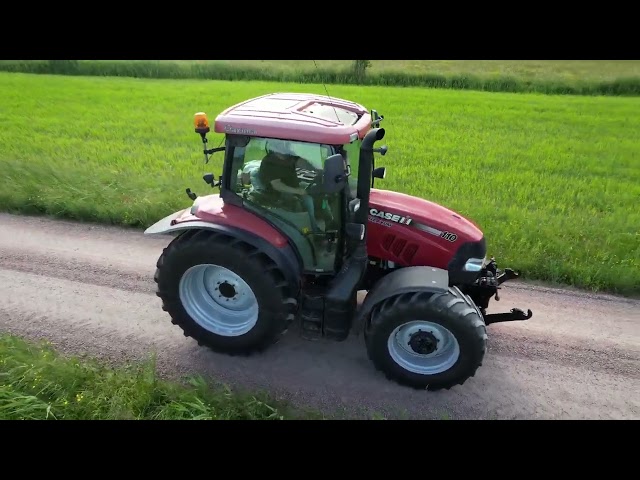

Tractor Case iH Maxxum 110 EP -16

870588
44270 Kärna

Shipping available
Disposal

Ended

A sustainable action

The climate footprint of a corresponding newly produced item is approx 29647kg CO₂ Click here to find out more

Info Shipping Exhibition Pick up Auction type

Brand	Case iH
Model	Maxxum 110 EP
Year of manufacture	2016

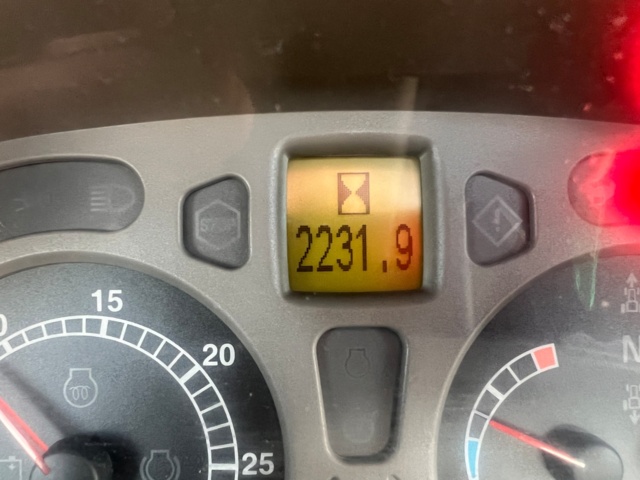

Hours of operation	2232

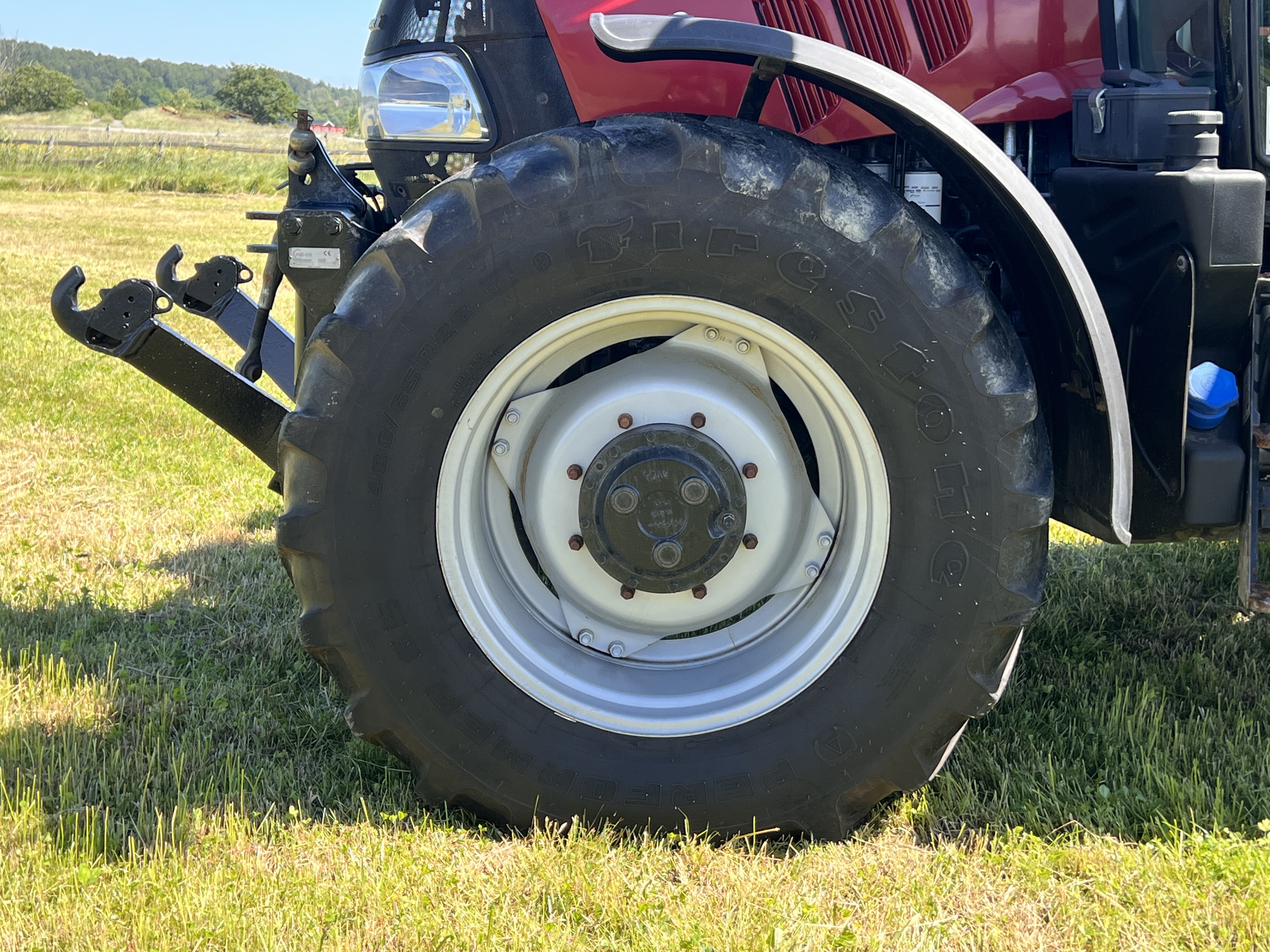

Front tire size	480/65R28
Size of rear tires	600/65R38
Tires condition (%)	5%

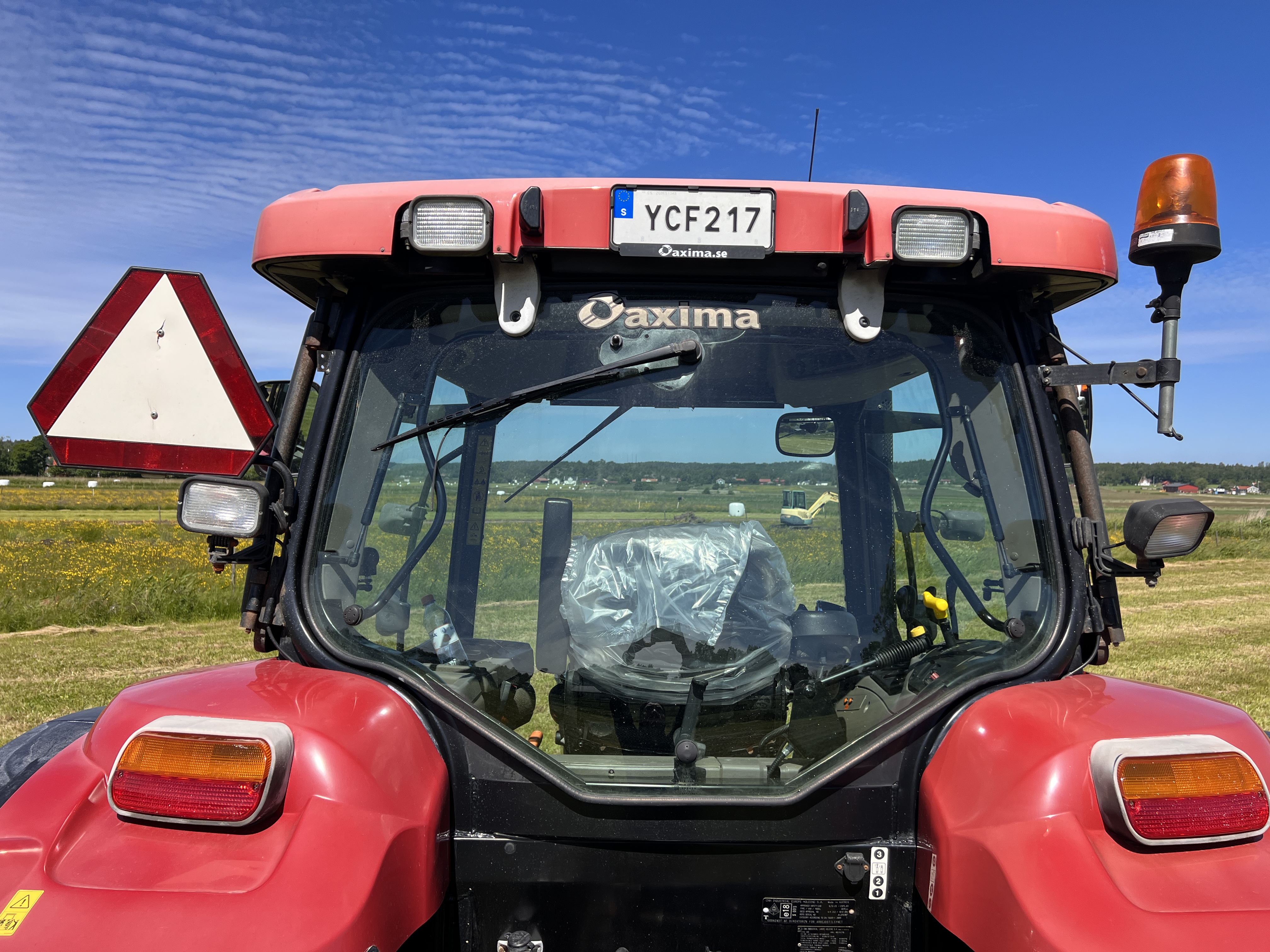

Registration number	YCF217

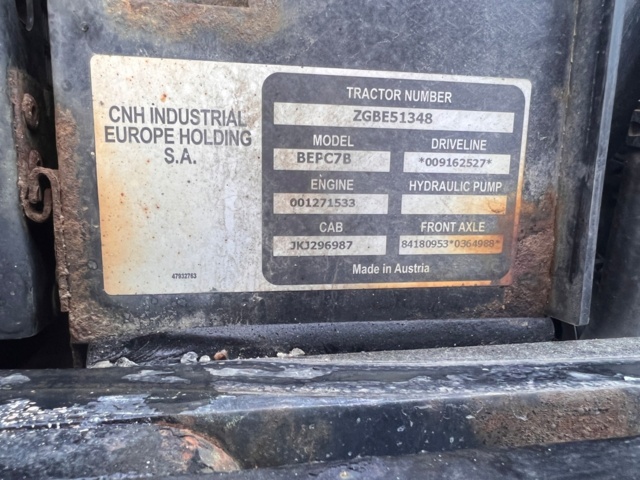

Serial number	ZGBE51348
Total weight (kg)	5400
Transport dimensions (LxWxH) (m)	4,5/2,3/3,0
Front loader / model	PTO, Front linkage, Clutch-free front / back, Ad Blue
Engine performance	105 kW
Maintenance	Service efter timmar hos Axxima
Item condition	Normal

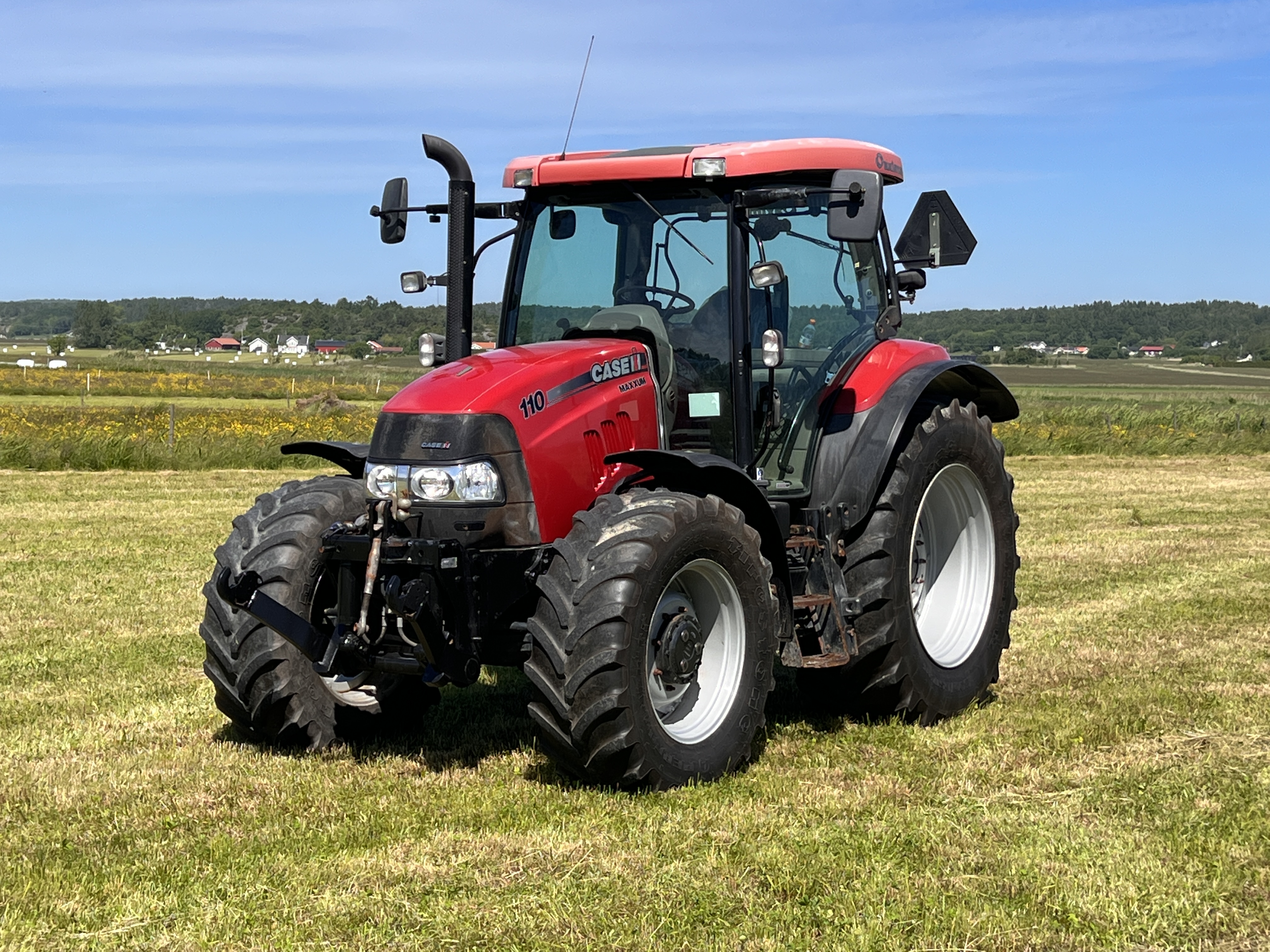

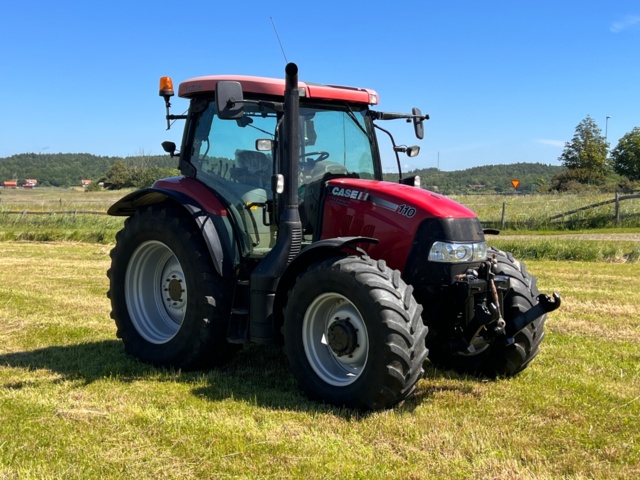

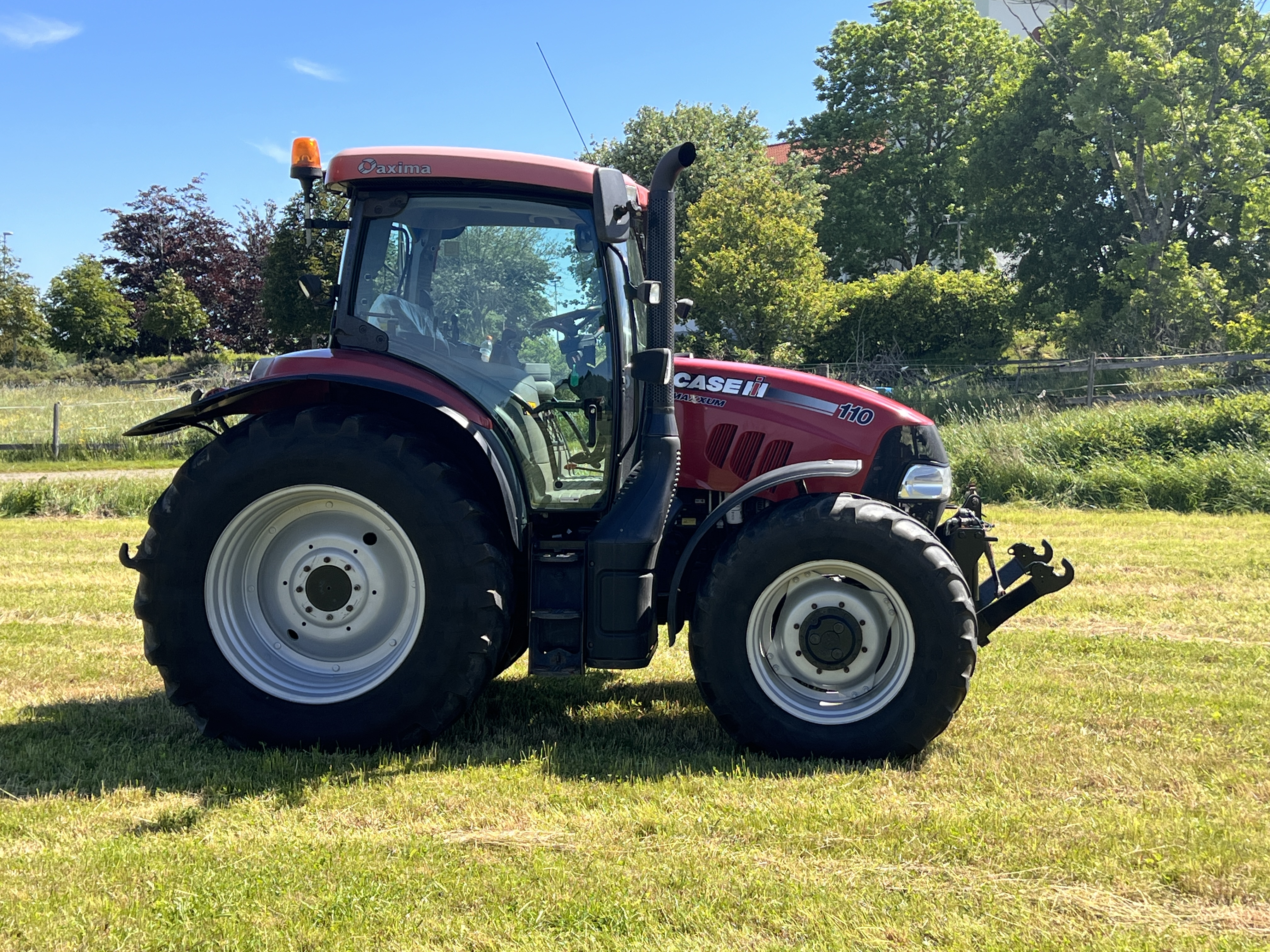

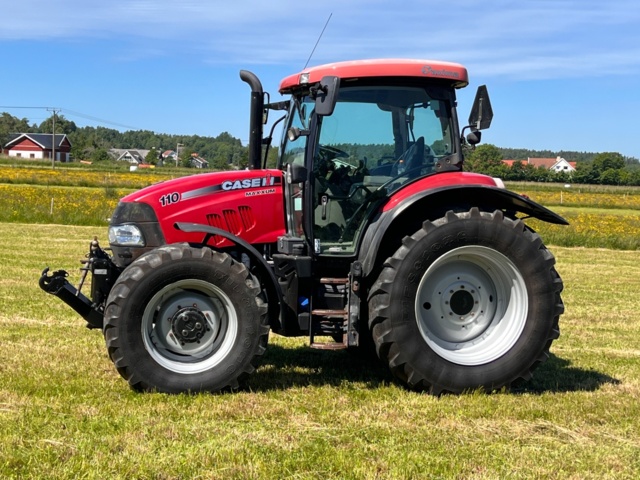

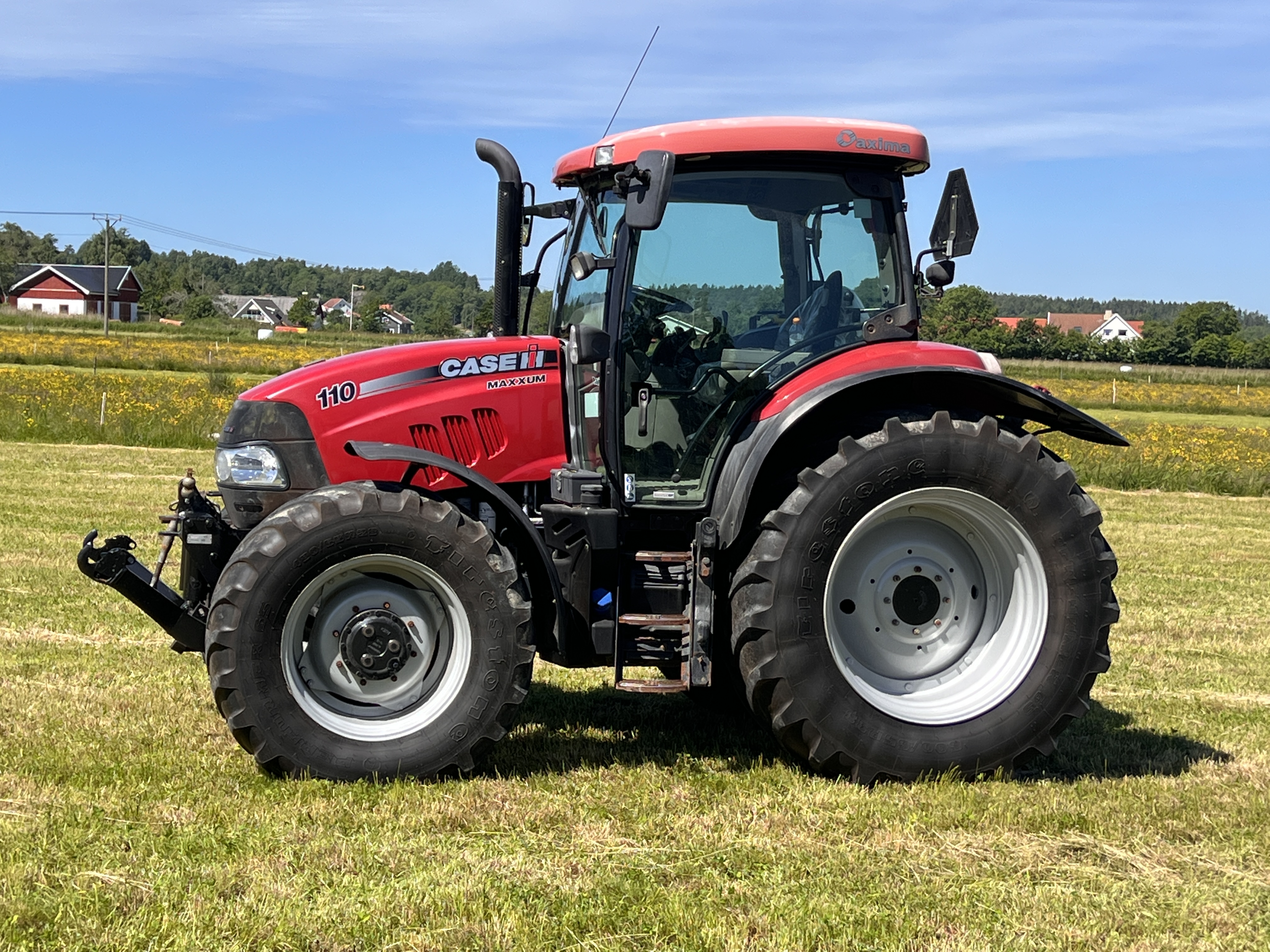

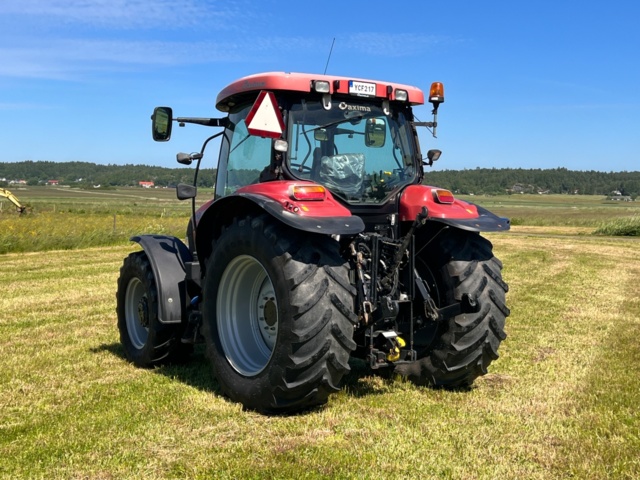

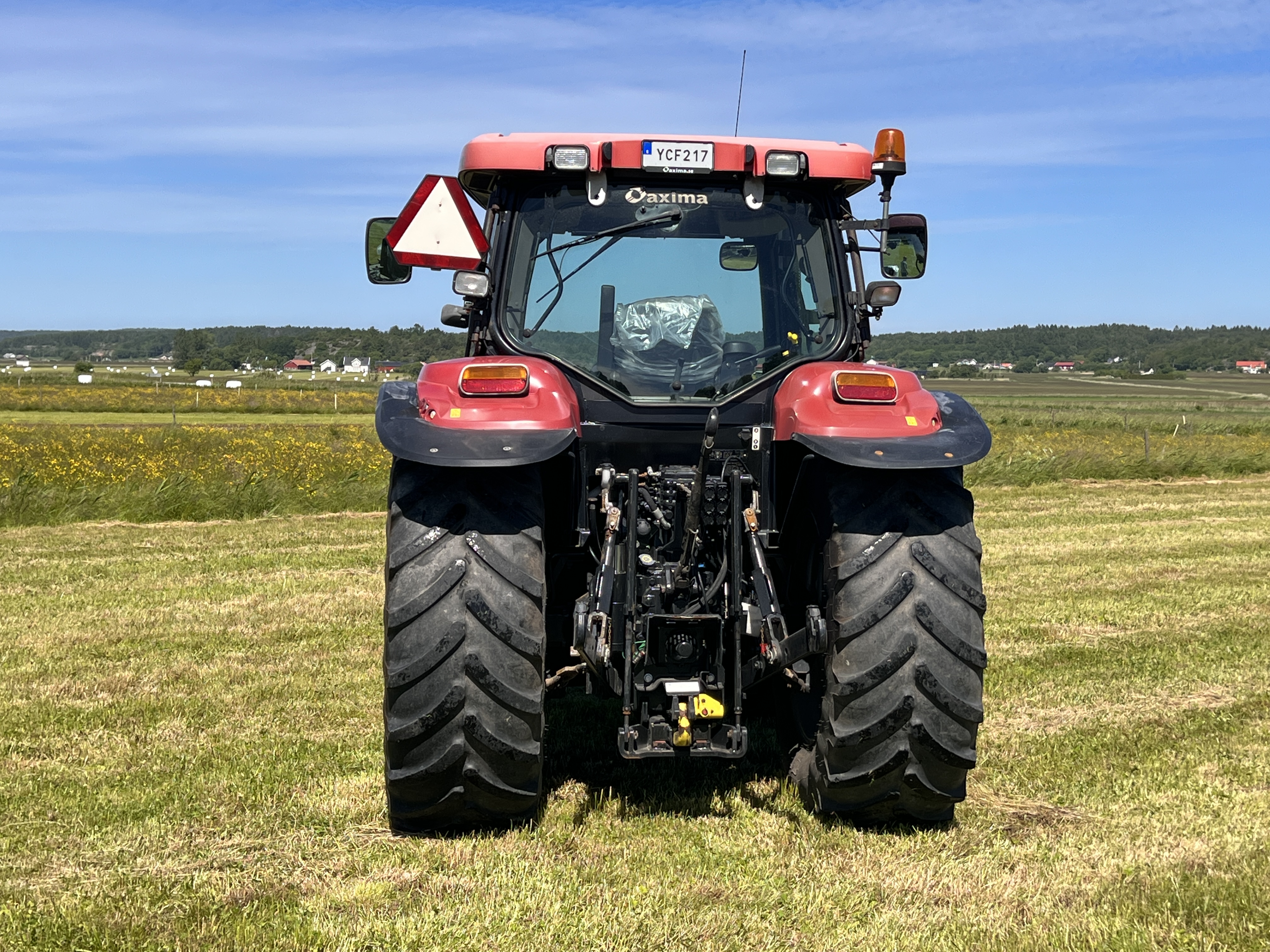

Agricultural tractor from Case iH

Model: Maxxum 110 EP

Year: 2016

Hours: 2232

Hours left for service: 256

Served at Axxima after hours.

AD Blue

Agricultural traits

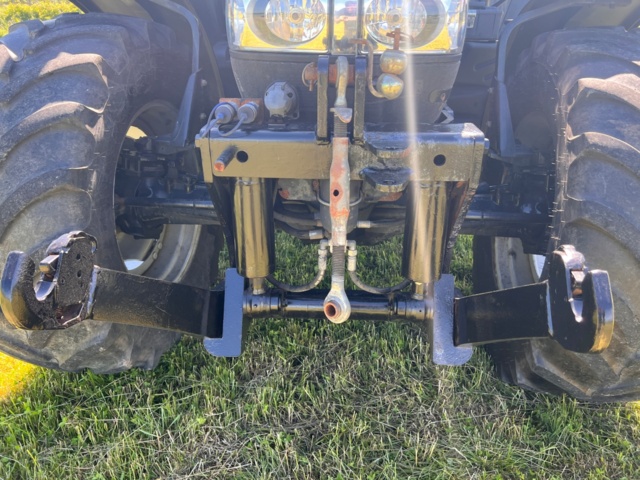

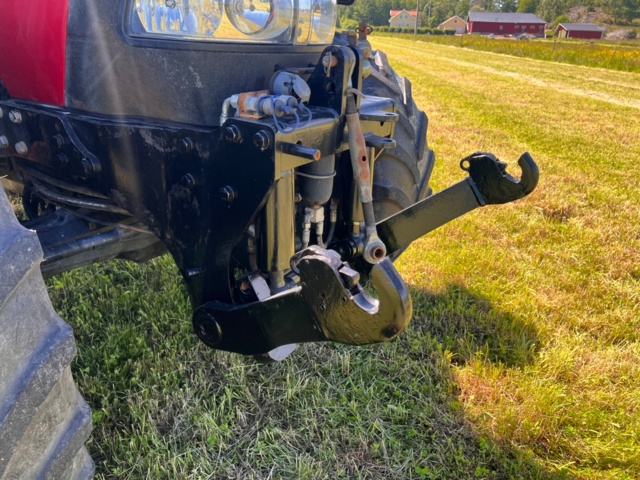

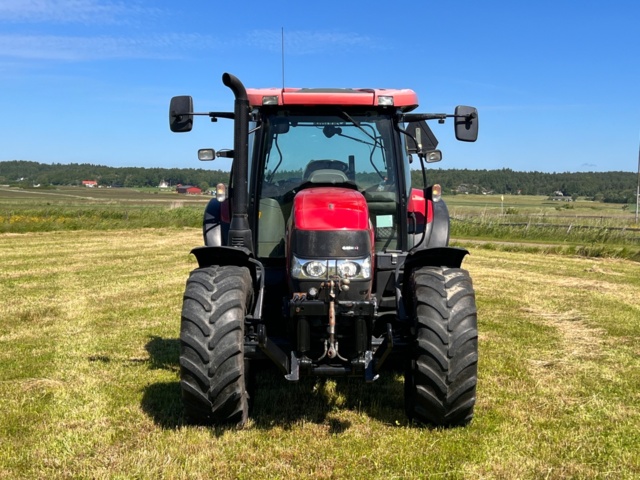

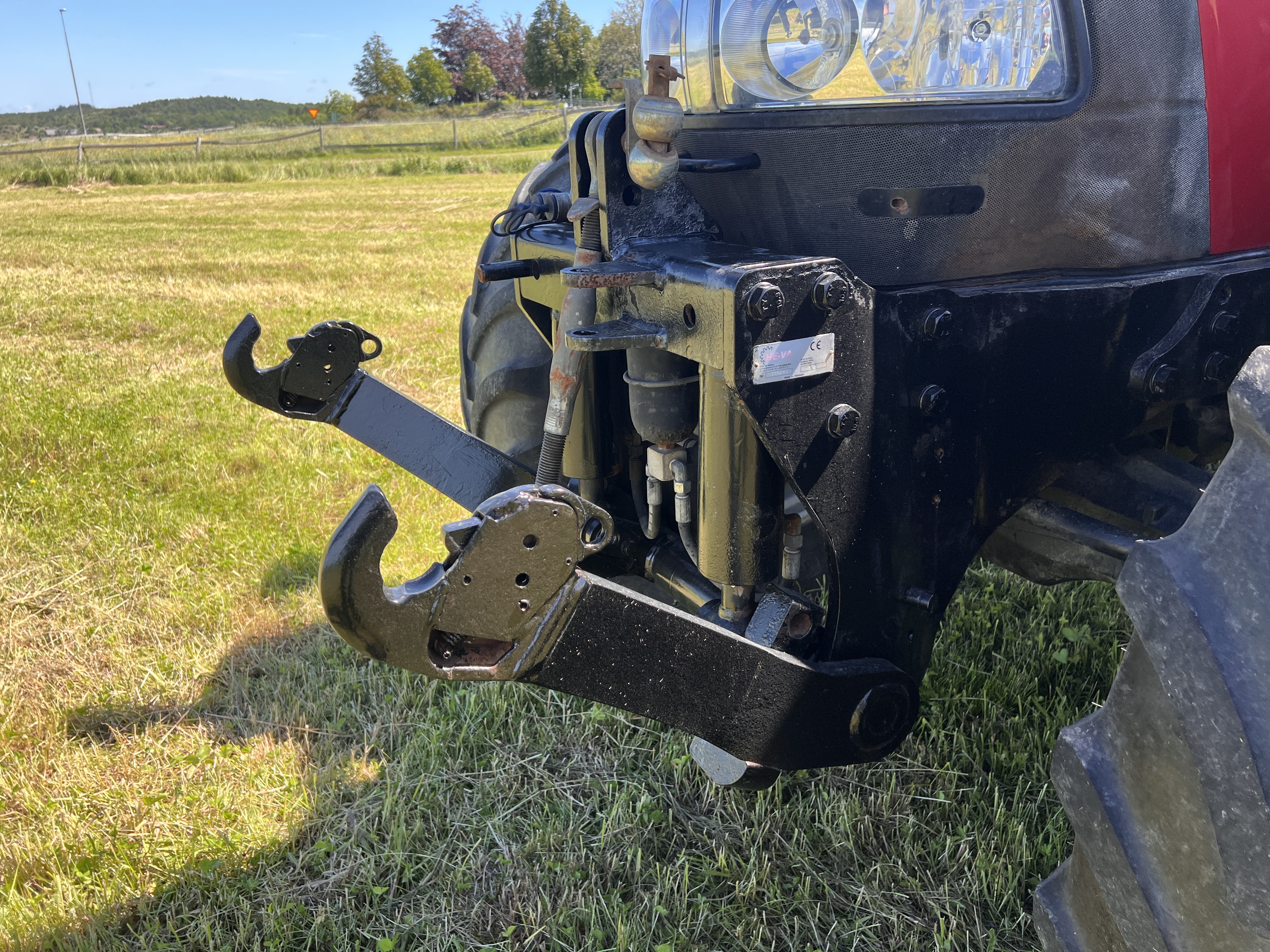

Front lift with a double-acting socket. El forward.

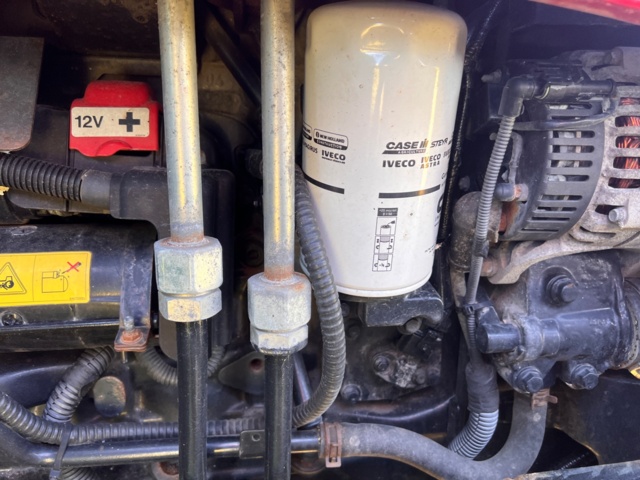

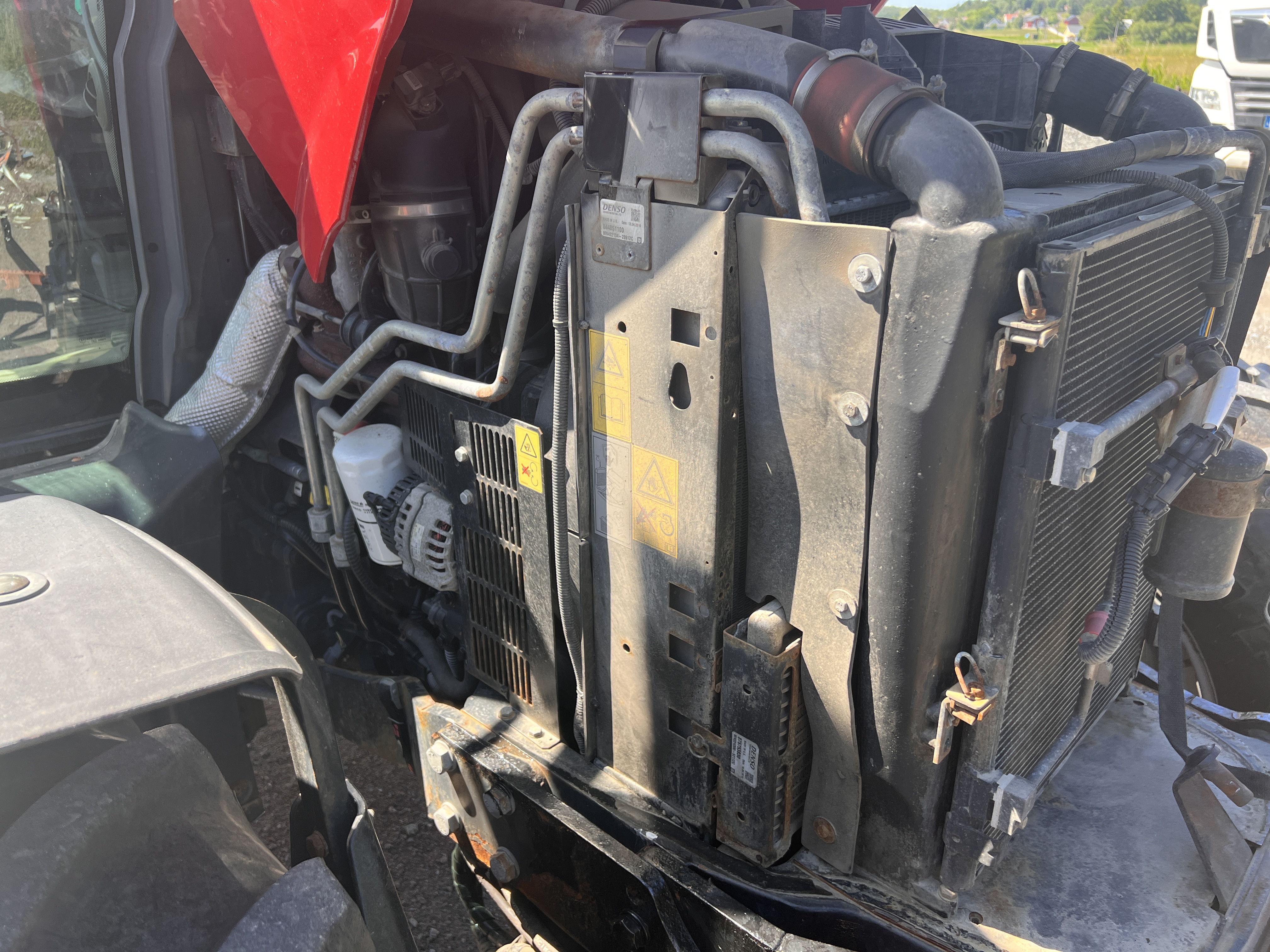

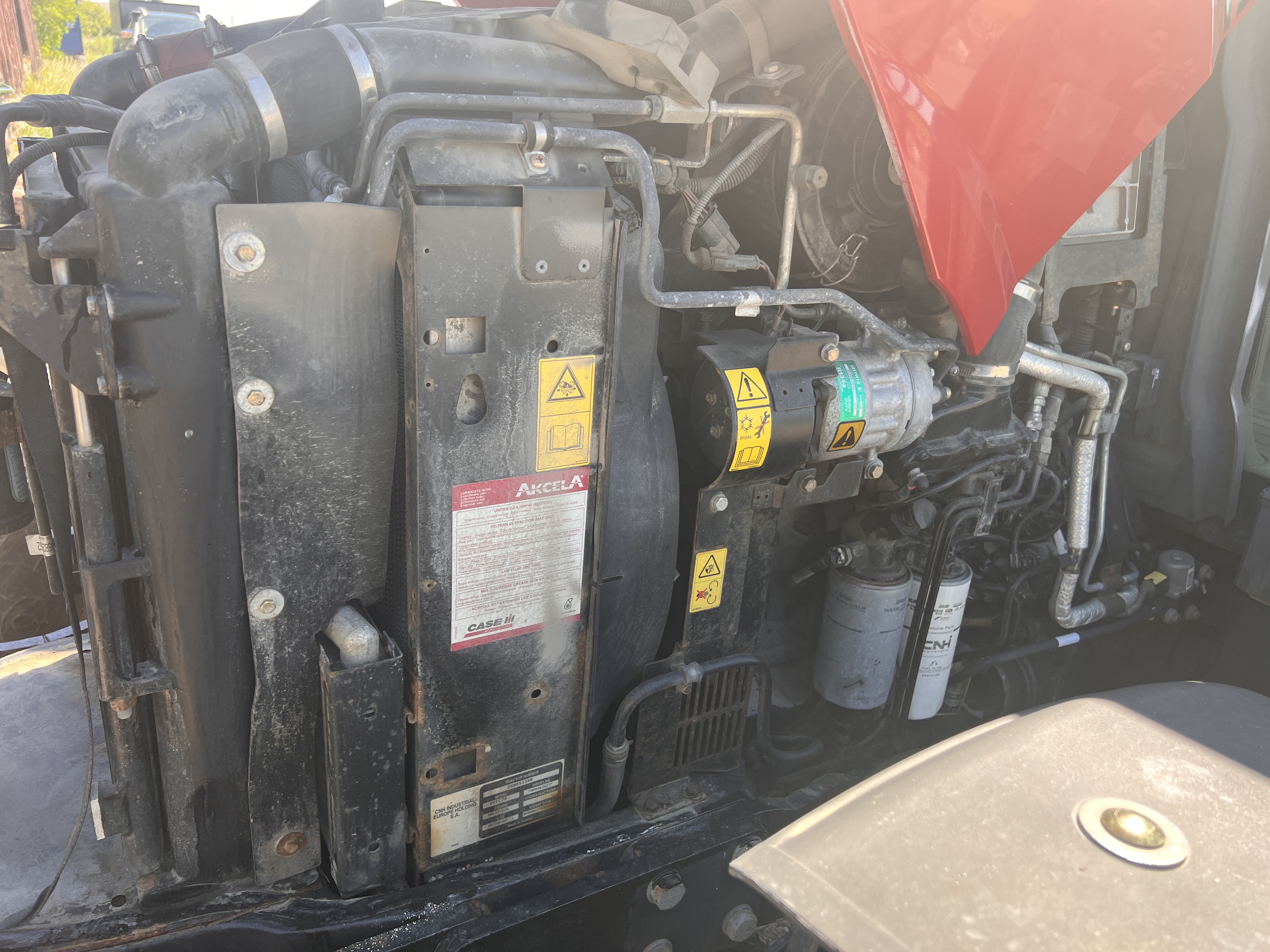

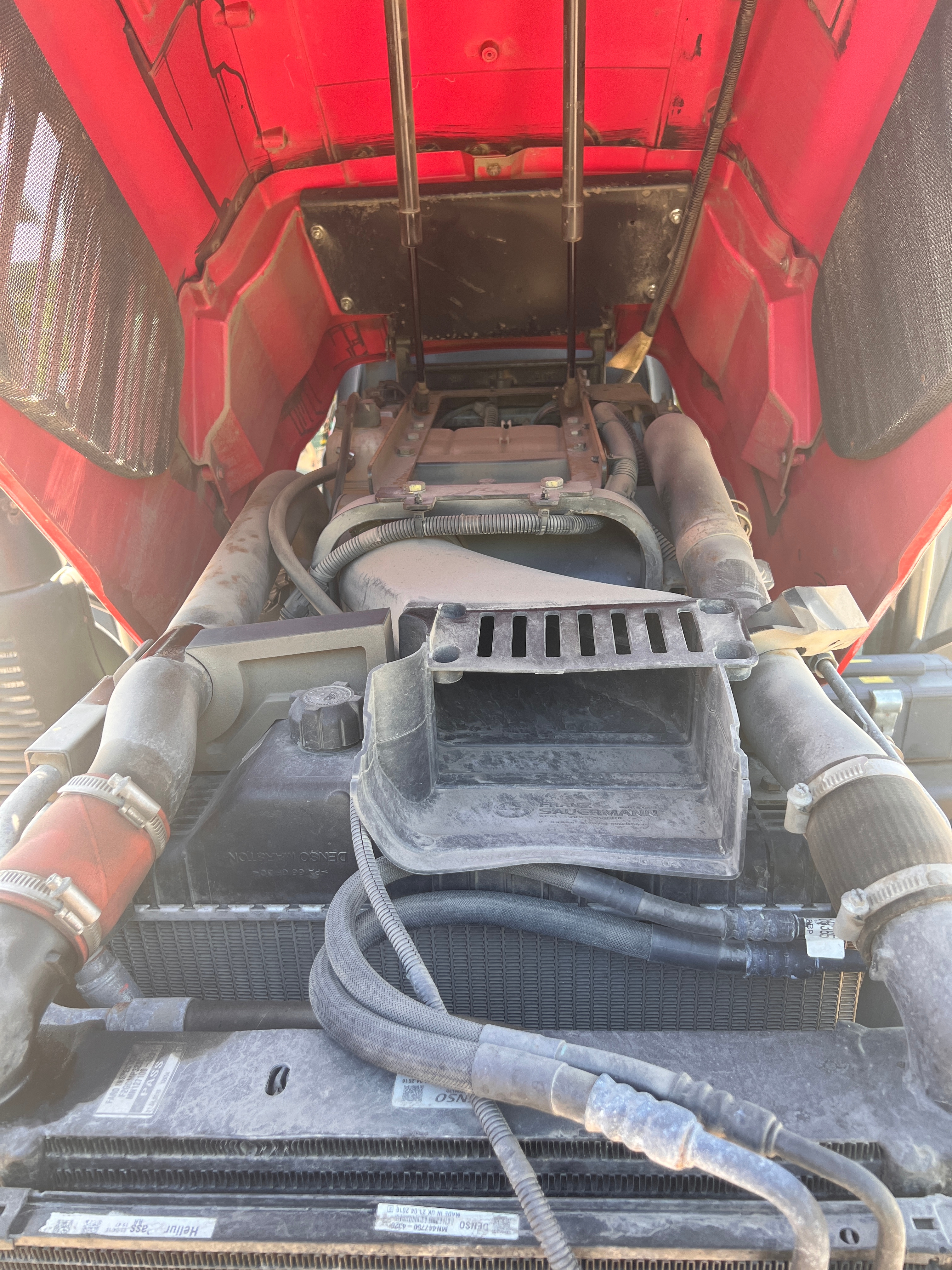

Engine:

Max power: 105 kW

Maximum power at engine speed: 1969 RPM

Max torque: 590 Nm

Maximum torque at engine speed: 1500 RPM

Compression ratio: 17.5: 1

Cylinder: 4

Cylinder diameter: 104

Stroke volume: 4.5

Stroke: 132

Nominal speed: 2200 RPM

Starter engine

Generator: 120

Voltage: 12 V

Exhaust gas cleaning: No.

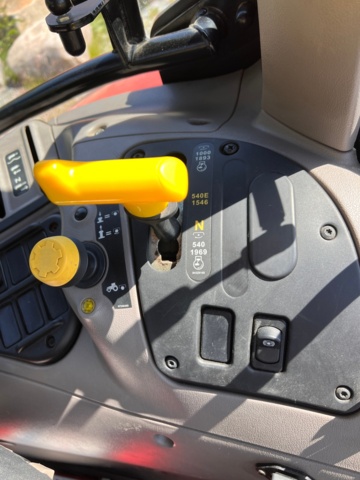

Power take-off

Operation: 3

Shaft diameter: 35 millimeters

Power take-off speed: 540

Engine speed 540 rpm: 1969

Engine speed 1000 rpm: 1893

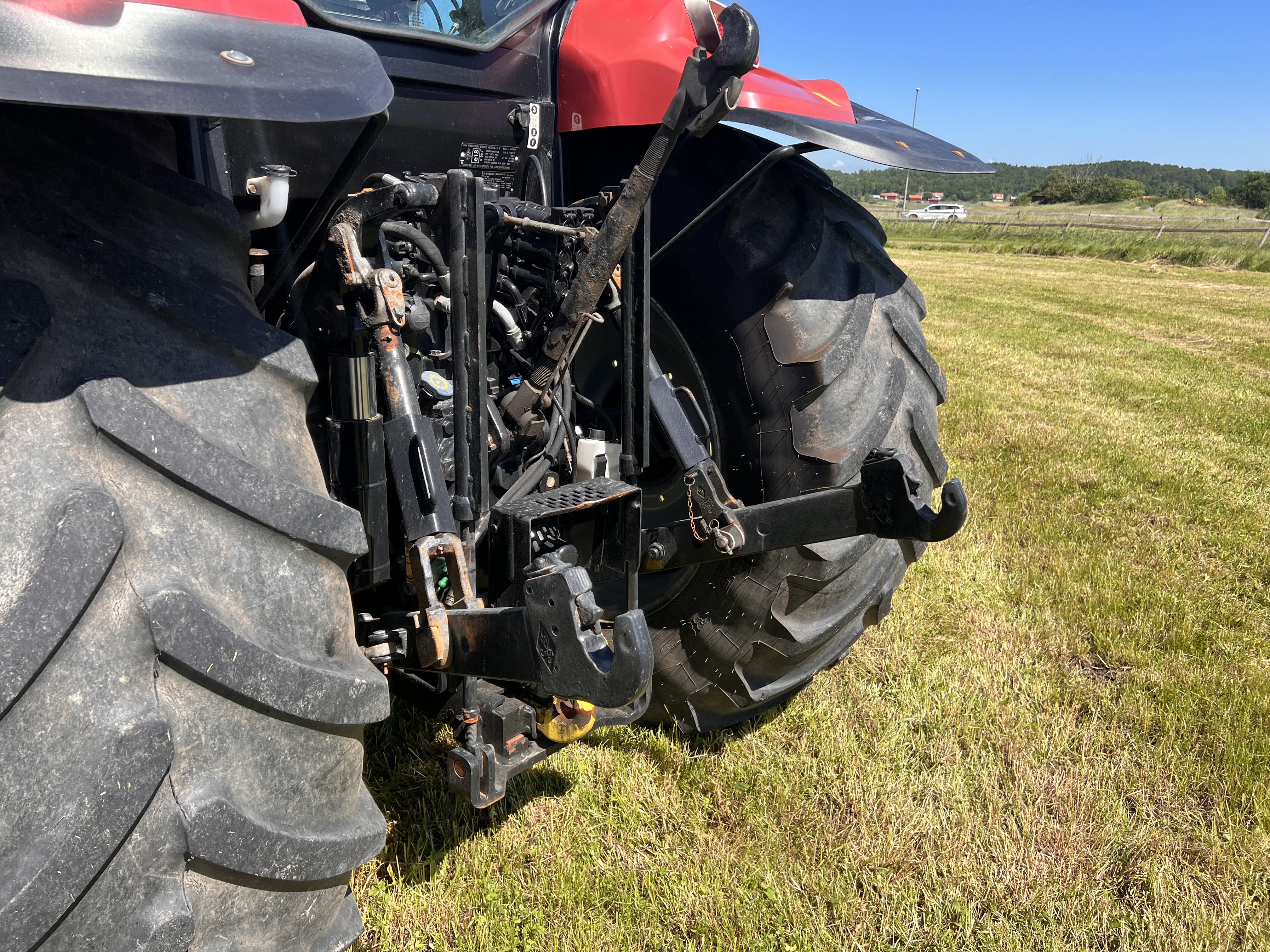

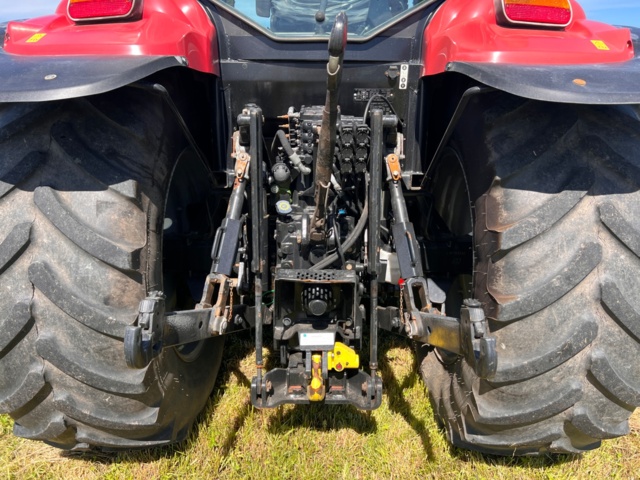

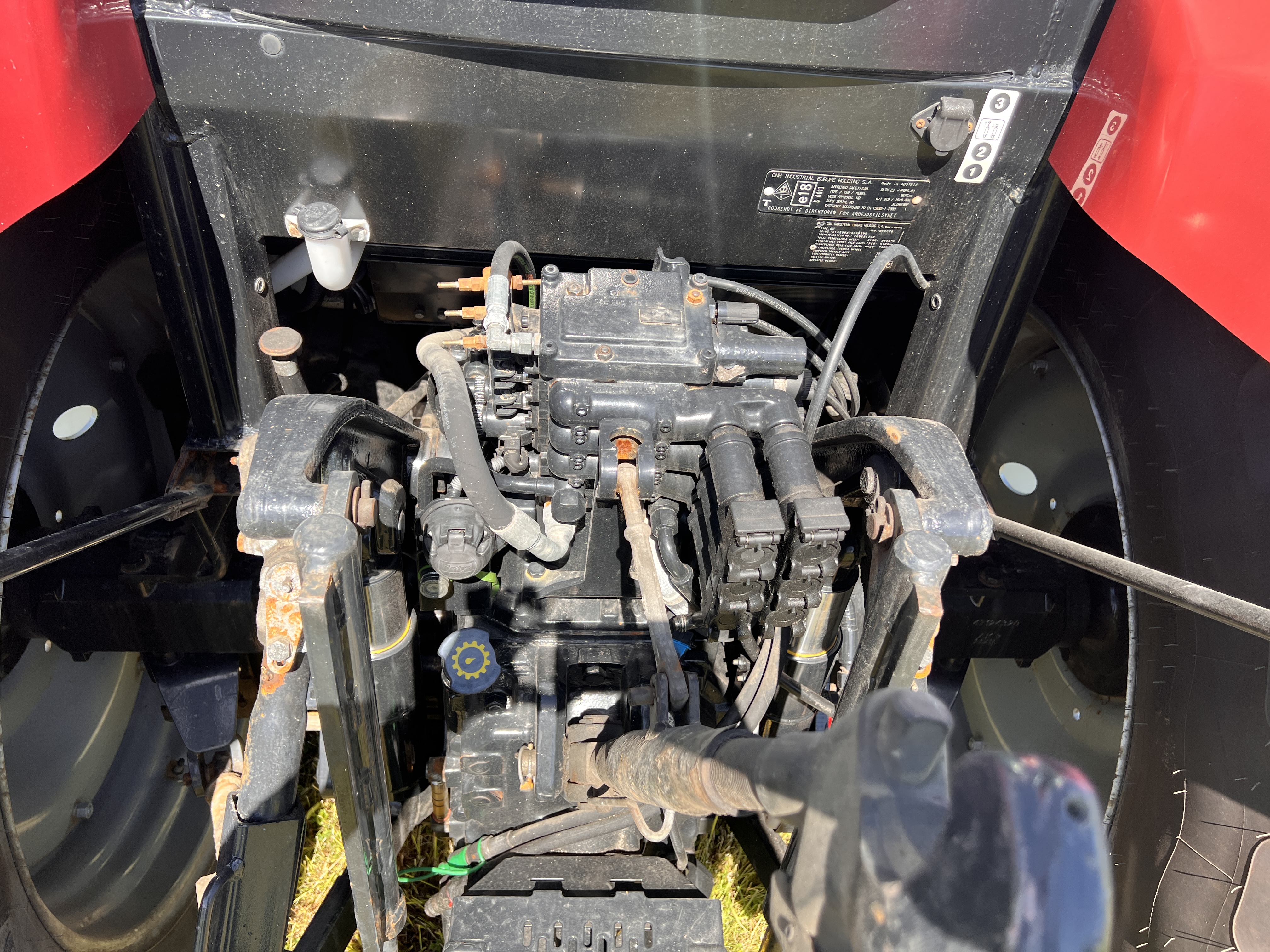

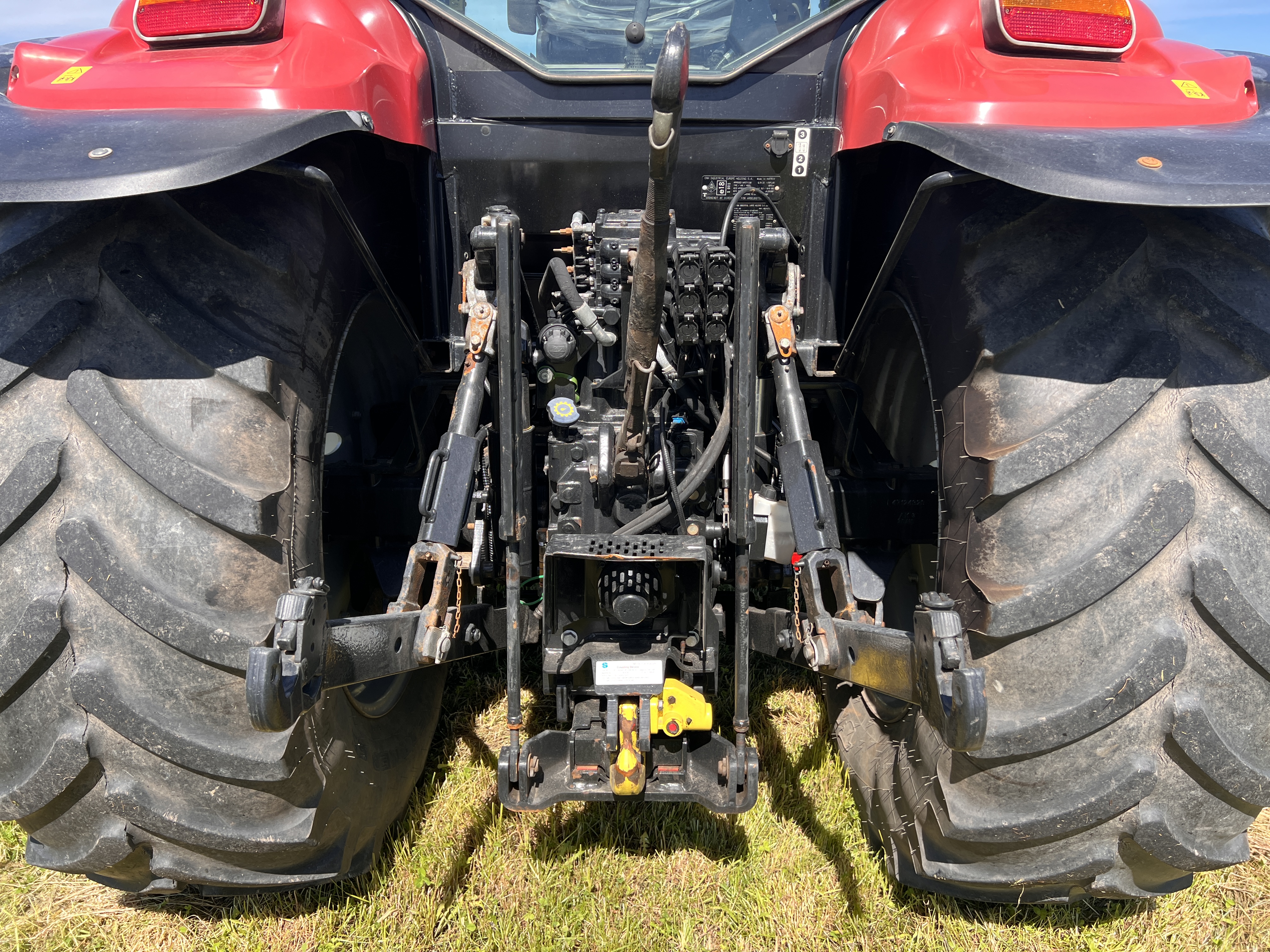

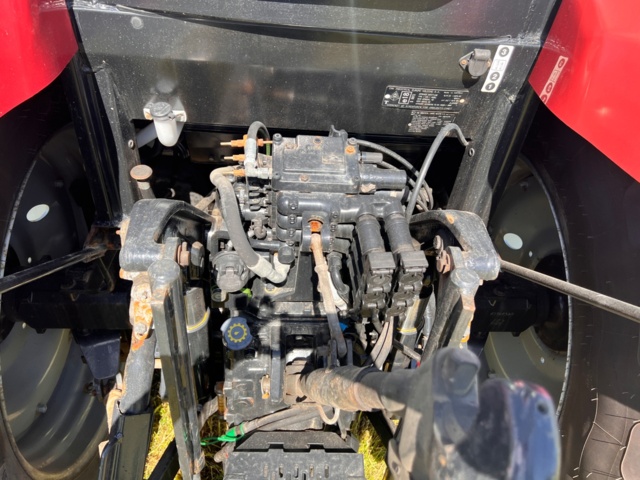

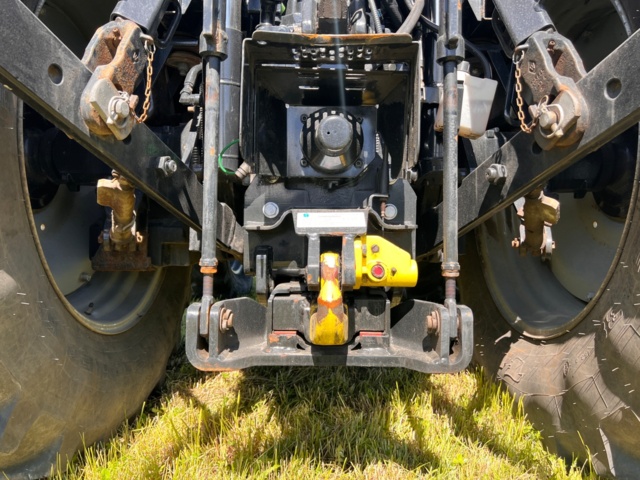

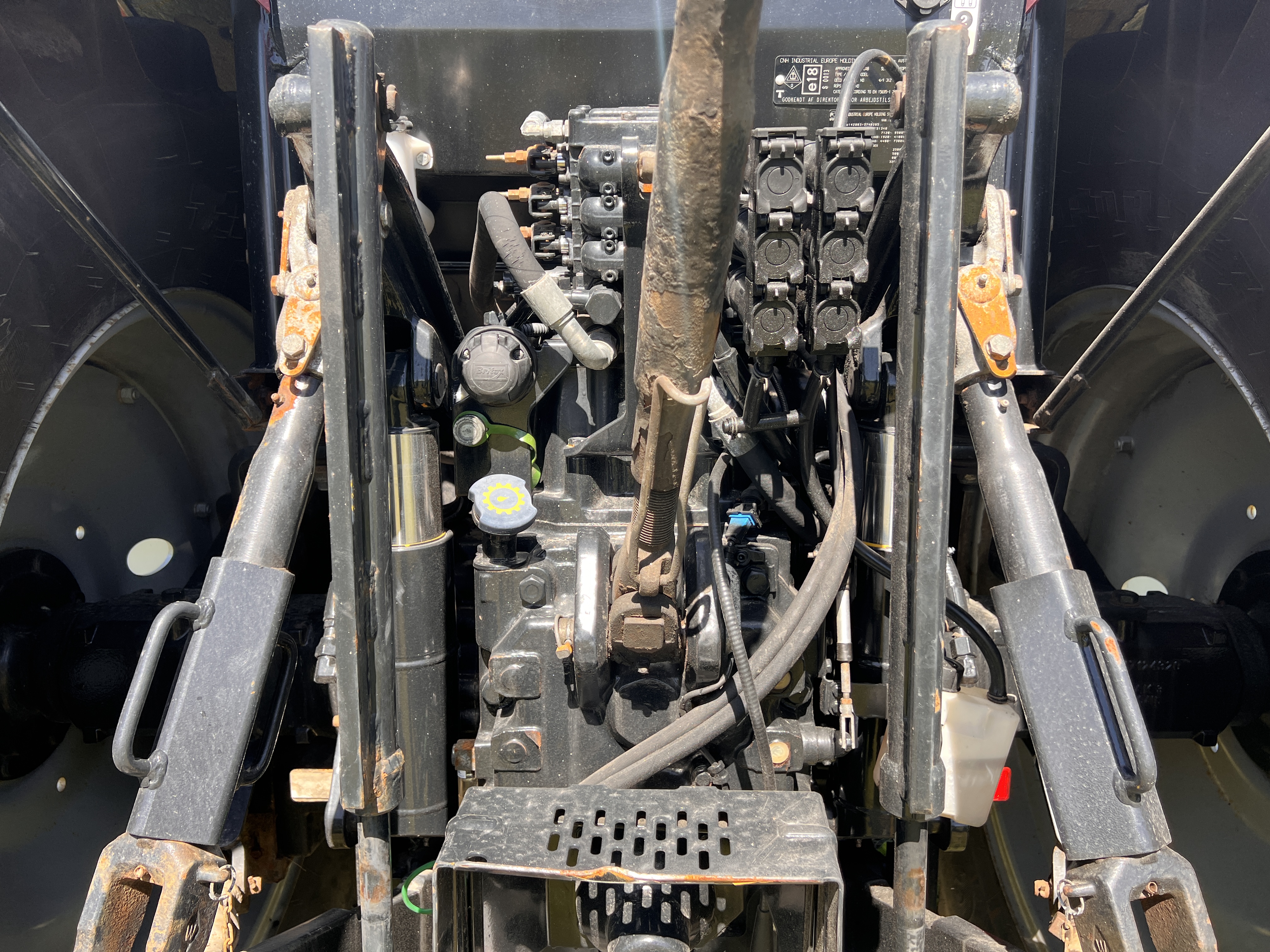

Three point and Hydraulics

Three-point coupling category: II / III

Traction position control: Yes

Electronic system: Yes

Sensing: 2

Lifting force of drawbars: 7115

Hydraulic pump type: 3

Hydraulic pump capacity: 113

Hydraulic pump capacity rpm: 2200

Hydraulic pump oil pressure: 200

External hydraulic outlet: 4 pcs

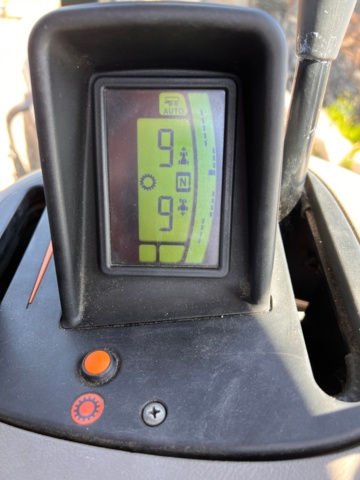

Gearbox

Name: Semi-powershift Eco

Number of gears: 17 x 16 with clutch-free front and reverse

Switches forward: 0.00 - 40.00

Rear gears: 0.00 - 40.00

Coupling: Hydraulic wet discs

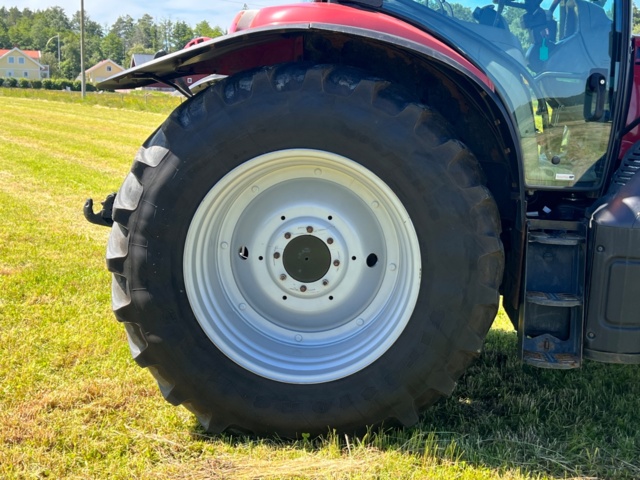

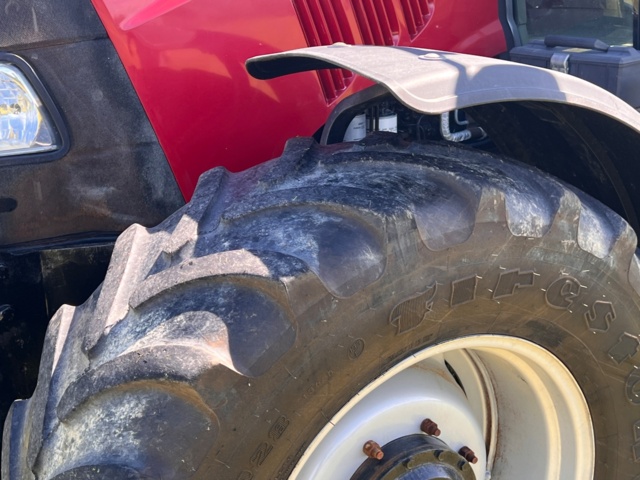

Deck

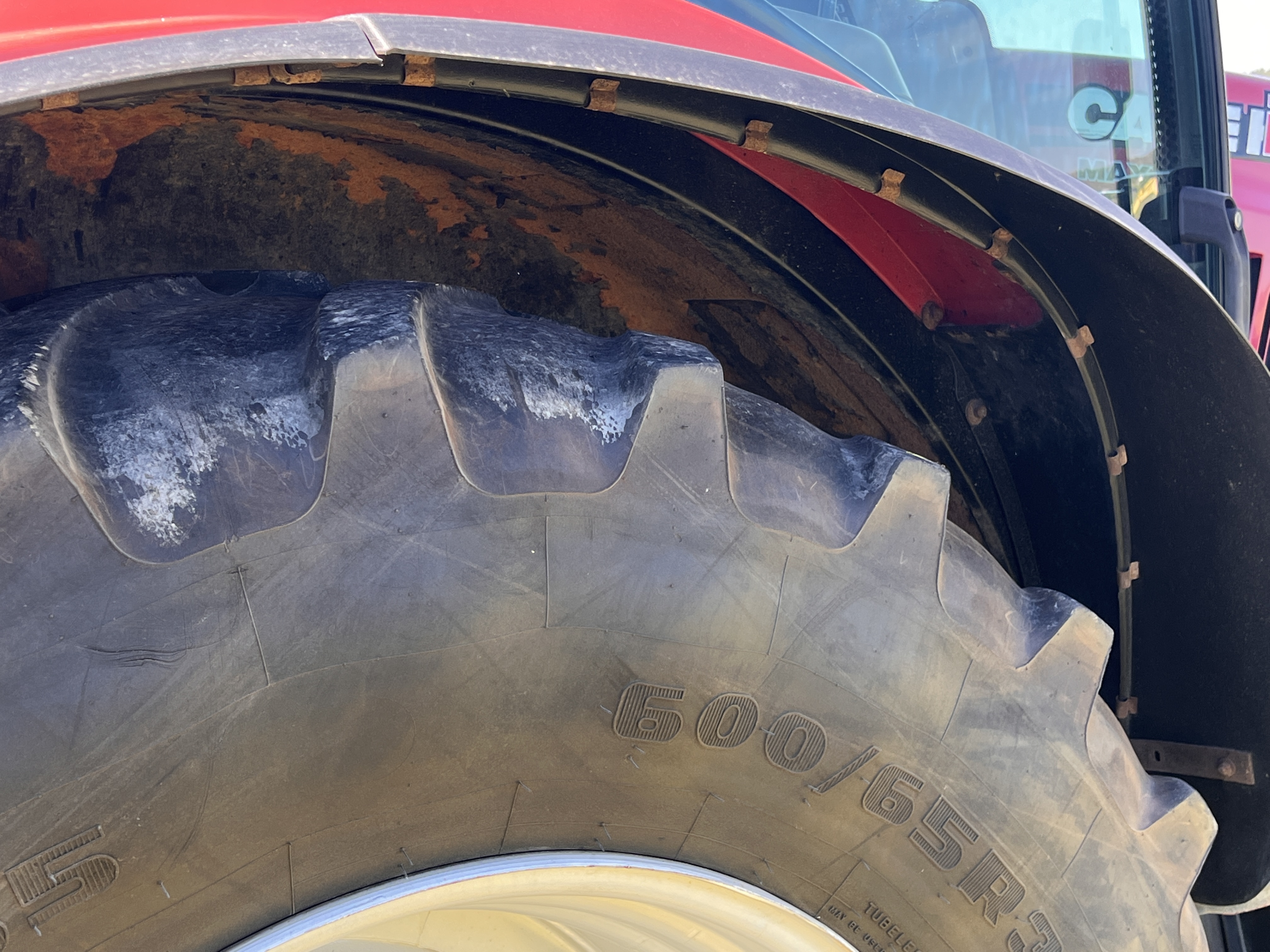

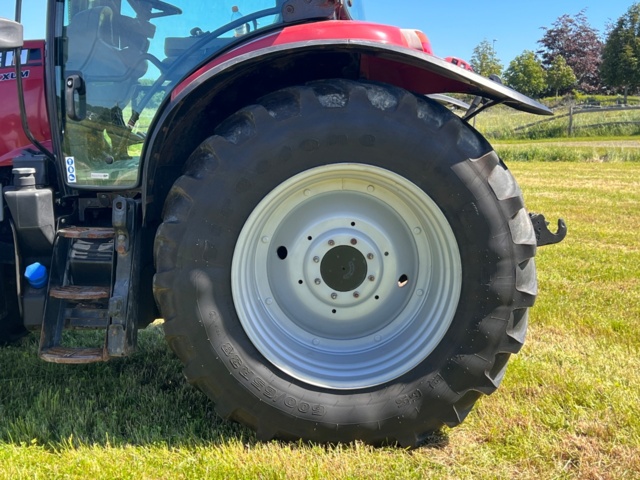

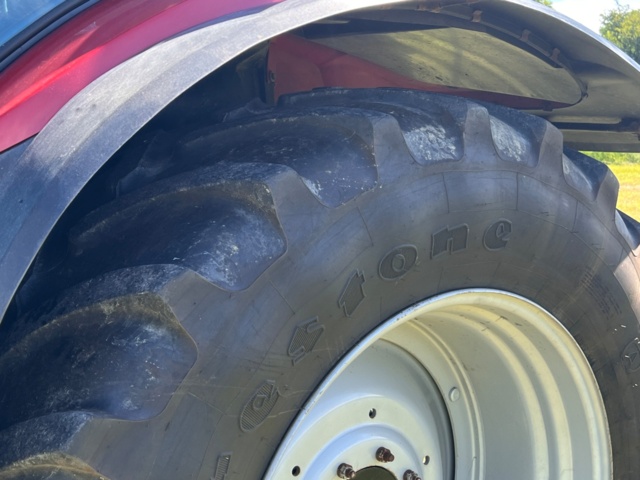

Firestone performer

600 / 65R38

480 / 65R28

Only 5% left of the tires, in need of replacement

According to spec: Front, 340 / 85Rx28 Rear, 460 / 85Rx38

Noise level: 71

Weights and Measures

Service weight: 5400 Kg

Front weight: 2200 Kg

Back weight: 3200 Kg

Total Length: 4292 mm

Total width: 2205 mm

Total height: 2925 mm

Wheelbase: 2387 mm

Front track width: 1530 mm

Rear track width: 1530 mm

Turning radius: 5200 mm

Clearance height: 480 mm

Remarks

Only 5% of the tires left. In need of replacement.
