LK SHUNTSKÅP VS2 1050-95

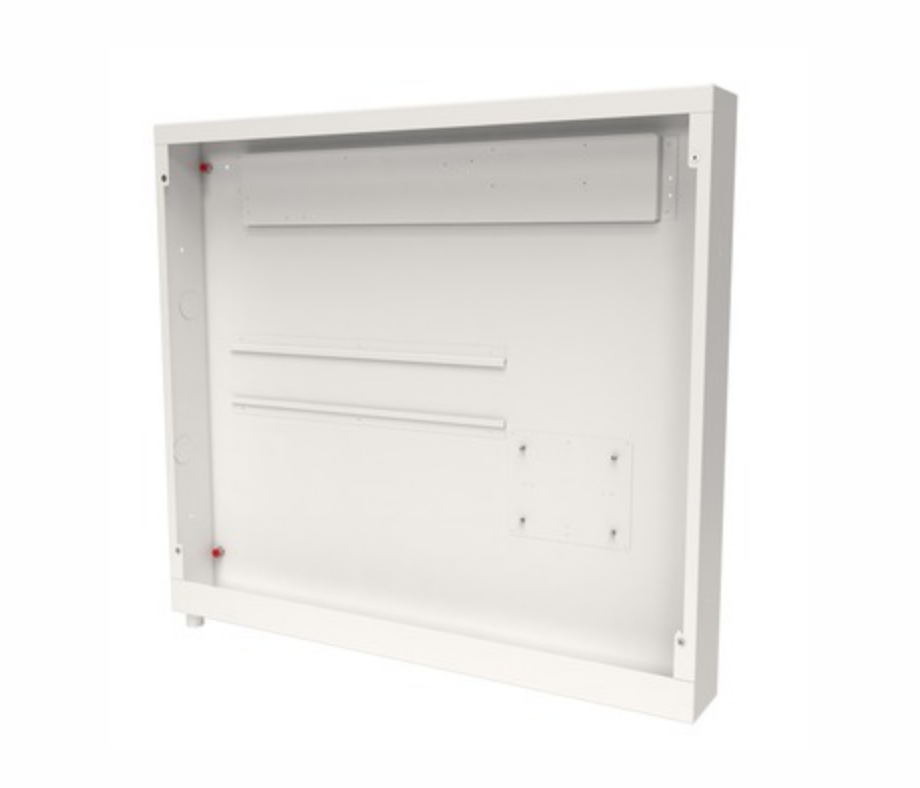

Used where you want to hide LK Manifold Shunt VS2 with mounted LK Heating Circuit Manifold RF. NOTE! LK Manifold Shunt VS2 is mounted in the right side of the cabinet. The cabinet has a tight bottom with rubber pipe penetrations. The bottom of the cabinet is provided with drainage gesture, which means that any leaking water is drained to an inspectable place. The cabinet is made of 1 mm powder-coated sheet steel, RAL 9016. The cabinet is intended to be mounted built into a wall or externally on a wall. The minimum rule thickness for installation is 95 mm. The cabinet is supplemented with a frame / door. There are two types of frame / door depending on whether the cabinet is mounted inside or outside on the inner wall. For external installation, the cabinet must also be supplemented with a base for hiding pipes between the cabinet and the floor. Supplied with pipe penetrations, bellows sleeve for drainage, 1.5 meter empty pipe for drainage, drainage bend with outlet washer, cable penetrations for room regulation, spray protection and installation instructions. The back of the cabinet is equipped with four pre-assembled M8 nuts that can be used for attachment to the LK Cabinet stand when you wish to mount the cabinet before a concrete slab is cast.
Species. no. 2435362
EAN. Species. no. 7331590046998
Model VS2 1050-95
Height 710 mm
Width 1080 mm
Type Shunt cabinet
Depth 95 mm
Material Sheet steel
Function Hide LK distributor shunt VS2
Design With drainage gesture
