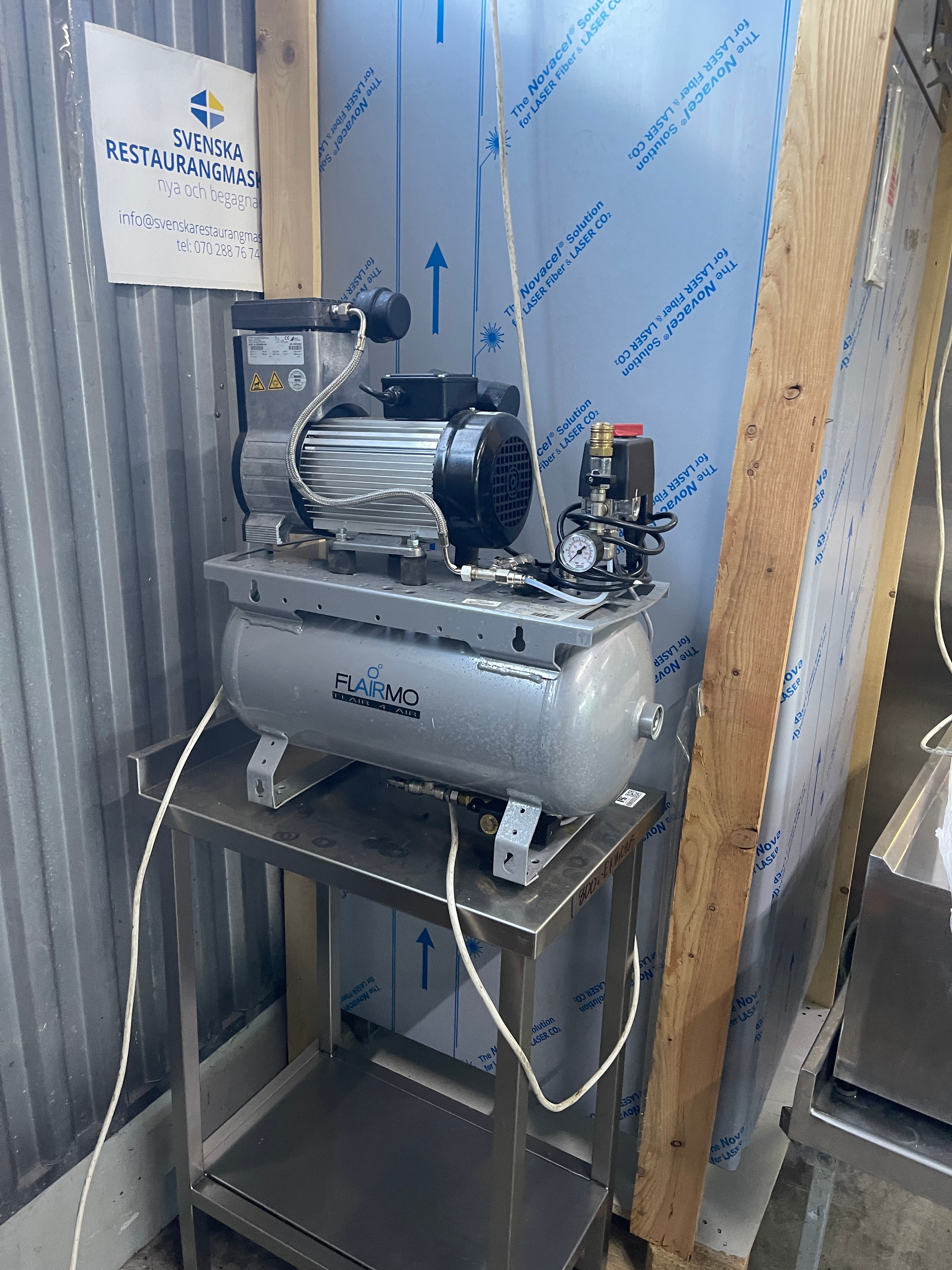

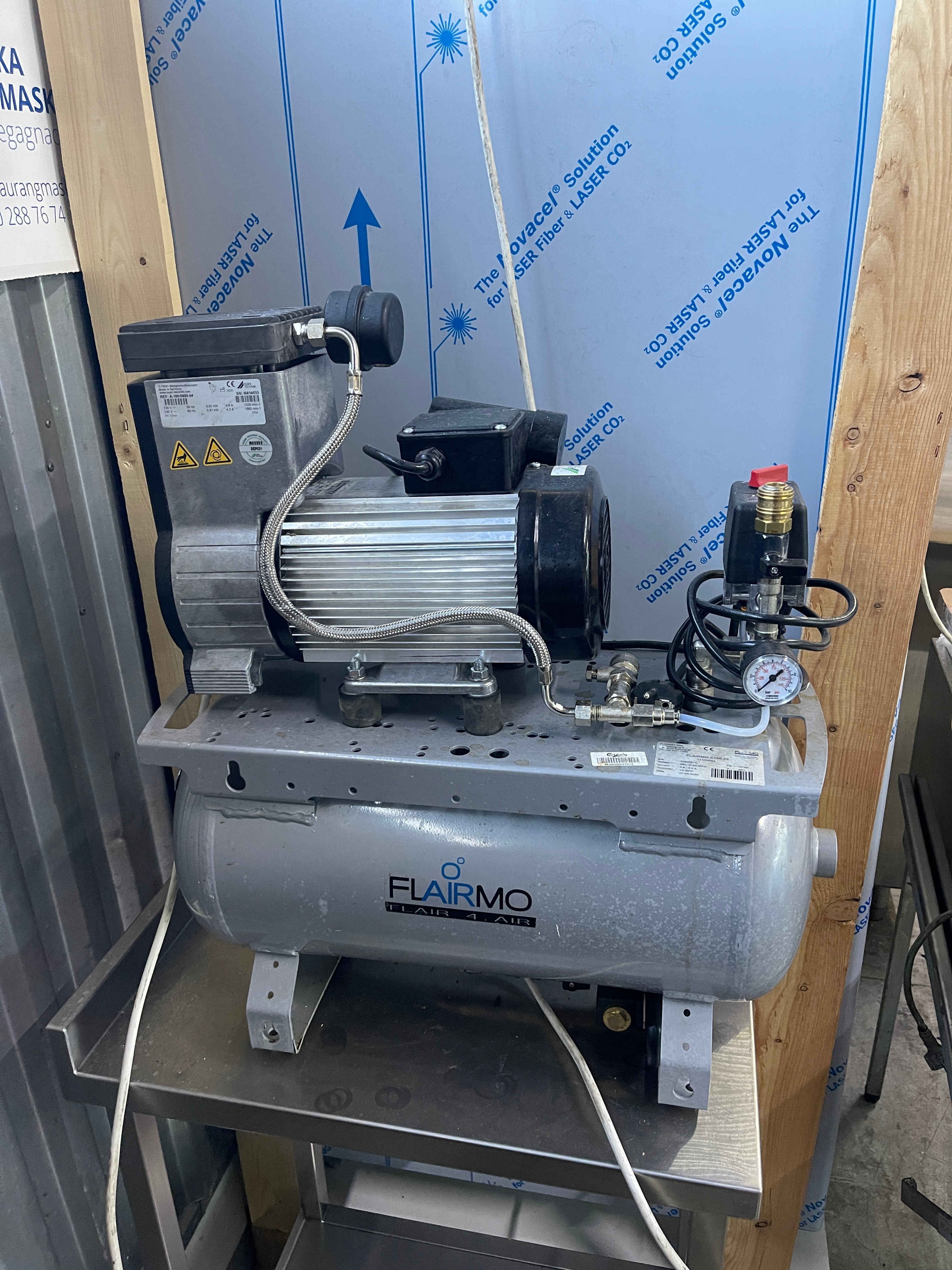

Flairmo A100,25 Professional oil-free dosing compressor station
Oil-free dosing compressor station based on DÜRR Technik. Long-life oil-free compressor unit mounted in a very robust and simple design with the following features: Internal coated receiver Automatic condensate removal Special mechanical relief valve High protection class (IP 44) No or minimal service required Wall mounting possible
Tank size 25L Inlet flow at 0 bar 105L/min Outlet flow at 0 bar 105L/min Outlet flow at 5 bar 75L/min Outlet connection 3/8" JG Max. Pressure PS allowed 10 Bar/145 Psi Nominal pressure PN 7 bar Low noise level 68 dB(A ) Cut in/out pressure 5 - 7 bar Motor 230V, 1.2 hp/0.92 kW Protection class IP 44 Power consumption 4.9 A Motor protection IP54 Operating time 100% S1 Compressed air tank Coated inside Max current 4.9 A Control and safety devices safety valve & thermal overload protection Dimensions (WxHxDmm) 630x670x250mm Weight 36 kg
