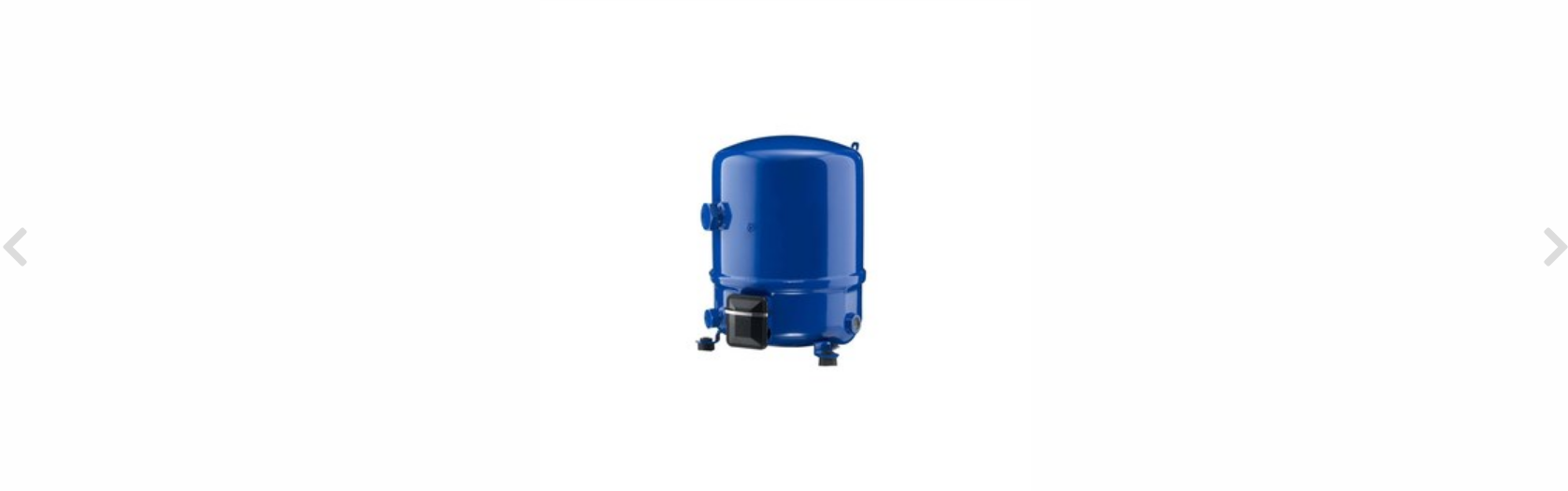

NTZ is a compressor for freezer applications, electric motor and valves are developed for low evaporation temperature. The compressor is filled with ester oil. Scope of delivery: rotalock connection, oil syngas and rubber feet. 400V 3-phase 50Hz, speed 2900 rpm. All cooling effects are calculated at 10 K superheating and 0 K subcooling, 40°C condensing. Approved for R452A and R404A.
Model NTZ096-4
Cooling power -35 °C for R404A 1730 W
Cooling power -35 °C for R452A 1820 W
Stroke volume 96 m³/h
Refrigerant R404A/R452A
